2AHI6NIAEBT411Truly Wire Free Earbuds

Charging the Case The earbuds have a total battery life of approximately 5 hours at 50% volume with ANC off. To charge the case, use the USB-C to USB cable (included), to connect to the USB port of a powered on computer or USB power adaptor (not included). When the case is charging the Power Indicator LED will flash red. When fully charged the LED will turn red. The total charge time is approximately 2 hours. Truly Wire Free Earbuds User’s Guide for Model IAEBT411 v2714-01 Function Touch Pad Note: The Function Touch Pad is sensitive and must be touched or tapped to operate properly. Tap and hold for 5 seconds to power ON/OFF. Tap to play/pause music. Tap to answer/end phone calls. Tap and hold for 2 seconds to reject incoming calls. Tap and hold for 2 seconds to activate Voice Assistant (LEFT). Press and hold for 3 seconds to switch modes between: Normal, Transparent, and ANC (RIGHT). Quickly tap twice to skip to next track (RIGHT ). Quickly tap twice to play previous tracks (LEFT). Quickly tap three times to turn volume up (RIGHT). Quickly tap three times to turn volume down (LEFT). Charging Contacts Charging Contacts Power Indicator LED Charging the Earbuds 1. Open the cover and place the earbuds on the charging contacts. Be sure to match the left and right earbuds with the correct docking station in the case. 2. When charging, the Power Indicator LED on the bottom of the case will turn blue. When charging is complete, the indicator LED will turn off. 3. Earbud Indicator LED will turn red when charging. When fully charged, the LEDs will turn off. Earbud Indicator LED/Microphone Red when charging. Lights off when fully charged. NOTE: Each earbud must be powered on separately. IAEBT411-2714-01-IB - 15Apr2021.indd 14/15/2021 10:47:44 AM Speakerphone • To accept or end a phone call, press the Function button. • You can also use the controls on the connected phone to handle phone functions. Charging Case & Auto-On Feature While the case power is ON: • Placing the earbuds in the charging case will automatically power them off and begin charging. • Removing the earbuds from the case will automatically power them on, link them, and connect to the last used Bluetooth device (earbuds must have been linked and connected to a Bluetooth device already). Pairing Bluetooth Note: When earbuds are powered on they automatically link and enter into pairing mode. You can power on a single earbud to use as a single unit if you wish. 1. With the earbuds linked, you can now connect to your Bluetooth device. The LED indicator on the right earbud will continue flashing blue and red, indicating it is ready to pair to a Bluetooth device. 2. On your Bluetooth device, access Bluetooth Settings and search for nearby devices. Select IAEBT411 when it is discovered. When successfully connected to your Bluetooth device, the LED indicator on both of the earbuds will flash blue, slowly and a voice prompt will announce the Bluetooth connection. 3. Audio played through the connected Bluetooth device will now be heard through both earbuds. Use the controls on the connected device to play audio and adjust volume. PLEASE NOTE: Due to the nature of truly wireless earbuds, you may experience slight interruptions with your audio in areas with multiple 2.4Ghz bands or in high wireless traffic areas. Customer Support Customer Service: 1-888-999-4215 | Email Support: prodinfo@ dpiinc.com | Email Parts: [email protected] For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com Copyright © 2021 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice. FCC Warnings WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. The device has been evaluated to meet general RF exposure requirement. Additional Warnings • WARNING: To prevent fire or shock hazards, do not expose this unit to rain …

Text truncated - open the document above for the full version.

Shenzhen Ruijiahua Technology CO.,LTD Agent Authorization Company: Shenzhen Ruijiahua Technology CO.,LTD Address: 4F, Ruide Building, No.20 Jiuwei first Road, Hangcheng Street, Bao’an District Shenzhen, China Product Name: Truly Wire Free Earbuds Model Number(s): IAEBT411, IAEBT411W, IAEBT411B, MAEBT411B, MAEBT411W Product Description: Truly Wire Free Earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 15, 2021 Name: Peter Yuan Title: Manager Company: Shenzhen Ruijiahua Technology CO.,LTD

Shenzhen Ruijiahua Technology CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 15, 2021 Subject; Request for Confidentiality FCC ID: 2AHI6NIAEBT411 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peter Yuan Title: Manager

Model Difference Declaration To Whom It May Concern, We, Shenzhen Ruijiahua Technology CO.,LTD(Truly Wire Free Earbuds) Trademark:iLIVE, memorex; Model Number: IAEBT411, IAEBT411W, IAEBT411B, MAEBT411B, MAEBT411W;All model’s the function, software and electric circuit are the same, only with a product color, appearance, trade mark and model named different for commercial purpose. Test sample model: IAEBT411. Please contact me if you have any question. Name: Peter Yuan Date: Apr. 15, 2021 Title: Manager Signature of applicant:

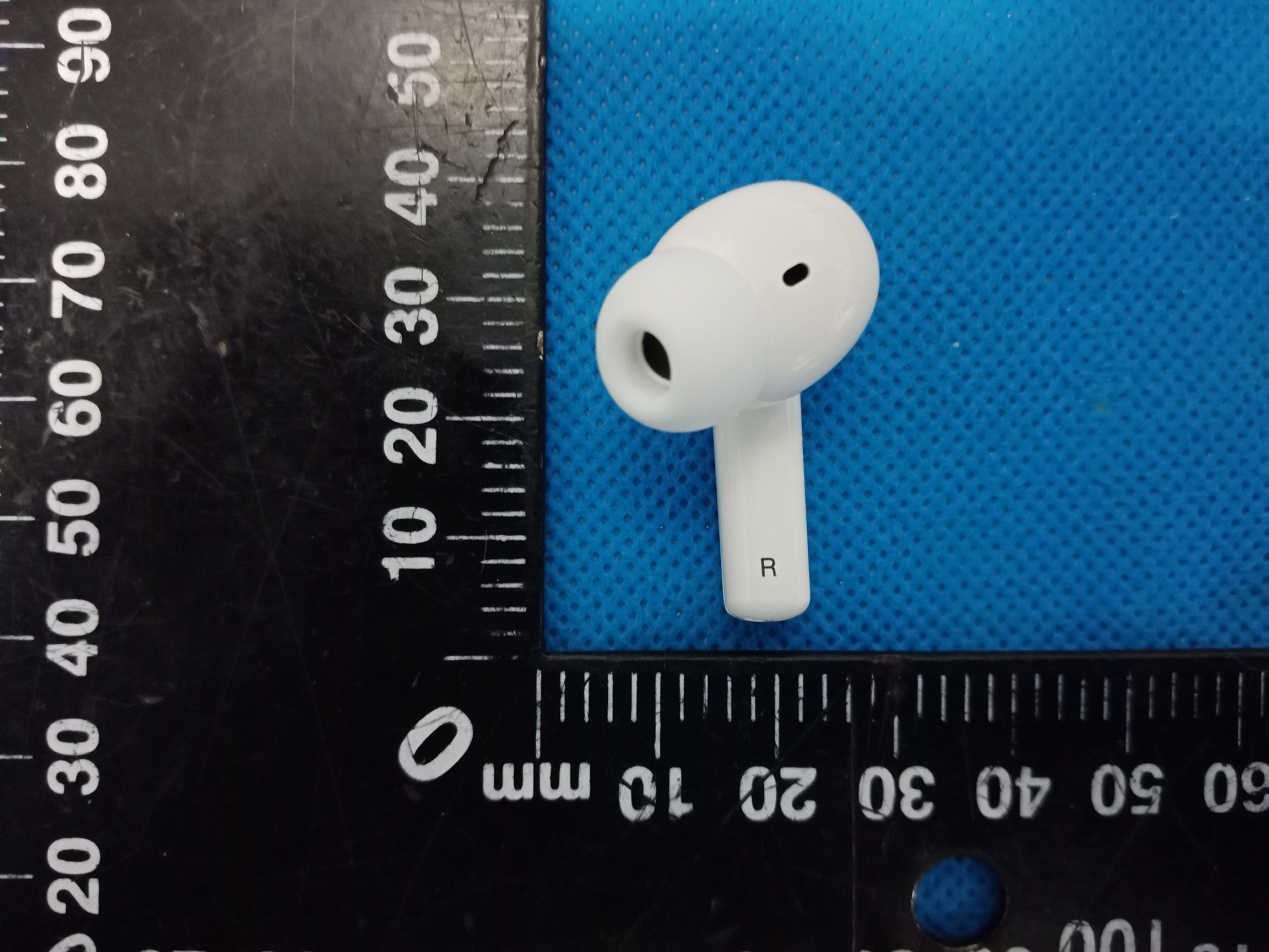

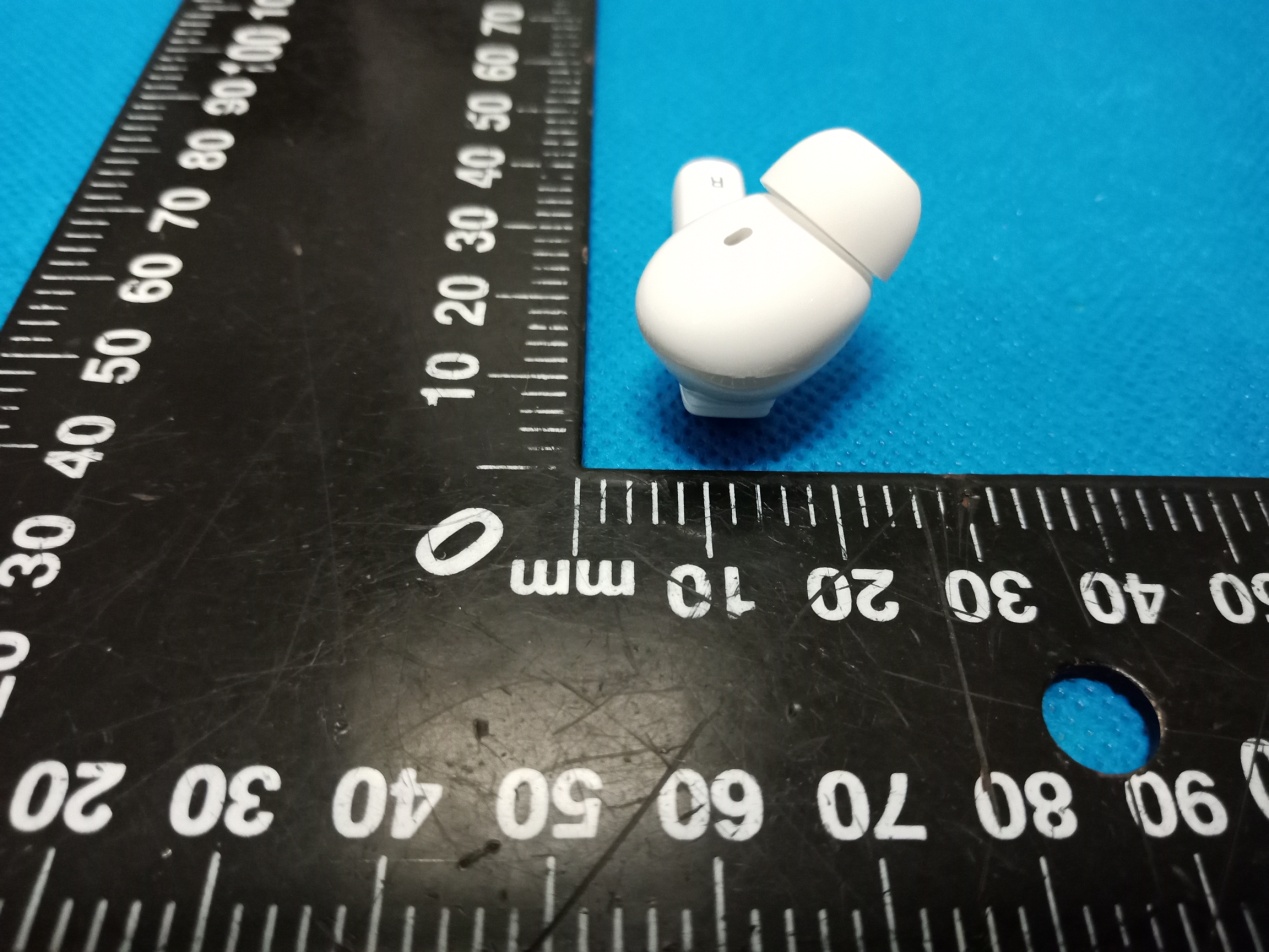

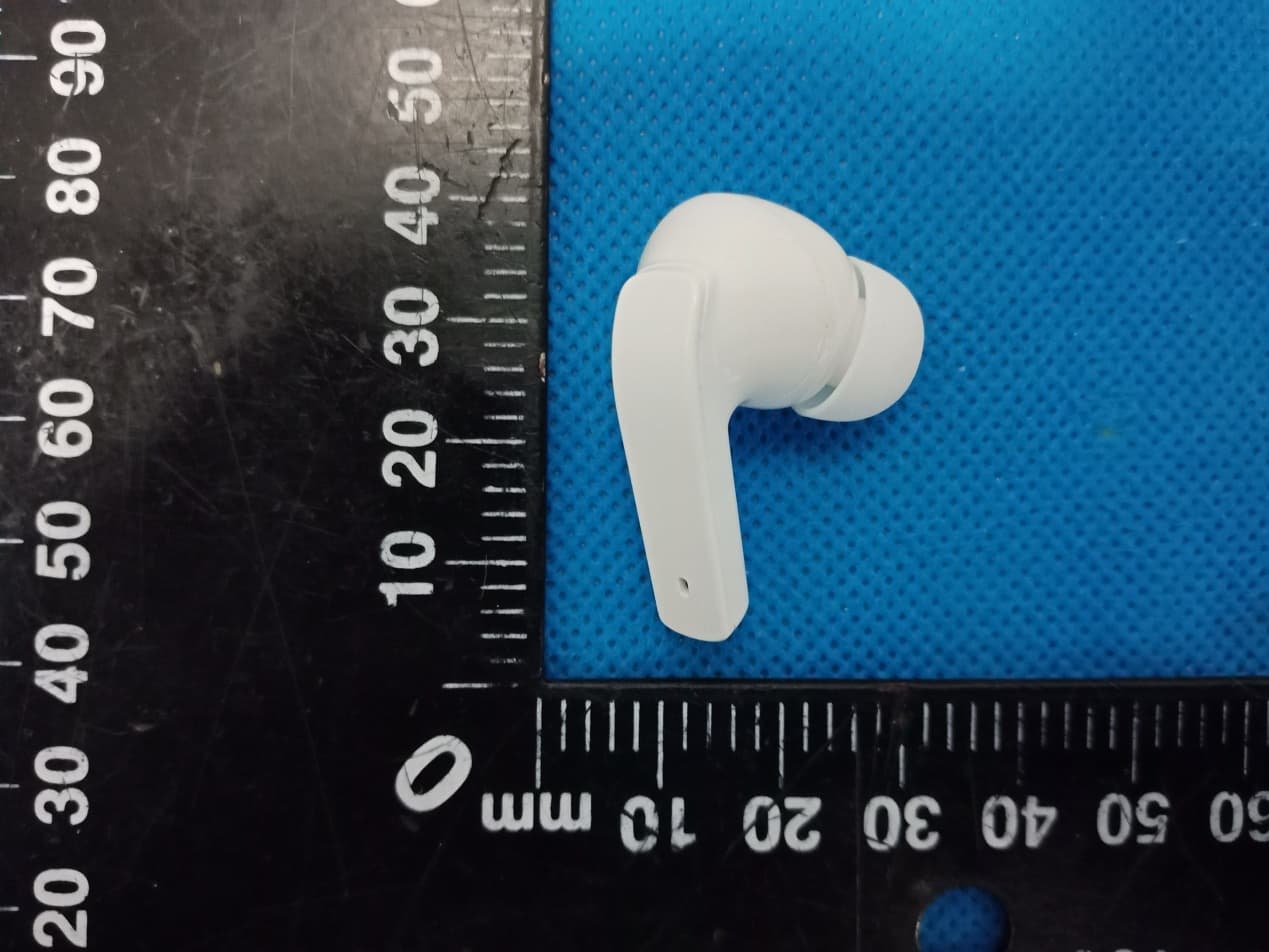

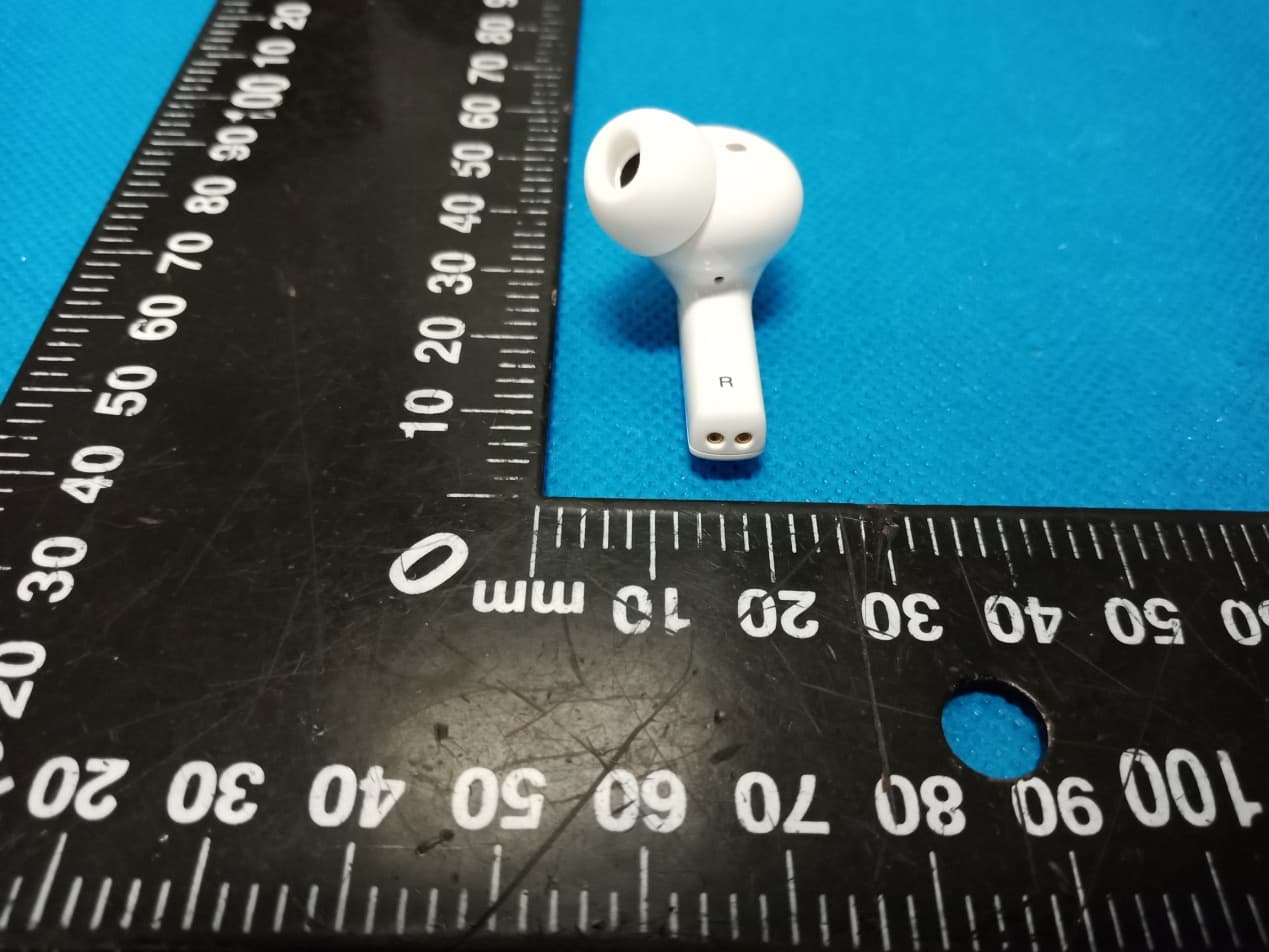

Annex A External Photos Report No.: HK2103230819‐1E/2E Page 1 of 4 Report No.: HK2103230819‐1E/2E Page 2 of 4 Report No.: HK2103230819‐1E/2E Page 3 of 4 Report No.: HK2103230819‐1E/2E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AHI6NIAEBT411

Annex B Internal Photo Report No.:HK2103230819-1E/2E Page 1 of 4 Antenna Report No.:HK2103230819-1E/2E Page 2 of 4 Report No.:HK2103230819-1E/2E Page 3 of 4 Report No.:HK2103230819-1E/2E Page 4 of 4

FCC RF Exposure EUT Description: Truly Wire Free Earbuds Model No.: IAEBT411 FCC ID: 2AHI6NIAEBT411 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation 2.4G Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR 3.369 2.5±1(3.5) 2.239 5 0.694 3.0 Pass BLE 2.146 1.5±1(2.5) 1.778 5 0.551 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2103230819-1E/2E antenna gain=1.06dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.694 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm
