2AHI6NIAEBTNQ102Truly wireless noise canceling earbuds

Charging the Case Using a USB-C to USB cable (included), connect to the USB port of a powered-on computer or UL certified USB power adaptor (not included) to charge the case. When the case is charging the Power & Battery Indicator LEDs will flash blue. When fully charged all LEDs will turn solid blue. Truly Wireless Noise Canceling Earbuds User’s Guide for Model IAEBTNQ102 Power & Battery Indicator LEDs The 4 Blue LEDs represent the amount of battery the case charger has. 1 LED=25% 2 LEDs=50% 3 LEDs=75% 4 LEDs=100% • Touch and hold for 5 seconds to power ON/OFF. • Tap to play/pause music. • Tap to answer/end phone calls. • Press and hold for 2 seconds to reject incoming calls. • Quickly tap twice to skip to next track (RIGHT). • Quickly tap twice to play previous tracks (LEFT). • Press and hold for 2 seconds to activate voice assistant (LEFT). • Press and hold for 2 seconds to switch modes between: Normal, Transparent and ANC (RIGHT). Charging Contacts Charging Contacts Charging the Earbuds 1. Open the cover and place the earbuds on the charging contacts. Be sure to match the left and right earbuds with the correct docking station in the case. 2. Earbud Indicator LEDs will turn red when charging. When fully charged, the LEDs will turn off. Note: These earbuds are quick charging. 20 minutes of charging gives the earbuds 1 hour and 10 minutes of playtime. Earbud Indicator LED/Microphone Red when charging. Lights off when fully charged. Function Button IAEBTNQ102-3069-01-IB - 06Mar2023.indd 1IAEBTNQ102-3069-01-IB - 06Mar2023.indd 13/6/2023 2:43:07 PM3/6/2023 2:43:07 PM Charging Case & Auto-On Feature While the case power is ON: • Placing the earbuds in the charging case will automatically power them off and begin charging. • Removing the earbuds from the case will automatically power them on, link them, and connect to the last used Bluetooth device (earbuds must have been linked and connected to a Bluetooth device already). Pairing Bluetooth Note: When earbuds are powered on, they automatically link and enter into pairing mode. You can power on a single earbud to use as a single unit if you wish. 1. With the earbuds linked, you can now connect to your Bluetooth device. 2. On your Bluetooth device, access Bluetooth Settings and search for nearby devices. Select IAEBTNQ102 when it is discovered. When successfully connected to your Bluetooth device, a voice prompt will announce the Bluetooth connection. 3. Audio played through the connected Bluetooth device will now be heard through both earbuds. Use the controls on the connected device to play audio and adjust volume. PLEASE NOTE: Due to the nature of truly wireless earbuds, you may experience slight interruptions with your audio in areas with multiple 2.4Ghz bands or in high wireless traffic areas. Customer Support Customer Service: 1-888-999-4215 | Email Support: prodinfo@ dpiinc.com | Email Parts: [email protected] For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com Copyright © 2020 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice. FCC Warnings WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Additional Warnings • WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture. • WARNING: Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable. • Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area. • This product meets and complies with all Federal regulations. • To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level. WARNING : This product can expose you to chemicals including …

Text truncated - open the document above for the full version.

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model BT8892E, which installed in our product Truly wireless noise canceling earbuds, Model: IAEBTNQ102, IAEBTNQ102B, FCC ID: 2AHI6NIAEBTNQ102, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), BLE 1M and BLE 2M functions. For use in America and this chip will not support/enable BLE 1M/2M. The BLE 1M/2M has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely Yours, Signature: Peter Yuan Sales Manager

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] Declaration Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product, Truly wireless noise canceling earbuds, Model number: IAEBTNQ102, IAEBTNQ102B, FCC ID: 2AHI6NIAEBTNQ102, is a twins earbud that has a left earbud and a right earbud. We would like to declare that the left earbud and right earbud are electrically identical. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Peter Yuan Sales Manager

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AHI6NIAEBTNQ102 SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Peter Yuan Title: Sales Manager Company Name& Address: SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD&4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AHI6NIAEBTNQ102 SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Peter Yuan Title: Sales Manager Company Name& Address: SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD&4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA

U.S. AGENT LETTER OF ATTESTATION Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AHI6NIAEBTNQ102 SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD (“the Applicant”) certifies that, as of the date of the filing of the application, C.H.Powell Company (U.S. agent). is our designated U.S. agent for service of process for the above referenced FCC ID. SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD (“the Applicant”) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. C.H.Powell Company (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: C.H.Powell Company Address: 4477 Woodson Road Ste 123St .Louis.Mo 63134 USA Tel:314-472-1212 Email: [email protected] Signed by (printed name): Kari Signature: Applicant: SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA FRN: 0025332933 Tel: 86-755-2965 6966 Email: [email protected] Signed by (printed name): Peter Yuan Signature:

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] QA-FR-170-B FCC Authorization Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Peter Yuan Sales Manager

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] Product Similarity Declaration Date: 2023-04-04 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, We, SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD hereby declare that we have a product named as Truly wireless noise canceling earbuds, Model No.: IAEBTNQ102, FCC ID: 2AHI6NIAEBTNQ102, was tested by China Certification ICT Co., Ltd (Dongguan), meanwhile, for our marketing purpose, we would like to list a series model: IAEBTNQ102B on reports and certificate, all the models are identical electrically, except for the model number. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Peter Yuan Sales Manager

SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD Address: 4F RUIDE BUILDING, NO.20 JIUWEI FIRST ROAD, HANGCHENG STREET, BAO’AN DISTRICT,SHENZHEN,CHINA Tel：86-755-2965 6966 Fax：86-755-2965 6969 E-mail: [email protected] Date: 2023-04-04 FCC certification No. Cover Letter We, SHENZHEN RUIJIAHUA TECHNOLOGY CO.,LTD, hereby submit justification for placing the FCC certification No. in the associated user’s manual and charging case. According to the FCC regulation, the FCC certification No. should be printed on the earbuds, but as the earbuds are too small to print the label (FCC ID: 2AHI6NIAEBTNQ102) , it will be moved to the user manual and charging case. The details are as below: A. Side surface (A): The side surface does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. B. Top cover (B): The top cover does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device is unquestionably too small for enabling the FCC certification No. to be printed onto any surface. We therefore request to move the FCC certification No. to the user’s manual and charging case. Label and label location: Best regards, Signature: Peter Yuan Sales Manager

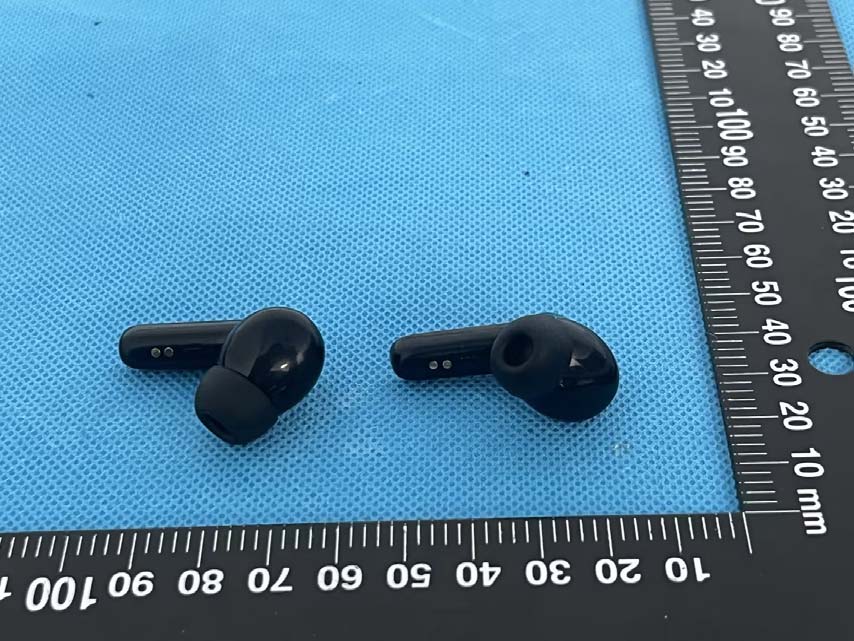

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS port

Label: Label Location:

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Left Righ t Antenna Chip battery

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (BT8892E); Crystal oscillator (26MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. Modulation Technique: GFSK, π/4-DQPSK, 8DPSK

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230311083-00 Page 56 of 56 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 6.0 dBm (3.98 mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =3.98/5*(√2.480) = 1.3< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary. ===== END OF REPORT =====
