2AHJ5-S5SPRO2AHJ5-S5SPRO

Safety and Usage Precautions Terms of Warranty Your hardware is covered for up to one year from the date of purchase. This limited warranty applies solely to you, the original purchaser, and is non-transferable to any subsequent owner, lessee, or recipient of the product. This warranty does not cover and we are not responsible for: Damages resulting from misuse, abuse, accidents, fire, theft, loss, or misplacement. Damage caused by power fluctuations, surges, or connections to improper voltage sources. Damage caused by viruses, malware, or malicious software. Damage resulting from reckless, willful, or intentional conduct. Damage due to servicing performed by unauthorized personnel. Damage caused by improper use inconsistent with product instructions or user manuals, including failure to perform necessary cleaning or preventive maintenance. Damage resulting from modifications to the product or its components without prior written approval. Normal wear and tear, including gradual image degradation, uneven screen aging, burn-in, or pixel failure within the product’s specified tolerances that do not significantly impair functionality. Software issues, including the operating system, pre-installed software, third-party applications, or reloaded software. Components or equipment not originally supplied with the product. Minor imperfections that meet design specifications.External appearance damage such as scratches, cracks, or other cosmetic issues that do not affect functionality. Missing, altered, or defaced serial numbers. Wireless data services provided by third-party providers. Damage caused during transportation or improper packaging when returning the product. Warranty Statement Do not use the device in environments containing combustible gases, vapors, or dusts. Non-professional users must not disassemble or repair the power adapter, as there is a risk of high-voltage electric shock. Avoid installation or operation during thunderstorms to prevent damage caused by lightning strikes. If overheating, smoke, or abnormal odors are detected, disconnect the power immediately. Do not operate the device in extreme environmental conditions such as very cold, hot, or humid environments. For cleaning, use a dry, soft cloth. If necessary, a surface cleaner spray can be applied after the device is powered off, ensuring no liquid enters the device. Avoid dropping or throwing the device. Handle with care and do not forcibly adjust the screen angle. Use the device in a clean, dust-free environment. Prevent the intrusion of small metal objects and insects into the device. Technical Data Android POS Terminal The pictures are for reference only; please prioritize practicality. User Manual Package Content Desktop Terminal Installation 1. Open the Cable Management Front Cover 3. Connect the Power Cord 2. Install the Cable Management Front Cover Device Interfaces Introduction Please check the following parts before use: Host Computer Power Adapter 美团S5 Pro 、S5S Pro英文说明书（A4尺寸） 材质：A4纸，正反两面单黑打印 34 56 78 12 Startup Procedure – Single Monitor / Dual Monitors Power Button Main Screen Designed for operator use. 3 4 1 2 Cable Management Bin All types of cables can be connected and routed through this bin. 1.Press the Power Button to power on the device. The display will activate. Upon initial boot, the startup interface will appear. Follow the on-screen prompts to proceed with operation. 2.The device supports two methods of internet connectivity: Wireless Connection: Select the desired wireless network from the available options on the welcome screen. Enter the network password when prompted to establish a connection. Wired Connection: Connect an Ethernet cable from the network source to the device’s network port to establish a wired connection. When the device is off, short press the button to turn it on. When the device is on: Long press for 4 seconds to initiate a soft power-off. Long press for 11 seconds to perform a hard power-off. Secondary Screen For display use only. Main Screen: 15.6’’, FHD 1920*1080 Secondary Screen: 10.1”, HD 1280*800 (dual-screen model) G + G, 10 Point Touch Meituan OS OS Storage Wi-Fi Bluetooth Display Parameter Touch Screen Speaker Overall Size Power Adapter Working Temperature Working Humidity Storage Temperature Storage Humidity 4GB RAM + 32GB ROM 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac/ax Bluetooth 5.4 3W 372*160*329mm (L*W*H) INPUT: 100-240V~ 50/60Hz OUTPUT: 24V 1.5A 10~90RH -20 C~60C -10 C~55C 20~80RH Power Port Type-CCashbox Port Network EarphoneUSB*2 Electronic Scale USB*2 2 Cable Management Bin 1 Main Screen Power Button Locate the reserved handle position on the cable management front cover. Use this handle to open the column front cover. Alternatively, you can simply grip the column front cover with your hand and remove it. Insert the DC power connector of the adapter through the bottom of the base and connect it to the power port on the host column. Then, plug the other end of the adapter into the mains socket. First, install the cable Management front cover near the bottom, then secure it by buckling it back into the other positions along the edge. Handle position 3 Secondary Screen 4 90101-46910 FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the foll…

Text truncated - open the document above for the full version.

EC Electronics, Limited Covered Equipment Certification Attestation Letter 3/2/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AHJ5-S5SPRO EC Electronics, Limited (“ the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. EC Electronics, Limited (“ the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. EC Electronics, Limited (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Eric Shiu Title: Manager Company Name: EC Electronics, Limited Date: 3/2/2026

EC Electronics, Limited Room 2A, 2/F., Mai Tak Industrial Building, 221 Wai Yip Street, Kwun Tong, Kowloon Hong Kong China Date: March 2, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHJ5-S5SPRO FRN: 0025215401 US Agent – Attestation Statement / Part 2.911(d)(7) EC Electronics, Limited certifies, that as of March 2, 2026, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AHJ5-S5SPRO EC Electronics, Limited, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of EC Electronics, Limited for FCC ID: 2AHJ5-S5SPRO Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: EC Electronics, Limited Designated Agent: FCC US Agent, LLC Company Representative: Eric Shiu Designated Agent Representative: Tim Payne Signature: Email: [email protected] Tel: (852) 3590 6397 Signature:

EC Electronics, Limited March 2, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHJ5-S5SPRO Product Name: Desktop Terminal Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Eric Shiu Company Name EC Electronics, Limited Address Room 2A, 2/F., Mai Tak Industrial Building, 221 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong, China Tel (852) 3590 6397 Fax (852) 3590 6397 Email [email protected]

EC Electronics, Limited Differences Description We EC Electronics, Limited state: Product name: Desktop Terminal Model: ：S5S Pro, EC-MT-S5-Pro, MT-S5-Pro, MTPOS-S5 Pro, EC-MT-S5S-Pro, MT-S5S-Pro, MTPOS-S5S Pro, POS A15, POS A15 Pro, ELZ-A15, ELZ A15 Pro, Android POS Terminal ELZ-A15, POS android ELZ-A15, S5 Pro After verification, all the models, except for the different names, have one additional difference: Model S5 Pro has only one secondary screen, while all the other models have one main screen and one secondary screen. Apart from the difference in the secondary display, all models of PCB design, software, electric circuit, radio frequency characteristics, appearance are consistent. 2026-3-2 Name Eric Shiu Position Manager Company Name EC Electronics, Limited Address Room 2A, 2/F., Mai Tak Industrial Building, 221 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong, China Tel (852) 3590 6397 Fax (852) 3590 6397 Email [email protected] (Signature) EC Electronics, Limited Model: S5S Pro EC Electronics, Limited Model: S5 Pro

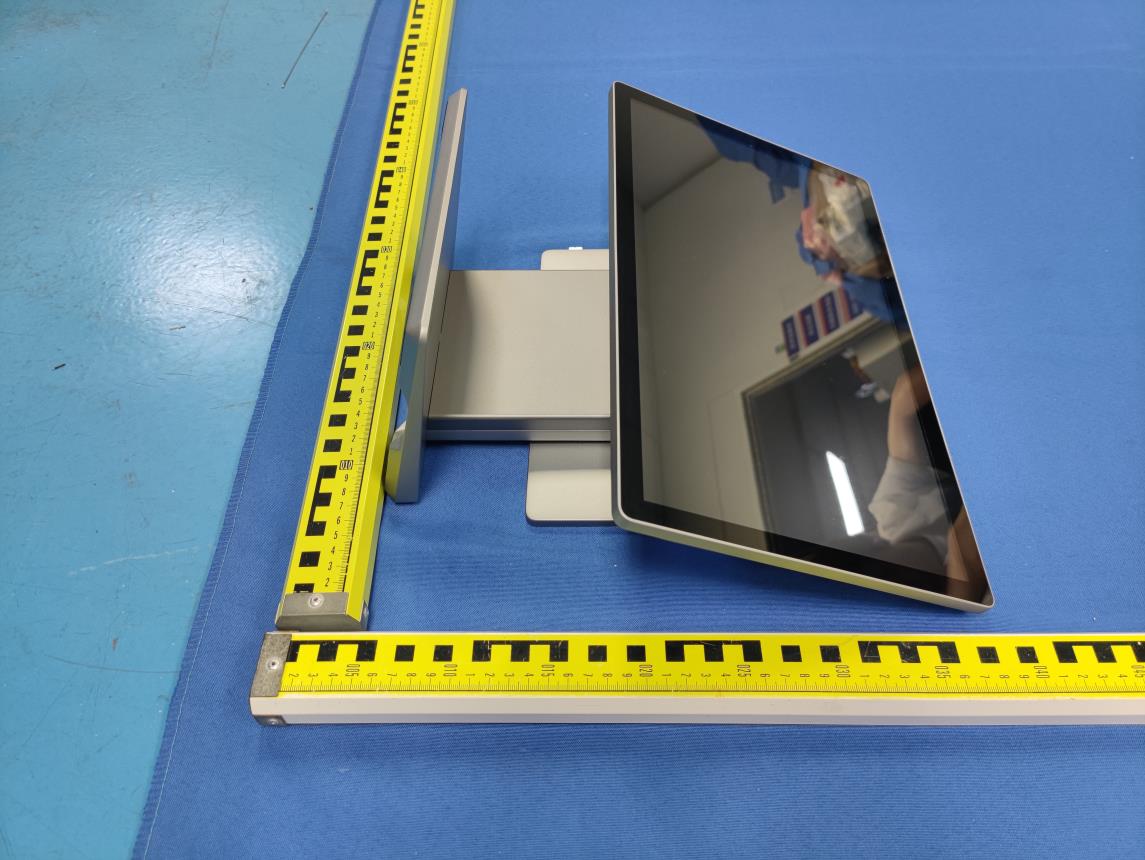

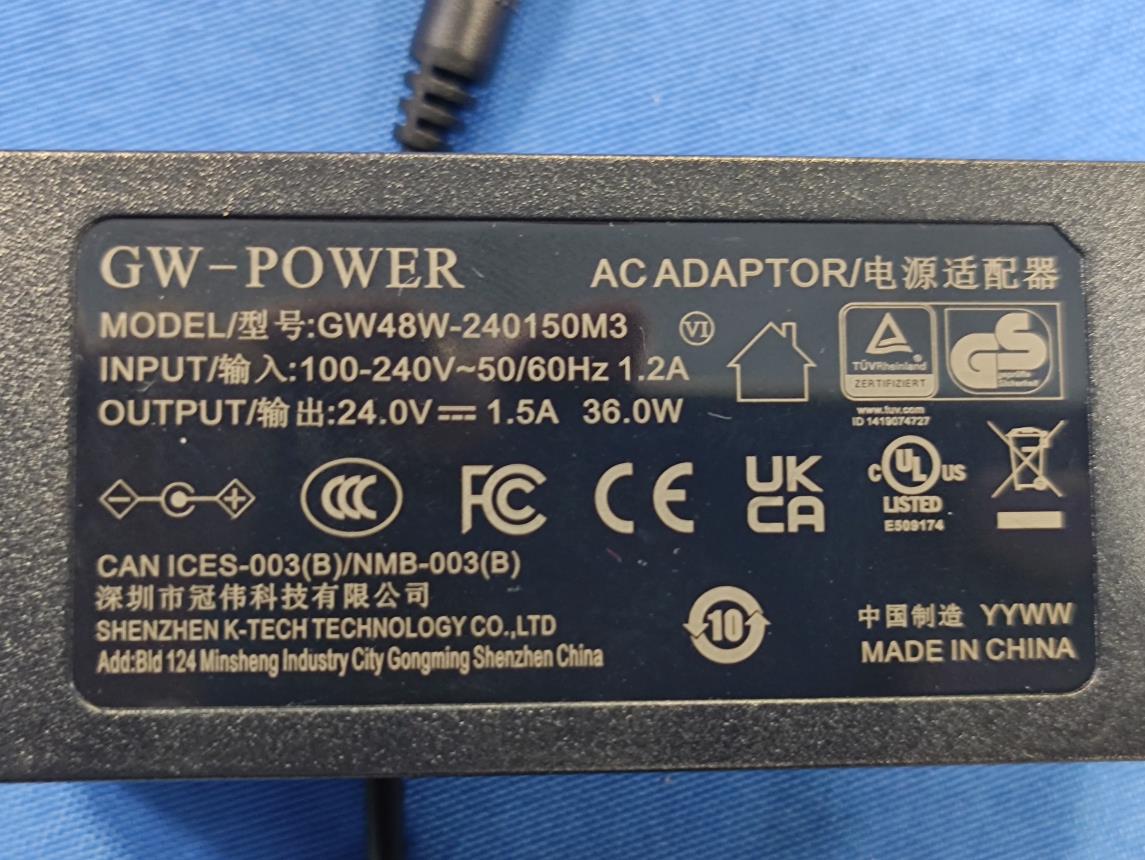

FCCID: 2AHJ5-S5SPRO Model: S5S Pro FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO Model: S5 Pro FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO

4.5cm 2.5cm Label Location FCC ID: 2AHJ5-S5SPRO EC Electronics, Limited Product name: Desktop Terminal Model No.: S5S Pro This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCCID: 2AHJ5-S5SPRO Model: S5S Pro FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO WIFI ANT EDR+BLE ANT FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO Model: S5 Pro FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO

FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO FCCID: 2AHJ5-S5SPRO EDR+BLE ANT WIFI ANT FCCID: 2AHJ5-S5SPRO

FCC ID: 2AHJ5-S5SPRO Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2AHJ5-S5SPRO 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) MPE Test Exclusion dBm mW EDR 2402-2480 20 2.223 1.6684 0.00063 1 Yes BLE 2402-2480 20 2.669 1.8488 0.00070 1 Yes 2.4GWIFI 2412-2462 20 14.978 31.4630 0.01220 1 Yes 5GWIFI U-NII-1 5180-5240 20 14.6 28.8403 0.01042 1 Yes 5GWIFI UNII-3 5745-5825 20 14.603 28.8602 0.01042 1 Yes Maximum Simultaneous transmission MPE Ratios for BLE+2.4GWIFI: Max MPE ratio BLE /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.00063 0.01220 0.01283 1 PASS EDR&BLE Antenna Gain: 2.78dBi, 1.90(numeric) 2.4GWIFI Antenna Gain: 2.9dBi, 1.95(numeric) 5GWIFI Antenna Gain: 2.59dBi, 1.82(numeric) Meet MPE requirements, RF Exposure evaluation is not required.

Shenzhen Yishengbang Technology Company Limited Antenna Test Report Customer: BOE Project: 智能收款机 Product: WIFI Antenna Report date: 2025.02.28 Prepared by : 范新竹 Checked by : Eason Huang Approved by : 深圳市亿圣邦科技有限公司 深圳市亿圣邦科技有限公司 1 Purpose This report is to measure the performance of SLK for Master Antenna on BOE. All measure data are showed below. Content 1. Product Overview 2.Test Result 2.1 VSWR/S11 2.2 Antenna Parameters 2.3 WIFI Antenna TRP/TIS 2.4 WIFI Antenna Gain/Efficiency/3D DATA 2.5 WIFI Antenna Throughput 3. Conclusions 深圳市亿圣邦科技有限公司 2 1. Product Overview 深圳市亿圣邦科技有限公司 3 2. Test Result 2.1 VSWR/S11 深圳市亿圣邦科技有限公司 4 WIFI 1 2. Test Result 2.1 VSWR/S11 深圳市亿圣邦科技有限公司 5 WIFI 2 2. Test Result 2.2 Antenna Parameters 深圳市亿圣邦科技有限公司 6 WIFI 1 WIFI 2 深圳市亿圣邦科技有限公司 7 2. Test Result 2.3 WIFI Antenna TRP/TIS WIFI CH功率(54M) 灵敏度 (54M) 802.11a 369.4-72.46 14913.68-72.53 16513.93-72.18 WIFI CH功率(11M) 灵敏度 (11M) 802.11b 112.28-80.11 612.08-80.39 1111.08-79.55 WIFI CH功率(54M) 灵敏度 (54M) 802.11g 111.64-69.6 612.47-70.27 1111.28-68.72 WIFI CH功率(MCS7) 灵敏度 (MCS7) 802.11n 111.65-65.13 612.46-66.31 1111.3-64.25 深圳市亿圣邦科技有限公司 8 2. Test Result 2.4 WIFI Antenna Gain/Efficiency/3D DATA WIFI 1 Frequency (MHz)2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 5150 5350 5500 5650 5850 Efficiency (dBi)-3.59 -3.49 -3.41 -3.48 -3.68 -3.77 -3.43 -3.92 -3.94 -3.81 -3.80 -3.44 -3.52 -3.68 -3.14 -3.20 Gain (dBi)2.65 2.86 2.88 2.90 2.75 2.55 2.80 2.47 2.71 2.61 2.17 2.36 2.53 2.77 2.62 2.59 Efficiency (%)43.74 44.73 45.56 44.87 42.76 41.89 45.36 40.54 40.29 41.56 41.65 45.30 44.45 42.81 48.49 47.86 深圳市亿圣邦科技有限公司 9 2. Test Result 2.4 WIFI Antenna Gain/Efficiency/3D DATA WIFI 2 Frequency (MHz)2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 5150 5350 5500 5650 5850 Efficiency (dBi)-3.52 -3.44 -3.46 -3.49 -3.83 -3.97 -3.78 -3.60 -3.70 -3.90 -3.80 -3.37 -3.71 -3.42 -3.24 -3.30 Gain (dBi)2.73 2.74 2.78 2.67 2.30 2.29 2.23 2.16 2.15 2.14 2.21 2.60 2.39 2.51 2.42 2.59 Efficiency (%)44.39 45.24 45.00 44.68 41.37 40.07 41.86 43.58 42.60 40.66 41.62 46.00 42.49 45.44 47.32 46.75 深圳市亿圣邦科技有限公司 10 2. Test Result 2.5 WIFI Antenna Throughput 2.4G5G VIEWTP-Tx TP-RxVIEWTP-Tx TP-Rx 0213 2160292 337 45210 22045301 381 90212 21890295 353 135202 217135278 351 180209 218180299 358 225211 214225295 336 270210 217270275 331 315210 214315279 330 平均值209.625216.75平均值289.25347.125 3. Conclusions 深圳市亿圣邦科技有限公司 11 Thank you

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2AHJ5-S5SPRO On Behalf of EC Electronics, Limited Desktop TerminaI Model No.: S5S Pro, EC-MT-S5-Pro, MT-S5-Pro, MTPOS-S5 Pro, EC-MT-S5S-Pro, MT-S5S-Pro, MTPOS-S5S Pro, POS A15, POS A15 Pro, ELZ-A15, ELZ A15 Pro, Android POS Terminal ELZ-A15, POS android ELZ-A15, S5 Pro Prepared for : EC Electronics, Limited Address : Room 2A, 2/F., Mai Tak Industrial Building, 221 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2512079-C06-R04 Date of Receipt : December 10, 2025 Date of Test : December 10, 2025 – January 26, 2026 Date of Report : January 30, 2026 Version Number : V0 Result Pass Page 2 of 207 Report No.: A2512079-C06-R04 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ..................................................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2 GENERAL INFORMATION ...................................................................................................................... 7 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 7 2.2 TEST MODE ........................................................................................................................................ 8 2.3 TEST FACILITY .................................................................................................................................. 10 2.4 DESCRIPTION OF SUPPORT UNITS ..................................................................................................... 10 2.5 DEVIATION FROM STANDARDS ........................................................................................................... 10 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................. 10 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ....................................................................... 10 2.8 ADDITIONAL INSTRUCTIONS ............................................................................................................... 10 3 TEST INSTRUMENTS LIST ................................................................................................................... 11 4 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 13 4.1 ANTENNA REQUIREMENT: .................................................................................................................. 13 4.2 CONDUCTED EMISSIONS ................................................................................................................... 14 4.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................................................... 17 4.4 DUTY CYCLE .................................................................................................................................... 62 4.5 PEAK TRANSMIT POWER ................................................................................................................... 85 4.6 POWER SPECTRAL DENSITY ............................................................................................................ 108 4.7 RADIATED BAND EDGE .................................................................................................................... 131 4.8 CONDUCTED BAND EDGE ................................................................................................................ 151 4.9 RADIATED EMISSION ....................................................................................................................... 172 4.10 CONDUCTED SPURIOUS EMISSION ................................................................................................... 185 Page 3 of 207 Report No.: A2512079-C06-R04 TEST REPORT DECLARATION Applicant : EC Electronics, Limited Address : Room 2A, 2/F., Mai Tak Industrial Building, 221 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong, China Manufacturer : K-tronics (Suzhou) Technology Co., Ltd. Address : No.1088, Dajing Road, Economic and Technological Development Zone, Wujiang District, Suzhou, Jiangsu Province, 215200, P.R. China EUT Description : Desktop TerminaI (A) Model No. : S5S Pro, EC-MT-S5-Pro, MT-S5-Pro, MTPOS-S5 Pro, EC-MT-S5S-Pro, MT-S5S-Pro, MTPOS-S5S Pro, POS A15, POS A15 Pro, ELZ-A15, ELZ A15 Pro, Android POS Terminal ELZ-A15, POS android ELZ-A15, S5 Pro (B) Trademark : N/A Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart E ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a-2024 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart E limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Yannis Wen Project Engineer Approved by (name + signature)…

Text truncated - open the document above for the full version.

Page 54 of 207 Report No.: A2512079-C06-R04 OBW NVNT ac40 5755MHz Ant1 OBW NVNT ac40 5795MHz Ant1 Page 55 of 207 Report No.: A2512079-C06-R04 OBW NVNT ac80 5775MHz Ant1 OBW NVNT ax20 5745MHz Ant1 Page 56 of 207 Report No.: A2512079-C06-R04 OBW NVNT ax20 5785MHz Ant1 OBW NVNT ax20 5825MHz Ant1 Page 57 of 207 Report No.: A2512079-C06-R04 OBW NVNT ax40 5755MHz Ant1 OBW NVNT ax40 5795MHz Ant1 Page 58 of 207 Report No.: A2512079-C06-R04 OBW NVNT ax80 5775MHz Ant1 OBW NVNT n20 5745MHz Ant1 Page 59 of 207 Report No.: A2512079-C06-R04 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Page 60 of 207 Report No.: A2512079-C06-R04 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 Page 61 of 207 Report No.: A2512079-C06-R04 Note: offset=cable factor Page 62 of 207 Report No.: A2512079-C06-R04 4.4 Duty Cycle Test Requirement: FCC Part15 E Section 15.407, RSS-247 Issue 3 Test Method: ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a- 2024 Limit: / Test setup: Test procedure: Measurements of duty cycle and transmission duration shall be performed using one of the following techniques: a) A diode detector and an oscilloscope that together have sufficiently short response time to permit accurate measurements of the ON and OFF times of the transmitted signal. b) Set the center frequency of the instrument to the center frequency of the transmission. Set RBW ≥ EBW if possible; otherwise, set RBW to the largest available value. Set VBW ≥ RBW. Set detector = peak. Test results: Pass Page 63 of 207 Report No.: A2512079-C06-R04 U-NII 1 Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 91.86 0.37 NVNT a 5200 Ant1 94.88 0.23 NVNT a 5240 Ant1 94.88 0.23 NVNT ac20 5180 Ant1 91.35 0.39 NVNT ac20 5200 Ant1 93.14 0.31 NVNT ac20 5240 Ant1 94.03 0.27 NVNT ac40 5190 Ant1 88.68 0.52 NVNT ac40 5230 Ant1 87.74 0.57 NVNT ac80 5210 Ant1 78.95 1.03 NVNT ax20 5180 Ant1 81.11 0.91 NVNT ax20 5200 Ant1 90.12 0.45 NVNT ax20 5240 Ant1 91.25 0.4 NVNT ax40 5190 Ant1 83.52 0.78 NVNT ax40 5230 Ant1 78.35 1.06 NVNT ax80 5210 Ant1 64.52 1.9 NVNT n20 5180 Ant1 94.03 0.27 NVNT n20 5200 Ant1 93.6 0.29 NVNT n20 5240 Ant1 88.73 0.52 NVNT n40 5190 Ant1 88.57 0.53 NVNT n40 5230 Ant1 86.11 0.65 Duty Cycle NVNT a 5180MHz Ant1 Page 64 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT a 5200MHz Ant1 Duty Cycle NVNT a 5240MHz Ant1 Page 65 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac20 5180MHz Ant1 Duty Cycle NVNT ac20 5200MHz Ant1 Page 66 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac20 5240MHz Ant1 Duty Cycle NVNT ac40 5190MHz Ant1 Page 67 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac40 5230MHz Ant1 Duty Cycle NVNT ac80 5210MHz Ant1 Page 68 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax20 5180MHz Ant1 Duty Cycle NVNT ax20 5200MHz Ant1 Page 69 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax20 5240MHz Ant1 Duty Cycle NVNT ax40 5190MHz Ant1 Page 70 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax40 5230MHz Ant1 Duty Cycle NVNT ax80 5210MHz Ant1 Page 71 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n20 5180MHz Ant1 Duty Cycle NVNT n20 5200MHz Ant1 Page 72 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n20 5240MHz Ant1 Duty Cycle NVNT n40 5190MHz Ant1 Page 73 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n40 5230MHz Ant1 Note: offset=cable factor Page 74 of 207 Report No.: A2512079-C06-R04 U-Nll 3 Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5745 Ant1 93.58 0.29 NVNT a 5785 Ant1 91.89 0.37 NVNT a 5825 Ant1 93.98 0.27 NVNT ac20 5745 Ant1 94.06 0.27 NVNT ac20 5785 Ant1 93.6 0.29 NVNT ac20 5825 Ant1 81.2 0.9 NVNT ac40 5755 Ant1 88.57 0.53 NVNT ac40 5795 Ant1 84.68 0.72 NVNT ac80 5775 Ant1 68.66 1.63 NVNT ax20 5745 Ant1 89.02 0.5 NVNT ax20 5785 Ant1 89.57 0.48 NVNT ax20 5825 Ant1 91.82 0.37 NVNT ax40 5755 Ant1 82.61 0.83 NVNT ax40 5795 Ant1 84.44 0.73 NVNT ax80 5775 Ant1 72.22 1.41 NVNT n20 5745 Ant1 91.3 0.4 NVNT n20 5785 Ant1 90 0.46 NVNT n20 5825 Ant1 89.57 0.48 NVNT n40 5755 Ant1 88.57 0.53 NVNT n40 5795 Ant1 83.78 0.77 Duty Cycle NVNT a 5745MHz Ant1 Page 75 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT a 5785MHz Ant1 Duty Cycle NVNT a 5825MHz Ant1 Page 76 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac20 5745MHz Ant1 Duty Cycle NVNT ac20 5785MHz Ant1 Page 77 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac20 5825MHz Ant1 Duty Cycle NVNT ac40 5755MHz Ant1 Page 78 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ac40 5795MHz Ant1 Duty Cycle NVNT ac80 5775MHz Ant1 Page 79 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax20 5745MHz Ant1 Duty Cycle NVNT ax20 5785MHz Ant1 Page 80 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax20 5825MHz Ant1 Duty Cycle NVNT ax40 5755MHz Ant1 Page 81 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT ax40 5795MHz Ant1 Duty Cycle NVNT ax80 5775MHz Ant1 Page 82 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n20 5745MHz Ant1 Duty Cycle NVNT n20 5785MHz Ant1 Page 83 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n20 5825MHz Ant1 Duty Cycle NVNT n40 5755MHz Ant1 Page 84 of 207 Report No.: A2512079-C06-R04 Duty Cycle NVNT n40 5795MHz Ant1 Note: offset=cable factor Page 85 of 207 Report No.: A2512079-C06-R04 4.5 Average Transmit Power Test Requirement: FCC Part15 E Section 15.407, RSS-247 Issue 3 Test Method: ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a- 2024 Limit: FCC: For the band 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, The maximum conducted output power over the frequency bands of operation shall not exceed 250mW. For the band 5.725-5.85GHz, the maximum conducted output power over the frequency bands of operation shall not exceed 1W. IC: Test setup: Test procedure: Measurement using an RF average power meter (i) Measurements may be performed using a wideband RF power meter with a thermocouple detector or equivalent if all of the conditions listed below are satisfied a) The EUT is configured to tr…

Text truncated - open the document above for the full version.

Page 100 of 207 Report No.: A2512079-C06-R04 Power NVNT ac20 5825MHz Ant1 Power NVNT ac40 5755MHz Ant1 Page 101 of 207 Report No.: A2512079-C06-R04 Power NVNT ac40 5795MHz Ant1 Power NVNT ac80 5775MHz Ant1 Page 102 of 207 Report No.: A2512079-C06-R04 Power NVNT ax20 5745MHz Ant1 Power NVNT ax20 5785MHz Ant1 Page 103 of 207 Report No.: A2512079-C06-R04 Power NVNT ax20 5825MHz Ant1 Power NVNT ax40 5755MHz Ant1 Page 104 of 207 Report No.: A2512079-C06-R04 Power NVNT ax40 5795MHz Ant1 Power NVNT ax80 5775MHz Ant1 Page 105 of 207 Report No.: A2512079-C06-R04 Power NVNT n20 5745MHz Ant1 Power NVNT n20 5785MHz Ant1 Page 106 of 207 Report No.: A2512079-C06-R04 Power NVNT n20 5825MHz Ant1 Power NVNT n40 5755MHz Ant1 Page 107 of 207 Report No.: A2512079-C06-R04 Power NVNT n40 5795MHz Ant1 Note: offset=cable factor Page 108 of 207 Report No.: A2512079-C06-R04 4.6 Power Spectral Density Test Requirement: FCC Part15 E Section 15.407, RSS-247 Issue 3 Test Method: ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a- 2024 Limit: FCC: 1.≤11.00dBm/MHz for 5150MHz-5250MHz, 5250-5350MHz and 5470-5725 MHz 2.≤30.00dBm/500KHz for 5725MHz-5850MHz IC: 1.For the 5.15-5.25 GHz, The e.i.r.p. spectral density shall not exceed 10 dBm in any 1.0 MHz band. 2. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, The power spectral density shall not exceed 11 dBm in any 1.0 MHz band. 3. For 5725MHz-5850MHz, the output power spectral density shall not exceed 30 dBm in any 500 kHz band. Test setup: Test procedure: Refer to ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a-2024 Test results: Pass Page 109 of 207 Report No.: A2512079-C06-R04 Measurement Data Band 1 (5150-5250 MHz) Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm) Duty Factor (dB) Total PSD (dBm) FCC Limit (dBm) Verdict NVNT a 5180 Ant1 1.831 0.37 2.201 11 Pass NVNT a 5200 Ant1 2.429 0.23 2.659 11 Pass NVNT a 5240 Ant1 1.985 0.23 2.215 11 Pass NVNT ac20 5180 Ant1 4.111 0.39 4.501 11 Pass NVNT ac20 5200 Ant1 2.846 0.31 3.156 11 Pass NVNT ac20 5240 …

Text truncated - open the document above for the full version.
