2AHR8-GPS4X0TRACKING DEVICE

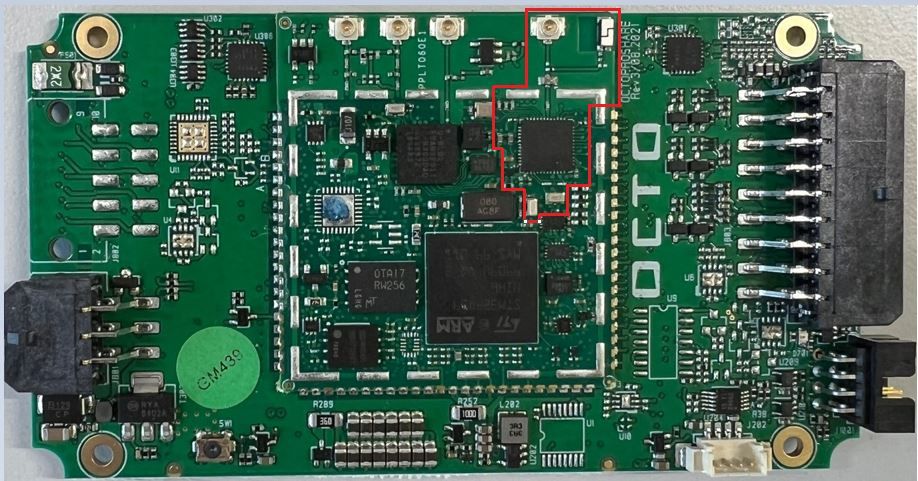

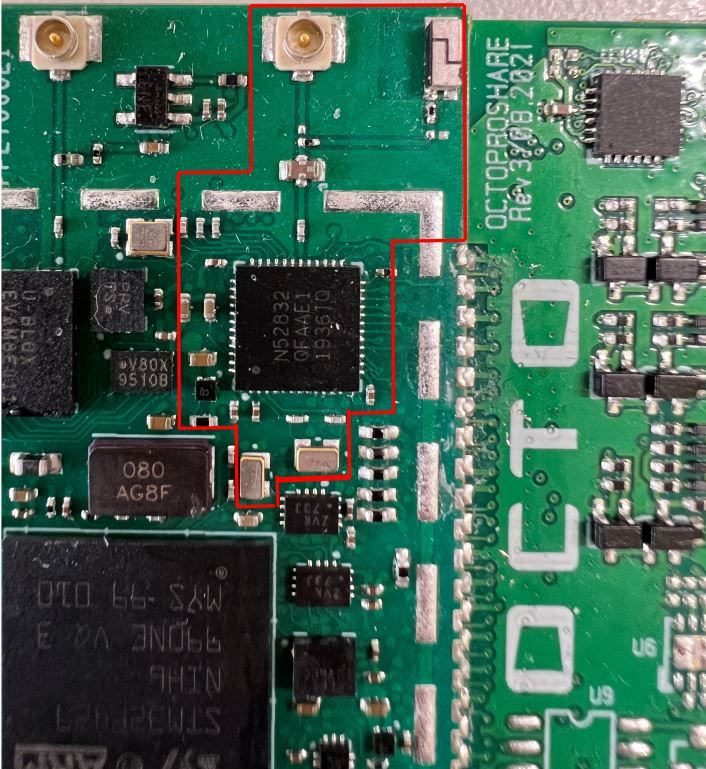

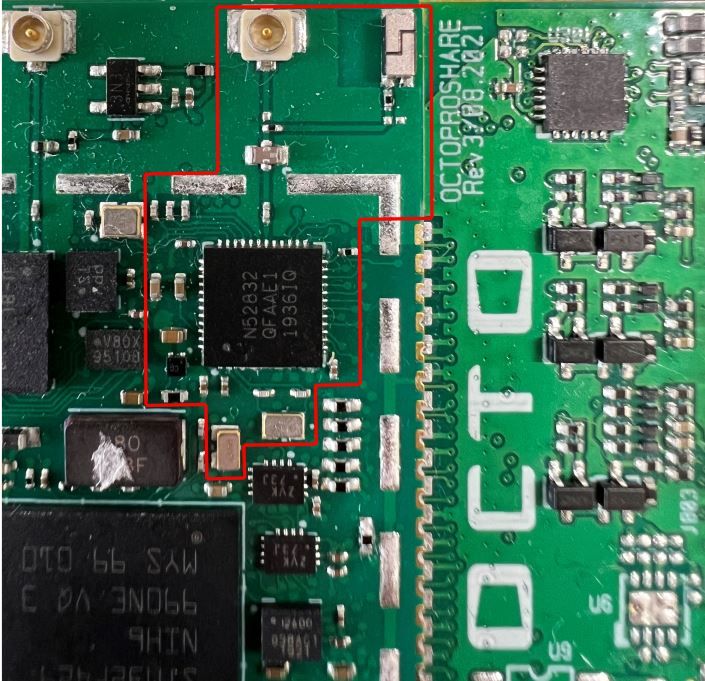

PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 1 OF 6 BLE section FCC ID: 2AHR8-GPS4X0 Product Name: OCTO SharePro 4 GPS40000; OCTO SharePro 4 R GPS41000 USER MANUAL PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 2 OF 6 Revision History Revision Date (yyyy-mm-dd) Description of Changes 1.0 2022-04-04 First release PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 3 OF 6 Content 1. BLE: description .................................................................................................. 4 2. Antenna .............................................................................................................. 4 3. Label ................................................................................................................... 5 4. FCC Statement .................................................................................................... 5 PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 4 OF 6 1.BLE: description The BLE section is made with a Frequency Hopping Spread Spectrum (FHSS) radio transceiver module, that operates in the unlicensed worldwide ISM band 2.4GHz band (2.402 – 2.480 GHz Utilized) It has integrated a chip antenna and a power regulation subsection. The transceiver Tx power is: ‐20 to +4 dBm . The section is powered typically at 4.2V 2. Antenna The module is provided with a chip antenna W3008: Frequency 2400-2483.5MHz Nominal Impedance 50 Ω Radiation Pattern Omni Gain 1.1dBi 3.Label For reasons related to the size and legibility, it is not possible to affix the identification label in accordance with FCC rules. These data are shown below: •FCC ID: 2AHR8-GPS4X0 •Model: OCTO SharePro 4 GPS40000 / OCTO SharePro 4 R GPS41000 •Manufacturer: Octo Telematics S.p.A. 4. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 5 OF 6 PROPRIETARY AND CONFIDENTIAL OCTO TELEMATICS S.p.A. PAGE 6 OF 6 This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Host product manufacturers that they need to provide a physical or e-label stating: “Contains FCC ID: 2AHR8-GPS4X0" with their finished product. Only those antennas with same type and lesser gain filed under this FCC ID can be used with this device. The host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. The final host integrator must ensure there is no instruction provided in the user manual or customer documentation indicating how to install or remove the transmitter module. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This module has been tested and found to comply with part 15.247 requirements for Modular Approval. This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that apply to the product into which this certified RF module is integrated. Additional testing and certification may be necessary when multiple modules are used.

Identification of equipment Letter (Cfr. § FCC CFR47 2.295) FCC ID: 2AHR8-GPS4X0 Product Name: OCTO SharePro 4, OCTO SharePro 4 R According to the requirements of FCC CFR 47 §2.295(f), as the devices under consideration are so small that it is impractical to label it with the FCC Identifier in a font that is four-point or larger, and the device does not have a display that can show electronic labeling, we decide then to place the FCC Identifier in the user manual and also either be placed on the device packaging. Dated this 17th Day of December 20 21 By: Ivo Tidei Signature Printed Telephone: +390694535620 Applicant: Octo Telematics S.p.A.

Model Differences Letter FCC ID: 2AHR8-GPS4X0 Product Name: OCTO SharePro 4 GPS40000; OCTO SharePro 4 R GPS41000 Differences between variants: Model: OCTO SharePro 4 GPS40000 OCTO SharePro 4 R GPS41000 Model: OCTO SharePro 4 R GPS41000 Power supply: 12V / 24V, 1A max Power supply: 12V / 24V, 1A max Backup battery: LiPo 3.7V, 300mAh Backup battery: LiPo 3.7V, 1800mAh • N.B.: The battery discharge • N.B.: The battery discharge function is enabled only in the function is enabled only in the temperature range provided by temperature range provided by the supplier: -20 °C / 60 °C the supplier: -20 °C / 60 °C Operating temperature: -20 °C / +75 °C Operating temperature: -20 °C / +75 °C IP protection rating: IP40 IP protection rating: IP67 Dimensions (LxWxH): 107x62*x30 mm (*) mounting wings not included Dimensions (LxWxH): 133x78x35.5 mm Weight: 216 g Weight: 254 g Dated this 17th Day of December 20 21 By: Ivo Tidei Signature Printed Telephone: +390694535620 Applicant: Octo Telematics S.p.A.

Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHR8-GPS4X0 Modular Approval Request The following attestation addresses the requirements to support modular approval pursuant to §15.212 of the Commission’s Rules: Modular approval requirement YES NO (Shall provide an explanation) (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. N The modular transmitter does not have its own shield. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Y (iii) The modular transmitter must have its own power supply regulation. Y (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). N The modular transmitter has been tested in the host device. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. N Due to the limited size, the FCC ID is shown in the user manual. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y Dated this 17th Day of December 20 21 By: Ivo Tidei Signature Printed Title: Hw Manager On behalf of : Octo Telematics S.p.A. Telephone: +390694535620

OCTO Telematics S.p.A. Sede Legale: Via V. Lamaro, 51 – 00173 Roma RM Cap. sociale: EUR 3.000.000,00 i.v. Tel. +39 06 7265341 – Fax. + 39 0672901453 Società a socio unico soggetta a direzione e coordinamento di OCTO Group SpA Codice Fiscale 03499230963 Partita IVA del Gruppo “OCTO” 15434231005 REA RM 1012635 octotelematics.com Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada’s regulations will have affixed to it a lab identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Octo Telematics S.p.A. Via Lamaro, 51 00173 Roma RM Italy Dated this 8 Day of November 2021 Agency agreement expiration date: 31 October 2022 OCTO Telematics S.p.A. Sede Legale: Via V. Lamaro, 51 – 00173 Roma RM Cap. sociale: EUR 3.000.000,00 i.v. Tel. +39 06 7265341 – Fax. + 39 0672901453 Società a socio unico soggetta a direzione e coordinamento di OCTO Group SpA Codice Fiscale 03499230963 Partita IVA del Gruppo “OCTO” 15434231005 REA RM 1012635 octotelematics.com By: Ivo Tidei Signature Printed Title: Hw Manager On behalf of : Octo Telematics S.p.A. Telephone: +39 06 94535620

OCTO Telematics S.p.A. Sede Legale: Via V. Lamaro, 51 – 00173 Roma RM Cap. sociale: EUR 3.000.000,00 i.v. Tel. +39 06 7265341 – Fax. + 39 0672901453 Società a socio unico soggetta a direzione e coordinamento di OCTO Group SpA Codice Fiscale 03499230963 Partita IVA del Gruppo “OCTO” 15434231005 REA RM 1012635 octotelematics.com Equipment Autorisation Division Federal Communications Commission 743 5 Oakland Mill s Road Columbia, MD 21046 FCC ID: 2AHR8-GPS4X0 Product Name: OCTO SharePro 4 GPS40000; OCTO SharePro 4 R GPS41000 Request for Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagrams Operation Description Part list These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 8 Day of November 2021 By: Ivo Tidei Signature Printed OCTO Telematics S.p.A. Sede Legale: Via V. Lamaro, 51 – 00173 Roma RM Cap. sociale: EUR 3.000.000,00 i.v. Tel. +39 06 7265341 – Fax. + 39 0672901453 Società a socio unico soggetta a direzione e coordinamento di OCTO Group SpA Codice Fiscale 03499230963 Partita IVA del Gruppo “OCTO” 15434231005 REA RM 1012635 octotelematics.com Title: Hw Manager On behalf of : Octo Telematics S.p.A. Telephone: +39 06 94535620

Manufacturer: Octo Telematics S.p.A. Name: Oscar Frau Product: OCTO SharePro 4 Title: Project Handler FCC ID: 2AHR8-GPS4X0 Signature: MPE limits (§1.1310) Mode Frequency Duty Cycle Power Antenna Gain EIRP 1 EIRP Distance PD 2 PD Limit 3 Margin 2.1091 EIRP Limit 2.1091 EIRP Margin PD/PD Limit Worst PD/PD values to be considered MHz % dBm dBi dBm mW cm mW/cm^2 mW/cm^2 dB mW dB BLE 4 2402,0 100 3,05 1,1 4,15 2,60 20 0,00052 1,000 32,86 1260 26,8 5 0,00052 0,00052 1 EIRP = ( Power dBm + Antenna Gain dBi ) + 10 x Log ( Duty Cycle % / 100 ) 2 PD = EIRP / (4xπxD 2 ) 3 CFR 47 Part 1, §1.1310(e), table 1 4 See Report No: 448556-3TRFWL, p.28 2.1091 EIRP Limit 1.1307 (b)(3)(i)(C) exemption limit RF Source Frequency F R λ λ/2π R/(λ/2π) Threshold ERP Threshold EIRP Threshold EIRP EIRP Margin MHz MHz m m m W W mW mW dB 300-15001500-100000 2402,0 0,20 0,125 0,0199 10,1 0,76800 1,260 1260 2,6 26,85

FCC ID: 2AHR8‐GPS4X0 Model variant(s): OCTO SharePro 4 R GPS41000 Model: OCTO SharePro 4 GPS40000 RADIO TEST REPORT – 448856-3TRFWL Type of assessment: Final product testing Applicant: Product: Octo Telematics Spa V ia Vincenzo Lamaro, 5 00173 -Roma - Italy Tracking device for car-sharing Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247 Date of issue: September 28, 2021 D. Guarnone Tested by Signature P. Barbieri Reviewed by Signature Report reference ID: 448856-3TRFWL Page 2 of 69 Lab locations Company name Nemko S.p.A Address Via del Carroccio, 4 City Biassono Province MB Postal code 20053 Country Italy Telephone +39 039 2201201 Facsimile +39 039 2201221 Website www.nemko.com Site number FCC: 682159 (10 m semi anechoic chamber) Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko S.p.A.. ISO/IEC 17025 accreditation. Copyright notification This test report may not be partially reproduced, except with the prior written permission of Nemko Spa. The test report merely corresponds to the tested sample. The phase of sampling / collection of equipment under test is carried out by the customer Report reference ID: 448856-3TRFWL Page 3 of 69 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Section 1 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history....................................................................................................................................................................................... 4 Section 2 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Section 3 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Section 4 Measurement uncertainty................................................................................................................................................................... 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Section 5 Information provided by the applicant ................................................................................................................................................ 8 5.1 Disclaimer ................................................................................................................................................................................................................. 8 5.2 Applicant/Manufacturer ........................................................................................................................................................................................... 8 5.3 EUT information ....................................................................................................................................................................................................... 8 5.4 Radio technical information ..................................................................................................................................................................................... 9 5.5 EUT setup d…

Text truncated - open the document above for the full version.

ONE WORLDOURAPPROVAL Setup photos 448856-3 Date of issue: September 28, 2021 Applicant: Octo Telematics SpA Product name: TRACKING DEVICE Model: OCTO SharePro 4 GPS40000, OCTO SharePro 4 R GPS41000 FCC ID: 2AHR8-GPS4X0 Report reference ID: 448856-3TRFWL Page 2 of 3 Section 1. Setup photos (§15.247) 1.1 Radiated emissions set-up for frequencies below 1 GHz Report reference ID: 448856-3TRFWL Page 3 of 3 1.2 Radiated emissions set-up for frequencies above 1 GHz
