2AHW7-QINGIntelligent Gimbal for Camera

Intelligent Gimbal for Camera Instructions EN V1.0 2 Catalogue 1. Overview ..................................................................2 2. Start to Use ...............................................................4 2.1 Charging.................................................................................4 2.2 Unlock/Lock ...........................................................................5 2.3 Battery Installation ..................................................................5 2.4 Camera Installation and Balance ................................................6 2.5 Power On/Off ........................................................................8 3. Function & Operation ...................................................9 3.1 Function/Modes Introduction ...................................................9 3.2 Function Operation of Remote Control .......................................12 3.3 Remote Control Touch Screen ...................................................16 3.4 Modes Setting ........................................................................17 3.5 Gimbal Initialization ..................................................................21 4. Accessories ...............................................................22 4.1 Brushless Follow Focus (AKF II) ...................................................22 4.2 Wireless MIC Kit .....................................................................23 5. Specifications ............................................................25 Compatible Cameras for Reference .................................26 Disclaimer .....................................................................28 www.feiyu-tech.com12 QING is a professional gimbal for DSLR/mirrorless camera. It is compatible with popular DSLR camera on the market. It is available to install on the tripod or other carrier to extend its shooting function. It has a oversized touch screen on remote control, allows users to switch work modes, control rotating direction and set up parameters on it directly and visibly. Users can also control camera's follow focus and zooming after connecting camera to QING via cable. Suggestion Feiyu Qing includes below information, please read the information before using the gimbal: 1. Quick start guide 2. Online instruction 3. Tutorial The tutorial videos can be watched at FeiyuTech official website https://www.feiyu-tech.com/play/ or scan the QR code. www.feiyu-tech.com2 1. Overview * The product is NOT included the camera. www.feiyu-tech.com32 www.feiyu-tech.com4 2. Start to Use TIPS · Please install the camera and balance it before power on the gimbal. · Please do not touch tilt motor and gears to avoid gripping. · When the battery is low, please charge the battery. · When not in use, power off the gimbal and then remove the batteries. 2.1 Charging Please fully charge the dedicated battery before power on the gimbal for the first time. Please choose the suitable charger when quickly charging. 2.1.1 Charging for the Gimbal Using USB2.0 to Type-C cable to charge the dedicated battery, support 5V/3A input. Battery Indicator: All the 3 indicators turn on when battery is full Function Indicator: quickly flashing: Low battery and please charge in time slowly flashing: Pan mode constant on: Lock mode www.feiyu-tech.com54 2.1.2 Charging for the Remote Control Using USB2.0 to Micro cable to charge the remote control, support 5V/3A input. 2.2 Unlock/Lock There is a position lock on the tilt axis, which is convenient for locking the position, installation, storage. Unlock the gimbal before powering on it. 2.3 Battery Installation Please fully charge the dedicated battery before power on the gimbal for the first time. Install the battery: Push the battery in along the slot ①, and after that, the battery lock ② will rebound to prevent battery from falling. Remove the battery: Unlock the battery lock ② and pull the battery out. www.feiyu-tech.com6 ① ② 2.4 Camera Installation and Balance TIPS · Make sure the battery and memory card are loaded before camera installation. · Before balancing the gimbal, the lens cover should be removed from the camera and the memory card needs to be inserted to the camera to complete all the cable connections to ensure that the camera is ready for shooting. · During balancing the gimbal, make sure the camera is power off and the gimbal is turned off. · If add accessories after the balance is completed, please re-balance. In order to get ideal shooting, please balance the gimbal before using. And the gimbal with perfect balance will have longer battery life. Step 1: Keep the gimbal horizontal as the figure shows, then lock the position lock ①. www.feiyu-tech.com76 Step 2: Mount camera on ARCA quick release plate ②, and tighten it. Step 3: Install the ARCA quick release plate on the quick release plate, and tighten the ARCA quick release plate safety lock ③. Install the lens support frame ④ and tighten the thumb screw ⑤ to hold the lens firmly. Step 4: Unlock the position lock ①, and loose the thumb screw ⑥. Slide the slide arm ⑦ to balance, and tighten the thumb screw ⑥ after the balancing is completed. If the camera can stay stable after moving your hand away, which means balanced. www.feiyu-tech.com8 2.5 Power On/Off Please release the tilt motor lock before powering on. Please do not touch tilt motor and gears to avoid gripping. Steps: (1) Gimbal: Install the dedicated battery and long press the power button and release it when the battery indicator and function indicator turn on together and hear the tone. Long press again to power off. (2) Remote Control: Long press the power button, release it when the touch screen shows . Long press again to power off. www.feiyu-tech.com98 3. Function & Operation 3.1 Function/Modes Introduction ① Pan Mode (Default mode) When attached on the other equipment, the tilt direction is fixed, and the camera direction moves according to the rotation of the equipment. ②…

Text truncated - open the document above for the full version.

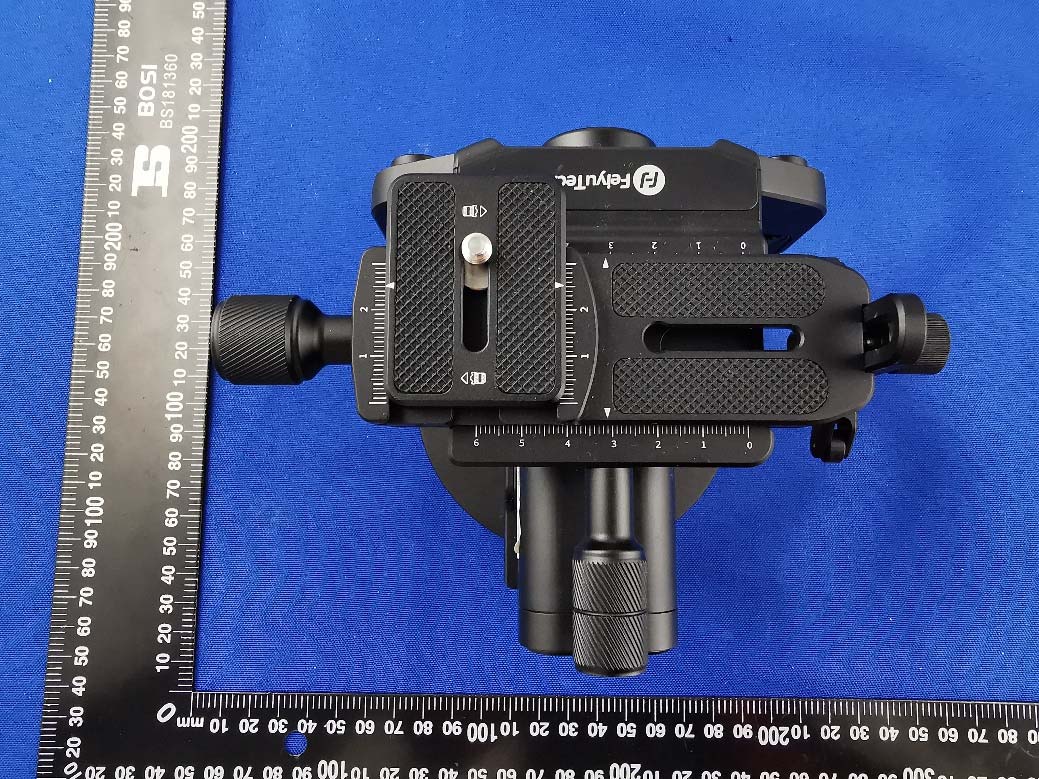

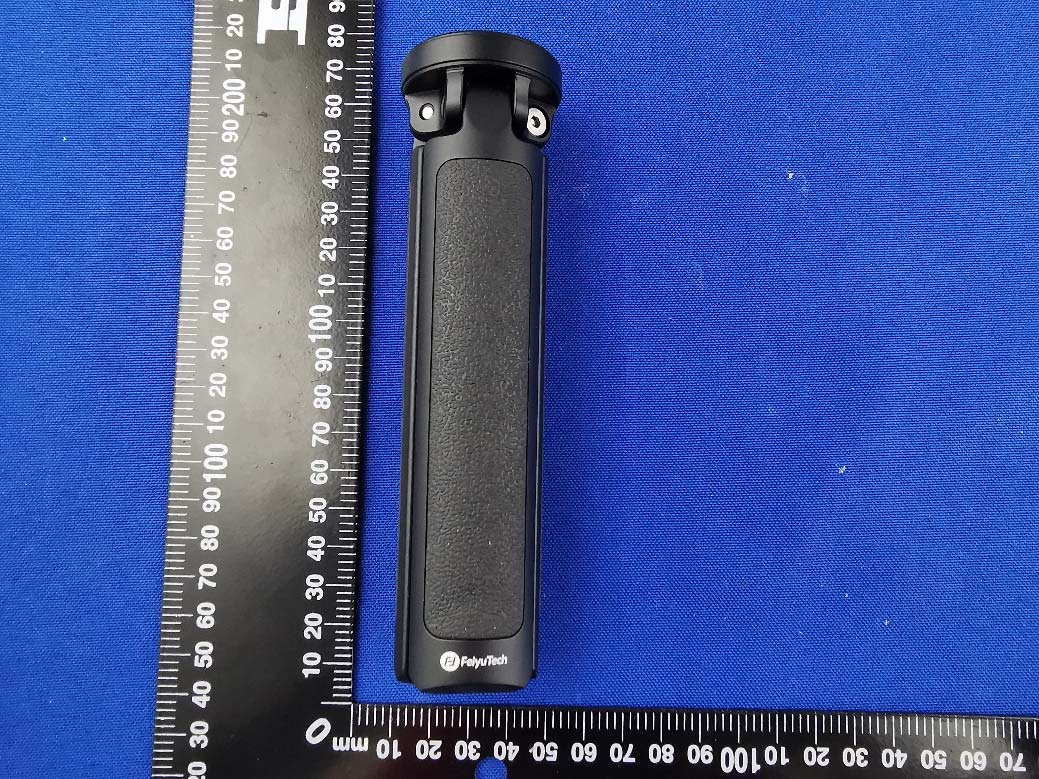

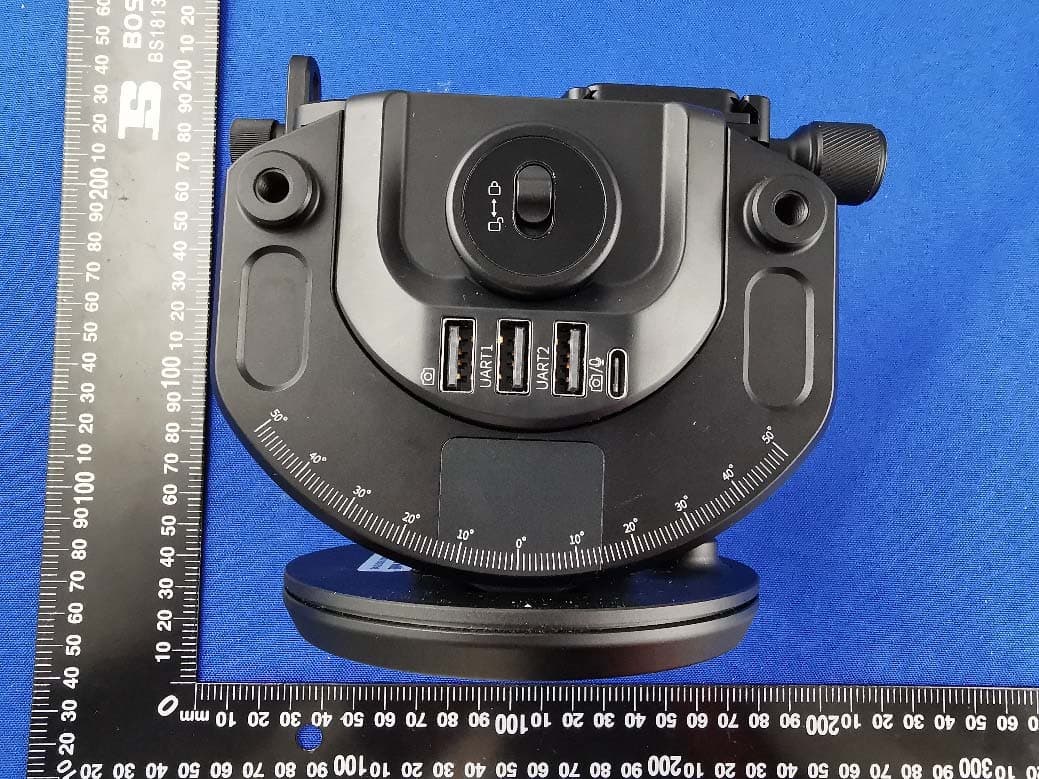

Annex No.: BL-SZ19C0302-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ19C0302-AW 2 / 4 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ19C0302-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ19C0302-AW 4 / 4 Accessory-USB Cable Accessory- Holder

Annex No.: BL-SZ19C0302-AI 1 / 6 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW Annex No.: BL-SZ19C0302-AI 2 / 6 PIFA Antenna EUT UNCOVER VIEW Annex No.: BL-SZ19C0302-AI 3 / 6 EUT UNCOVER VIEW MAIN BOARD TOP VIEW RF Chip Annex No.: BL-SZ19C0302-AI 4 / 6 MAIN BOARD REAR VIEW MAIN BOARD TOP VIEW Annex No.: BL-SZ19C0302-AI 5 / 6 MAIN BOARD REAR VIEW Battery Photo (FRONT) Annex No.: BL-SZ19C0302-AI 6 / 6 Battery Photo (REAR)

version01 Guilin Feiyu Technology Incorporated Company Declaration concerning Antenna Specification It is hereby declared that the product Model No.: Qing FCC ID: 2AHW7-QING fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB PIFA Antenna Gain of the antenna: 1.77 dBi Frequency range: 2410-2470 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Guilin Feiyu Technology Incorporated Company Address: 3rd Floor,B,Guilin Electric Valley,Innovation Building Information Industry Park,ChaoYang Road City: Guilin ZIP / Postal code: Country: China Place: Guilin Date: 2020-03-18 Signature:

RF Exposure Evaluation for FCC ID: 2AHW7-QING Refer user manual this device is a Intelligent Gimbal for Camera, and this device was designed used in Mobile devices that the minimum distance between human’s body is 20cm. Based on the 47CFR 2.1091, this device belongs to Mobile device. The definition of the category as following: Mobile Derives: CFR Title 47 §2.1091(b) (b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Devices operating in standalone mobile exposure conditions may contain a single transmitter or multiple transmitters that do not transmit simultaneously. A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The minimum test separation distance required for a device to comply with mobile exposure conditions must be clearly identified in the installation and operating instructions, for all installation and exposure conditions, to enable users and installers to comply with RF exposure requirements. For mobile devices that have the potential to operate in portable device exposure conditions, similar to the configurations described in § 2.1091(d)(4), a KDB inquiry is required to determine the SAR test requirements for demonstrating compliance. When the categorical exclusion provision of § 2.1091(c) applies, the minimum test separation distance may be estimated, when applicable, by simple calculations according to plane-wave equivalent conditions, to ensure the transmitter and its antenna(s) can operate in manners that meet or exceed the estimated distance. The source-based time-averaged maximum radiated power, according to the maximum antenna gain, must be applied to calculate the field strength and power density required to establish the minimum test separation distance. When the estimated test separation distance becomes overly conservative and does not support compliance, MPE measurement or computational modeling may be used to determine the required minimum separation distance. According to FCC Part 1.1307, systems operating under the provisions of this section shall be operated in a manner the ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidelines. Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength(E)(V/m) Magnetic Field Strength (H)(A/m) Power Density (S)(mW/cm 2 ) 0.3-1.34 614 1.63 (100)* 1.34-30 824/f 2.19/f (180/f2)* 30-300 27.5 0.073 0.2 300-1500 f/1500 1500-100,000 1.0 MPE calculation formula Where: S = power density P = output power (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = Separation distance between radiator and human body (cm) Test data 2.4G ISM Band (GFSK modulation) Mode GFSK Low Channel Middle Channel High Channel Peak Power (dBm) -2.16 -3.74 -4.58 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Range (dBm) 2.4G ISM Band (GFSK modulation) -5.00 - -2.00 Test result Evolution mode Maximum peak output power （dBm） Antenna Gain (typical) (dBi): To t a l Power (mw) Distance (cm) Limit of Power Density (mW/cm²) Power Density (mW/cm²) Verdict 2.4G ISM Band (GFSK modulation) -2.00 1.77 0.95 20 1 1.90*10 -4 Pass Note: 1. The Intelligent Gimbal for Camera work frequency range used is 2400 MHz ~ 2483.5 MHz, the result close to the limit by the above formula. 2. More power list please refer to RF test report. Conclusion: RF exposure Evaluation Results: Compliance

Report No.: BL-SZ19C0302-601 2 / 52 Revision History Version Issue Date Revisions Content Rev. 01 Mar. 13, 2020 Initial Issue Rev. 02 Mar. 19, 2020 Added note for all modes have been tested and normal link mode is worst TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory ....................................................................................... 5 1.2 Identification of the Responsible Testing Location ...................................................................... 5 1.3 Laboratory Condition ................................................................................................................... 5 1.4 Announce .................................................................................................................................... 5 2 PRODUCT INFORMATION ...................................................................................................................... 6 2.1 Applicant Information ................................................................................................................... 6 2.2 Manufacturer Information ............................................................................................................ 6 2.3 Factory Information ..................................................................................................................... 6 2.4 General Description for Equipment under Test (EUT) ................................................................ 6 2.5 Technical Information .................................................................................................................. 7 2.6 Additional Instructions ................................................................................................................. 8 3 SUMMARY OF TEST RESULTS .............................................................................................................. 9 3.1 Test Standards ............................................................................................................................ 9 3.2 Verdict ......................................................................................................................................... 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 10 4.1 Test Environments .................................................................................................................... 10 4.2 Test Equipment List ................................................................................................................... 10 4.3 Measurement Uncertainty ......................................................................................................... 11 4.4 Description of Test Setup .......................................................................................................... 12 4.4.1 For Antenna Port Test ............................................................................................................... 12 4.4.2 For AC Power Supply Port Test ................................................................................................ 12 4.4.3 For Radiated Test (Below 30 MHz) ........................................................................................... 13 4.4.4 For Radiated Test (30 MHz-1 GHz) .......................................................................................... 13 4.4.5 For Radiated Test (Above 1 GHz) ............................................................................................. 14 4.5 Measurement Results Explanation Example ............................................................................. 15 Report No.: BL-SZ19C0302-601 3 / 52 4.5.1 For conducted test items: .......................................................................................................... 15 4.5.2 For radiated band edges and spurious emission test: ............................................................... 15 5 TEST ITEMS ........................................................................................................................................... 16 5.1 Antenna Requirements .............................................................................................................. 16 5.1.1 Relevant Standards ................................................................................................................... 16 5.1.2 Antenna Anti-Replacement Construction .................................................................................. 16 5.1.3 Antenna Gain ............................................................................................................................ 16 5.2 Output Power ............................................................................................................................ 17 5.2.1 Test Limit ................................................................................................................................... 17 5.2.2 Test Setup ................................................................................................................................. 17 5.2.3 Test Procedure .......................................................................................................................... 17 5.2.4 Test Result ................................................................................................................................ 18 5.3 Occupied Bandwidth ................................................................................................................. 19 5.3.1 Limit ........................................................................................................................................... 19 5.3.2 Test Setup ..............................................................................................…
