CarBack supplemental to Owner’s manual Basic operation First time use • To turn the radar/light on, press and hold the power button for 1 second. • To turn the radar/light off, press and hold for 1 second. • When the radar is off, you can check battery status with a single click and the fuel gauge will light up. • Turn the radar on prior to pairing to a computer or phone for the first time. Below are instructions for compatible Garmin and Wahoo computers. NOTES: Instructions may vary depending on your computer and model. Trek recommends reviewing the pairing instructions that came with your device prior to use. The two examples are on the opposite side of this page. 5301478 Carback_OwnersManual_FirstTimeUse_EN-US_Sep2023_PRINT.indd 1Carback_OwnersManual_FirstTimeUse_EN-US_Sep2023_PRINT.indd 111/13/2023 6:05:31 PM11/13/2023 6:05:31 PM Garmin: 1. Make sure both the Garmin computer and the Trek CarBack Radar are charged and your computer is powered on. 2. Turn on the Trek Carback with a 1 second hold. You are now in pairing mode. 3. Make sure your Trek CarBack Radar is within range (check your computer manual for appropriate distance). 4. On the Garmin, navigate to the main menu  Settings  Sensors & Accessories  Add Sensor or Search to initiate a search for available sensors. 5. Once the Trek CarBack is detected, select it from the list of available sensors. 6. Follow any on-screen prompts to complete the pairing process. • Once the devices find each other, a successful pairing message should appear on the Garmin screen. • Once paired with the Trek CarBack, the Garmin will control when the light is on and what mode it is in. Trek recommends Auto mode. • The CarBack light has 2 settings for turning on and off. You can change this setting on compatible Garmin computers. • Option 1: When you power on your Garmin, your light on the CarBack turns on. When you power off your Garmin, your CarBack light will power off. • Option 2: When you press start for your timer, the light will turn on. When you save your ride, the light will turn off. Wahoo: 1. Make sure both the Wahoo computer and the Trek CarBack Radar are charged and your computer is powered on. 2. Turn on the Carback with a 1 second hold. You are now in pairing mode. 3. Make sure your Trek CarBack Radar is within range (check your computer manual for appropriate distance). 4. On the Wahoo, navigate to: Settings  Radar Pairing  Add new sensor  select Radar from the list of available sensors to initiate a search for available sensors. • Once the devices find each other, a successful pairing message should appear on the Wahoo screen. 5. Verify connection: Before riding, ensure your Wahoo display shows relevant information from the CarBack Radar. NOTE: The Wahoo computer does not control the light mode; you will need to use the button on the Trek CarBack Radar to cycle through light modes to pick your desired setting. For more information, check out the FAQ section on the Trek CarBack Radar product page on trekbikes.com. Carback_OwnersManual_FirstTimeUse_EN-US_Sep2023_PRINT.indd 2Carback_OwnersManual_FirstTimeUse_EN-US_Sep2023_PRINT.indd 211/13/2023 6:05:31 PM11/13/2023 6:05:31 PM CarBack Radar Owner’s manual About this product The CarBack is a Bluetooth & ANT+ compatible radar system with an integrated light to help increase a rider’s situational awareness on the road. The radar can communicate with select bike computers and smartphones. For detailed instructions on setting up your device, please refer to the user manual provided by the respective brand’s bike computer. • Do not use if the battery is impacted. Also do not puncture, crush, deform, disassemble, or heat a lithium-ion battery above 140° F (60° C). Damage to the battery may result in a fire, explosion, and/or exposure to specks of lithium or lithium dust. • The light is very bright. Do not stare at an operating light. Staring may be harmful to the eyes. • Proper use of the device can enhance your riding experience, but improper use can lead to distractions and severe injury or even death. Exercise caution and use the device appropriately and attentively. • Proper use: Quickly check the radar device information while maintaining focus on your surroundings (when making turns, passing, changing lanes, etc.). Avoid prolonged staring or getting distracted by the device’s display. • Improper use: Overly focusing on the display may cause you to overlook obstacles or dangers, putting you at risk of serious consequences. WARNINGS: A bicycle without correct lights and reflectors might be difficult for other people to see, and you might not be able to see them. If you cannot see, or other people cannot see you, you could have an accident. Make sure your lights are set up, operating correctly, and that batteries are charged. WARNING: Parts listInstallation Specifications • Battery information: 154mA (typical), 3.7 Vdc, 2000mAh • Battery charging temperature: 50°F to 113°F (10°C to 45°C)* • Battery operating temperature: 14°F to 140°F (-10°C to 60°C)* • Battery storage temperature: 14°F to 113°F (-10°C to 45°C)* • Light lumens: 90 • Water ingress rating: IPX7 • Weight: 70g (2.5oz) • Charge port: USB-C • Dimensions: 70 x 50 x 30mm • Detection: Up to 7 vehicles • Detection range: 1-240m • Runtime: 7 hours (dependent on traffic, may exceed 7 hours) • Chargetime: 4 hours trekbikes.com PN5316869 IMPORTANT: Check your local lighting laws. Flashing lights and full brightness may not be allowed in all locations. The CarBack radar light does not conform to the German road traffic regulation StVZO. Reset To reset the CarBack to factory default settings: • With the CarBack on, press and hold the power button for 15 seconds. The main LED will flash once at 8 seconds and again at 15 seconds. • Release the button after the second flash. • Once reset, the wireless broadcast will be disabled until the first time the CarBack is powered on. Charging the battery The CarBack was charged prior to packaging, …

Text truncated - open the document above for the full version.

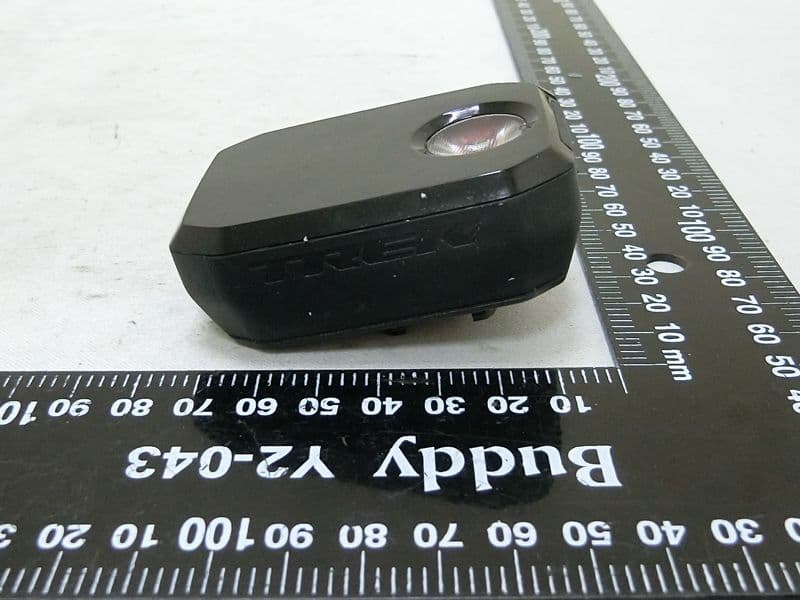

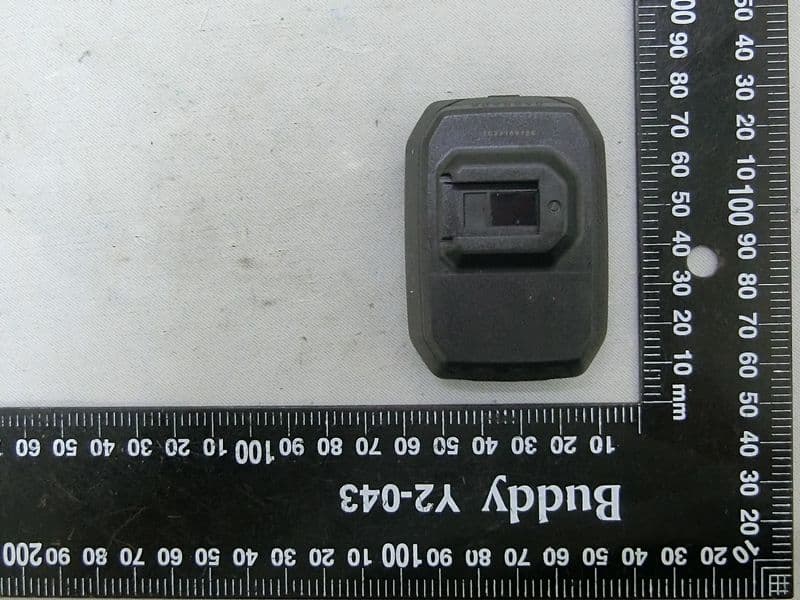

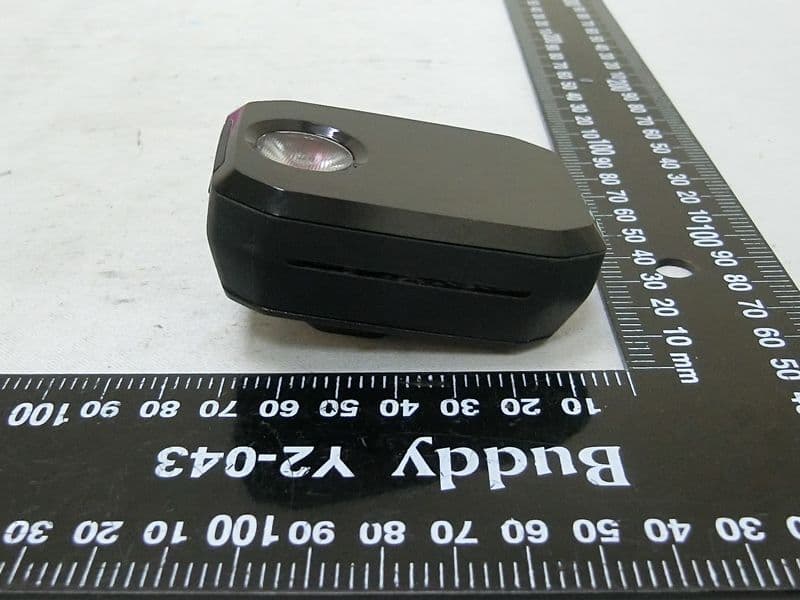

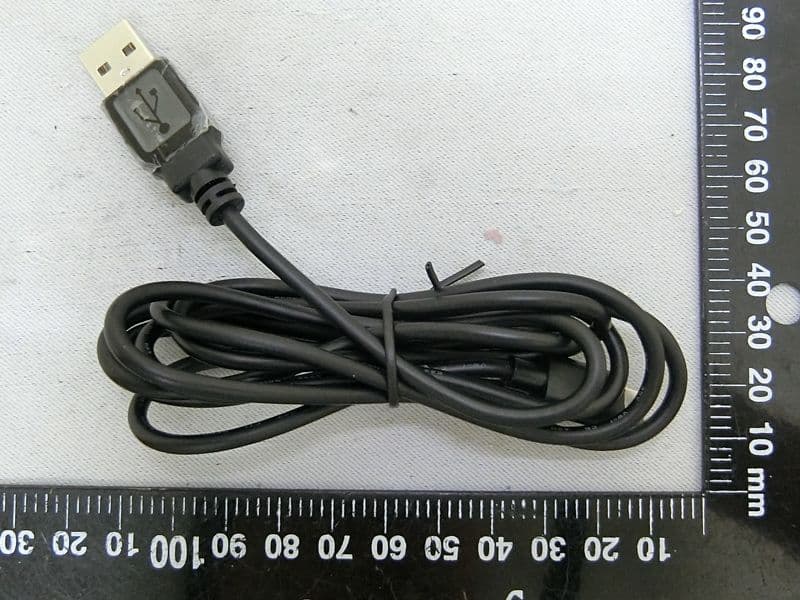

PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 1 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 Brand Name: TREK Model Name: 5301478 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 2 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 3 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 4 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 5 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 USB cable

PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 1 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 Brand Name: TREK Model Name: 5301478 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 2 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 3 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 Ant. 1 6RX 3TX PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 4 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 5 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 6 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 7 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 Ant. 2 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 8 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 9 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP360116 Sporton International Inc. Page No. : 10 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 22, 2023 Report Version : 01 Lithium-ion battery

RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 2 of 9 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2023 Report Template No.: CB-A2_1 Ver1.1 Report Version : 02 Table of Contents History of this test report ........................................................................................................................................... 3 Summary of Test Result ............................................................................................................................................. 4 1. General Description ............................................................................................................................................... 5 1.1. EUT General Information ........................................................................................................................................................................ 5 1.2. Antenna Information ................................................................................................................................................................................ 5 1.3. Accessories ............................................................................................................................................................................................. 5 1.4. Applicable Standards .............................................................................................................................................................................. 6 1.5. Testing Location ...................................................................................................................................................................................... 6 2. SAR-based and MPE-based exclusions ............................................................................................................... 7 2.1. Applicable Standards .............................................................................................................................................................................. 7 2.2. Determination of exemption. ................................................................................................................................................................... 7 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 3 of 9 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2023 Report Template No.: CB-A2_1 Ver1.1 Report Version : 02 History of this test report Report No. Version Description Issued Date FA360116 01 Initial issue of report Nov. 22, 2023 FA360116 02 Revising the error in Summary of Test Result Nov. 28, 2023 RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 4 of 9 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2023 Report Template No.: CB-A2_1 Ver1.1 Report Version : 02 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 5 of 9 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2023 Report Template No.: CB-A2_1 Ver1.1 Report Version : 02 1. General Description 1.1. EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 76-81GHz 76000-81000 76150-76310 FMCW Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) ANT plus 2400-2483.5 2457 DSSS (GFSK) 1.2. Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) Bluetooth / ANT plus 76~81GHz TX RX 1 - 1~3 1~6 UMEC S78* Patch N/A 11.2 2 1 - - JOHANSON 2450AT18D0100E Chip N/A 1.5 Note 1: The above information was declared by manufacturer. Note 2: The Bluetooth and ANT plus cannot function at the same time. Note 3: For Bluetooth function (1TX/1RX): Only Port 1 can be used as transmitting/receiving antenna. For ANT plus function (1TX/1RX): Only Port 1 can be used as transmitting/receiving antenna. For 76~81GHz function (3TX/6RX): Port 1~3 can be used as transmitting antenna. Port 1~3 could transmit simultaneously. Port 1~6 can be used as receiving antenna. Port 1~6 could receive simultaneously. 1.3. Accessories Accessories USB cable*1: Shielded, 1.5m Lithium-ion battery*1 RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 6 of 9 FAX : 886-3-656-9085 Issued Date : Nov. 28, 2023 Report Template No.: CB-A2_1 Ver1.1 Report Version : 02 1.4. Applicable Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards:  47 CFR Part 2.1093  KDB 447498 D04 Interim General RF Exposure Guidance v01 The following reference test guidance is not within the scope of accreditation of TAF.  47 CFR Part 1.1307 1.5. Testing Location Testing Location Information Test Lab.：Sporton International Inc. Hsinchu Laboratory Hsinchu ADD: No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302010, Taiwan (R.O.C.) (TAF: 3787) TEL: 886-3-656-9065 FAX: 886-3-656-9085 Test site Designation No. TW3787 with FCC. Conformity Assessment Body Identifier (CABID) TW3787 with ISED. RADIO EXPOSURE TEST REPORT Report No. : FA360116 TEL : 886-3-656-9065 Page Number : 7…

Text truncated - open the document above for the full version.

環隆科技股份有限公司 UNIVERSAL MICROELECTRONICS CO.,LTD. DOC.NO: S-021491 PAGE: 1 OF 9 REV: 000 文件名稱: Johanson Technology 2450AT18D0100 ANTENNA 系列零件規格書 PREPARE 製 訂 CHECK 審 查 APPROVE 核 准 發 行 日 期 楊 文 鎮 蘇 烱 園 蘇 烱 園 111 年6 月21日 DISTRIBUTION 分 發 □6 010□□□□□ □□□□□□ □□□□□□ □□□□□□ REVISE RECORD 文 件 修 改 記 錄 REV 版次 ECO NO. 工程變更 REVISE DETAIL 修 改 內 容 DATE 日 期 PREPARE 修 改 人 CHECK 審 查 APPROVE 核 准 U-001 AEC-Q200 Qualification Available P/N 2450AT18D0100 Detail Specification: P age 1 of 7 Top B ottom ¹Efficiency measured on Johanson's evaluation board PN 2450AT18D0100-EB1SMA N o. ±± 1 ±± 2 ±± 3 4 ±± Function 1: Antenna fed from left F unction 2: Antenna fed from right https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved Return Loss (dB) I mpedance (Ω) Input Power (W) Operating Temperature https://www.johansontechnology.com/ask-a-question General Specifications Part Number Frequency (GHz) Peak Gain (dBi) Average Gain (dBi) Radiated Efficiency¹ 2.4 - 2.5 1.5 typ. (XZ-total) -1.0 typ. (XZ-total) Part Number Explanation Function 1Function 2 1 0 min. +5 to +35°C Humidity 45 - 75% RH 50 3 max. (CW) e.g. 2450AT18D0100S e.g. 2450AT18D0100E e.g. 2450AT18D0100(E or S) Suffix = S Suffix = E Terminal Configuration FEED G ND GND GND GND GND GND FEED b 0.0200.500.20.008 a 0.0120.30 +0.1 / -0.2 +0.004 / -0.008 100% Tin 0 .0471.200.10.004 2450AT18D0100-EB1SMA mm Suffix = None Packing Style Evaluation Board Bulk (loose pcs.) Johanson Technology, Inc. reserves the right to make design changes without notice. A ll sales are subject to Johanson Technology, Inc. terms and conditions. P/N Suffix Mechanical Dimensions In L 0 .1260.0083.200.2 W 0.0630.0081.600.2 T T & R 72% High Frequency Ceramic Solutions 5/26/2021 Let us help you with the antenna design, optimization, and tuning! 2450AT18D0100E 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, E dge Mount Design 3,000 - 40 to +125°C Recommended Storage Conditions and Period for unused Product on T&R 18 months max. Reel Quantity (pcs./reel) 1 2 4 3 b T L a w b DOC.NO: S-021491 PAGE.NO: 2 OF 9 REV: 000 P/N 2450AT18D0100 Detail Specification:Page 2 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 5/26/2021 Mounting Considerations 1: Evaluation Board (Standard Layout) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design To order a pre-tuned 50Ω EVB with a female SMA connector click here: https://www.johansontechnology.com/request-a-sample Reference p/n: 2450AT18D0100-EB1SMA Units in mm Ground Vias Feeding Line Ground clearance 40mm 20mm Matching Circuits Measured radiated efficiency of 2450AT18D0100 on this evaluation board is 72% 1.02.01.0 0.6 0.7 0.6 4.1 4.0 0 Ohm Matching Circuits No ground, metal PCB layers, or other metallic components like batteries directly underneath antenna! Ground Ground Ground 6.0 Land Solder Resist 50Ω Trace (Grounded CPWG type is preferred) GND Vias DOC.NO: S-021491 PAGE.NO: 3 OF 9 REV: 000 P/N 2450AT18D0100 Detail Specification:Page 3 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 5/26/2021 Mounting Considerations 1: Electrical Performance @25°C Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design Measured Return Loss Would you like the antenna layout? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenna in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance. Contact our applications engineers at: https://www.johansontechnology.com/ask-a-question 2.22.42.62.82.03.0 -20 -10 -30 0 f req, GHz dB(S(1,1)) m1 m2 m3 m1 f req= dB(S(1,1))=-13.935 2.400GHz m2 f req= dB(S(1,1))=-14.774 2.500GHz m3 f req= dB(S(1,1))=-24.894 2.450GHz DOC.NO: S-021491 PAGE.NO: 4 OF 9 REV: 000 P/N 2450AT18D0100 Detail Specification:Page 4 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 5/26/2021 Mounting Considerations 1: Typical 2D radiation patterns @ 2.44GHz Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design YZ-plane XZ-plane XY-plane θ +Z (θ= 0°) +Y (θ= 90°) -Y -Z θ +Z (θ= 0°) +X (θ= 90°) -X -Z φ +X (φ= 0°) -X +Y (φ= 90°) -Y +Z -Z +Y -Y +Z -Z +X-X +X -X +Y-Y DOC.NO: S-021491 PAGE.NO: 5 OF 9 REV: 000 P/N 2450AT18D0100 Detail Specification:Page 5 of 7 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.4 2021 Johanson Technology, Inc. All Rights Reserved Frequency (GHz)Peak Gain (dBi)Average Gain (dBi)Radiated Efficiency (%) -3.6 (XZ-plane)66 Mounting Considerations 3: "Thind edge" application on circular PCB Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Mounting Considerations 2: Small Clearance or "Thin edge" Applications* 2.450.3 (XZ-plane) High Frequency Ceramic Solutions 2.45 GHz SMD Antenna, EIA 1206, Detuning resilient, Edge Mount Design 5/26/2021 Units in mm Land Solder Resist *Evaluation board not availa…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR360116AC TEL : 886-3-656-9065 Page Number : 2 of 29 FAX : 886-3-656-9085 Issued Date : Nov. 22, 2023 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 Test Configuration of EUT ................................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 8 2.3 EUT Operation during Test .................................................................................................................... 9 2.4 Accessories ............................................................................................................................................ 9 2.5 Support Equipment ............................................................................................................................... 10 2.6 Test Setup Diagram ............................................................................................................................. 11 3 Transmitter Test Result ..................................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth .................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 22 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 23 4 Test Equipment and Calibration Data .............................................................................................. 27 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of DTS Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Power Spectral Density Appendix E. Test Results of Emissions in Non-restricted Frequency Bands Appendix F. Test Results of Emissions in Restricted Frequency Bands Appendix G. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR360116AC TEL : 886-3-656-9065 Page Number : 3 of 29 FAX : 886-3-656-9085 Issued Date : Nov. 22, 2023 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR360116AC 01 Initial issue of report Nov. 22, 2023 RADIO TEST REPORT Report No. : FR360116AC TEL : 886-3-656-9065 Page Number : 4 of 29 FAX : 886-3-656-9085 Issued Date : Nov. 22, 2023 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.6 15.247(d) Emissions in Restricted Frequency Bands PASS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Sophia Shiung RADIO TEST REPORT Report No. : FR360116AC TEL : 886-3-656-9065 Page Number : 5 of 29 FAX : 886-3-656-9085 Issued Date : Nov. 22, 2023 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) Mode Ch. Frequency (MHz) Channel Number 2400-2483.5 ANT plus 2457 57 [1] Band Mode BWch (MHz) Nant 2.4-2.4835GHz GFSK 1 1TX Note:  ANT plus uses a GFSK modulation.  BWch is t…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR360116AB TEL : 886-3-656-9065 Page Number : 2 of 29 FAX : 886-3-656-9085 Issued Date : Nov. 22, 2023 Report Template No.: CB-A10_6 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 Test Configuration of EUT ................................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 8 2.3 EUT Operation during Test .................................................................................................................... 9 2.4 Accessories .......................................................................................................................................... 10 2.5 Support Equipment ............................................................................................................................... 10 2.6 Test Setup Diagram ............................................................................................................................. 11 3 Transmitter Test Result ..................................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 DTS Bandwidth .................................................................................................................................... 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 22 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 23 4 Test Equipment and Calibration Data .............................................................................................. 27 Appendix A. Test Results of AC Power-line Condu…

Text truncated - open the document above for the full version.
