CarBack Radar Owner’s manual EN trekbikes.com PN5316869 trekbikes.com PN5316869 trekbikes.com PN5316869 About this product The CarBack is a Bluetooth & ANT+ compatible radar system with an integrated light to help increase a rider’s situational awareness on the road. The radar can communicate with select bike computers and smartphones. For detailed instructions on setting up your device, please refer to the user manual provided by the respective brand’s bike computer. • Do not use if the battery is impacted. Also do not puncture, crush, deform, disassemble, or heat a lithium-ion battery above 140° F (60° C). Damage to the battery may result in a fire, explosion, and/or exposure to specks of lithium or lithium dust. • The light is very bright. Do not stare at an operating light. Staring may be harmful to the eyes. •Proper use of the device can enhance your riding experience, but improper use can lead to distractions and sever e injury or even death. Exercise caution and use the device appropriately and attentively. • Proper use: Quickly check the radar device information while maintaining focus on your surroundings (when making turns, passing, changing lanes, etc.). Avoid prolonged staring or getting distracted by the device’s display. • Improper use: Overly focusing on the display may cause you to overlook obstacles or dangers, putting you at risk of serious consequences. WARNINGS: A bicycle without correct lights and reflectors might be difficult for other people to see, and you might not be able to see them. If you cannot see, or other people cannot see you, you could have an accident. Make sure your lights are set up, operating correctly, and that batteries are charged. WARNING: Parts listInstallation Specifications •Battery information: 154mA (typical), 3.7 Vdc, 2000mAh • Battery charging temperature: 50°F to 113°F (10°C to 45°C)* •Battery operating temperature: 14°F to 140°F (-10°C to 60°C)* •Battery storage temperature: 14°F to 113°F (-10°C to 45°C)* •Light lumens: 90 • Water ingress rating: IPX7 •Weight: 70g (2.5oz) •Charge port: USB-C •Dimensions: 70 x 50 x 30mm •Detection: Up to 7 vehicles • Detection range: 1-240m •Runtime: 7 hours (dependent on traffic, may exceed 7 hours) •Chargetime: 4 hours IMPORTANT: Check your local lighting laws. Flashing lights and full brightness may not be allowed in all locations. The CarBack radar light does not conform to the German road traffic regulation StVZO. Reset To reset the CarBack to factory default settings: • With the CarBack on, press and hold the power button for 15 seconds. The main LED will flash once at 8 seconds and again at 15 seconds. • Release the button after the second flash. • Once reset, the wireless br oadcast will be disabled until the first time the CarBack is powered on. Charging the battery The CarBack was charged prior to packaging, but we recommend you charge it before first use. IMPORTANT: For best results, charge at room temperature in a dry place. Use an approved (ex. UL certified) USB-C charger rated for 500mA or greater. Avoid extreme conditions including wet, cold, or extreme heat. 1. Open the USB port cover. 2.Plug the USB-C charger cable into the USB port on the unit. 3.Plug the cable into a computer or wall adapter. 4.When all lights are off, the charge is complete. Unplug the charger cable and close the USB port cover. 5.If you charge your computer at the same time as your CarBack it may keep your CarBack on after unplugging. When unplugging the CarBack after charging, turn the CarBack off if the fuel gauge is still on. Press and hold the power button for 1 second to power down. IMPORTANT: Ensure the USB cover is latched before riding in rain or wet conditions. If the USB cover is not closed, damage to the unit may occur. Do not leave the unit outdoors when not in use. NOTE: If the main button indicator is flashing red while plugged in, the light is either too hot or too cold to charge. Charging will begin when the light is between 32 ̊F (0 ̊C) and 104 ̊F (40 ̊C). CarBack unit 5313794 Quick Connect Plus Mount Rear W5314368 Light Modes Press the button to cycle through the modes Day steady Max output: 25 lumens Night steady Max output: 5 lumens Day Flash Max output: 90 lumen bursts Night Flash Max output: 5 lumen bursts USB-C Cable W5268686 If the bike computer is disconnected from the CarBack, the radar and light may stay on which may deplete the battery. For example this may happen if the bike computer is removed from the bicycle and taken away from the CarBack. The fuel gauge lights will remain on anytime the radar is active (on). The CarBack unit will automatically turn on/off when it has been previously paired with a compatible bike computer. NOTE: To operate correctly, the unit must: • Be between 70-120cm (27.5-47in) from the ground, • Point straight backwards (up/down, left/right), • Not be blocked by your wheel, saddle bag, fender, etc. Phone or ANT+ radar-compatible computer needed to pair To chargeWhen charging Flashes when charging Radar detection zone= 30M 240M 100M 50M 15M Optional Blendr Saddle Mount 5283888 Compatible with most Bontrager saddles Power up sequence 1. Turn on your bike computer. 2. The computer will turn on the light. NOTE: Make sure your CarBack light is on. Not all computers work the same. Check your bike computer’s manual for details. 3. Check to make sure the CarBack turns on. 4. The computer will connect to the CarBack. Power down sequence 1. Bike computer is powered off. 2. Light and CarBack will turn off. With the CarBack paired to your bike computer There are various factors that will obstruct the performance of the device, resulting in reduced efficiency and effectiveness. Riders directly behind you and mud or ice on the device may block the radar. Hilly or curvy roads may give you intermittent signals, and vehicles driving at the same speed right behind you may be less recognizable. Failure to understand and be aware of these factors can lead to serious injury or death.…

Text truncated - open the document above for the full version.

Trek Bicycle Corporation 801 W Madison St, Waterloo, WI 53594, USA Attestation Statements Date: 2024/2/29 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Attestation Statements Part 2.911(d)(5)(i)-(ii) Filing FCC ID：2AHXD-5313794 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) Trek Bicycle Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Statement for 47 CFR section 2.911(d)(5)(ii) Trek Bicycle Corporation (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Respectfully, Applicant’s company name : Trek Bicycle Corporation Applicant’s company address : 801 W Madison St, Waterloo, WI 53594 Signature : Name and Job Title : Jeffrey H. Jambois / Electrical Compliance Engineer E-Mail : [email protected] Te l : 9204782191 Fax : N/A

Trek Bicycle Corporation 801 W Madison St, Waterloo, WI 53594, USA Power of Attorney Date: 2024/2/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: 2AHXD-5313794 Respectfully, Applicant’s company name : Trek Bicycle Corporation Applicant’s company address : 801 W Madison St, Waterloo, WI 53594 Signature : Name and Job Title : Jeffrey H. Jambois / Electrical Compliance Engineer E-Mail : [email protected] Te l : 9204782191 Fax : N/A

Trek Bicycle Corporation 801 W Madison St, Waterloo, WI 53594, USA Confidential Letter Date: 2024/2/29 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：2AHXD-5313794 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Respectfully, Applicant’s company name : Trek Bicycle Corporation Applicant’s company address : 801 W Madison St, Waterloo, WI 53594 Signature : Name and Job Title : Jeffrey H. Jambois / Electrical Compliance Engineer E-Mail : [email protected] Te l : 9204782191 Fax : N/A

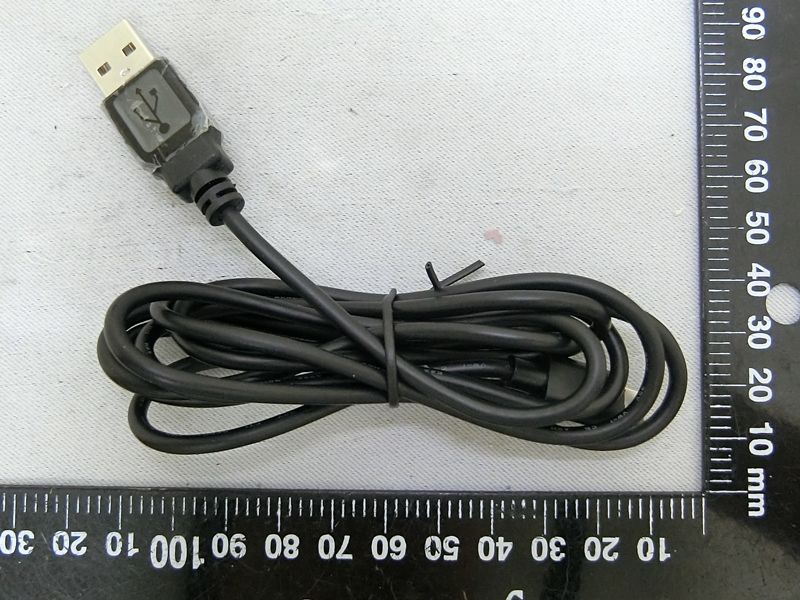

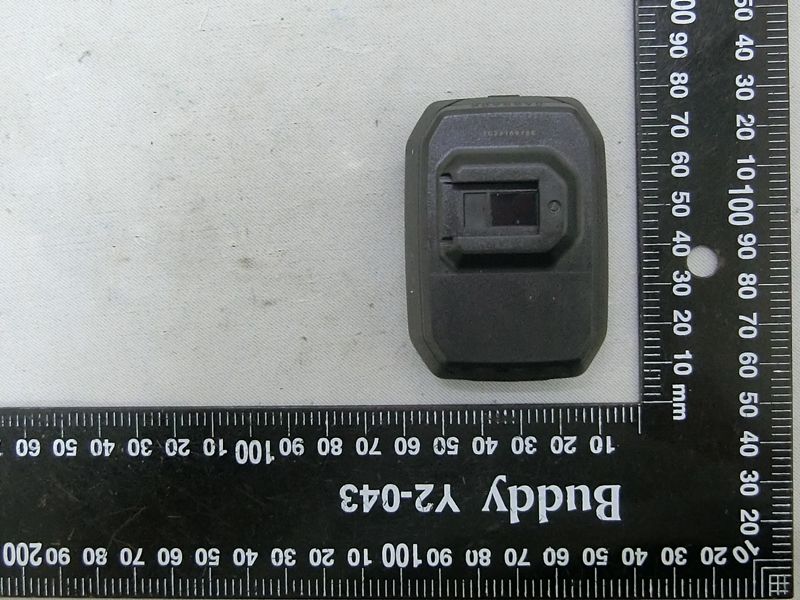

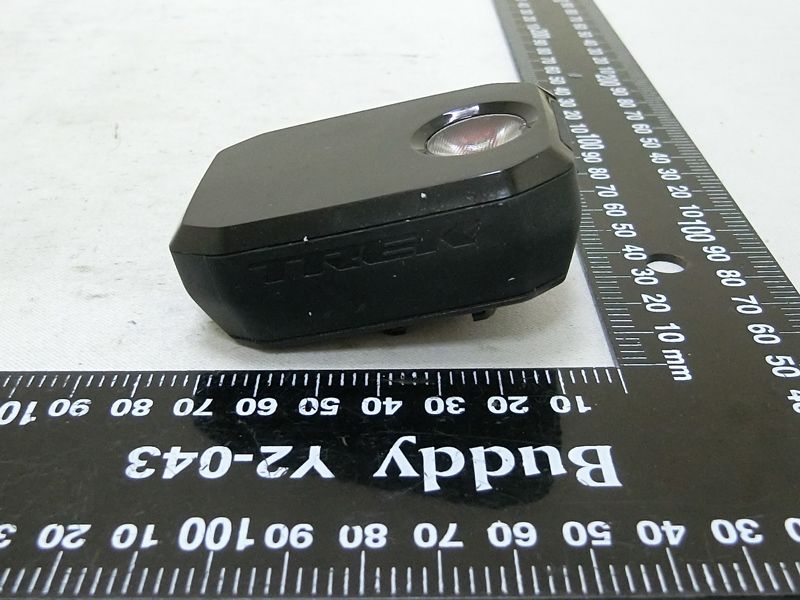

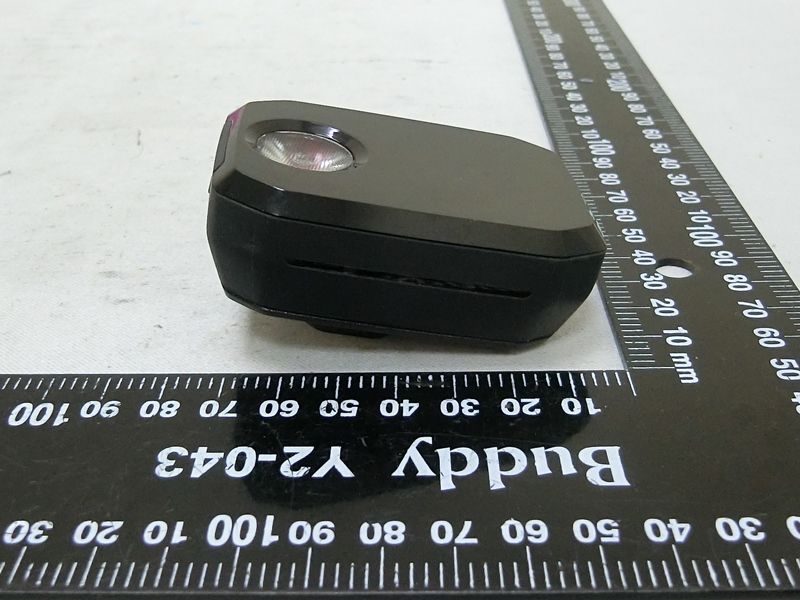

PHOTOGRAPHS OF EUT EP360116-03 Sporton International Inc. Page No. : 1 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Mar. 08, 2024 Report Version : 01 Brand Name: TREK Model Name: 5313794 PHOTOGRAPHS OF EUT EP360116-03 Sporton International Inc. Page No. : 2 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Mar. 08, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP360116-03 Sporton International Inc. Page No. : 3 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Mar. 08, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP360116-03 Sporton International Inc. Page No. : 4 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Mar. 08, 2024 Report Version : 01 PHOTOGRAPHS OF EUT EP360116-03 Sporton International Inc. Page No. : 5 of 5 Report Template No.: SE Ver 1.0_EP Issued Date : Mar. 08, 2024 Report Version : 01 USB cable
