2AHY3-A12PicassoTab_ A12

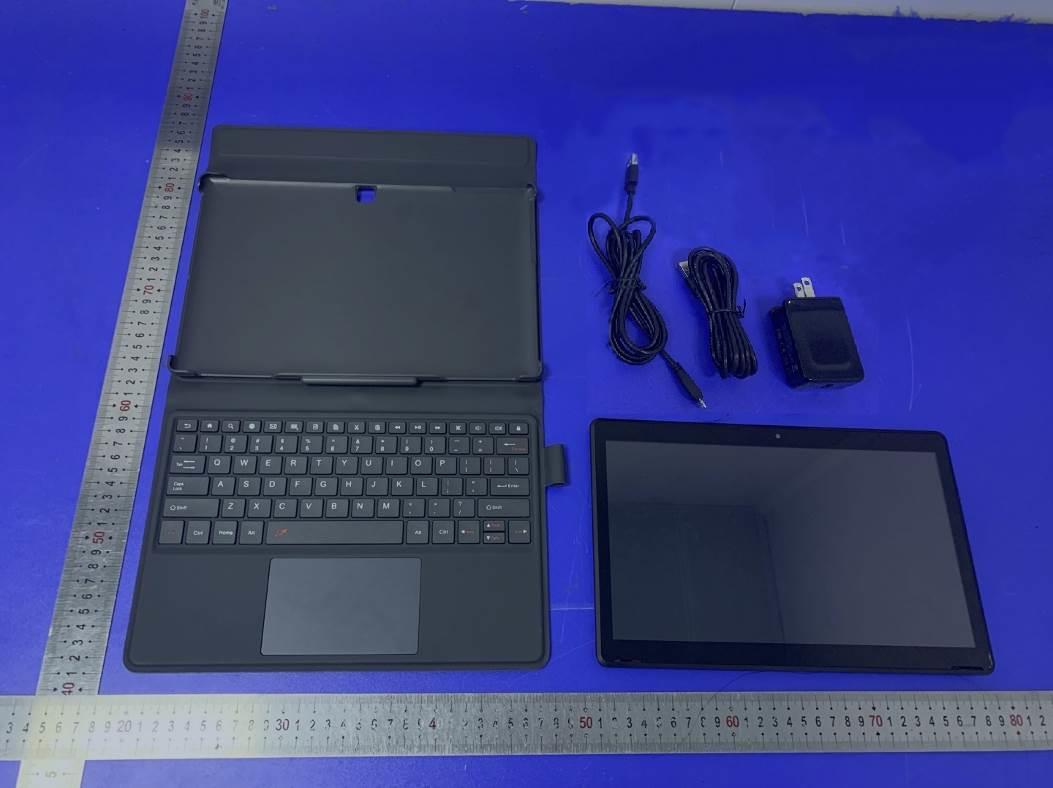

USER GUIDE AND PRODUCT MANUAL YOUR COMPREHENSIVE GUIDE TO THE PICASSOTAB WELCOME This manual is organized to help you get started quickly, understand the device’s key features, adjust system settings, find troubleshooting tips, and access support when needed. Use the model-specific sections for details relevant to your table. Note: Your tablet might look slightly different from the illustrations in this user guide. Depending on the version of operating systems and programs, some user interface instructions might not be applicable to your tablet. 2 CONTENTS 1. Getting Started 1.1. All-In-One Package............................................................................................................................................3 1.2. Setting Up Your Tablet......................................................................................................................................4 1.3. Activating Your Picasso Pen.........................................................................................................................4 1.4. Overview of Ports and Buttons..................................................................................................................5 2. Device Features 2.1. Wireless Connectivity......................................................................................................................................5 2.2. Managing Storage Via Storage Settings...............................................................................................7 2.3. Connecting To An External Display.........................................................................................................8 2.4. Pre-Installed Software.....................................................................................................................................8 3. System & Settings 3.1. Add Or Remove A Google Account......................................................................................................10 3.2. Setting Up Parental Controls...................................................................................................................10 3.3. Customization....................................................................................................................................................11 3.4. Lock Screen And Security..........................................................................................................................12 4. Troubleshooting & Maintenance 4.1. Restart & Reset..................................................................................................................................................13 4.2. Battery Life: Tips to Make It Last Longer...........................................................................................14 4.3. Can't Unlock Your PicassoTab.................................................................................................................14 4.4. Backup, Restore And Data Transfer.....................................................................................................15 4.5. Accessing The Questions Page On The Simbans Website..................................................16 5. User Support & Safety Information 5.1. Important Safety & Proper Use...............................................................................................................17 5.2. Warranty Details And Contact Information....................................................................................19 5.3. Operating System Reinstallation Guide...........................................................................................19 3 1. GETTING STARTED 1.1. ALL-IN-ONE PACKAGE • Tablet, Picasso Pen, Tablet Case • Screen Protector, Drawing Glove • Charger with Adaptors, Manual 4 1.2. SETTING UP YOUR TABLET When you use the device for the first time, do the following to complete the initial setup: Attention: Use only Simbans power adapters. 1. Connect the power cord to the ac power adapter. 2. Connect the ac power adapter to the USB-C connector on your device. 3. Connect the power cord to a proper electric outlet. 4. Press the power button to turn on the computer and follow the instructions on the screen to complete the initial setup. 1.3. ACTIVATING YOUR PICASSO PEN Note: The Picasso Pen comes with a AAAA battery pre-installed. You only need to replace the battery when it runs out. NO CONFIGURATION REQUIRED • The Picasso Pen activates instantly upon touching the screen. • No pairing, setup, or configuration needed. REPLACING THE AAAA BATTERY Steps: 1. Remove the top cover from the pen. 2. Remove the used AAAA battery. 3. Insert a new AAAA battery into the pen with the positive side facing in. 4. Replace the top cover. 5 1.4. OVERVIEW OF PORTS AND BUTTONS 1. Power On/Off Button 2. Reset Pin Hole 3. Volume Up 4. Volume Down 5. Type-C Port 6. Micro SD Slot 7. Camera 2. DEVICE FEATURES 2.1. WIRELESS CONNECTIVITY CONNECT TO A WI-FI NETWORK 1. Open your device's Settings app. 2. Tap Network & internet > Internet. 3. Tap a listed network. Networks that require a password have a lock icon. 6 Tip: After you connect, the network is "Saved." When your device is nearby and Wi-Fi is on, your device automatically connects to this network. USING BLUETOOTH DEVICES Turn Bluetooth on or off from the Settings app: 1. From the top of the screen, swipe down. 2. Tap Bluetooth . Tip: To save battery, turn off Bluetooth when not in use. Bluetooth is off in Airplane mode. Pair a Bluetooth accessory: OPTION 1: Use the Settings app (all Bluetooth accessories) 1. From the top of the screen, swipe down. 2. Touch and hold Bluetooth . 3. Tap Pair new device. 4. If there's no "Pair new device," check under "Available devices" or tap More: > Refresh. 5. To pair your device, tap the name of the Bluetooth device. 6. Follow the on-screen instructions. OPTION 2: Use notifications (Fast Pair accessories only) 1. Make sure: o Your Bluetooth accessory work…

Text truncated - open the document above for the full version.
