2AHY3-Z13PicassoTab_ Z13
Simbans Limited
Click to zoom
Application Details
- Equipment Class
- NII - Unlicensed National Information Infrastructure TX
- Date of Grant
- Apr 15, 2026
- Application Purpose
- Original Equipment
- Equipment Note
- PicassoTab_ Z13
- Frequency Range
- 5180.00000000 - 5240.00000000
- Company
- Simbans Limited
- Country
- Hong Kong
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
USER GUIDE AND PRODUCT MANUAL YOUR COMPREHENSIVE GUIDE TO THE PICASSOTAB WELCOME This manual is organized to help you get started quickly, understand the deviceβs key features, adjust system settings, find troubleshooting tips, and access support when needed. Use the model-specific sections for details relevant to your table. Note: Your tablet might look slightly different from the illustrations in this user guide. Depending on the version of operating systems and programs, some user interface instructions might not be applicable to your tablet. 2 CONTENTS 1. Getting Started 1.1. All-In-One Package............................................................................................................................................3 1.2. Setting Up Your Tablet......................................................................................................................................4 1.3. Activating Your Picasso Pen.........................................................................................................................4 1.4. Overview of Ports and Buttons..................................................................................................................5 2. Device Features 2.1. Wireless Connectivity......................................................................................................................................5 2.2. Managing Storage Via Storage Settings...............................................................................................7 2.3. Connecting To An External Display.........................................................................................................8 2.4. Pre-Installed Software.....................................................................................................................................8 3. System & Settings 3.1. Add Or Remove A Google Account......................................................................................................10 3.2. Setting Up Parental Controls...................................................................................................................10 3.3. Customization....................................................................................................................................................11 3.4. Lock Screen And Security..........................................................................................................................12 4. Troubleshooting & Maintenance 4.1. Restart & Reset..................................................................................................................................................13 4.2. Battery Life: Tips to Make It Last Longer...........................................................................................14 4.3. Can't Unlock Your PicassoTab.................................................................................................................14 4.4. Backup, Restore And Data Transfer.....................................................................................................15 4.5. Accessing The Questions Page On The Simbans Website..................................................16 5. User Support & Safety Information 5.1. Important Safety & Proper Use...............................................................................................................17 5.2. Warranty Details And Contact Information....................................................................................19 5.3. Operating System Reinstallation Guide...........................................................................................19 3 1. GETTING STARTED 1.1. ALL-IN-ONE PACKAGE β’ Tablet, Picasso Pen, Tablet Case β’ Screen Protector, Drawing Glove β’ Charger with Adaptors, Manual 4 1.2. SETTING UP YOUR TABLET When you use the device for the first time, do the following to complete the initial setup: Attention: Use only Simbans power adapters. 1. Connect the power cord to the ac power adapter. 2. Connect the ac power adapter to the USB-C connector on your device. 3. Connect the power cord to a proper electric outlet. 4. Press the power button to turn on the computer and follow the instructions on the screen to complete the initial setup. 1.3. ACTIVATING YOUR PICASSO PEN NO CONFIGURATION REQUIRED β’ The Picasso Pen activates instantly upon touching the screen. β’ No pairing, setup, or configuration needed. 5 1.4. OVERVIEW OF PORTS AND BUTTONS 1. Power On/Off Button 2. Volume Up 3. Volume Down 4. Micro SD Slot 2. DEVICE FEATURES 2.1. WIRELESS CONNECTIVITY CONNECT TO A WI-FI NETWORK 1. Open your device's Settings app. 2. Tap Network & internet > Internet. 3. Tap a listed network. Networks that require a password have a lock icon. Tip: After you connect, the network is "Saved." When your device is nearby and Wi-Fi is on, your device automatically connects to this network. 6 USING BLUETOOTH DEVICES Turn Bluetooth on or off from the Settings app: 1. From the top of the screen, swipe down. 2. Tap Bluetooth . Tip: To save battery, turn off Bluetooth when not in use. Bluetooth is off in Airplane mode. Pair a Bluetooth accessory: OPTION 1: Use the Settings app (all Bluetooth accessories) 1. From the top of the screen, swipe down. 2. Touch and hold Bluetooth . 3. Tap Pair new device. 4. If there's no "Pair new device," check under "Available devices" or tap More: > Refresh. 5. To pair your device, tap the name of the Bluetooth device. 6. Follow the on-screen instructions. OPTION 2: Use notifications (Fast Pair accessories only) 1. Make sure: o Your Bluetooth accessory works with Fast Pair. Accessories that work with Fast Pair say so on their boxes. o Your device has Bluetooth turned on. 2. Turn on your Fast Pair accessory and put it in pairing mode. o Make sure your accessory is near your device. 3. When you get a notification, tap to pair. 4. You'll get a "Device connected" notification. 7 2.2. MANAGING STORAGE VIA STORAGE SETTINGS β¦
Text truncated - open the document above for the full version.
RF Exposure Info
Page 1 of 44 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT For Simbans Limited PicassoTab_ Z13 Test Model: PicassoTab_ Z13 Prepared for : Simbans Limited Address : 3412, 34/F, Cable TV Tower, 9 Hoi Shing Road, Tsuen Wan, HONG KONG Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 13, 2026 Number of tested samples Sample number : : 1 A260113040-1 Serial number : Prototype Date of Test : January 13, 2026 ~ January 16, 2026 Date of Report : February 05, 2026 Page 2 of 44 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR TEST REPORT Report Reference No. ................. : LCSA01136022E Date Of Issue ............................. : February 05, 2026 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ......... : Full application of Harmonised standards β Partial application of Harmonised standards β‘ Other standard testing method β‘ Applicantβs Name .................... : Simbans Limited Address ...................................... : 3412, 34/F, Cable TV Tower, 9 Hoi Shing Road, Tsuen Wan, HONG KONG Test Specification: Standard ..................................... : FCC 47CFR Β§2.1093 IEEE C95.1-2019 IEEE 1528-2013 Test Report Form No. ................. : TRF-4-E-102 A/0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................ : Dated 2014-09 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............. : PicassoTab_ Z13 Trade Mark ................................. : PicassoTab Model/Type Reference ............... : PicassoTab_ Z13 Ratings ....................................... : Please Refer to Page 8 Result ...................................... : Positive Compiled by: Supervised by: Approved by: Jay Zhan/ Administrators Jack Liu / Technique Director Gavin Liang/ Manager Page 3 of 44 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA01136022E February 05, 2026 Date of issue EUT...................................... : PicassoTab_ Z13 Type/Model .......................... : PicassoTab_ Z13 Applicant.............................. : Simbans Limited Address.................................. : 3412, 34/F, Cable TV Tower, 9 Hoi Shing Road, Tsuen Wan, HONG KONG Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Simbans Limited Address.................................. : 3412, 34/F, Cable TV Tower, 9 Hoi Shing Road, Tsuen Wan, HONG KONG Telephone.............................. : / Fax......................................... : / Factory............................ : Simbans Limited Address.............................. : 3412, 34/F, Cable TV Tower, 9 Hoi Shing Road, Tsuen Wan, HONG KONG Telephone.......................... : / Fax..................................... : / Page 4 of 44 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revison History Revision Issue Date Revision Content Revised By 000 February 05, 2026 Initial Issue --- Page 5 of 44 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................6 1.1. STATEMENT OF COMPLIANCE ..............................................................................................................................β¦
Text truncated - open the document above for the full version.
Test Setup Photos
Page 1 of 2 FCC ID: 2AHY3-Z13 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2AHY3-Z13 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3 Test Setup Photo(s) of RF Conducted Fig. 4
Test Setup Photos

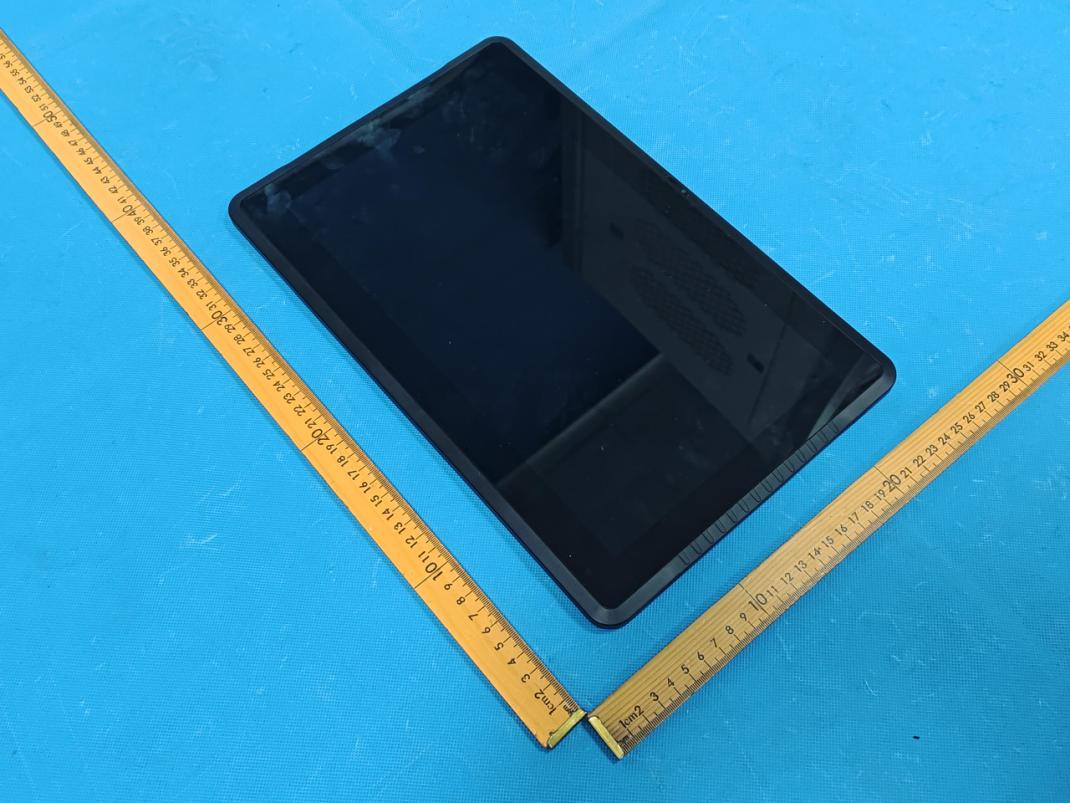

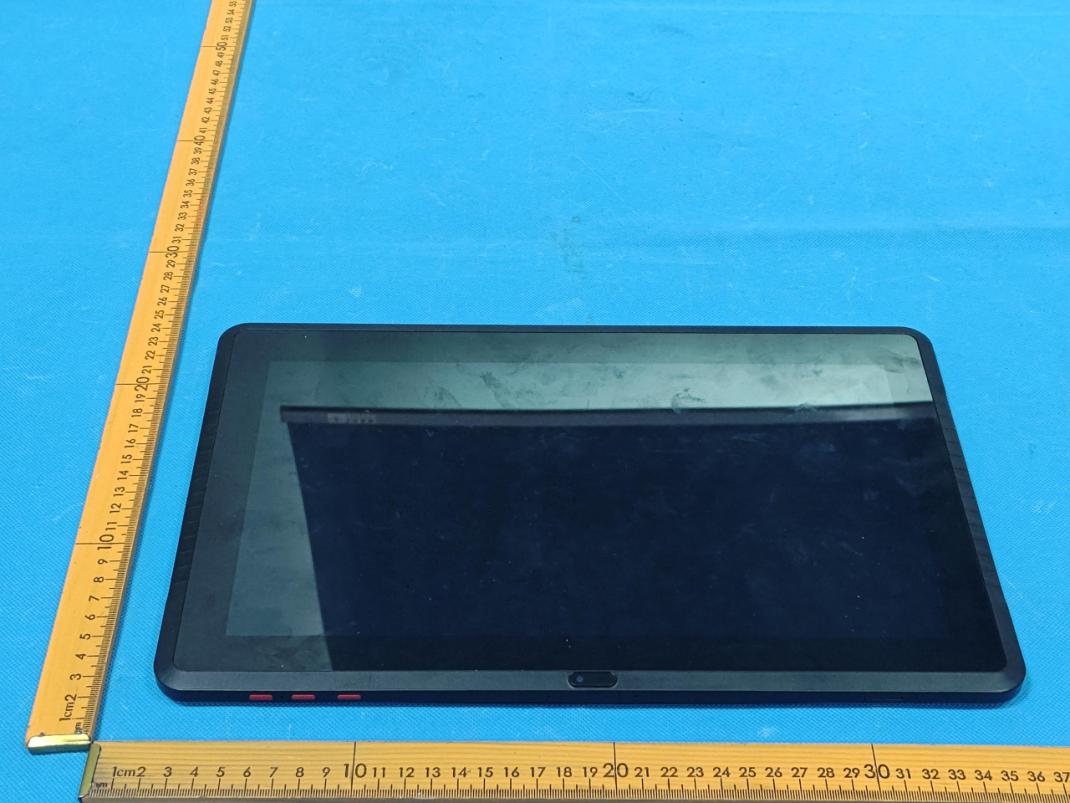

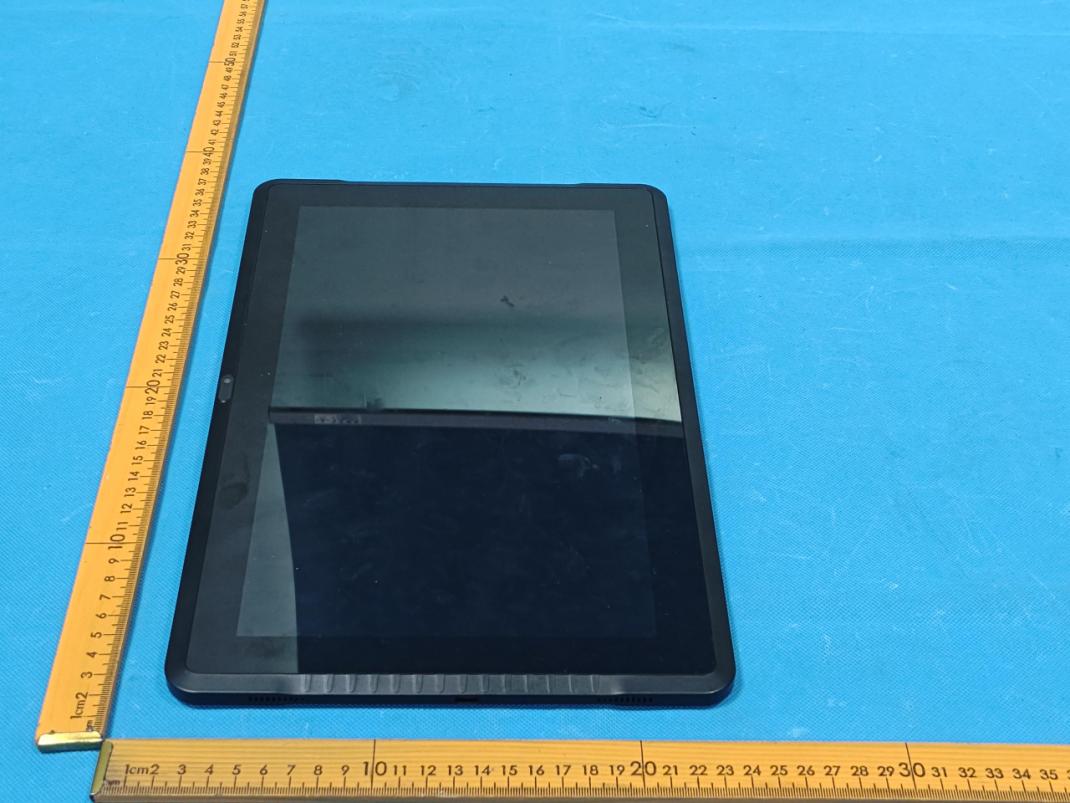

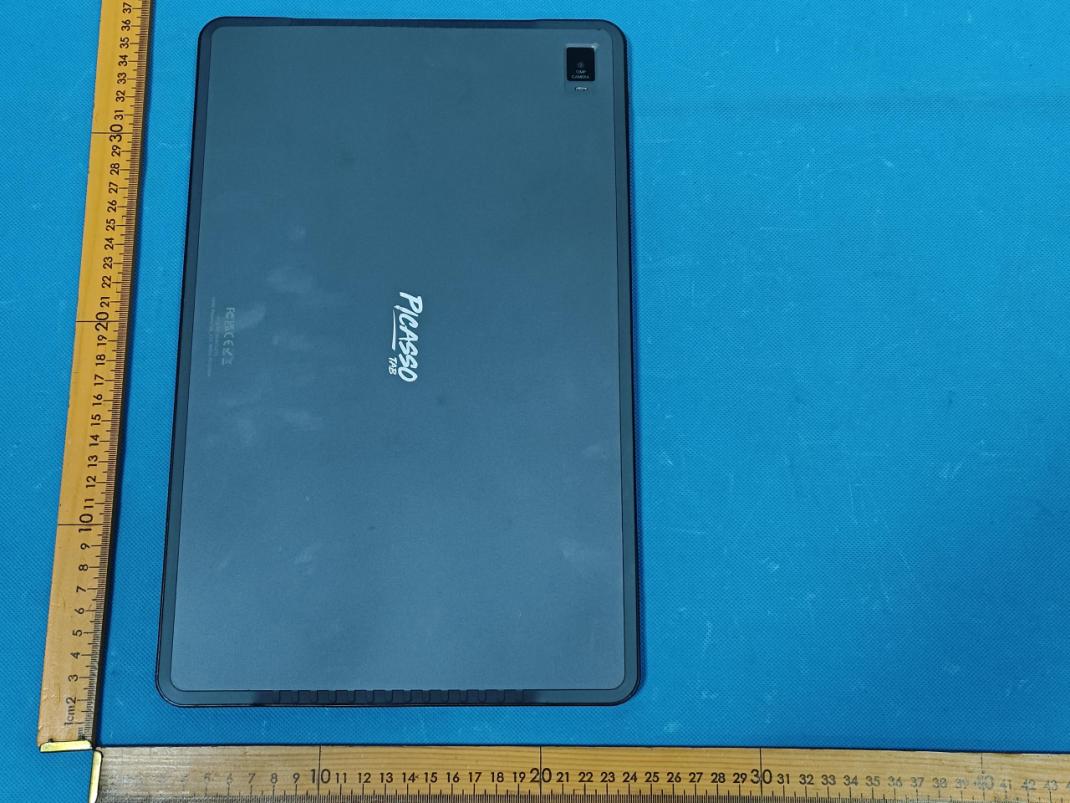

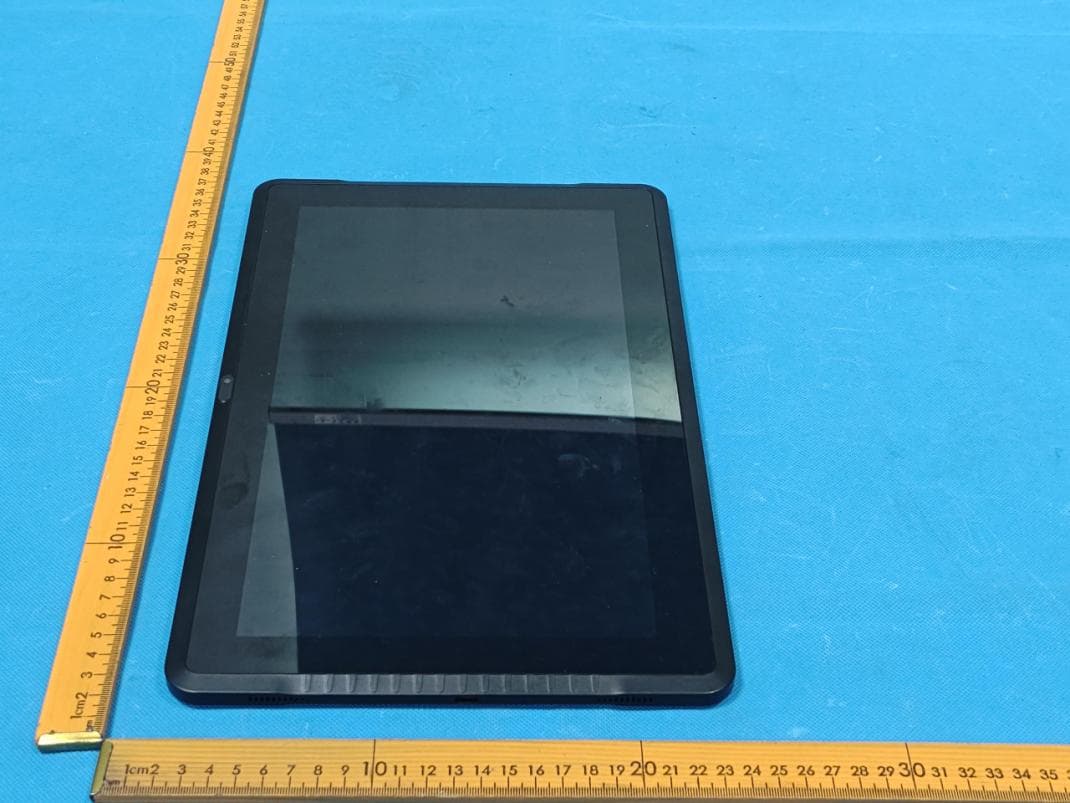

Page 1 of 5 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Page 2 of 5 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 1. SAR measurement System Page 3 of 5 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for Head 700-3000 Mhz Photo 2: Tissue Simulant Liquid for Head 3000-8000 Mhz Page 4 of 5 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 3. Photographs of EUT test position Photo 3: Rear side 0mm Photo 4: Right side 0mm Page 5 of 5 FCC ID: 2AHY3-Z13 Report No.: LCSA01136022E Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. EUT Constructional Details Photo 5: Front View Photo 6: Back View
Test Report
Page 1 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix E RF Test Data for 5.8GWIFI (Conducted Measurement) Product Name: PicassoTab_ Z13 Test Model: PicassoTab_ Z13 Environmental Conditions Temperature: 23.1ο°C Relative Humidity: 54.2% ATM Pressure: 100.0 kPa Test Engineer: Zhang hai Supervised by: Fengliu Tang Page 2 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com E.1 Emission Bandwidth Test Result B4 TestMode Antenna Freq (MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit [MHz] Verdict 11A Ant1 5745 15.800 5737.120 5752.920 0.5 PASS 5785 14.760 5777.760 5792.520 0.5 PASS 5825 15.080 5817.480 5832.560 0.5 PASS 11N20SISO Ant1 5745 13.880 5738.680 5752.560 0.5 PASS 5785 15.040 5777.480 5792.520 0.5 PASS 5825 13.920 5817.440 5831.360 0.5 PASS 11N40SISO Ant1 5755 35.040 5737.480 5772.520 0.5 PASS 5795 35.040 5777.480 5812.520 0.5 PASS 11AC20SISO Ant1 5745 15.040 5737.440 5752.480 0.5 PASS 5785 14.440 5778.120 5792.560 0.5 PASS 5825 14.040 5818.480 5832.520 0.5 PASS 11AC40SISO Ant1 5755 35.040 5737.480 5772.520 0.5 PASS 5795 33.840 5778.680 5812.520 0.5 PASS 11AC80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS Page 3 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 Page 4 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 Page 5 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 Page 6 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 Page 7 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 Page 8 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 Page 9 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC80SISO_Ant1_5775 Page 10 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com E.2 Maximum conducted output power Test Result Test Mode Antenna Freq (MHz) TPC Mode Measured Power [dBm] DC Factor [dB] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 NA 14.98 0.12 15.10 β€30.00 PASS 5785 NA 15.08 0.12 15.20 β€30.00 PASS 5825 NA 14.26 0.12 14.38 β€30.00 PASS 11N20SISO Ant1 5745 NA 14.43 0.13 14.56 β€30.00 PASS 5785 NA 14.05 0.10 14.15 β€30.00 PASS 5825 NA 13.66 0.13 13.79 β€30.00 PASS 11N40SISO Ant1 5755 NA 14.35 0.26 14.61 β€30.00 PASS 5795 NA 13.89 0.26 14.15 β€30.00 PASS 11AC20SISO Ant1 5745 NA 14.49 0.13 14.62 β€30.00 PASS 5785 NA 14.19 0.13 14.32 β€30.00 PASS 5825 NA 13.83 0.16 13.99 β€30.00 PASS 11AC40SISO Ant1 5755 NA 14.39 0.26 14.65 β€30.00 PASS 5795 NA 14.00 0.26 14.26 β€30.00 PASS 11AC80SISO Ant1 5775 NA 13.95 0.38 14.33 β€30.00 PASS Page 11 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com E.3 Maximum power spectral density Test Result TestMode Antenna Freq (MHz) Raw Data [dBm/MHz] DC Factor RBW Factor Result [dBm/MHz] Limit [dBm/MHz] Verdict 11A Ant1 5745 -1.53 0.12 2.22 0.81 β€30.00 PASS 5785 -1.72 0.12 2.22 0.62 β€30.00 PASS 5825 -2.52 0.12 2.22 -0.18 β€30.00 PASS 11N20SIS O Ant1 5745 -1.78 0.13 2.22 0.57 β€30.00 PASS 5785 -2.8 0.10 2.22 -0.48 β€30.00 PASS 5825 -3.14 0.13 2.22 -0.79 β€30.00 PASS 11N40SIS O Ant1 5755 -5.47 0.26 2.22 -2.99 β€30.00 PASS 5795 -5.76 0.26 2.22 -3.28 β€30.00 PASS 11AC20SI SO Ant1 5745 -2.05 0.13 2.22 0.30 β€30.00 PASS 5785 -2.51 0.13 2.22 -0.16 β€30.00 PASS 5825 -3.02 0.16 2.22 -0.64 β€30.00 PASS 11AC40SI SO Ant1 5755 -5.25 0.26 2.22 -2.77 β€30.00 PASS 5795 -5.8 0.26 2.22 -3.32 β€30.00 PASS 11AC80SI SO Ant1 5775 -8.74 0.38 2.22 -6.14 β€30.00 PASS NoteοΌ1.The Result and Limit Unit is dBm/500 kHz in the band 5.725β5.85 GHz. Page 12 of 39 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004EE Guanβ¦
Text truncated - open the document above for the full version.
Test Report
Page 26 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N40SISO_Ant1_Low_5190_Peak 11N40SISO_Ant1_High_5230_AV Page 27 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N40SISO_Ant1_High_5230_Peak 11AC20SISO_Ant1_Low_5180_AV Page 28 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC20SISO_Ant1_Low_5180_Peak 11AC20SISO_Ant1_High_5240_AV Page 29 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC20SISO_Ant1_High_5240_Peak 11AC40SISO_Ant1_Low_5190_AV Page 30 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC40SISO_Ant1_Low_5190_Peak 11AC40SISO_Ant1_High_5230_AV Page 31 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC40SISO_Ant1_High_5230_Peak 11AC80SISO_Ant1_Low_5210_AV Page 32 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC80SISO_Ant1_Low_5210_Peak 11AC80SISO_Ant1_High_5210_AV Page 33 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11AC80SISO_Ant1_High_5210_Peak Page 34 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com D.5 Frequency Stability Test Result Voltage TestMode Antenna Freq (MHz) Voltage [Vdc] Temper ature (Β°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 11A Ant1 5180 NV NT -20000.00 -3.861004 20 PASS LV NT 0.00 0.000000 20 PASS HV NT -20000.00 -3.861004 20 PASS 5200 NV NT 0.00 0.000000 20 PASS LV NT -20000.00 -3.846154 20 PASS HV NT 40000.00 7.692308 20 PASS 5240 NV NT 20000.00 3.816794 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 11N20SI SO Ant1 5180 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 5200 NV NT 0.00 0.000000 20 PASS LV NT -20000.00 -3.846154 20 PASS HV NT -20000.00 -3.846154 20 PASS 5240 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 11N40SI SO Ant1 5190 NV NT 40000.00 7.707129 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 5230 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 11AC20S ISO Ant1 5180 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS 5200 NV NT 20000.00 3.846154 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 20000.00 3.846154 20 PASS 5240 NV NT 20000.00 3.816794 20 PASS LV NT 0.00 0.000000 20 PASS HV NT -20000.00 -3.816794 20 PASS 11AC40SAnt1 5190 NV NT 0.00 0.000000 20 PASS Page 35 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com ISO LV NT -40000.00 -7.707129 20 PASS HV NT 40000.00 7.707129 20 PASS 5230 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 40000.00 7.648184 20 PASS 11AC80S ISO Ant1 5210 NV NT 0.00 0.000000 20 PASS LV NT 0.00 0.000000 20 PASS HV NT 0.00 0.000000 20 PASS Temperature TestMode Antenna Freq (MHz) Voltage [Vdc] Temper ature (Β°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 11A Ant1 5180 NV -30 -20000.00 -3.861004 20 PASS NV -20 0.00 0.000000 20 PASS NV -10 0.00 0.000000 20 PASS NV 0 0.00 0.000000 20 PASS NV 10 -20000.00 -3.861004 20 PASS NV 20 20000.00 3.861004 20 PASS NV 30 0.00 0.000000 20 PASS NV 40 0.00 0.000000 20 PASS NV 50 0.00 0.000000 20 PASS 5200 NV -30 -20000.00 -3.846154 20 PASS NV -20 0.00 0.000000 20 PASS NV -10 0.00 0.000000 20 PASS NV 0 -20000.00 -3.846154 20 PASS NV 10 -20000.00 -3.846154 20 PASS NV 20 0.00 0.000000 20 PASS NV 30 20000.00 3.846154 20 PASS NV 40 0.00 0.000000 20 PASS NV 50 0.00 0.000000 20 PASS 5240 NV -30 0.00 0.000000 20 PASS NV -20 0.00 0.000000 20 PASS NV -10 0.00 0.000000 20 PASS NV 0 -20000.00 -3.816794 20 PASS NV 10 0.00 0.000000 20 PASS NV 20 0.00 0.000000 20 PASS NV 30 0.00 0.000000 20 PASS NV 40 0.00 0.000000 20 PASS NV 50 0.00 0.000000 20 PASS 11N20SI SO Ant1 5180 NV -30 0.00 0.000000 20 PASS NV -20 20000.00 3.861004 20 PASS Page 36 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 02β¦
Text truncated - open the document above for the full version.
Test Report
Page 1 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix D RF Test Data for 5.2GWIFI (Conducted Measurement) Product Name: PicassoTab_ Z13 Test Model: PicassoTab_ Z13 Environmental Conditions Temperature: 23.1ο°C Relative Humidity: 54.2% ATM Pressure: 100.0 kPa Test Engineer: Zhang hai Supervised by: Fengliu Tang Page 2 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com D.1 Emission Bandwidth Test Result TestMode Antenna Freq (MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit [MHz] Verdict 11A Ant1 5180 20.120 5169.640 5189.760 --- --- 5200 20.080 5190.120 5210.200 --- --- 5240 21.680 5228.120 5249.800 --- --- 11N20SISO Ant1 5180 20.920 5169.160 5190.080 --- --- 5200 25.920 5186.320 5212.240 --- --- 5240 24.600 5227.440 5252.040 --- --- 11N40SISO Ant1 5190 63.360 5157.920 5221.280 --- --- 5230 56.400 5198.160 5254.560 --- --- 11AC20SISO Ant1 5180 20.400 5169.960 5190.360 --- --- 5200 20.360 5189.880 5210.240 --- --- 5240 20.440 5229.960 5250.400 --- --- 11AC40SISO Ant1 5190 40.640 5169.600 5210.240 --- --- 5230 43.760 5209.760 5253.520 --- --- 11AC80SISO Ant1 5210 81.280 5169.360 5250.640 --- --- Page 3 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 Page 4 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 Page 5 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 Page 6 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 Page 7 of 46 FCC ID: 2AHY3-Z13 Report No.: LCSC01136004ED Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 11β¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Shelly Garg
[email protected]Fax: +852-39565760
Technical Contact
HOORAY INDUSTRY LLCCindy Wu
1408 Pinon Place Fullerton, Β· California, 92835 Β· United States
Test Firm
Guangzhou LCS Compliance Testing Laboratory LtdGavin Liang
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 31.90 mW |
| 2 | 15E | 5.75 GHz - 5.83 GHz | 33.10 mW |
