2AHZ5C9Smartwatch

Please carefully read the user manual to ensure safety. Smart Watch User Manual English Deutsch Français Español Italiano Português Русский 01 08 15 22 29 36 43 日語50 An Introduction to Device Connect to the USB cable to charge before turning on the smart watch for the first time Power Key 1.Short press to brighten the screen 2.Long press to power on or off Charging Port Heart Rate Sensing Area English 01 APP Binding Press and hold the power button to start the machine, scan the QR code to download the GloryFit app for pairing , and set the watch in the app. Notes: 1. Please ensure that your mobile Bluetooth and GPS are turned on prior to connection; 2.Do not directly pair mobile Bluetooth with watch; 3.Support (1) Android 5.0 and more advanced systems; (2) IOS 10.0 and more advanced systems 1.Please turn your mobile Bluetooth and GPS on; 2.Click “Select device" in the app home page to start searching for devices Enter APP settingsSelect product type: C9 English 02 Long Press the dial plate for 3s to enter the change interface 1.Dial Plate Change Wear / Replace Interface Operation Instructions Note: 1. Too loose wearing may affect the data accuracy of heart rate; 2. Keep its surface clean and dry. Keep a certain distance away from carpus when wearing the watch, and adjust to a comfortable tightness. Switch on and remove wrist strap English 03 2. Interface Operation Remark: Slide right and left to enter the shortcut interaction interface; slide up to enter the message notification bar interface and slide down to enter the status settings bar. Remark: Slide right to exit under the sports mode. Find Your Phone, Brightness Adjustment, Do Not Disturb, About the Device (model, MAC/version) Main Interface Status Bar Message Bar Step Counting Sleep Heart Rate English 04 3. Function Introduction English Exercise (a variety of exercise modes are available, record the relevant parameters in the process of exercise ) Heart rate (measure current heart rate and record maximum and minimum data) Status (record total steps, mileage, calories) Sleep (record total sleep time, sleep status and awake status) Music control (control the music playing in the mobile phone when connect to the mobile phone) 05 Notes for Safety and Product Information 1.Battery Alarm Do not damage battery via shape items, and do not disassemble it without authorization; Please keep great judgement and ensure driving safety. Do not carry out all activities that may divert your attention; malfunction may occur due to the interference of radio. Please contact the manufacturer to consult about detailed information. 2.Health Alarm 3.Traffic Safety Do not wear the watch when shower; Do not wear the watch too tight, and keep the part that touches skin dry; Do not make kids or pets bite the device or its accessories to avoid any damage; The watch isn’t waterproof to acid, alkaline solutions, chemical reagent and other corrosive liquid; Please use the device within 0-35°C. Too high or too low environment temperature may bring device malfunctions. 4.Operating Environment If you are wearing implantable electronic devices such as pacemakers, please consult your doctor before heart rate measurement; Equipped optical heart rate sensor flashes green light. If you have epilepsy or are sensitive to flickering light, please consult your doctor whether you can use the product; The device will track your daily activities according to the sensor with the aim of offering data involving your daily activities such as steps, mileage, calorie, sleep and heart rate. Please note that they may not be completely accurate; The device, accessories, heart rate sensor and other related data are for entertainment and fitness, instead of medical purpose. They can’t help you diagnose, monitor, treat and prevent any disease or symptom. The heart rate data is for reference only. We aren’t liable for all results caused by data deviation. English 06 5.Declaration of Conformity 6.Safety Warnings Unauthorized battery change will lead to explode; Please handle used battery according to the following descriptions: Do not dispose old battery and residual wastes together. Please deal with them separately. It is free to handle them at the public collection station. Owners of old appliances should be responsible for bringing them to collection stations or similar stations. A little personal efforts make contributions to the recycle of valuable raw materials and handling of harmful substances. The device conforms to EU ROHS standards. Please refer to IEC 62321, EU ROHS directive 2011/65/EU and Recised directive. English 07 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiv…

Text truncated - open the document above for the full version.

Shenzhen Huafurui Technology Co., Ltd. DATE :2021-6-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHZ5C9 Product Name: Smartwatch Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •Schematics •Block diagram •Operation description •BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2021-6-22 By: Paul Liu Signature Printed Title: Manager On behalf of : Shenzhen Huafurui Technology Co., Ltd. Telephone: 86-0755-82750456

Shenzhen Huafurui Technology Co., Ltd. DATE :2021-6-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint JianYan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao’an District, Shenzhen, Guangdong, People’s Republic of China.;Bruce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Huafurui Technology Co., Ltd. , Unit 1401 &1402, 14/F, Jinqi zhigu mansion (No. 4 building of Chongwen Garden), Crossing of the Liuxian street and Tangling road, Taoyuan street, Nanshan district, Shenzhen,P.R. China Dated this 2021-6-22 By: Paul Liu Signature Printed Title: Manager On behalf of : Shenzhen Huafurui Technology Co., Ltd. Telephone: 86-0755-82750456

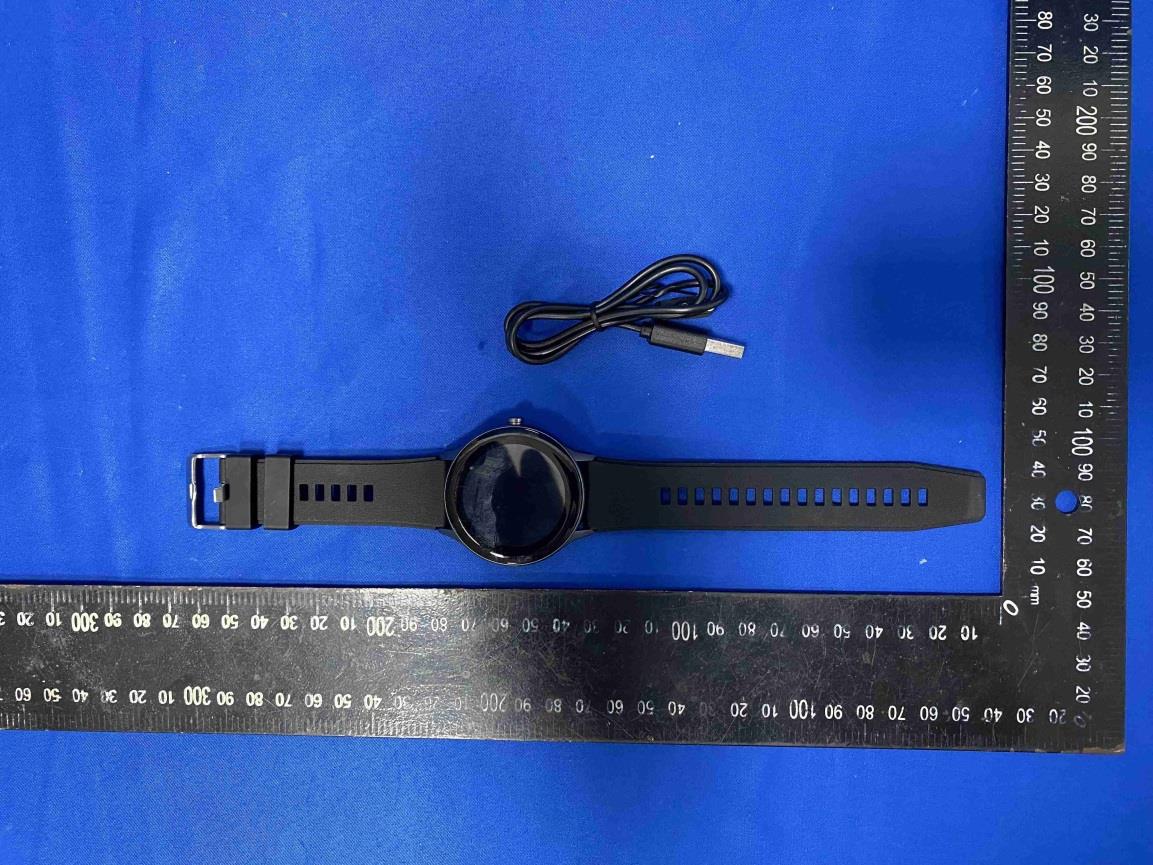

Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 33 of 42 8 EUT Constructional Details Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 34 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 35 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 36 of 42

Label Smartwatch Model：C9 S/N：XXXXXXXXXXXX FCCID：2AHZ5C9 ShenzhenHuafuruiTechnologyCo.,Ltd. Unit1401&1402,14/F,JinqiZhiguMansion (No.4BuildingofChongwenGarden),CrossingoftheLiuxianStreetand TanglingRoad,TaoyuanStreet,NanshanDistrict,Shenzhen.PR,China Importer：XXXXXX Address：XXXXXXMadeInChina

Label： Labellocation：

Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 37 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 38 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 39 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 40 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 41 of 42 Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 42 of 42 ------End of report------

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100979 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: Shenzhen Huafurui Technology Co., Ltd. Address of Applicant: Unit 1401 &1402, 14/F, Jinqi zhigu mansion (No. 4 building of Chongwen Garden), Crossing of the Liuxian street and Tangling road, Taoyuan street, Nanshan district, Shenzhen, P.R. China Equipment Under Test (EUT) Product Name: Smartwatch Model No.: C9 Trade mark: CUBOT, HAFURY FCC ID: 2AHZ5C9 Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1093 Date of sample receipt: 27 May, 2021 Date of Test: 27 May, to 17 Jun., 2021 Date of report issue: 17 Jun., 2021 Test Result: PASS* Report No: JYTSZB-R12-2100979 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 5 2 Version Version No. Date Description 00 17 Jun., 2021 Original Tested by: Date: 17 Jun., 2021 Test Engineer Reviewed by: Date: 17 Jun., 2021 Project Engineer Report No: JYTSZB-R12-2100979 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 5 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 4 4.4 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD ...................................................................... 4 4.5 LABORATORY FACILITY ........................................................................................................................................ 4 4.6 LABORATORY LOCATION ...................................................................................................................................... 4 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1093 ............................ 5 5.1 LIMITS .................................................................................................................................................................... 5 5.2 RESULT .................................................................................................................................................................. 5 5.3 CONCLUSION ......................................................................................................................................................... 5 Report No: JYTSZB-R12-2100979 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 4 of 5 4 General Information 4.1 Client Information Applicant: Shenzhen Huafurui Technology Co., Ltd. Address: Unit 1401 &1402, 14/F, Jinqi zhigu mansion (No. 4 building of Chongwen Garden), Crossing of the Liuxian street and Tangling road, Taoyuan street, Nanshan district, Shenzhen, P.R. China Manufacturer/Factory: Shenzhen Huafurui Technology Co., Ltd. Address: Unit 1401 &1402, 14/F, Jinqi zhigu mansion (No. 4 building of Chongwen Garden), Crossing of the Liuxian street and Tangling road, Taoyuan street, Nanshan district, Shenzhen, P.R. China 4.2 General Description of E.U.T. Product Name: Smartwatch Model No.: C9 Operation Frequency: BLE: 2402MHz~2480MHz Modulation technology: BLE: GFSK Antenna Type: Internal Antenna Antenna gain: BLE: 1.2 dBi Test Sample Condition: The test samples were provided in good workin…

Text truncated - open the document above for the full version.

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100978 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT (BLE) Applicant: Shenzhen Huafurui Technology Co., Ltd. Address of Applicant: Unit 1401 &1402, 14/F, Jinqi zhigu mansion (No. 4 building of Chongwen Garden), Crossing of the Liuxian street and Tangling road, Taoyuan street, Nanshan district, Shenzhen, P.R. China Equipment Under Test (EUT) Product Name: Smartwatch Model No.: C9 Trade mark: CUBOT, HAFURY FCC ID: 2AHZ5C9 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 27 May, 2021 Date of Test: 27 May, to 17 Jun., 2021 Date of report issued: 17 Jun., 2021 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 42 2 Version Version No. Date Description 00 17 Jun., 2021 Original Tested by: Date: 17 Jun., 2021 Test Engineer Reviewed by: Date: 17 Jun., 2021 Project Engineer Report No: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 42 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 6 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 5.6 LABORATORY FACILITY .......................................................................................................................................... 6 5.7 LABORATORY LOCATION ....................................................................................................................................... 6 5.8 TEST INSTRUMENTS LIST ....................................................................................................................................... 7 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 8 6.1 ANTENNA REQUIREMENT: ...................................................................................................................................... 8 6.2 CONDUCTED EMISSION ......................................................................................................................................... 9 6.3 CONDUCTED OUTPUT POWER ............................................................................................................................ 12 6.4 OCCUPY BANDWIDTH .......................................................................................................................................... 13 6.5 POWER SPECTRAL DENSITY ............................................................................................................................... 14 6.6 BAND EDGE ......................................................................................................................................................... 15 6.6.1 Conducted Emission Method.............................................................…

Text truncated - open the document above for the full version.

Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 13 Test Data Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 -0.492 0 -0.492 30 Pass NVNT BLE 2442 Ant1 -0.095 0 -0.095 30 Pass NVNT BLE 2480 Ant1 0.159 0 0.159 30 Pass Power NVNT BLE 2402MHz Ant1 Power NVNT BLE 2442MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 13 Power NVNT BLE 2480MHz Ant1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 2402 Ant1 0.663 0.5 Pass Condition Mode Frequency (MHz) Antenna -8 dB Bandwidth (MHz) Limit -8 dB Bandwidth (MHz) Verdict NVNT BLE 2442 Ant1 0.777 0.5 Pass Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 13 NVNT BLE 2480 Ant1 0.788 0.5 Pass -6dB Bandwidth NVNT BLE 2402MHz Ant1 -6dB Bandwidth NVNT BLE 2442MHz Ant1 -6dB Bandwidth NVNT BLE 2480MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 13 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 2402 Ant1 1.039502432 NVNT BLE 2442 Ant1 1.039661852 NVNT BLE 2480 Ant1 1.035601853 OBW NVNT BLE 2402MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 13 OBW NVNT BLE 2442MHz Ant1 OBW NVNT BLE 2480MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 13 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 -11.987 8 Pass NVNT BLE 2442 Ant1 -11.986 8 Pass NVNT BLE 2480 Ant1 -12.183 8 Pass PSD NVNT BLE 2402MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 13 PSD NVNT BLE 2442MHz Ant1 PSD NVNT BLE 2480MHz Ant1 Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 13 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 2402 Ant1 -54.6 -20 Pass NVNT BLE 2480 Ant1 -55.89 -20 Pass Band Edge NVNT BLE 2402MHz Ant1 Ref Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 13 Band Edge NVNT BLE 2402MHz Ant1 Emission Band Edge NVNT BLE 2480MHz Ant1 Ref Band Edge NVNT BLE 2480MHz Ant1 Emission Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 13 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 2402 Ant1 -48.98 -20 Pass NVNT BLE 2442 Ant1 -49.48 -20 Pass NVNT BLE 2480 Ant1 -49.54 -20 Pass Tx. Spurious NVNT BLE 2402MHz Ant1 Ref Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 13 Tx. Spurious NVNT BLE 2402MHz Ant1 Emission Tx. Spurious NVNT BLE 2442MHz Ant1 Ref Report No.: JYTSZB-R12-2100978 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105115 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 13 Tx. Spurious NVNT BLE 2442MHz Ant1 Emission Tx. Spurious NVNT BLE 2480MHz Ant1 Ref Report No.: JYTSZB-R12-210097…

Text truncated - open the document above for the full version.
