欧米智能 1.Production description This is a IOT controller for sharing scooter which via 4G,GPS, BLEto set up communication between app to control scooter lock/unlock.Cloud server account riding time and charge automatically. 2．APP installtion and log in 1.Download app. 2.Registration and Log in ,which need to be done with network，account should be valid phone number。 3.Deposit，Toll charge. 3．Lock/unlock manual： 1.Open Bluetooth. 2.StartAPP,click the middle QR code button below the APP.，enter into QR code scan page，scan the QR code of IOT controller，IOT will be unlocked automatically when apps get QR code informations，then enter into riding status。 3．Click lock when riding is finished，cloud server will stop IOT and charge when receive lock request from IOT. 4．IOT controller should work with smart phone.Requirements for smart phone： Over Android 4.3，hardware support 4.0BLE,Optimal screen resolution 1280x720；over IOS 7.1，over iphone 4s. 5.Introduction of app interfaces Operation manual for sharing scooter IOT main page Scan QR code page Unlocking car page End successful deduction page FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product Sharing Scooter IOT, Model: M151-IOT; FCC ID: 2AI2O-M151IOT, for marketing purpose, this product only supports BLE 1M, LTE Band 2/4/5/12/13.The other functions, bands and modes were disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Wucheng Lei Manager

CFR 47 §2.911(d)(5)(i) Attestation Letter Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Attestation Letter Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2AI2O-M151IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Wucheng Lei / Manager

CFR 47 §2.911 (d)(5)(ii) Attestation Letter Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Attestation Letter Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AI2O-M151IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Wucheng Lei / Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AI2O-M151IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Omni Intelligent Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China FRN: 0025714668 Tel: +86-755-89208216 Email: [email protected] Signed by (printed name): Wucheng Lei Signature:

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Shenzhen Omni Intelligent Technology Co., Ltd., the undersigned, hereby authorizes World Alliance Testing & Certification (Shenzhen) Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by World Alliance Testing & Certification (Shenzhen) Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wucheng Lei Manager

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] FCC Confidential Authorization Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AI2O-M151IOT In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Omni Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list/Tune up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wucheng Lei Manager

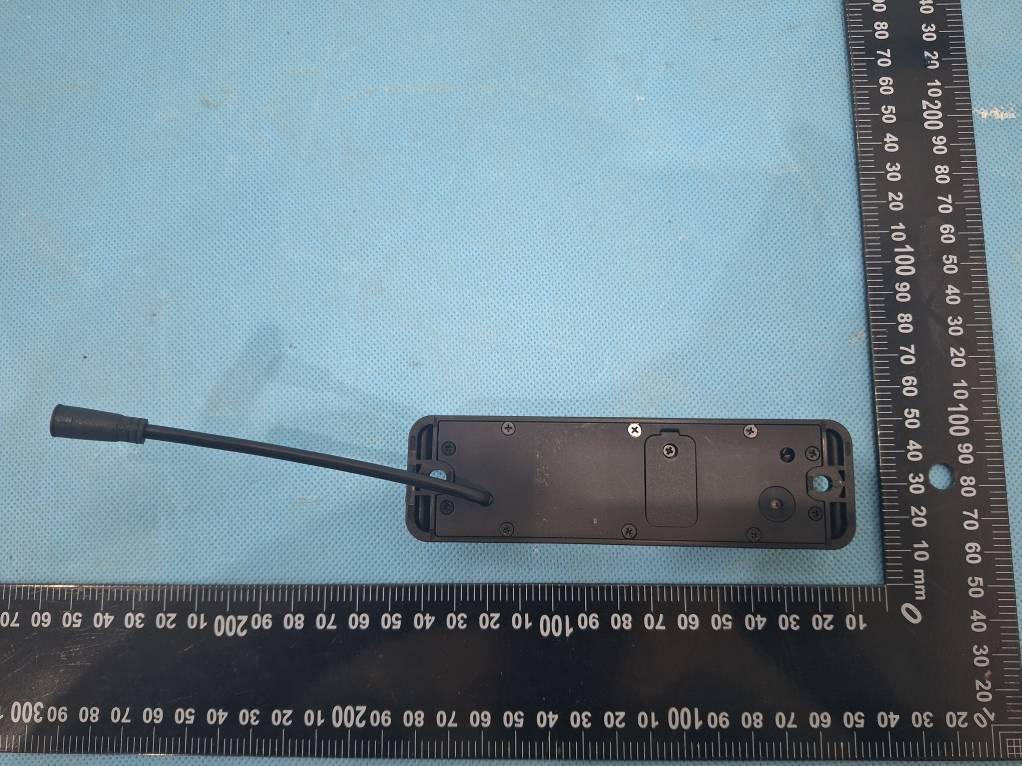

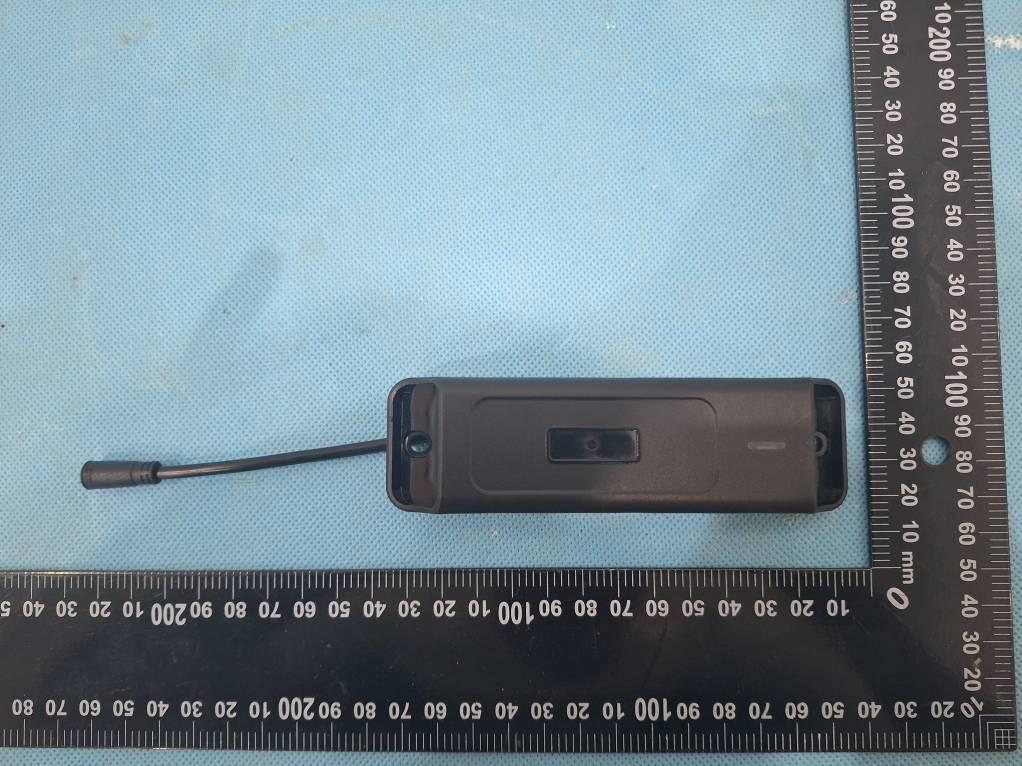

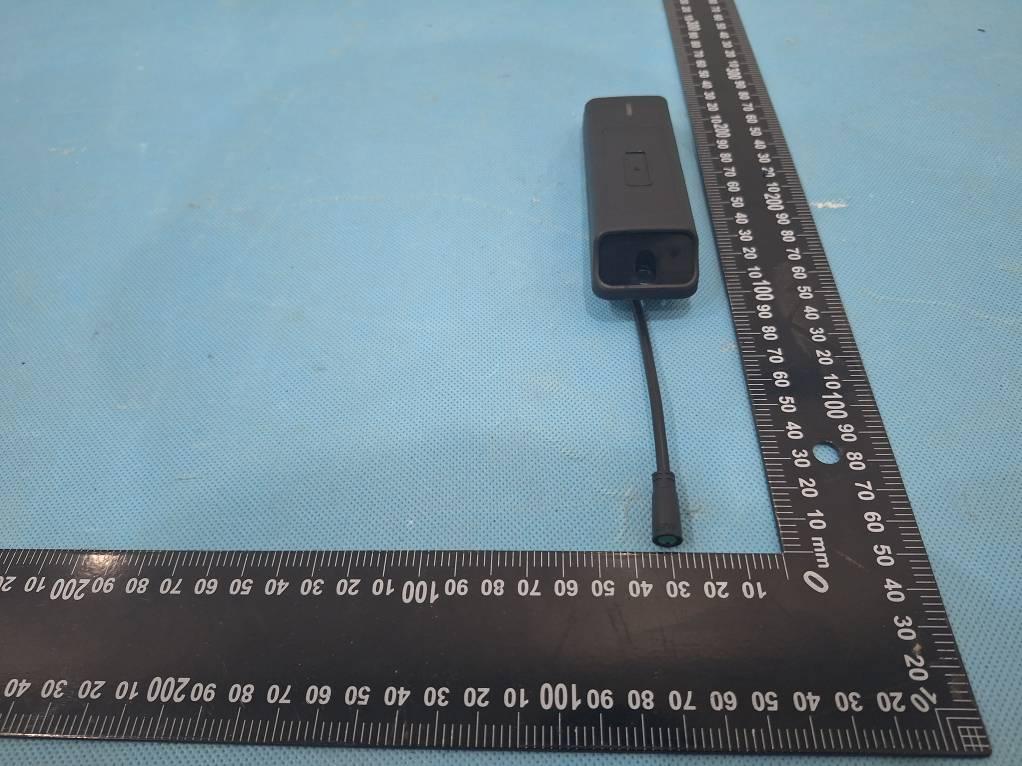

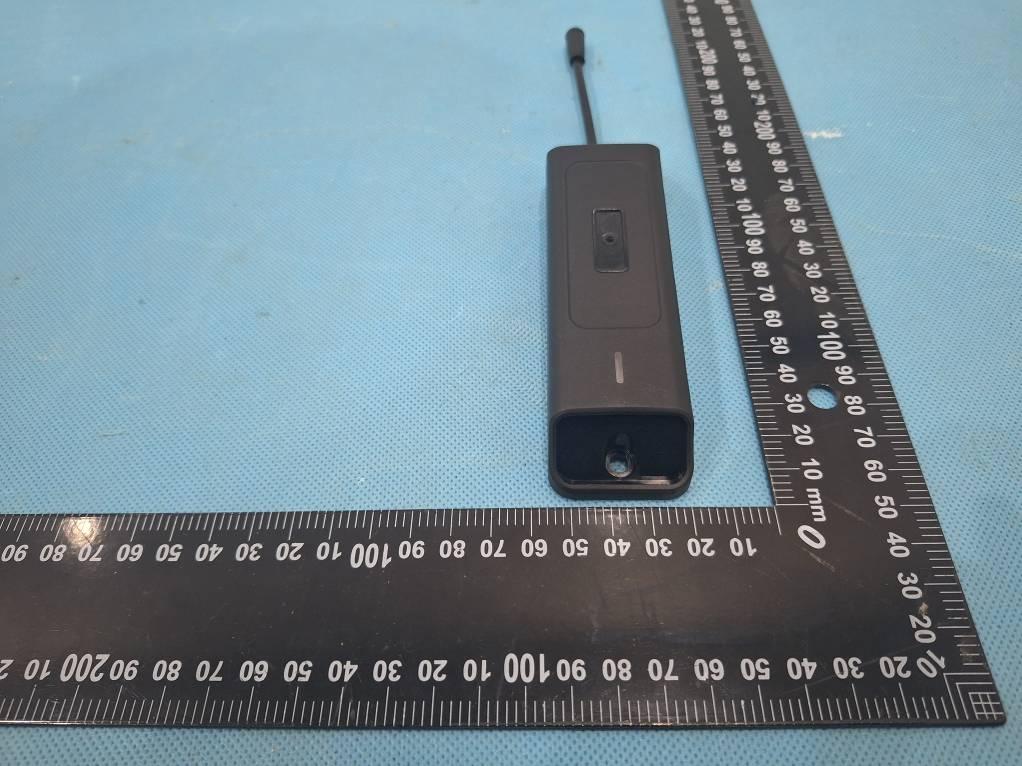

Report No.: 2405T48460E Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Report No.: 2405T48460E Page 2 of 4 Report No.: 2405T48460E Page 3 of 4 Report No.: 2405T48460E Page 4 of 4

Label: Label location Product name: Sharing Scooter IOT Model No:M151-IOT FCC ID: 2AI2O-M151IOT Made in China

Report No.: 2405T48460E Page 1 of 6 EUT INTERNAL PHOTOGRAPHS Report No.: 2405T48460E Page 2 of 6 LTE ANT Report No.: 2405T48460E Page 3 of 6 Report No.: 2405T48460E Page 4 of 6 Report No.: 2405T48460E Page 5 of 6 BLE ANT Report No.: 2405T48460E Page 6 of 6

Report No.: 2405T48460ED Report Template: TR-4-E-011/V1.1 Page 1 of 7 RF Exposure Evaluation Report Report No.: 2405T48460ED Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Product Name: Sharing Scooter IOT Product Model: M151-IOT Multiple Models: N/A Trade Mark: N/A FCC ID: 2AI2O-M151IOT Standards: 47 CFR §1.1307 KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Date: 2024-06-25 Test Result: Complied Report Date: 2024-06-26 Reviewed by: Approved by: Frank Yin Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: 2405T48460ED Report Template: TR-4-E-011/V1.1 Page 2 of 7 Announcement 1. This test report shall not be reproduced except in full, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2024-06-26 Original Report No.: 2405T48460ED Report Template: TR-4-E-011/V1.1 Page 3 of 7 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Laboratory Location ................................................................................................................... 4 2 RF Exposure Evaluation ..................................................................................................................... 5 2.1 Standard .................................................................................................................................... 5 2.2 Result ......................................................................................................................................... 7 Report No.: 2405T48460ED Report Template: TR-4-E-011/V1.1 Page 4 of 7 1 General Information 1.1 Client Information Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China 1.2 Product Description of EUT The EUT is an Sharing Scooter IOT that contains BLE and LTE radios. Sample Serial Number 2MC4-3, 2MC4-5 (assigned by WATC) Sample Received Date 2024-06-03 Sample Status Good Condition Frequency Range BLE: 2402MHz - 2480MHz LTE Band 2: 1850-1910MHz/1930-1990MHz LTE Band 4: 1710-1755MHz/2110-2155MHz LTE Band 5: 824-849MHz/869-894MHz LTE Band 12: 699-716MHz/729-746MHz LTE Band 13: 777-787MHz/746-756MHz Maximum Conducted Output Power BLE: -3.57dBm LTE Band 2: 20.98dBm, LTE Band 4: 20.99dBm LTE Band 5: 20.94dBm, LTE Band 12: 21.00dBm LTE Band 13: 21.05dBm Modulation Technology GFSK, QPSK, 16QAM Antenna Gain # BLE: 1.8dBi LTE Band 2: -1.15dBi; LTE Band 4: -0.73dBi LTE Band 5: -0.77dBi; LTE Band 12: -0.83dBi LTE Band 13: -0.89dBi Spatial Streams SISO (1TX, 1RX) Power Supply Power by DC 3.7V built-in battery or DC 24V-72V Adapter Information N/A Modification Sample No Modification by the test lab 1.3 Laboratory Location World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel: +86-755-29691511, Email: [email protected] The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 463912, the FCC Designation No. : CN5040. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0160. Report No.: 2405T48460ED Report Template: TR-4-E-011/V1.1 Page 5 of 7 2 RF Exposure Evaluation 2.1 Standard According to §1.1307(b)(3)(i), For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or usin…
