2AI2O-M154IOTSharing scooter IOT

欧米智能 1.Productiondescription ThisisaIOTcontrollerforsharingscooterwhichvia4G,GPS,BLEtoset upcommunicationbetweenapptocontrolscooterlock/unlock.Cloudserver accountridingtimeandchargeautomatically. 2．APPinstalltionandlogin 1.Downloadapp. 2.RegistrationandLogin,whichneedtobedonewithnetwork，accountshouldbevalid phonenumber。 3.Deposit，Tollcharge. 3．Lock/unlockmanual： 1.OpenBluetooth. 2.StartAPP,clickthemiddleQRcodebuttonbelowtheAPP.，enterintoQR codescanpage，scantheQRcodeofIOTcontroller，IOTwillbeunlocked automaticallywhenappsgetQRcodeinformations，thenenterintoriding status。 3．Clicklockwhenridingisfinished，cloudserverwillstopIOTand chargewhenreceivelockrequestfromIOT. 4．IOTcontrollershouldworkwithsmartphone.Requirementsforsmartphone： OverAndroid4.3，hardwaresupport4.0BLE,Optimalscreenresolution 1280x720；overIOS7.1，overiphone4s. ．Introductionofappinterfaces OperationmanualforsharingscooterIOT mainpage ScanQRcodepage Unlockingcarpage Endsuccessfuldeductionpage FCCCaution: AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatetheequipment. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowing twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevice mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. IMPORTANTNOTE: Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates, usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor moreofthefollowingmeasures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody.

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: Our product Sharing scooter IOT, Model: M154-IOT; FCC ID: 2AI2O-M154IOT, for Sincerely, Signature: Wucheng Lei Manager marketing purpose, this product only supports BLE 1M, LTE Band 2/4/5/12/13 and GNSS. The other functions, bands and modes were disabled to use by manufacturer in the software, the end user has no capability to activate it.

CFR 47 §2.911(d)(5)(i) Attestation Letter Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Attestation Letter Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2AI2O-M154IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Wucheng Lei / Manager

CFR 47 §2.911 (d)(5)(ii) Attestation Letter Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] Attestation Letter Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AI2O- M154IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Wucheng Lei / Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AI2O-M154IOT Shenzhen Omni Intelligent Technology Co., Ltd. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen Omni Intelligent Technology Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China FRN: 0025714668 Tel: +86-755-89208216 Email: [email protected] Signed by (printed name): Wucheng Lei Signature:

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Shenzhen Omni Intelligent Technology Co., Ltd., the undersigned, hereby authorizes World Alliance Testing & Certification (Shenzhen) Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by World Alliance Testing & Certification (Shenzhen) Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Wucheng Lei Manager

Shenzhen Omni Intelligent Technology Co., Ltd. 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Tel: +86-755-89208216 Fax: +86-755-89208219 Email: [email protected] FCC Confidential Authorization Date: 2024-06-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AI2O-M154IOT In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shenzhen Omni Intelligent Technology Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list/Tune up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Wucheng Lei Manager

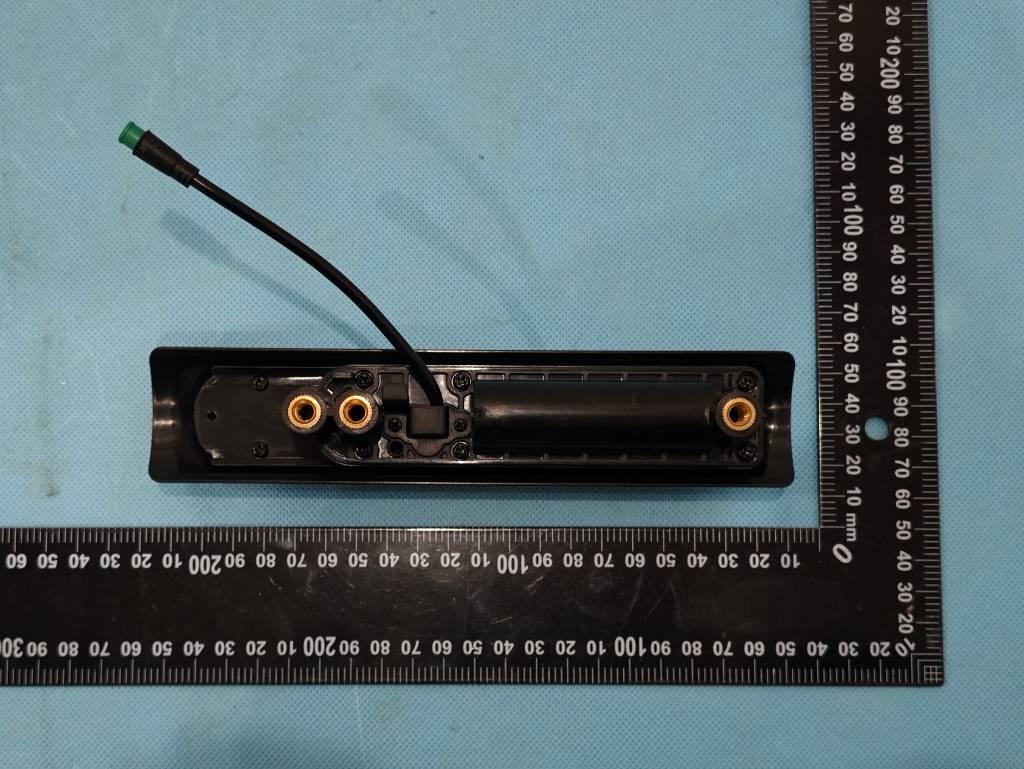

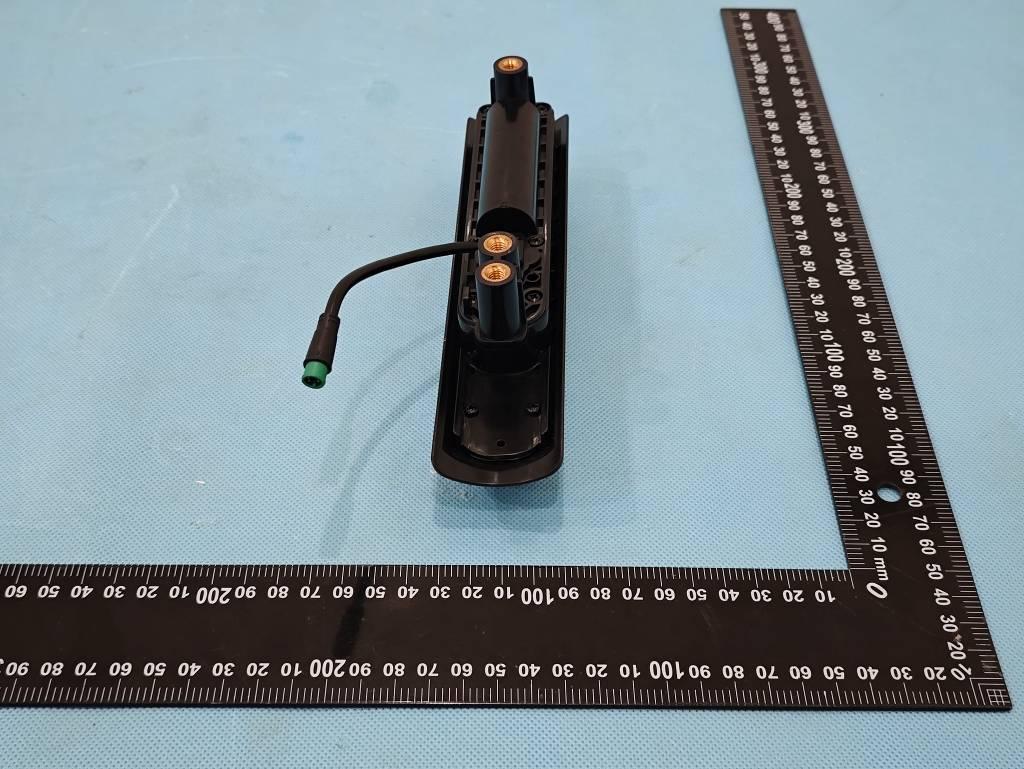

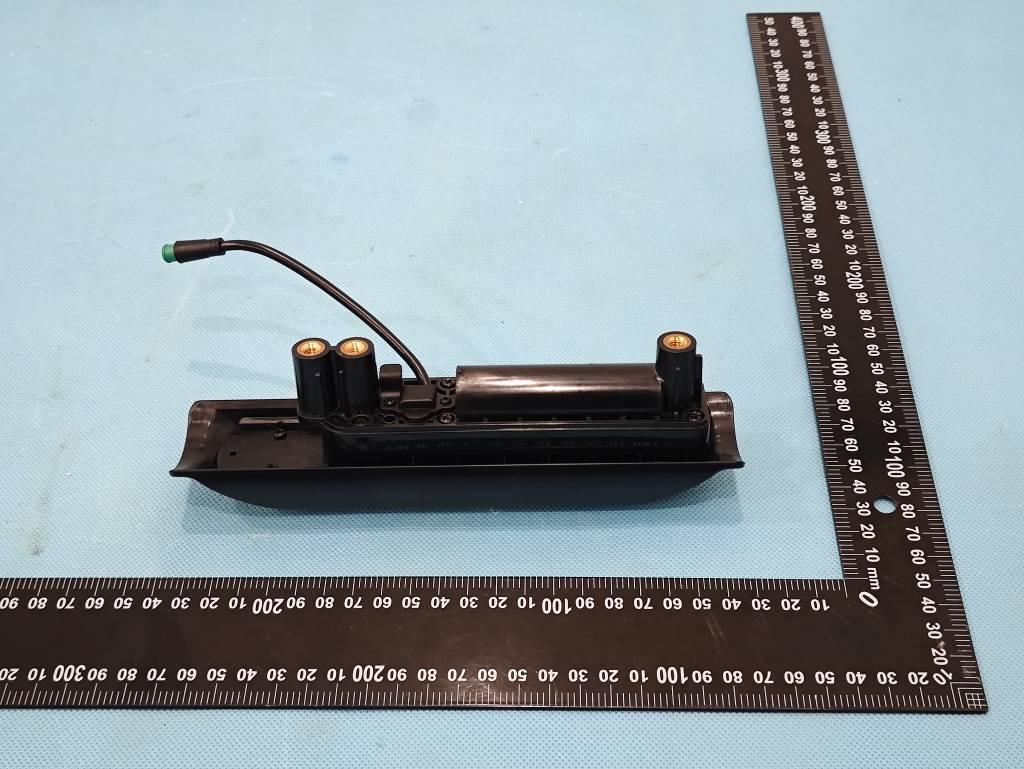

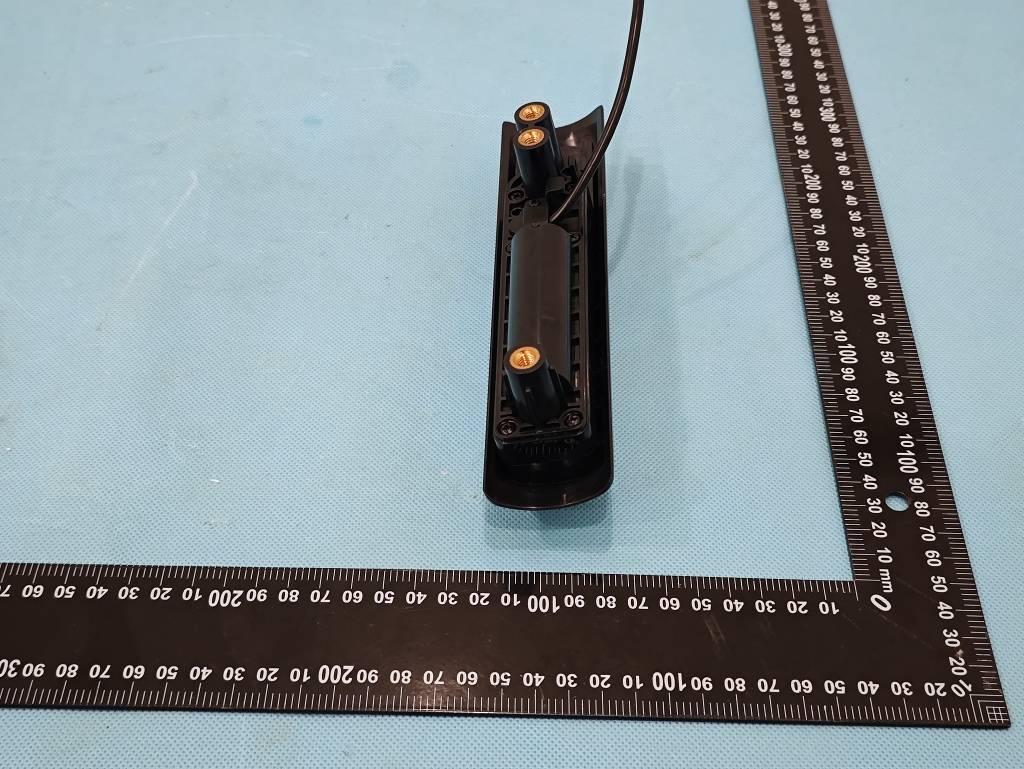

Report No.: RWAQ202400273 Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Report No.: RWAQ202400273 Page 2 of 4 Report No.: RWAQ202400273 Page 3 of 4 Report No.: RWAQ202400273 Page 4 of 4

Label: Product name: Sharing scooter IOT Model No:M154-IOT FCC ID: 2AI2O-M154IOT Made in China Label location

Report No.: RWAQ202400273 Page 1 of 6 EUT INTERNAL PHOTOGRAPHS Report No.: RWAQ202400273 Page 2 of 6 Report No.: RWAQ202400273 Page 3 of 6 LTE ANT Report No.: RWAQ202400273 Page 4 of 6 GPS Antenna Report No.: RWAQ202400273 Page 5 of 6 Report No.: RWAQ202400273 Page 6 of 6 BLE ANT

Report No.: RWAQ202400273D Report Template: TR-4 -E-011/V1.1 Page 1 of 7 RF Exposure Evaluation Report Report No.: RWAQ202400273D Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Product Name: Sharing scooter IOT Product Model: M154-IOT Multiple Models: N/A Trade Mark: N/A FCC ID: 2AI2O-M154IOT Standards: 47 CFR §1.1307 KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Date: 2024-06-18 Test Result: Complied Report Date: 2024-06-18 Reviewed by: Approved by: Abel Chen Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: RWAQ202400273D Report Template: TR-4 -E-011/V1.1 Page 2 of 7 Announcement 1. This test report shall not be reproduced except in full, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2024-06-18 Original Report No.: RWAQ202400273D Report Template: TR-4 -E-011/V1.1 Page 3 of 7 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Laboratory Location ................................................................................................................... 4 2 RF Exposure Evaluation ..................................................................................................................... 5 2.1 Standard .................................................................................................................................... 5 2.2 Result......................................................................................................................................... 7 Report No.: RWAQ202400273D Report Template: TR-4 -E-011/V1.1 Page 4 of 7 1 General Information 1.1 Client Information Applicant: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Omni Intelligent Technology Co., Ltd. Address: 11th Floor, Building 31, Phase III, Lianchuang Technology Park, Nanwan street, Longgang District, Shenzhen, China 1.2 Product Description of EUT The EUT is Sharing scooter IOT that contains BLE, LT E radios. Sample Serial Number 78-4 ,78-6 for RE test; 78-5,78-7 for RF test (assigned by WATC) Sample Received Date 2024-05-28 Sample Status Good Condition Frequency Range BLE: 2402MHz - 2480MHz LTE Band 2: 1850-1910(TX)/1930-1990(RX) LTE Band 4: 1710-1755(TX)/2110-2155(RX) LTE Band 5: 824-849(TX)/869-894(RX) LTE Band 12: 699-716(TX)/729-746(RX) LTE Band 13: 777-787(TX)/746-756(RX) Maximum Conducted Output Power BLE: -3.20dBm LTE Band 2: 22.50dBm; LTE Band 4: 22.50dBm LTE Band 5: 22.50dBm; LTE Band 12: 22.49dBm LTE Band 13: 22.50dBm Modulation Technology GFSK, QPSK, 16QAM Antenna Gain # BLE :1.8dBi Band 2: -1.25dBi; Band 4: -0.86dBi Band 5: -0.87dBi; Band 12: -0.72dBi Band 13: -0.91dBi Spatial Streams SISO (1TX, 1RX) Power Supply DC 3.7V from battery or DC 12~72V Adapter Information N/A Modification Sample No Modification by the test lab 1.3 Laboratory Location World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel: +86-755-29691511, Email: [email protected] The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 463912, the FCC Designation No. : CN5040. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0160. Report No.: RWAQ202400273D Report Template: TR-4 -E-011/V1.1 Page 5 of 7 2 RF Exposure Evaluation 2.1 Standard According to §1.1307(b)(3)(i), For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is giv…
