2AI3KCRN1ConnectedRide Navigator

BMW MOTORRAD OperationManual ConnectedRideNavigator MAKELIFEARIDE WELCOME. WearepleasedthatyouhavedecidedonanoriginalBMWMotorradaccessoryproduct.Withourrangeof accessories,wealwaysstrivetoprovideyouwiththebestpossiblesupportineverydaylifeandonallyour motorcycleadventures. Aboutthisusermanual Readthisuserguidebeforeusingyournew accessoryproduct.Hereyouwillfindimportant operatinginstructionsthatwillenableyouto makefulluseofthetechnicaladvantagesofour products,tousethemoptimallyandtoenjoy themforaslongaspossible. Suggestionsandcriticism Ifyouhaveanyquestionsaboutourproducts, yourBMWMotorradpartnerwillbehappyto helpandadviseyouatanytime. BMWMotorradwishesyoulotsoffunandagoodandsafejourney. 01 GENERALINFORMATION 3 CONNECTEDRIDENAVIGATOR Wearepleasedthatyouhavechosenthe ConnectedRideNavigator. ThenewConnectedRideNavigatorcanbe connectedtothemotorcyclewiththeSA navigationpreparation.The5.5-inchtouchscreen displayenablesintuitiveoperationofthe functions.Thedisplayhasacircularpolarization filtertoavoidreflectionscausedbye.g.B.to minimizesunexposure. WiththehelpoftheBMWID,yourpersonaldata suchasroutes,waypoints,etc.aresynchronized betweentheappandthenavigator. Whiledriving,youcancontrolthenavigatorusing theMulticontrollerwithouttakingyourhandoff thehandles.Sinceyoursmartphoneisseamlessly integrated,mediastreamingofferscanbeused withease.TheConnectedRideNavigatorcanbe connectedtouptotwocommunicationsystems, e.g.B.ConnectedRideComU1canbeconnected toreceivenavigationvoicepromptsandreceive ormakecalls. Vehicle-specificinformationaswell TheConnectedRideNavigatorcanrecorddetails oftheroutesdrivenanddisplaythemafterwards. BMWMotorradwishesyoualotoffunwith theConnectedRideNavigatorandagoodand safejourney DANGERSpecialNotesandPrecautions. non-observancecanleadtodamagetothe vehicleoraccessoriesandthustothe exclusionofthewarranty. Bpecialinstructionsforbetterhandlingof operating,controland adjustmentprocessesandmaintenance work. actioninstruction.resultofan activity. Referencetoapagewithfurther information. Indicatestheendofanaccessory orequipment-dependentpiece ofinformation. tighteningtorque.Technical specifications. BLUETOOTH Bluetoothisashort-rangeradiotechnology. Bluetoothdevicestransmitasshortrangedevices inthelicense-freeISMfrequencyband(Industrial, ScientificandMedicalBand)between2.402GHz and2.480GHz.Theymaybeoperatedworldwide withoutapermit. Noteonwirelessconnections: ABBREVIATIONSANDSYMBOLS CAUTIONHazardwithalowlevelofrisk. Non-avoidancecanresultinminoror moderateinjury. WARNINGHazardwithamediumdegree ofrisk.non-avoidancecan resultindeathorseriousinjury. DANGERDangerwithahighdegreeofrisk. Non-avoidanceleadstodeathorserious injury. AlthoughBluetoothisdesignedtoestablish connectionsthatareasrobustaspossibleover shortdistances,interferenceispossible,aswith anywirelesstechnology.Connectionscanbe disturbedorbrieflyinterruptedorevenlost completely.Inparticular,ifseveraldevicesare operatedinaBluetoothnetwork,smooth operationwithsuchradiotechnologycannotbe guaranteedineverysituation. 02 FIRSTSTEPS 5 TURNCONNECTEDRIDENAVIGATORON/OFF IfaSIMcardisinserted,theactiveconnection withamobilenetworkisdisplayedhere. SECURELYMOUNTTHECONNECTEDRIDE NAVIGATOR TheBMWMotorradMountCradleisnot includedinthescopeof ten.FurtherinformationisavailablefromaBMW Motorradpartner. TheMountCradle'ssecuritysystemdoesnot provideprotectionagainsttheft. SwitchontheConnectedRideNavigator:press button1. SetConnectedRideNavigatortostandbymode: Shortpressbutton1. SwitchoffConnectedRideNavigator: Longpressbutton1. Pop-upmessageopens.Confirmswitchoff. RestartConnectedRideNavigator:Pressand holdbutton1. Pop-upmessageopens.Confirmrestart. CONNECTCONNECTEDRIDENAVIGATORTO MOBILENETWORK TousetheBMWMotorradConnectedRide Navigatorinthemobile networkrequiresaSIMcard.Thenetwork providermayincuradditionalcostsfortheuseof mobiledata. InadditiontoaWLANconnection,the ConnectedRideNavigatorcanalsobeconnected tothemobilenetwork: InstalltheSIMcardintheSIMcardholderwith thebatteryremoved. InstallSIMcard. TheSIMcardfunctioncanbeactivatedviathe settingsunderthesystemsettings. Aftereachtrip,removethenavigationsystemand keepitsafe. Turnvehiclekey1counterclockwise. Pulllockingdevice2totheleft. Pressinlock3. MountCradleisunlockedandCover4canbe removedwithaforwardtwistingmotion. 6FIRSTSTEPS Pulllockingdevice2allthewaytotheleft. Latch3isunlocked.Slidelock3allthewayto theleft.Navigationdevice4isunlocked. Removethenavigationdevice4witha downwardmovementofthehead. Navigationsgerät1imunterenBereich einsetzenundineinerDrehbewegungnach hintenschwenken. Navigationdeviceclicksaudibly. Slidelockingdevice2allthewaytotheright. Lock3islocked. Turnvehiclekey4clockwise. Navigationdeviceissecuredandvehiclekey canberemoved. REMOVECONNECTEDRIDENAVIGATORAND INSTALLCOVER Insertcover1inthelowerareaandswivel upwardsinarotatingmovement. Thecoverclicksintoplacewithanaudibleclick. Slidelockingdevice2totheright. Turnvehiclekey3clockwise. Cover1issecured. Turnvehiclekey1counterclockwise. DANGER DustanddirtoncontactsofMountCradle Damagetothecontacts Aftercompletingeachride,reinstallthecover. 03 SERVICE 8SERVICE CONNECTEDRIDENAVIGATORFUNCTIONS Inadditiontonavigation,theBMWMotorrad ConnectedRideNavigatoralsooffersother featuressuchasB.playingmusicviathenavigator orviaapairedmobilephone.Drivenroutescan berecordedandsubsequentlydisplayedwithall relevantinformation.Allfunctionscanbe selectedviathemainmenu. CONNECTEDRIDENAVIGATORUPDATES WiththeConnectedRideNavigatoryouhave lifetimefreemaps/ suchassoftwareupdates. SoftwareUpdates BMWMotorradprovidessoftwareupdatesfor theConnectedRideNavigatoratregularintervals. InordertobeabletousetheConnectedRide Navigatorandallitsfeaturesoptimally,itmust beregularlyupdatedtothelatestversion. INSTALLBMWMOTORRADCONNECTEDAPP TheBMWMotorradConnectedappisavailable forfreedownloadforiOSandAndroid smartphonesintherelevantappstores. Theappcanbedownloadedwiththefollowing QRcode. Variousconnectivityfunctionscanbeselectedin theBMWMotorradConnectedapp,whichare availableinconjun…

Text truncated - open the document above for the full version.

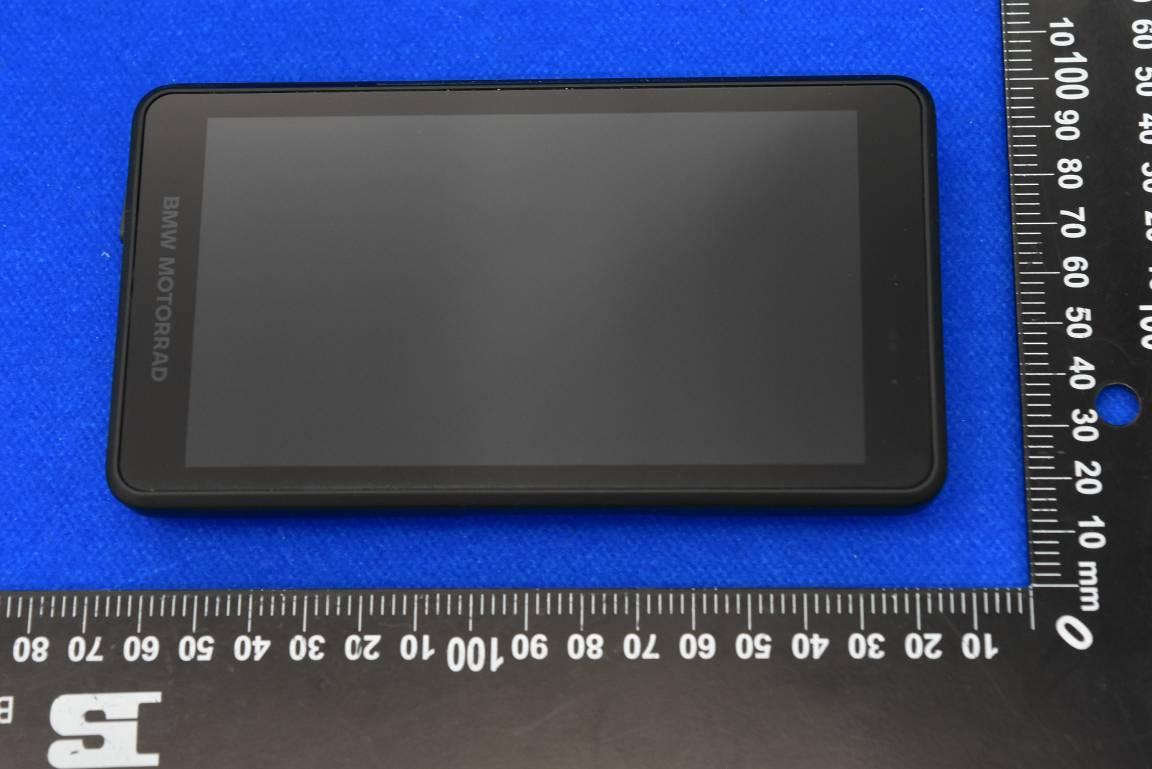

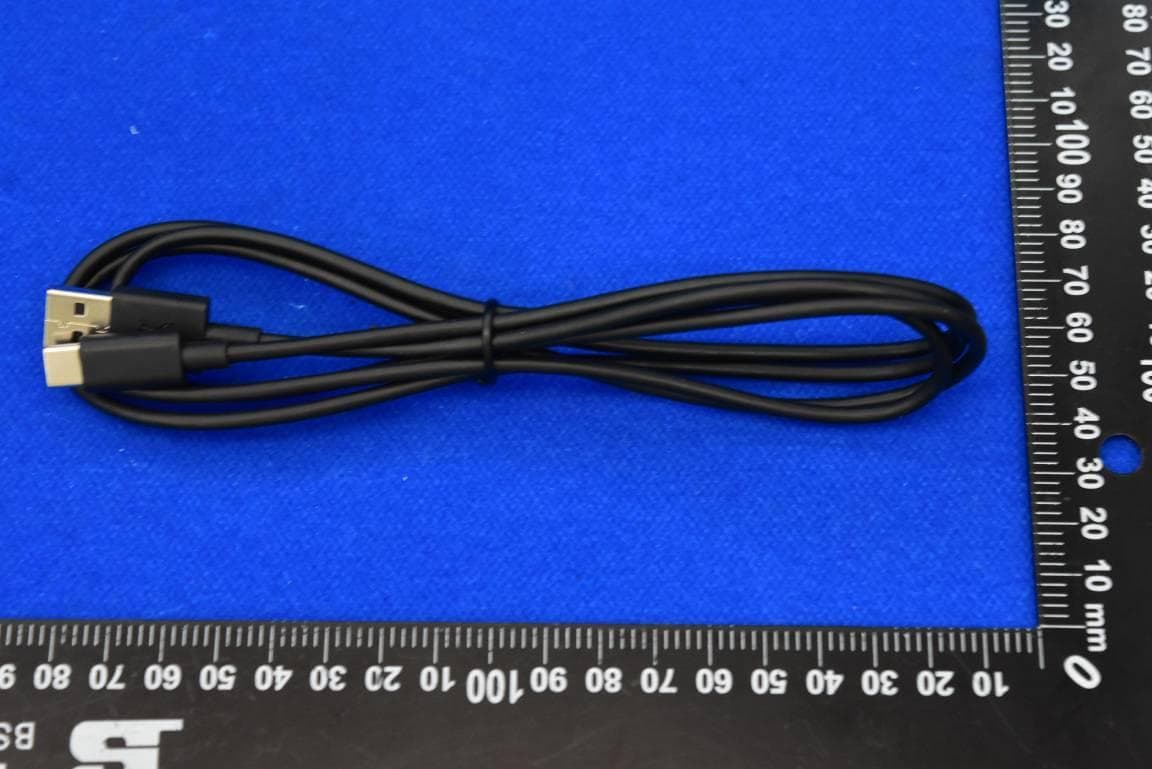

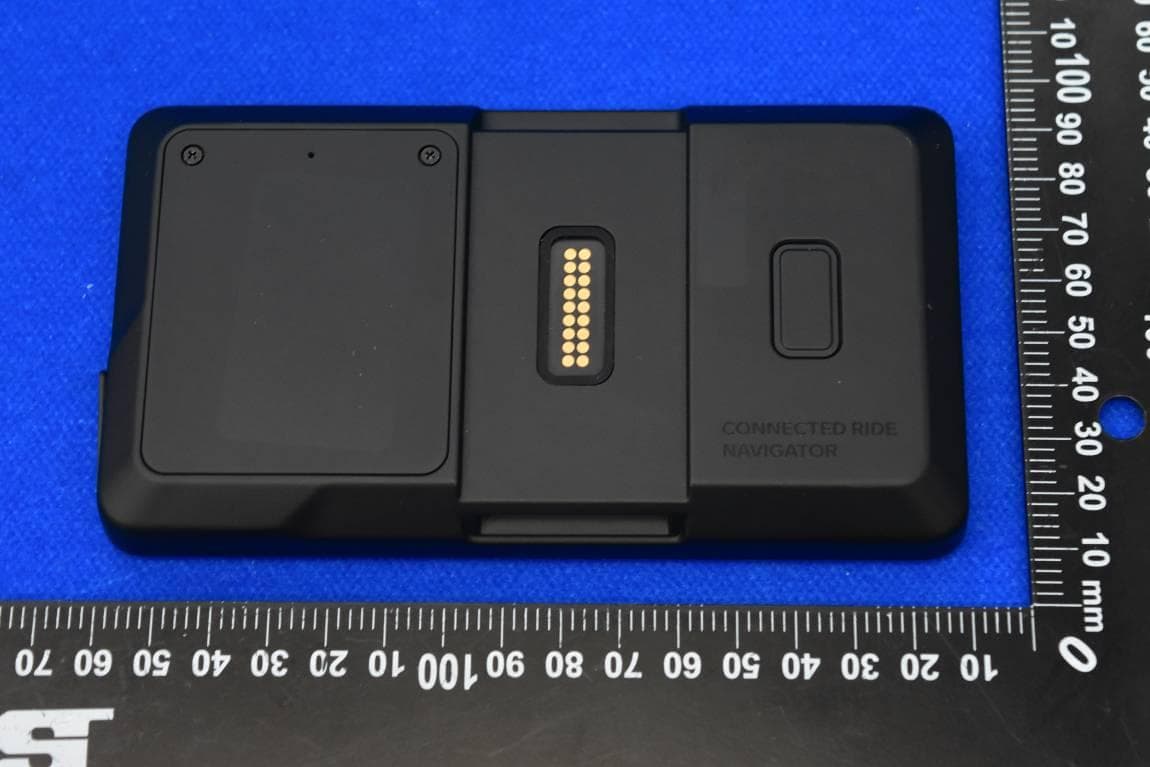

FCC ID: 2AI3KCRN1 IC: 30651-CRN1 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1 .Label 2 .Label location E-Label Display Steps: Settings>Information>Certification

FCC ID: 2AI3KCRN1 IC: 30651-CRN1 Internal Photos 1. EUT uncover view 2. Antenna view

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 12 REPORT No.：SZ23030238S01 RF EXPOSURE EVALUATION REPORT APPLICANT : Cyrus Technology GmbH PRODUCT NAME : ConnectedRide Navigator MODEL NAME : CRN1 BRAND NAME : BMW Motorrad FCC ID : 2AI3KCRN1 STANDARD(S) : FCC 47 CFR Part 2(2.1091) RECEIPT DATE : 2023-04-10 TEST DATE : 2023-06-02 ISSUE DATE : 2023-07-28 Edited by: Xie Yiyun (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23030238S01 Page 2 of 12 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 3. Test Equipment List ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 4. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 5. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Annex A General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 Annex B Conducted Power Change History Version Date Reason for Change 1.0 2023-07-28 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23030238S01 Page 3 of 12 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Cyrus Technology GmbH Applicant Address: Hergelsbendenstr. 49 D-52080 Aachen Germany Manufacturer: Cyrus Technology GmbH Manufacturer Address: Hergelsbendenstr. 49 D-52080 Aachen Germany 1.2 Equipment under Test (EUT) Description Product Name: ConnectedRide Navigator EUT No.: 4# Hardware Version: 80BMW-N1.0009 Software Version: BMW-CRN-20230421-V1.0.0 Frequency Bands: GSM 850: 824 MHz ~ 849 MHz GSM 1900: 1850 MHz ~ 1910 MHz WCDMA Band II: 1850 MHz ~ 1910 MHz WCDMA Band IV: 1710 MHz ~ 1755 MHz WCDMA Band V: 824 MHz ~ 849 MHz LTE Band 2: 1850 MHz ~ 1910 MHz LTE Band 4: 1710 MHz ~ 1755 MHz LTE Band 5: 824 MHz ~ 849 MHz LTE Band 7: 2500 MHz ~ 2570 MHz LTE Band 12: 699 MHz ~ 716 MHz LTE Band 13: 777 MHz ~ 787 MHz LTE Band 17: 704 MHz ~ 716 MHz LTE Band 18: 815 MHz ~ 830 MHz LTE Band 19: 830 MHz ~ 845 MHz LTE Band 25: 1850 MHz ~1915 MHz LTE Band 26: 814 MHz ~ 849 MHz LTE Band 29 (RX): 717 MHz ~ 728 MHz LTE Band 30: 2305 MHz ~ 2315 MHz LTE Band 38: 2570 MHz ~ 2620 MHz LTE Band 40: 2300 MHz ~ 2400 MHz LTE Band 41: 2496 MHz ~ 2690 MHz LTE Band 66: 1710 MHz ~ 1780 MHz LTE Band 71: 663 MHz ~ 698 MHz MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23030238S01 Page 4 of 12 WLAN 2.4GHz: 2412 MHz ~ 2472 MHz WLAN 5.2GHz: 5180 MHz ~ 5240 MHz WLAN 5.3GHz: 5260 MHz ~ 5320 MHz WLAN 5.5GHz: 5500 MHz ~ 5720 MHz WLAN 5.8GHz: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz Modulation Mode: GSM/GPRS: GMSK EDGE: 8PSK WCDMA: QPSK, 16QAM LTE: QPSK, 16QAM, 64QAM 802.11b: DSSS 802.11a/g/n-HT20/HT40/ac-VHT20/40: OFDM BR+EDR: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8-DPSK(3Mbps) Bluetooth LE: GFSK(1Mbps) Multi-slot Class: GPRS: Multi-slot Class 33 EDGE: Multi-slot Class 33 Antenna Type: WWAN: PIFA Internal WLAN: PIFA Antenna Bluetooth: PIFA Antenna Antenna Gain: Frequency Bands Antenna Gain (dBi) GSM 850 1.99 GSM 1900 3.89 WCDMA Band II 3.89 WCDMA Band IV 2.73 WCDMA Band V 1.99 LTE Band 2 3.89 LTE Band 4 2.73 LTE Band 5 1.99 LTE Band 7 1.69 LTE Band 12 0.58 LTE Band 13 1.74 LTE Band 17 -0.25 LTE Band 18 1.99 LTE Band 19 1.99 LTE Band 25 3.89 LTE Band 26 1.99 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23030238S01 Page 5 of 12 LTE Band 30 2.14 LTE Band 38 1.16 LTE Band 40 2.95 LTE Band 41 2.19 LTE Band 66 3.01 LTE Band 71 0.67 WLAN 2.4GHz 2.78 WLAN 5.2GHz 3.88 WLAN 5.3GHz 3.88 WLAN 5.5GHz 3.88 WLAN 5.8GHz 3.23 Bluetooth 1 2.03 Bluetooth 2 2.61 Bluetooth 3 2.76 Note: 1. When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95…

Text truncated - open the document above for the full version.

Shenzhen ZTX Communication Technology Co., Ltd ⚫BMW-N1天线调试报告 Shenzhen ZTX Communication Technology Co., Ltd ❑项目需求分析 ❑整体方案设计 ❑无源评估数据 ❑结论和建议 目录 Shenzhen ZTX Communication Technology Co., Ltd 项目需求 ⚫LTE天线：GSM: B2/B3/B5/B8;3G/UMTS/WCDMA：B1/B2/B4/B5/B84G / LTE：1 (2100 MHz)+2 (1900 MHz)+3 (1800 MHz)+4 (AWS)+5 (850 MHz)+7 (2600 MHz)+8 (900 MHz)+11 (1500 MHz)+12 (700 MHz)+13 (700c MHz)+17 (700b MHz)+18 (800 MHz)+19 (800 MHz)+20 (800 MHz DD)+21 (1500 MHz)+25 (1900 MHz)+26 (800 MHz)+28 (700 APT MHz)+29 (700 de MHz)+30 (2300 MHz)+38 (TD 2600)+39 (TD 1900)+40 (TD 2300)+41 (TD 2500)+66 (AWS-3)+71 (600 MHz) ⚫蓝牙：BT1/BT2/BT3（5.0,•i480e*2+i1571-s*1, supplier is BARROT.•Wi-Fi Spectral Bands: 2.4 GHz, 5 GHz•Channel Utilization: 20/40/80 MHz •MIMO Configuration: 1x1 (1-stream)） ⚫WIFI：(Standards: 802.11ax-ready, 802.11ac Wave 2, 802.11a/b/g/n) ⚫GPS：(Beidou, Galileo, GLONASS, NAVSTAR GPS (Accuracy ≤ 1m）• Full A-GPS capability(E911/SUPL/EPO/HotStill) Shenzhen ZTX Communication Technology Co., Ltd 整体方案设计 主天线 BT3 分集天线 BT2 BT1WIFI GPS ⚫天线采用支架+LDS形式 Shenzhen ZTX Communication Technology Co., Ltd 无源数据主天线效率&增益 FrequencyEfficiencyEfficiency GainFrequencyEfficiencyEfficiency Gain （MHz）（%）（dB）（dB）（MHz）（%）（dB）（dB） 61011%-9.55-3.7479046%-3.361.98 62014%-8.55-2.8780050%-3.002.13 63017%-7.59-1.8581047%-3.291.80 64021%-6.75-0.9482047%-3.311.99 65024%-6.25-0.0483047%-3.301.93 66025%-5.980.4984048%-3.221.99 67028%-5.530.6785047%-3.271.77 68031%-5.060.5386046%-3.361.91 69033%-4.800.4187044%-3.551.80 70035%-4.620.5888039%-4.062.11 71029%-5.35-0.2589039%-4.042.60 72033%-4.880.2390039%-4.062.75 73036%-4.440.7891039%-4.122.72 74038%-4.170.9292038%-4.222.37 75040%-3.960.9493038%-4.231.88 76036%-4.380.9294038%-4.241.70 77040%-4.011.1995036%-4.411.33 78043%-3.641.7496034%-4.671.03 Shenzhen ZTX Communication Technology Co., Ltd 无源数据主天线效率&增益 Frequency Efficiency Efficiency Gain Frequency Efficiency Efficiency Gain Frequency Efficiency Efficiency Gain （MHz） （%） （dB） （dB） （MHz） （%） （dB） （dB） （MHz） （%） （dB） （dB） 1420 34% -4.65 -0.36 1950 44% -3.53 2.90 2500 37% -4.32 2.19 1440 31% -5.16 -1.39 1970 44% -3.61 2.44 2510 37% -4.28 2.02 1460 30% -5.29 -1.58 1990 41% -3.83 2.03 2530 37% -4.33 2.01 1480 27% -5.66 -1.56 2010 42% -3.81 2.01 2550 37% -4.31 1.69 1500 27% -5.76 -1.60 2030 40% -3.95 1.84 2570 38% -4.26 1.16 1520 24% -6.18 -1.72 2050 43% -3.66 1.45 2590 38% -4.20 0.84 1710 28% -5.47 1.69 2070 42% -3.73 1.57 2610 37% -4.32 0.47 1730 32% -4.93 2.39 2090 44% -3.53 1.93 2630 38% -4.25 0.11 1750 36% -4.44 2.73 2110 46% -3.34 2.50 2650 38% -4.16 0.52 1770 41% -3.88 3.01 2130 44% -3.55 3.00 2670 37% -4.36 0.51 1790 46% -3.33 3.53 2150 42% -3.75 2.39 2690 37% -4.29 0.26 1810 51% -2.94 3.81 2170 39% -4.13 2.05 1830 51% -2.94 3.50 2300 38% -4.16 2.11 1850 51% -2.94 3.47 2320 37% -4.32 2.14 1870 51% -2.95 3.78 2340 37% -4.35 2.66 1890 48% -3.16 3.89 2360 37% -4.32 2.95 1910 46% -3.39 3.58 2380 38% -4.26 2.92 1930 45% -3.50 3.19 2400 38% -4.19 2.81 Shenzhen ZTX Communication Technology Co., Ltd 无源数据分集天线效率&增益 FrequencyEfficiencyEfficiency GainFrequencyEfficiencyEfficiency Gain （MHz）（%）（dB）（dB）（MHz）（%）（dB）（dB） 6102%-16.42-12.637908%-10.71-8.35 6203%-15.16-11.3980011%-9.48-9.09 6304%-14.27-10.3281014%-8.48-9.19 6404%-13.87-9.5682016%-7.89-9.03 6504%-13.89-8.9683017%-7.69-5.09 6604%-14.54-8.8984015%-8.33-3.98 6702%-16.68-9.4885018%-7.56-3.48 6803%-15.63-10.1386019%-7.10-3.11 6904%-14.47-11.0987021%-6.71-2.20 7005%-13.40-11.6388021%-6.73-0.95 7106%-12.38-11.9989021%-6.82-0.28 7207%-11.71-12.2990019%-7.170.04 7307%-11.31-5.8891018%-7.54-0.40 7407%-11.31-5.5892016%-7.99-0.98 7507%-11.68-5.7193014%-8.41-1.74 7606%-12.34-6.2094013%-8.82-2.27 7705%-12.89-6.6595011%-9.55-2.69 7804%-13.59-7.2696010%-10.18-3.48 Shenzhen ZTX Communication Technology Co., Ltd 无源数据分集天线效率&增益 Frequency Efficiency Efficiency Gain Frequency Efficiency Efficiency Gain Frequency Efficiency Efficiency Gain （MHz） （%） （dB） （dB） （MHz） （%） （dB） （dB） （MHz） （%） （dB） （dB） 1420 4% -14.34 -9.80 1950 13% -8.85 -3.12 2500 26% -5.87 2.22 1440 3% -14.99 -10.00 1970 14% -8.54 -2.77 2510 25% -5.97 2.32 1460 3% -15.04 -9.47 1990 14% -8.43 -2.43 2530 29% -5.37 2.73 1480 3% -15.23 -10.17 2010 16% -8.04 -1.98 2550 31% -5.04 2.79 1500 3% -15.40 -10.17 2030 15% -8.27 -2.12 2570 35% -4.53 3.32 1520 3% -15.08 -9.91 2050 16% -8.04 -1.78 2590 37% -4.37 3.99 1710 4% -13.61 -6.80 2070 16% -7.84 -1.21 2610 37% -4.37 3.98 1730 5% -12.88 -5.93 2090 17% -7.75 -0.96 2630 37% -4.35 3.77 1750 6% -12.59 -5.54 2110 18% -7.41 -0.25 2650 36% -4.41 3.91 1770 6% -11.92 -5.21 2130 16% -7.92 -1.47 2670 34% -4.62 3.91 1790 7% -11.27 -4.73 2150 17% -7.65 -0.81 2690 33% -4.86 3.81 1810 9% -10.69 -4.03 2170 17% -7.65 -0.28 1830 9% -10.26 -3.71 2300 21% -6.87 -0.04 1850 10% -9.82 -3.60 2320 20% -6.98 -0.48 1870 11% -9.78 -3.33 2340 23% -6.34 0.12 1890 9% -10.35 -2.81 2360 25% -6.04 0.23 1910 12% -9.32 -3.04 2380 28% -5.56 0.46 1930 12% -9.05 -3.20 2400 28% -5.59 1.57 Shenzhen ZTX Communication Technology Co., Ltd 无源数据GPS效率&增益 FrequencyEfficiencyEfficiency GainFrequencyEfficiencyEfficiency Gain （MHz）（%）（dB）（dB）（MHz）（%）（dB）（dB） 115022%-6.65-1.93155034%-4.710.79 115523%-6.47-1.83155534%-4.730.84 116023%-6.46-1.94156033%-4.770.67 116524%-6.17-1.70156534%-4.660.84 117025%-6.04-1.42157035%-4.610.67 117526%-5.82-1.23157536%-4.490.90 118026%-5.93-1.14158036%-4.410.69 118527%-5.70-0.86158537%-4.290.91 119026%-5.77-0.79159039%-4.120.76 159538%-4.230.74 160038%-4.160.62 Shenzhen ZTX Communication Technology Co., Ltd 无源数据BT1效率&增益 Frequency Efficiency Efficiency Gain （MHz） （%） （dB） （dB） 2400 44% -3.60 2.66 2410 43% -3.68 2.63 2420 44% -3.53 2.69 2430 43% -3.65 2.72 2440 44% -3.55 2.74 2450 44% -3.56 2.56 2460 45% -3.44 2.75 2470 44% -3.55 2.78 2480 41% -3.89 2.42 2490 39% -4.13 2.20 2500 36% -4.47 1.86 Shenzhen ZTX Communication Technology Co., Ltd 无源数据BT2效率&增益 Frequency Efficiency Efficiency Gain （MHz） （%） （dB） （dB） 2400 35% -4.62 -0.02 2410 37% -4.37 0.01 2420 37% -4.26 0.29 2430 40% -3.99 0.85 2440 39% -4.11 0.87 2450 40% -3.97 0.96 2460 39% -…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 148 REPORT No.：SZ3030238W07 TEST REPORT APPLICANT : Cyrus Technology GmbH PRODUCT NAME : ConnectedRide Navigator MODEL NAME : CRN1 BRAND NAME :BMW Motorrad FCC ID :2AI3KCRN1 STANDARD(S) :47 CFR Part 15 Subpart E RECEIPT DATE : 2023-04-10 TEST DATE :2023-04-28 to 2023-07-27 ISSUE DATE :2023-07-27 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 148 REPORT No.：SZ3030238W07 DIRECTORY 1. Summary of Test Result ················································································ 4 1.1. Testing Applied Standards ·········································································· 5 1.2. Test Equipment List ··················································································· 6 1.3. Measurement Uncertainty ··········································································· 8 1.4. Testing Laboratory ····················································································· 8 2. General Description ····················································································· 9 2.1. Information of Applicant and Manufacturer ··················································· 9 2.2. Information of EUT ····················································································· 9 2.3. Channel List of EUT ·················································································· 10 2.4. Test Configuration of EUT ·········································································· 11 2.5. Test Conditions ························································································ 11 2.6. Test Setup Layout Diagram ········································································ 12 3. Test Results ······························································································· 15 3.1. Antenna Requirement ··············································································· 15 3.2. Duty Cycle of Test Signal ··········································································· 16 3.3. Maximum Conducted Output Power ···························································· 17 3.4. Emission Bandwidth ················································································· 19 3.5. Peak Power Spectral Density ····································································· 21 3.6. Frequency Stability ··················································································· 22 3.7. Dynamic Frequency Selection ···································································· 23 3.8. Conducted Emission ················································································· 28 3.9. Restricted Frequency Bands ······································································ 29 3.10. Radiated Emission ···················································································· 31 Annex A Test Data and Result ·········································································· 33 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 148 REPORT No.：SZ3030238W07 Change History Version Date Reason for change 1.0 2023-07-27 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 148 REPORT No.：SZ3030238W07 1. Summary of Test Result No. Section Description Test Date Test Engineer Result Method Determination /Remark 1 15.203 Antenna Requirement N/A N/A PASS No deviation 2 ANSI C63.10 Duty Cycle of the Test Signal May 06, 2023 He Yuyang PASS No deviation 3 15.407(a) Maximum Conducted Output Power Jul. 27, 2023 He Yuyang PASS No deviation 4 15.407(a) (e) Emission Bandwidth May 06, 2023 He Yuyang PASS No deviation 5 15.407(a) Peak Power Spectral Density May 06, 2023 He Yuyang PASS No deviation 6 15.407(g) Frequency Stability May 06, 2023 He Yuyang PASS No deviation 7 15.407(h) DFS May 06, 2023 He Yuyang PASS No deviation 8 15.207 Conducted Emission Jul. 17, 2023 Fan Zehang PASS No deviation 9 15.407(b) Restricted Frequency Bands Jul. 15, 2023 Gao Jianrou PASS No deviation 10 15.407(b) Radiated Emission Jul. 15, 2023 Gao Jianrou PASS No deviation Note 1: The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescribed in ANSI C63.102013. Note 2: These RF tests were performed according to the method of measurements prescribed in KDB789033 D02 v02r01. Note 3: These RF tests were performed according to the method of measurements prescribed in KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02. Note 4: Additions to, deviation, or exclusions from …

Text truncated - open the document above for the full version.

FCC ID: 2AI3KCRN1 IC: 30651-CRN1 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (WIFI 5G) (DFS)
