2AI4T-XEFOUniversal Remote Key

Overview: XEFO Universal Remote Key is suitable for vehicle which contains the Xhorse receiver. Note: The operating temperature of the product is -20–50°C. Button description: Change battery: First use or when the battery runs out need to change new battery, following steps: ItemDescription Switch button for mechanical key Lock button Trunk button Unlock button Panic button 1 2 3 4 5 Install the key same as before Pairing method: Pairing with vehicle: Referring to the corresponding vehicle models to match. Break open the back side plastic cover to open the remote XEFO Universal Remote Key User Manual 1 2 3 Take the battery out and replace new one Note: The battery type is 2032 with 3V, ensure the positive and negative of battery is correct. 1 2 3 4 5 FCC statements: § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE & UKCA statements: Frequency Band(s) This device operates with the following frequency bands and maximum frequency power. Note: The product is compliant with these power limits required by the European Union. Frequency bands support- ed by the product vary by model. RFID (433.92 MHz) Max Pe.r.p. is -34.31 dBm. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Hereby, Shenzhen Xhorse Electronics Co., Ltd. declare that Universal Remote Key with model XEFO is in compli- ance with Directive 2014/53/EU, 2011/65/EU and RER 2017 (SI2017/1206). § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: EU & UKCA DECLARATION OF CONFORMITY *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Antenna Type: PCB Antenna Gain: 2dBi Note: The RF1 antenna has 2 layers, one part is on the front of the PCB board (see the first drawing), the other part is on the back (see the second drawing), the third drawing is the complete body of the RF1 antenna, and the size of the antenna on the 3 drawings is the size of the complete antenna.

This part is not detachable

ANT

ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page1of7 RFEXPOSUREREPORT ReportNo.:20240117G01582X-W2 ProductName:UniversalRemoteKey ModelNo.:XEFO FCCID:2AI4T-XEFO Applicant:ShenzhenXhorseElectronicsCo.,Ltd. Address: Floor28,BlockA,BuildingNO.6,internationalinnovationValley, NanshanDistrict,Shenzhen DatesofTesting:01/22/2024–03/01/2024 Issuedby:CCICSouthernTestingCo.,Ltd. LabLocation: ElectronicTestingBuilding,No.43ShaheRoad,XiliStreet, NanshanDistrict,Shenzhen,Guangdong,China. Tel:8675526627338Fax:8675526627238 Thistestreportconsistsof7pagesintotal.Itmaybeduplicatedcompletelyforlegalusewith theapprovaloftheapplicant.Itshouldnotbereproducedexceptinfull,withoutthewritten approvalofourlaboratory.Theclientshouldnotuseittoclaimproductendorsementby CCIC-SET.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreportshall beinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Any objectionsmustberaisedtoCCIC-SETwithin15dayssincethedatewhenthereportis received.Itwillnotbetakenintoconsiderationbeyondthislimit. ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page2of7 TestReport Product......................................:UniversalRemoteKey BrandName ............................. :Xhorse TradeName ............................ :Xhorse Applicant...................................:ShenzhenXhorseElectronicsCo.,Ltd. ApplicantAddress..................: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen Manufacturer ............................ :ShenzhenXhorseElectronicsCo.,Ltd. ManufacturerAddress...........: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen TestStandards........................:47CFRPart2.1093 TestResult ................................ :Pass Testedby.................................: 2024.03.01 ChuiwangZhang,TestEngineer Reviewedby ............................. : 2024.03.01 ChrisYou,SeniorEngineer Approvedby............................: 2024.03.01 YangFan,Manager[盖章] ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page3of7 TABLEOFCONTENTS 1.GENERALINFORMATION......................................................................................................5 1.1.EUTDescription..........................................................................................................................5 1.2.EUTDescription..........................................................................................................................6 1.3.LaboratoryFacilities....................................................................................................................6 1.4.LaboratoryLocation....................................................................................................................6 2.TECHNICALREQUIREMENTSSPECIFICATIONINCFRTITLE47PART2.1093......7 2.1.Evaluationmethod.......................................................................................................................7 2.2.EvaluationResults.......................................................................................................................7 2.3.Conclusion...................................................................................................................................7 ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page4of7 ChangeHistory IssueDateReasonforchange 1.02024.03.01Firstedition ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page5of7 1.GENERALINFORMATION 1.1.EUTDescription ProductNameUniversalRemoteKey ModelNo.XEFO DeviceTypePortableDevice OperationFrequency315MHz;433.92MHz ModulationTypeASK Antennagain2.0dBi AntennaTypePCBAntenna Note1:Theinformationofantennagainandcablelossisprovidedbythemanufacturerandourlab isnotresponsiblefortheaccuracyoftheantennagainandcablelossinformation. ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page6of7 1.2.EUTDescription EUThasbeentestedaccordingtothefollowingstandards. No.IdentityDocumentTitle 147CFRPart1PracticeandProcedure 247CFRPart2 FrequencyAllocationsandRadioTreatyMatters;General RulesandRegulations 3 KDB447498D01General RFExposureGuidancev06 RFExposureProceduresandEquipmentAuthorization PoliciesforMobileandPortableDevices 1.3.LaboratoryFacilities FCC-RegistrationNo.:406086 CCICSouthernTestingCo.,LtdEMCLaboratoryhasbeenregisteredandfullydescribedinareport filedwiththeFCC(FederalCommunicationsCommission).TheacceptanceletterfromtheFCCis maintainedinourfiles.DesignationNumber:CN1283,validtimeisuntilJun.30th,2025. ISEDRegistration:11185A CCICSouthernTestingCo.,Ltd.EMCLaboratoryhasbeenregisteredbyCertificationand EngineeringBureauofIndustryCanadafortheperformanceofradiatedmeasurementswith RegistrationNo.11185AonAug.04,2016,validtimeisuntilJun.30th,2025. CABnumber:CN0064 A2LACode:5721.01 CCIC-SETisathirdpartytestingorganizationaccreditedbyA2LAaccordingtoISO/IEC17025. Theaccreditationcertificatenumberis5721.01. 1.4.LaboratoryLocation CompanyName:CCICSouthernTestingCo.,Ltd. Address: ElectronicTestingBuilding,No.43ShaheRoad,XiliStreet,Nanshan District,Shenzhen,Guangdong,China ReportNo.:20240117G01582X-W2 CCIC-SET/TRF:IRF(2019-05-23)Page7of7 2.TechnicalRequirementsSpecificationinCFRTitle47Part2.1093 2.1.Evaluationmethod AccordingtoKDB447498D04InterimGeneralRFExposureGuidancev01RFExposure ProceduresandEquipmentAuthorizationPoliciesforMobileandPortableDevices. RFExposureTestExemptionsforSingleSource: Per§1.1307(b)(3)(i)(A),asingleRFsourceisexemptRFdevice(fromtherequirementtoshowdata demonstratingcompliancetoRFexposurelimits,aspreviouslymentioned)iftheavailablemaximum time-averagedpowerisnomorethan1mW,regardlessofseparationdistance. Thisexemptionappliestoalloperatingconfigurationsandexposureconditions,forthefrequency range100kHzto100GHz,regardlessoffixed,mobile,orportabledeviceexposureconditions.This isastandaloneexemption,anditcannotbeappliedinconjunctionwithanyothertestexemption. Accordingtothecalculationformulaofpower: 퐀퐀=×퐀= (퐀×퐀) 2 30 ,So = (퐀×퐀) 2 30×퐀 . Where…

Text truncated - open the document above for the full version.

ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page1of30 RFTESTREPORT ReportNo.:20240117G01582X-W1 ProductName:UniversalRemoteKey ModelNo.:XEFO FCCID:2AI4T-XEFO Applicant:ShenzhenXhorseElectronicsCo.,Ltd. Address: Floor28,BlockA,BuildingNO.6,internationalinnovationValley, NanshanDistrict,Shenzhen DatesofTesting:01/22/2024–03/01/2024 Issuedby:CCICSouthernTestingCo.,Ltd. LabLocation: ElectronicTestingBuilding,No.43ShaheRoad,XiliStreet, NanshanDistrict,Shenzhen,Guangdong,China. Tel:8675526627338Fax:8675526627238 Thistestreportconsistsof30pagesintotal.Itmaybeduplicatedcompletelyforlegaluse withtheapprovaloftheapplicant.Itshouldnotbereproducedexceptinfull,withoutthe writtenapprovalofourlaboratory.Theclientshouldnotuseittoclaimproductendorsement byCCIC-SET.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Any objectionsmustberaisedtoCCIC-SETwithin15dayssincethedatewhenthereportis received.Itwillnotbetakenintoconsiderationbeyondthislimit. ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page2of30 TestReport Product......................................:UniversalRemoteKey BrandName ............................. :Xhorse TradeName ............................ :Xhorse Applicant...................................:ShenzhenXhorseElectronicsCo.,Ltd. ApplicantAddress..................: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen Manufacturer ............................ :ShenzhenXhorseElectronicsCo.,Ltd. ManufacturerAddress...........: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen TestStandards........................: 47CFRPart15SubpartC15.231 ANSIC63.10-2013 TestResult ................................ :Pass Testedby.................................: 2024.03.01 ChuiwangZhang,TestEngineer Reviewedby ............................. : 2024.03.01 ChrisYou,SeniorEngineer Approvedby............................: 2024.03.01 YangFan,Manager[盖章] ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page3of30 TABLEOFCONTENTS TABLEOFCONTENTS.................................................................................................................3 1.GENERALINFORMATION......................................................................................................5 1.1.EUTDescription..........................................................................................................................5 1.2.TestStandardsandResults..........................................................................................................6 1.3.TableforSupportingUnits..........................................................................................................6 1.4.EUTOperationTestSetup...........................................................................................................6 1.5.Testenvironmentandmode.........................................................................................................6 1.6.LaboratoryFacilities....................................................................................................................7 2.TESTREQUIREMENTS............................................................................................................8 2.1.Antennarequirement...................................................................................................................8 2.2.20dBBandwidth.........................................................................................................................9 2.3.DutyCycleFactor......................................................................................................................11 2.4.FieldStrengthofFundamentalandSpuriousemissions...........................................................14 2.5.DurationTime............................................................................................................................27 3.LISTOFMEASURINGEQUIPMENT...................................................................................29 4.UNCERTAINTYOFEVALUATION.......................................................................................30 ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page4of30 ChangeHistory IssueDateReasonforchange 1.02024.03.01Firstedition ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page5of30 1.GeneralInformation 1.1.EUTDescription ProductNameUniversalRemoteKey ModelNo.XEFO OperationFrequency315MHz;433.92MHz ModulationtechnologyASK AntennaTypePCBAntenna AntennaGain2.0dBi PowersupplyDC3V(CR2032battery) Note1:Theinformationofantennagainandcablelossisprovidedbythemanufacturerandourlab isnotresponsiblefortheaccuracyoftheantennagainandcablelossinformation. ReportNo.:20240117G01582X-W1 CCIC-SET/TRF:IRF(2019-05-23)Page6of30 1.2.TestStandardsandResults ThepurposeofthereportistoconducttestingaccordingtothefollowingFCCcertification standards: No.IdentityDocumentTitle 1 47CFRPart15 SubpartC RadioFrequencyDevices 2ANSIC63.10-2013 AmericanNationalStandardforTestingUnlicensedWireless Devices Testdetaileditems/sectionrequiredbyFCCrulesandresultsareasbelow: No.SectioninCFR47DescriptionResult 1§15.203AntennaRequirementPASS 2§15.231(c)20dBBandwidthPASS 3§15.231(b)FieldStrengthofFundamentalPASS 4§15.231(b),§15.209FieldStrengthofSpuriousEmissionsPASS 5§15.231(a)(1)DurationTimePASS 6§15.207ACPowerLineConductedEmissionN/A Note Note:N/Ameansnotapplicable,EUTPowerBy3VDCBattery. 1.3.TableforSupportingUnits No.EquipmentBrandNameModelNameManufacturerSerialNo.FCCID/DoC 1N/A 1.4.EUTOperationTestSetup ForRFtestitems,anengineeringtestprogramwasprovidedandenabletomakeEUTtransmitting. 1.5.Testenvironmentandmode Duringthemeasurement,theenvironmentalconditionswerewithinthelistedranges: OperatingEnvironment Temperature15°Cto35°C Humidity30%to60% AtmosphericPressure86kPato106kPa TestMode: TransmittingmodeKeeptheEUTintransmittingmodewithmodulation Note:TheEUTwasplacedonthree…

Text truncated - open the document above for the full version.

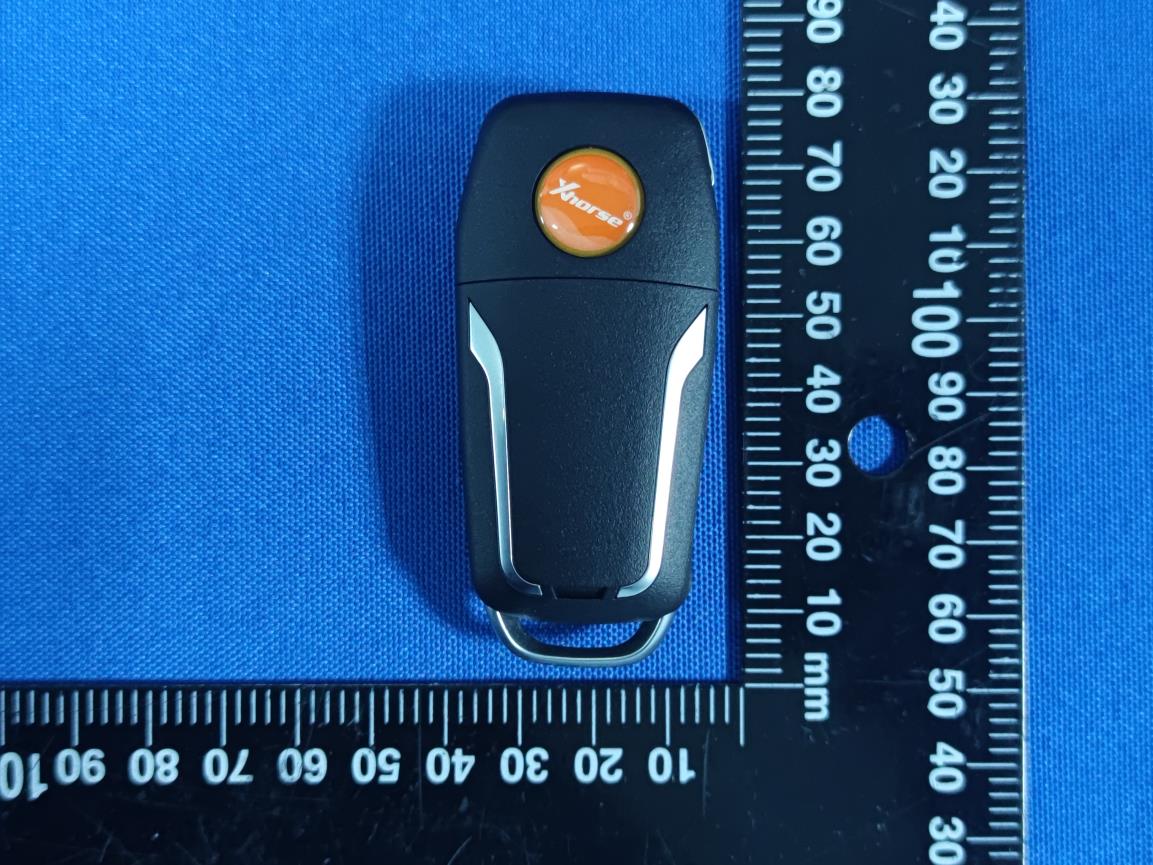

Close-up photo
