2AI4T-XSNIUniversal Remote Key

Overview: XSNI Universal Remote Key is suitable for vehicle which contains the Xhorse receiver. Note: The operating temperature of the product is -20–50°C. Button description: Change battery: First use or when the battery runs out need to change new battery, following steps: ItemDescription Panic button Unlock button Lock button 1 2 3 Pairing method: Pairing with vehicle: Referring to the corresponding vehicle models to match. XSNI Universal Remote Key User Manual 1 2 3 Take the battery out and replace new one Install the key same as before Press the back side button for loose the mechanical key holder Use the tool into the gap to separate the shell 1234 Note: The battery type is 2032 with 3V, ensure the positive and negative of battery is correct. FCC statements: § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE & UKCA statements: Frequency Band(s) This device operates with the following frequency bands and maximum frequency power. Note: The product is compliant with these power limits required by the European Union. Frequency bands support- ed by the product vary by model. RFID (433.92 MHz) Max Pe.r.p. is -27.76 dBm. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Hereby, Shenzhen Xhorse Electronics Co., Ltd. declare that Universal Remote Key with model XSNI is in compli- ance with Directive 2014/53/EU, 2011/65/EU and RER 2017 (SI2017/1206). § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: EU & UKCA DECLARATION OF CONFORMITY *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Xhorse Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024/06/19 Subject; Request for Confidentiality FCC ID: 2AI4T-XSNI To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Ying Zhang

Shenzhen Xhorse Electronics Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024/06/19 SUBJECT: FCC Application for (FCC ID: 2AI4T-XSNI) To Whom It May Concern: We, the undersigned, hereby authorize _ CCIC Southern Testing Co., Ltd._ (Chris You)__ at _ Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China _ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by __Chris You__ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature： Contact Person: Ying Zhang Title: Manager Company: Shenzhen Xhorse Electronics Co., Ltd. Address: Floor 28, Block A, Building NO.6, international innovation Valley, Nanshan District, Shenzhen, China. Tel: +86 0755-86704336 E-Mail: [email protected]

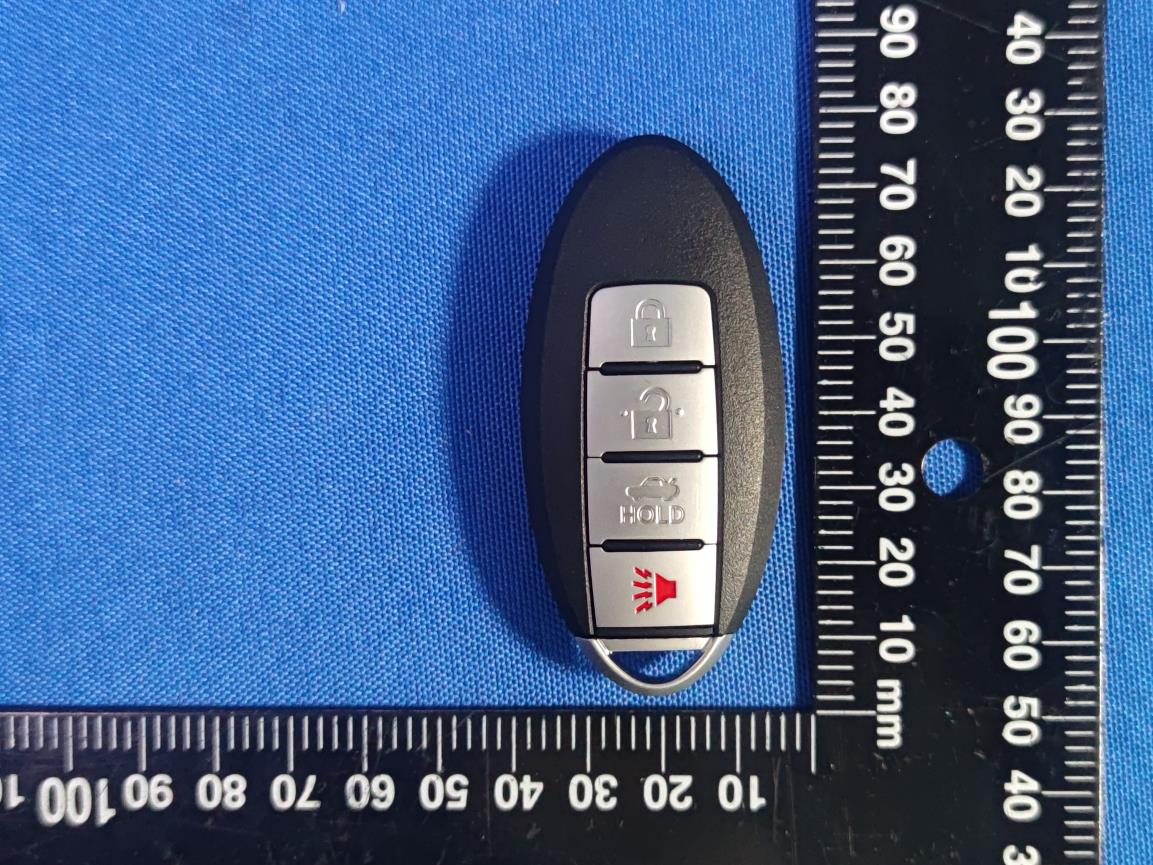

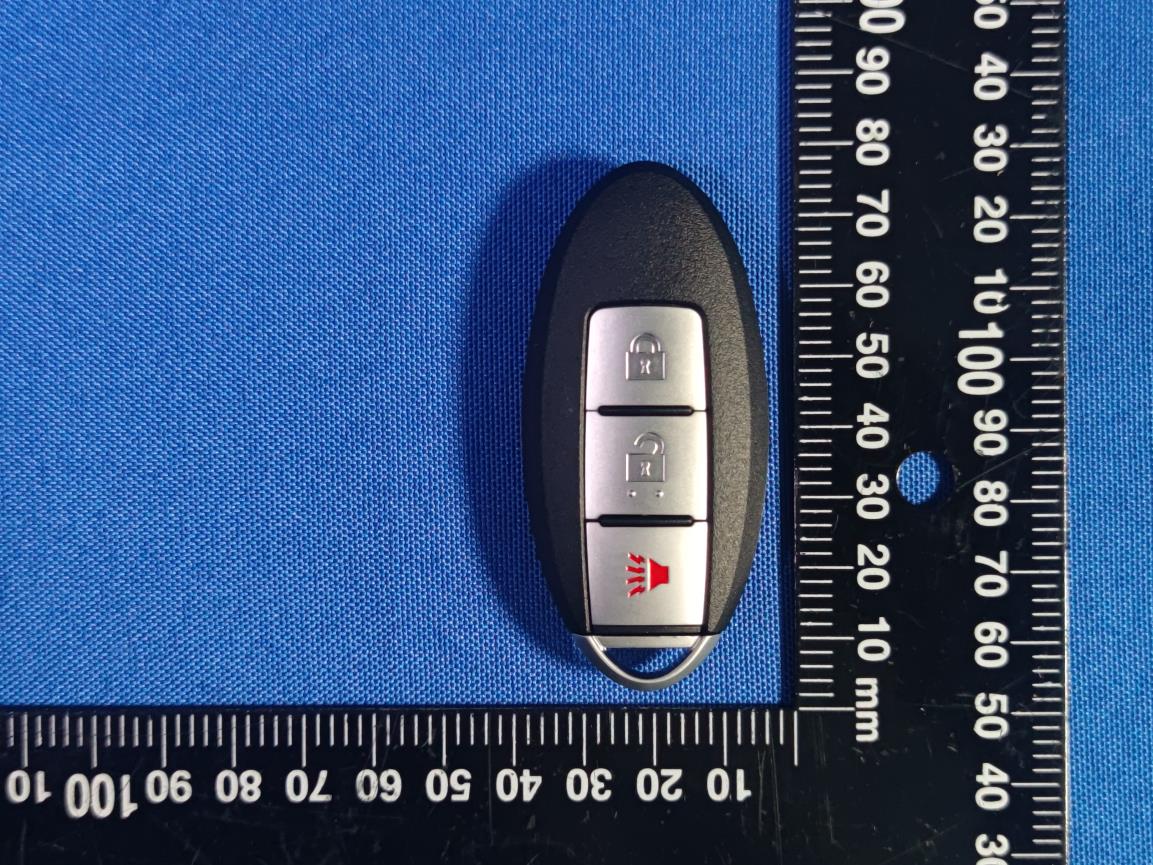

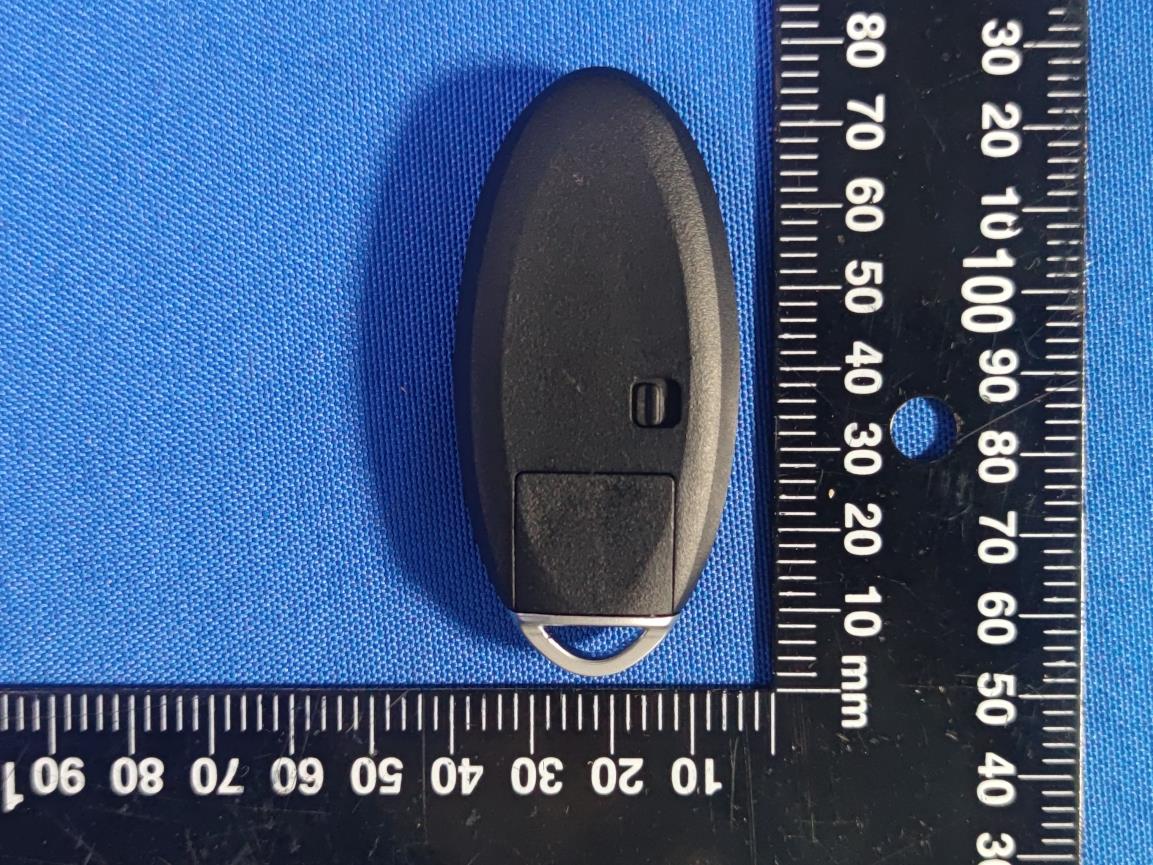

Model: XSNIS2 Model: XSNI

Model: XSNIS2 Model: XSNI

ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page1of7 RFEXPOSUREREPORT ReportNo.:20240417G07156X-W2 ProductName:UniversalRemoteKey ModelNo.:XSNIS2,XSNI FCCID:2AI4T-XSNI Applicant:ShenzhenXhorseElectronicsCo.,Ltd. Address: Floor28,BlockA,BuildingNO.6,internationalinnovationValley, NanshanDistrict,Shenzhen DatesofTesting:04/27/2024–05/27/2024 Issuedby:CCICSouthernTestingCo.,Ltd. LabLocation: ElectronicTestingBuilding,No.43,ShaheRoad,XiliStreet,Nanshan District,Shenzhen,Guangdong,China. Tel:8675526627338E-Mail:[email protected] Thistestreportconsistsof7pagesintotal.Itmaybeduplicatedcompletelyforlegalusewith theapprovaloftheapplicant.Itshouldnotbereproducedexceptinfull,withoutthewritten approvalofourlaboratory.Theclientshouldnotuseittoclaimproductendorsementby CCIC-SET.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreportshall beinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Any objectionsmustberaisedtoCCIC-SETwithin15dayssincethedatewhenthereportis received.Itwillnotbetakenintoconsiderationbeyondthislimit. ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page2of7 TestReport Product......................................:UniversalRemoteKey BrandName ............................. :Xhorse TradeName ............................ :Xhorse Applicant...................................:ShenzhenXhorseElectronicsCo.,Ltd. ApplicantAddress..................: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen Manufacturer ............................ :ShenzhenXhorseElectronicsCo.,Ltd. ManufacturerAddress...........: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen TestStandards........................:47CFRPart2.1093 TestResult ................................ :Pass Testedby.................................: 2024.05.27 ChuiwangZhang,TestEngineer Reviewedby.............................: 2024.05.27 SunJiaohui,SeniorEngineer Approvedby............................: 2024.05.27 ChrisYou,Manager[盖章] ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page3of7 TABLEOFCONTENTS 1.GENERALINFORMATION......................................................................................................5 1.1.EUTDescription..........................................................................................................................5 1.2.EUTDescription..........................................................................................................................6 1.3.LaboratoryFacilities....................................................................................................................6 1.4.LaboratoryLocation....................................................................................................................6 2.TECHNICALREQUIREMENTSSPECIFICATIONINCFRTITLE47PART2.1093......7 2.1.Evaluationmethod.......................................................................................................................7 2.2.EvaluationResults.......................................................................................................................7 2.3.Conclusion...................................................................................................................................7 ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page4of7 ChangeHistory IssueDateReasonforchange 1.02024.05.27Firstedition ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page5of7 1.GENERALINFORMATION 1.1.EUTDescription ProductNameUniversalRemoteKey ModelNo.XSNIS2,XSNI DeviceTypePortableDevice OperationFrequency315MHz;433.92MHz ModulationTypeASK Antennagain2.0dBi AntennaTypePCBAntenna Note1:Theinformationofantennagainandcablelossisprovidedbythemanufacturerandourlab isnotresponsiblefortheaccuracyoftheantennagainandcablelossinformation. Note2:ModelXSNIandXSNIS2(MainModel)havethesameRFpart,thedifferenceisthatthe positionofthebuttonandthewiringofthepowersupplyaredifferent,XSNIis3keys, XSNIS2is4keys. ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page6of7 1.2.EUTDescription EUThasbeentestedaccordingtothefollowingstandards. No.IdentityDocumentTitle 147CFRPart1PracticeandProcedure 247CFRPart2 FrequencyAllocationsandRadioTreatyMatters;General RulesandRegulations 3 KDB447498D01General RFExposureGuidancev06 RFExposureProceduresandEquipmentAuthorization PoliciesforMobileandPortableDevices 1.3.LaboratoryFacilities FCC-RegistrationNo.:CN1283 CCICSouthernTestingCo.,LtdEMCLaboratoryhasbeenregisteredandfullydescribedinareport filedwiththeFCC(FederalCommunicationsCommission).TheacceptanceletterfromtheFCCis maintainedinourfiles.DesignationNumber:CN1283,validtimeisuntilJun.30th,2025. ISEDRegistration:11185A CCICSouthernTestingCo.,Ltd.EMCLaboratoryhasbeenregisteredbyCertificationand EngineeringBureauofIndustryCanadafortheperformanceofradiatedmeasurementswith RegistrationNo.11185AonAug.04,2016,validtimeisuntilJun.30th,2025. CABnumber:CN0064 A2LACode:5721.01 CCIC-SETisathirdpartytestingorganizationaccreditedbyA2LAaccordingtoISO/IEC17025. Theaccreditationcertificatenumberis5721.01. 1.4.LaboratoryLocation CompanyName:CCICSouthernTestingCo.,Ltd. Address: ElectronicTestingBuilding,No.43,ShaheRoad,XiliStreet,Nanshan District,Shenzhen,Guangdong,China ReportNo.:20240417G07156X-W2 CCIC-SET/TRF:IRF(2024-04-29)Page7of7 2.TechnicalRequirementsSpecificationinCFRTitle47Part2.1093 2.1.Evaluationmethod AccordingtoKDB447498D04InterimGeneralRFExposureGuidancev01RFExposure ProceduresandEquipmentAuthorizationPoliciesforMobileandPortableDevices. RFExposureTestExemptionsforSingleSource: Per§1.1307(b)(3)(i)(A),asingleRFsourceisexemptRFdevice(fromtherequirementtoshowdata demonstratingcompliancetoRFexposurelimits,aspreviouslymentioned)iftheavailablemaximum time-averagedpowerisnomorethan1mW,regardlessofseparationdistance. Thisexemptionappliestoalloperatingconfigurationsandexposureconditions,forthefrequency range100kHzto100GHz,regardlessoffixed,mobile,orportabledeviceexpos…

Text truncated - open the document above for the full version.

ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page1of31 RFTESTREPORT ReportNo.:20240417G07156X-W1 ProductName:UniversalRemoteKey ModelNo.:XSNIS2,XSNI FCCID:2AI4T-XSNI Applicant:ShenzhenXhorseElectronicsCo.,Ltd. Address: Floor28,BlockA,BuildingNO.6,internationalinnovationValley, NanshanDistrict,Shenzhen DatesofTesting:04/27/2024–05/27/2024 Issuedby:CCICSouthernTestingCo.,Ltd. LabLocation: ElectronicTestingBuilding,No.43,ShaheRoad,XiliStreet, NanshanDistrict,Shenzhen,Guangdong,China. Tel:8675526627338E-Mail:[email protected] Thistestreportconsistsof31pagesintotal.Itmaybeduplicatedcompletelyforlegaluse withtheapprovaloftheapplicant.Itshouldnotbereproducedexceptinfull,withoutthe writtenapprovalofourlaboratory.Theclientshouldnotuseittoclaimproductendorsement byCCIC-SET.Thetestresultsinthereportonlyapplytothetestedsample.Thetestreport shallbeinvalidwithoutallthesignaturesoftestingengineers,reviewerandapprover.Any objectionsmustberaisedtoCCIC-SETwithin15dayssincethedatewhenthereportis received.Itwillnotbetakenintoconsiderationbeyondthislimit. ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page2of31 TestReport Product......................................:UniversalRemoteKey BrandName ............................. :Xhorse TradeName ............................ :Xhorse Applicant...................................:ShenzhenXhorseElectronicsCo.,Ltd. ApplicantAddress..................: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen Manufacturer ............................ :ShenzhenXhorseElectronicsCo.,Ltd. ManufacturerAddress...........: Floor28,BlockA,BuildingNO.6,internationalinnovation Valley,NanshanDistrict,Shenzhen TestStandards........................: 47CFRPart15SubpartC15.231 ANSIC63.10-2013 TestResult ................................ :Pass Testedby.................................: 2024.05.27 ChuiwangZhang,TestEngineer Reviewedby ............................. : 2024.05.27 SunJiaohui,SeniorEngineer Approvedby............................: 2024.05.27 ChrisYou,Manager[盖章] ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page3of31 TABLEOFCONTENTS TABLEOFCONTENTS.................................................................................................................3 1.GENERALINFORMATION......................................................................................................5 1.1.EUTDescription..........................................................................................................................5 1.2.TestStandardsandResults..........................................................................................................6 1.3.TableforSupportingUnits..........................................................................................................6 1.4.EUTOperationTestSetup...........................................................................................................6 1.5.Testenvironmentandmode.........................................................................................................6 1.6.LaboratoryFacilities....................................................................................................................7 2.TESTREQUIREMENTS............................................................................................................8 2.1.Antennarequirement...................................................................................................................8 2.2.20dBBandwidth.........................................................................................................................9 2.3.DutyCycleFactor......................................................................................................................11 2.4.FieldStrengthofFundamentalandSpuriousemissions...........................................................15 2.5.DurationTime............................................................................................................................28 3.LISTOFMEASURINGEQUIPMENT...................................................................................30 4.UNCERTAINTYOFEVALUATION.......................................................................................31 ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page4of31 ChangeHistory IssueDateReasonforchange 1.02024.05.27Firstedition ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page5of31 1.GeneralInformation 1.1.EUTDescription ProductNameUniversalRemoteKey ModelNo.XSNIS2,XSNI OperationFrequency315MHz;433.92MHz ModulationtechnologyASK AntennaTypePCBAntenna AntennaGain2.0dBi PowersupplyDC3V(CR2032battery) Note1:Theinformationofantennagainandcablelossisprovidedbythemanufacturerandourlab isnotresponsiblefortheaccuracyoftheantennagainandcablelossinformation. Note2:ModelXSNIandXSNIS2(MainModel)havethesameRFpart,thedifferenceisthatthe positionofthebuttonandthewiringofthepowersupplyaredifferent,XSNIis3keys, XSNIS2is4keys. ReportNo.:20240417G07156X-W1 CCIC-SET/TRF:IRF(2024-04-29)Page6of31 1.2.TestStandardsandResults ThepurposeofthereportistoconducttestingaccordingtothefollowingFCCcertification standards: No.IdentityDocumentTitle 1 47CFRPart15 SubpartC RadioFrequencyDevices 2ANSIC63.10-2013 AmericanNationalStandardforTestingUnlicensedWireless Devices Testdetaileditems/sectionrequiredbyFCCrulesandresultsareasbelow: No.SectioninCFR47DescriptionResult 1§15.203AntennaRequirementPASS 2§15.231(c)20dBBandwidthPASS 3§15.231(b)FieldStrengthofFundamentalPASS 4§15.231(b),§15.209FieldStrengthofSpuriousEmissionsPASS 5§15.231(a)(1)DurationTimePASS 6§15.207ACPowerLineConductedEmissionN/A Note Note:N/Ameansnotapplicable,EUTPowerBy3VDCBattery. 1.3.TableforSupportingUnits No.EquipmentBrandNameModelNameManufacturerSerialNo.FCCID/DoC 1N/A 1.4.EUTOperationTestSetup ForRFtestitems,anengineeringtestprogramwasprovidedandenabletomakeEUTtransmitting. 1.5.Testenvironmentandmode Duringthemeasurement,theenvironmentalconditionswerewithinthelistedrange…

Text truncated - open the document above for the full version.

Antenna Type: PCB Antenna Antenna Gain: 2 dBi

Close-up photo
