2AI53-MC079DRC3Motion Sensor

High Bay Sensor for WarehouseMC079D RC3Version: A0 Shenzhen Merrytek Technology Co.,Ltd Add: 2 nd and 3 rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253Fax: +86 (0)755-2786 3012Website: www.merrytek.com Page 1 of 9 SPECIFICATION Product Name: Motion Sensor Model No.:MC079D RC 3(daylight priority) Issue Date:Mar. 13, 2020 CUSTOMER APPROVED PRODUCT DIRECTOR APPROVED SALES CHECKED R&D CHECKED PREPARED HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 2 of 9 1.Features 2.Parameter Input OperatingVoltageRageN/A DCInputVoltage12/24VDC±1V RatedVoltage12/24V No-loadPowerN/A Stand-byPower<0.3W SurgeTestN/A WiringScrewterminals Output WorkingMode0-10VDC TypeofLoadN/A LoadCapacityN/A CurrentofLoadN/A WiringScrewterminals Dim Interface 0-10VDimming <50mA（Non-constantsource） SynchronousControlN/A HighLow-levelN/A PWMControlN/A Sensor Parameters OperatingFrequency 5.8GHz±75MHz，ISMBand. Transmittingpower1mWMax. Holdtime5S/30S/1min/3min/5min/10min/20min/30min Stand-byDIMLevel10%(1.4-1.6V),20%(1.9-2.1V),30%(2.9-3.1V),50%(4.9-5.1V) 12/24VDCinput,forDCsystemsorLEDpowersupplieswith 12/24VDCauxiliarypoweroutput 0-10Vdimmingport,3or2stepdimmingfunction Newlypatentdesignsensorantennawithtwodetectionmode: highsensitivitydetectionandinterferenceimmunitydetection. (suitableforinstallationenvironmentswithmanymetalreflective surfaces) Plug-indesignwithIP65water-proofdesign 15mmaximuminstallationheight,suitableformostwarehouses Patentedremotecontrol,transmittingangleoftheremotecontrol isadjustableaccordingtomountingheight Dim+/Dim-tosetoccupancylightlevel Daylightpriorityfunction 5yearswarranty HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 3 of 9 Stand-byPeriod0s/10S/1min/3min/5min/10min/30min/+∞ DetectionArea25%/50%/75%/100% DaylightSensor Daylightthreshold: 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable Daylightpriority:ON/OFFvalue (5lux/15Lux/30Lux/50Lux)/150Lux 100Lux/200Lux 150Lux/300Lux DetectingRadiusSeedetectionpattern MountingHeight15mMax DetectingAngle150°(wallmounting)360°(ceilingmounting) Wireless Module OperatingFrequencyN/A TransmittingpowerN/A TransmittingdistanceN/A ModulationmodeN/A NumberofcodingN/A Operating Environment OperatingTemperature-35°C...+70°C StorageTemperature Temperature:-40°C...+80°C;Humidity:10%-95% (non-condensing) Certificate Standards SafetystandardsEN60669-2-1,EN60669-1 EMCstandardsEN55015,EN61000-3-2,EN61000-3-3,EN61547 EnvironmentalRequirementComplianttoRoHS CertificateNA IPRatingIP65 ProtectionClassClassII InstallationExternalmounting,integratedmounting DimensionSeedimension PackageWhitepaperbox NetWeight55g Lifetime5yearswarranty@Ta230Vfullload Note 1.“N/A”meansnotavailable. 2.Detectionareaiseffectedonvolumeofmotionobjectandmotionspeed.Thedetectionareaistestedbya 165cmheightpersonandwalkingspeedis0.5m/s. HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 4 of 9 3.Function 1)On/OFFFunction(stand-byperiodbesetto“0”s) 2)2-stepdimmingfunction(stand-byperiodbesetto“+∞”) 3)3-stepdimmingfunction(stand-byperiodbesetto“10S/1min/3min/5min/10min/30min”) HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 5 of 9 4)Daylightpriority（stand-byperiodsetto+∞） 4.Dimension(mm) 5.Wiring *Thesensorisdesignedforconnectoneloadonly.Connectmorethanoneloadsmaydamagethesensor. HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 6 of 9 6.Structure 7.Installation HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 7 of 9 8.RadiationPattern Ceilingmounting Ceilingmountedheight:3m Sensitivity:100%/75%/50%/25% Ceilingmountedheight:12m Sensitivity:100%/75%/50%/25% Ceilingmountedheight:15m（*） Sensitivity:100%/75%/50% Normalmoving(Speed:1m/s)Normalmoving(Speed:1m/s)Normalmoving(Speed:1m/s) Slowmoving(Speed0.3m/s)Slowmoving(Speed0.3m/s)Slowmoving(Speed0.3m/s) *Only100%/75%/50%detectionsensitivityisworkablewheninstalledat15mmountingheight.25%sensitivityisnotabletodetect motionsignal. Wallmounting Horizonmountedheight:2m Sensitivity:100%/75%/50%/25% Normalmoving(Speed：1m/s) Slowmoving(Speed0.3m/s) HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 8 of 9 9.RemoteControl 10.Initialization 1)On/Offfunction/3-stepdimmingfunction: Afterpoweron,thesensorautomaticallyturnsonlightat100%brightness.After10sec,itturnsoffthelight.During theinitialization,thesensorisnotabletodetectmovement. HighBaySensorforWarehouseMC079DRC3Version:A0 ShenzhenMerrytekTechnologyCo.,Ltd Add:2 nd and3 rd floor,NO.3Building,380XiangshanAvenue,Luotian,Yanluo,Baoan,Shenzhen,518127,China Tel:+86(0)755-23057253Fax:+86(0)755-27863012Website:www.merrytek.com Page 9 of 9 2)2-stepdimmingfunction: Afte…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-17> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AI53-MC079DRC3 MC079D RC3 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: John Peng/Project Management Manager Company: Shenzhen Merrytek Technology Co.,LTD Address: 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Phone: 0755 2305 7253 -233 Fax: 15019426148 E-Mail: [email protected]

Shenzhen Merrytek Technology Co.,LTD Add: 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/06/17 To whom it may concern: We, Shenzhen Merrytek Technology Co.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AI53-MC079DRC3 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: John Peng/Project Management Manager Company: Shenzhen Merrytek Technology Co.,LTD Address: 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Phone: 0755 2305 7253 -233 Fax: 15019426148 E-Mail: [email protected]

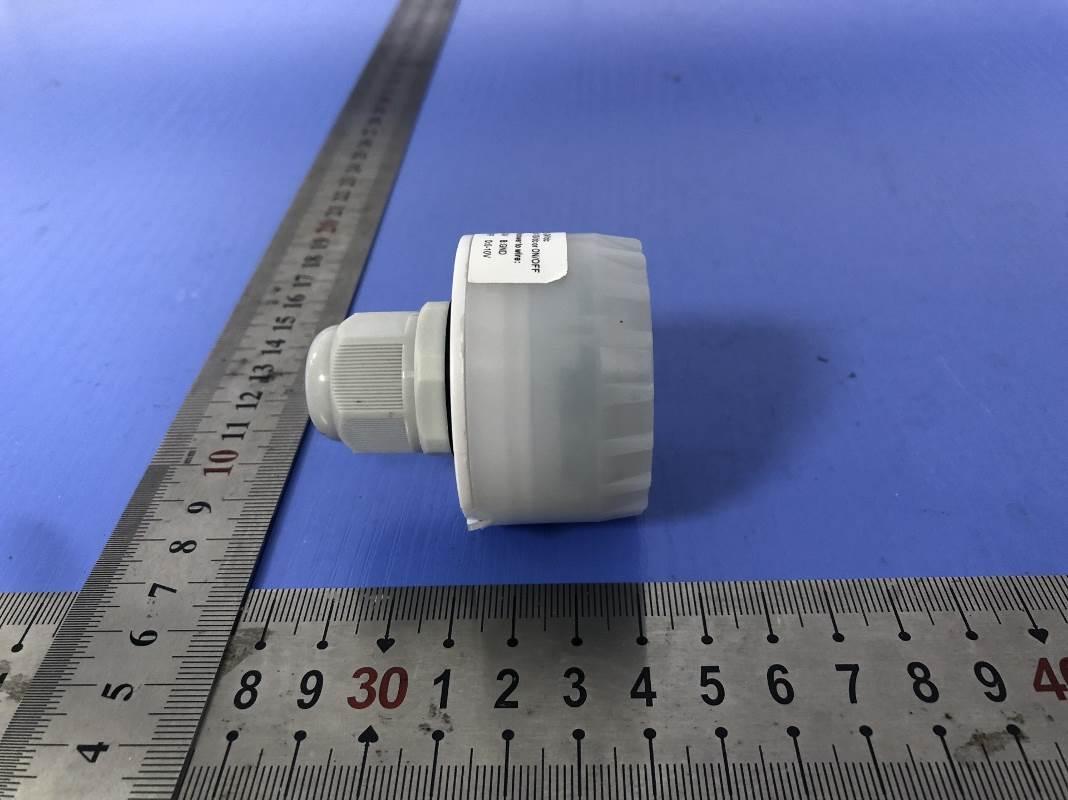

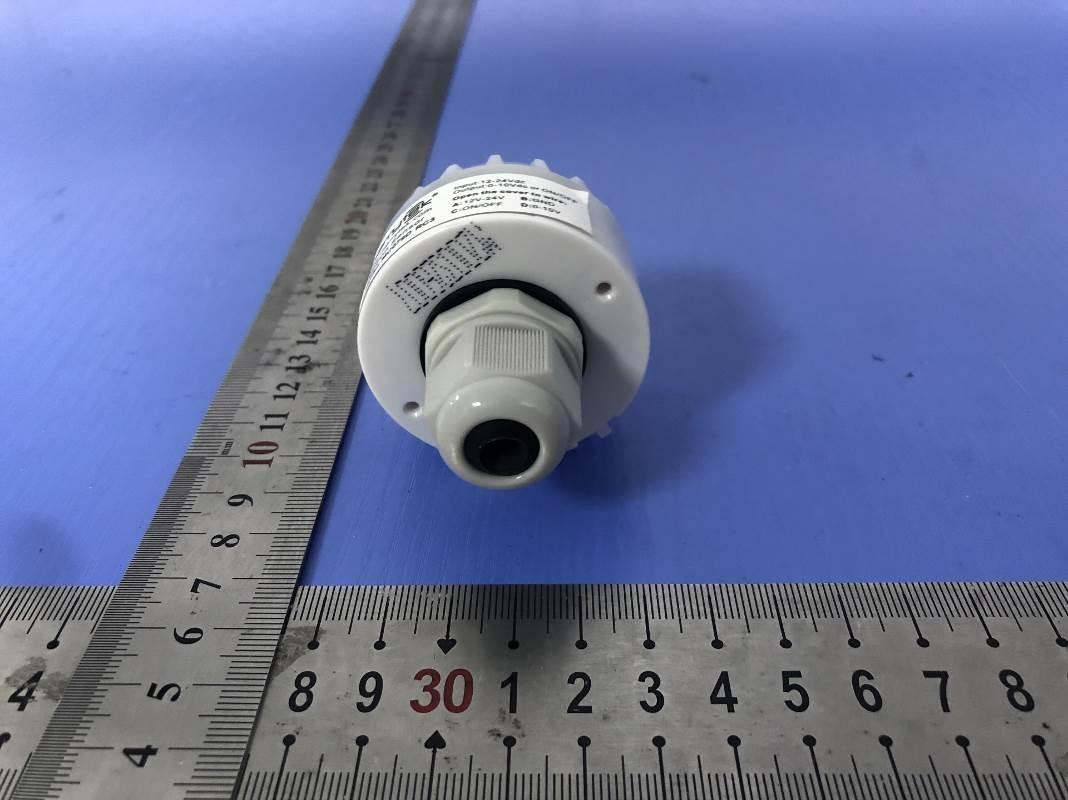

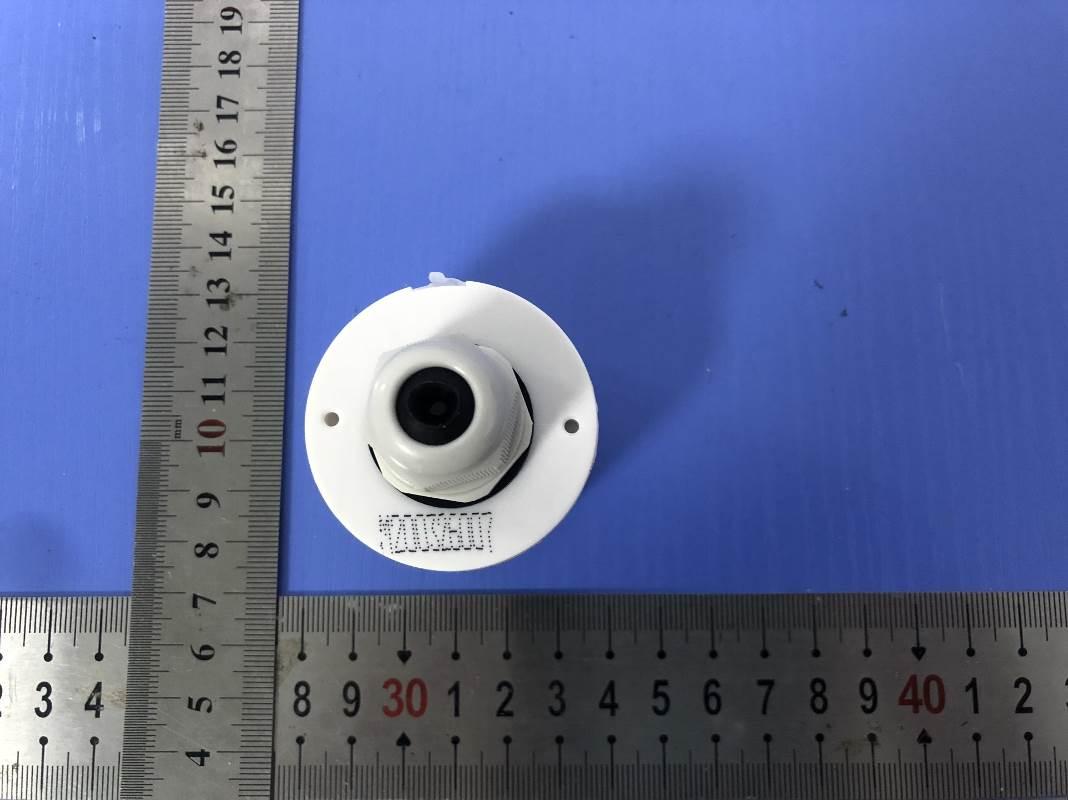

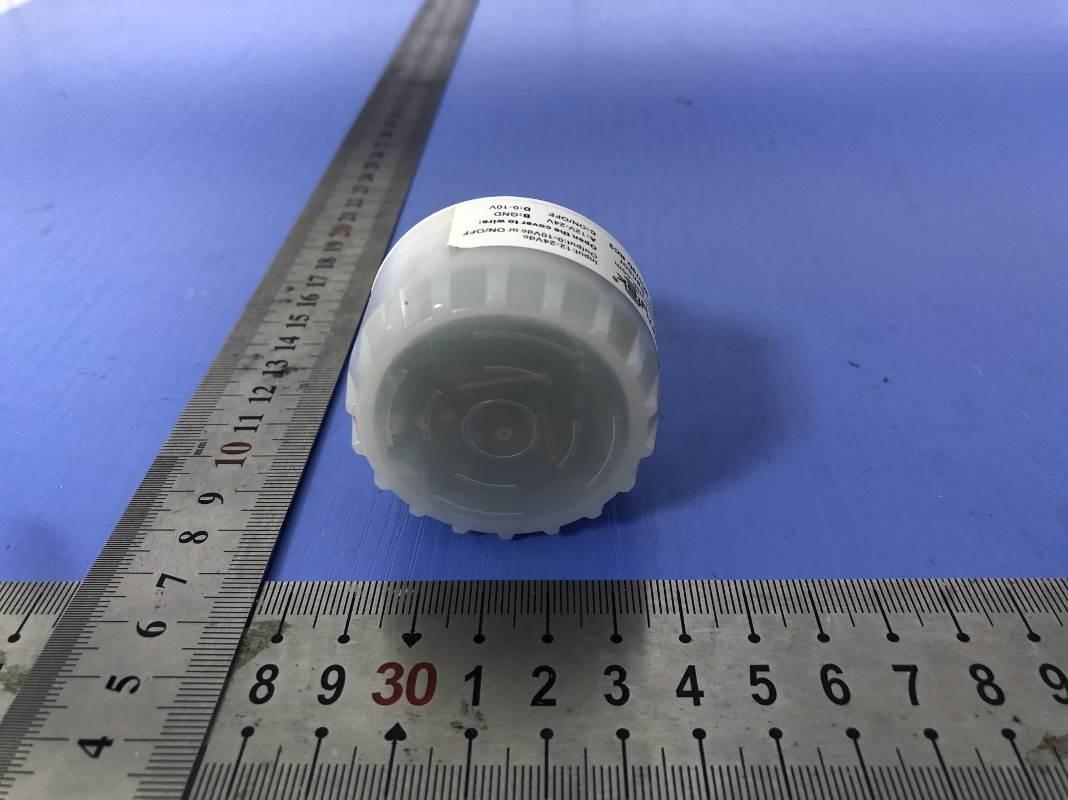

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W2.0cm Label Location Motion Sensor Model No.: MC079D RC3 FCC ID: 2AI53-MC079DRC3 Input: 12-24Vdc Output: 0-10Vdc

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 Report No.:LCS200527071AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 25 FCC TEST REPORT FOR Shenzhen Merrytek Technology Co., LTD Motion Sensor Test Model No.: MC079D RC3 Prepared for : Shenzhen Merrytek Technology Co., LTD Address : 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 27, 2020 Number of tested samples : 1 Sample number : 200527071A Date of Test : May 27, 2020 ~ June 04, 2020 Date of Report : June 09, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 Report No.:LCS200527071AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15 C (15.249) Report Reference No. ................. : LCS200527071AEA Date of Issue................................... : June 09, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Merrytek Technology Co., LTD Address ........................................... : 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C (15.249) / ANSI C63.10 Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Motion Sensor Trade Mark ..................................... : Test Model ...................................... : MC079D RC3 Ratings ............................................ : Input：12-24Vdc Output：0-10Vdc Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 Report No.:LCS200527071AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 25 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200527071AEA June 09, 2020 Date of issue Test Model.............................. : MC079D RC3 EUT......................................... : Motion Sensor Applicant............................... : Shenzhen Merrytek Technology Co., LTD Address.................................. : 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Merrytek Technology Co., LTD Address................................... : 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Merrytek Technology Co., LTD Address................................... : 2nd and 3rd Floor, No.3 building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 Report No.:LCS200527071AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 25 Revision History Revision Issue Date Revisions Revised By 000 June 09, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 Report No.:LCS200527071AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O Cable ......................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI53-MC079DRC3 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
