Shenzhen Bling Lighting Technologies CO., LTD West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Product Similarity Declaration FCC ID: 2AI5T-FTC Model Number: FTC-100-WN-C28-K1-EU-IGN, FTC-aaa-bb-ccc-dd-ee-fff(a,b,c,d,e and f can be Arabic numbers or English letters) DATE: 2020-10-16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bling Lighting Technologies CO., LTD hereby declare that our product (Smart Flood light) Model Number: FTC-100-WN-C28-K1-EU-IGN, FTC-aaa-bb-ccc-dd-ee-fff(a,b,c,d,e and f can be Arabic numbers or English letters) board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Guangping Zou/ Manager Company Name: Shenzhen Bling Lighting Technologies CO., LTD Address: West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Phone: 18665810796 Fax: 0755-27498882 E-Mail: [email protected]

<Shenzhen Bling Lighting Technologies CO., LTD> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020-08-10 Subject; Request for Confidentiality FCC ID: 2AI5T-FTC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Guangping Zou Title: Manager

Shenzhen Bling Lighting Technologies CO., LTD Letter of Authorization Company: Shenzhen Bling Lighting Technologies CO., LTD Address: West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Product Name: Smart Flood light Model Number: FTC-100-WN-C28-K1-EU-IGN, FTC-aaa-bb-ccc-dd-ee-fff(a,b,c,d,e and f can be Arabic numbers or English letters) FCC Identifier: 2AI5T-FTC We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Guangping Zou Date: 2020-10-16 Title: Manager Signature of applicant:

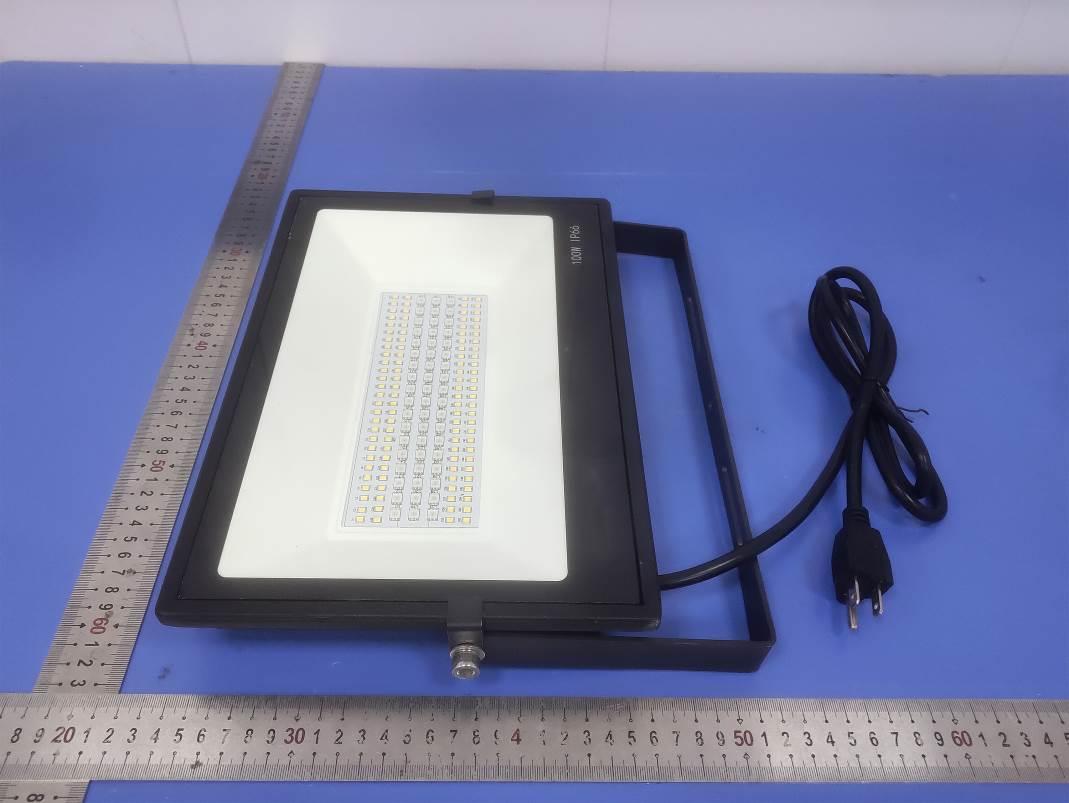

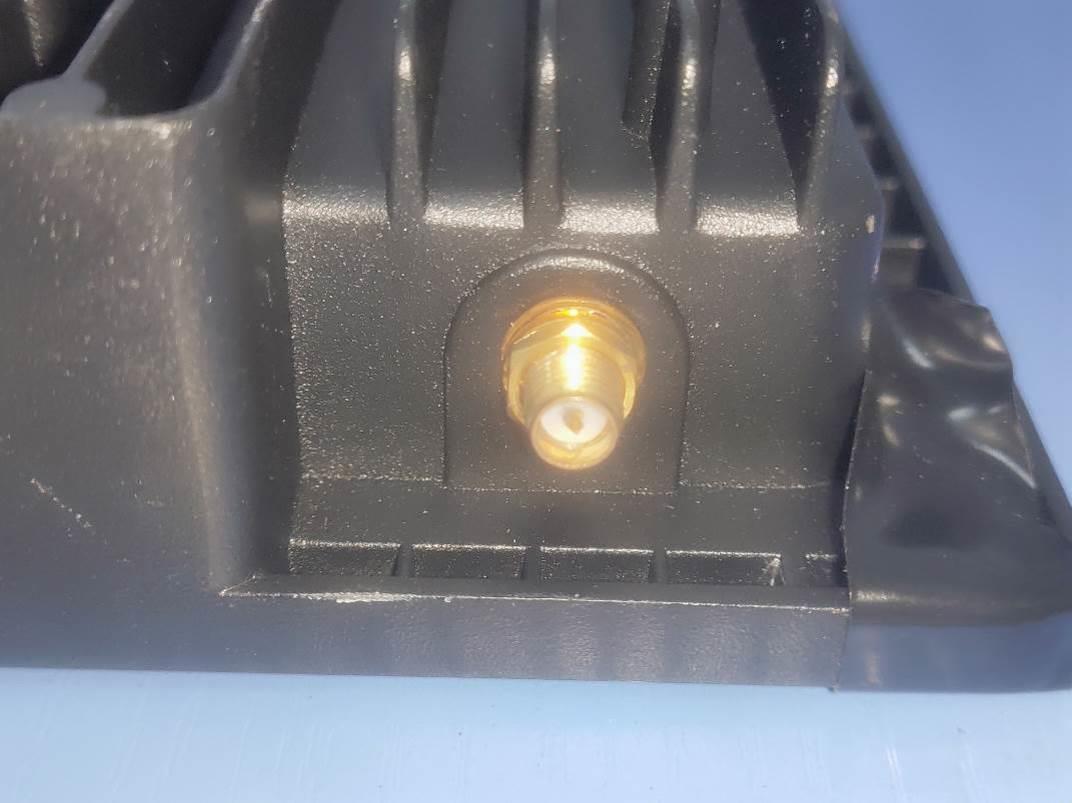

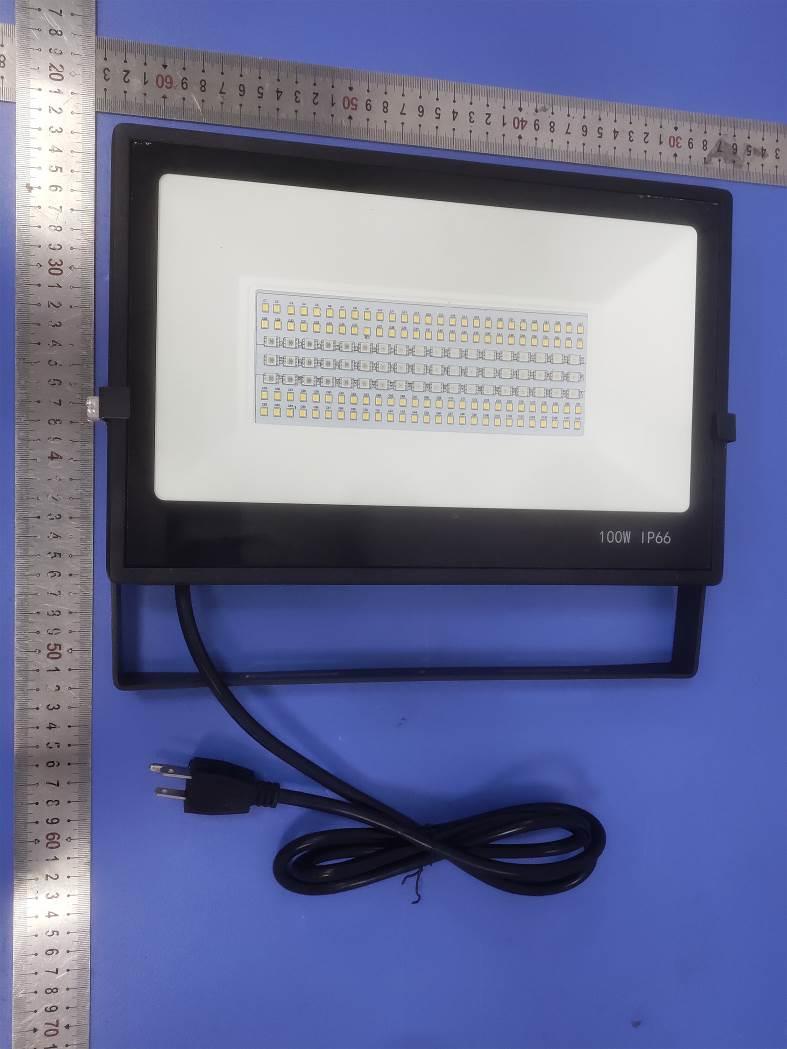

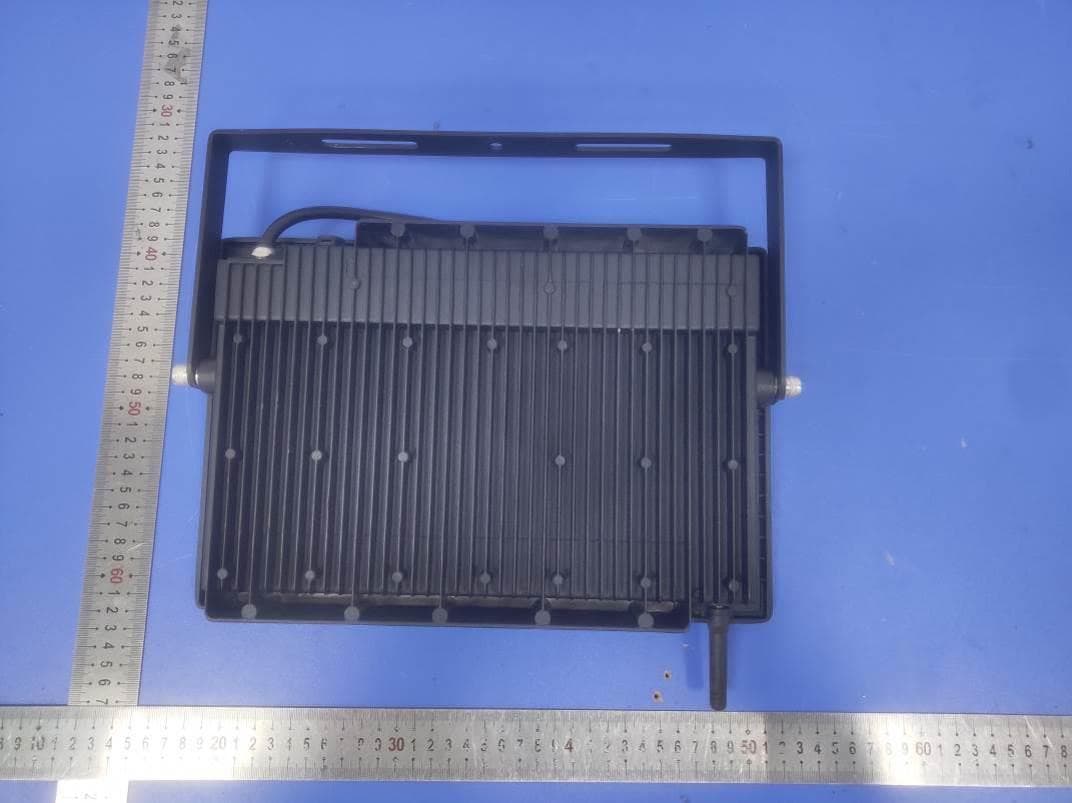

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 2.4G WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L5.0cm*W2.0cm Label Location FCC ID: 2AI5T-FTC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AI5T-FTC Product name Smart Flood light Test Model FTC-100-WN-C28-K1-EU-IGN Model List No. FTC-100-WN-C28-K1-EU-IGN, FTC-aaa-bb-ccc-dd-ee-fff(a,b,c,d,e and f can be Arabic numbers or English letters) Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power Supply AC 100-240V 50/60Hz 100W WIFI(2.4G Band) 2412MHz-2462MHz Channel Spacing 5MHz Channel Number 11 channels for 20MHz bandwidth (2412~2462MHz) Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK); IEEE 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type External antenna Antenna Gain 2.0 dBi(Max.) Hardware version FR-40157 V4.0 Software version / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Fixed Equipment 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information FTC-100-WN-C28-K1-EU-IGN can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna 0 External Antenna 2412 MHz – 2462 MHz 2.0dBi SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Conducted Power 2.4G WLAN Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) IEEE 802.11b 1 2412 16.36 6 2437 15.65 11 2462 14.66 IEEE 802.11g 1 2412 21.16 6 2437 20.21 11 2462 19.33 IEEE 802.11n HT20 1 2412 20.75 6 2437 20.26 11 2462 19.23 7. Manufacturing Tolerance 2.4G WLAN IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 21.0 21.0 20.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 21.0 21.0 20.0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE Evaluation As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be o…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT For Shenzhen Bling Lighting Technologies CO., LTD Smart Flood light Test Model: FTC-100-WN-C28-K1-EU-IGN Additional Model No.: FTC-aaa-bb-ccc-dd-ee-fff(a,b,c,d,e and f can be Arabic numbers or English letters) Prepared for : Shenzhen Bling Lighting Technologies CO., LTD Address : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 18, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : September 18, 2020 ~ October 16, 2020 Date of Report : October 16, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200901236AEA Date of Issue .................................. : October 16, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Bling Lighting Technologies CO., LTD Address .......................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Smart Flood light Trade Mark ..................................... : N/A Test Model ...................................... : FTC-100-WN-C28-K1-EU-IGN Ratings ........................................... : AC 100-240V 50/60Hz 100W Result ............................................ : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT EUT......................................... : Smart Flood light Test Model............................... : FTC-100-WN-C28-K1-EU-IGN Applicant............................... : Shenzhen Bling Lighting Technologies CO., LTD Address.................................. : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Telephone............................... : Fax.......................................... : Manufacturer........................ : Shenzhen Bling Lighting Technologies CO., LTD Address................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Telephone............................... : Fax.......................................... : Factory................................... : Shenzhen Bling Lighting Technologies CO., LTD Address................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an, Shenzhen, GuangDong, 518100 China Telephone............................... : Fax.......................................... : Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200901236AEA October 16, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 October 16, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS Description ................................................................................................................................................. Page 1. GENERAL INFORMATION ....................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 1 of 40 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart Flood light Trade Mark: N/A Test Model: FTC-100-WN-C28-K1-EU-IGN Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 88.87 PASS 11G 2437 Ant1 86.31 PASS 11N20SISO 2437 Ant1 85.67 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 2 of 40 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 3 of 40 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 4 of 40 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Correction Factor [dB] Level [dBm] Limit [dBm] Verdict 11B LCH 16.87 -0.51 16.36 30 PASS MCH 16.16 -0.51 15.65 30 PASS HCH 15.17 -0.51 14.66 30 PASS 11G LCH 21.80 -0.64 21.16 30 PASS MCH 20.85 -0.64 20.21 30 PASS HCH 19.97 -0.64 19.33 30 PASS 11N20SI SO LCH 21.42 -0.67 20.75 30 PASS MCH 20.93 -0.67 20.26 30 PASS HCH 19.90 -0.67 19.23 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 5 of 40 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 6 of 40 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 7 of 40 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 8 of 40 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 9 of 40 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 10 of 40 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Correction Factor [dB] Level [dBm] Limit [dBm/3KHz] Verdict 11B LCH -8.642 -0.51 -9.152 8 PASS MCH -10.227 -0.51 -10.737 8 PASS HCH -10.349 -0.51 -10.859 8 PASS 11G LCH -12.469 -0.64 -13.109 8 PASS MCH -11.523 -0.64 -12.163 8 PASS HCH -13.641 -0.64 -14.281 8 PASS 11N20SI SO LCH -12.556 -0.67 -13.226 8 PASS MCH -13.124 -0.67 -13.794 8 PASS HCH -14.625 -0.67 -15.295 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 11 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 12 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 13 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 14 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 15 of 40 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.113 ≥0.5 PASS MCH 8.104 ≥0.5 PASS HCH 8.110 ≥0.5 PASS 11G LCH 16.07 ≥0.5 PASS MCH 16.32 ≥0.5 PASS HCH 16.26 ≥0.5 PASS 11N20SISO LCH 16.11 ≥0.5 PASS MCH 16.08 ≥0.5 PASS HCH 16.30 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 16 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 17 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 18 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 19 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 20 of 40 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 5.706 -38.378 -14.294 PASS MCH 5.365 -38.372 -14.635 PASS HCH 3.831 -38.357 -16.169 PASS 11G LCH 2.672 -38.487 -17.328 PASS MCH 1.747 -38.191 -18.253 PASS HCH 1.089 -36.981 -18.911 PASS 11N20 SISO LCH 2.458 -37.730 -17.542 PASS MCH 2.326 -38.159 -17.674 PASS HCH 0.906 -37.759 -19.094 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 21 of 40 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 22 of 40 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 23 of 40 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 24 of 40 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 25 of 40 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 26 of 40 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 27 of 40 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 28 of 40 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 29 of 40 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC Report No.: LCS200901236AEA Page 30 of 40 A.6 Band-edge f…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI5T-FTC _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
