2AI5T-LSC-030-W3Smart String Light

YL.BQ.1511 B款15/30W遥控智能灯串使用说明书-中性通用V1.0 尺寸：100*142mm 材质：105g双铜纸（骑马钉装订） Relatively setting button Mode+ WBGR 1H3H6H Mode- Speed+ Bright+ Speed- Bright- AUTO FLASH FADE asdffg Smart Light 12Smart Light 11 Smart Light 10Smart Light 9 Dream Smart String 4 Dream Smart String 5 ****** 15 12 20 24 30 ONOFF FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Bling Lighting Technologies CO., LTD Agent Authorization Company: Shenzhen Bling Lighting Technologies CO., LTD Address: West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao'an Shenzhen, GuangDong China Product Name: Smart String Light Trade Mark: N/A Model Number: LSC-030-W3-C4N-K1-ee-fff, LSA-015-W3-C4N-K1-ee-fff, LSA-012- W3-C4N-K1-ee-fff, LSA-030-W3-C4N-K1-ee-fff, LSB-012-W3-C4N-K1-ee-fff, LSB- 015-W3-C4N-K1-ee-fff, LSB-030-W3-C4N-K1-ee-fff, LSC-015-W3-C4N-K1-ee-fff FCC ID: 2AI5T-LSC-030-W3 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-03-10 Name: Guangping Zou Title: Manager Company: Shenzhen Bling Lighting Technologies CO., LTD

Shenzhen Bling Lighting Technologies CO., LTD West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Product Similarity Declaration FCC ID: 2AI5T-LSC-030-W3 Model Number: LSC-030-W3-C4N-K1-ee-fff, LSA-015-W3-C4N-K1-ee-fff, LSA-012-W3-C4N-K1-ee-fff, LSA-030-W3-C4N-K1-ee-fff, LSB-012-W3-C4N-K1-ee-fff, LSB-015-W3-C4N-K1-ee-fff, LSB-030-W3-C4N-K1-ee-fff, LSC-015-W3-C4N-K1-ee-fff DATE: 2022-03-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bling Lighting Technologies CO., LTD hereby declare that our product (Smart String Light) Model Number: LSC-030-W3-C4N-K1-ee-fff, LSA-015-W3-C4N-K1-ee-fff, LSA-012-W3-C4N-K1-ee-fff, LSA-030-W3-C4N-K1-ee-fff, LSB-012-W3-C4N-K1-ee-fff, LSB-015-W3-C4N-K1-ee-fff, LSB-030-W3-C4N-K1-ee-fff, LSC-015-W3-C4N-K1-ee-fff board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Guangping Zou / Manager Company Name: Shenzhen Bling Lighting Technologies CO., LTD Address: West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao'an Shenzhen, GuangDong China Phone: 18665810796 Fax: 0755-27498882 E-Mail: [email protected]

Shenzhen Bling Lighting Technologies CO., LTD West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Date: March 10, 2022 FCC ID: 2AI5T-LSC-030-W3 Model Number: LSC-030-W3-C4N-K1-ee-fff, LSA-015-W3-C4N-K1-ee-fff, LSA-012-W3-C4N-K1-ee-fff, LSA-030-W3-C4N-K1-ee-fff, LSB-012-W3-C4N-K1-ee-fff, LSB-015-W3-C4N-K1-ee-fff, LSB-030-W3-C4N-K1-ee-fff, LSC-015-W3-C4N-K1-ee-fff To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Bling Lighting Technologies CO., LTD declare that this EUT (FCC ID: 2AI5T-LSC-030-W3) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Guangping Zou / Manager Company: Shenzhen Bling Lighting Technologies CO., LTD Address: West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao'an Shenzhen, GuangDong China Phone: 18665810796 Fax: 0755-27498882 E-Mail: [email protected]

Shenzhen Bling Lighting Technologies CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-03-10 Subject; Request for Confidentiality FCC ID: 2AI5T-LSC-030-W3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Guangping Zou Title: Manager

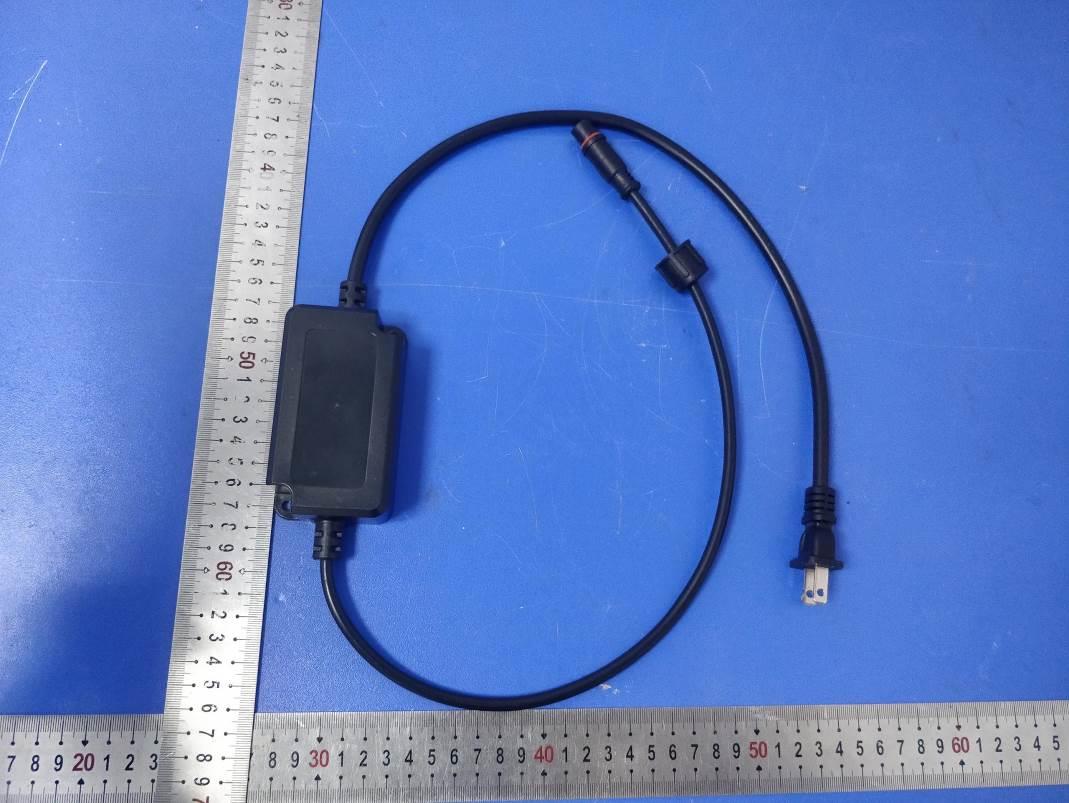

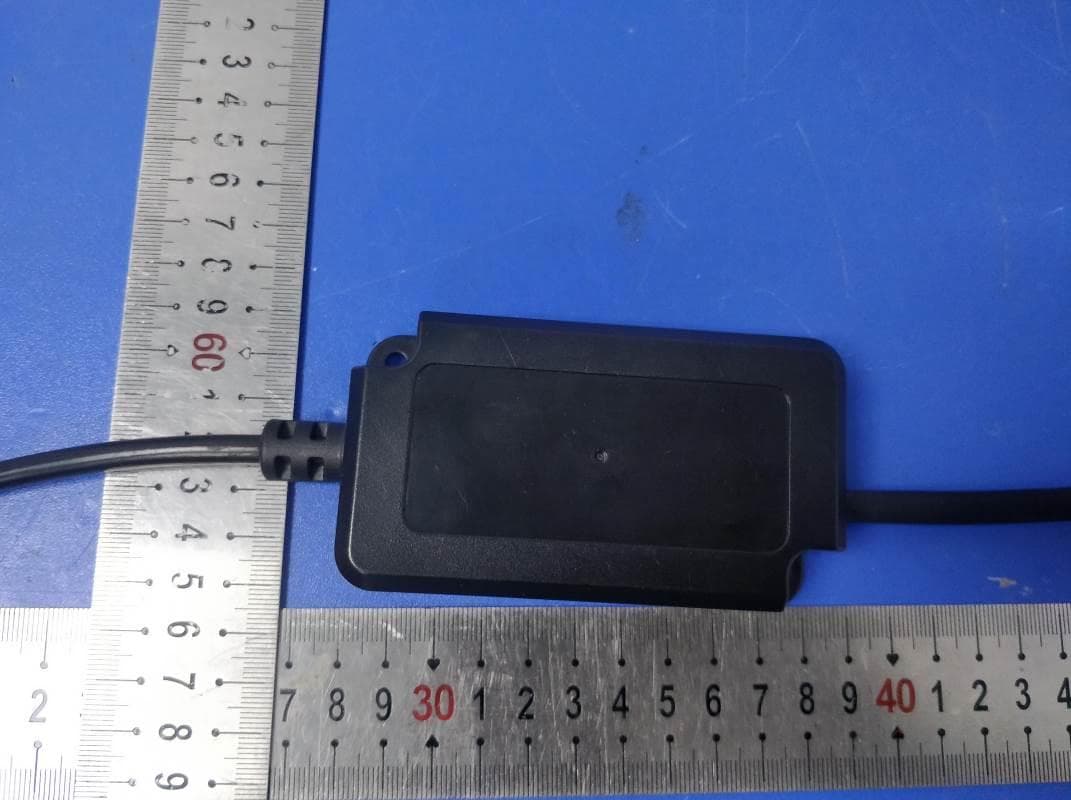

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION (Size: L4.0cm x 2.5cm) Label Location Smart String Light Model: LSC-030-W3-C4N-K1-ee-fff FCC ID: 2AI5T-LSC-030-W3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Fig. 6 2.4G WIFI Antenna

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AI5T-LSC-030-W3 Product name Smart String Light Model number LSC-030-W3-C4N-K1-ee-fff Additional Model LSA-015-W3-C4N-K1-ee-fff, LSA-012-W3-C4N-K1-ee-fff, LSA-030-W3-C4N- K1-ee-fff, LSB-012-W3-C4N-K1-ee-fff, LSB-015-W3-C4N-K1-ee-fff, LSB- 030-W3-C4N-K1-ee-fff, LSC-015-W3-C4N-K1-ee-fff Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply AC 100-240V, 50/60Hz, 42W Hardware version V1.0 Software version 1.1.3 FCC Operation frequency 2412~2462 MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type Internal Antenna Antenna Gain 0dBi(Max.) Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information LSC-030-W3-C4N-K1-ee-fff’S Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna 2412MHz-2462MHz 0dBi 2.4G WIFI Antenna 6. Conducted Power <2.4GWLAN Max Conducted Power > Mode Channel Frequency(MHz) Max Conducted Power (dBm) IEEE 802.11b 1 2412 16.19 6 2437 16.61 11 2462 16.14 IEEE 802.11g 1 2412 15.40 6 2437 15.69 11 2462 15.13 IEEE 802.11n HT20 1 2412 15.24 6 2437 15.55 11 2462 14.78 IEEE 802.11n HT40 3 2422 14.85 6 2437 14.61 9 2452 14.45 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 7. Manufacturing Tolerance <2.4G WIFI> 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 16.0 16.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Chan…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Shenzhen Bling Lighting Technologies CO., LTD Smart String Light Test Model: LSC-030-W3-C4N-K1-ee-fff Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen Bling Lighting Technologies CO., LTD Address : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : February 28, 2022 Number of tested samples : 2 Sample number : 220215101A-1, 220215101A-2 Serial number : Prototype Date of Test : February 28, 2022 ~ March 09, 2022 Date of Report : March 10, 2022 Scan code to check authenticity Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS220215101AEA Date of Issue ................................. : March 10, 2022 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : Shenzhen Bling Lighting Technologies CO., LTD Address ......................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C(15.247) Test Report Form No................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ......................... : Smart String Light Trade Mark .................................... : N/A Test Model ..................................... : LSC-030-W3-C4N-K1-ee-fff Ratings .......................................... : AC 100-240V, 50/60Hz, 42W Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrator Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : Smart String Light Test Model............................... : LSC-030-W3-C4N-K1-ee-fff Applicant............................... : Shenzhen Bling Lighting Technologies CO., LTD Address.................................. : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Bling Lighting Technologies CO., LTD Address................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Bling Lighting Technologies CO., LTD Address................................... : West of 3rd Floor, Building A of CNNC, Qiyu Road, East of Baishixia, Fuyong, Bao’an Shenzhen, GuangDong China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS220215101AEA March 10, 2022 Date of issue Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Report Version Issue Date Revision Content Revised By 000 March 10, 2022 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ..........................................…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 1 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart String Light Test Model: LSC-030-W3-C4N-K1-ee-fff Environmental Conditions Temperature: 23.5 C Relative Humidity: 52.2% ATM Pressure: 100.0 kPa Test Engineer: Ling Zhu Supervised by: Li Huan Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 2 A.1 6dB Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.040 2408.480 2416.520 0.5 PASS 2437 8.040 2432.960 2441.000 0.5 PASS 2462 8.040 2458.480 2466.520 0.5 PASS 11G Ant1 2412 15.680 2404.480 2420.160 0.5 PASS 2437 15.720 2428.840 2444.560 0.5 PASS 2462 15.400 2454.480 2469.880 0.5 PASS 11N20SISO Ant1 2412 16.280 2404.480 2420.760 0.5 PASS 2437 16.280 2428.240 2444.520 0.5 PASS 2462 15.280 2454.480 2469.760 0.5 PASS 11N40SISO Ant1 2422 25.120 2409.440 2434.560 0.5 PASS 2437 35.680 2418.840 2454.520 0.5 PASS 2452 35.440 2434.480 2469.920 0.5 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 4 11B_Ant1_2462 11G_Ant1_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 5 11G_Ant1_2437 11G_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 6 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 7 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 8 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 9 A.2 Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 16.19 ≤30.00 PASS 2437 16.61 ≤30.00 PASS 2462 16.14 ≤30.00 PASS 11G Ant1 2412 15.40 ≤30.00 PASS 2437 15.69 ≤30.00 PASS 2462 15.13 ≤30.00 PASS 11N20SISO Ant1 2412 15.24 ≤30.00 PASS 2437 15.55 ≤30.00 PASS 2462 14.78 ≤30.00 PASS 11N40SISO Ant1 2422 14.85 ≤30.00 PASS 2437 14.61 ≤30.00 PASS 2452 14.45 ≤30.00 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 10 A.3 Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -8.62 ≤8.00 PASS 2437 -8.9 ≤8.00 PASS 2462 -9.34 ≤8.00 PASS 11G Ant1 2412 -17.47 ≤8.00 PASS 2437 -17.41 ≤8.00 PASS 2462 -16.81 ≤8.00 PASS 11N20SISO Ant1 2412 -17.22 ≤8.00 PASS 2437 -17.91 ≤8.00 PASS 2462 -16.98 ≤8.00 PASS 11N40SISO Ant1 2422 -19.34 ≤8.00 PASS 2437 -20.99 ≤8.00 PASS 2452 -22.07 ≤8.00 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 12 11B_Ant1_2462 11G_Ant1_2412 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 13 11G_Ant1_2437 11G_Ant1_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 14 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 15 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 16 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 17 A.4 Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 5.30 -44.73 ≤-14.7 PASS High 2462 5.06 -48.23 ≤-14.94 PASS 11G Ant1 Low 2412 -2.86 -45.85 ≤-22.86 PASS High 2462 -2.64 -46.84 ≤-22.64 PASS 11N20SISO Ant1 Low 2412 -2.71 -46.32 ≤-22.71 PASS High 2462 -3.18 -48.07 ≤-23.18 PASS 11N40SISO Ant1 Low 2422 -5.24 -47.51 ≤-25.24 PASS High 2452 -6.78 -47.18 ≤-26.78 PASS Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 18 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 19 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 20 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 21 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 Report No.: LCS220215101AEA 22 A.5 Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 5.33 5.33 --- PASS 30~1000 5.33 -61.28 ≤-14.67 PASS 1000~26500 5.33 -45.51 ≤-14.67 PASS 2437 Reference 5.55 5.55 --- PASS 30~1000 5.55 -59.59 ≤-14.45 PASS 1000~26500 5.55 -44.13 ≤-14.45 PASS 2462 Reference 4.81 4.81 --- PASS 30~1000 4.81 -60.84 ≤-15.19 PASS 1000~26500 4.81 -46.14 ≤-15.19 PASS 11G Ant1 2412 Reference -2.70 -2.70 --- PASS 30~1000 -2.70 -60.27 ≤-22.7 PASS 1000~26500 -2.70 -45.02 ≤-22.7 PASS 2437 Reference -2.96 -2.96 --- PASS 30~1000 -2.96 -60.9 ≤-22.96 PASS 1000~26500 -2.96 -45.49 ≤-22.96 PASS 2462 Reference -2.87 -2.87 --- PASS 30~1000 -2.87 -60.96 ≤-22.87 PASS 1000~26500 -2.87 -46.01 ≤-22.87 PASS 11N20SISO Ant1 2412 Reference -2.98 -2.98 --- PASS 30~1000 -2.98 -61.25 ≤-22.98 PASS 1000~26500 -2.98 -45.85 ≤-22.98 PASS 2437 Refer…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AI5T-LSC-030-W3 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
