2.2 CHAN NELS BLUETOOTH SO UND BAR WITH BUILT-I N SU BWOOFE R SN Model: B-1100S User Manual A compact yet powerful Bluetooth soundbar with sleek looks and excellent audio response. 6 built-in speakers and 2 bass air tube holes provide clarity across a broad frequency range, with crisp highs and deep bass. An integral USB port enables playback of media files directly from compatible media, with further flexible input options including Aux, optical, coaxial, HDMI(ARC) and Bluetooth. A convenient and cost-effective TV audio upgrade that doesn’t compromise on p erformance. •6 speakers for crisp, clear sound with deep bass •Built-in two woofers with heavy bass. •Built-in 2.2 channel amplifier with 3 EQ presets •Versatile input options to support a range of devices •USB port for media playback •Remote control and audio connection leads included Matters Need Attention 1.Do n’t put this product under high temperature wet environment and it will be worse when it is in the rain or crash strongly. 2.To reduce the risk or electronic shock or fire, do not remove the cabinet cover simply contact a service professional. 3.In the case occurrence of malfunction, do not attempt to repair the unit on your own. Contact a certified service professional for a proper diagnosis and repair. 4.If fragments or liquids fall into device box, please cut off the power. And it can be used only after professional staff checks it. 5.Do n’t install the unit in or near a place where it may come in contact with rain, moisture or other liquids. Tech nical Speci fi cations and Features Audio output: 130W RMS Speaker drivers: 4 x 2.25" 15W units + 2 x 3.5" 35W Built-in subwoofer units Frequency: 50Hz ~20KHz SNR:≥75dB Bluetooth version: 5.3 Bluetooth range: Up to 10m Connections: USB 2.0, AUX in, Optical, Coaxial, HDMI(ARC), AC IN Power supply: AC 100-240V Di mensions：975 x 158 x 75mm Con nect ion s 1.USB IN:Use to connect a flash drive for direct media playback (FAT32 format and 128GB max). 2.OPTI CA L IN:Use to connect compatible devices using an optical cable (not provided). 3.COAXIAL IN:Use to connect compatible devices using a coaxial cable (not provided). 4.HDMI(AR C) :Use to connect compatible devices using a HDMI cable (not provided). 5.AUX IN:Use to connect compatible devices using the 3.5mm – 3.5mm stereo ja ck cable (provided). 6. AC IN:Use to connect the AC power supply. 7. ON/OFF:Use to turn on or turn off the device. LED display 1. Red LED:Standby mode2. bt:Bluetooth mode 3. USB:USB media mode4. AUX:Auxiliary input mode 5. OPT:Optical mode6. COA:Coaxial mode 7.AR C:HDMI(ARC)mode Remot e Con trol & Funct ion Keys Button Fu nctionButtonFu nction Power on/offMODE Shifting between BT/USB/AUX/ OPTICAL/COAXI AL/HDMI(ARC ) Mute or recover the volume BT Shifting into BT Mode, In BT mode,hold to enter pai ring mode TRE BLE+Increas e the TrebleUSBShifting into USB Mode TRE BLE-Decreas e the TrebleAUXShifting into AUX Mode BASS +Increas e the Bas sOPTShifting into Optical in Mode BASS-Decreas e the Bas sHD MI (ARC ) Shifting into HD MI(ARC ) Mode VOL+Volume tu rning upEQShifting to different EQ VOL-Volume turning down 3D3D Surround on/off Previous trac kUSB Repeat modes Pau se/Play Next trac k Pause/Pl ay Volume turning up/down PO WER ON/OFF & INPU T MODE Pr evious track Next track Input Funct ion s • Power on /off:Press the Power on/off button on the remote control or soundbar control panel to turn the unit on and off. REMAR K:When unit is idle for 3 minutes, the display will be auto turn off. • HDMI(AR C) :Connect an HDMI ARC compatible device to the HDMI(ARC) port on the soundbar using a HDMI cable (not supplied). Select HDMI(ARC) mode either by pressing the HDMI(ARC) button on your remote control or repeatedly pressing the MODE button on the soundbar control panel until ARC is displayed on the LED display. Ensure HDMI ARC is selected as the TV ’s audio output, then adju st the volume of soundbar using the Volume up and Volume down buttons on the remote control or soun dbar control panel. • AUX in:Connect a compatible device using the 3.5mm – 3.5mm stereo ja ck cable. Select AUX mode either by pressing the AUX button on your remote control or repeatedly pressing the MODE button on the soundbar control panel until AUX is displayed on the LED display. Ensure the connected device is producing an audio signal, then adju st the volume of soundbar using the Volume up and Volume down buttons on the remote control or soundbar control panel. •Optical in: Connect a compatib le device to the OPTI CAL input on the soundbar using a digital optical cable (not supplied). Select OPT mode either by pressing the OPT button on your remote control or repeatedly pressing the MODE button on the soundbar control panel until OPT is displayed on the LED display. Ensure Optical SPDI F is selected as the TV ’s audio output, then adju st the volume of the soundbar using the Volume up and Volume down buttons on the remote control or soundbar control panel. •Coa xial in: Connect a compatible device to the COAXIAL input on the soundbar using a digital coaxial cable (not supplied). Select COAX mode by r epeatedly pressing the MODE button on the soundbar control panel until COA is displayed on the LED display. Ensure Coaxial is selected as the TV ’s audio output, then adju st the volume of the soundbar using the Volume up and Volume down buttons on the remote control or soundbar control panel. • Bluetoot h:Short press the BT button on the remote control or repeatedly pressing the MODE button on the soundbar control panel until bt is shown on the LED display. Th e LED display will flash to indicate that the soundbar is in Bluetooth pairing mode. Ensure that the device you wish to connect is also in pairing mode and search for “S NB-1100S” in its device list. When the two devices are paired, the LED display on the soundbar will stop flashing and remain constant. (Th e soundba r will now automatically re-pair with this device whenever it is within range and…

Text truncated - open the document above for the full version.

Declaration on model difference We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; The difference is only in model names. Production name Trade name Model no. SOUND BAR N/A SNB-1100S,HD-069P,HD-019P,HD-029P,HD-039P,HD- 059P,HD-079P,HD-089P,HD-099P Confirmed by：General Sound Corporation Signature : Date: 2023/09/22 Name: Rony Samim Title: Manager Company: General Sound Corporation

General Sound Corporation U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: General Sound Corporation FRN: 0025568346 Contact Name: Rony Samim Address: 4809 Alcoa Ave.Vernon California United States 90058 Telephone No: 323-735-1515 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023/09/22 Signed by (Printed Name/Title): Rony Samim / Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: General Sound Corporation FCC ID: 2AIDG-SNB-1100S Contact Name: Rony Samim Address: 4809 Alcoa Ave.Vernon California United States 90058 Telephone No: 323-735-1515 Email: [email protected] Applicant Signature: Date: 2023/09/22 Signed by (Printed Name/Title): Rony Samim / Manager

( General Sound Corporation) (2023.9.22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AIDG-SNB-1100S [ General Sound Corporation] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Client’s signature: Client’s name / title: Rony Samim / Manager ( General Sound Corporation) (2023.9.22) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AIDG-SNB-1100S [ General Sound Corporation] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Client’s signature: Client’s name / title : Rony Samim / Manager

General Sound Corporation 2023/09/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: SOUND BAR MODEL : SNB-1100S,HD-069P,HD-019P,HD-029P,HD-039P,HD-059P,HD- 079P,HD-089P,HD-099P FCC ID: 2AIDG-SNB-1100S To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Rony Samim / Manager Contact information / address: 4809 Alcoa Ave.Vernon California United States 90058

General Sound Corporation 2023/09/22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: SOUND BAR MODEL : SNB-1100S,HD-069P,HD-019P,HD-029P,HD-039P,HD-059P,HD-079P,HD- 089P,HD-099P FCC ID: 2AIDG-SNB-1100S To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Rony Samim / Manager Contact information / address: 4809 Alcoa Ave.Vernon California United States 90058

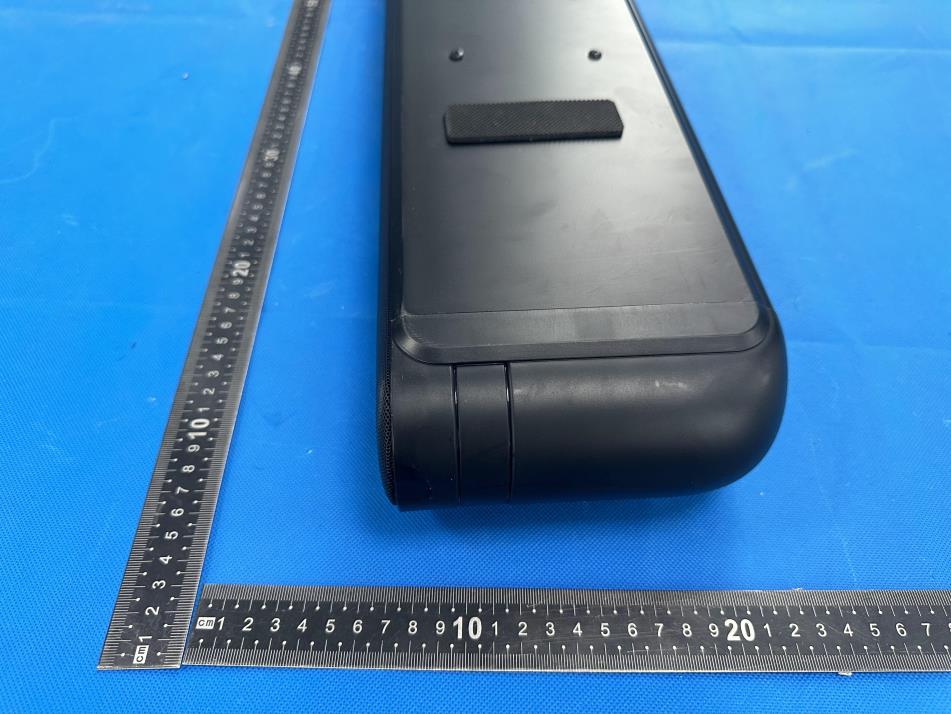

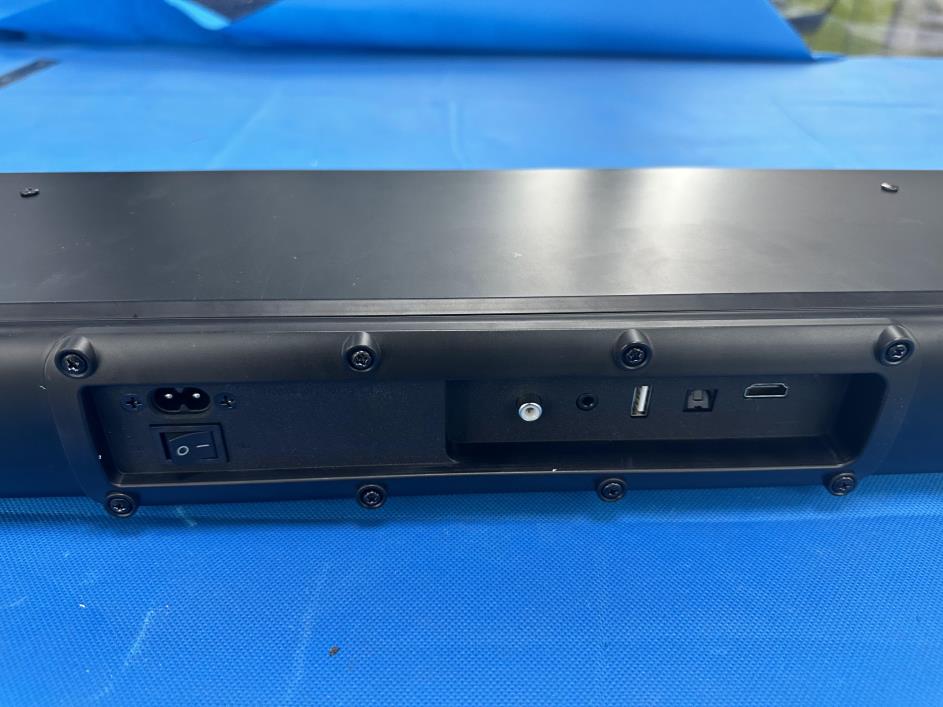

External Photos

Size:20*20mm Model : SOUND BAR FCC ID: 2AIDG-SNB-1100S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label location

Internal Photos BT ANT

FCC ID: 2AIDG-SNB-1100S RF exposure evaluation According to§15.247(i), §1.1307 and KDB447498, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. For mobile devices that are not exempt per Table B.1 [Table 1 of §1.1307(b)(1)(i)(C)] at distances from 20 cm to 40 cm and in 0.3 GHz to 6 GHz, evaluation of compliance with the exposure limits in §1.1310 is necessary if the ERP of the device is greater than ERP20cm in Formula (B.1) [repeated from §2.1091(c)(1); also in §1.1307(b)(1)(i)(B)]. According to FCC Part 2.1091 and § 1.1307(b)(3)(i)(C) , this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 , the simple calculation as below: BT Antenna Gain: 3.38dBi Conducted Transmit Power Max: = 1.71 dBm =1.48mW EIRP=1.71dBm + 3.38dBi=5.09dBm ERP= 5.09-2.15dB= 2.49 dBm The maximun output power specified is:2.49 dBm (1.77mW) The MPE limit is 19.2R 2 (768mW) for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307(b)(3)(i)(C). As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons.
