2AIIF-12234PGPureBoom MX Elite, Black

123 To charge your MX Elite mini: Using the enclosed cable, plug the USB-C connector into the USB-C port on the speaker and the USB-C connector into a wall charger (not included). The RED LED charging indicator light will be on during charging and turn off when fully charged. A full charge takes approximately 3 hours. Connecting/Bluetooth Pairing 1. Make sure the PureBoom MX Elite mini Wireless Speaker is within 2-3 ft (0.6-0.9m) of the device you will be connecting to. 2. Turn on your device’s Bluetooth. Most devices will automatically detect the speaker. 3. Turn on the speaker by long pressing . You will hear a prompt, and the light will flash blue. 4. Locate and tap “PureBoom MX Elite mini.” It will indicate that your speaker is connected. Note: If your device does not automatically detect your speaker, ensure Bluetooth is turned on, search for “PureBoom MX Elite mini” and then press connect. Pairing Two Speakers: 1. Connect 1 speaker to your phone/device by following the Connecting/Bluetooth Pairing instructions. 2. While both speakers are turned on, double click the “M” button to pair the speakers to each other. Operating your MX Elite: This speaker supports USB flash drive, TF card, and AUX input (AUX cable sold separately). To answer calls , please use your device. Features and Specifications • Frequency response: 50HZ — 15KHZ • Charging Input: DC 5V1A • Li-ion battery size: 1500mAh * 2 • Drivers: 78mm 20w • Impedance: 3Ω English MX Elite mini Wireless Speaker User Manual Altavoz inalámbrico - Manual del usuario 12345 M FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Short Press: Switch lighting modes Long Press: Light On/Off Short Press: Volume Down Long Press: Previous Song Long Press: Power On/Off Short Press: Play/Pause Short Press: Volume Up Long Press: Next Song Short Press: Switch between BT/TF/USB/AUX Long Press: Disconnect/Connect Bluetooth Double Press: Pair 2 speakers at a time 1. Switch Lighting Modes 2. Previous Song/Volume Down 3. Power On/Off; Play/Pause 4. Next Song/Volume Up 5. Mode 45 www.PureBoomAudio.com © 2026 | 67036PG | F00262PG EspaÑol Para cargar su MX Elite mini: Usando el cable incluido, conecte el conector USB-C al puerto USB-C del altavoz y el conector USB-C a un cargador de pared (no incluido). La luz indicadora de carga LED ROJA estará encendida durante la carga y se apagará cuando estén completamente cargados. Una carga completa tarda aproximadamente 3 horas. Conexión/Emparejamiento Bluetooth 1. Asegúrese de que el altavoz inalámbrico PureBoom MX Elite mini esté a una distancia de entre 2 y 3 pies (0.6 y 0.9 m) del dispositivo al que se conectarán. 2. Encienda el Bluetooth del dispositivo. La mayoría de los dispositivos detectarán el altavoz de manera automática. 3. Encienda el altavoz manteniendo presionando . Escuchará un mensaje y la luz parpadeará en azul. 4. Localice y toque “PureBoom MX Elite mini.” Indicará que su altavoz está conectado. Nota: Si su dispositivo no detecta automáticamente sus altavoces, asegúrese de que Bluetooth esté encendido, busque “PureBoom MX Elite mini” y luego presione conectar. Emparejamiento de 2 altavoces 1. Conecte un altavoz a su teléfono/dispositivo siguiendo las instrucciones de Conexión/ Emparejamiento Bluetooth. 2. Mientras ambos altavoces estén encendidos, presione dos veces el botón “M” para emparejar los altavoces entre sí. Cómo operar su PureBoom MX Elite: Este altavoz admite unidad flash USB, tarjeta TF y entrada AUX (el cable AUX se vende por separado). Para responder llamadas, use su dispositivo. Características y especificaciones • Respuesta en frecuencia: 50HZ — 15KHZ • Entrada de carga: CC 5 V 1A • Batería: 1500mAh * 2 • Potencia: 78mm 20w • Impedancia: 4 Ω Cumplimiento con la FCC Este dispositivo cumple con la Parte 15 de las reglas de la FCC. La operación está sujeta a las siguientes dos condiciones: (1) este dispositivo no puede causar interferencia dañina (2) este dispositivo deberá aceptar cualquier interferencia recibida, incluyendo interferencia que pudiera causar una operación indeseable. Advertencia: Los cambios o modificaciones a esta unidad que no estén expresamente aprobados por la parte responsable del cumplimiento podrían anular la autoridad del usuario para operar el equipo. NOTA: Este equipo ha sido probado y se encontró que cumple con los l ímites establecidos para un dispositivo digital Clase B, de conform…

Text truncated - open the document above for the full version.

Superior Communications DBA PureGear Covered Equipment Certification Attestation Letter 3/10/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AIIF-12234PG Superior Communications DBA PureGear (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. Superior Communications DBA PureGear (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Superior Communications DBA PureGear (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Arthur Chen Title: manager product Company Name: Superior Communications DBA PureGear Date: 3/10/2026

Superior Communications DBA PureGear * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/19/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AIIF-12234PG Applicant of FRN: 0025605841 Per section 2.911(d)(7) of the FCC rules, Superior Communications DBA PureGear (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Superior communications FCC Registration Number (FRN): 0021856570 Physical U.S. Company Address: 5082 4th street, Irwindale, California 91706, United States Contact Person: George Chen Telephone Number: (626) 388-2541 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Arthur Chen Printed name: George Chen Title: manager product Title: VP Product Development Company Nam e: Superior Communications DBA PureGear Company Name: Superior communications Date: 3/19/2026 Date: 3/19/2026

Superior Communications DBA PureGear DATE : 2025.03.19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Superior Communications DBA PureGear Address: 5027 Irwindale, Avenue Suite 900, Irwindale, California, United States (Applicant Name and address) <Signature> Name: Arthur Chen Title: manager product Company: Superior Communications DBA PureGear

Date:2026.03.10 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Arthur Chen Title: manager product Company: Superior Communications DBA PureGear

Superior Communications DBA PureGear DATE : 2026.03.10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AIIF-12234PG Product Name: PureBoom MX Elite, Black Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Arthur Chen Title: manager product Company: Superior Communications DBA PureGear

Superior Communications DBA PureGear I, the signer, Arthur Chen The difference between these models is the appearance color. They are electrically identical. Item Name ：PureBoom MX Elite, Black PureBoom MX Elite, Midnight Blue Model Number: 12234PG Additional Model: 12235PG <Signature> Name: Arthur Chen Title: manager product Company: Superior Communications DBA PureGear

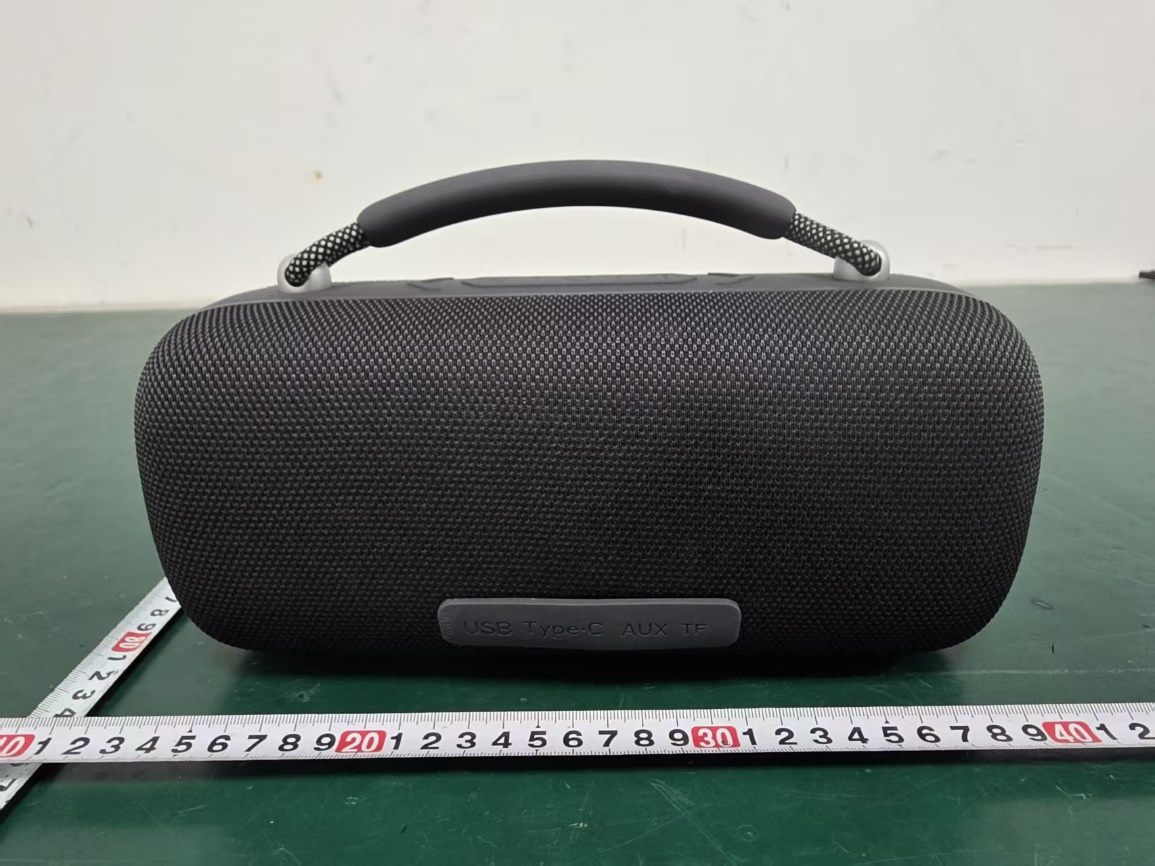

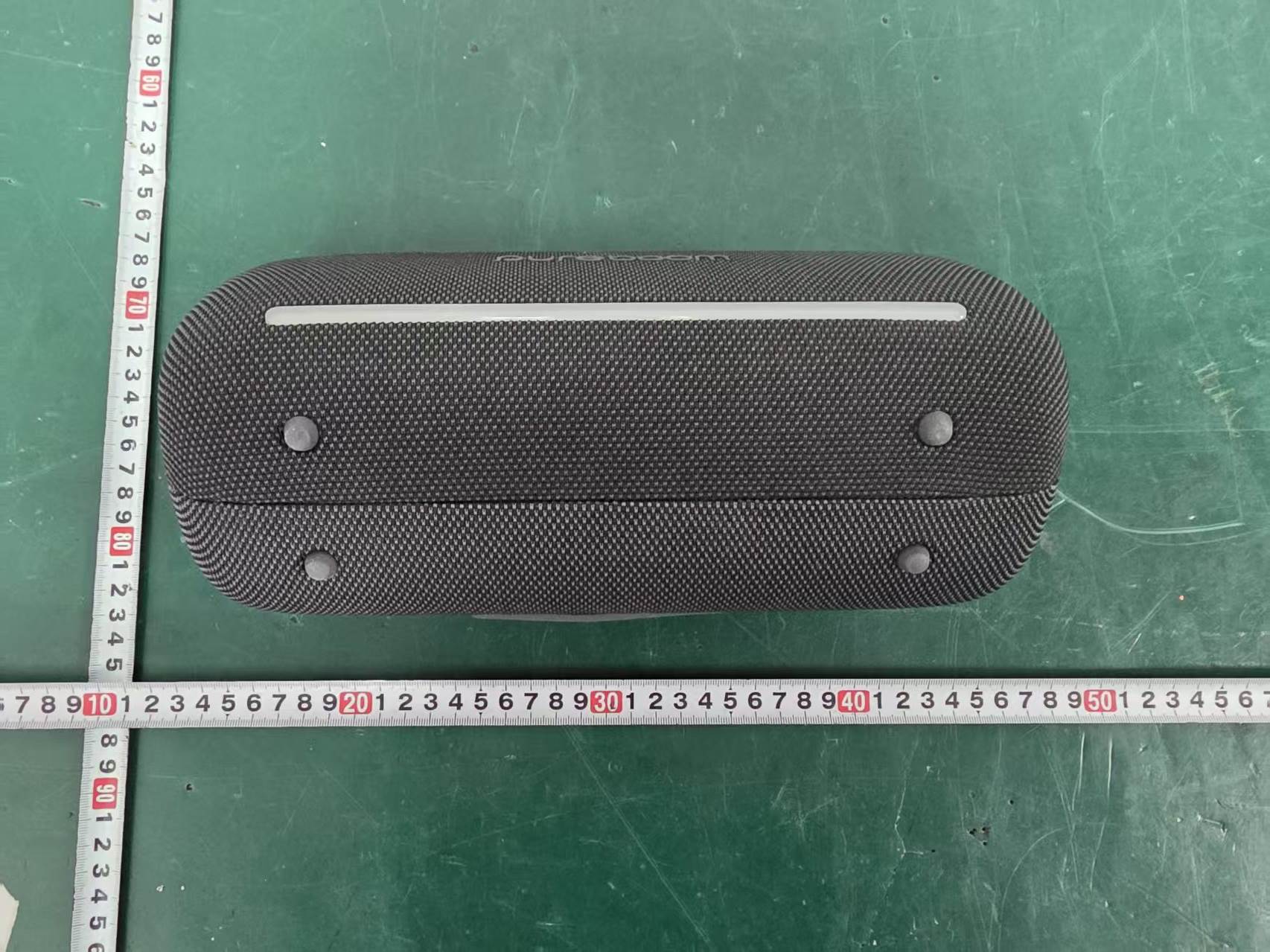

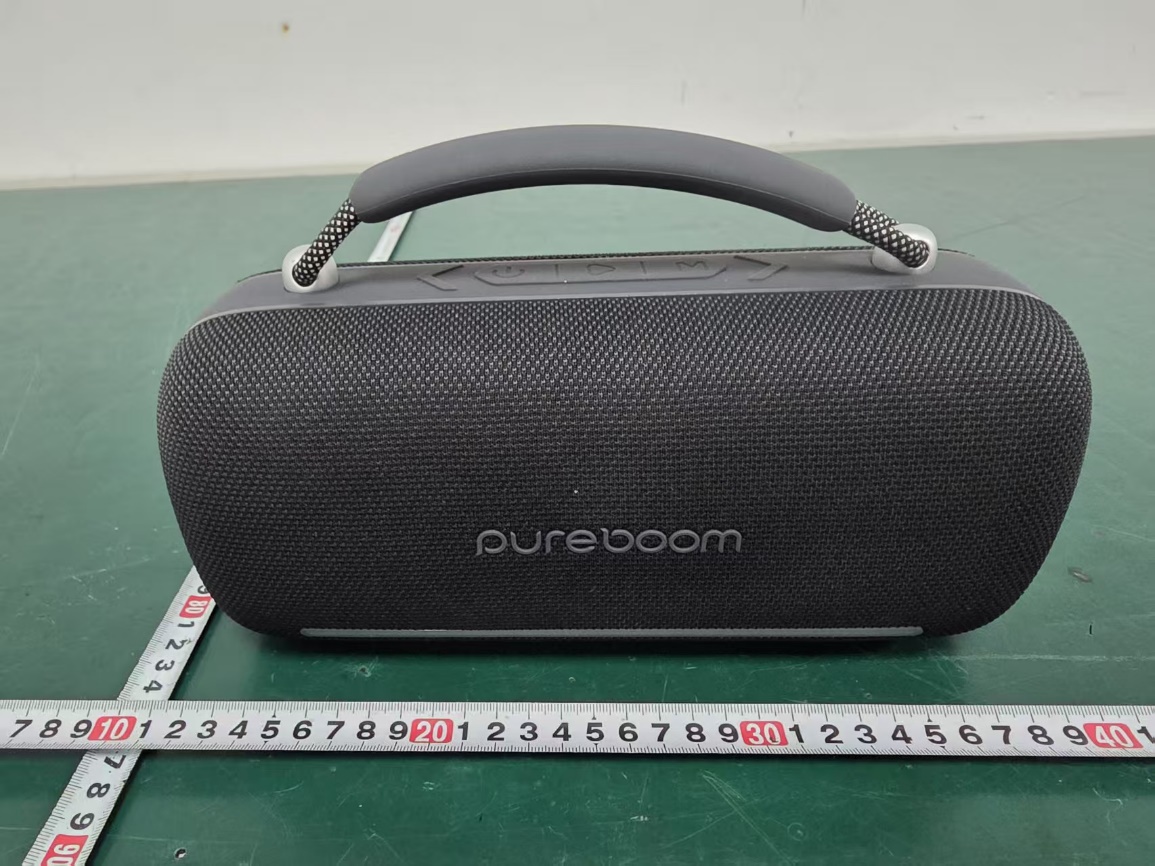

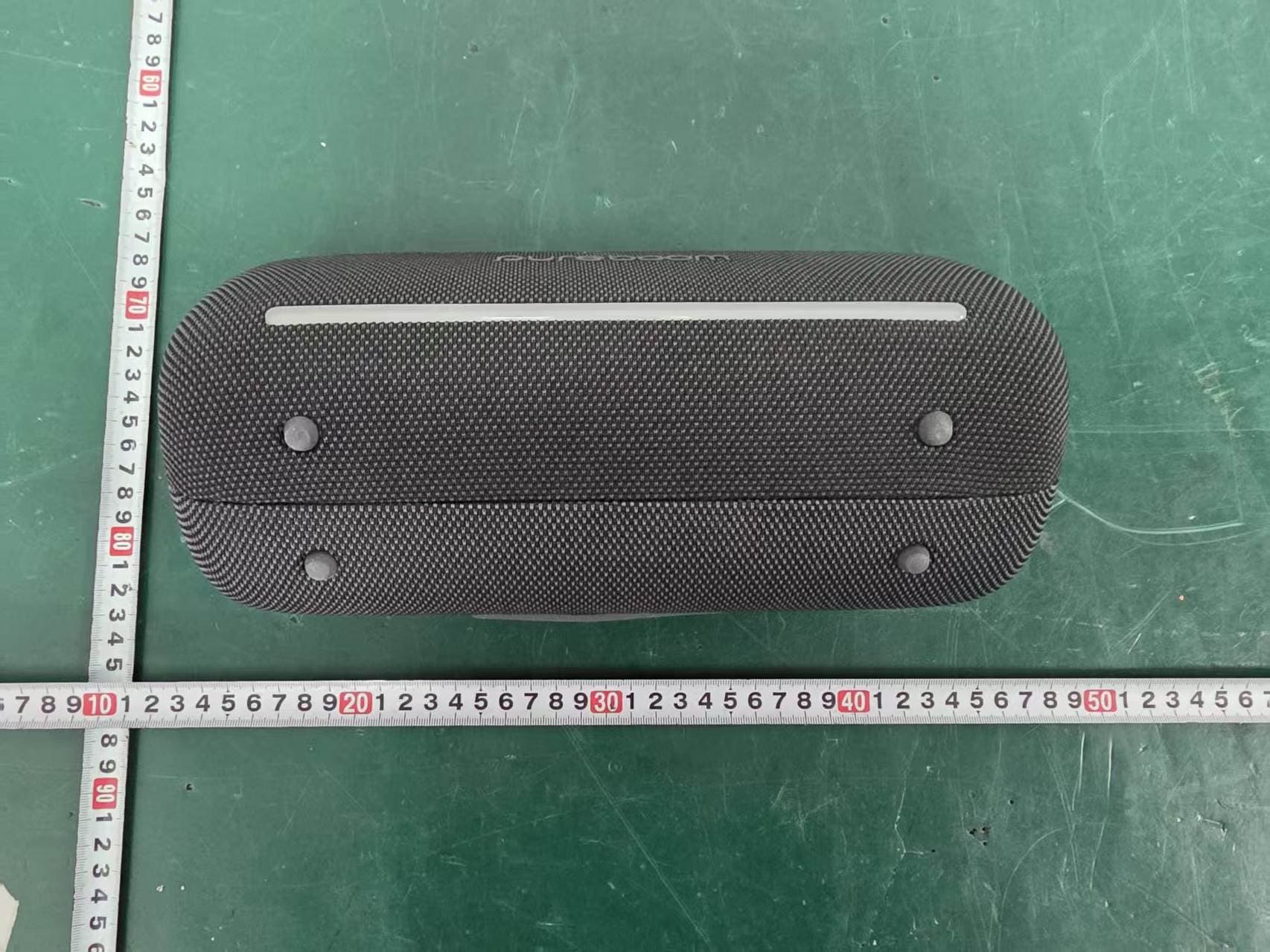

External Photos M/N: 12234PG External Photos M/N: 12234PG External Photos M/N: 12234PG External Photos M/N: 12234PG

10.4mm 3.2mm 10.4mm 13mm 3.2mm 13mm 10.4mm 3.2mm 10.4mm 13mm 3.2mm 13mm 49.3mm 4mm 49.3mm 4mm

Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Internal Photos M/N: 12234PG Bluetooth antenna

Page 1 of 3 Report No. ESTE-R2603076 FCC RF EXPOSURE REPORT Superior Communications DBA Puregear PureBoom MX Elite, Black PureBoom MX Elite, Midnight Blue Model Number: 12234PG Additional Model: 12235PG FCC ID: 2AIIF-12234PG Applicant: Superior Communications DBA Puregear Address: 5027 Irwindale Ave. Suite 900 Irwindale, CA 91706 Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603076 Date of Test: Jan. 23, 2026 to Mar. 02, 2026 Date of Report: Mar. 09, 2026 Page 2 of 3 Report No. ESTE-R2603076 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 3 of 3 Report No. ESTE-R2603076 3. Evaluation Results Mode CH Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 2.13 1.9 1.88 1±1 1.585 2.72 2441 -0.54 1.9 -0.79 0±1 1.259 2.72 2480 -2.34 1.9 -2.59 -2±1 0.794 2.72 π/4- DQPSK 2402 2.01 1.9 1.76 1±1 1.585 2.72 2441 -0.64 1.9 -0.89 0±1 1.259 2.72 2480 -2.45 1.9 -2.7 -2±1 0.794 2.72 8-DPSK 2402 2.64 1.9 2.39 2±1 1.995 2.72 2441 -0.36 1.9 -0.61 0±1 1.259 2.72 2480 -2.24 1.9 -2.49 -2±1 0.794 2.72 BLE 1M 2402 1.91 1.9 1.66 1±1 1.585 2.72 2440 -0.96 1.9 -1.21 -1±1 1.000 2.72 2480 -2.83 1.9 -3.08 -3±1 0.631 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

Page 1 of 49 Report No. ESTE-R2603074 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.993 2401.406 2402.399 --- --- DH5 Ant1 2441 0.960 2440.436 2441.396 --- --- DH5 Ant1 2480 0.942 2479.436 2480.378 --- --- 2DH5 Ant1 2402 1.299 2401.247 2402.546 --- --- 2DH5 Ant1 2441 1.320 2440.241 2441.561 --- --- 2DH5 Ant1 2480 1.266 2479.268 2480.534 --- --- 3DH5 Ant1 2402 1.278 2401.271 2402.549 --- --- 3DH5 Ant1 2441 1.287 2440.259 2441.546 --- --- 3DH5 Ant1 2480 1.317 2479.250 2480.567 --- --- Page 2 of 49 Report No. ESTE-R2603074 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 DH5-Ant1-2480 Page 3 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2402 2DH5-Ant1-2441 Page 4 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2480 3DH5-Ant1-2402 Page 5 of 49 Report No. ESTE-R2603074 3DH5-Ant1-2441 3DH5-Ant1-2480 Page 6 of 49 Report No. ESTE-R2603074 Page 7 of 49 Report No. ESTE-R2603074 Appendix B: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 2.13 ≤20.97 PASS DH5 Ant1 2441 -0.54 ≤20.97 PASS DH5 Ant1 2480 -2.34 ≤20.97 PASS 2DH5 Ant1 2402 2.01 ≤20.97 PASS 2DH5 Ant1 2441 -0.64 ≤20.97 PASS 2DH5 Ant1 2480 -2.45 ≤20.97 PASS 3DH5 Ant1 2402 2.64 ≤20.97 PASS 3DH5 Ant1 2441 -0.36 ≤20.97 PASS 3DH5 Ant1 2480 -2.24 ≤20.97 PASS Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 8 of 49 Report No. ESTE-R2603074 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 9 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 10 of 49 Report No. ESTE-R2603074 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Page 11 of 49 Report No. ESTE-R2603074 3DH5-Ant1-2480-PASS Page 12 of 49 Report No. ESTE-R2603074 Appendix C: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.939 ≥0.662 PASS DH5 Ant1 2441 0.987 ≥0.662 PASS DH5 Ant1 2480 0.948 ≥0.662 PASS 2DH5 Ant1 2402 1.014 ≥0.880 PASS 2DH5 Ant1 2441 1.296 ≥0.880 PASS 2DH5 Ant1 2480 1.131 ≥0.880 PASS 3DH5 Ant1 2402 1.308 ≥0.878 PASS 3DH5 Ant1 2441 1.092 ≥0.878 PASS 3DH5 Ant1 2480 1.173 ≥0.878 PASS Page 13 of 49 Report No. ESTE-R2603074 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 14 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Page 15 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS Page 16 of 49 Report No. ESTE-R2603074 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 17 of 49 Report No. ESTE-R2603074 Page 18 of 49 Report No. ESTE-R2603074 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.375 311 0.117 ≤0.4 PASS DH3 Ant1 Hop 1.630 171 0.279 ≤0.4 PASS DH5 Ant1 Hop 2.870 103 0.296 ≤0.4 PASS 2DH1 Ant1 Hop 0.383 311 0.119 ≤0.4 PASS 2DH3 Ant1 Hop 1.620 171 0.277 ≤0.4 PASS 2DH5 Ant1 Hop 2.870 103 0.296 ≤0.4 PASS 3DH1 Ant1 Hop 0.385 311 0.12 ≤0.4 PASS 3DH3 Ant1 Hop 1.620 171 0.277 ≤0.4 PASS 3DH5 Ant1 Hop 2.870 111 0.319 ≤0.4 PASS Page 19 of 49 Report No. ESTE-R2603074 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 20 of 49 Report No. ESTE-R2603074 DH5-Ant1-Hop-PASS Page 21 of 49 Report No. ESTE-R2603074 2DH1-Ant1-Hop-PASS Page 22 of 49 Report No. ESTE-R2603074 2DH3-Ant1-Hop-PASS Page 23 of 49 Report No. ESTE-R2603074 2DH5-Ant1-Hop-PASS Page 24 of 49 Report No. ESTE-R2603074 3DH1-Ant1-Hop-PASS Page 25 of 49 Report No. ESTE-R2603074 3DH3-Ant1-Hop-PASS Page 26 of 49 Report No. ESTE-R2603074 3DH5-Ant1-Hop-PASS Page 27 of 49 Report No. ESTE-R2603074 Page 28 of 49 Report No. ESTE-R2603074 Appendix E: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 29 of 49 Report No. ESTE-R2603074 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 30 of 49 Report No. ESTE-R2603074 Page 31 of 49 Report No. ESTE-R2603074 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 1.26 -33.11 ≤-18.74 PASS DH5 Ant1 High 2480 -3.06 -43.13 ≤-23.06 PASS DH5 Ant1 Low Hop_2402 1.38 -31.73 ≤-18.62 PASS DH5 Ant1 High Hop_2480 -2.68 -42.23 ≤-22.68 PASS 2DH5 Ant1 Low 2402 0.67 -36.89 ≤-19.33 PASS 2DH5 Ant1 High 2480 -3.11 -43.17 ≤-23.11 PASS 2DH5 Ant1 Low Hop_2402 1.54 -34.43 ≤-18.46 PASS 2DH5 Ant1 High Hop_2480 -3.72 -44.47 ≤-23.72 PASS 3DH5 Ant1 Low 2402 1.02 -35.29 ≤-18.98 PASS 3DH5 Ant1 High 2480 -3.18 -44.2 ≤-23.18 PASS 3DH5 Ant1 Low Hop_2402 -1.31 -33.78 ≤-21.31 PASS 3DH5 Ant1 High Hop_2480 -3.35 -41.98 ≤-23.35 PASS Page 32 of 49 Report No. ESTE-R2603074 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 33 of 49 Report No. ESTE-R2603074 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Page 34 of 49 Report No. ESTE-R2603074 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS Page 35 of 49 Report No. ESTE-R2603074 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 36 of 49 Report No. ESTE-R2603074 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS Page 37 of 49 Report No. ESTE-R2603074 3DH5-Ant1-Hop_2480-PASS Page 38 of 49 Report No. ESTE-R2603074 Appendix G: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 1.26 -28.24 ≤-18.74 PASS DH5 Ant1 2441 30~26500 -1.47 -33.8 ≤-21.47 PASS DH5 Ant1 2480 30~26500 -3.06 -33.02 ≤-23.06 PASS 2DH5 Ant1 2402 30~26500 0.67 -29.67 ≤-19.33 PASS 2DH5 Ant1 2441 30~26500 -1.46 -40.43 ≤-21.46 PASS 2DH5 Ant1 2480 30~26500 -3.11 -41.36 ≤-23.11 PASS 3DH5 Ant1 2402 30~26500 1.02 -37.03 ≤-18.98 PASS 3DH5 Ant1 2441 30~26500 -1.26 -39.02 ≤-21.26 PASS 3DH5 Ant1 2480 30~26500 -3.18 -33.18 ≤-23.18 PASS Page 39 of 49 Report No. ESTE-R2603074 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-…

Text truncated - open the document above for the full version.

Page 1 of 54 Report No. ESTE-R2603074 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Superior Communications DBA Puregear PureBoom MX Elite, Black PureBoom MX Elite, Midnight Blue Model Number: 12234PG Additional Model: 12235PG FCC ID: 2AIIF-12234PG Applicant: Superior Communications DBA Puregear Address: 5027 Irwindale Ave. Suite 900 Irwindale, CA 91706 Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603074 Date of Test: Jan. 23, 2026 to Mar. 02, 2026 Date of Report: Mar. 09, 2026 Page 2 of 54 Report No. ESTE-R2603074 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ...................................................................................................…

Text truncated - open the document above for the full version.

类型Type 型号Mode 制造商Manuafacture 地址Address IFA H9C1-M-V1.3 深圳市兴晟捷电子有限公司 SHENZHEN XINGSHENGJIE ELECTRONICS CO.，LTD. 深圳市宝安区沙井街道湾厦工业园13栋 Building 13, Wanxia Industrial Park, Shajing Sub-district, Bao'an District, Shenzhen City 尺寸图 Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.5 1.9 -3.6 1.1 -3.0 6 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz Conducted emission test:
