Page 1 of 1©2021 American Lighting, Inc. REV2106 www.AmericanLighting.com11775 E. 45th Ave. Denver, CO 80239 Ph: 1-800-880-1180 Fax: 303-695-7633 Spektrum+ Smart Gateway120V INSTALLATION INSTRUCTIONS SPKPL-GTWY SAFETY INFORMATION • Read all instructions before beginning; Save these instructions for future use. • To reduce the risk of fire, electric shock, or injury to persons, pay close attention to this manual and stay within its guidelines when using this product. • If you are unsure about your wiring, consult a qualified electrician or local electrical inspector, and check your local electrical code. • There are no serviceable parts inside this gateway. Do not attempt to dismantle, open or service this gateway in any way. • The optimal operating temperature of this product is -10°C (14°F) to 55°C (131°F). • Thie gateway requires a 2.4Ghz WiFi signal to operate. • This gateway is not intended for use with a standard wall plate dimmer switch. Use only with Spektrum+ Smart Lighting Bluetooth App or Spektrum+ handheld remote controller (SPKPL-CTRL-W-RGBTW sold separately) • This gateway is rated for dry/indoor locations only. Keep away from all water and moisture. These products may represent a possible shock or fire hazard if improperly installed or attached in any way. Products should be installed in accordance with these instructions, current electrical codes, and/or the current National Electric Code (NEC). The electrical rating of this product is 5V DC and utilizes a 120V AC power adapter. The installer must determine whether power supply is appro- priate before installation. Ensure power supply is turned off at the fuse box or circuit breaker prior to attempting installation or servicing of the gateway. WARNING WARNING INSTALLATION INSTRUCTIONS: This fixture requires a 120VDC power source. 1. Place gateway within 18” of power receptacle. 2. Plug mini USB power adapter into Gateway. See Figure 1. 3. Plug power adapter into receptacle. The blue power indicator light on the Gateway will light when powered. See Figure 2. 4. Pair device to Spektrum+ Smart Lighting app on your mobile phone or tablet. For pairing instructions please refer to the Spektrum+ Smart Lighting app guide or quick start guide. FIGURE 1 FIGURE 2 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

American Lighting Inc. Agent Authorization Company: American Lighting Inc. Address: 11775 E. 45th Ave, Denver, Colorado 80239, United States Product Name: Smart Hub+ Trade Mark: Model Number(s): SPKPL-GTWY FCC ID: 2AIQ4-SPKPL-GTWY We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-25 Name: Jennifer Barry Title: Product manager Company: American Lighting Inc.

American Lighting Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-25 Subject; Request for Confidentiality FCC ID: 2AIQ4-SPKPL-GTWY To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements For U-NII Devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jennifer Barry Title: Product manager

Page 1 of 1 Rev.2.0 American Lighting Inc. WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for 2AIQ4-SPKPL-GTWY Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Signature: Name / Title: Jennifer Barry / Product manager Phone: 800-880-1180 Email: [email protected] Date: 2021-04-25

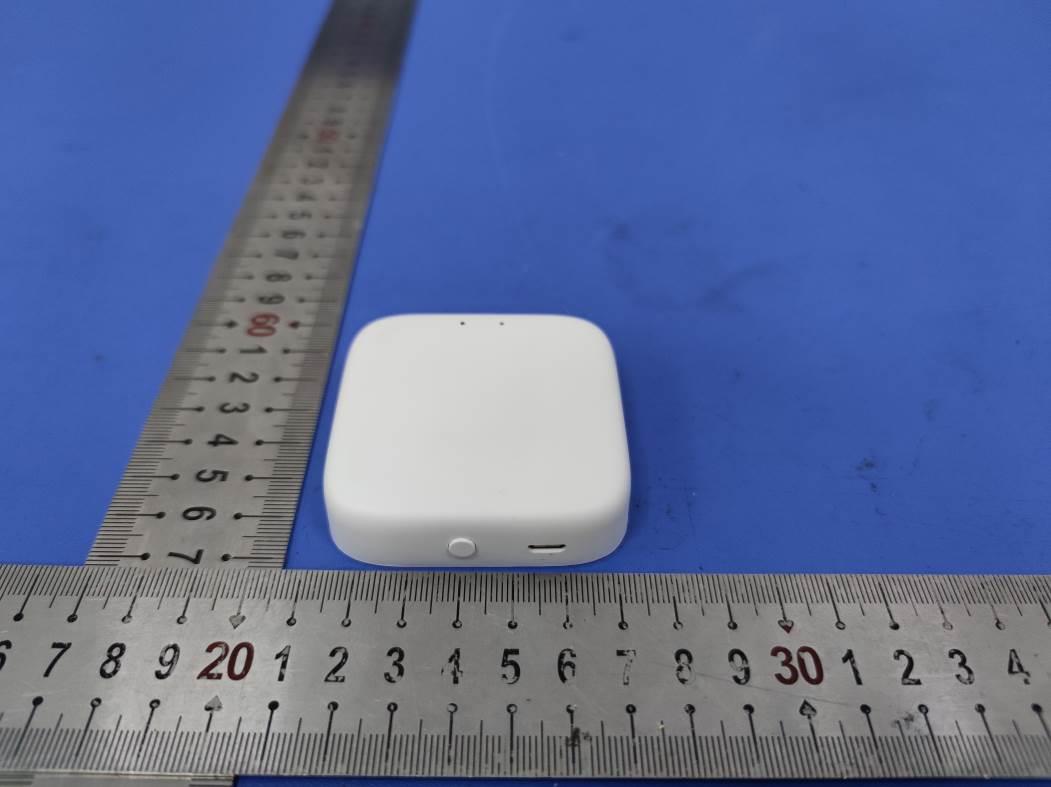

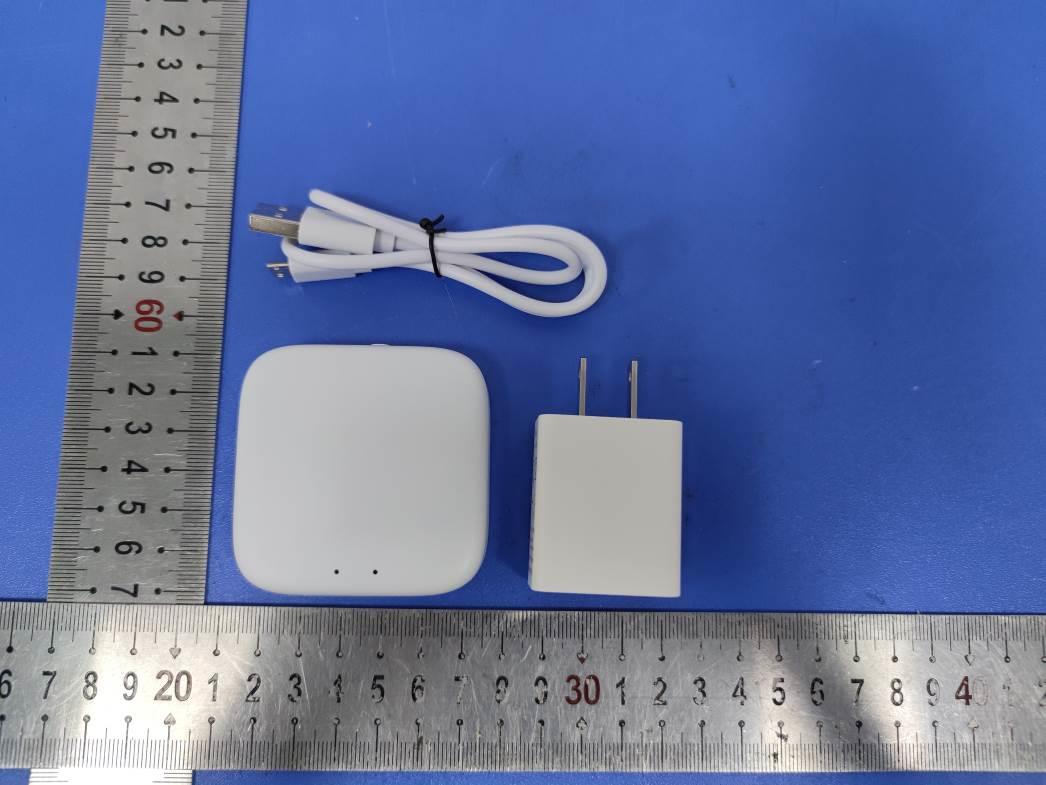

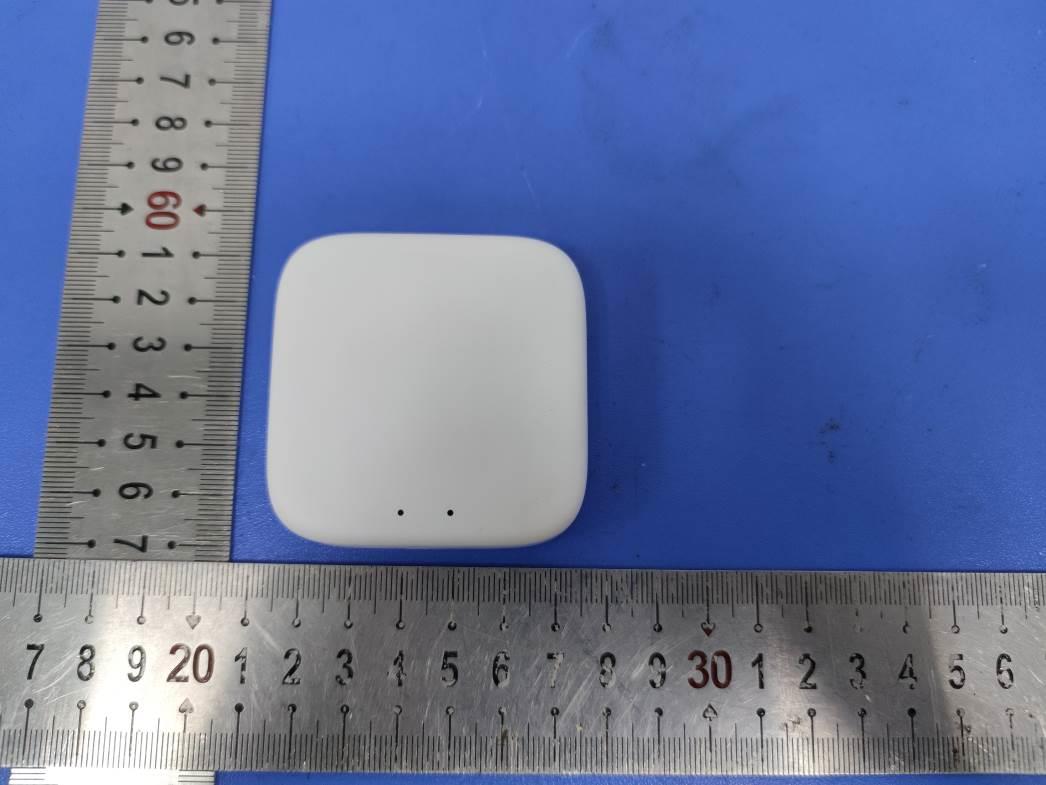

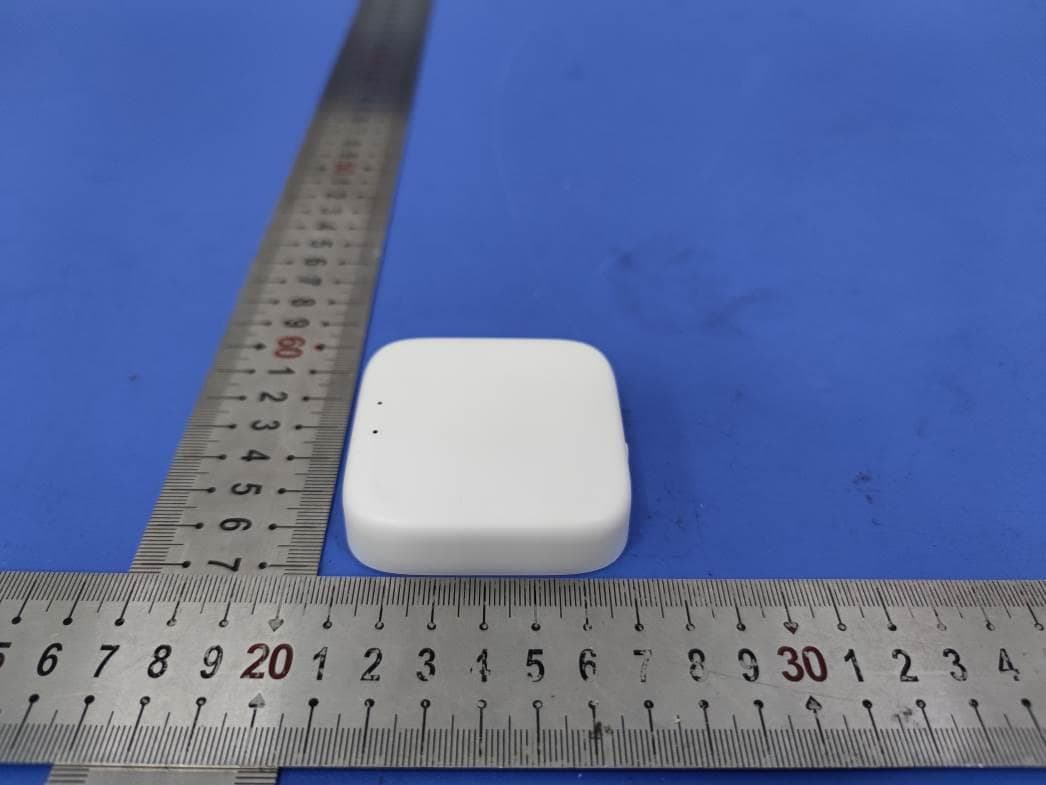

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.2.0cm*W: 1.5cm Label Location Smart Hub+ Model No.: SPKPL-GTWY FCC ID: 2AIQ4-SPKPL-GTWY

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.11 Fig.12 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Fig.13 BT Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AIQ4-SPKPL-GTWY Product name Smart Hub+ Model number SPKPL-GTWY Power supply Input: 5V1A For Adapter: Input: 100-240V~, 50/60Hz, 0.25A Max Output: 5V1000mA Bluetooth Frequency Range 2402MHz-2480MHz Bluetooth Channel Number 40 channels for Bluetooth V5.0(DTS) Bluetooth Channel Spacing 2MHz for Bluetooth V5.0 (DTS) Bluetooth Modulation Type GFSK for Bluetooth V5.0 (DTS) Bluetooth Version V5.0 Antenna Description PCB Antenna, 2.5dBi(Max.) WIFI Frequency Range 2412MHz-2462MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Description PCB Antenna, 2.5dBi(Max.) Hardware version V1.0.1 Software version WIFI:1.1.2 BLE:1.4.11 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2400MHz-2500MHz 2.5dBi WIFI Antenna Antenna PCB Antenna 2400MHz-2500MHz 2.5dBi BT Antenna 6. Conducted Power <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.982 19 2440 -0.108 39 2480 0.318 <2.4GWIFI> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 17.00 6 2437 17.66 11 2462 17.04 11G 1 2412 16.26 6 2437 17.64 11 2462 16.74 11N20SISO 1 2412 16.24 6 2437 17.39 11 2462 16.50 11N40SISO 3 2422 16.59 6 2437 17.57 9 2452 16.56 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 7. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1.0 0 0 Tolerance ±(dB) 1.0 1.0 1.0 <2.4GWIFI> 11B (Peak) Channel C…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 1 of 14 Appendix A RF Test Data for BT V5.0 (Conducted Measurement) Product Name: Smart Hub+ Trade Mark: Test Model: SPKPL-GTWY Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -1.982 30 PASS BT LE MCH -0.108 30 PASS BT LE HCH 0.318 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -17.410 8 PASS BT LE MCH -15.488 8 PASS BT LE HCH -15.255 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6728 ≥0.5 PASS BT LE MCH 0.6792 ≥0.5 PASS BT LE HCH 0.6725 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -2.813 -37.599 -22.813 PASS BT LE MCH -1.08 -38.021 -21.080 PASS BT LE HCH -0.646 -37.704 -20.646 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -2.544 -49.660 -22.54 PASS BT LE HCH -0.470 -49.585 -20.47 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.80 2.5 0 53.96 PEAK 74 PASS Ant1 2310.0 -53.34 2.5 0 44.42 AV 54 PASS Ant1 2390.0 -43.65 2.5 0 54.11 PEAK 74 PASS Ant1 2390.0 -53.08 2.5 0 44.68 AV 54 PASS 2480 Ant1 2483.5 -41.82 2.5 0 55.94 PEAK 74 PASS Ant1 2483.5 -51.45 2.5 0 46.31 AV 54 PASS Ant1 2500.0 -42.84 2.5 0 54.92 PEAK 74 PASS Ant1 2500.0 -52.29 2.5 0 45.47 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 1 of 46 Appendix B RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart Hub+ Trade Mark: Test Model: SPKPL-GTWY Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.76 PASS 11G 2437 Ant1 98.74 PASS 11N20SISO 2437 Ant1 98.46 PASS 11N40SISO 2437 Ant1 98.07 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 4 of 46 B.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 17.00 30 PASS MCH 17.66 30 PASS HCH 17.04 30 PASS 11G LCH 16.26 30 PASS MCH 17.64 30 PASS HCH 16.74 30 PASS 11N20SISO LCH 16.24 30 PASS MCH 17.39 30 PASS HCH 16.5 30 PASS 11N40SISO LCH 16.59 30 PASS MCH 17.57 30 PASS HCH 16.56 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 5 of 46 B.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -9.876 8 PASS MCH -8.196 8 PASS HCH -9.959 8 PASS 11G LCH -16.157 8 PASS MCH -15.206 8 PASS HCH -16.142 8 PASS 11N20SISO LCH -15.202 8 PASS MCH -14.592 8 PASS HCH -16.145 8 PASS 11N40SISO LCH -16.216 8 PASS MCH -16.393 8 PASS HCH -18.625 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 12 of 46 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.595 ≥0.5 PASS MCH 9.590 ≥0.5 PASS HCH 9.580 ≥0.5 PASS 11G LCH 10.10 ≥0.5 PASS MCH 11.34 ≥0.5 PASS HCH 12.58 ≥0.5 PASS 11N20SISO LCH 12.59 ≥0.5 PASS MCH 15.05 ≥0.5 PASS HCH 13.83 ≥0.5 PASS 11N40SISO LCH 31.37 ≥0.5 PASS MCH 32.56 ≥0.5 PASS HCH 33.77 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 19 of 46 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.938 -36.705 -15.062 PASS MCH 5.398 -37.800 -14.602 PASS HCH 4.867 -38.520 -15.133 PASS 11G LCH -0.5 -37.921 -20.500 PASS MCH 0.128 -37.473 -19.872 PASS HCH -0.088 -36.338 -20.088 PASS 11N20 SISO LCH -1.031 -38.124 -21.031 PASS MCH 0.695 -38.053 -19.305 PASS HCH -0.317 -38.201 -20.317 PASS 11N40 SISO LCH -4.22 -37.937 -24.220 PASS MCH -2.936 -38.015 -22.936 PASS HCH -4.102 -36.996 -24.102 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEB Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LC…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For American Lighting Inc. Smart Hub+ Test Model: SPKPL-GTWY Prepared for : American Lighting Inc. Address : 11775 E. 45th Ave, Denver, Colorado 80239, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 13, 2021 Number of tested samples : 2 Sample No. : 210330148A-1, 210330148A-2 Serial number : Prototype Date of Test : April 13, 2021 ~ April 21, 2021 Date of Report : April 22, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ...................... : LCS210330148AEA Date of Issue ........................................ : April 22, 2021 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : American Lighting Inc. Address ................................................ : 11775 E. 45th Ave, Denver, Colorado 80239, United States Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : Smart Hub+ Trade Mark .......................................... : Test Model ........................................... : SPKPL-GTWY Ratings ................................................. : Input: 5V1A For Adapter: Input: 100-240V~, 50/60Hz, 0.25A Max Output: 5V1000mA Result ................................................. : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AIQ4-SPKPL-GTWY Report No.: LCS210330148AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : SPKPL-GTWY EUT......................................... : Smart Hub+ Applicant............................... : American Lighting Inc. Address.................................. : 11775 E. 45th Ave, Denver, Colorado 80239, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : American Lighting Inc. Address................................... : 11775 E. 45th Ave, Denver, Colorado 80239, United States Telephone............................... : / Fax.......................................... : / Factory................................... : Hangzhou Hongshi Electrical Co., Ltd. Address................................... : #8 Yuyang Road, Lushan Subdistrict, Fuyang, Hangzhou, Zhejiang Province, China Telephone............................... : / Fax.......................................... : / T…
