2AITN-ACTIVOPortable Speaker

INSTRUCTION MANUAL 90mm 100mm 100mm 90mm90mm 90mm90mm90mm FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

PowerStick.com Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-08-12 FCC ID: 2AITN-ACTIVO Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing PowerStick.com Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing PowerStick.com Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: PowerStick.com Inc. Address: 39 Camelot Drive, Ottawa, Ontario, Canada, K2G 5W6 Contact Person: John Zhu Tel.: 6132304840 Ext.500 Email: [email protected] Sincerely, Signature:

Attestation Statements Date: 2024-08-19 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AITN-ACTIVO) PowerStick.com Inc., the undersigned, hereby authorize HOPEK CORPORATION INC to act as our designated U.S. agent for service of process, PowerStick.com Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. HOPEK CORPORATION INC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: PowerStick.com Inc. Contact Name: John Zhu Address: 39 Camelot Drive, Ottawa, Ontario, Canada, K2G 5W6 Telephone No: 6132304840 Ext.500 Email: [email protected] FRN: 0025672049 Signature: John Zhu U.S. Agent Information: Company Name: HOPEK CORPORATION INC Address: 4358 S BANNOCK ST ENGLEWOOD, CO 80110 United States FRN: 0034562900 Contact Name: Peter Davis Telephone No: 561-235-6113 Email: [email protected] Signature:

Productspecification QuickReferenceDate Antennamoduleonthesystemboard Frequency 2.45GHz *1 Ant.PortInputPwr.(dBm)0(Typ.BTclass2outputpower) Tot.Rad.Pwr.(dBm)-2.3(Inputpwr–losspwr) PeakEIRP(dBm)1.7 Directivity(dBi)1 (alldirectionantenna) Efficiency(dB)-2.3(58.5%) Gain(dBi)1.7(PeakGainXY-plane) MaximumPower(dBm)1.7(XY-plane) Minimum Power(dBm)-4(XY-plane) Avg.Power(dBm)-0.5(XY-plane) Max/MinRatio(dB)5.3(XY-plane) Max/AvgRatio(dB)1.8(XY-plane) Min/AvgRatio(dB)-3.5(XY-plane) AverageGain(dB)-0.5(AvgGainXY-plane) Allthetechnicaldataandinformationcontainedhereinaresubjecttochangewithoutpriornotice AntennaLayout&moduleonthesystemboard AntennaGain GainTable [email protected] PeakAvg.PeakAvg.PeakAvg. ModuleBoard 1.3-0.51.7-3.81.1-3.058.5% Antenna Type PCB Antenna Manufacturer PowerStick.com Inc. Address 39 Camelot Drive, Ottawa, Ontario, Canada, K2G 5W6 ReturnLoss TheEnvironmentofAntennaRadiationPattern 3Dradiationpatterndiagram

PowerStick.com Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 19, 2024 Subject; Request for Confidentiality FCC ID: 2AITN-ACTIVO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: John Zhu Title: Director of Engineering

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 PowerStick.com Inc. Date：2024-08-12 Product Model Number: Activo FCC ID：2AITN-ACTIVO To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: John Zhu Contact Listed on FCC Wesbite Title: Director of Engineering Email: [email protected] On behalf of: PowerStick.com Inc.

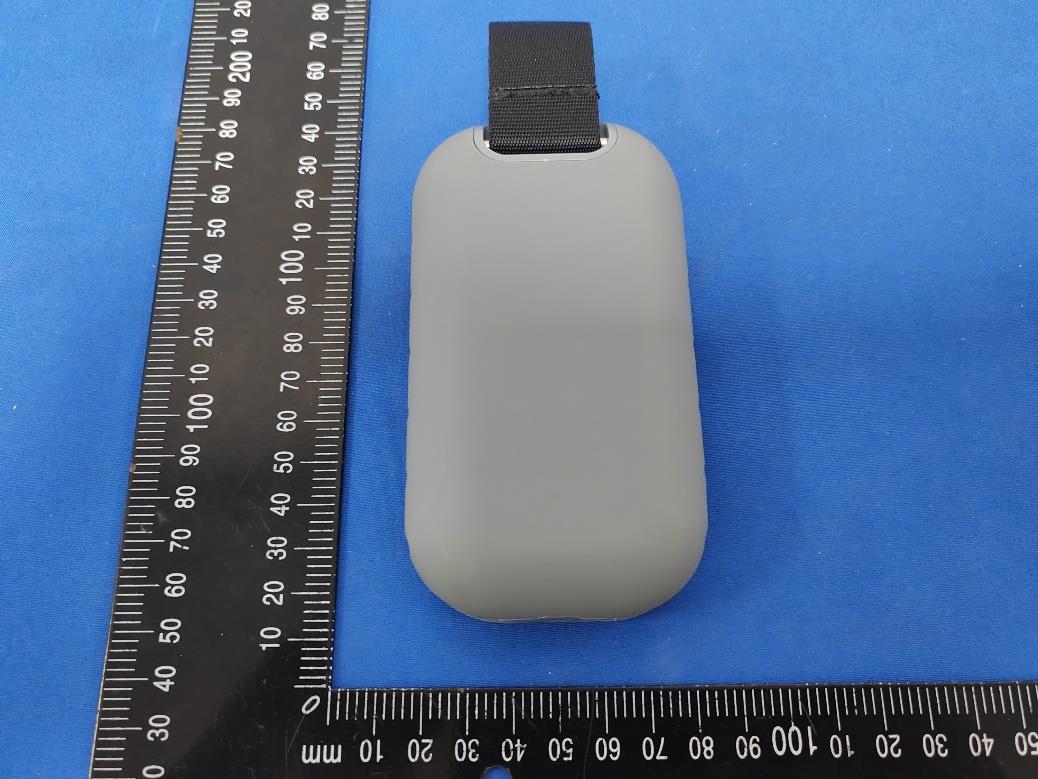

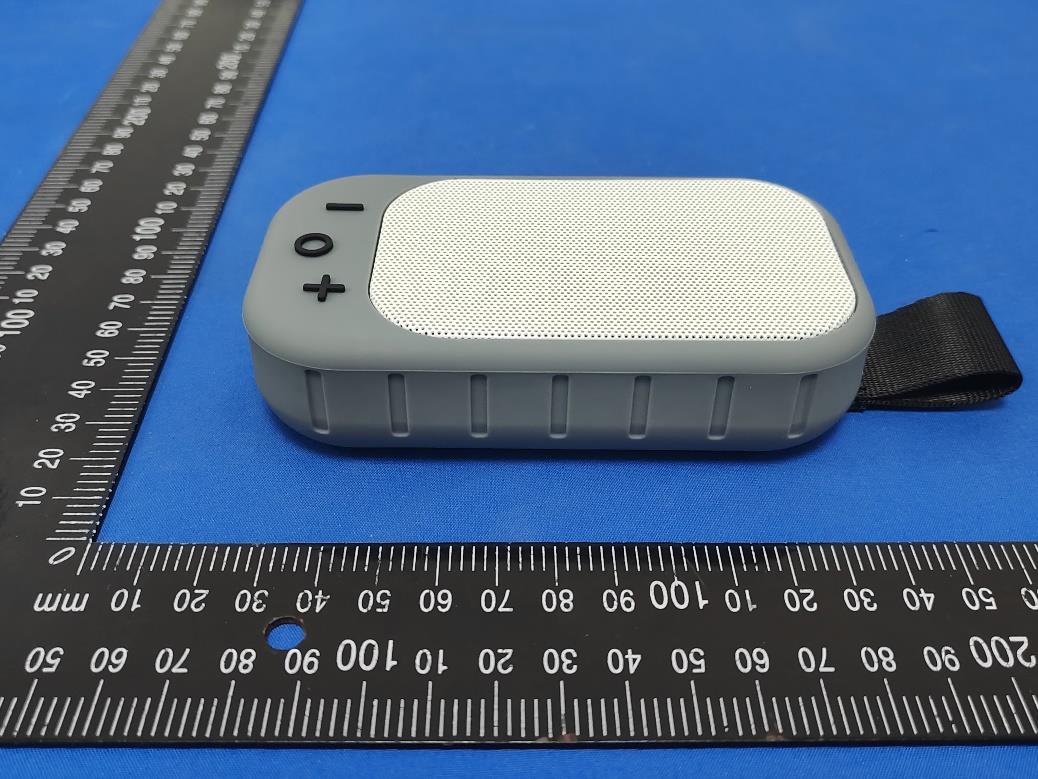

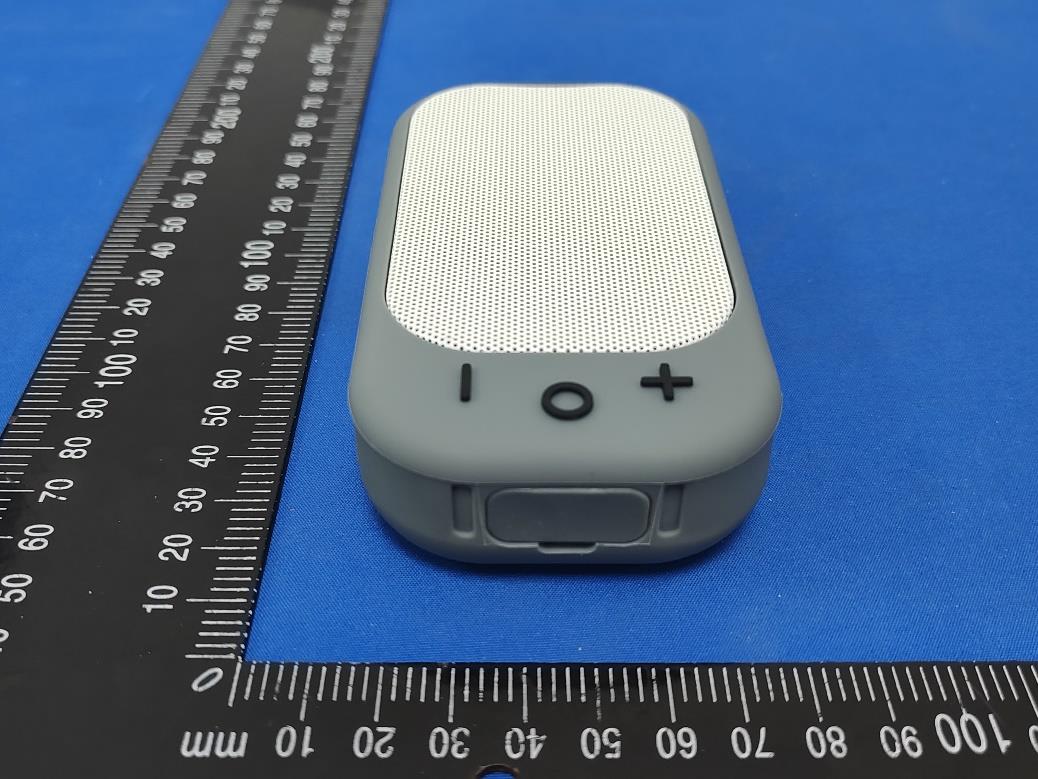

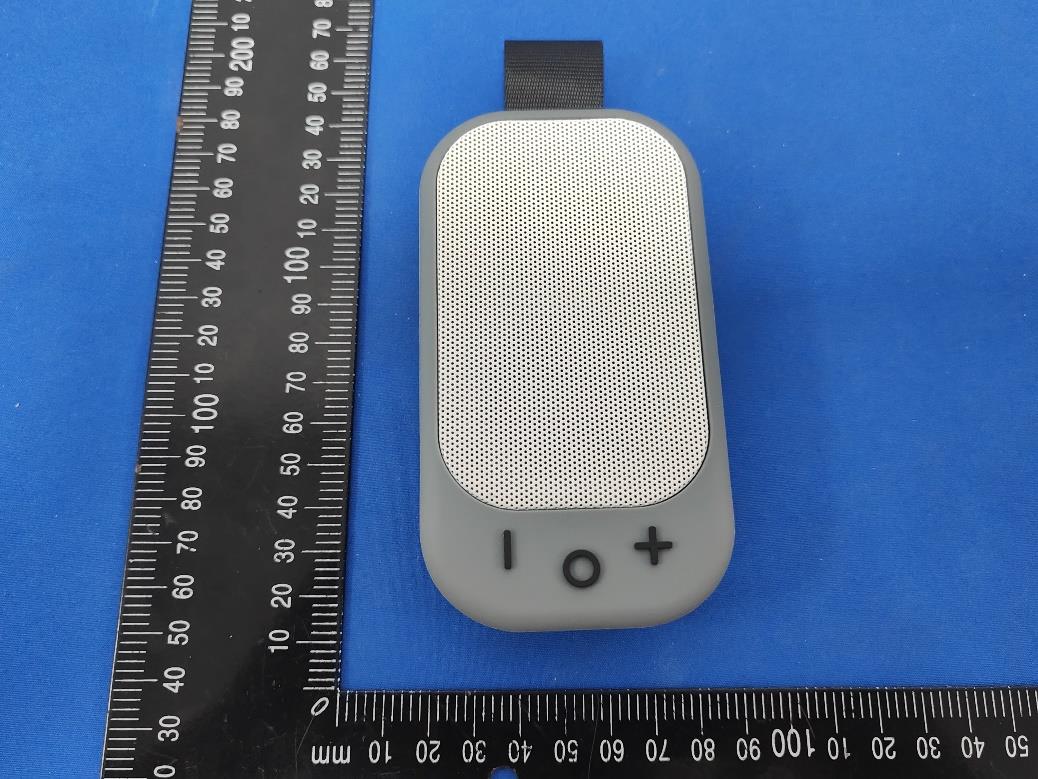

Page 1 of 4 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix II external photos FCC ID: 2AITN-ACTIVO Photo 1 Photo 2 Page 2 of 4 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 Page 3 of 4 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 Page 4 of 4 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Photo 7 ------End------

Label

Page 1 of 3 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix III internal photos FCC ID: 2AITN-ACTIVO Photo 1 Photo 2 Page 2 of 3 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 BT ANT Page 3 of 3 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 ------End------

FCC ID: 2AITN-ACTIVO Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EDR: Worse case output power is as below: [2441MHz: 6.35dBm] Antenna Gain is 1.7dBi Maximum output power is 6.35dBm (4.32mW). (4.32mW /5mm)·[√2.441(GHz)]= 1.35<3.0 for 1-g SAR Then SAR evaluation is not required

Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China FCC TEST REPORT FCC ID: 2AITN-ACTIVO On Behalf of PowerStick.com Inc. Portable Speaker Model No.: Activo Prepared for : PowerStick.com Inc. Address : 39 Camelot Drive, Ottawa, Ontario, Canada, K2G 5W6 Prepared By : Shenzhen PSI Testing Co., Ltd. Address : 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Report Number : psi2408057-C01-R02 Date of Receipt : Aug. 12, 2024 Date of Test : Aug. 12, 2024- Aug. 14, 2024 Date of Report : Aug. 15, 2024 Version Number : V0 Page 2 of 74 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China TABLE OF CONTENTS Description Page 1. Summary Of Standards And Results............................................................................................ 6 1.1. Description of Standards and Results ..................................................................................... 6 2. General Information........................................................................................................................ 7 2.1. Description of Device (EUT) .................................................................................................... 7 2.2. Accessories of Device (EUT) .................................................................................................. 8 2.3. Tested Supporting System Details .......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ................................................... 8 2.5. Test Mode Description ............................................................................................................. 8 2.6. Test Conditions ........................................................................................................................ 9 2.7. Test Facility .............................................................................................................................. 9 2.8. Measurement Uncertainty ....................................................................................................... 9 2.9. Test Equipment List ............................................................................................................... 10 3. Maximum Peak Output Power ..................................................................................................... 11 3.1. Limit ....................................................................................................................................... 11 3.2. Test Procedure ...................................................................................................................... 11 3.3. Test Setup .............................................................................................................................. 11 3.4. Test Result ............................................................................................................................. 11 4. Bandwidth ..................................................................................................................................... 12 4.1. Limit ....................................................................................................................................... 12 4.2. Test Procedure ...................................................................................................................... 12 4.3. Test Result ............................................................................................................................. 12 5. Carrier Frequency Separation ..................................................................................................... 23 5.1. Limit ....................................................................................................................................... 23 5.2. Test Procedure ...................................................................................................................... 23 5.3. Test Result ............................................................................................................................. 23 6. Number Of Hopping Channel ...................................................................................................... 25 6.1. Limit ....................................................................................................................................... 25 6.2. Test Procedure ...................................................................................................................... 25 6.3. Test Result ............................................................................................................................. 25 7. Dwell Time ..................................................................................................................................... 27 7.1. Test limit ................................................................................................................................. 27 7.2. Test Procedure ...................................................................................................................... 27 7.3. Test Result ............................................................................................................................. 27 8. Out-of-band Emissions ................................................................................................................ 31 8.1. Test Limits .........................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Appendix I Test Setup Photo FCC ID: 2AITN-ACTIVO Spurious Radiation Emissions Test (<1G) Spurious Radiation Emissions Test (＞1G) Page 2 of 2 Report No.: psi2408057-C01-R02 Shenzhen PSI Testing Co., Ltd. Tel: 0755-23011775 | E-mail: [email protected] | http://www.psi-lab.com Add: 1-2/F., Building 5, Yudafu Industrial Park, No.10, Xingye West Road, Shajing Subdistrict, Bao'an District, Shenzhen, Guangdong, China Conducted emission Test ------End------
