2AITT30408Radio Controlled Toy Transmitter (2.4GHz)

© 2019 BRIO AB/0388-896 C © 2019 BRIO AB/0388-896 C BRIO AB, Box 305, SE-201 23 Malmö, Sweden. Tel: +46 40 619 40 00. BRIO AB, Box 305, SE-201 23 Malmö, Sweden. Tel: +46 40 619 40 00. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authori ty to operate the equipment. DE FR ES PT IT EN SK Battery operated play functions: Remote-Control Race Car with age-appropriate controls and functions that are designed for toddlers. Large one- button steering system helps make racing simple and fun.Before using the Remote-Control Race Car: – Install the batteries according to the picture below.– Switch on the car by pushing the switch button to the ON position on the bottom of the car. – Point the remote controller unit towards the car and race!Keep in mind that:– The product is not water-resistant. Wipe off the car with a clean cloth to remove any foreign materials. – The child's hair can easily get caught in moving parts. – The product is only recommended for indoor play.– The remote-control has a range of up to 15 meters.– The car is put into sleep mode after 5 minutes of inactivity. To reactivate, just turn the car off ( OFF ) and restart the car ( ON ). Inserting and changing the batteries: This race car is powered by 4 x AA 1.5V batteries (not included). Use a screwdriver to open the battery compartment cover (see illustration). Always position new battery as shown (+/–). Close the cover and tighten the screw. Inserting and changing the batteries: This remote control is powered by 3 x AA 1.5V batteries (not included). Use a screwdriver to open the battery compartment cover (see illustration). Always position new battery as shown (+/–). Close the cover and tighten the screw. When the child presses the top button, the race car drives straight ahead.With both buttons pressed, the race car makes a softer right-hand turn while driving forward.With both buttons pressed, the race car makes a narrow right-hand turn while driving in reverse.When the child presses the right button, the race car makes a narrow right-hand turn and drives around its own axis. When the child presses the left button, the race car makes a narrow left-hand turn and drives around its own axis With both buttons pressed, the race car makes a softer left-hand turn while driving forward. With both buttons pressed, the race car makes a narrow left-hand turn while driving in reverse. When the child presses the bottom button, the race car drives in reverse. If the Remote-Control Race Car does not work properly:1. Try turning the car off, and then turn it on again. 2. Change the playing surface.3. Make sure nothing is stuck to or in the wheels. 4. Replace the batteries. Important:• Only adults should install and replace batteries.• Different types of batteries or new and used batteries are not to be mixed.• Only recommended batteries of the same or equivalent type as recommended (1.5V ) are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • Always remove batteries if the toy is not to be used for some time. • Protect the toy from water or dampness. • Do not attempt to recharge non-rechargeable batteries. • Rechargeable batteries are to be removed from the toy before being charged. • Rechargeable batteries are only to be charged under adult supervision. • Used batteries and electrical components must be disposed of at an approved collection point. • Electrical components or batteries must not be thrown with household waste.Please retain for future reference! Batteriebetriebene Funktionen: Rennwagen mit Fernbedienung mit altersgerechten Knöpfen und Funktionen, die für Kleinkinder gestaltet sind. Die große Lenkung mit einem Knopf sorgt für einen einfachen Fahrspaß.Vor der Verwendung des Rennwagens mit Fernbedienung: – Lege die Batterien wie unten abgebildet ein.– Stelle den Rennwagen an, indem du den Knopf unten am Rennwagen auf AN stellst. – Halte die Fernbedienung in Richtung des Rennwagens und fahr los! Bitte nicht vergessen:– Das Produkt ist nicht wasserbeständig. Wische den Rennwagen mit einem sauberen Tuch ab, um Fremdkörper zu entfernen.– Das Haar des Kindes kann sich in den beweglichen Teilen verfangen.– Das Produkt ist nur für Innenräume empfohlen.– Die Fernbedienung hat eine Reichweite bis 15 Meter.– Der Rennwagen wird nach 5 Minuten Inaktivität in den Ruhemodus gesetzt. Zum Reaktivieren den Rennwagen einfach ausschalten ( AUS ) und wieder einschalten ( AN ). Einsetzen und Aufladen der Batterien: Dieser Rennwagen wird von 4 x AA 1,5 V Batterien angetrieben (nicht enthalten). Deckel des Batteriefachs mit einem Schraubenzieher öffnen (siehe Abbildung). Die neuen Batterien wie gezeigt einsetzen (+/-). Deckel schließen und die Schraube festziehen. Einsetzen und Aufladen der Batterien: Diese Fernbedienung wird von 3 x AA 1,5 V Batterien angetrieben (nicht enthalten). Deckel des Batteriefachs mit einem Schraubenzieher öffnen (siehe Abbildung). Die neuen Batterien wie gezeigt einsetzen (+/-). Deckel schließen und die Schraube festziehen. Wenn das Kind auf den oberen Knopf drückt, fährt der Rennwagen gerade nach vorne.Wenn beide Knöpfe gedrückt werden, macht der Rennwagen eine größere Kurve nach rechts und fährt weiter vorwärts.Wenn beide Knöpfe gedrückt werden, macht der Rennwagen eine größere Kurve nach rechts und fährt rückwärts.Wenn das Kind auf den rechten Knopf drückt, fährt der Rennwagen eine enge Kurve nach rechts und dreht sich um seine eigene Achse. Wenn das Kind auf den linken Knopf drückt, fährt der Rennwagen eine enge Kurve nach links und dreht sich um seine eigene A…

Text truncated - open the document above for the full version.

BRIO- BRIO AB BRIO AB Box 305 Skeppsbron 1 A 201 23 Malmö, Swedef Req.no.55695l 7153 E-mail [email protected] Phone +46 40 6l 9 40 00 Fax +46 (0) 479 I 93 33 wwwbrionei To Whom lt May Concern: Please be advised that Applicant Name: Address: City: Country: Skeppshbron 14, Malmo, Skane 201 23, Sweden Sweden authorizes, Mr. Mika Chan, Projecf Manager at TUV Rheinland Hong Kong Ltd. to act on our behalf, until othenrvise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title. Head of Category Quality & Safety https //ravensburger-my.sharepoint.com/personal/goran_kullberg_brio_neuDocuments/Documents/Kvalit6/Direktiv-Standarder/FCC/Certifi€tion Login_agreement_documents/2020_Appli€tion Documents/Authorization letter 30388.docx Göran Kullberq Page 1 /1

BRIC). BRIO AB Box 105 Skeppsbron I A 201 23 l\4almö, Sweden Reg.no.556951 7153 E mail [email protected] Phone +46 40 61 9 40 00 Fax +46 (0) 479 193 33 www.brio.net Applicant Name: BRIO AB Address: City: Country: Skeppsbron 1, BOX 305,211 20 Malmö Sweden Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC lD: 241TT30408 X eitt(s) of Material ffi elock Diagrams ffi Operational Description X Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: Date: Head of Cateqory Quality & Safety 28 Aoril2020 https://ravensburger-my.sharepoint.mm/personal/goran_kullberg_brio_neUDocuments/Documents/Kvalit6/Direktiv-Standarder/FCC/Certification Login_agreemenl_doaments/2020_Application Documents/FCC Confidentiality lelter-30408.docx

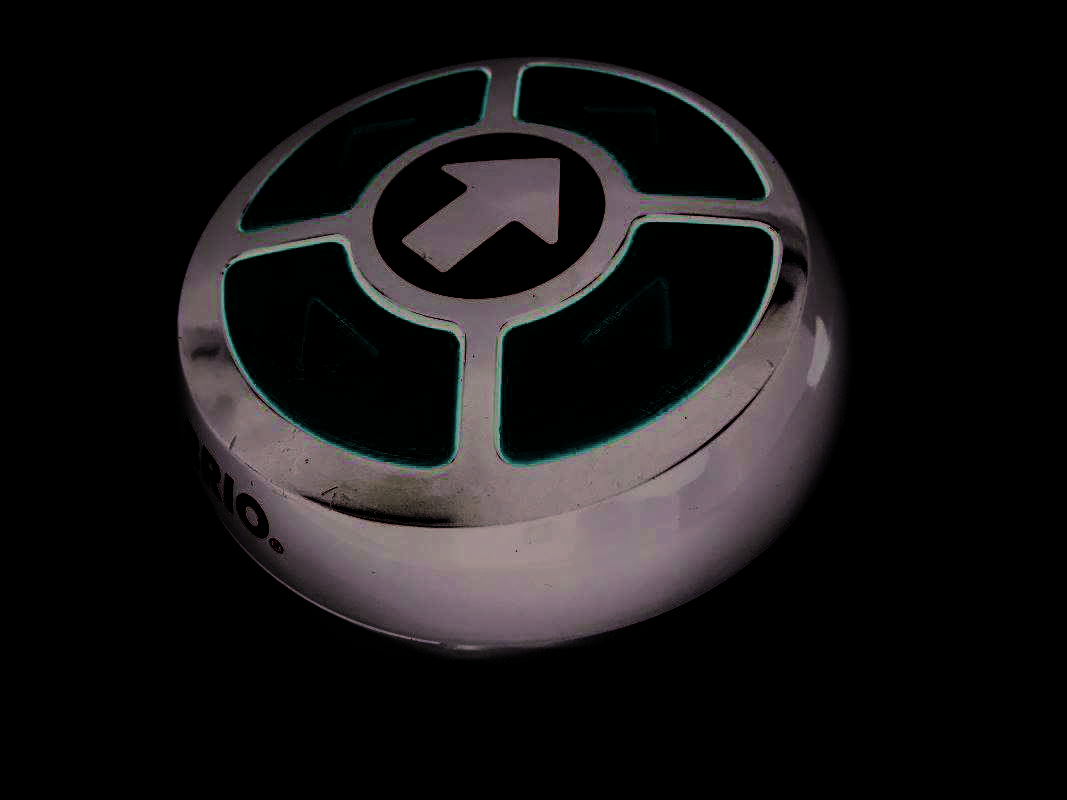

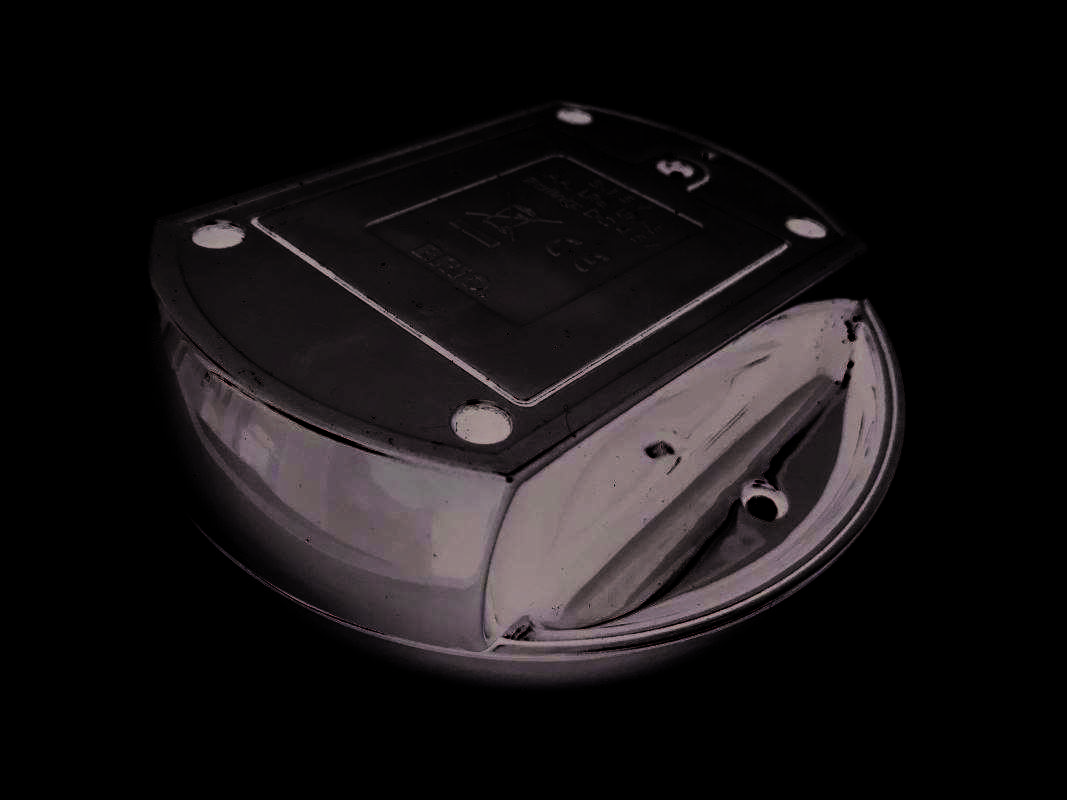

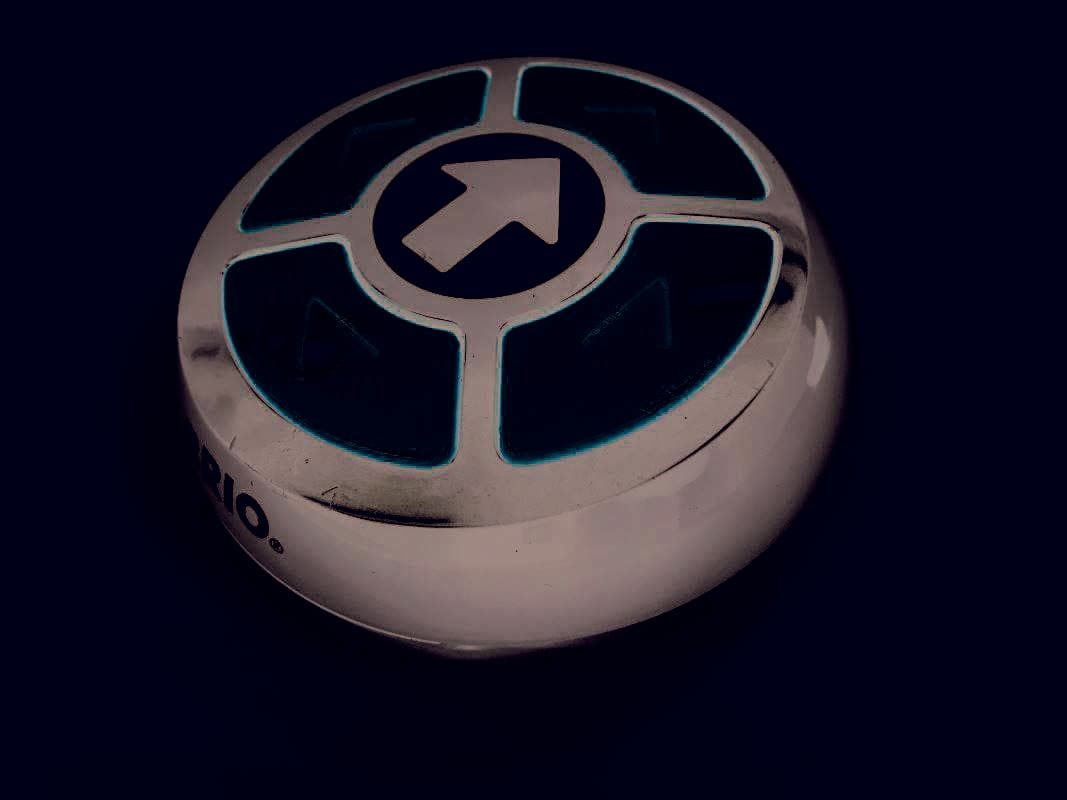

Test Report No.: 60373621 001 Appendix 3 Page 1 of 3 Appendix 3 EUT External Photos Test Report No.: 60373621 001 Appendix 3 Page 2 of 3 External View External View Test Report No.: 60373621 001 Appendix 3 Page 3 of 3 External View External View

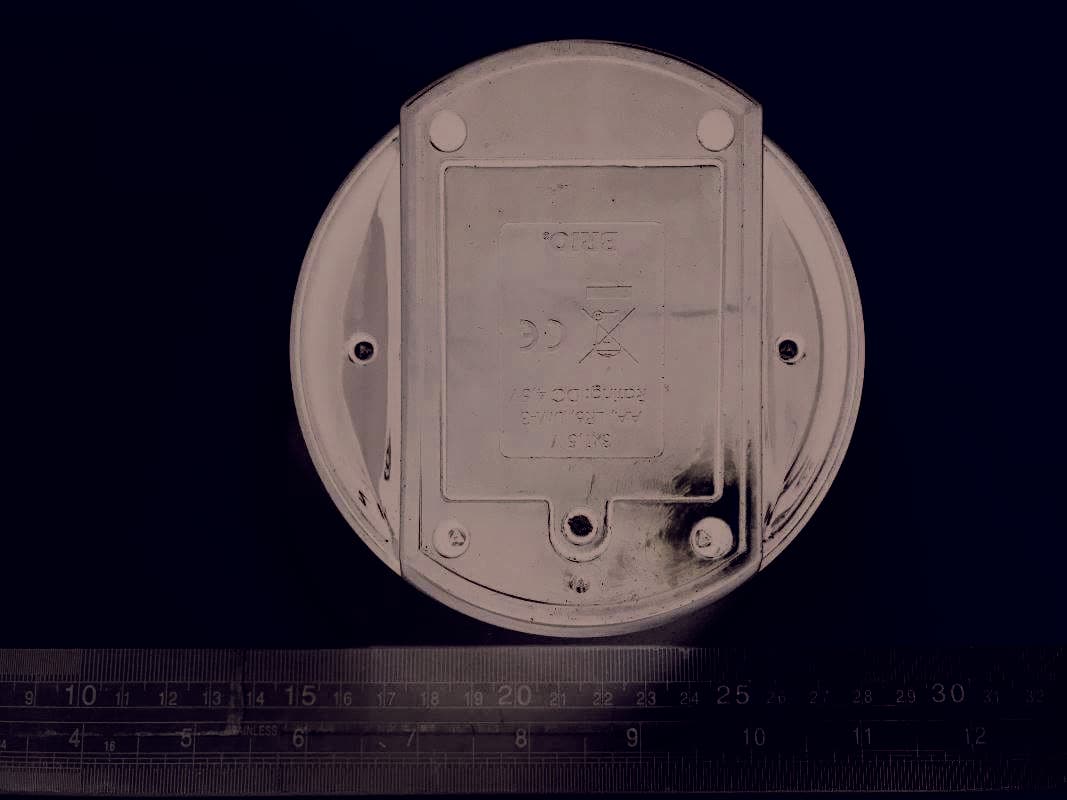

FCC ID: 2AITT30408/ IC: 21632-30408 Label and Label Location

Test Report No.: 60373621 001 Appendix 5 Page 1 of 4 Appendix 4 EUT Internal Photos Test Report No.: 60373621 001 Appendix 5 Page 2 of 4 Internal View Internal View Test Report No.: 60373621 001 Appendix 5 Page 3 of 4 Internal View Internal View Test Report No.: 60373621 001 Appendix 5 Page 4 of 4 Internal View

Test Report No.: 60373621 001 Appendix 5 Page 1 of 2 Appendix 5 RF Exposure Information Test Report No.: 60373621 001 Appendix 5 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBuV/m) Output power (mW) Separation distance (mm) 2423 85.6 0.1089 5 2436 86.6 0.1371 5 2458 89.2 0.2495 5 For FCC According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances
50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [f(GHz)]
3.0 for 1-g SAR and
7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.1089/5)*2.423 = 0.0339<3.0 (0.1371/5)*2.436 = 0.0428<3.0 (0.2495/5)*2.458 = 0.0782<3.0 Conclusion: No SAR is required. For IC According to table 1 in RSS-102 Issue 5, below exemption limit is applied Frequency: 2450MHz At separation distance of
5mm Exemption limits: 4mW Results: max. power of channel = 89.2 dBuV/m = 0.2495 mW < 4mW Conclusion: The maximum peak output power of the transmitter is less than the SAR evaluation exemption threshold and hence it complies with the RSS-102 RF exposure requirement

Produkte Products TÜV Rheinland Hong Kong Ltd.
3-4, 11/F., Fou Wah Industrial Building, 10-16 Pun Shan Street, Tsuen Wan, N.T., Hong Kong
Tel.: +852 2192 1000
Fax: +852 2192 1001
Email [email protected]
Web: www.tuv.com Prüfbericht-Nr.: Test Report No.: 60373621 001 Auftrags-Nr.: Order No.: 158208805 Seite 1 von 17 Page 1 of 17 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 16.04.2020 Auftraggeber: Client: BRIO AB Skeppshbron 1A, Malmo, Skane 201 23, Sweden Prüfgegenstand: Test item: Short Range Device - Radio Control Toy Transmitter (2.4GHz) Bezeichnung / Typ-Nr.: Identification / Type No.: 30408 Auftrags-Inhalt: Order content: FCC Test Prüfgrundlage: Test specification: FCC Part 15 Subpart C, ANSI C63.10-2013 RSS-210 Issue 9, RSS Gen-Issue 5 Wareneingangsdatum: Date of receipt: 16.04.2020 Prüfmuster-Nr.: Test sample No.: A002810257-008 Prüfzeitraum: Testing period: 17.04.2020 - 21.04.2020 Ort der Prüfung: Place of testing: Hong Kong Prüflaboratorium: Testing laboratory: TÜV Rheinland Hong Kong Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 18.05.2020Mika Chan / Project Manager kontrolliert von / reviewed by: 18.05.2020Sharon Li / Unit Senior Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: FCC ID: 2AITT30408 IC: 21632-30408 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. FCC_15.249_v2.0 Test Report No.: 60373621 001 Date: 18.05.2020 Page 2 of 17 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 4
Manufacturers declarations ....................................................................................................................... 4
Product function and intended use ........................................................................................................... 4
Submitted documents ................................................................................................................................. 4
Independent Operation Modes .................................................................................................................. 4
Related Submittal(s) Grants ....................................................................................................................... 4
Remark ......................................................................................................................................................... 4
Test Set-up and Operation Mode .................................................................................. 5
Principle of Configuration Selection ......................................................................................................... 5
Test Operation and Test Software ............................................................................................................. 5
Special Accessories and Auxiliary Equipment ......................................................................................... 5
Countermeasures to achieve EMC Compliance ....................................................................................... 5
Test Methodology .......................................................................................................... 6
Radiated Emission ...................................................................................................................................... 6
Field Strength Calculation .......................................................................................................................... 6
Test Setup Diagram ....................................................................................................... 7
Test Facility .................................................................................................................... 9
Test Laboratory Information ...................................................................................................................... 9
List of Test and Measurement Instruments ............................................................... 10
Measurement Uncertainty ........................................................................................... 11
Results FCC Part 15 – Subpart C / RSS-210 Issue 9 ................................................. 12
FCC 15.203 – Antenna Requirement 1 ............................................................................. Pass ............... 12
FCC 15.204 – Antenna Requirement 2 ............................................................................. Pass ............... 12
RSS-Gen 6.3 – External Control .......................................…

Text truncated - open the document above for the full version.

Test Report No.: 60373621 001 Appendix 1 Page 1 of 5 Appendix 1 Test Results Test Report No.: 60373621 001 Appendix 1 Page 2 of 5 20dB Bandwidth Tx frequency: 2423MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.423 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.80 dB m 2.423260000 GHz 2 Delta 2 [T1 ] -20.12 dB -2.040000000 MHz 3 Delta 3 [T1 ] -20.13 dB 1.000000000 MHz OBW 2.840000000 MHz T1 Temp 1 [T1 OBW] -25.23 dB m 2.421260000 GHz T2 Temp 2 [T1 OBW] -21.96 dB m 2.424100000 GHz Date: 21.APR.2020 08:44:33 Tx frequency: 2436MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.436 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.75 dBm 2.436280000 GHz 2 Delta 2 [T1 ] -20.80 dB -2.040000000 MHz 3 Delta 3 [T1 ] -20.27 dB 880.000000000 kHz OBW 2.740000000 MHz T1 Temp 1 [T1 OBW] -25.78 dB m 2.434320000 GHz T2 Temp 2 [T1 OBW] -24.20 dB m 2.437060000 GHz Date: 21.APR.2020 08:50:23 Test Report No.: 60373621 001 Appendix 1 Page 3 of 5 Tx frequency: 2458MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.458 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.86 dBm 2.458260000 GHz 2 Delta 2 [T1 ] -20.36 dB -1.920000000 MHz 3 Delta 3 [T1 ] -20.86 dB 860.000000000 kHz OBW 2.580000000 MHz T1 Temp 1 [T1 OBW] -25.01 dB m 2.456400000 GHz T2 Temp 2 [T1 OBW] -23.99 dB m 2.458980000 GHz Date: 21.APR.2020 08:56:28 Test Report No.: 60373621 001 Appendix 1 Page 4 of 5 99% Bandwidth Tx frequency: 2423MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.423 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.80 dB m 2.423260000 GHz 2 Delta 2 [T1 ] -20.12 dB -2.040000000 MHz 3 Delta 3 [T1 ] -20.13 dB 1.000000000 MHz OBW 2.840000000 MHz T1 Temp 1 [T1 OBW] -25.23 dB m 2.421260000 GHz T2 Temp 2 [T1 OBW] -21.96 dB m 2.424100000 GHz Date: 21.APR.2020 08:44:33 Tx frequency: 2436MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.436 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.75 dBm 2.436280000 GHz 2 Delta 2 [T1 ] -20.80 dB -2.040000000 MHz 3 Delta 3 [T1 ] -20.27 dB 880.000000000 kHz OBW 2.740000000 MHz T1 Temp 1 [T1 OBW] -25.78 dB m 2.434320000 GHz T2 Temp 2 [T1 OBW] -24.20 dB m 2.437060000 GHz Date: 21.APR.2020 08:50:23 Test Report No.: 60373621 001 Appendix 1 Page 5 of 5 Tx frequency: 2458MHz A Ref 0 dBm 1 PK MAXH Att 20 dB 1 MHz/Center 2.458 GHzSpan 10 MHz * 3DB RBW 100 kHz VBW 300 kHz SWT 2.5 ms -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -6.86 dB m 2.458260000 GHz 2 Delta 2 [T1 ] -20.36 dB -1.920000000 MHz 3 Delta 3 [T1 ] -20.86 dB 860.000000000 kHz OBW 2.580000000 MHz T1 Temp 1 [T1 OBW] -25.01 dB m 2.456400000 GHz T2 Temp 2 [T1 OBW] -23.99 dB m 2.458980000 GHz Date: 21.APR.2020 08:56:28

Test Report No.: 60373621 001 Appendix 2 Page 1 of 2 Appendix 2 Test Setup Photos Test Report No.: 60373621 001 Appendix 2 Page 2 of 2 Set-up for Radiated Emission
