2AIXN346GCTWS Bluetooth Headset

BS346GC TWS Bluetooth Headset User Manual Bluetooth earbuds should be used with the compatible devices which support bluetooth wireless technology, making calls and enjoying music at any time freely. Please read this user manual carefully, and also read your device’s user manual about bluetooth functions carefully before using. Please pay attention to those important safety and maintenance information. Please keep your earbuds away from children. Earbuds Indicator and Prompt Charging Case Indicator How To Wear Step How To Charge Earbuds Put earbuds into the case for charging. Put earbud(L and R) to the corresponding position in the charging case. Use Type-C cable to connect with computer Turning ON/OFF Method Method Put earbud into cochlea as show Turn on: Open the charging case cover to turn on. It’s better to wait for 1 second before pick up earbuds for using. Turn off: Put earbuds into the charging case and close the cover, the earbuds will turn off automatically 3 seconds later. Step ② ① Slightly rotate earbud until firmly Step ③ Put the earbud to cochlear edge tightly Wear earbud (R)/(L) respectively How to Charge Charging Case Use Type-C cable to connect with mobile phone charger Note 1: Note 2: Note 3: Note 4: Note 5: Check charging device whether it is suitable for your earbuds or not before charging. Use only the supplied charger to charge your earbuds. Other device may violate the validation or the maintenance article of this product and cause danger. Do not try to open the built-in battery as this will damage your earbuds. Earbuds will lose its power automatically if un-used. In this case, fully charge your earbuds every 3-6 months. Do not expose of your earbuds into fire or water. 1) Charging case opening snap 2) Charging case button 3) Charging case indicator 4) Charging case type-C port 5) Earbud noise cancellation mic hole 6) Earbud touch panel 7) Eartips 8) Earbud calling mic hole Structure sketch Specifications *The time mentioned above may vary due to user's operation habits and device settings. Bluetooth Version Bluetooth Profiles Supported Audio Decoding Protocol Transmission Power Operation Range Frequency Range Battery of Earbuds Charging Voltage of Earbuds Charging Time of Earbuds Battery of Base Charging Voltage of Charging Case Charging Time of Case Charging Earbuds from Charging Case Music Playing Time Talk Time Standby Time of TWS connect with mobileDriver Diameter Driver sensitivity Driver impedance Driver frequency response ANC frequency response ANC average depth ANC maximum depth Dimensions of Charging Case (mm) Dimensions of earbuds (mm) Weight (single earbud) Total Weight Charging Ambient Non-charging Ambient Storage Ambient FCC ID:2AIXN346GC V5.1 HSP, HFP, A2DP, AVRCP SBC, AAC Class 2 Up to 10 meters 2.4GHz-2.48GHz 45mAH Li-polymer Battery DC 5V±0.2V About 1~1.5 hours 380mAH Li-polymer Battery DC 4.75V-5.25V About 1~1.5 hours 2-3 times ≥ 5 hours (50% volume) ≥ 4 hours (50% volume) About 60 hours φ12mm 114±1.5dB (1KHz) 32Ω±15 20Hz-20KHz 80Hz-1.5KHz ≥22dB ≥30dB L61×W45.5×H31.1 L34×W22.2×H23.5 About 4.9g About 48g 0~45 -10~60 -20~40 Note: Please do not open and close the cover too frequently. Turn on: Touch earbuds for 2 seconds Turn off: Disconnect with bluetooth device for 5 minutes, the earbuds will turn off automatically. 7 5 8 9 No 1 2 3 4 6 Low battery alarm Connecting with phone Reset Power on Power off Charging Enter TWS pairing mode Status TWS Pairing Connected successfully / / Connected Prompt Power on Power off Du Pairing Operation Open the charging case and do not pick up the earbuds, long press the button of charging case for 10 seconds to reset. Open the charging case or long touch the earbuds for 2 seconds. Put the earbuds into the case and close the cover. Open the charging case or long touch the earbuds for 2 seconds to power on, the earbuds will automatically connect with each other. After TWS pairing successfully, using mobile to search “BS346GC”. Low battery / Indicator Light No 1 2 Status Charging Earbuds checking When charging the base, the indicator light keeps on red, and then will keep on green after fully charged. Battery indication The indicator off when charging case less than 5% battery. 5-20%: the light quickly flashes red. 20%-50%: the light keeps on red. 50%-80%: the light keeps on orange. 80%the light keeps on green. The indicator off when charging case less than 5% battery. 20%-50%: the light keeps on red. 50%-80%: the light keeps on orange. 80%the light keeps on green. 3 The indicator off when charging case less than 5% battery. 5-20%: the light quickly flashes red. 20%-50%: the light keeps on red. 50%-80%: the light keeps on orange. 80%: the light keeps on green. Type-C Charging Port Use the Type-C cable for charging. When charging to the base, the indicator light keeps on red, and then will keep on green after fully charged. Using mobile to search “BS346GC” and select from Bluetooth list. When the battery less than 20%, there will be a low battery alarm. Open the charging case and do not pick up the earbuds, long press the button of charging case for 10 seconds to reset. Put the earbuds into the case and close the cover. Earbud(R) Earbud(L) Notice: When charging case in 5-20% battery, the case needs to be charged, and will not charge the earbuds. Bluetooth ON Connect BS346GC TWS Pairing TWS Pairing 1. Long touch the panel for 2 seconds to turn on, the earbuds will enter auto-pairing mode, waiting for a few seconds, the two earbuds will pair automatically, then use mobile to search . 2. Open the charging case cover, the earbuds in case will enter auto-pairing mode, waiting for a few seconds, the two earbuds will pair automatically, then use mobile to search. 1. After TWS pairs successfully and connected with the mobile, the earbuds prompt “connected”. 2. When the earbuds disconnects with the mobile, the earbuds prompt “Disconnect- ed”, and the master earbud enters pairing mode. If the earbuds don’t connect with mobile wit…

Text truncated - open the document above for the full version.

GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED 4th Floor, 15th Building, Vtrek Innovation Industrial Park, No. 644, Shibei Road, Panyu District, Guangzhou, Chin Agent Authorization Company: GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED Address: 4th Floor, 15th Building, Vtrek Innovation Industrial Park, No. 644, Shibei Road, Panyu District, Guangzhou, Chin Product Name: TWS Bluetooth Headset Model Number(s): BS346GC-1, BS346GC, BS346GL, BS346GL-1 Product Description: TWS Bluetooth Headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul.28, 2021 Name: Paul He Title: General Manager Company: GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED

GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED 4th Floor, 15th Building, Vtrek Innovation Industrial Park, No. 644, Shibei Road, Panyu District, Guangzhou, China Jul.28, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID: 2AIXN346GC Models: BS346GC-1, BS346GC, BS346GL, BS346GL-1 To Whom It May Concern: We, The GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED hereby declare that the model : BS346GC-1 is identical with the model : BS346GC, BS346GL, BS346GL-1, except the model name. There are 2 types of charging boxes, one without wireless charging and the other with wireless charging Except for the different above, no other modification is performed. Sincerely, GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED Signature: [Paul He, General Manager] GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED 4th Floor, 15th Building, Vtrek Innovation Industrial Park, No. 644, Shibei Road, Panyu District, Guangzhou, China

GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED 4th Floor, 15th Building, Vtrek Innovation Industrial Park, No. 644, Shibei Road, Panyu District, Guangzhou, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul.28, 2021 Subject; Request for Confidentiality FCC ID: 2AIXN346GC To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Paul He Title: General Manager

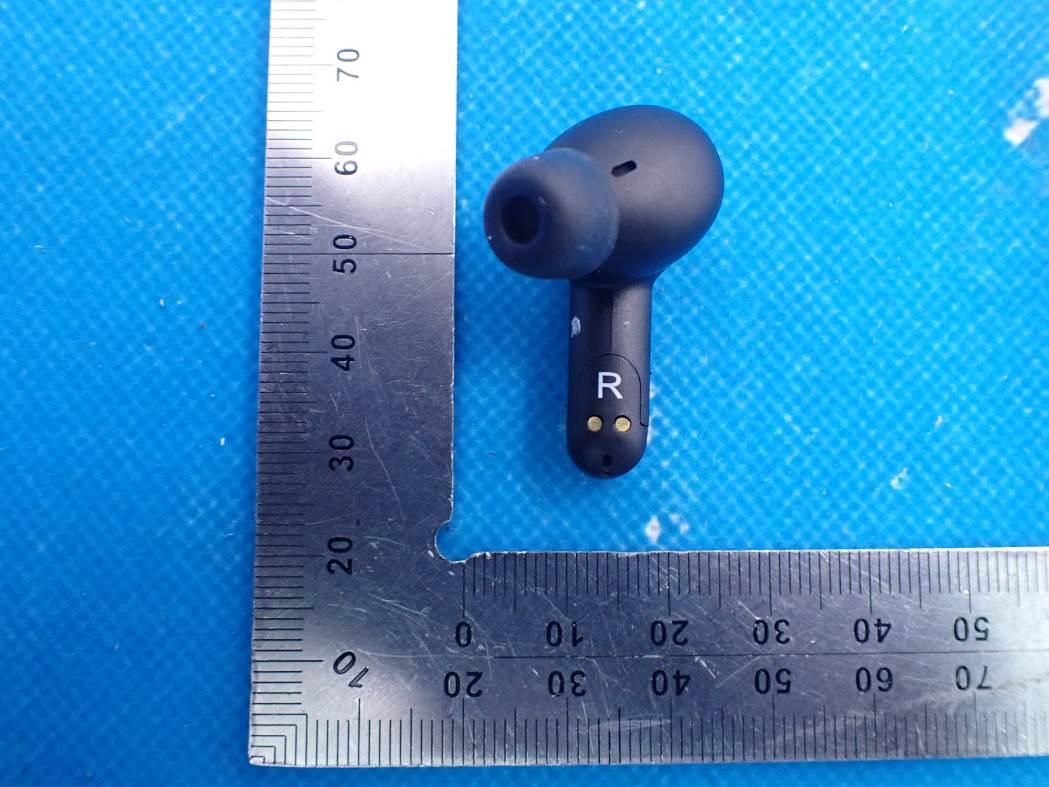

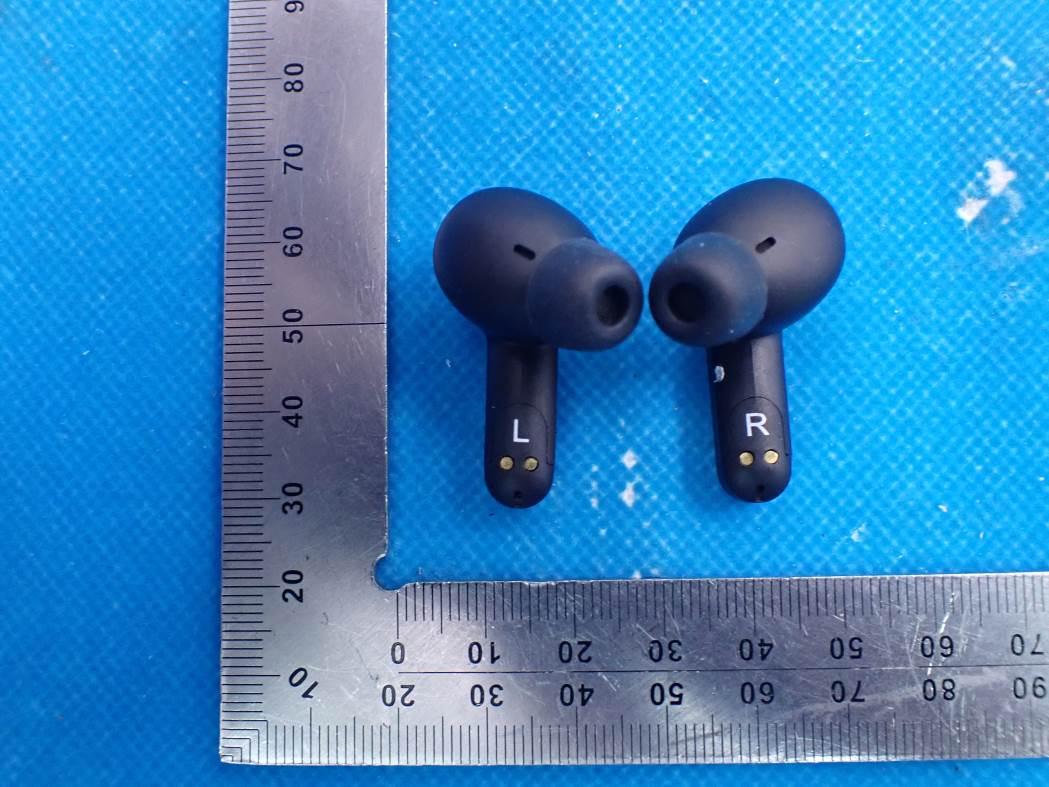

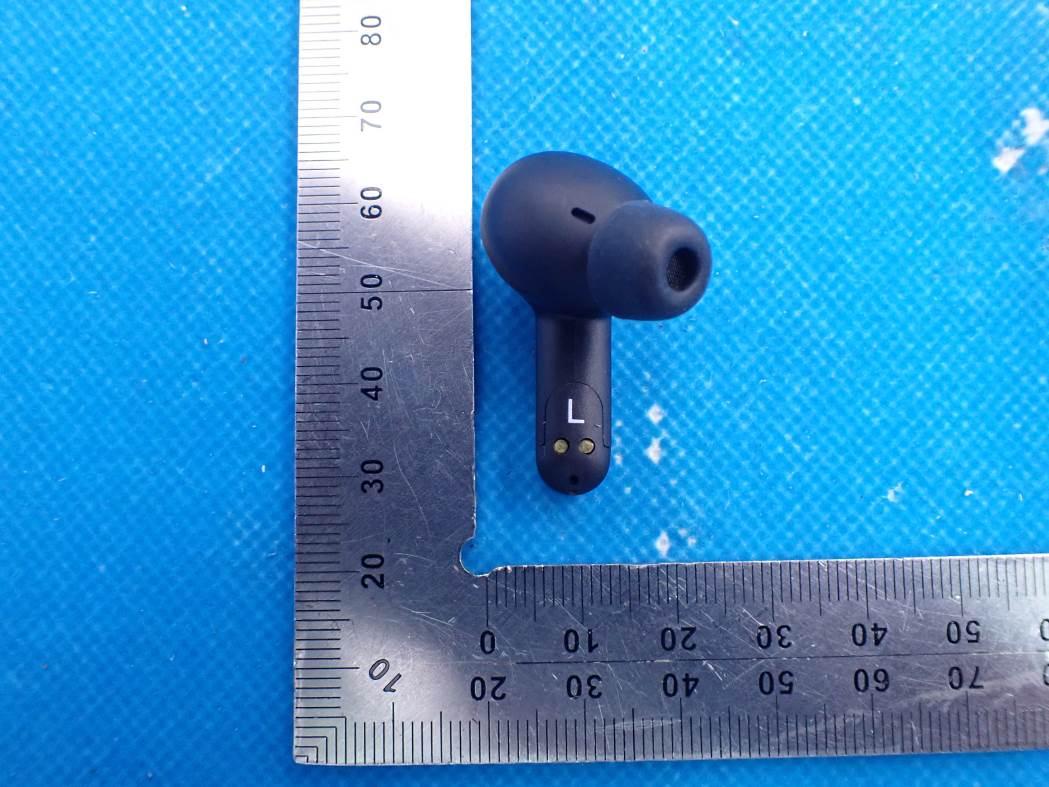

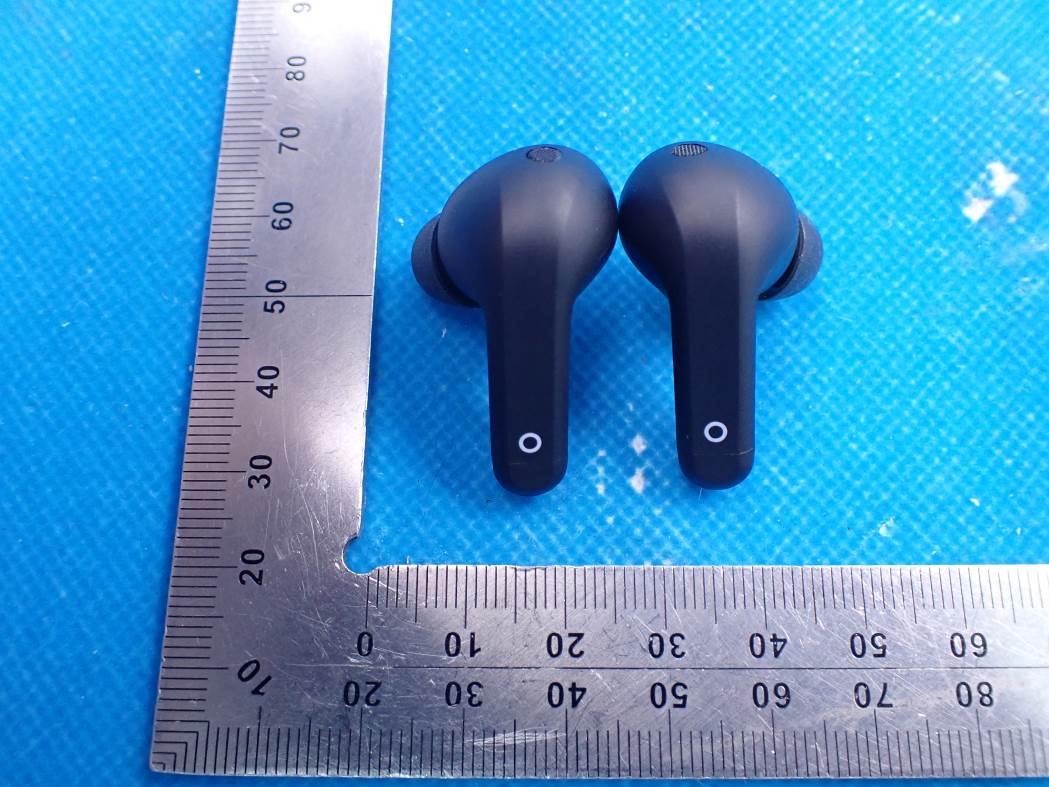

External Photos WHOLE VIEW OF EUT-1 TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Right VIEW OF EUT(PORT)

FCC ID Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description TWS Bluetooth Headset Model Name BS346GC-1 Series Model BS346GC, BS346GL, BS346GL-1 FCC ID 2AIXN346GC 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =2.892dBm=1.95mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.95mW /5mm) .[√2.480GHz)]=0.61<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 77 FCC Test Report Report No.: AGC01082210703FE03 FCC ID : 2AIXN346GC APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : TWS Bluetooth Headset BRAND NAME : N/A MODEL NAME : BS346GC-1, BS346GC, BS346GL, BS346GL-1 APPLICANT : GUANGZHOU U&I TECHNOLOGY COMPANY LIMITED DATE OF ISSUE : Jul. 28, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01082210703FE03 Page 2 of 77 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 28, 2021 Valid Initial Release Report No.: AGC01082210703FE03 Page 3 of 77 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 25 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 25 Report No.: AGC01082210703FE03 Page 4 of 77 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 25 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 25 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 25 10. RADIATED EMISSION ................................................................................................................................. 46 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 46 10.2. TEST SETUP ......................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 49 10.4. TEST RESULT........................................................................................................................................ 49 11. NUMBER OF HOPPING FREQUENCY .................................…

Text truncated - open the document above for the full version.

Report No.: AGC01082210703FE03 Page 38 of 77 Test_Graph_EDR_ANT1_2480_3Mbps_Reference Level Test_Graph_EDR_ANT1_2480_3Mbps_Lower Band Emissions Report No.: AGC01082210703FE03 Page 39 of 77 Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Emissions Report No.: AGC01082210703FE03 Page 40 of 77 Test Graphs of Band Edge Emissions in Non-Restricted Frequency Bands Test_Graph_BR_ANT1_2402_1Mbps_Lower Band Edge Emissions Test_Graph_BR_ANT1_2480_1Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 41 of 77 Test_Graph_BR_HOP_ANT1_NA_1Mbps_Lower Band Edge Emissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 42 of 77 Test_Graph_EDR_ANT1_2402_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_2Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 43 of 77 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 44 of 77 Test_Graph_EDR_ANT1_2402_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 45 of 77 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Higher Band Edge Emissions Report No.: AGC01082210703FE03 Page 46 of 77 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC01082210703FE03 Page 47 of 77 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC01082210703FE03 Page 48 of 77 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC01082210703FE03 Page 49 of 77 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT Radiated emission below 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC01082210703FE03 Page 50 of 77 Radiated emission from…

Text truncated - open the document above for the full version.

Report No.: AGC01082210703FE03 Page 68 of 77 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC01082210703FE03 Page 69 of 77 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC01082210703FE03 Page 70 of 77 RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Report No.: AGC01082210703FE03 Page 71 of 77 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC01082210703FE03 Page 72 of 77 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Report No.: AGC01082210703FE03 Page 73 of 77 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 BT Antenna Report No.: AGC01082210703FE03 Page 74 of 77 Right VIEW OF EUT(PORT) OPEN VIEW OF EUT Report No.: AGC01082210703FE03 Page 75 of 77 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC01082210703FE03 Page 76 of 77 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC01082210703FE03 Page 77 of 77 INTERNAL VIEW OF EUT-4 ----END OF REPORT---- BT Antenna Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
