2AIZN-X6528BMobile Phone

Infinix HOT 40i X6528B User Manual(Ab&Ae&Bi) 1 Explosion diagram specification 1 TP+LCM 2 REC DECO 3 FRONT COVER 4 MAIN BOARD 5 SIDEKEY FPC MYLAR 6 SIDEKEY FPC 7 FRONT CAMERA 8 FINGERPRINT FPC 9 REAR CAMERA 50M 10 REAR CAMERA AI 11 REC CON FB 12 SIM CARD HOLDER 13 PS RUBBER 14 BATTERY 15 RECEIVER 16 LED FLASH 17 RF LINE 18 MID FRAME 19 SCREW M1.4*L3.5*D2.5 20 BATTERY COVER 21 RCAM DECO 22 RCAM DECO LENS 23 RCAM LENS 50M 24 RCAM LENS AI 25 REAR FLASH LENS 26 SCREW M1.4*L3.0*D2.5 27 USB RUBBER 28 EARJACK RUBBER 29 MAIN BOARD COPPER D 30 MAIN BOARD COPPER B 31 MAIN BOARD COPPER A 32 SPEAKER 33 MOTOR 34 SUB BOARD 35 SCREW M1.4*L2.0*D2.5 2 Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor 5. NFC 2 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 3 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. 4 FCC Caution Labelling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that 5 were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X6528B (FCC ID:2AIZN-X6528B) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.17 W/kg and when properly worn on the body is 0.78 W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. 6 For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Operating System：Android TM Android is a trademark of Google LLC.

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-08-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AIZN-X6528B INFINIX MOBILITY LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-08-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AIZN-X6528B INFINIX MOBILITY LIMITED certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

U.S. AGENT LETTER OF ATTESTATION Date: 2023-08-23 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AIZN-X6528B INFINIX MOBILITY LIMITED certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. INFINIX MOBILITY LIMITED accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19- 25 SHAN MEI STREET FOTAN NT HONGKONG FRN: 0025707605 Tel: 86-755-61803856 Email: [email protected] Signed by (printed name): Jerry Liu Signature:

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] QA-FR-170-B FCC Authorization Date: 2023-08-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, INFINIX MOBILITY LIMITED hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Jerry Liu Certified Engineer

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] FCC Confidential Authorization Date: 2023-08-23 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIZN-X6528B In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INFINIX MOBILITY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list/Tune up Procedure (for licensed device) • Software Security Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Jerry Liu Certified Engineer

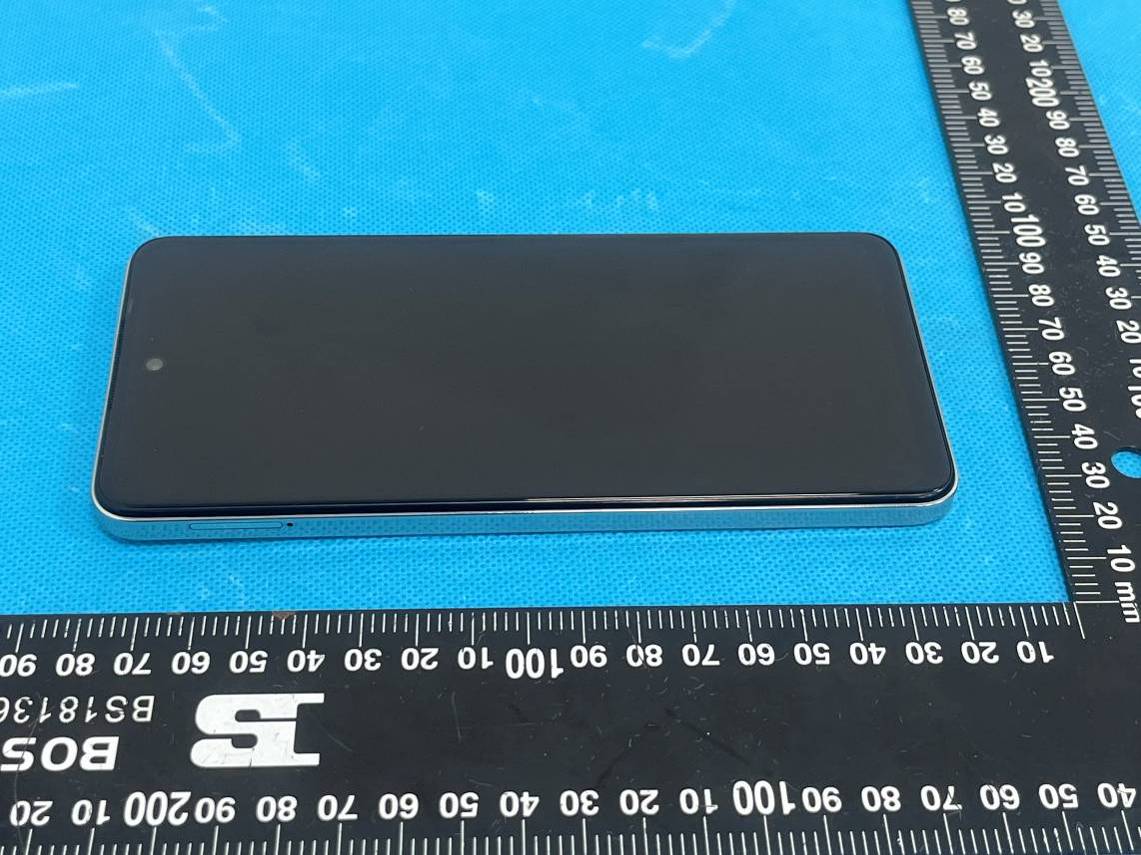

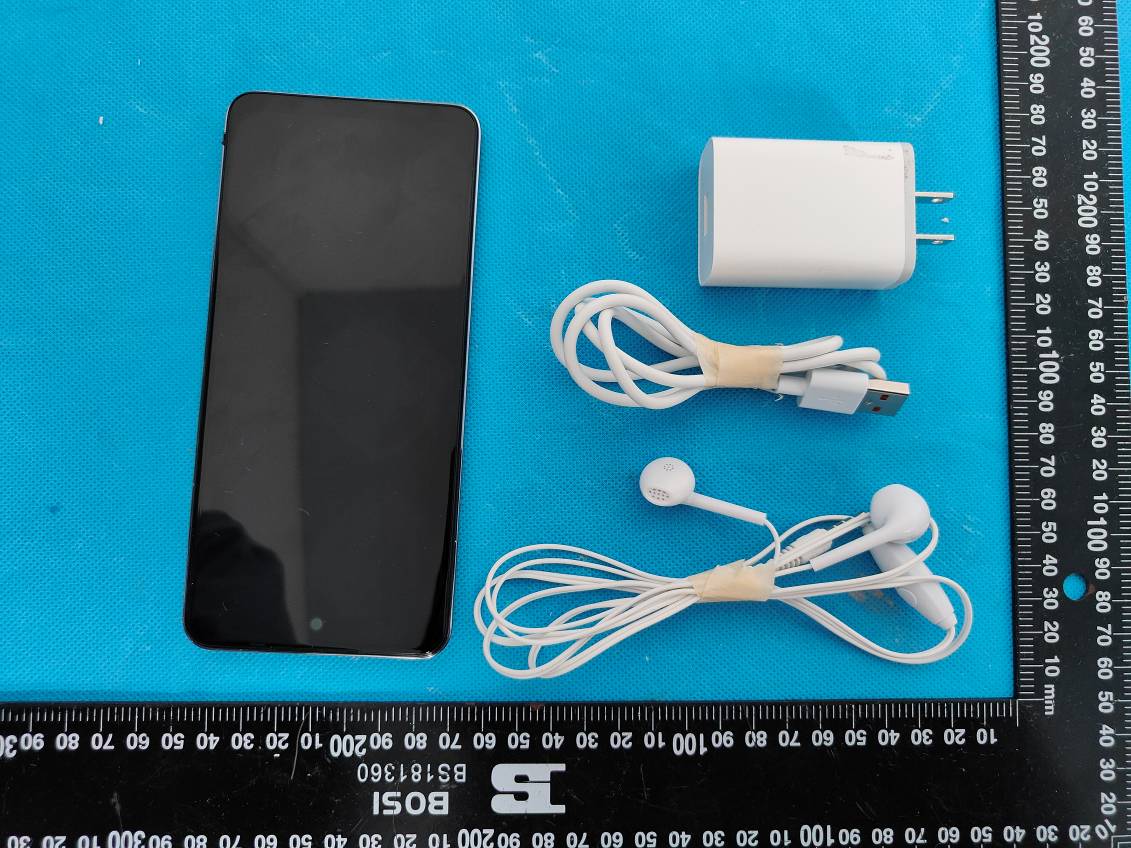

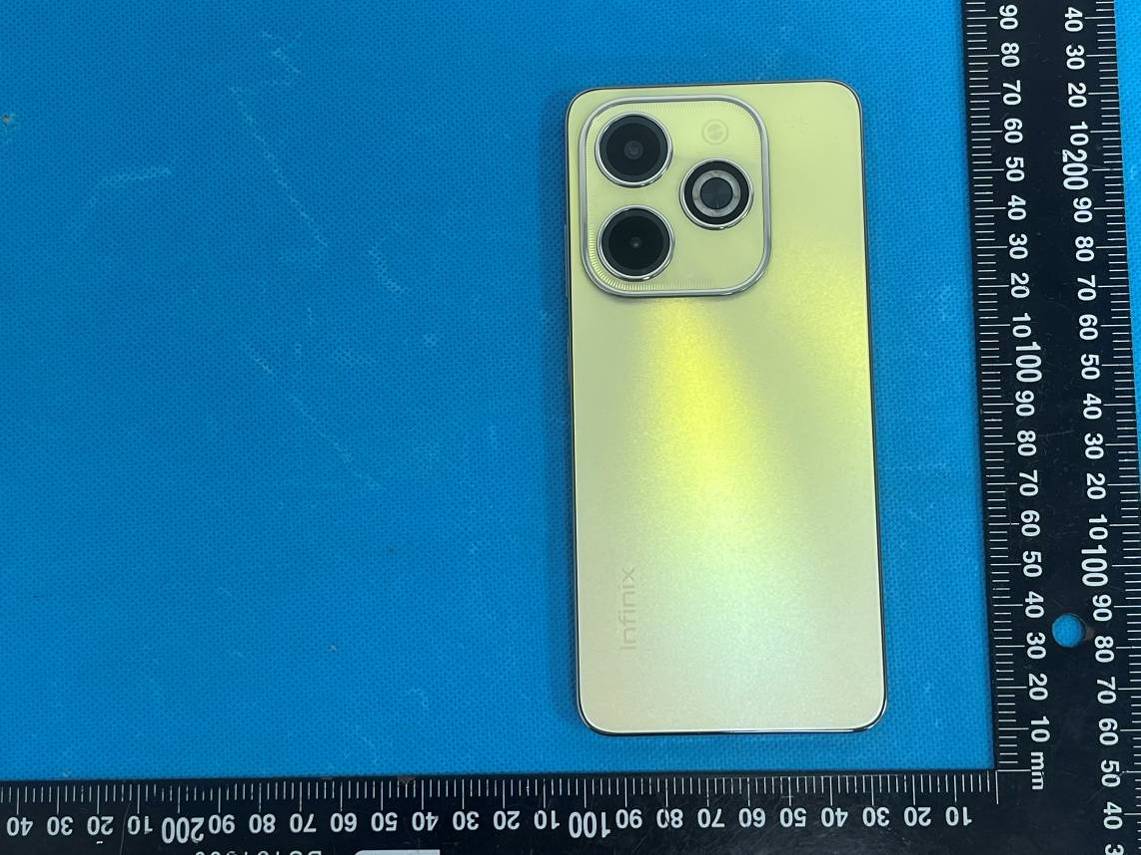

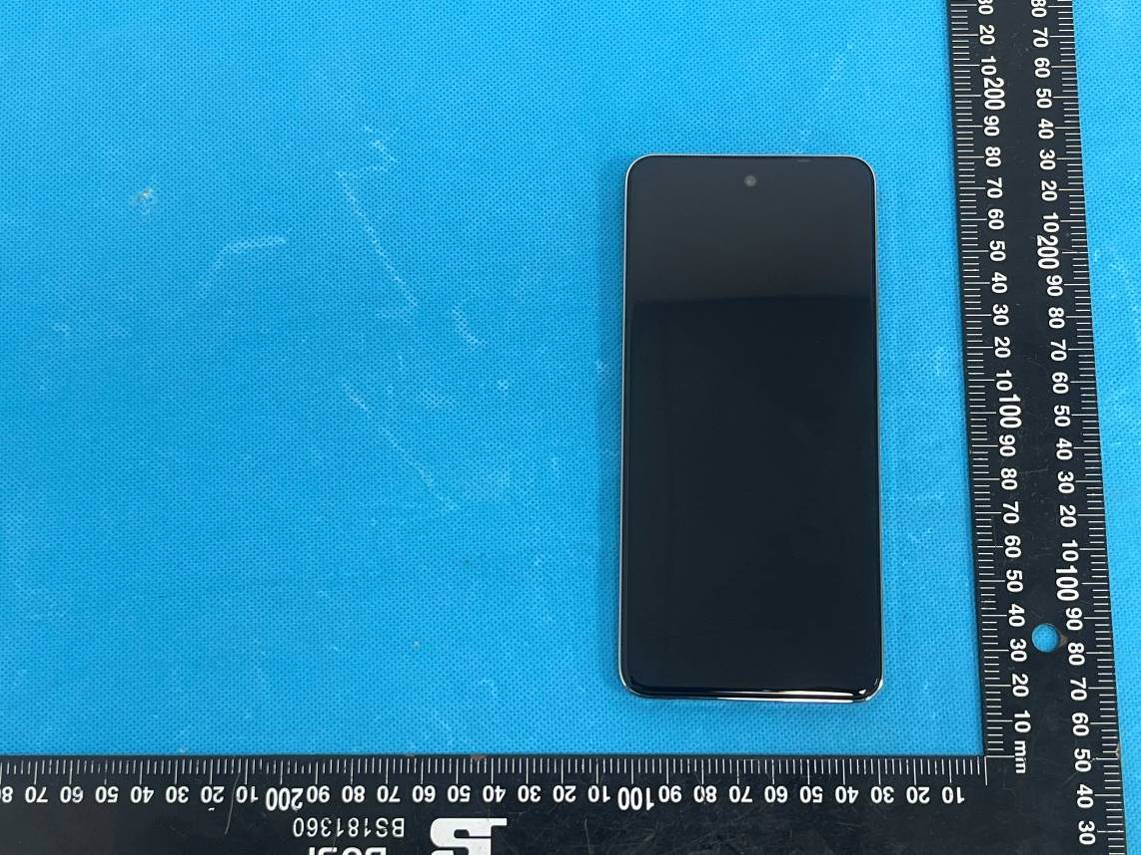

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 2 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 3 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 4 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 5 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-EXP Page 6 of 6

Lab La b bel bel location

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 1 of 13 EUT INTERNAL PHOTOGRAPHS NFC ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 2 of 13 Main ANT 5G WIFI ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 3 of 13 DIV ANT BT/2.4GWIFIANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 4 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 5 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 6 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 7 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 8 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 9 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 10 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 11 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 12 of 13 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-INP Page 13 of 13

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F Page 39 of 41 5. RF EXPOSURE EVALUATION Applicable Standard According to KDB447498 D01 General RF Exposure Guidance v06: 4.3. General SAR test exclusion guidance c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f (MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz Measurement Result: For NFC, the power of EUT: E Field@3m is 67.08dBuV/m =-28.12 dBm(0.0015mW) Note: E[dBμV/m] = EIRP[dBm] + 95.2 for d = 3 m. SAR test exclusion threshold for NFC(13.56MHz) separation distance < 50mm =[474*(1 + log(100/f (MHz)))]/2 = 443mW >0.0015mW Result: Compliant.

TEST REPORT Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong FCC ID: 2AIZN-X6528B Product Name: Mobile Phone Standard(s): 47 CFR Part 15, Subpart C(15.225) ANSI C63.10-2013 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230848333-00F Date Of Issue: 2023/9/16 Reviewed By: Calvin Chen Title:RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F Page 2 of 41 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F Page 3 of 41 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED EMISSIONS ....................................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 14 3.2.4 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH ........................................................................................................... 16 3.3.1 Applicable Standard ..................................................................................................................................... 1…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F-TSP Page 2 of 3 Radiated Emission Below 30MHz View Parallel Radiated Emission Below 30MHz View Perpendicular China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848333-00F-TSP Page 3 of 3 Radiated Emission Below 30MHz View Ground-parallel Radiated Emission 30MHz-1GHz View
