2AIZN-X657BMobile Phone

User Manual Mobile Phone Infinix X657B FCC ID: 2AIZN‐ X657B INFINIX MOBILITY LIMITED 1 E E x x p p l l o o s s i i o o n n d d i i a a g g r r a a m m s s p p e e c c i i f f i i c c a a t t i i o o n n 1 FL(CTP+LCM) 2 fornt housing Assembly 3 PCBA Main 4 Front Camera 5 Back Camera 6 Back Camera 7 Back Camera 8 R CAM Con foams 9 LT sensor Seal rubber 10Fornt CAM rubber 11 REC con fb 12MAIN Cop foil 13 Recover 14FPC REC 15 LT sensor diffuse film 16UP frame asm 17 Bat cover asm 183in1 card holder 19 Rear CAM Lens 20Fingerchip spacer 21 FP support plate 22LCM FPC con rubber 23 FP BTBsiliconeLoop 24Bat con rubber 25 FPC Switch key 26FP Con foams 27 M1.4xL2.5 SCREW 28 PCBA SUB 29 SPK 30FPC SPK 31 Battery 32Moto 33 M1.4xL3.0 SCREW 34SUB PCB BTB Rubber 35 USB Seal rubber 36Audio Jack Seal rubber 37 LCM FPC seal mylar 38coaxial cable 39 SPK frame asm 40R vice CAM rubber 2 Know your phone 1. Front camera 2. Volume + key 3. Volume ‐ key 4. Power key 3 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 4 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). 1. Please remind the front and back of the plug. 2. Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate yo ur phone warranty. 5 Emergency call If any emergency arises, dial 112/911 (or other emergency call number) for emergency help. Due to the nature of cellular networking, the success of emergency call is not guaranteed. FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1 ) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and f ound to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and us ed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, th e user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is co nnected. ‐Consult the dealer or an experienced radio/TV technician for help. 6 The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types X657B (FCC ID: 2AIZN‐X657B) has also been tested against this SAR limit. The highest reported SAR values for head, body‐worn accessory, and product specific (Hotspot) are 1.00 W/kg, 0.75 W/kg, and 0.81 W/kg res pectively. The Max simultaneous SAR is 1.21 W/kg. This device was tested for typical body‐worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the ba ck of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. 5G For 5150‐5250 and 5725‐5850 fr equency band, Operations in the 5150‐5250 and 5725‐5850 band are restricted to indoor usage only. 5G: Any emission is maintained within the band of operation under all conditions of normal operation. The max. frequency stability is less than 20ppm.

INFINIX MOBILITY LIMITED Date: 2020-04-17 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AIZN-X657B To Whom It May Concern: This letter is to statement that X657B / Mobile Phone. has been tested according to FCC Part 15B by Waltek Services (Shenzhen) Co., Ltd. (Test Report No.: WTS20S04019211E). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, Signature [Yiting Luo] [Manager] [INFINIX MOBILITY LIMITED]

INFINIX MOBILITY LIMITED Date: Apr. 17, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AIZN-X657B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Long-term confidentilality: Schematics Block Diagram Operational Description Schematics.pdf Block Diagram.pdf Operational Description.pdf Part List Part Placement Schematics PCB Layout Schematics Tune-up Procedure Short-term confidentilality: External Photos User’s Manual Internal Photos Setup photos DSS DTS Setup photos PCE Setup photos NII Setup photos SAR Part List.pdf Part Placement Schematics.pdf PCB Layout Schematics.pdf Tune-up Procedure.pdf External Photos.pdf User’s Manual.pdf Internal Photos.pdf Setup photos DSS DTS.pdf Setup photos PCE.pdf Setup photos NII.pdf Setup photos SAR.pdf Short-term confidentilality days: 180 days. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, INFINIX MOBILITY LIMITED Signature Yiting Luo / Manager Typed name and Title

INFINIX MOBILITY LIMITED Date: 5/12/2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD To Whom It May Concern: We, INFINIX MOBILITY LIMITED, state that our device, FCC ID: 2AIZN-X657B, has a non-detachable battery, the label is visible to the users as they purchase the products and install TF card or SIM cards. The back cover can not be moved away, so the FCC ID label has to be placed on the surface of product. Sincerely, Signature [Yiting Luo (Name)] [Manager (Title)] [INFINIX MOBILITY LIMITED (Company name)]

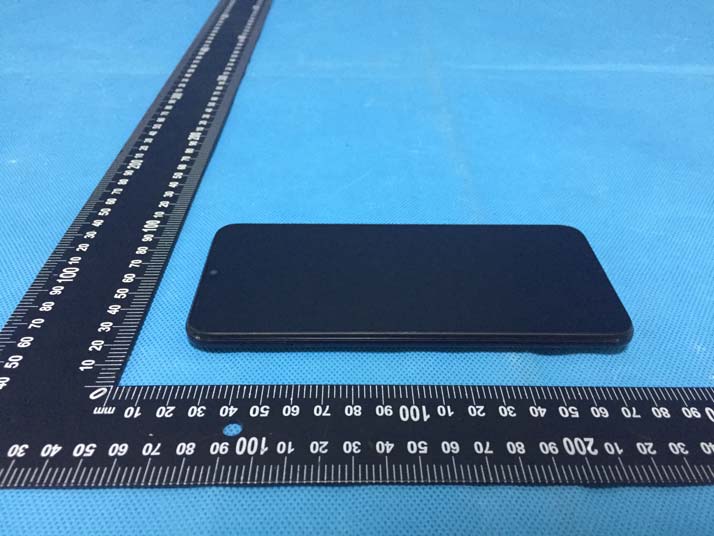

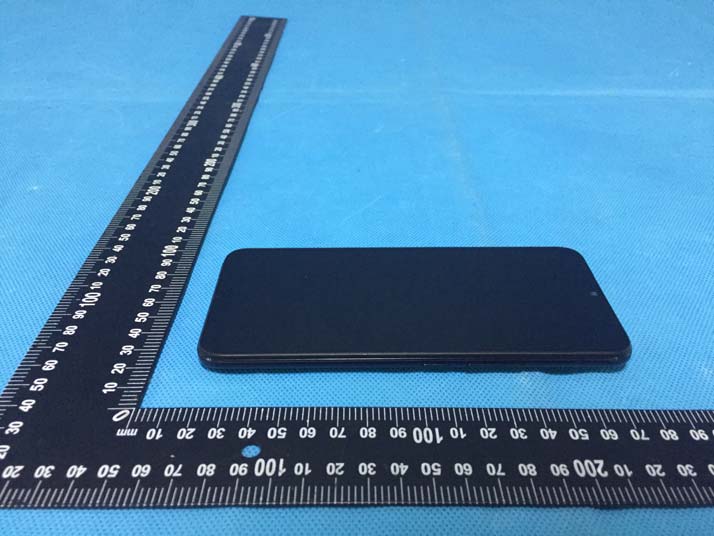

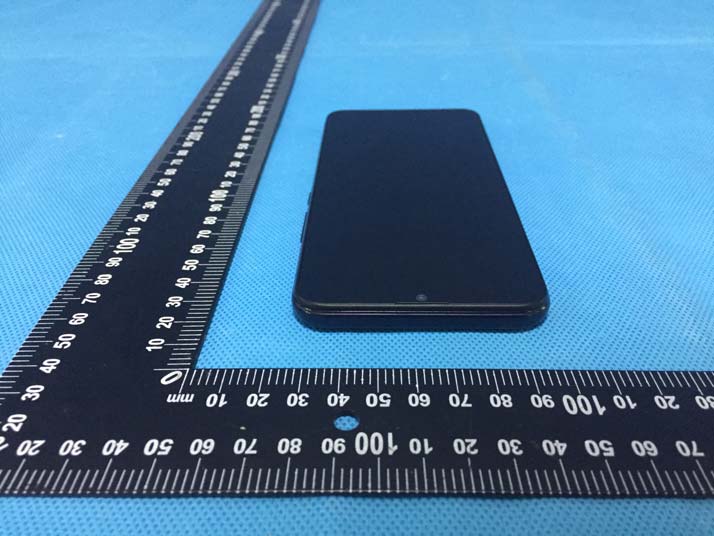

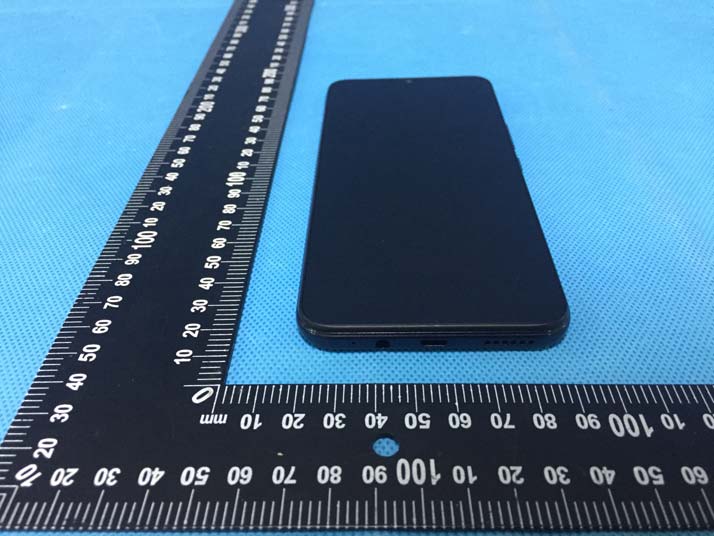

Appendix-X657B-Photos Page 4 of 18 EUT – External View Model X657B FCC ID: 2AIZN-X657B Appendix-X657B-Photos Page 5 of 18 Appendix-X657B-Photos Page 6 of 18 Appendix-X657B-Photos Page 7 of 18 Appendix-X657B-Photos Page 8 of 18

X657B Label Sample and Location

Appendix-X657B-Photos Page 9 of 18 EUT – Internal View Model X657B FCC ID: 2AIZN-X657B GSM/WCDMA/LTE ANT. BT/WIFI/GPSANT. Appendix-X657B-Photos Page 10 of 18 Appendix-X657B-Photos Page 11 of 18

Appendix-X657B-Photos Page 12 of 18 Appendix-X657B-Photos Page 13 of 18 Appendix-X657B-Photos Page 14 of 18

Appendix-X657B-Photos Page 15 of 18 Appendix-X657B-Photos Page 16 of 18 Appendix-X657B-Photos Page 17 of 18 Appendix-X657B-Photos Page 18 of 18 ======End======
