2AIZN-X6835Mobile Phone

Infinix X6835 User Manual (T) 1 Explosion diagram specification 1 FL(CTP+LCM) 2 F HSG ASM 3 PS RUBBER 4 PCBA COPPER C 5 PCBA COPPER A 6 PCBA COPPER B 7 PCBA MB 8 PCBA GRAPHITE FILM 9 F CAM FRAME 10 F CAM 11 FPC SIDE KEY 12 F CAM COPPER 13 REC 14 REC COPPER 15 FM 16 CARD HOLDER 17 R CAM CON FOAM 16M 18 R CAM 16M 19 R CAM CON FABRIC 8W 20 R CAM 8W 21 LCM CONN RUBBER 22 BAT CONN RUBBER 23 MAIN WATERPROOF FRAME 24 MAIN WATERPROOF MYLAR 25 MI HOUSING 26 MI RAD GRA 27 28 SCREW L3.5 29 R FLASH DECO 30 R CAM DECO 16M 31 R CAM RUBBER 8W 32 BAT COVER ASM 33 R FLASH LENS 34 R CAM LENS 16M 35 R CAM LENS 8W 36 R CAM DECO 8W 37 SCREW L2.0 38 SUB CONN RUBBER 39 SPK 40 MOTOR LINEA 41 PCBA SUB 42 USB RUBBER 2 43 EARPHONE RUBBER 44 BAT 45 COAXIAL CABLE 3 Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor 2 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 3 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. 4 FCC Caution Labelling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for 5 exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X6835(FCC ID:2AIZN-X6835) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.11W/kg and when properly worn on the body is 1.24W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Operating System：Android TM Android is a trademark of Google LLC.

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-02-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AIZN-X6835 INFINIX MOBILITY LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-02-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AIZN-X6835 INFINIX MOBILITY LIMITED certifies that as of the date of the filing of the application, the applicantis not identified on the Covered List as an entity producing “covered” equipment. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

U.S. AGENT LETTER OF ATTESTATION Date: 2023-02-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AIZN-X6835 INFINIX MOBILITY LIMITED certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID . INFINIX MOBILITY LIMITED accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19- 25 SHAN MEI STREET FOTAN NT HONGKONG FRN: 0025707605 Tel:86-755-61803856 Email:[email protected] Signed by (printed name): Jerry Liu Signature:

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.:+86-0755-61803856Fax:755-33979211 E-mail:[email protected] QA-FR-170-B FCC Authorization Date: 2023-01-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, INFINIX MOBILITY LIMITED hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Jerry Liu Certified Engineer

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.:+86-0755-61803856Fax:755-33979211 E-mail:[email protected] FCC Confidential Authorization Date: 2023-01-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIZN-X6835 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INFINIX MOBILITY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description Part list/Tune up Procedure (for licensed device) Software Security Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: Internal Photos User’s Manual External Photos Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Jerry Liu Certified Engineer

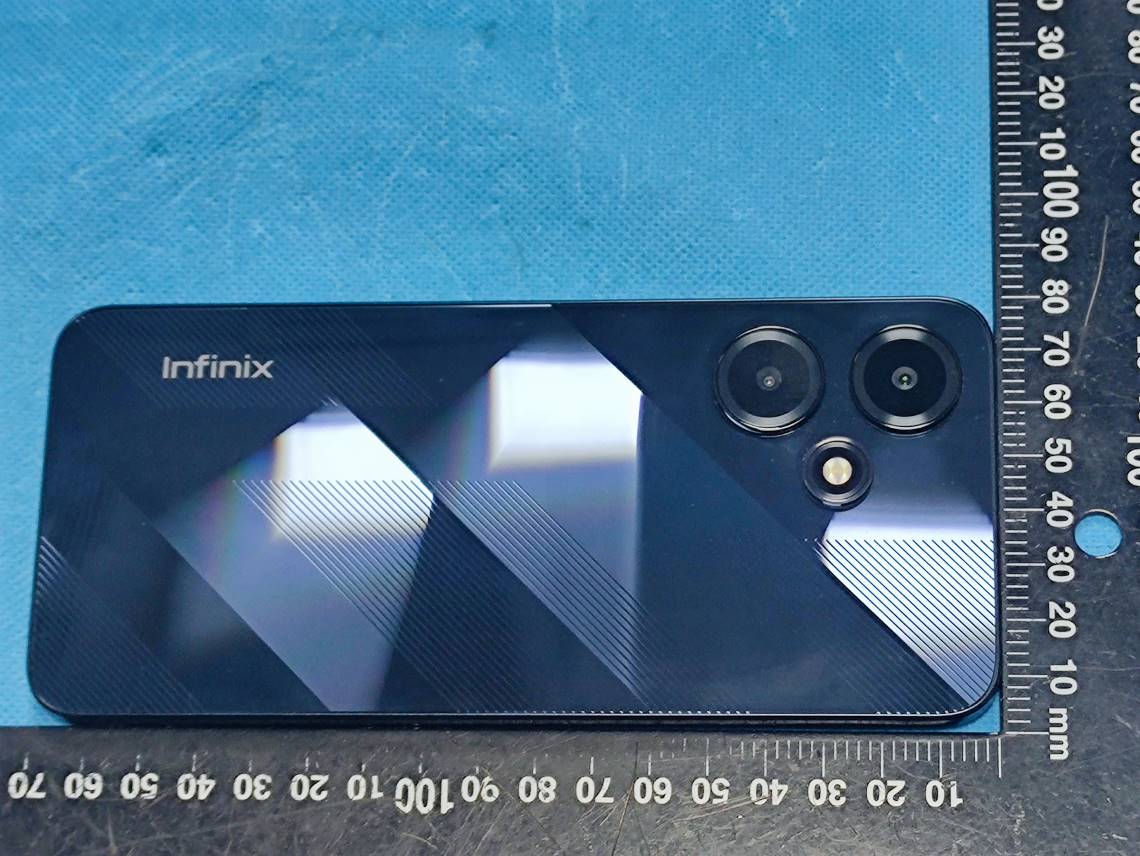

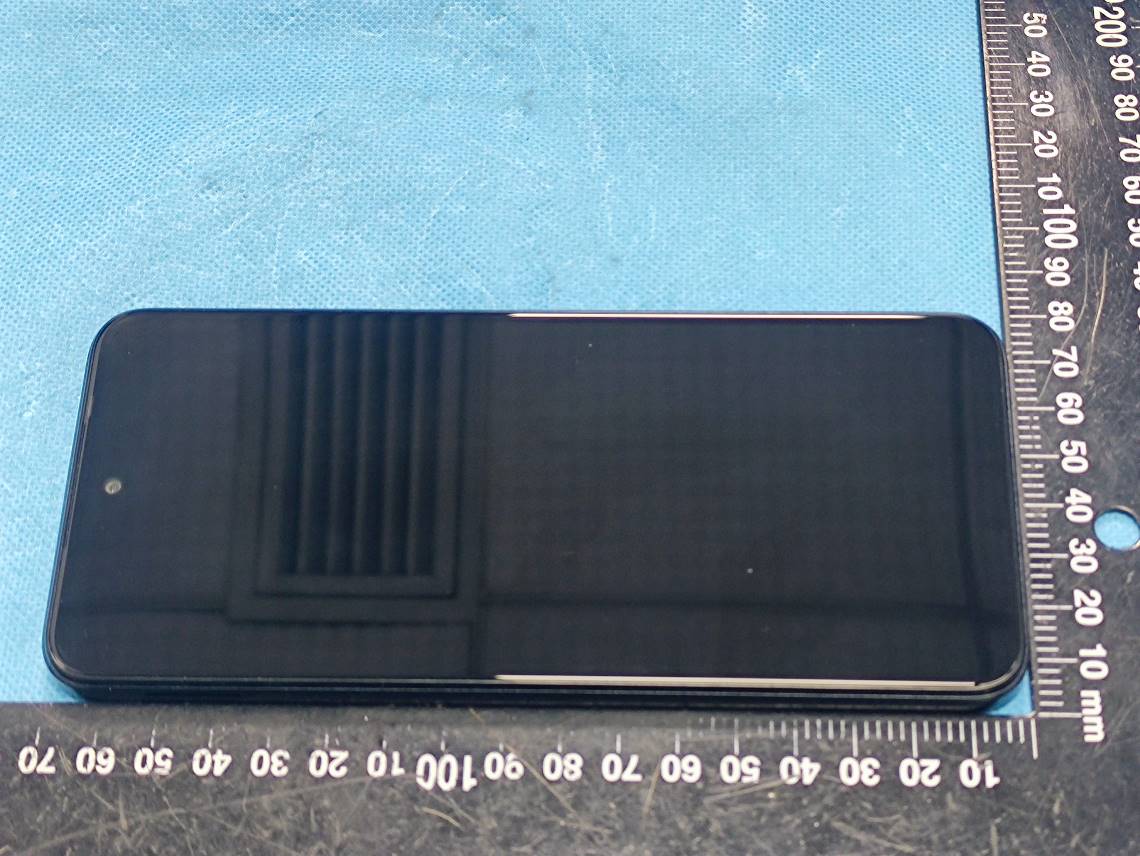

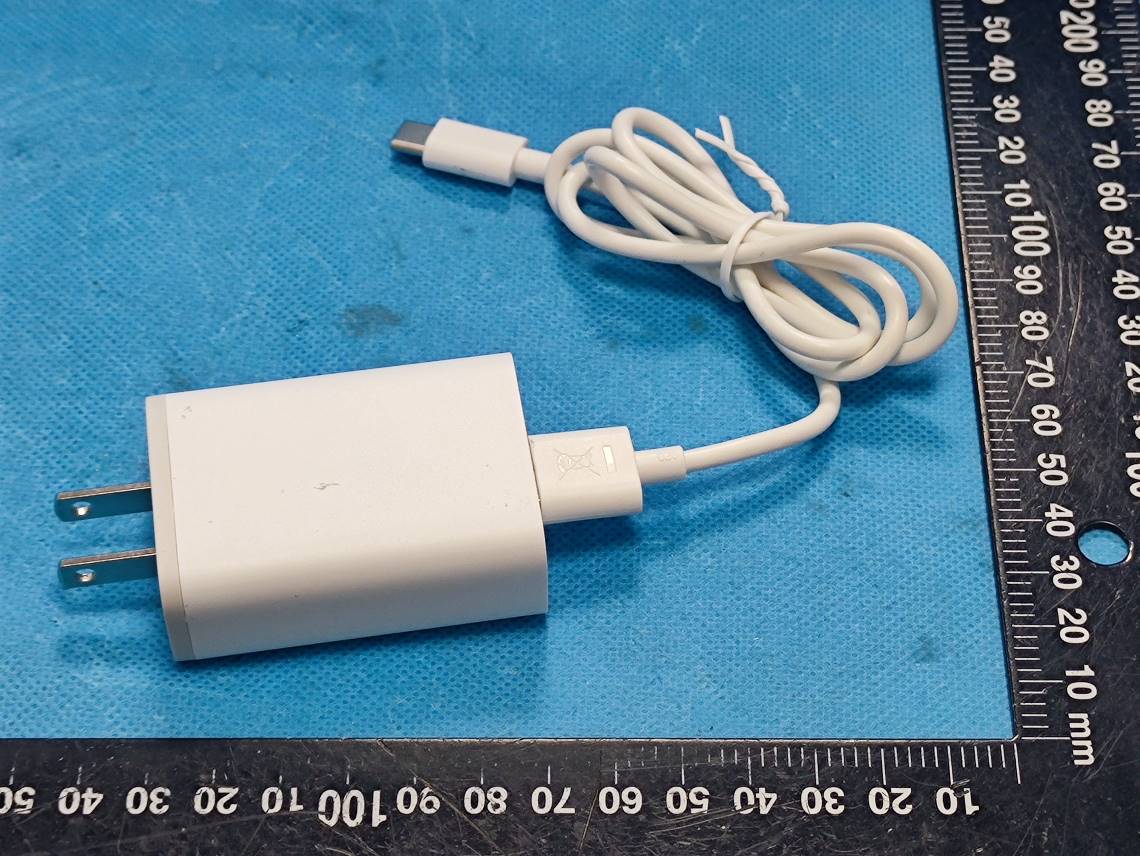

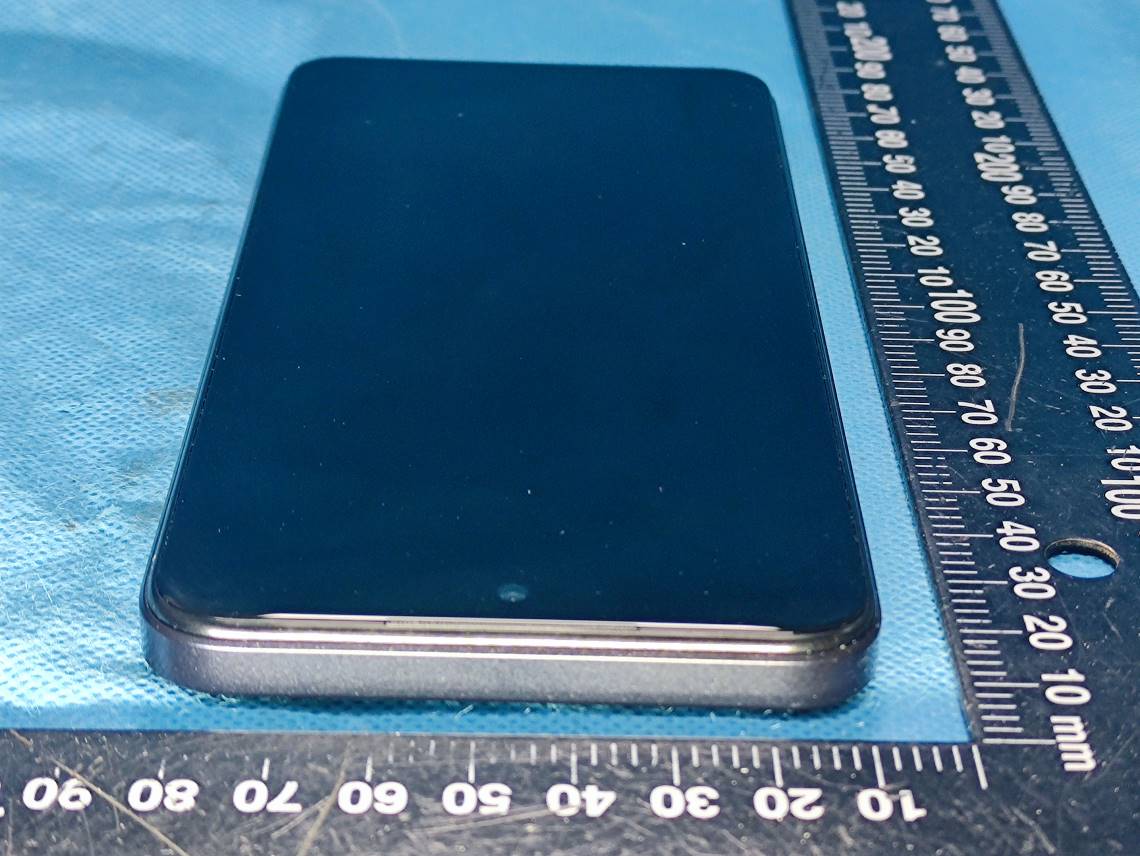

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS WWAN Main Antenna Bluetooth/WiFi Antenna WWAN Aux Antenna

APPENDIX C PROBE CALIBRATION CERTIFICATES PROBE CALIBRATION CERTIFICATES

DIPOLE CALIBRATION CERTIFICATES

SAR TEST REPORT Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN HONG KONG FCC ID: 2AIZN-X6835 Product Name: Mobile Phone Tested Model: X6835 Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221263962-SA Date Of Issue: 2023-03-06 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263962-SA Page 2 of 90 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Head SAR Body SAR (Gap 10mm) GSM 850 1.11 0.47 1.6 PCS 1900 1.00 1.24 WCDMA Band 2 0.56 0.39 WCDMA Band 4 0.65 0.33 WCDMA Band 5 0.68 0.38 LTE Band 2 0.62 0.41 LTE Band 4 0.63 0.35 LTE Band 5 0.80 0.52 LTE Band 7 1.03 0.69 LTE Band 41&380.67 0.35 WLAN 2.4G 0.67 0.21 WLAN 5.2G 0.35 0.56 WLAN 5.8G 0.38 0.57 Bluetooth 0.03 0.01 Maximum Simultaneous Transmission SAR Items Head Body-Worn (Gap 10mm) Hotspot (Gap 10mm) Limits Sum SAR(W/kg) 1.43 1.47 1.47 1.6 SPLSR / / / 0.04 Operation Frequency Bands Highest Reported 10g SAR (W/kg) Limits (W/kg) Handheld SAR (Gap 0mm) PCS 1900 2.42 4.0 Maximum Simultaneous Transmission SAR Items Handheld SAR (Gap 0mm) Limits Sum SAR(W/kg) 3.35 4.0 EUT Received Date: 2023/01/03 Tested Date: 2023/02/13~2023/02/17 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263962-SA Page 3 of 90 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263962-SA Page 4 of 90 CONTENTS SAR TEST RESULTS SUMMARY .............................................................................................. 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 DOCUMENT REVISION HISTORY .......................................................................................... 6 1. GENERAL INFORMATION .................................................................................................... 7 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 7 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 8 1.3 SAR LIMTS ........................................................................................................................................... 9 2. SAR MEASUREMENT SYSTEM .......................................................................................... 10 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 18 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 18 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 19 4.1 LIQUID VERIFICATION ...................................................................................................................... 19 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 22 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 23 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 30 5.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................... 30 5.2 CHEEK/TOUCH POSITION .................................................................................................................. 31 5.3 EAR/TILT POSITION ........................................................................................................................... 31 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 32 5.5 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 33 5.6 SAR EVALUATION PROCEDURE ....................................................................................................... 34 6. CONDUCTED OUTPUT POWER MEASUREMENT ....................................................…

Text truncated - open the document above for the full version.

Report No.: CR221263962-SA Page 1 of 174 Test Plot 1#: GSM 850_Head Left Cheek_Middle DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 40.512; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (81x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.576 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.07 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.651 W/kg SAR(1 g) = 0.402 W/kg; SAR(10 g) = 0.266 W/kg Maximum value of SAR (measured) = 0.552 W/kg 0 dB = 0.552 W/kg = -2.58 dB dBW/kg Report No.: CR221263962-SA Page 2 of 174 Test Plot 2#: GSM 850_Head Left Tilt_Middle DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 40.512; ρ = 1000 kg/m 3 ; Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.962 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.66 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.638 W/kg; SAR(10 g) = 0.389 W/kg Maximum value of SAR (measured) = 0.982 W/kg 0 dB = 0.982 W/kg = -0.08 dB dBW/kg Report No.: CR221263962-SA Page 3 of 174 Test Plot 3#: GSM 850_Head Right Cheek_Low DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.871 S/m; ε r = 40.679; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @824.2 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (81x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.38 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.59 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.773 W/kg; SAR(10 g) = 0.489 W/kg Maximum value of SAR (measured) = 1.16 W/kg 0 dB = 1.16 W/kg = 0.64 dB dBW/kg Report No.: CR221263962-SA Page 4 of 174 Test Plot 4#: GSM 850_Head Right Cheek_Middle DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.909 S/m; ε r = 40.512; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @836.6 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (81x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.50 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.97 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 1.80 W/kg SAR(1 g) = 0.881 W/kg; SAR(10 g) = 0.559 W/kg Maximum value of SAR (measured) = 1.31 W/kg 0 dB = 1.31 W/kg = 1.17 dB dBW/kg Report No.: CR221263962-SA Page 5 of 174 Test Plot 5#: GSM 850_Head Right Cheek_High DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 848.8 MHz; σ = 0.933 S/m; ε r = 40.401; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @848.8 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (81x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.59 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.87 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 0.968 W/kg; SAR(10 g) = 0.611 W/kg Maximum value of SAR (measured) = 1.46 W/kg 0 dB = 1.46 W/kg = 1.64 dB dBW/kg Report No.: CR221263962-SA Page 6 of 174 Test Plot 6#: GSM 850_Head Right Tilt_Low DUT: Mobile Phone; Type: X6835; Serial: 1WPY-1 Communication System: Generic GSM (0); Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.871 S/m; ε r = 40.679; ρ = 1000 kg/m 3 ; Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7522; ConvF(9.7, 9.7, 9.7) @824.2 MHz; Calibrated: 2022/5/6  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn1354;Calibrated: 2022/10/31  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x131x1): Interpolated …

Text truncated - open the document above for the full version.

Fea ※ H ※ O ※ W A p ※ G L c Proje X68 ature High gain Omani-direc Wide bandw pplication GSM850/90 LTE B1/B2/ ommunicat ect 35 ctional width n 0/DCS/PCS /B3/B4/B5/B tion applicat S/WCDMA B7/B8/B20/ tions Name and manufactu Name: 尚 Sunny Address ： 99号4号 Floor 1, B 215, Gao District, S AB1/B2/B4/B /B28/B38/B d address of th urer 远科技通讯科 yway ： 上海市青浦区 号楼1楼 Building 4, N oguang Road Shanghai B5/B8 B40/B41 he antenna 科技有限公司 区高光路215 No. 99, Lane d, Qingpu Main Antenn Model nu 司 弄 SYC-X6 8 SYC-X68 SYC-X68 na umber of the a 835-ANT1-V0. 835-ANT2-V0. 835-ANT3-V0. antenna .2 .2 .2 Tr R M 3 ransmitter F Receiver Fre Main Anten (Peak G 3in1 Antenn (Peak G Frequency equency na Gain Gain) na Gain Gain) GSM 8 5 GSM 90 DCS /WC PCS/W WC GSM 85 GSM 90 WC PCS/W WC WC GSM 8 GSM DCS P BT/2 50/WCDMA 00/WCDMA CDMA B4/ WCDMA B CDMA B1/L LTE B LTE B4 LTE B3 LTE B4 LTE B B28 50/WCDMA 00/WCDMA DCS/LTE B CDMA 4/L WCDMA B CDMA B1/L LTE B LTE B4 LTE B3 LTE B4 LTE B LTE B DMA B1/B 850/WCDM M 900/WCD S/WCDMA PCS/WCDM WCDMA LTE B7 LTE LTE B 2.4G Wi-Fi A B5/LTE B A B8/LTE B /LTE B3/B4 B2/LTE B2: LTE B1: 192 7:2496-256 40:2300-240 38: 2570-26 41: 2535-26 B20:832-862 8:700-748M A B5/LTE B A B8/LTE B B3: 1805– LTE B4: 211 B2/LTE B2: LTE B1: 21 7:2620-269 40:2300-240 38: 2570-26 41: 2535-26 B20:791-821 B28:758-803 B2/B4/B5/ B MA B5/LTE DMA B8/LT A B4/ LTE B MA B2/LTE A B1/LTE B 7/B38/B41: E B40: -1.4d B28:-6.2MH :0.8dBi, 5G B5: 824–84 B8: 880–9 4: 1710–17 :1850-1910 20 – 1980M 65MHz 00MHz 20MHz 55MHz 2MHz MHz B5: 869–89 B8: 925–96 1880 MHz 10-2155 MH :1930-1990 10 – 2170M 90MHz 00MHz 20MHz 55MHz 1MHz 3MHz B8: 23+/-2d B5/ B20: -4 TE B8: -4.2 B3/B4/: -1.8 E B2: 1.7dB B1: 2.2dBi -0.5dBi dBi HzdBi G Wi-Fi: 0.5 49 MHz 15 MHz 785 MHz MHz MHz 94 MHz 60 MHz Hz MHz MHz dBm 4.8dBi 2dBi 8dBi Bi 5dBi ※ A Mai n Antenna Ga n Antenna ain GS GS SM 850/WCD SM 850/WCD DMA B5/LTE DMA B5/LTE E B5/ B20 Ph B5/ B20 Phi hi=0deg i=90deg ※ A Mai n Antenna Ga n Antenna GSM ain M 850/WCDM L MA B5/LTE B LTE B40 Phi= B5/ B20 Thet =0deg ta=90deg ※ A Mai n Antenna Ga n Antenna ain L LT LTE B40 Phi= TE B40 Theta= =90deg =90deg G GSM900 / W GSM900 / WC WCDMA B8 / L CDMA B8 / L LTE B8 Phi= LTE B8 Phi=9 0deg 90deg ※ A Mai n Antenna Ga n Antenna G ain DCS1800/PC GSM900 / WC CS1900/WCD CDMA B8 / LT DMA B1/B2/B TE B8 Theta= B4/LTE B1/B2 =90deg 2/B3/B4 Phi=00deg D D DCS1800/PC . DCS1800/PCS CS1900/WCDM S1900/WCDM MA B1/B2/B4 MA B1/B2/B4/ 4/LTE B1/B2/ /LTE B1/B2/B /B3/B4 Phi=9 B3/B4 Theta= 90deg =90deg ※ A Mai n Antenna Ga n Antenna ain LTE LTE E B7/B38/41 P E B7/B38/41 P Phi=0deg Phi=90deg ※ A 2.4 G Antenna Ga G WIFI&BT A ain Antenna LTE B 2.4G B7/B38/41 Th G WIFI&BT heta=90deg Phi=0deg 2.4G 2.4G W WIFI&BT P WIFI&BT Th Phi=90deg heta=90deg ※ A 5G W Antenna Ga WIFI Antenn ain a 5 5G 5G WIFI Phi= G WIFI Phi= =0deg =90deg 5G G WIFI Thetaa=90deg An ntenna P Photo PRE EPARED BY Y CHEECKEDBY Yao.hu YAPPROOVAL BY S.R DA .NO ATE: 2022/12/099

TEST REPORT Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN HONG KONG FCC ID: 2AIZN-X6835 Product Name: Mobile Phone Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221263962-00C Date Of Issue: 2023/2/23 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263962-00C Page 2 of 53 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263962-00C Page 3 of 53 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURI…
