2AIZN-X6836Mobile Phone

Infinix HOT 40 X6836 User Manual(F&I) 1 Explosion diagram specification 1 FL(CTP+LCM) 2 REC DECO 3 F HSG ASM 4 R CAM 50M 5 F CAM 32M 6 R CAM 2M 7 REC 8 R CAM 8W 9 PCBA MB 10 COAXIAL CABLE 11 FP FPC MYLAR 12 SIM CARD HOLDER 13 PS RUBBER 14 PCBA COPPER A 15 MAIN WATERPROOF FRAME 16 PCBA GRAPHITE FILM 17 R CAM CON FOAM 18 MAIN WATERPROOF MYLAR 19 R CAM CON FABRIC 8W 20 MI HOUSING 21 SCREW L3.5 22 BAT COVER ASM 23 R CAM DECO PC 24 R CAM DECO PMMA 25 R FLASH DECO 26 R CAM RUBBER 8W 27 R CAM LENS 50M 28 R CAM LENS 2M 29 R CAM LENS 8W 30 SCREW L2.0 31 EARPHONE RUBBER 32 USB RUBBER 33 R CAM FRAME 2M 34 PCBA COPPER C 35 PCBA SUB 36 PCBA COPPER B 37 MOTOR LINEA 38 SPK 2 39 BATTERY 40 FPC SIDE KEY 41 SIDE FP 42 MAIN FPCA Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor 5. NFC 2 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 3 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. 4 FCC Caution Labelling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 5 Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X6836 (FCC ID: 2AIZN-X6836) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.00W/kg and when properly worn on the body is 0.55 W/kg. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. 6 For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Operating System：Android TM Android is a trademark of Google LLC.

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AIZN-X6836 INFINIX MOBILITY LIMITED certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AIZN-X6836 INFINIX MOBILITY LIMITED certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely Yours, Signature Jerry Liu Certified Engineer INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong

U.S. AGENT LETTER OF ATTESTATION Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AIZN-X6836 INFINIX MOBILITY LIMITED certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. INFINIX MOBILITY LIMITED accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19- 25 SHAN MEI STREET FOTAN NT HONGKONG FRN: 0025707605 Tel: 86-755-61803856 Email: [email protected] Signed by (printed name): Jerry Liu Signature:

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] QA-FR-170-B FCC Authorization Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, INFINIX MOBILITY LIMITED hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Jerry Liu Certified Engineer

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] FCC Confidential Authorization Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIZN-X6836 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INFINIX MOBILITY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list/Tune up Procedure (for licensed device) • Software Security Description As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Jerry Liu Certified Engineer

INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong Tel.: +86-0755-61803856 Fax:755-33979211 E-mail: [email protected] Date: 2023-09-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The Main chip, model: MT6769V installed in our product Mobile Phone, model: X6836, FCC ID: 2AIZN-X6836), this chip supports LTE function, but for marketing purpose, this chip only supports LTE B2/B4/B5/B7/B38/B40(Lower: 2305-2315MHz; Upper: 2350-2360MHz)/B41(2535-2655MHz), not support other LTE bands. The other LTE bands was disabled to use by manufacture in the software, the end user has no capability to activate it. The RF chip, model: MT6631N installed in our product Mobile Phone, model: X6836, FCC ID: 2AIZN-X6836, supports 5G Wi-Fi function, but for marketing purpose, this chip only supports 5G Wi-Fi(5150-5250 MHz; 5725-5850 MHz). The 5G Wi-Fi (5250-5350 MHz, 5470-5725 MHz) was disabled to use by manufacture in the software and for BLE 2M, only supports 2404-2478MHz, the 2402MHz and 2480MHz was also disabled. The end user has no capability to activate it. Sincerely Yours, Signature Jerry Liu Certified Engineer

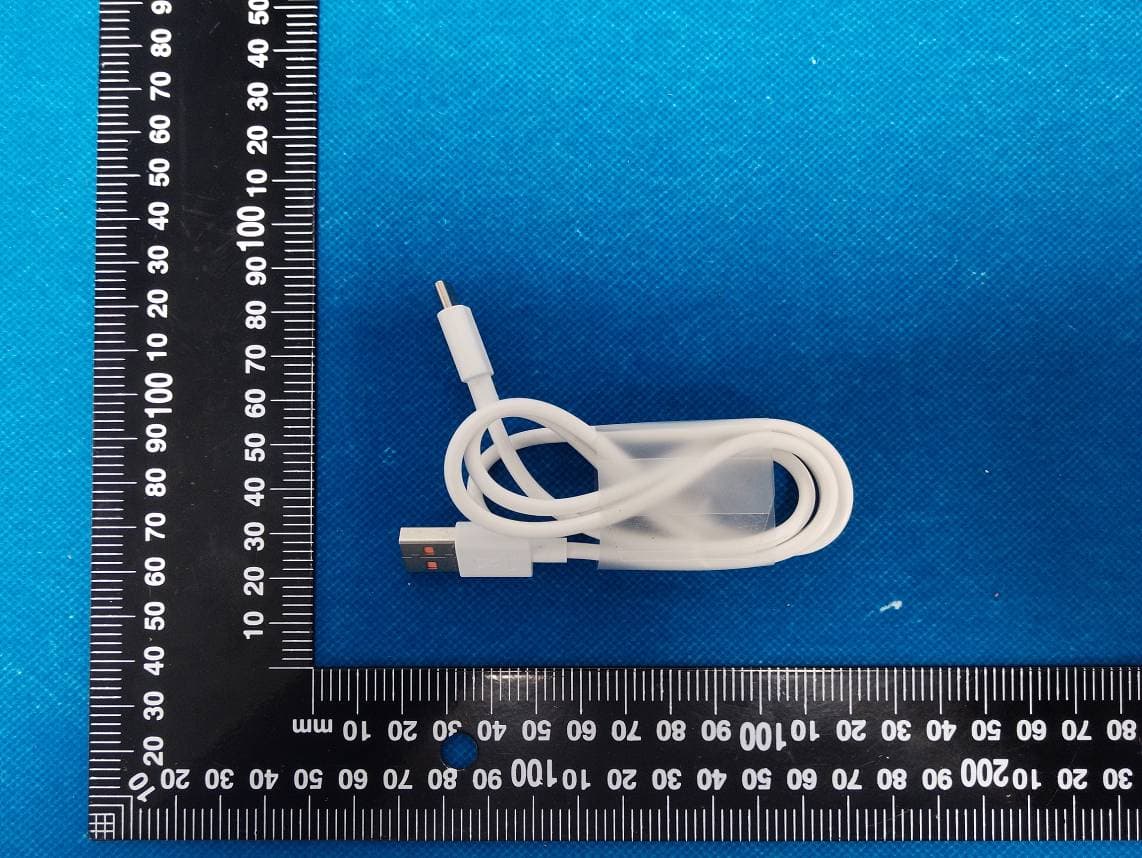

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 2 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 3 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 4 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 5 of 6 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-EXP Page 6 of 6

Lab Lab bel bel location

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 1 of 12 EUT INTERNAL PHOTOGRAPHS NFC ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 2 of 12 BT/2.4G Wi-Fi ANT1 2.4G Wi-Fi ANT2 GSM/WCMDA/LTE Main ANT 5G Wi-Fi ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 3 of 12 DIV ANT China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 4 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 5 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 6 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 7 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 8 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 9 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 10 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 11 of 12 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-INP Page 12 of 12

APPENDIX C CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: CR230851068-SA Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm PhantomTwin SAM; Type: Twin SAM V5.0; Serial: TP:1412 Report No.: CR230851068-SA Page 2 of 6 Head Left CheekSetup Photo(0mm) Head Left TiltSetup Photo(0mm) Report No.: CR230851068-SA Page 3 of 6 Head Right CheekSetup Photo(0mm) Head Right TiltSetup Photo(0mm) BodyFro Body(Wron) ont Setup Pho )Back Setup 1 oto(10mm) Photo(10m m 10mm 10mm Report N m) No.: CR23085 P 51068-SA Page 4 of 6 Report No.: CR230851068-SA Page 5 of 6 Body Left Setup Photo(10mm) Body Right Setup Photo(10mm) 10mm 10mm Report No.: CR230851068-SA Page 6 of 6 Body Top Setup Photo(10mm) 10mm

SAR TEST REPORT Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong FCC ID: 2AIZN-X6836 Product Name: Mobile Phone Model Number: X6836 Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relativestandards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230851068-SA Date Of Issue: 2023-09-28 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848316-SA Page 2 of 111 SAR TEST RESULTSSUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Head SAR Body SAR (Gap 10mm) GSM 850 0.20 0.14 1.6 PCS 1900 0.40 0.55 WCDMA Band 2 0.76 0.35 WCDMA Band 4 1.00 0.32 WCDMA Band 5 0.50 0.16 LTE Band 2 0.73 0.37 LTE Band 4 0.79 0.39 LTE Band 5 0.40 0.15 LTE Band 7 0.79 0.53 LTE Band 40 0.83 0.47 LTE Band 41&38 0.78 0.55 WLAN 2.4G 0.21 0.14 WLAN 5.2G 0.50 0.30 WLAN 5.8G 0.53 0.20 Maximum Simultaneous Transmission SAR Items Head SAR Body SAR (Gap 10mm) Hotspot (Gap 10mm) Limits Sum SAR(W/kg) 1.46 0.84 0.84 1.6 SPLSR NA NA NA 0.04 EUT Received Date: 2023/08/15 Tested Date: 2023/09/13~2023/09/27 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848316-SA Page 3 of 111 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848316-SA Page 4 of 111 CONTENTS SAR TEST RESULTSSUMMARY ............................................................................................... 2 TEST FACILITY .......................................................................................................................................... 3 DECLARATIONS .......................................................................................................................................... 3 DOCUMENT REVISION HISTORY .......................................................................................... 6 1. GENERAL INFORMATION .................................................................................................... 7 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 7 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 8 1.3 SAR LIMTS ........................................................................................................................................... 9 1.4 FACILITIES ...................................................................................................................................... 10 2. SAR MEASUREMENT SYSTEM .......................................................................................... 11 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 19 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 19 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 20 4.1 LIQUID VERIFICATION ...................................................................................................................... 20 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 24 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 25 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 34 5.1 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ......................................... 34 5.2 CHEEK/TOUCH POSITION .................................................................................................................. 35 5.3 EAR/TILT POSITION ........................................................................................................................... 35 5.4 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 36 5.5 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 37 5.6 SAR EVALUATION PROCEDURE ....................................................................................................... 38 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 39 6.2 DESCRIPTION OF TEST CONFIGURATI…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 1 of 187 Plot 1#: GSM 850 Mid_ Head Left Cheek DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.9 S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.169 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.97 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.199 W/kg SAR(1 g) = 0.128 W/kg; SAR(10 g) = 0.087 W/kg Maximum value of SAR (measured) = 0.169 W/kg 0 dB = 0.169 W/kg = -7.72 dBW/kg China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 2 of 187 Plot 2#: GSM 850 Mid_ Head Left Tilt DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.9 S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.156 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.12 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.222 W/kg SAR(1 g) = 0.125 W/kg; SAR(10 g) = 0.079 W/kg Maximum value of SAR (measured) = 0.181 W/kg 0 dB = 0.181 W/kg = -7.42 dBW/kg China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 3 of 187 Plot 3#: GSM 850 Mid_ Head Right Cheek DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.9 S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.236 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.85 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.320 W/kg SAR(1 g) = 0.166 W/kg; SAR(10 g) = 0.111 W/kg Maximum value of SAR (measured) = 0.242 W/kg 0 dB = 0.242 W/kg = -6.16 dBW/kg China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 4 of 187 Plot 4#: GSM 850 Mid_ Head Right Tilt DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.9 S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.310 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.47 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.495 W/kg SAR(1 g) = 0.199 W/kg; SAR(10 g) = 0.108 W/kg Maximum value of SAR (measured) = 0.358 W/kg 0 dB = 0.358 W/kg = -4.46 dBW/kg China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 5 of 187 Plot 5#: GSM 850 Mid_ Body Worn Back DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.9 S/m S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412 • Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.103 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.105 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.138 W/kg SAR(1 g) = 0.075 W/kg; SAR(10 g) = 0.049 W/kg Maximum value of SAR (measured) = 0.107 W/kg 0 dB = 0.107 W/kg = -9.71 dBW/kg China Certification ICT Co., Ltd (Donggu Report No.:CR230851068-SA Page 6 of 187 Plot 6#: GSM 850 Mid_ Body Front DUT: Mobile Phone; Type: X6836; Serial: 2A5C-1 Communication System:Generic GPRS-2 slots; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.9 S/m S/m; ε r = 41.92; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: ES3DV3 - SN3157; ConvF(6.48, 6.48, 6.48) @ 836.6 MHz; Calibrated: 2023/4/10 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1493; Calibrated: 2023/3/17 • Phantom:…

Text truncated - open the document above for the full version.

Fea ※ ※ ※ A p ※G L N T ature High gain Omani-dire Wide bandw pplication GSM850/90 LTE B1/B2/ Name and Huizhou SP No. SX-01-02 Tech Zone, ectional width n 0/DCS/PCS /B3/B4/B5/B d address of th PEED Wirele 2, Shangxia Huizhou Cit S/WCDMA B7/B8/B20/ he antenna ma ess Technolo District, Do ty, Guangdo AB1/B2/B4/B /B28/B38/B anufacturer ogy Co., Ltd ongjiang Hig ong Province B5/B8 B40/B41 d. h- e D M 5 3 2 Model num DIV: SPD-X MAIN: SPD- 5G Wi-Fi: S 3IN1: SPD-X 2.4G Wi-Fi: ber of the ante X6836-ANT0 -X6836-ANT PD-X6836-A X6836-ANT SPD-X683 6 enna T1 ANT14 12 6-ANT13 A Transmitte Receiver Antenna Gain er Frequency Frequency ANT1 ANT12 ANT14 ANT13 y G G D G G 2 4 3 GSM 850/W GSM 900/W DCS /WCDM PCS/WC WCDM LTE B40 L L GSM 850/W GSM 900/W DCS WCDM PCS/WC WCDM LTE B40 L L GSM 85 GSM 90 DCS /W PCS/W WC L L Blu WCDMA B5 WCDMA B8 MA B4/LTE DMA B2/L MA B1/LTE LTE B7 :2305-2315 LTE B38: 2 LTE B41: 2 LTE B20: LTE B28: WCDMA B5 WCDMA B8 S/LTE B3: MA 4/LTE DMA B2/L MA B1/LTE LTE B7: :2305-2315 LTE B38: 2 LTE B41: 2 LTE B20: LTE B28: 50/WCDMA 00/WCDMA WCDMA B4 WCDMA B CDMA B1/ LTE B7/B38 LTE B40: - LTE B2 LTE B2 uetooth, 2.4G 5G Wi- 2.4G Wi- 5/LTE B5 : 8/LTE B8: 8 E B3/B4: 17 LTE B2:185 B1 : 1920 – : 2500-2570 5MHz&235 2570-2620M 2535-2655M 832-862MH 710-755MH 5/LTE B5: 8 8/LTE B8: 9 1805–188 B4: 2110-2 LTE B2:193 E B1: 2110– : 2500-2570 5MHz &235 2570-2620M 2535-2655M 791-821MH 758-803MH A B5/LTE B A B8/LTE B 4/LTE B3/B B2/LTE B2: /LTE B1: -0 8/B41: -0.51 1.83&-1.62 20:-5.7dBi 28:-4.9dBi G Wi-Fi: -1 -Fi:-0.9dBi -Fi:-2.21dB 824–849 M 880–915 M 710–1785 50-1910MH – 1980MHz 0 50-2360MH MHz MHz Hz Hz 869–894 M 925–960 M 80 MHz 2155 MHz 30-1990MH –2170MHz 0 50-2360MH MHz MHz Hz Hz B5: -5.7dBi B8: -3.9dBi B4: -1.65dBi : -0.2dBi 0.2dBi 1dBi 2dBi .22dBi Bi MHz MHz MHz Hz z Hz MHz MHz Hz Hz i i i ※ ANT Antenna Ga T1 ain GSM GSM M850 / WCDM M850 / WCDM MA B5 / LTE MA B5 / LTE E B5/B20 P B5/B20 Ph Phi=0deg hi=90deg GSM850 / WCDM LTE MA B5 / LTE B B8 G900 W8 B5/B20 Th Phi=0deg heta=90deg LTE B LTE B B8 G900 W8P 8 G900 W8 T Phi=90deg Theta=90deg L L LTE B28 Phi= LTE B28 Phi= =0deg =90deg LT LT TE B28 Theta= TE B1 W1 Phi =90deg i=90deg LT LTE TE B1 W1 Phi E B1 W1 Thet i=90deg ta=90deg LTE B LTE B B2 G1900 W2 B2 G1900 W2 Phi=0deg Phi=90deg LTE B2 LTE B 3 G1900 W2 3B4 G1800 W Theta=90deg W4 Phi=0deg g LTE B3 LTE B3 3B4 G1800 W B4 G1800 W W4 Phi=90deg W4 Phi=90deg L LT LTE B7 Phi= TE B7 Phi= =0deg =90deg LTE LT E B7 Theta TE B38 Ph a=90deg hi=0deg LTE LTE E B38 Ph E B38 Thet hi=90deg ta=90deg LTE B LTE B B40 2305-231 40 2305-231 5 5 Phi=0deg 5 Phi=90deg LTE B4 LTE B 40 2305-2315 B40 2350-2360 Theta=90deg 0 Phi=0deg LTE B LTE B 4 40 2350-236 0 40 2350-2360 0 Phi=90deg Theta=90deg LT LT TE B41 Ph TE B41 Phi hi=0deg i=90deg AN T T 12 LTE E B41 Thet 2.4G Phi=0d ta=90deg deg 2 2.4GPhi=9 0 2.4G Theta=9 0deg 90deg ANTT 13 2.4G Phi=0d 2.4G Phi=90 deg 0deg AN T T 14 2 2.4G Theta=9 5G Phi=0 d 90deg deg 5G Phi=90 d 5G Theta=9 0 deg 0deg Ant PRE tenna Phot EPARED BY o: Y CHEECKEDBY YAPPROOVAL BY S.R DA .NO ATE: 2023/07/0225

TEST REPORT Applicant: INFINIX MOBILITY LIMITED Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT, Hong Kong FCC ID: 2AIZN-X6836 Product Name: Mobile Phone Standard(s): 47 CFR Part 15, Subpart E(15.407) ANSI C63.10-2013 KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230851068-00D Date Of Issue: 2023/9/20 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230851068-00D Page 2 of 69 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements…
