2AIZN-X695Mobile Phone

Infinix X695 User Manual (F&I) 1 E E x x p p l l o o s s i i o o n n d d i i a a g g r r a a m m s s p p e e c c i i f f i i c c a a t t i i o o n n 1 FL(CTP+LCM 2 fornt housing Assembly 3 PCBA Main 4 Front Camera 5 Back Camera 6 Back Camera 7 REC Deco part 8 F CAM Cop foil 9 LT sensor diffuse film 10 M1.4xL3.5 SCREW 11 REC con fb 12 LT sensor Seal rubber 13 Fornt CAM rubber 14 M1.4xL2.5 SCREW 15 SPK 16 UP frame asm 17 Bat cover asm 18 MAIN seal mylar 19 Rear CAM Lens 20 Fingerchip spacer 21 Shield Imp foam 22 Bat con rubber 23 LCM FPC con rubber 24 FP con imp steel asm 25 trope fill foam 26 R trope foam B 27 FPC Side key 28 PCBA SUB 29 Moto 30 Battery 31 USB Seal rubber 32 Audio Jack Seal rubber 33 SUB PCB BTB Rubber 34 coaxial cable 35 SPK frame asm 36 3in1 card holder 37 R CAM Con foams 38 Audio cavity seal mylar 39 Shield Seal Cop foil 40 FP Con Foams 41 FP support foam 42 2 Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor 3 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 4 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). 1. Please remind the front and back of the plug. 2. Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. 5 FCC Caution Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to user. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information: This mobile phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through 6 periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: X695 (FCC ID: 2AIZN-X695) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 1.14W/kg and when properly worn on the body is 1.19W/kg. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that does not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. 7 For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. Operating System：Android TM Android is a trademark of Google LLC.

INFINIX MOBILITY LIMITED Address: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT , Hong Kong Tel.: +86-0755-61803856 E-mail: [email protected] FCC Confidential Authorization Date: 2021-1-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIZN-X695 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INFINIX MOBILITY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list/Tune up Procedure (for licensed device) As well as short-term confidential treatment of information accompanying this application for a period of 180 days after grant is issued as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Yiting Luo Project Manager

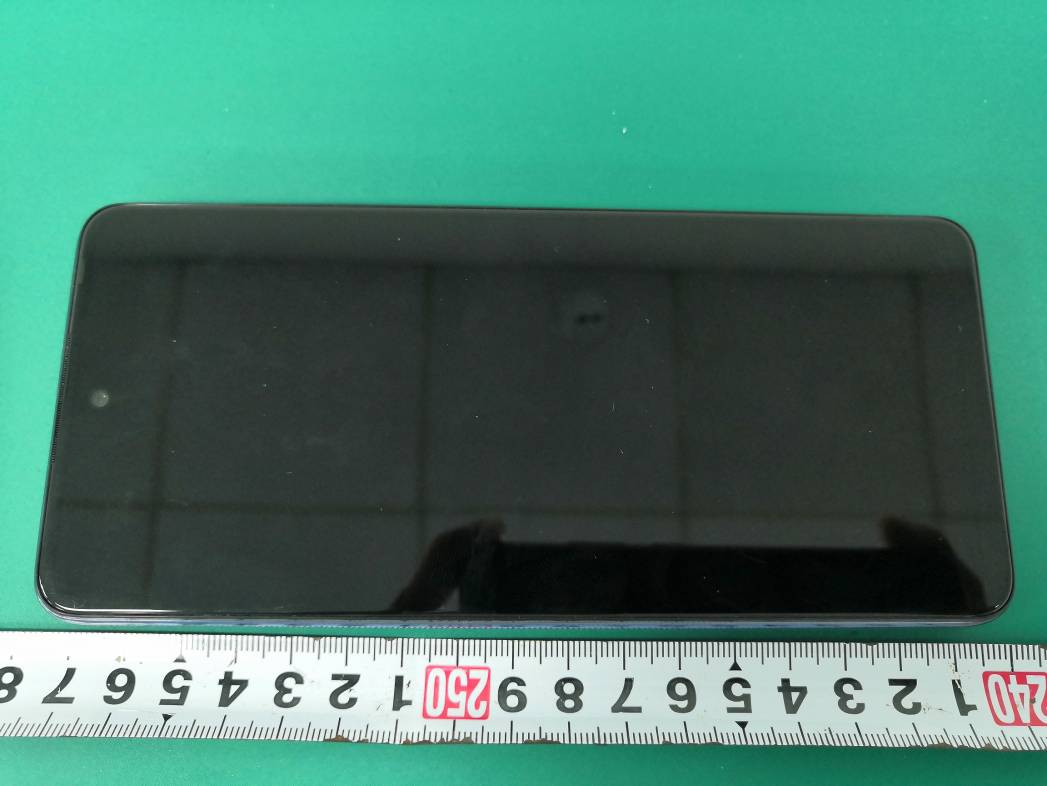

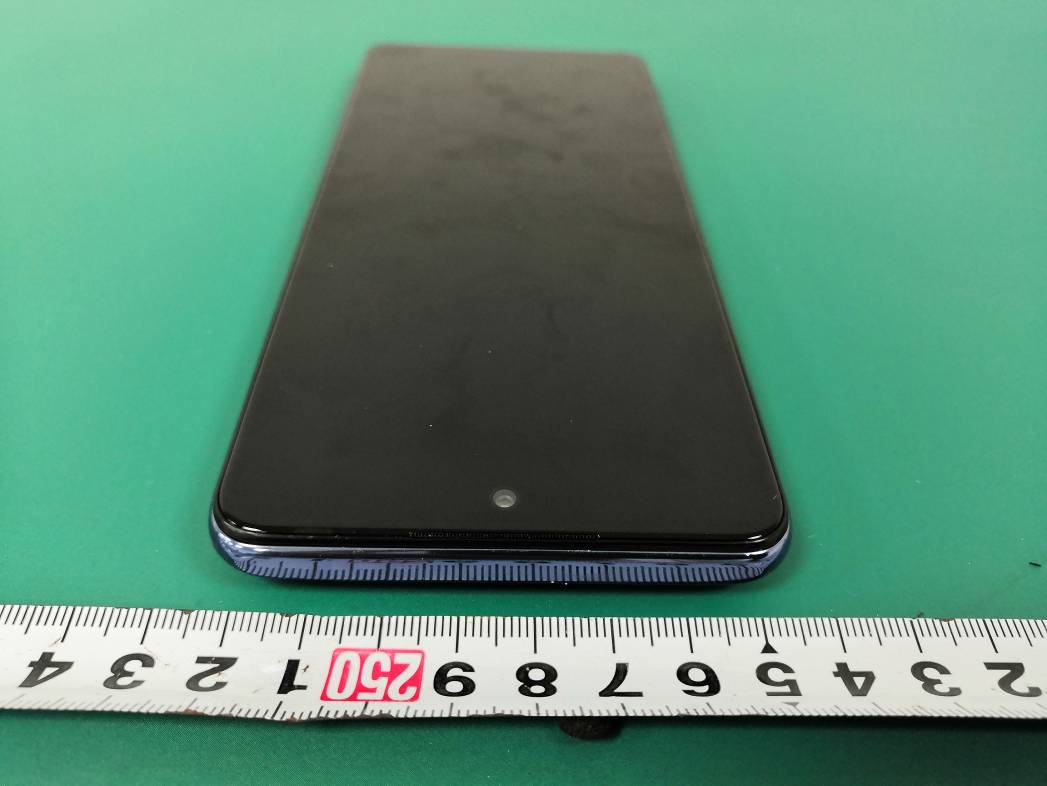

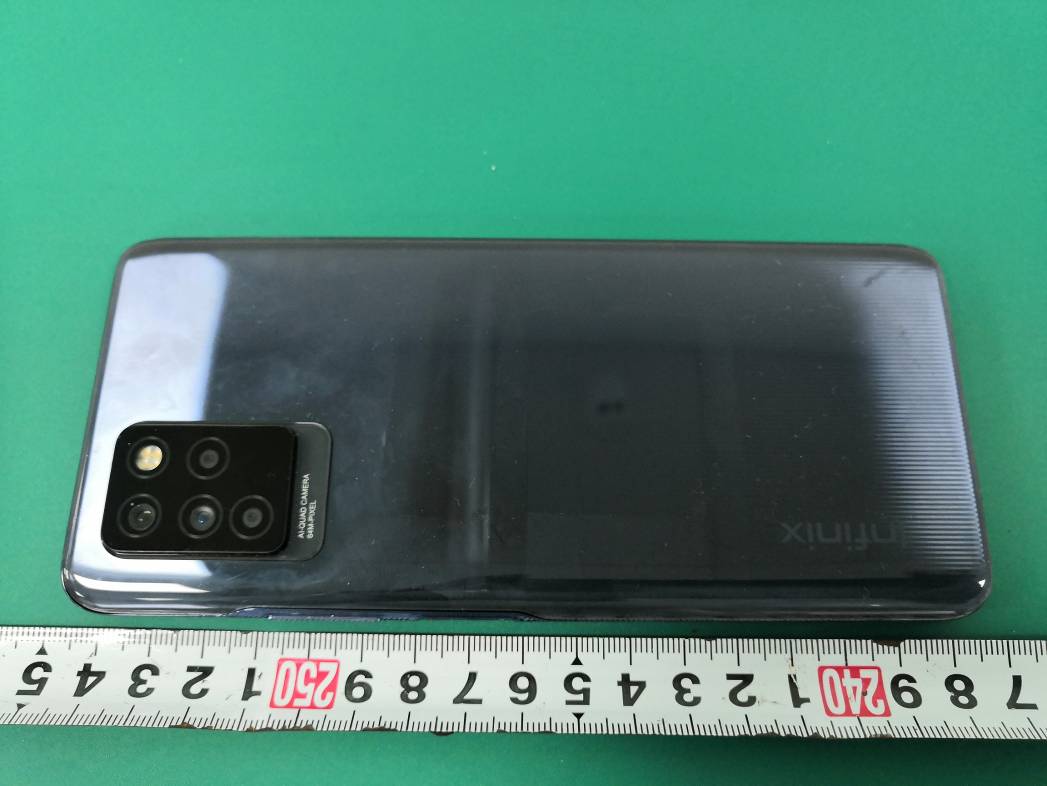

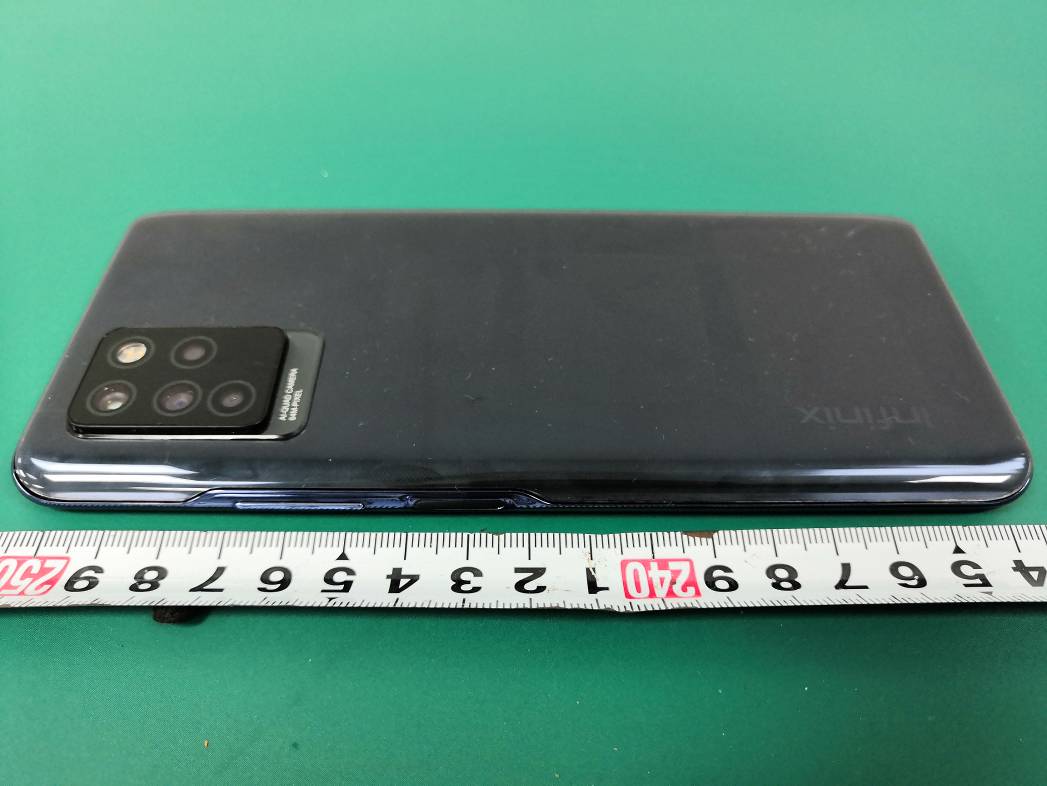

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 5 of 5

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 1 of 7 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 5 of 7 2.4G Wi-Fi &BLE& BT Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 6 of 7 5G Wi-Fi Antenna GSM & WCDMA & LTE Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201228003-RF Page 7 of 7 LTE Aux Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For INFINIX MOBILITY LIMITED FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31-35 SHAN MEI STREET FOTAN NT FCC ID: 2AIZN-X695 Report Type: Original Report Product Type: Mobile phone Report Number: RSZ201228003-20 Report Date: 2021-02-01 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.12, Pulong East 1 st Road, Tangxia Town, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201228003-20 SAR Evaluation Report 2 of 100 Attestation of Test Results EUT Information EUT Description Mobile phone Tested Model X695 FCC ID 2AIZN-X695 Serial Number RSZ201228003-SA-S1 Test Date 2020-12-30~ 2021-01-04 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 1.08 1.6 1g Body SAR 0.60 PCS 1900 1g Head SAR 1.14 1g Body SAR 1.19 WCDMA Band 2 1g Head SAR 0.99 1g Body SAR 0.59 WCDMA Band 4 1g Head SAR 1.00 1g Body SAR 0.50 WCDMA Band 5 1g Head SAR 0.79 1g Body SAR 0.29 LTE Band 2 1g Head SAR 0.93 1g Body SAR 0.45 LTE Band 5 1g Head SAR 0.98 1g Body SAR 0.41 LTE Band 7 1g Head SAR 0.79 1g Body SAR 0.59 LTE Band 40 1g Head SAR 0.78 1g Body SAR 0.72 LTE Band 41&38 1g Head SAR 0.59 1g Body SAR 0.30 LTE Band 66&4 1g Head SAR 1.04 1g Body SAR 0.46 2.4G WIFI 1g Head SAR 0.28 1g Body SAR 0.13 5.2G WIFI 1g Head SAR 0.39 1g Body SAR 0.34 5.8G WIFI 1g Head SAR 0.36 1g Body SAR 0.27 Simultaneous 1g Head SAR 1.47 1g Body SAR 1.32 1g Body SAR 1.32(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201228003-20 SAR Evaluation Report 3 of 100 Applicable Standards IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 KDB 941225 D06 Hotspot Mode v02r01 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RSZ201228003-20 SAR Evaluation Report 4 of 100 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 31 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 31 CHEEK/TOUCH POSITION ............…

Text truncated - open the document above for the full version.

APPENDIX C PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RSZ201228003-20 Page 1 of 196 Plot 1#: GSM 850_Head Left Cheek_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.907 S/m; ε r = 41.524; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.672 W/kg Zoom Scan (7x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.80 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.732 W/kg SAR(1 g) = 0.509 W/kg; SAR(10 g) = 0.368 W/kg Maximum value of SAR (measured) = 0.634 W/kg 0 dB = 0.634 W/kg = -1.98 dBW/kg Report No.: RSZ201228003-20 Page 2 of 196 Plot 2#: GSM 850_Head Left Tilt_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.907 S/m; ε r = 41.524; ρ = 1000 kg/m 3 Phantom section: Left Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.02 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.36 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.617 W/kg; SAR(10 g) = 0.381 W/kg Maximum value of SAR (measured) = 0.919 W/kg 0 dB = 0.919 W/kg = -0.37 dBW/kg Report No.: RSZ201228003-20 Page 3 of 196 Plot 3#: GSM 850_Head Right Cheek_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.907 S/m; ε r = 41.524; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.844 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.77 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.568 W/kg; SAR(10 g) = 0.398 W/kg Maximum value of SAR (measured) = 0.814 W/kg 0 dB = 0.814 W/kg = -0.89 dBW/kg Report No.: RSZ201228003-20 Page 4 of 196 Plot 4#: GSM 850_Head Right Tilt_Low DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 824.2 MHz; σ = 0.891 S/m; ε r = 41.568; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 824.2 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.69 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.99 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.12 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.507 W/kg Maximum value of SAR (measured) = 2.15 W/kg 0 dB = 2.15 W/kg = 3.32 dBW/kg Report No.: RSZ201228003-20 Page 5 of 196 Plot 5#: GSM 850_Head Right Tilt_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.907 S/m; ε r = 41.524; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 836.6 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.76 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.09 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 2.93 W/kg SAR(1 g) = 0.953 W/kg; SAR(10 g) = 0.461 W/kg Maximum value of SAR (measured) = 1.99 W/kg 0 dB = 1.99 W/kg = 2.99 dBW/kg Report No.: RSZ201228003-20 Page 6 of 196 Plot 6#: GSM 850_Head Right Tilt_High DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: , Generic GSM ; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 848.8 MHz; σ = 0.921 S/m; ε r = 41.481; ρ = 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(10.13, 10.13, 10.13) @ 848.8 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detec…

Text truncated - open the document above for the full version.

Report No.: RSZ201228003-20 Page 101 of 196 Plot 101#: LTE Band 7 1RB_ Body Front_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (81x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.429 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.848 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.559 W/kg SAR(1 g) = 0.297 W/kg; SAR(10 g) = 0.163 W/kg Maximum value of SAR (measured) = 0.452 W/kg 0 dB = 0.452 W/kg = -3.45 dBW/kg Report No.: RSZ201228003-20 Page 102 of 196 Plot 102#: LTE Band 7 50%RB_ Body Front_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (91x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.406 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.209 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.497 W/kg SAR(1 g) = 0.260 W/kg; SAR(10 g) = 0.143 W/kg Maximum value of SAR (measured) = 0.402 W/kg 0 dB = 0.402 W/kg = -3.96 dBW/kg Report No.: RSZ201228003-20 Page 103 of 196 Plot 103#: LTE Band 7 1RB_ Body Left_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (31x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.677 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.50 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.838 W/kg SAR(1 g) = 0.399 W/kg; SAR(10 g) = 0.201 W/kg Maximum value of SAR (measured) = 0.664 W/kg 0 dB = 0.664 W/kg = -1.78 dBW/kg Report No.: RSZ201228003-20 Page 104 of 196 Plot 104#: LTE Band 7 50%RB_ Body Left_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (31x171x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.627 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.51 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.792 W/kg SAR(1 g) = 0.378 W/kg; SAR(10 g) = 0.192 W/kg Maximum value of SAR (measured) = 0.627 W/kg 0 dB = 0.627 W/kg = -2.03 dBW/kg Report No.: RSZ201228003-20 Page 105 of 196 Plot 105#: LTE Band 7 1RB_ Body Top_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2020/11/23  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.532 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.249 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.679 W/kg SAR(1 g) = 0.295 W/kg; SAR(10 g) = 0.130 W/kg Maximum value of SAR (measured) = 0.532 W/kg 0 dB = 0.532 W/kg = -2.74 dBW/kg Report No.: RSZ201228003-20 Page 106 of 196 Plot 106#: LTE Band 7 50%RB_ Body Top_Mid DUT: Mobile phone; Type: X695; Serial: RSZ201228003-SA-S1 Communication System: Generic FDD-LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2535 MHz; σ = 1.892 S/m; ε r = 38.987; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(7.44, 7.44, 7.44) @ 2535 MHz; Calibrated: 2020/11/30  Sensor-Surface: 1.4mm (Mechan…
