2AIZN-X697Mobile Phone

INFINIX MOBILITY LIMITED

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 10, 2021
Application Purpose: Original Equipment
Date of Application: Aug 09, 2021
Equipment Note: Mobile Phone
Frequency Range: 2545.00000000 - 2645.00000000
Company: INFINIX MOBILITY LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Infinix X697 User Manual (C) 1 E E x x p p l l o o s s i i o o n n d d i i a a g g r r a a m m s s p p e e c c i i f f i i c c a a t t i i o o n n 1 CTP+LCM)6.95FHD 2 F hsg asm 3 PCBA MB 4 Bat 5 Motor Linea 6 PCBA SUB 7 SPK 8 UP SPK Con Graphite Film 9 Bat FPC con rubber 10 LCM CONN Rubber 11 CAM AF 64M 12 CAM FF 2M 13 CAM AF 13M 14 Coaxial Cable 15 SPK 16 CAM FF 16M 17 MAIN Cop foil 18 F CAM Con Graphite Film 19 PA Tcs Rubber 20 F CAM Rubber 21 MAIN Graphite Film 22 LT sensor Rubber 23 R CAM Rubber 24 R CAM Con Foams 64M 25 R CAM Con Foam 2M 26 R CAM Con Foams 13M 27 FPC MAIN 28 DOWN SPK Graphite Film 29 MAIN Waterproof Mylar 30 R CAM Deco asm 31 R flash Lens 32 PCBA SUB FLASH 33 FPC Side Key 34 R CAM Lens 35 FM 36 Mi housing 37 screw L3.5 38 REC Deco part 2 39 F CAM Frame 40 MAIN WaterproofFrameasm 41 Card Holder 42 Earphone Rubber 43 USB Rubber 44 DOWN SPK Frame asm 45 screw L2.5 46 Bat cover asm 3 Know your phone 1. Front camera 2. Volume + key 3. Volume - key 4. Power key & side fingerprint sensor ① 4 SIM/SD card installation 1. Power off mobile. 2. Refer to the following picture for SIM / SD card installation. 5 Charging the phone You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone). Use only INFINIX charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty. 6 FCC Statement 1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.` 7 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the 8 limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.396W/Kg and when worn on the body, as described in this user guide, is 0.581W/Kg(Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). The maximum scaled SAR in hotspot mode is 0.581W/Kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: 2AIZN-X697 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requireme…

Text truncated - open the document above for the full version.

Cover Letter(s)

INFINIX MOBILITY LIMITED DATE :2021-8-6 Equipment Autorisation Division Federal Communications Commission 7345 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AIZN-X697 Product Name: Mobile Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  Tune up  BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2021-8-6 By: Yiting Luo Signature Printed Title: Manager On behalf of : INFINIX MOBILITY LIMITED Telephone: +86 0755-61803856

Cover Letter(s)

INFINIX MOBILITY LIMITED DATE:2021-8-6 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint JianYan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Communit y,Xinqiao Street, Bao’an District, Shenzhen, Guangdong,People’s Republic of China.;Bru ce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with INFINIX MOBILITY LIMITED/ ROOM 604 6/F SOUTH TOWER WORLD FINANCE CTR HARBOUR CITY 17 CANTON ROAD TST KL Hong Kong Dated this 2021-8-6 By: Yiting Luo Signature Printed Title: Manager On behalf of : INFINIX MOBILITY LIMITED Telephone: +86 0755-61803856

Cover Letter(s)

INFINIX MOBILITY LIMITED DATE :2021-8-6 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AIZN-X697 Product Name: Mobile Phone Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. <Signature> Name Yiting Luo Title manager Company INFINIX MOBILITY LIMITED

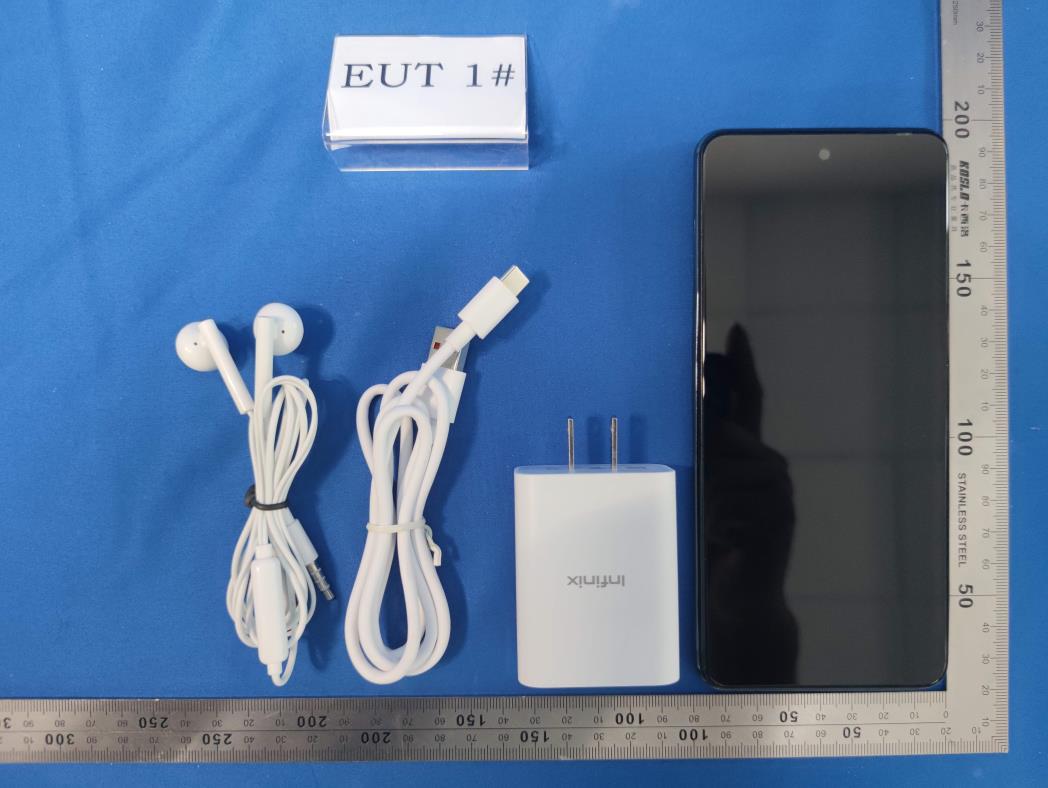

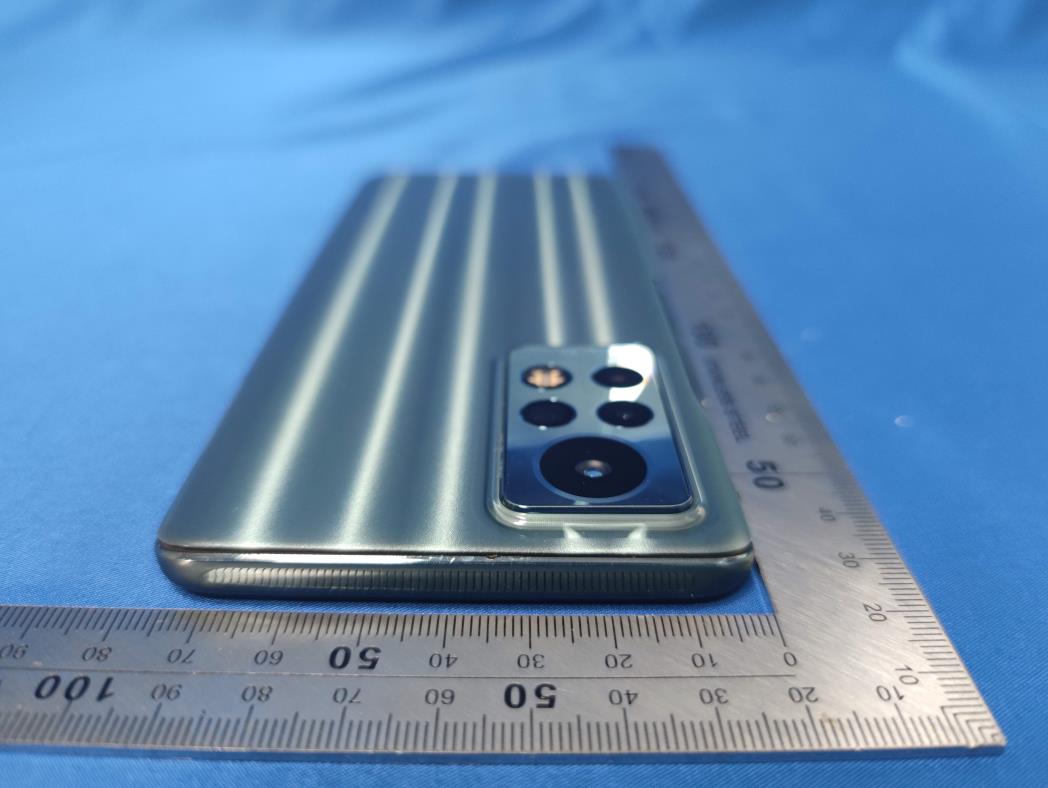

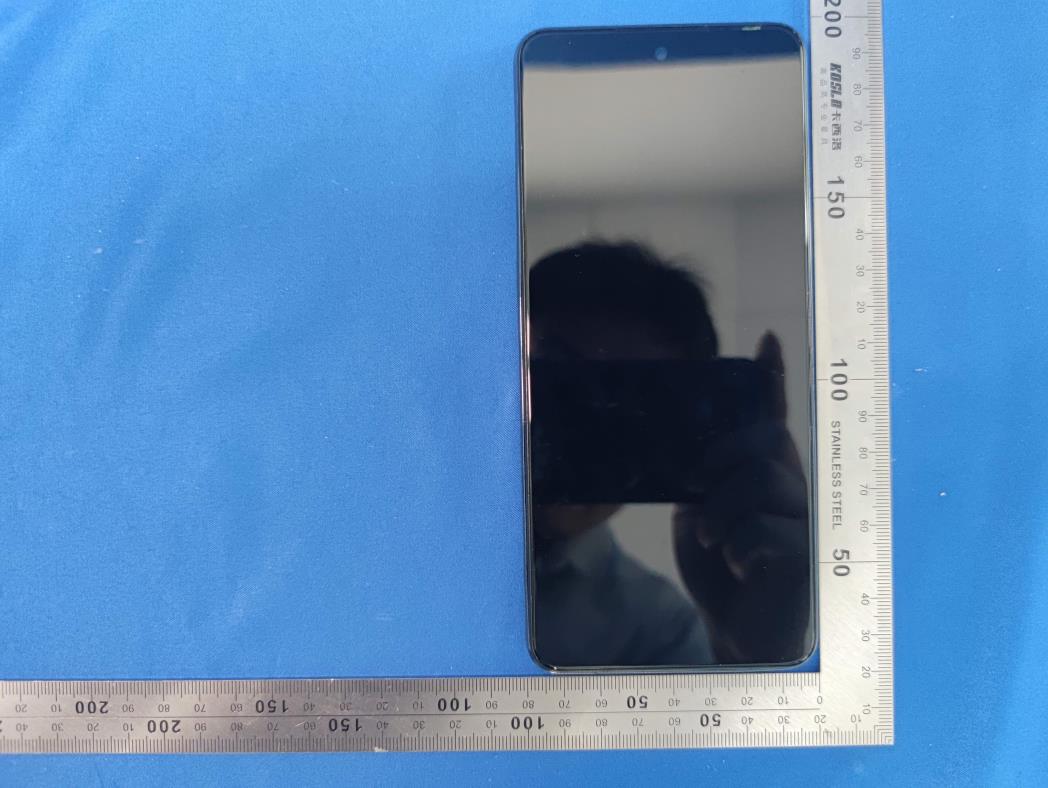

External Photos

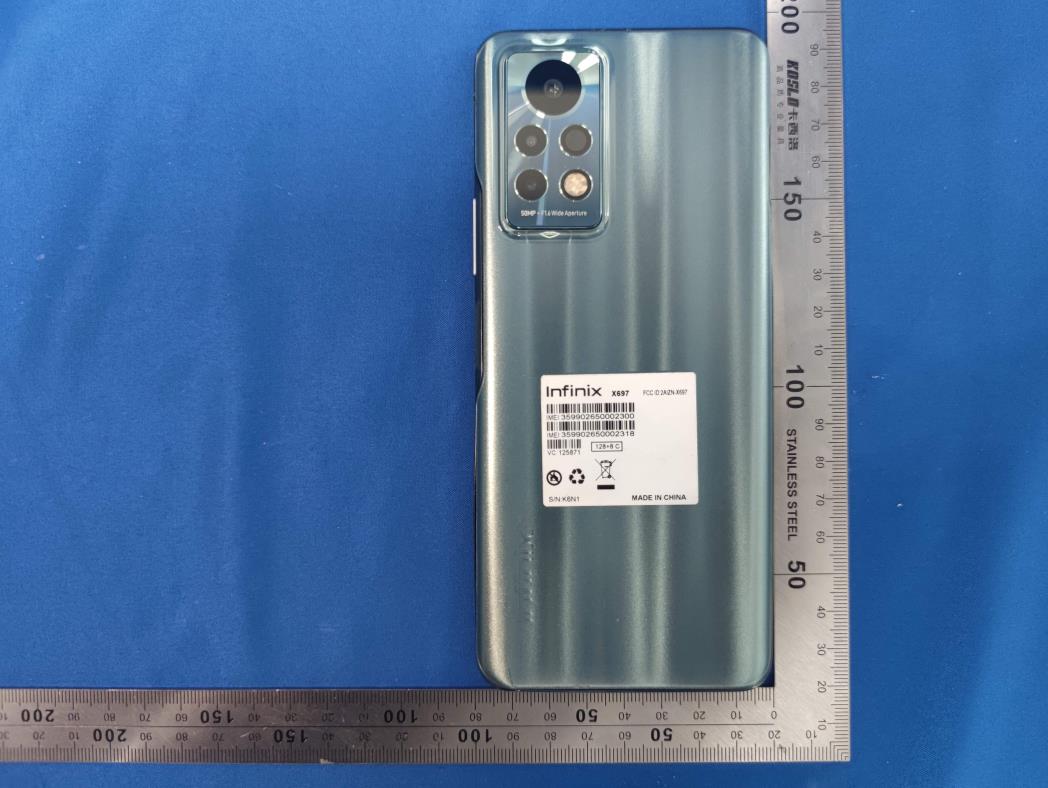

ID Label/Location Info

label location label location

Internal Photos

Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 26 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 27 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 28 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 29 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 32 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 33 of 34 Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 34 of 34 ------End of report------

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100153 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: INFINIX MOBILITY LIMITED Address of Applicant: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31- 35 SHAN MEI STREET FOTAN NT Equipment Under Test (EUT) Product Name: Mobile Phone Model No.: X697 Trade mark Infinix FCC ID: 2AIZN-X697 Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 22 Jul., 2021 ~ 02 Aug., 2021 Test Result: Maximum Reported 1-g SAR (W/kg) Head: 1.396 Body: 0.581 Hotspot: 0.581 Report No: JYTSZB-R14-2100153 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107029 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 2 of 226 2 Version Version No. Date Description 00 06 Aug., 2021 Original Tested by: Date: 06 Aug., 2021 Test Engineer Reviewed by: Date: 09 Aug., 2021 Project Engineer Report No: JYTSZB-R14-2100153 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107029 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 3 of 226 3 Contents 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ................................................................................................................................. 5 5 GENERAL INFORMATION .................................................................................................................................. 7 5.1 CLIENT INFORMATION ..................................................................................................................................................................... 7 5.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 7 5.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 8 5.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 9 5.5 TEST SAMPLE PLAN ....................................................................................................................................................................... 9 5.6 TEST LOCATION ............................................................................................................................................................................. 9 6 INTRODUCTION ................................................................................................................................................. 10 6.1 INTRODUCTION ............................................................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................................................... 10 7 RF EXPOSURE LIMITS ..................................................................................................................................... 11 7.1 UNCONTROLLED ENVIRONMENT ................................................................................................................................................... 11 7.2 CONTROLLED ENVIRONMENT ....................................................................................................................................................... 11 7.3 RF EXPOSURE LIMITS .................................................................................................................................................................. 11 8 SAR MEASUREMENT SYSTEM ....................................................................................................................... 12 8.1 E-FIELD PROBE....................................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2101307 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1. Cover Page FCC REPORT (GSM & WCDMA) Applicant: INFINIX MOBILITY LIMITED Address of Applicant: FLAT 39 8/F BLOCK D WAH LOK INDUSTRIAL CENTRE 31- 35 SHAN MEI STREET FOTAN NT Equipment Under Test (EUT) Product Name: Mobile Phone Model No.: X697 Trade mark: Infinix FCC ID: 2AIZN-X697 Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E Date of sample receipt: 12 Jul., 2021 Date of Test: 13 Jul., to 30 Jul., 2021 Date of report issued: 02 Aug., 2021 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 34 2. Version Version No. Date Description 00 02 Aug., 2021 Original Tested by: Date: 02 Aug., 2021 Test Engineer Reviewed by: Date: 02 Aug., 2021 Project Engineer Report No: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 34 3. Contents Page 1. COVER PAGE .............................................................................................................................................................. 1 2. VERSION ....................................................................................................................................................................... 2 3. CONTENTS ................................................................................................................................................................... 3 4. TEST SUMMARY ......................................................................................................................................................... 4 5. GENERAL INFORMATION ........................................................................................................................................ 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE, AND TEST SAMPLES PLANS ............................................................................... 7 5.4 DESCRIPTION OF TEST AUXILIARY EQUIPMENT .................................................................................................... 7 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 5.6 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD....................................................................... 7 5.7 LABORATORY FACILITY .......................................................................................................................................... 7 5.8 LABORATORY LOCATION ....................................................................................................................................... 8 5.9 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6. TEST RESULTS ........................................................................................................................................................... 9 6.1 CONDUCTED OUTPUT POWER, ERP AND EIRP .................................................................................................. 9 6.2 PEAK-TO-AVERAGE POWER RATIO .................................................................................................................... 10 6.3 OCCUPY BANDWIDTH .......................................................................................................................................... 11 6.4 MODULATION CHARACTERISTIC .......................................................................................................................... 12 6.5 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................................................................. 12 6.6 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................................................................... 13 6.7 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT..........................…

Text truncated - open the document above for the full version.

Test Report

Report No.: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 18 Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Channel PCL Conducted Power (dBm) ERP/EIRP (dBm) ERP/EIRP Limit (dBm) Verdict GSM850 128 3 33.18 27.65 38.5 PASS GSM850 190 3 33.31 27.78 38.5 PASS GSM850 251 3 33.23 27.70 38.5 PASS GSM1900 512 0 29.62 28.86 33 PASS GSM1900 661 0 29.71 28.95 33 PASS GSM1900 810 0 29.43 28.67 33 PASS Band Channel PCL Slot Conducted Power (dBm) ERP/EIRP (dBm) ERP/EIRP Limit (dBm) Verdict GPRS850 128 3 1 32.99 25.31 38.5 PASS GPRS850 128 3 2 32.29 24.61 38.5 PASS GPRS850 128 3 3 30.56 22.88 38.5 PASS GPRS850 128 3 4 29.58 21.90 38.5 PASS GPRS850 190 3 1 33.12 25.44 38.5 PASS GPRS850 190 3 2 32.44 24.76 38.5 PASS GPRS850 190 3 3 30.75 23.07 38.5 PASS GPRS850 190 3 4 29.78 22.10 38.5 PASS GPRS850 251 3 1 33.04 25.36 38.5 PASS GPRS850 251 3 2 32.34 24.66 38.5 PASS GPRS850 251 3 3 30.68 23.00 38.5 PASS GPRS850 251 3 4 29.67 21.99 38.5 PASS GPRS1900 512 0 1 29.60 21.83 33 PASS GPRS1900 512 0 2 28.77 20.66 33 PASS GPRS1900 512 0 3 26.87 18.50 33 PASS GPRS1900 512 0 4 25.83 17.35 33 PASS GPRS1900 661 0 1 29.67 22.05 33 PASS GPRS1900 661 0 2 28.88 21.01 33 PASS GPRS1900 661 0 3 26.93 18.83 33 PASS GPRS1900 661 0 4 25.91 17.71 33 PASS GPRS1900 810 0 1 29.42 21.99 33 PASS GPRS1900 810 0 2 28.55 20.87 33 PASS GPRS1900 810 0 3 26.64 18.68 33 PASS GPRS1900 810 0 4 25.57 17.53 33 PASS Report No.: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 18 Band Channel PCL Slot Conducted Power (dBm) ERP/EIRP (dBm) ERP/EIRP Limit (dBm) Verdict EGPRS850 128 8 1 27.39 21.86 38.5 PASS EGPRS850 128 8 2 26.19 20.66 38.5 PASS EGPRS850 128 8 3 24.03 18.50 38.5 PASS EGPRS850 128 8 4 22.88 17.35 38.5 PASS EGPRS850 190 8 1 27.63 22.10 38.5 PASS EGPRS850 190 8 2 26.54 21.01 38.5 PASS EGPRS850 190 8 3 24.36 18.83 38.5 PASS EGPRS850 190 8 4 23.24 17.71 38.5 PASS EGPRS850 251 8 1 27.52 21.99 38.5 PASS EGPRS850 251 8 2 26.40 20.87 38.5 PASS EGPRS850 251 8 3 24.21 18.68 38.5 PASS EGPRS850 251 8 4 23.06 17.53 38.5 PASS EGPRS1900 512 2 1 26.49 25.73 33 PASS EGPRS1900 512 2 2 25.36 24.60 33 PASS EGPRS1900 512 2 3 23.22 22.46 33 PASS EGPRS1900 512 2 4 22.08 21.32 33 PASS EGPRS1900 661 2 1 26.44 25.68 33 PASS EGPRS1900 661 2 2 25.37 24.61 33 PASS EGPRS1900 661 2 3 23.24 22.48 33 PASS EGPRS1900 661 2 4 22.08 21.32 33 PASS EGPRS1900 810 2 1 25.98 25.22 33 PASS EGPRS1900 810 2 2 24.95 24.19 33 PASS EGPRS1900 810 2 3 22.78 22.02 33 PASS EGPRS1900 810 2 4 21.64 20.88 33 PASS Remark: EIRP (dBm) = Conducted power (dBm) + Antenna Gain (dBi). (For GSM1900) ERP (dBm) = EIRP (dBm) - 2.15 (dB). (For GSM850) Report No.: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 18 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Channel PCL Result(dB) Limit(dB) Verdict GSM850 190 3 2.65 13 PASS EGPRS850 190 8 5.89 13 PASS GSM1900 661 0 2.66 13 PASS EGPRS1900 661 2 5.81 13 PASS Remark: All channel and all modulation had been tested, but only the worst case data displayed in this report. Test Graphs GSM850-190-3 EGPRS850-190-8 GSM1900-661-0 EGPRS1900-661-2 Report No.: JYTSZB-R12-2101307 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2107028 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 18 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel PCL Occupied Bandwi…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jerry Liu

[email protected]+86-0755-61803856Fax: 755-33979211

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
18	27	2.54 GHz - 2.65 GHz	241.00 mW	17M9W7D	0.01 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22, EIRP for Part 24 and Part 27. SAR compliance for body-worn operating conditions is restricted to belt clips, holsters or similar accessories that have no metallic component in the assembly and must provide a minimum separation distance of 1 cm between the device and the body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission exposure conditions are 1.40 W/kg, 0.58 W/kg, 0.58 W/kg, and 1.47 W/kg, respectively. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
