2AJ2D-DOCTORM500DP50-1

Specification Applicable to the DP50-1 products Revised 14 Jay 2020 I. INTRODUCTION 1. PRODUCT PROFILE This device is a new Android-based vehicle trouble diagnostic device developed for Internet applications. It inherits from OBDPROG advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle. Meanwhile, taking advantage of mobile Internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc. 2. FEATURES 1. Diagnostic function: Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCS, Clear DTCS, Read data stream, Special functions etc. Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Cluster calibrate, ECU programming, steering angle reset. Specially designed for Android platform with clear and user-friendly interface; 2. Maintenance database: Equipped with powerful database. 3. Video center: Large amount of videos help users to operate device easily. 4. One Key Upgrade: Built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade. 5. System setting: Set VCI formation, language, unit, data logging, user information etc. 6. Remote assistance: Achieve remote assistance by this function. 7. Report center: Record maintenance data logging and create reports during operation. 3 KNOWLEDGE OF THIS DEVICE 3.1 The whole set This device is composed of the tablet computer, main test cable and kinds of connectors. 3.2 The tablet computer front view reverse view 4 TECHNICAL PARAMETER ● Operation system: Android 5.1.1 ●CPU: RK3128 Quad-Core，ARM Cortex [email protected] ●Battery: 2600mA, rechargeable polymer lithium battery ●Extension memory card: 32G Micro SD (TF) card supported ●Memory capacity: 16GB ●LCD: 5.0 inches ●LCD resolution: 800*480 ●Touch screen: Capacitive touch screen ●Wi-Fi: supported ●Workingtemperature: -20°C~55°C （ 14°F~131°F） ● Storage temperature: -20°C~70°C （ -4°F~158°F） ●Weight: about 700g ●Dimension: 140mm*89*mm*18mm 5 ACCESSORY（Standard Configuration） 5.1 Main test cable Pack different main cable according to different configurations 5.2 OBD Connector OBD I connector to connect the diagnosis port of non OBD II vehicles. To choose the connector according to the vehicle brand and models. Common connectors are as below: Note: Different configuration accessories may have different options 5.3 Others DC Power Adapter (Output DC 12V/2A) To power up the tablet via connecting with outside power supply. 6 CHARGE THIS DEVICE 1. Connect the included USB cable with charger. 2. Plug the charger into AC outlet. 3. When it connects to charger, battery logo indicates ，it indicates that the battery is in charging 4. When battery logo changes into , it indicates that the battery is fully charged and then disconnect charger from AC outlet. 5. Unplug USB cable on the charger from this device. 7 USING BATTERY ● If the battery keeps unused for a long time or battery is completely discharged, it is normal if it cannot be turned on while being charged. Please charge it for a period and then turn it on. ● Using data service will cause more power consumption and shorten the stand by time. ● The charging time of battery varies with temperature condition and battery consumption status. ● While this device has low battery, a beep will sound. If it is very low, this device will be switched off automatically. Note: Do one of the followings to save power: 1. When this device keeps unattended, press POWER key to turn off the LCD. 2. Shorten the standby time: Enter main menu, choose “Settings” > “DEVICE”> “Display” > “Sleep” to select a shorter standby time. 3. Decrease the brightness of LCD display: Enter main menu, choose “Settings” > “DEVICE” > “Display” > “Brightness”, and then drag the slider to adjust it. 4. Change “Live wallpaper” into “Gallery”. 5. Set Bluetooth off: Enter main menu, choose “Settings” > “Wireless &Network” > “Bluetooth”, and then toggle the switch to OFF. 6. Press VOLUME key to decrease the volume. 8 POWER ON/POWER OFF THIS DEVICE 8.1 Power on Press and hold Power button for three seconds to turn on this device. Note：Set date, time and time zone. 8.2 Power off Press and hold Power button for three seconds to turn off this device. 9 ABOUT DESKTOP The screen is shown as blow: A． Print screen: make a quick screenshot and save it to gallery B． Back button: go back to previous interface or exit program. C． Home button : return to the desktop D． Touch screen menu button: select desired item E． DP button: enter diagnose and program interface F. VIC button: enter system settings 10 CUSTOMIZE YOUR DESKTOP 10.1 Add items on the desktop On the main menu, hold and press the desired item, the system will automatically enter the desktop and place the icon into the circle. Hint: If many applications occupy the desktop, hold and press the desired one to move it to other extension desktop. 10.2 Move items on the desktop 1. Hold and press the item to be moved. 2. After a movable circle appears on the screen, drag it to the target location. 10.3 Delete items on the desktop 1. Hold and press the desired item, “X Delete” appears in the upper middle of the screen. 2. Dragon the item to “X Delete”. 3. When the item and icon turn red and then release it. 10.4 Change your wallpaper 1. Hold and press a blank area on the desktop, a pop-up wallpaper will be shown on the screen. 2. Choose desired wallpaper. 3. Click upper left corner √ to set wallpaper. 10.5 Create a folder on the desktop 1. Drag one icon to another icon, the system will create a folder. 2. Input the folder name. 11 ON USING …

Text truncated - open the document above for the full version.

OBDSTAR Technology Co.,Ltd West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Tel: 0755-86707161 E-mail: 0755-86707161 Series Models Description Date: 2020/03/10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AJ2D-DOCTORM500 Dear Sir/Madam, We, OBDSTAR Technology Co.,Ltd Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: DP50-1 Model no.: DP50-1, X300 PRO 4, Odo Master, X300 III, MDX50, MD PRO, MDX, MINI, MK5, MST, MII, MDX PAD, MD Ware, X300 MINI, Motor Master 5, MD50, MD005 PowerDiag MS 500, MCT 5, Expert MDT 5, motorcycle 5, Key Master 5, KeyMaster MINI, MDX SMART, MDT, MBD, MS 500, Motor Master 5, Motor Scanner 501, MT500, MT501, Dash Mate, Dash Expert, MT501, MT502, P50, MCD, MCT, Diag Mate, Key Expert, Codify Pro, Codify Monster 5, Codify Monster 501, Doctor M, SpeedExplorer, SpeedPrime, Doctor M5, Digital Pro Sincerely, Name: Ren dingquan / Majordomo Company: OBDSTAR Technology Co.,Ltd Address: West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China District, Shenzhen, China Phone: 0755-86707161 Fax: 0755-86707161 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-10> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AJ2D-DOCTORM500 DP50-1, X300 PRO 4, Odo Master, X300 III, MDX50, MD PRO, MDX, MINI, MK5, MST, MII, MDX PAD, MD Ware, X300 MINI, Motor Master 5, MD50, MD005 PowerDiag MS 500, MCT 5, Expert MDT 5, motorcycle 5, Key Master 5, KeyMaster MINI, MDX SMART, MDT, MBD, MS 500, Motor Master 5, Motor Scanner 501, MT500, MT501, Dash Mate, Dash Expert, MT501, MT502, P50, MCD, MCT, Diag Mate, Key Expert, Codify Pro, Codify Monster 5, Codify Monster 501, Doctor M, SpeedExplorer, SpeedPrime, Doctor M5, Digital Pro For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Ren dingquan / Majordomo Company: OBDSTAR Technology Co.,Ltd Address: West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Phone: 0755-86707161 Fax: 0755-86707161 E-Mail: [email protected]

OBDSTAR Technology Co., Ltd Add: West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/10 To whom it may concern: We, OBDSTAR Technology Co., Ltd the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AJ2D-DOCTORM500 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Ren dingquan / Majordomo Company: OBDSTAR Technology Co.,Ltd Address: West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Phone: 86-0755-86707161 Fax: 86-0755-86707161 E-Mail: [email protected]

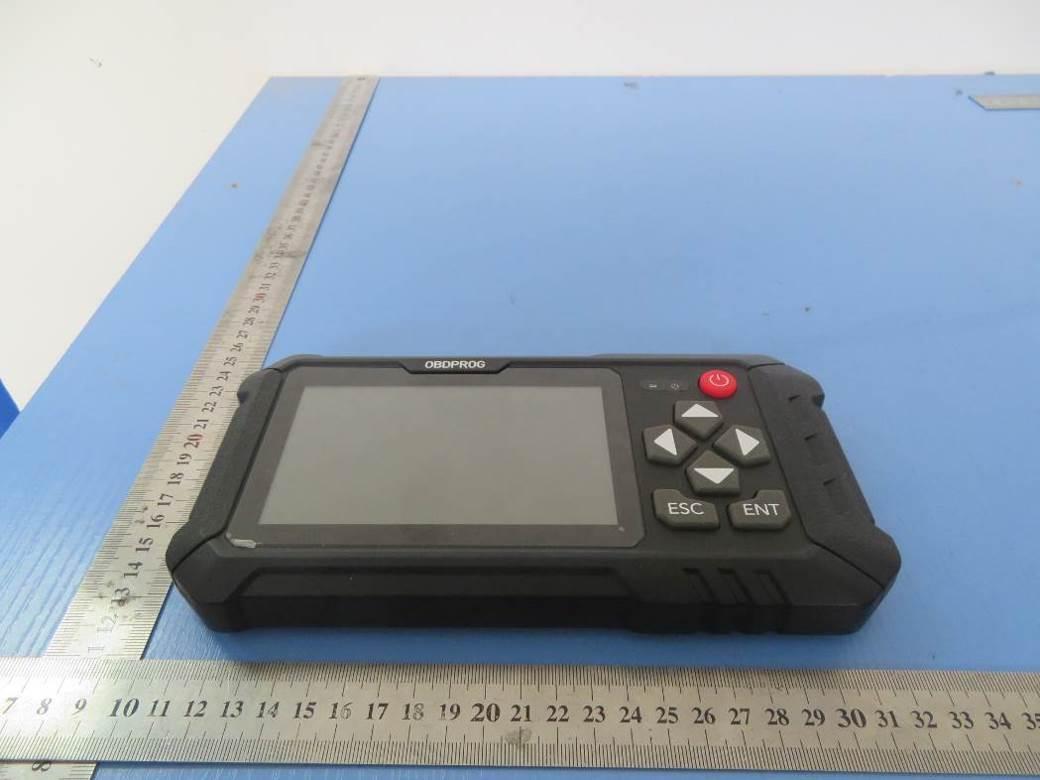

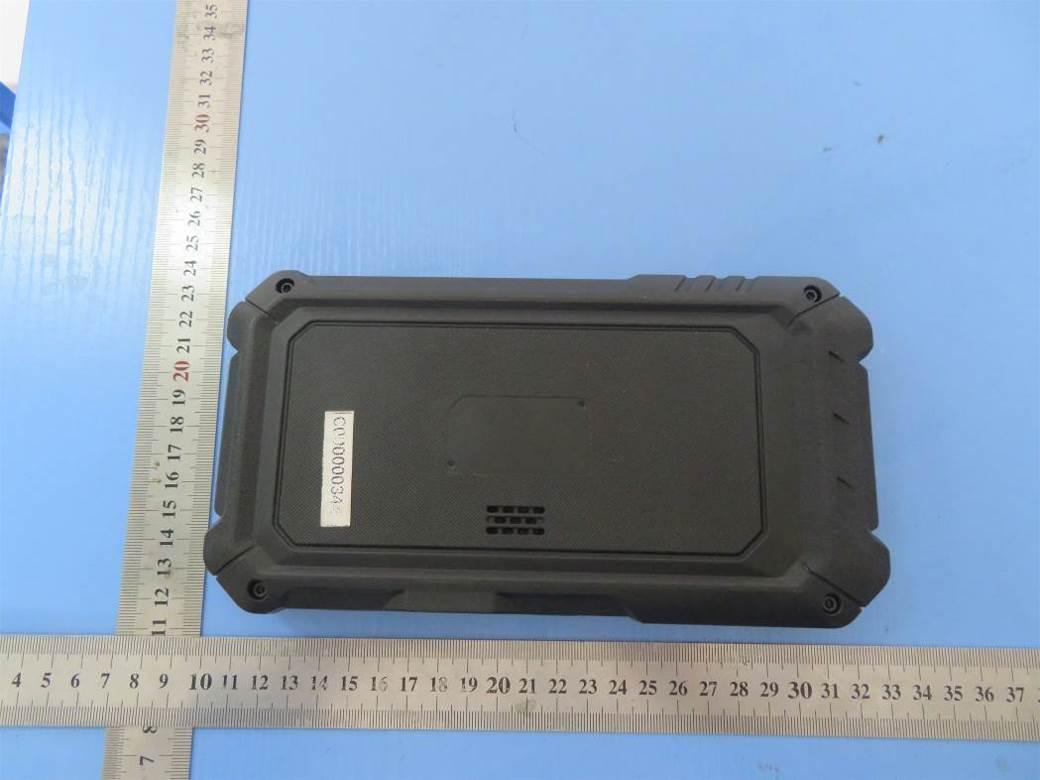

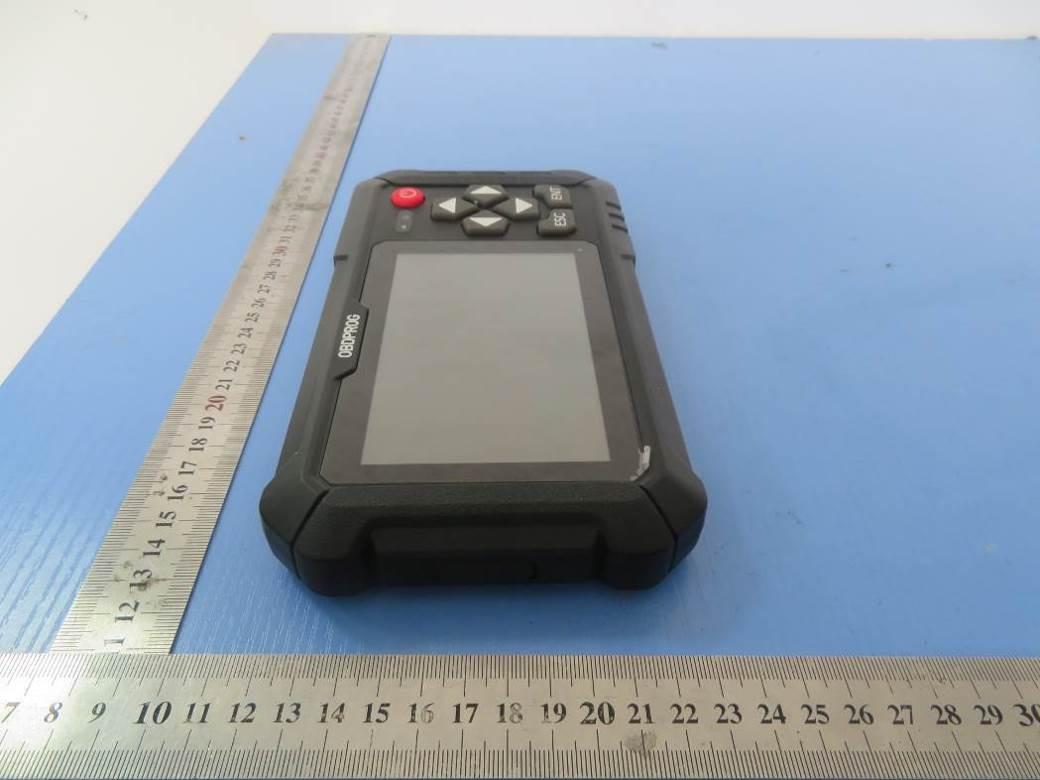

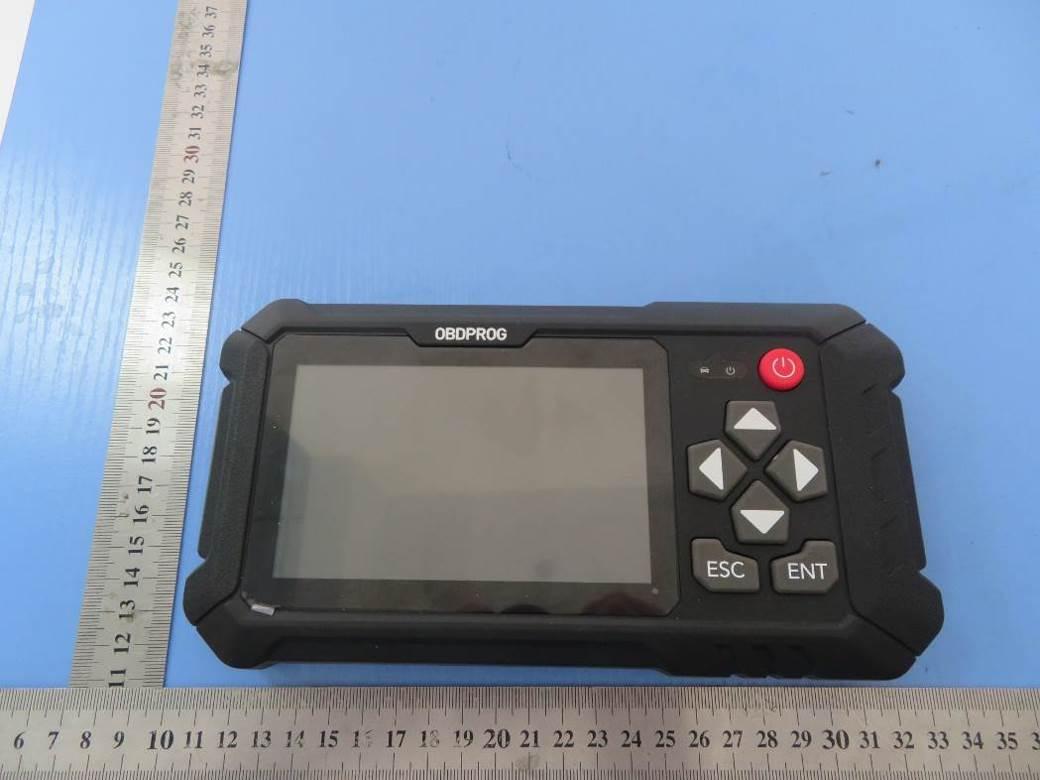

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L3.0m x 2.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location DP50-1 Model No: DP50-1 FCC ID: 2AJ2D-DOCTORM500 For Adapter: Input: 100-240V~ 50/60Hz,0.8A Output: 12V2A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Internal Photos of the EUT Fig.1 Fig.2 BT/WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig.11 Fig.12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig.13 Fig.14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ2D-DOCTORM500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AJ2D-DOCTORM500 Product name DP50-1 Model number DP50-1 Power supply For Adapter: Input: 100-240V~ 50/60Hz,0.8A Output: 12V2A Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40:2422-2452MHz Bluetooth: 2402MHz-2480MHz Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V4.2 (DTS) Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) 79 Channels for Bluetooth V4.2(DSS) 40 channels for Bluetooth V4.2(DTS) Antenna Type Internal Antenna Antenna Gain 3.0dBi(Max.) Hardware version V1.03 Software version Rk312x-userdebug5.1.1 LMY49F eng.xiejun.20190628.093730 test-keys Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ2D-DOCTORM500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ2D-DOCTORM500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.701 39 2441 0.270 78 2480 0.002 π/4DQPSK 0 2402 1.265 39 2441 0.850 78 2480 0.583 8DPSK 0 2402 1.865 39 2441 1.418 78 2480 1.136 GFSK(BLE) 0 2402 -2.530 19 2440 -2.788 39 2480 -3.425 IEEE 802.11b 1 2412 8.65 6 2437 7.68 11 2462 8.16 IEEE 802.11g 1 2412 7.98 6 2437 8.66 11 2462 7.85 IEEE 802.11n HT20 1 2412 6.98 6 2437 8.38 11 2462 8.14 IEEE 802.11n HT40 3 2422 8.25 6 2437 7.79 9 2452 7.92 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AJ2D-DOCTORM500 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 5. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 0.0 0.0 Tolerance ±(dB…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 1 of 52 Appendix A RF Test Data for BT V4.2(DSS/DTS) (Conducted Measurement) Product Name: DP50-1 Trade Mark: , Test Model: DP50-1 Environmental Conditions Temperature: 22.8C Relative Humidity: 53.4% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom.Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.701 21 PASS MCH 0.270 21 PASS HCH 0.002 21 PASS π/4DQPSK LCH 1.265 21 PASS MCH 0.850 21 PASS HCH 0.583 21 PASS 8DPSK LCH 1.865 21 PASS MCH 1.418 21 PASS HCH 1.136 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 2 of 52 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 3 of 52 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 4 of 52 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 5 of 52 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 6 of 52 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 7 of 52 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9587 Not Specified PASS MCH 0.9560 Not Specified PASS HCH 0.9566 Not Specified PASS π/4DQPSK LCH 1.290 Not Specified PASS MCH 1.289 Not Specified PASS HCH 1.290 Not Specified PASS 8DPSK LCH 1.304 Not Specified PASS MCH 1.303 Not Specified PASS HCH 1.302 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 8 of 52 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 9 of 52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 10 of 52 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 11 of 52 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 12 of 52 A.3 Occupied Bandwidth Mode Channel. Occupied Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.88601 Not Specified PASS MCH 0.88862 Not Specified PASS HCH 0.88695 Not Specified PASS π/4DQPSK LCH 1.1861 Not Specified PASS MCH 1.1799 Not Specified PASS HCH 1.1801 Not Specified PASS 8DPSK LCH 1.1919 Not Specified PASS MCH 1.1887 Not Specified PASS HCH 1.1889 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 13 of 52 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 14 of 52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 15 of 52 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 16 of 52 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 17 of 52 A.4 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.055 0.639 PASS MCH 1.102 0.639 PASS HCH 1.106 0.639 PASS π/4DQPSK LCH 0.868 0.860 PASS MCH 1.120 0.860 PASS HCH 1.124 0.860 PASS 8DPSK LCH 1.236 0.869 PASS MCH 0.916 0.869 PASS HCH 1.096 0.869 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 18 of 52 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 19 of 52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 20 of 52 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 21 of 52 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 22 of 52 A.5 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 23 of 52 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 24 of 52 A.6 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.85 106.7 0.304 0.4 PASS DH5 MCH 2.86 106.7 0.305 0.4 PASS DH5 HCH 2.85 106.7 0.304 0.4 PASS π/4DQPSK 2DH5 LCH 2.85 106.7 0.306 0.4 PASS 2DH5 MCH 2.86 106.7 0.306 0.4 PASS 2DH5 HCH 2.85 106.7 0.306 0.4 PASS 8DPSK 3DH5 LCH 2.85 106.7 0.306 0.4 PASS 3DH5 MCH 2.86 106.7 0.306 0.4 PASS 3DH5 HCH 2.85 106.7 0.306 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 25 of 52 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 26 of 52 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 27 of 52 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJ2D-DOCTORM500 Report No.: LCS200109023AEA Page 28 of 52 8DPSK _3DH5/MCH 8DPS…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 Report No.: LCS200109023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR OBDSTAR Technology Co., Ltd DP50-1 Test Model:DP50-1 Additional Model No.: Please Refer To Page 6 Prepared for : OBDSTAR Technology Co., Ltd Address : West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 16, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : January 16, 2020 ~ February 25, 2020 Date of Report : March 02, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 Report No.: LCS200109023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200109023AEA Date of Issue ................................... : March 02, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : OBDSTAR Technology Co., Ltd Address ........................................... : West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : DP50-1 Trade Mark ...................................... : , Test Model ...................................... : DP50-1 Ratings ............................................ : For Adapter: Input: 100-240V~ 50/60Hz,0.8A Output: 12V2A Result ........................................... : Positive Tested by: Compiled by: Approved by: Vera Deng / Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJ2D-DOCTORM500 Report No.: LCS200109023AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200109023AEA March 02, 2020 Date of issue Test Model........................... : DP50-1 EUT......................................... : DP50-1 Applicant............................... : OBDSTAR Technology Co., Ltd Address.................................. : West Block 4 floor,NO.8 building of Xinwu industrial areas,Taoyuan street ,Nanshan District,Shenzhen,China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : OBDSTAR Tec…

Text truncated - open the document above for the full version.
