2AJ5B-BT95Car Bluetooth FM Transmitter

TALK FOCUS Wireless HANDSFREE CAR KIT - Ensure high quality talking while freeway driving +With QC3.0 fast charging +With PD3.0 fast charging User Guide ModelBT95 LINE OUT 1.Unidirectional microphone 2.QC3.0 fast charging port (DC3.5-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A) 3.Type-C charging port: Support PD3.0 (20W) charging protocol 4.Combination function 1.Noise canceling button 2. Long press for 2S to shut down (retain charging function after shutting down) 5.Music mode: previous song Mode switching: long press 2S (loop, single, random) to play 6.Music mode: next song Light switch: long press 2S (circular light, seven-color light switch) 7. Combination function 1. Bass booster button 2. Long press 2S to turn off the ambient light 8.Phone buttons: play/pause/answer/hang up/double-tap to start Siri 9.Aluminum knob *Music mode: short press to play/pause; turn left to volume V-, turn right to volume V+ *Incoming call mode: short press to answer; long press: reject * During a call: short press to hang up; long press: transfer to a private call *Long press 2S: enter FM mode: rotate CH- to the left and CH+ to the right *Double click: wake up Siri/Google voice assistant, click to exit 10.3.5MM audio hole 11.Mini SD card slot Packaging accessories • FM transmitter*1 • Instruction manual*1 • Air outlet bracket*1 • 3.5MM audio cable*1 • 4A fuse*1 Features: • Adjust the local channel to the car radio channel to be consistent, which can realize SD card music transmission to car speakers and solve the battery life charging of mobile phones and other smart devices. Bluetooth hands-free call function can be realized through car audio by connecting Bluetooth with mobile phones. Turning on the noise canceling button during high-speed operation can eliminate road noise, wind noise, environmental noise, etc., and realize your high-definition call experience. Parameter Wireless version: V5.0 Product nameBT95 Effective distanc : 5m Memory card format and capacity: Micro SD card, support 64G FM frequency range : 87.5MHz-108.0MHz Compatible audio format: MP3.WMA.WAV.FLAC, APE Compatible with Bluetooth protocol: A2DP/AVRCP/HSP/HFP Orange fast charging port: supports QC3.0 Protocol (DC 3.6-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A) Type-C port support: PD3.0 (20W) charging protocol Product installation 1.Put the threaded knob on the end of the air outlet bracket. 2.Insert the set of air outlet bracket into the round hole at the back of the main unit. 3.Tighten the thread 4.Open the air outlet bracket and insert it into the car air-conditioning air outlet grille, tighten the screws to the best strength, adjust the angle of the machine, and then use it. Detailed accessories ● Metal washers ● Fuse ● Rubber gasket ● Metal tip screws How to install the fuse? 1. Rotate the screw on the bottom of the Bluetooth FM transmitter counterclockwise 2. Insert the fuse into the screw hole with the metal tip, the metal on the edge of the fuse will be attached to the metal tip 3. Assemble the rubber gasket 4. Assemble the metal gasket 5. Turn the screw clockwise to the bottom of the Bluetooth FM transmitter 11. Frequently Asked Questions (Block Diagram) 11.1. Noise issues Solution: A. Reduce the volume of the speaker by one third and increase the volume of the smart device B. Signal interference. Please switch to another empty white frequency point C. Plug and unplug the machine again to restore the initial state and work again 3. Music function (please make sure the connection is successful before use) 3.1.1 Audio source: Bluetooth/TF card 3.1.2 Music sound effect: default stereo sound effect playback 3.1.3 File mode: Insert a Micro SD card containing MP3 / WMA / APE / FLAC / WAV / APE files into the transmitter, and the transmitter will automatically start playing the files. When there is an incoming call, this device will automatically switch to the call. A. Bluetooth mode: Refer to the instructions of the smart device. Such as phone. After the Bluetooth connection is successful, the music on the smart device can be played and synchronized to the car's built-in speaker B.TF card mode: plug in TF, "BT95" will automatically recognize and play the music inside Note: To ensure a better experience of the product, when using this product, please select only one audio source. 3.2. Audio source selection A. Used between Bluetooth and TF card, it will recognize the last connected device to play by default. B. Auto play option via TF card: plug and play. C. After power off or restart, BT95 will enter the previous play mode (automatically play music in TF card mode, and manual play in Bluetooth mode is required 3.3. Audio playback operation A. Play/Pause: Click B. Previous/Next: Short press " " to play the previous song, short press " " to the next song 3.4. Switching the music playing mode A.In the music play mode, long press the " " button for 2S to switch (list loop play, single loop play, random play) and other play modes 4. High-speed noise canceling button 4.1. During a call, click the button to enter the high-speed noise cancellation mode, and there will be a Dingdong voice prompt. When talking with the other party, the noise in the car environment will be suppressed, so that the person who answers the call can enjoy a clear and interference-free call experience. 4.2. Click the button again to exit the high-speed noise cancellation mode 5.QC3.0 charging port description 5.1. The output power is 18W, compatible with FCP/QC3.0/QC2.0/BC1.2/DCP, etc. 5.2. Smart devices that support QC3.0 fast charge, meet QC3.0 fast charge protocol: DC 3.6-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A. 11.2. The other party cannot hear you during a call Reason 1: The dialing method is wrong solve: A. When a call comes in, click the phone button "" to answer the call through the speaker in the car B. Activate the phone speaker to answer the call Reason 2: The call volume is low solve: A. Increase the volume of the phone. B. The volume of the other party is too low during the call, ju…

Text truncated - open the document above for the full version.

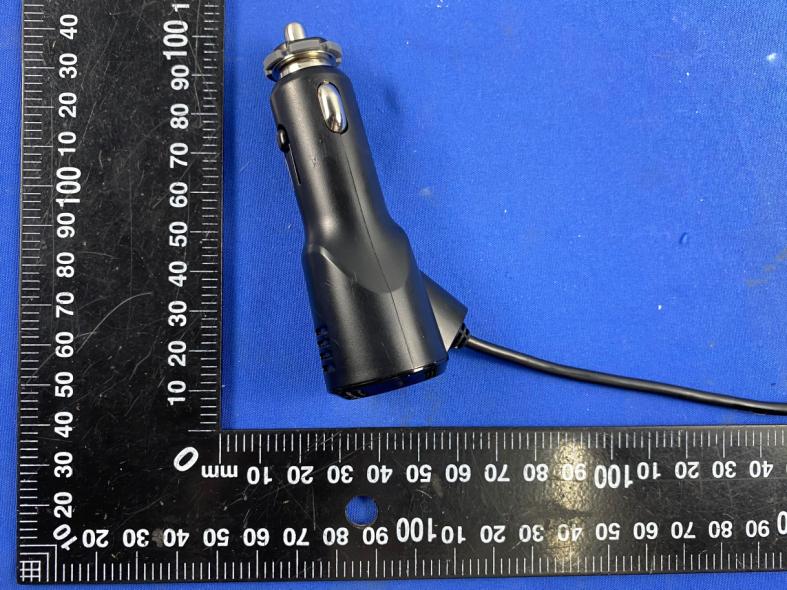

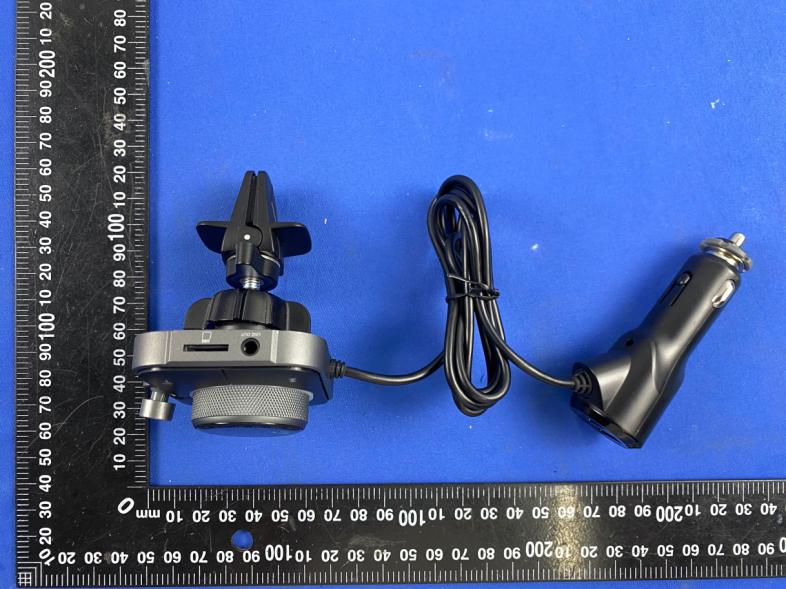

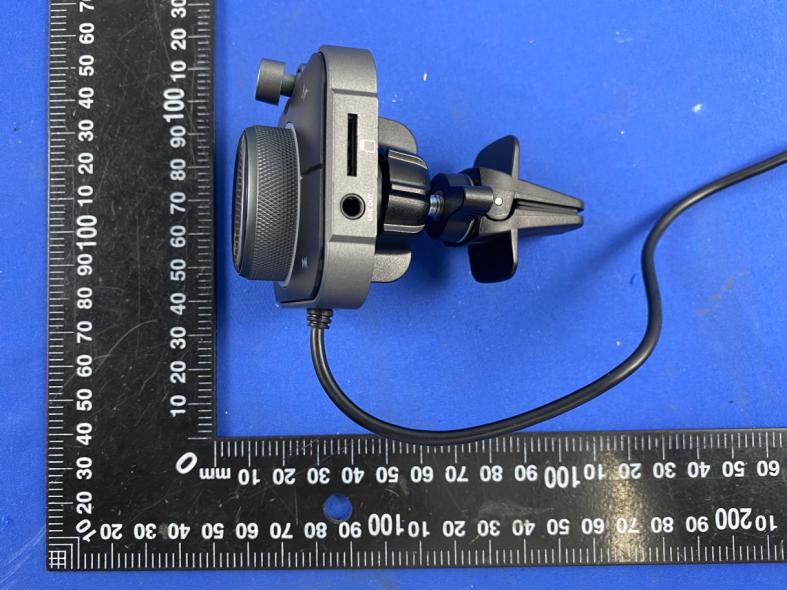

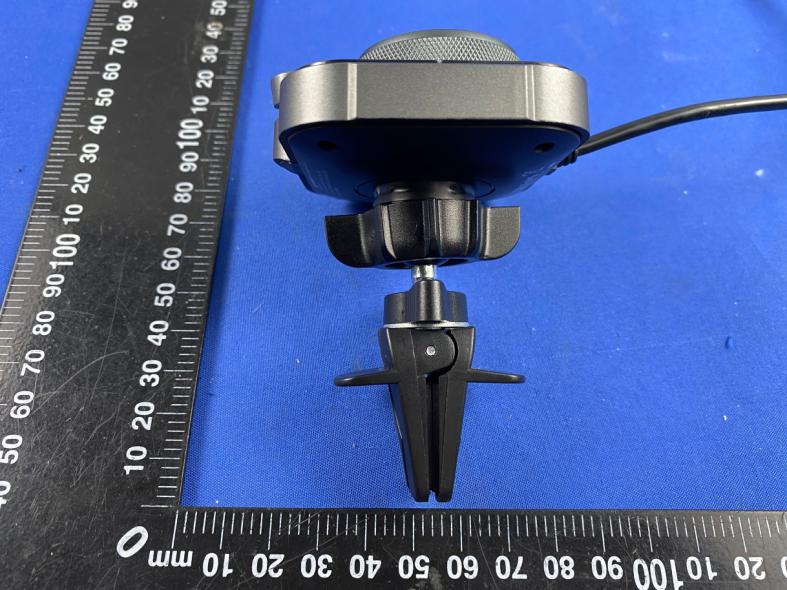

FCCID: 2AJ5B-BT95 Page 1 of 5 Report No.: CTL2104092094-WF External Photos of EUT FCCID: 2AJ5B-BT95 Page 2 of 5 Report No.: CTL2104092094-WF FCCID: 2AJ5B-BT95 Page 3 of 5 Report No.: CTL2104092094-WF FCCID: 2AJ5B-BT95 Page 4 of 5 Report No.: CTL2104092094-WF FCCID: 2AJ5B-BT95 Page 5 of 5 Report No.: CTL2104092094-WF

FCC ID: 2AJ5B-BT95 Page 1 of 1 Report No.: CTL2104092094-WF FCC-ID Label Information 1. Label location: Car Bluetooth FM Transmitter Model: BT95 FCC ID: 2AJ5B-BT95

FCC-ID: 2AJ5B-BT95 Page 1 of 4 Report No.: CTL2104092094-WF Internal Photos of EUT FCC-ID: 2AJ5B-BT95 Page 2 of 4 Report No.: CTL2104092094-WF BT Antenna FCC-ID: 2AJ5B-BT95 Page 3 of 4 Report No.: CTL2104092094-WF FM Antenna FCC-ID: 2AJ5B-BT95 Page 4 of 4 Report No.: CTL2104092094-WF

version01 SAGE HUMAN ELECTRONICS INTERNATIONAL CO., LTD. 4F., A Building, Rongli Industrial Park,No.2 Guiyuan Rd.Guihua Community, Guanlan Town, Longhua New Dist. Shenzhen, China Tel: +86-755-28079392 Fax: +86-755-28079393 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BT95, BT95L, BT95S, BT95Q fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for BT antenna type(s) described below: Model No. of antenna: NA Type of antenna: PCB antenna Gain of the antenna: 0 dBi Frequency range: 2402~2480 MHz The device specified above confirms to the FCC recommendations for FM antenna type(s) described below: Model No. of antenna: NA Type of antenna: PCB antenna Gain of the antenna: 0 dBi Frequency range: 88.1~107.9 MHz Mo The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: SAGE HUMAN ELECTRONICS INTERNATIONAL CO., LTD. Address: 4F., A Building, Rongli Industrial Park, No.2 Guiyuan Rd.Guihua Community, Guanlan Town, Longhua New Dist. Shenzhen, China City: Shenzhen ZIP / Postal code: Country: China Place: General Manager Date: 2021.08.09 Signature:

FCC- ID: 2AJ5B-BT95 Page 1 of 1 Report No.: CTL2104092094-WF RF Exposure Letter According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10 ‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison BT: pt=2.26dBm=1.6827mW at 2480MHz So (1.6827mW/5mm)x √2.480GHz =0.530<3 Then SAR evaluation is not required FM: d=3m EIRP(dBm)=E(dBμV/m)-95.3 mW=10[dBm/10] pt= 54.30dBuV/m =-41.00dBm=0.0001mW at 98.1 MHz So (0.0001mW/5mm)x √0.0981GHz = 0.000005<3 Then SAR evaluation is not required Note: This product does not support TX Simultaneous.

V1.0 Page 1 of 41 Report No.: CTL2104092094-WF01 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 20dB Bandwidth Verdict Test Result (MHz) GFSK 2402 SISO 1 0.935 PASS 2441 SISO 1 0.940 PASS 2480 SISO 1 0.945 PASS Pi/4DQPSK 2402 SISO 1 1.321 PASS 2441 SISO 1 1.323 PASS 2480 SISO 1 1.320 PASS 8DPSK 2402 SISO 1 1.302 PASS 2441 SISO 1 1.298 PASS 2480 SISO 1 1.300 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) GFSK 2402 SISO 1 0.857 Only for Report Use 2441 SISO 1 0.859 Only for Report Use 2480 SISO 1 0.856 Only for Report Use Pi/4DQPSK 2402 SISO 1 1.187 Only for Report Use 2441 SISO 1 1.187 Only for Report Use 2480 SISO 1 1.188 Only for Report Use 8DPSK 2402 SISO 1 1.183 Only for Report Use 2441 SISO 1 1.184 Only for Report Use 2480 SISO 1 1.186 Only for Report Use 1.2 Test Graph - 20dB Bandwidth V1.0 Page 2 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 3 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 4 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 5 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 6 of 41 Report No.: CTL2104092094-WF01 1.3 Test Graph - 99% Occupied Bandwidth V1.0 Page 7 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 8 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 9 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 10 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 11 of 41 Report No.: CTL2104092094-WF01 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 GFSK 2402 SISO -3.85 30 PASS 2441 SISO -2.78 30 PASS 2480 SISO -1.44 30 PASS Pi/4DQPSK 2402 SISO -1.23 20.97 PASS 2441 SISO 0.05 20.97 PASS 2480 SISO 1.48 20.97 PASS 8DPSK 2402 SISO -0.63 20.97 PASS 2441 SISO 0.74 20.97 PASS 2480 SISO 2.26 20.97 PASS 2.2 Test Graph V1.0 Page 12 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 13 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 14 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 15 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 16 of 41 Report No.: CTL2104092094-WF01 3. Carrier frequency separation 3.1 Test Result Test Mode TX Type ANT No. Channel Separation (MHz) 20dB Bandwidth (MHz) Limits (MHz) Verdict GFSK SISO 1 1.010 0.945 ≥0.945 PASS Pi/4DQPSK SISO 1 1.005 1.323 ≥0.882 PASS 8DPSK SISO 1 0.999 1.302 ≥0.868 PASS 3.2 Test Graph V1.0 Page 17 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 18 of 41 Report No.: CTL2104092094-WF01 4. Number of hopping frequencies 4.1 Test Result Test Mode TX Type ANT No. Num of Hopping Frequencies Limits Verdict GFSK SISO 1 79 ≥15 PASS Pi/4DQPSK SISO 1 79 ≥15 PASS 8DPSK SISO 1 79 ≥15 PASS 4.2 Test Graph V1.0 Page 19 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 20 of 41 Report No.: CTL2104092094-WF01 5. Time of Occupancy (Dwell Time) 5.1 Test Result Test Mode Packet Type TX Type ANT No. Duration of Single Pulse (ms) Obeservat ion Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limits (ms) Verdict GFSK DH1 SISO 1 0.373 31.6 12 4.476 ≤400 PASS DH3 SISO 1 1.628 31.6 12 19.536 ≤400 PASS DH5 SISO 1 2.876 31.6 12 34.512 ≤400 PASS Pi/4DQ PSK 2DH1 SISO 1 0.381 31.6 13 4.953 ≤400 PASS 2DH3 SISO 1 1.633 31.6 13 21.229 ≤400 PASS 2DH5 SISO 1 2.881 31.6 13 37.453 ≤400 PASS 8DPSK 3DH1 SISO 1 0.382 31.6 12 4.584 ≤400 PASS 3DH3 SISO 1 1.680 31.6 13 21.840 ≤400 PASS 3DH5 SISO 1 2.931 31.6 13 38.103 ≤400 PASS 5.2 Test Graph V1.0 Page 21 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 22 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 23 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 24 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 25 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 26 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 27 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 28 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 29 of 41 Report No.: CTL2104092094-WF01 6. Unwanted Emissions in Non-restricted Frequency Bands 6.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict GFSK 2402 SISO 1 Refer to test graph -21.90 PASS 2441 SISO 1 Refer to test graph -21.90 PASS 2480 SISO 1 Refer to test graph -21.90 PASS Hopping SISO 1 Refer to test graph -21.90 PASS Pi/4DQPSK 2402 SISO 1 Refer to test graph -22.18 PASS 2441 SISO 1 Refer to test graph -22.18 PASS 2480 SISO 1 Refer to test graph -22.18 PASS Hopping SISO 1 Refer to test graph -22.18 PASS 8DPSK 2402 SISO 1 Refer to test graph -22.01 PASS 2441 SISO 1 Refer to test graph -22.01 PASS 2480 SISO 1 Refer to test graph -22.01 PASS Hopping SISO 1 Refer to test graph -22.01 PASS 6.2 Test Graph V1.0 Page 30 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 31 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 32 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 33 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 34 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 35 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 36 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 37 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 38 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 39 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 40 of 41 Report No.: CTL2104092094-WF01 V1.0 Page 41 of 41 Report No.: CTL2104092094-WF01

FCCID: 2AJ5B-BT95 Page 1 of 1 Report No.: CTL2104092094-WF Test Setup Photos of the EUT
