2AJ5B-BTM01Car Bluetooth FM transmitter

BluetoothHands-FreeCarKitwithDetachableMicrophone Greatlyenhancesthedevice'ssoundcapturingability BTM01USERGUIDE Introduction ThanksforchoosingourBluetoothFMTransmitterwithdetachablemicrophone.Thisdevicestreammusic andcallsdirectlyfromyourBluetoothdevicetoyourcarFMstereosystem.Independent,specially structuredmicrophonegreatlyenhancesthedevice'ssoundcapturingability,itprovidesyouwithan amazinghands-freefunction.Pleasereadtheusermanualcarefullybeforeusing.Hopethisdevicemake yourdrivingmoreinterestingandsafer. Packingcontents BluetoothFMtransmitter UserGuide Features: 1.Wirelesslytransmitsphonecall&audiostreamingtothecarFMstereosystemviaBluetooth. 2.Switchtohands-freemodeautomaticallyfrommusicstreamingstatuswhenreceivingphonecall. 3.Independent&specializedstructuredmicrophonegreatlyenhancesthedevice'ssoundcapturing ability. 4.DualChargingports(QC3.0+PD20W)satisfyyourdifferentchargingneeds. 5.QuickActivationofSiri/GoogleAssistantandetc... 6.DetectsthevoltageofCarBatterywhenpoweredon. 7.Rotatoryknobforconvenientoperations 8.AdvancedMicforBetterVoicePickup. 9.BluetoothVersion:JL5.1. 10.Built-in80mAhbattery,providingupto8hoursworkingtime. Specifications： Bluetooth Version: V5.1 Frequency Range:F M :88.1-107.9MHZ , Bluetooth :2 4 0 2-2480MHZ Product Input: 12-24V Bluetooth Distance: about 7m Charging Output: QC3.0 & PD 20W (38W Max) Charging time: about 2 hours Working time: about 8 hours Standby time: about 6 months Battery capacity: 80mAh Material: ABS + PC Product Size: 97*45*37mm Weight: 46.2g Compatibility: Thisdevicecanbepairedasahands-freekitwithanycompatibleBluetoothenableddevices.Eachtimecanonly beconnectedwithoneBluetoothdevice. Precautions Pleasereadallsafetyinstructionwarningscarefullybeforeusingthisproduct.Improperuseofthisproduct mayresultindamagetothisorattachedproducts.Toensuretheproductsworkwell,pleaseneverusethis inthefollowingconditions: 1.Moistorunderwaterconditions; 2.Conditionsnearheaterorhigh-temperatureservice; 3.Conditionswithdirectandstrongsunshine; 4.Conditionswithattemptedfalling; 5.Neverdismantletheproductwithoutduepermission,otherwiseitmaynullifythewarrantyclause. Appearance: 1PD20Wchargingport 2QC3.0chargingport 3LEDdisplay 4FMfrequencyselection/modulation Volumeup/Volumedown Calling/Pause/Play/Pickup/Hangup Offbutton(LongPress) 5Previoustrack/Volumeup 6Nexttrack/Volumedown 7Calling/Pause/Play/Pickup/Hangup Siri/GoogleAssistant OperationInstructions First-timeuse:pressoncetopoweron Presstwice:Searchformatches Pressonce:Pause/Play/Pickup/Hangup Pressandhold:RejectIncomingcall Pressandholdfor3seconds:Siri/GoogleAssistant,Clickagaintoexit. < Pressonce“<”button:Previoustrack Pressandhold“<”button:Volumedown > Pressonce“>”button:Nexttrack Pressandhold“>”button:Volumeup Rotateinclockwise:VolumeUp Rotateanticlockwise:Volumedown Pressonce:Pause/Play/Pickup/Hangup Pressandhold:RejectIncomingcall Pressandholdfor3seconds(TuningMode): Rotateinclockwise:Increasethefrequency Rotateanticlockwise:Decreasethefrequency Pressandholdfor5seconds:Poweroff(FM,LEDdisplay) PowerOn Whenthetransmitterispoweredon,theLEDdisplaywillshowthevoltage detectedfor3seconds.AndthetransmitterwillautomaticallypairwiththeMIC, andthe"."nexttobtwilldisappearwhenthepairingissuccessful. TheBluetoothstandbystatusofthetransmitterdisplaysBTflashing,untilthe Bluetoothconnectiontothemobilephoneissuccessful,thecurrentfrequency doesnotflash; CallingstatusCalloutinterfacedisplaysCAL(displaySIRundersirifunction) Incomingcallstatus,IncomingCallReadout. MusicstatusConnecttoBluetooth,playmusic,displaythecurrentfrequencypointdoesnot flash.ThebluelightofMICflashesslowly. Low-VoltageStatusDisplaythevoltageinterfaceandflash(turnonwhenthevoltageislowerthan12V). IndicatorStatus WhentheMICispoweredon,thebluetoothsearchstatus:redandbluelightsflash slowlyandalternatively;Redandbluelightsflashquicklyafterthepairingis successful; Intheworkingstatus:Thebluelightflashesslowly. WhentheMICisnotworking:theredlightisalwaysonwhentheproductisbeing charged,andthebluelightstaysonwhenthebatteryisfullycharged. Howtousethedetachablemicrophone: PutthedetachablemicrophoneontheBluetoothFMTransmittertocharge.(Refertopicbelow) PickupthedetachablemicrophonefromtheBluetoothFMTransmitter. First-timeuse:pressoncetopoweron;Presstwice:Searchformatches. PleaserefertotheaboveOperationInstructionsonhowtopair/use. Cliptoyourclothestoenjoyamazinghands-freefunction. RemovethedetachablemicrophonefromtheBluetoothFMTransmitterandBluetoothFMTransmitter workasacarcharger. UsingFMTransmitterfunction 1.PlugtheFMtransmitterintoyourvehicle’scigarettelighterorpowerport. 2.TuneyourradiotoanunusedFMfrequency,thenmatchthesamefrequencyofthisunit. UsingBluetoothfunction 1.UsingBluetoothforthefirsttime,youneedtopairyourmobilephonewiththisunit.Activateyour mobilephone'sBluetoothfunction,thensearchnewdevice.Whenthemobilephonedetectsthisunit (namedas"BTM01"),pleasepairandconnectbyusingtheoriginalpassword"0000"(ifneeded). 2.Inthemusicplayingmode,whenthereisanincomingcall,thisunitwillautomaticallyswitchto telephonemode. Bluetoothcalling 1.Pleasepress④or⑦toanswertheincomingcall. 2.Pleaselongpress④or⑦torejectacall. 3.Press④or⑦twicetodialthelastnumberautomatically. 4.Duringacall,press④or⑦tohangoffacall,longpress④or⑦toswitchaprivateconversation. 5.Whenmakingacall,youcanonlydialthephonenumberbyyourmobilephone,butoncethecall connected,youcanusethehands-freefunctiontoenjoyit. PlayingandControllingtheMusic 1.PlaymusicdirectlyfromthemobiledevicethatisconnectedtotheproductviaBluetooth. 2.Pressthe④or⑦toplayorpausemusic. 3.Pressthe⑤and⑥onthebackofthisproducttoskiptotheprevioussongorgobacktothenextsong. 4.Pressthe⑤and⑥toincreaseordecreasevolume. Tip:Ifyoureceiveacallwhileplayingmusic,theproductautomaticallyswitchestothephonecall. UsingUSBchargerfunction ConnecttheUSBChargerporttoyourmobilephone,withaUSBcable(notincluded)whenthisproduct poweredfromcarlightersocket,theproductwillserveasmobilephonecharger. Pleasenote: Voltageoutputs: PD3.05V/3A9V/2.22A12V/1.67A QC3.05V/3A9V/2A12V…

Text truncated - open the document above for the full version.

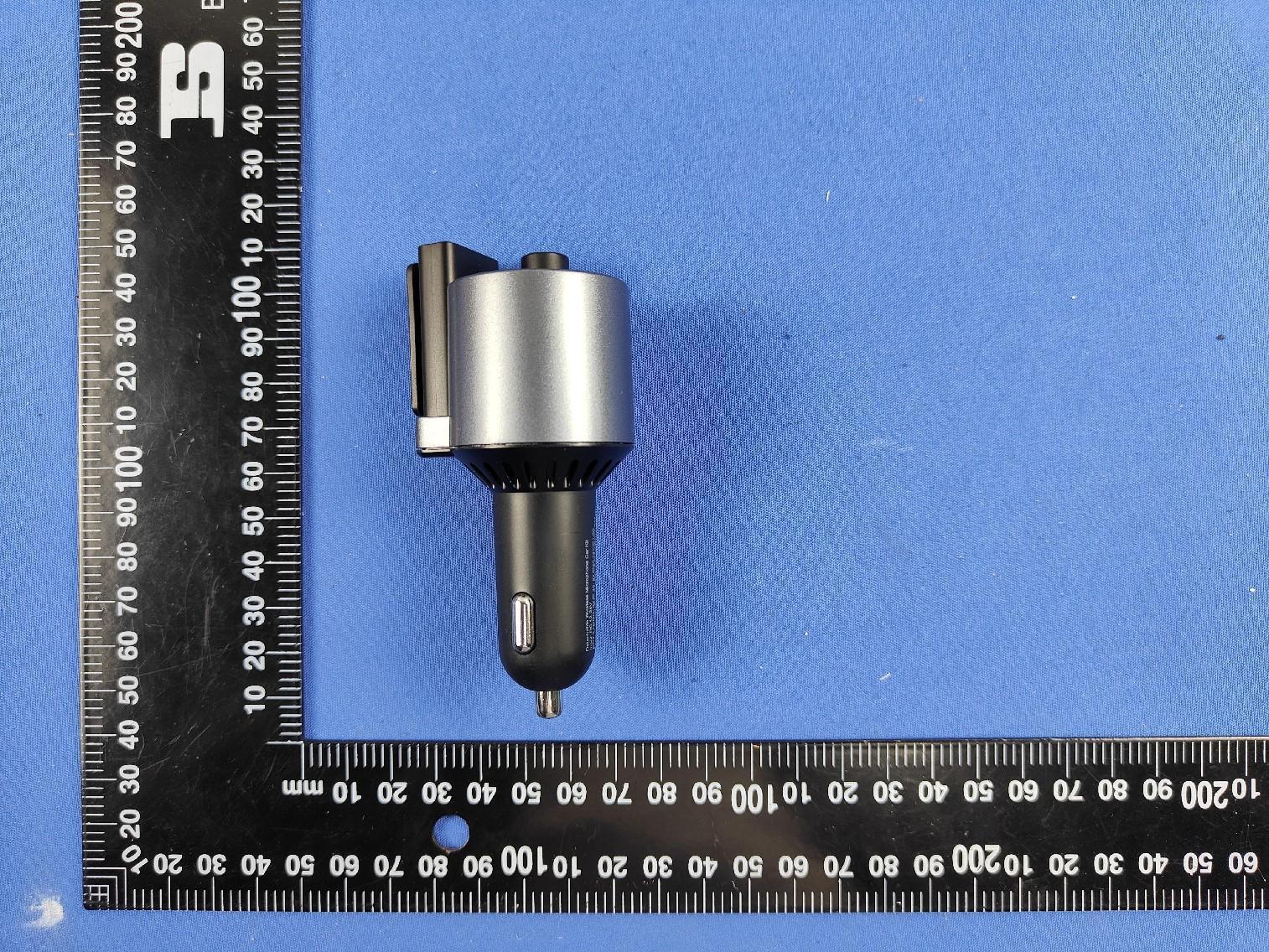

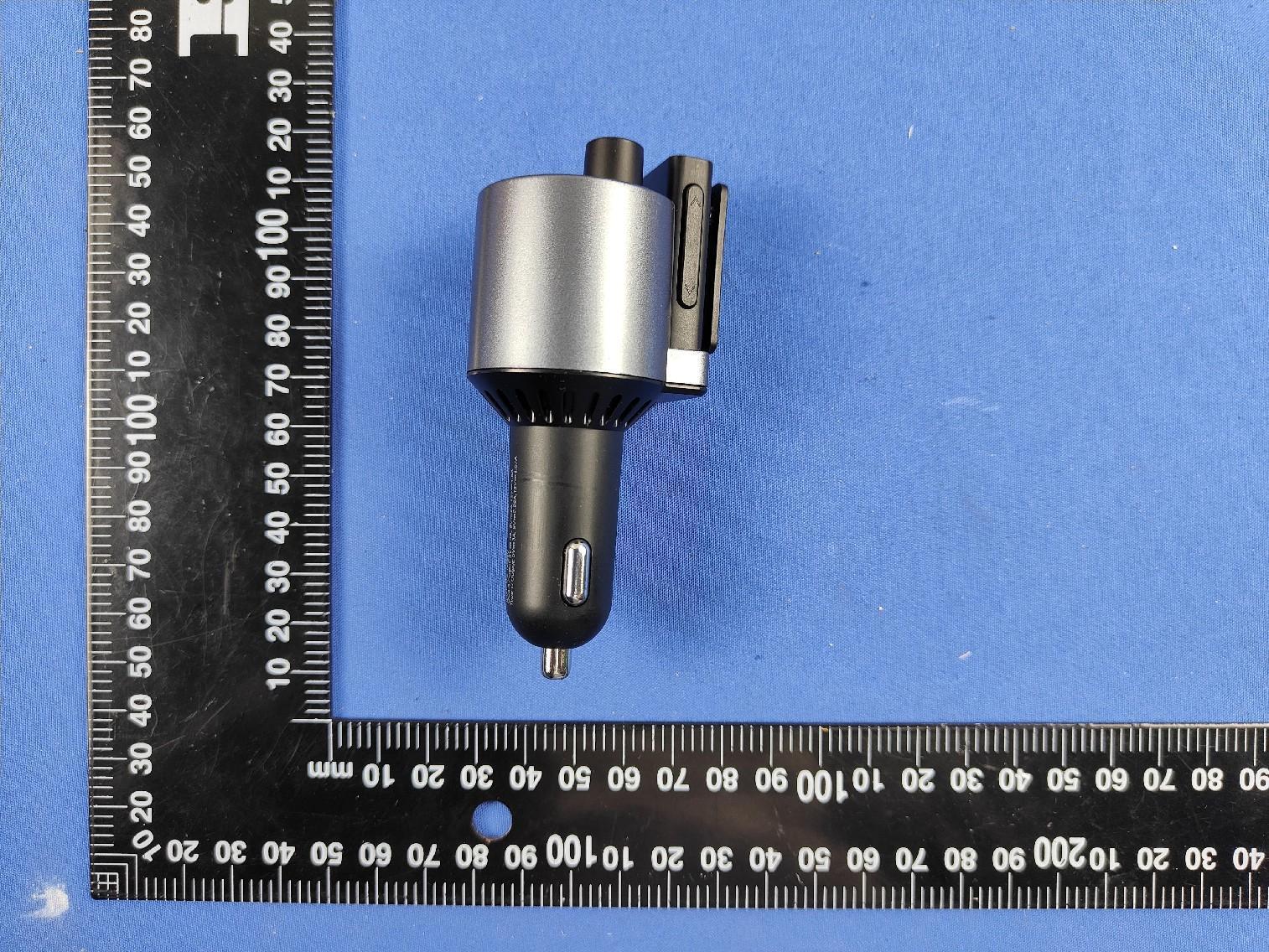

FCCID:2AJ5B-BTM01Page 1 of 2 ReportNo.:CTL2202182114-WF ExternalPhotosofEUT FCCID:2AJ5B-BTM01Page 2 of 2 ReportNo.:CTL2202182114-WF

FCCID:2AJ5B-BTM01Page 1 of 1 ReportNo.:CTL2202182114-WF FCC-IDLabelInformation 1.Labellocation: CarBluetoothFMtransmitter Model:BTM01 FCCID:2AJ5B-BTM01

FCCID:2AJ5B-BTM01Page 1 of 2 ReportNo.:CTL2202182114-WF InternalPhotosofEUT FCCID:2AJ5B-BTM01Page 2 of 2 ReportNo.:CTL2202182114-WF BTAntenna FMAntenna

version01 SAGEHUMANELECTRONICSINTERNATIONALCO.,LTD. 4F.,ABuilding,RongliIndustrialPark,No.2GuiyuanRd.Guihua Community,GuanlanTown,LonghuaNewDist.Shenzhen, China Tel:+86-755-28079392Fax:+86-755-28079393 DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo:BTM01,SF-BT016,SF-BT020,SF-BT021,SF-BT022,SF-BT023,SF-BT025, MS10,MS11,MS12,MS13,BT10MQ FCCID:2AJ5B-BTM01 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor PCB antennatype(s)described below: Bluetooth: ModelNo.ofantenna:NA Typeofantenna: PCBAntenna Gainoftheantenna:0dBi Frequencyrange:2402~2480MHz FM: ModelNo.ofantenna: NA Typeofantenna:SpringAntenna Gainoftheantenna: 0 dBi Frequencyrange: 88.1-107.9 MHz Mo Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:SAGEHUMANELECTRONICSINTERNATIONALCO.,LTD. Address:4F.,ABuilding,RongliIndustrialPark,No.2GuiyuanRd.Guihua Community,GuanlanTown,LonghuaNewDist.Shenzhen,China City:Shenzhen ZIP/Postalcode: Country:China Place:GeneralManagerDate:2022.04.25 Signature:

FCCID: 2AJ5B-BTM01 Page1of1ReportNo.:CTL2202182114-WF RFExposureLetter Accordingto447498D01GeneralRFExposureGuidancev05The1 ‐ gand10 ‐ g SARtest exclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤ 50mm aredeterminedby:[(max.powerofchannel,includingtune ‐ uptolerance,mW)/(min. testseparationdistance,mm)] · [ √ f(GHz)] ≤ 3.0for1 ‐ gSARand ≤ 7.5for10 ‐ gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison BT pt=3.07dBm=2.03mWat2402MHz So(2.03mW/5mm)x √ 2.402GHz=0.6285<3 FM EIRP(dBm)=E(dB μ V/m)-95.3mW=10[dBm/10] pt=54.76dB μ V/m=-40.54dBm=0.0001mWat88.1MHz So(0.0001mW/5mm)x √ 0.0881GHz=0.000005<3 ThenSARevaluationisnotrequired Note:ThisproductdoesnotsupportTXSimultaneous.

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] TESTREPORT FORFCCPART15SUBPARTC15.239 ReportReferenceNo.....................:CTL2202182114-WF02 Compiledby: (position+printedname+signature) HappyGuo (Fileadministrators) Testedby: (position+printedname+signature) GrayGao (TestEngineer) Approvedby: (position+printedname+signature) IvanXie (Manager) ProductName.................................: CarBluetoothFMtransmitter Model/Typereference....................:BTM01 ListModel(s)....................................: SF-BT016,SF-BT020,SF-BT021,SF-BT022,SF-BT023, SF-BT025,MS10,MS11,MS12,MS13,BT10MQ TradeMark.......................................: N/A FCCID ............................................... : 2AJ5B-BTM01 Applicant’sname...........................: SAGEHUMANELECTRONICSINTERNATIONALCO.,LTD. Addressofapplicant ..................... : 4F.,ABuilding,RongliIndustrialPark,No.2GuiyuanRd.Guihua Community,GuanlanTown,LonghuaNewDist,Shenzhen,China TestFirm ........................................... : ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm ..................... : Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad, NanshanDistrict,Shenzhen,China518055 Testspecification ........................... : Standard ............................................ : FCCPart15.239:Operationintheband88–108MHz. TRFOriginator..................................: ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF ....................................... :Dated2011-01 Dateofreceiptoftestitem..........: Feb.23,2022 Dateofsampling ............................ : Feb.23,2022 DateofTestDate............................: Feb.23,2022-Apr.08,2022 DateofIssue .................................... : Apr.08,2022 Result................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. V1.0Page2of20ReportNo.:CTL2202182114-WF02 TESTREPORT TestReportNo.:CTL2202182114-WF02 Apr.08,2022 Dateofissue EquipmentunderTest: CarBluetoothFMtransmitter SampleNo:CTL220218211-1-S004 Model/Type: BTM01 ListedModels: SF-BT016,SF-BT020,SF-BT021,SF-BT022, SF-BT023,SF-BT025,MS10,MS11,MS12,MS13, BT10MQ Applicant: SAGEHUMANELECTRONICSINTERNATIONAL CO.,LTD. Address: 4F.,ABuilding,RongliIndustrialPark,No.2Guiyuan Rd.GuihuaCommunity,GuanlanTown,LonghuaNew Dist,Shenzhen,China Manufacturer: SAGEHUMANELECTRONICSINTERNATIONAL CO.,LTD. Address : 4F.,ABuilding,RongliIndustrialPark,No.2Guiyuan Rd.GuihuaCommunity,GuanlanTown,LonghuaNew Dist,Shenzhen,China TestresultPass* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedpage5. Thedevice(ProductName:CarBluetoothFMtransmitter)ModelsName:BTM01,SF-BT016,SF-BT020, SF-BT021,SF-BT022,SF-BT023,SF-BT025,MS10,MS11,MS12,MS13,BT10MQhavesameelectrical, PCBandBOM,onlythecolourandmodel’snamesaredifferentformarketingrequirements. Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. V1.0Page3of20ReportNo.:CTL2202182114-WF02 **ModifiedHistory** RevisionsDescriptionIssuedDataReportNo.Remark Version1.0InitialTestReportRelease2022-04-08CTL2202182114-WF02TracyQi V1.0Page4of20ReportNo.:CTL2202182114-WF02 TableofContentsPage 1.SUMMARY .............................................................................................................................................................................. 5 1.1.TESTSTANDARDS ............................................................................................................................................................ 5 1.2.TESTDESCRIPTION ............................................................................................................................................................... 5 1.3.TESTFACILITY ...................................................................................................................................................................... 6 1.4.STATEMENTOFTHEMEASUREMENTUNCERTAINTY ...................................................................................................................... 6 2.GENERALINFORMATION ....................................................................................................................................................... 7 2.1.ENVIRONMENTALCONDITIONS ................................................................................................................................................ 7 2.2.GENERALDESCRIPTIONOFEUT ............................................................................................................................................. 7 2.3.DESCRIPTIONOFTESTMODESANDTESTFREQUENCY ................................................................................................................ 8 2.4.EQUIPMENTSUSEDDURINGTHETEST ..................................................................................................................................... 9 2.5.RELATEDSUBMITTAL(S)/GRANT(S) ........................................................................................................................................ 9 2.6.MODIFICATIONS ................................................................................................................................................................... 9 3.TESTCONDITIONSANDRESULTS ......................................................................................................................................... 10 3.1.CONDUCTEDEMISSIONSTEST ................................................................................................................................…
