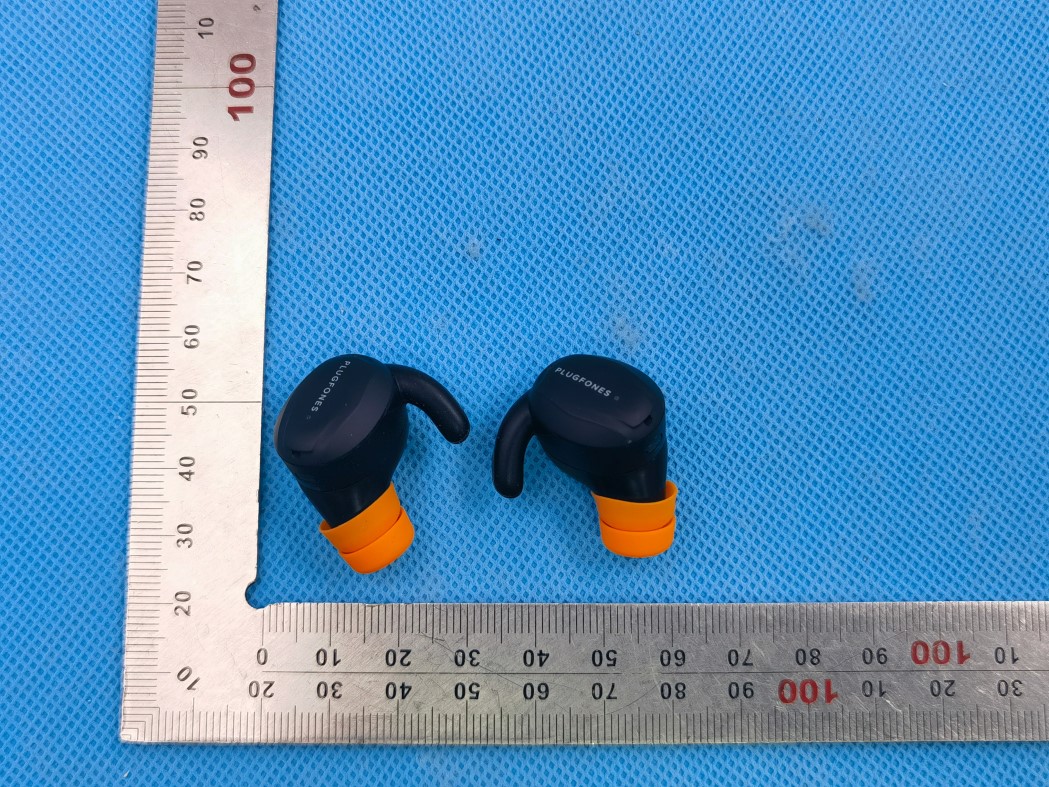

Report No.: AGC17143250903AP02 Page 1 of 4 EXTERNAL PHOTOS All VIEW OF EUT TOP VIEW OF EUT Report No.: AGC17143250903AP02 Page 2 of 4 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC17143250903AP02 Page 3 of 4 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC17143250903AP02 Page 4 of 4 RIGHT VIEW OF EUT ****************************************End of Report*************************************

FCC ID Label Location The product does not have enough space to place the label, and FCC ID is located in the user manual and package. User manual as below: Package as below:

Report No.: AGC17143250903AP02 Page 1 of 3 INTERNAL PHOTOS OPEN VIEW OF EUT (FIGURE 1) INTERNAL VIEW OF EUT (FIGURE 1) Report No.: AGC17143250903AP02 Page 2 of 3 INTERNAL VIEW OF EUT (FIGURE 2) INTERNAL VIEW OF EUT (FIGURE 3) BT Antenna BT Antenna Report No.: AGC17143250903AP02 Page 3 of 3 INTERNAL VIEW OF EUT (FIGURE 4) BATTERY VIEW OF EUT (FIGURE 1) ****************************************End of Report*************************************

Page 1 of 11 RF Exposure Report Report No.: AGC17143250903FH01 FCC ID : 2AJDL-ASABB APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Sovereign TWS VL Earphones BRAND NAME : Plugfones MODEL NAME : ASA-BB, ASA-OO(VL)-MO APPLICANT : INNATE DEVICES.LLC DATE OF ISSUE : Dec. 30, 2025 STANDARD(S) : FCC Part 2 Subpart J §2.1093 FCC KDB 447498 D01 V06 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC17143250903FH01 Page 2 of 11 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2025 Valid Initial Release Report No.: AGC17143250903FH01 Page 3 of 11 Table of Contents 1. General Information ........................................................................................................................................ 4 2. Product Information ........................................................................................................................................ 5 2.1 Product Technical Description ................................................................................................................... 5 3. Test Environment ............................................................................................................................................ 6 3.1 Address Of The Test Laboratory ............................................................................................................... 6 3.2 Test Facility ................................................................................................................................................ 6 3.3 Environmental Conditions ......................................................................................................................... 7 4. Portable Device Evaluation Method and Limit ............................................................................................. 8 5. Mobile Device Evaluation Method and Limit ................................................................................................ 9 6. Measurement Results ................................................................................................................................... 10 7. Measurement Evaluation .............................................................................................................................. 10 Report No.: AGC17143250903FH01 Page 4 of 11 1. General Information Applicant INNATE DEVICES.LLC Address 2052 W 700 S Unit B Springville Utah 84663 United States Manufacturer Zhongshan K-mate General Electronics Co., Ltd. Address No.2, 5th Xinsheng Street, East Mu He Jing Road, Gangkou Town, Zhongshan, China Factory Zhongshan K-mate General Electronics Co., Ltd. Address No.2, 5th Xinsheng Street, East Mu He Jing Road, Gangkou Town, Zhongshan, China Product Designation Sovereign TWS VL Earphones Brand Name Plugfones Test Model ASA-BB Series Model(s) ASA-OO(VL)-MO Difference Description All the series models are the same as the test model except for the model names. Date of receipt of test item Sep. 28, 2025 Date of Test Sep. 28, 2025 - Dec. 30, 2025 Deviation from Standard No any deviation from the test method Condition of Test Sample Normal Test Result Pass Test Report Form No AGCER-FCC-RF Exposure-V1 Note: The test results of this report relate only to the tested sample identified in this report. Prepared By Cici Li (Project Engineer) Dec. 30, 2025 Reviewed By Bibo Zhang (Reviewer) Dec. 30, 2025 Approved By Angela Li (Authorized Officer) Dec. 30, 2025 Report No.: AGC17143250903FH01 Page 5 of 11 2. Product Information 2.1 Product Technical Description Frequency Band (Operating) Bluetooth: 2.402GHz ~ 2.480GHz Hardware Version V0.2 Software Version V1.0 Modulation Type BT_BLE: GFSK BT_BR_EDR: GFSK, π /4-DQPSK, 8DPSK Device Category Portable (<20cm separation) Mobile (>20cm separation) Others: Antenna Diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna Designation Chip Antenna Antenna Gain 2.7dBi Minimum Assessment Distance 5mm Evaluation Applied MPE Evaluation SAR Evaluation Report No.: AGC17143250903FH01 Page 6 of 11 3. Test Environment 3.1 Address Of The Test Laboratory Laboratory: Attestation of Global Compliance (Shenzhen) Co., Ltd. Address: 1-2/F, Building 19, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 3.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L5488 Attestation of Global Compliance (Shenzhen) Co., Ltd. has been assessed and proved to follow CNAS-CL01 Accreditation Criteria for Testing and Calibration Laboratories (identical to ISO/IEC17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories.) A2LA-Lab Cert. No.: 5054.02 Attestation of Global Compliance (Shenzhen) Co., Ltd. EMC Laboratory has been accredited by A2LA for technical competence in the field of electrical testing, and proved to follow ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. FCC-Registration No.: 975832 Attestation of Global Compliance (Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files with Registration 975832. IC-Registration No.: 24842(CAB identifier: CN0063) Attestation of Global Compliance (Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the Certification and Engineering Bureau of Industry Canada. The acceptance letter from the IC is maintained in our files with Registration 24842. Report No.: AGC17143250903FH01 Page 7 of 11 3.3 Environmental Conditions Normal Conditions Temperature range (°C) 15 - 35 Relative humidity range 20 % - 75 % P…

Text truncated - open the document above for the full version.

2.4GHz 2012 Chip Antenna: RANT2012F245X07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X (A)(B)(C)(D)(E) 07 (F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain2.7 dBi (Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen 2.4GHz 2012 Chip Antenna: RANT2012F245X07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2500MH 2450MHz z Efficiency70.56%75.25%71.01% 2.4GHz 2012 Chip Antenna: RANT2012F245X07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 ReliabilityTabl 2.4GHz 2012 Chip Antenna: RANT2012F245X07 e TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Chip Antenna: RANT2012F245X07 2.4GHz 2012 Chip Antenna: RANT2012F245D07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 1NewDatashee2022/10/15t

Page 1 of 124 FCC Test Report Report No.: AGC17143250903FR02 FCC ID : 2AJDL-ASABB APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Sovereign TWS VL Earphones BRAND NAME : Plugfones MODEL NAME : ASA-BB, ASA-OO(VL)-MO APPLICANT : INNATE DEVICES.LLC DATE OF ISSUE : Dec. 30, 2025 STANDARD(S) : FCC Part 15 Subpart C §15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC17143250903FR02 Page 2 of 124 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2025 Valid Initial Release Report No.: AGC17143250903FR02 Page 3 of 124 Table of Contents 1. General Information ........................................................................................................................................ 5 2. Product Information ........................................................................................................................................ 6 2.1 Product Technical Description ................................................................................................................... 6 2.2 Test Frequency List ................................................................................................................................... 6 2.3 Related Submittal(S) / Grant (S) ............................................................................................................... 7 2.4 Test Methodology ...................................................................................................................................... 7 2.5 Receiver Input Bandwidth ......................................................................................................................... 7 2.6 Equally Average Use of Frequencies And Behaviour ............................................................................... 7 2.7 Pseudorandom Frequency Hopping Sequence ........................................................................................ 8 2.8 Special Accessories .................................................................................................................................. 9 2.9 Equipment Modifications ........................................................................................................................... 9 2.10 Antenna Requirement ............................................................................................................................. 9 3. Test Environment .......................................................................................................................................... 10 3.1 Address of The Test Laboratory .............................................................................................................. 10 3.2 Test Facility .............................................................................................................................................. 10 3.3 Environmental Conditions ....................................................................................................................... 11 3.4 Measurement Uncertainty ....................................................................................................................... 11 3.5 List of Equipment Used ........................................................................................................................... 12 4.System Test Configuration ............................................................................................................................ 14 4.1 EUT Configuration ................................................................................................................................... 14 4.2 EUT Exercise ........................................................................................................................................... 14 4.3 Configuration of Tested System .............................................................................................................. 14 4.4 Equipment Used in Tested System ......................................................................................................... 14 4.5 Summary of Test Results ........................................................................................................................ 16 5. Description of Test Modes ........................................................................................................................... 17 6. RF Output Power Measurement .................................................................................................................. 18 6.1 Provisions Applicable .............................................................................................................................. 18 6.2 Measurement Procedure ......................................................................................................................... 18 6.3 Measurement Setup (Block Diagram of Configuration) .......................................................................... 18 6.4 Measurement Result ............................................................................................................................... 19 7. 20dB Bandwidth and 99% Occupied Bandwidth Measurement ............................................................... 31 7.1 Provisions Applicable .............................................................................................................................. 31 7.2 Measurement Procedure ......................................................................................................................... 31 7.3 Measurement Setup (Block Diagram of Configuration) .......................................................................... 31 7.4 Measurement Results ............................................................................................................................. 32 8. Conducted Band Edge and Out-of-Band Emissions .............…

Text truncated - open the document above for the full version.

Report No.: AGC17143250903FR02 Page 79 of 124 Test_Graph_BR_HOP_ANT1_NA_1Mbps_Lower Band Edge Emissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_Higher Band Edge Emissions Report No.: AGC17143250903FR02 Page 80 of 124 Test_Graph_EDR_ANT1_2402_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_2Mbps_Higher Band Edge Emissions Report No.: AGC17143250903FR02 Page 81 of 124 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Higher Band Edge Emissions Report No.: AGC17143250903FR02 Page 82 of 124 Test_Graph_EDR_ANT1_2402_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Edge Emissions Report No.: AGC17143250903FR02 Page 83 of 124 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Higher Band Edge Emissions Report No.: AGC17143250903FR02 Page 84 of 124 9. Radiated Spurious Emission 9.1 Measurement Limit  15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 9.2 Measurement Procedure 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. Report No.: AGC17143250903FR02 Page 85 of 124 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC17143250903FR02 Page 86 of 124  Quasi-Peak Measurements below 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. Span was set greater than 1MHz 3. RBW = as shown in the table above 4. Detector = CISPR quasi-peak 5. Sweep time = auto couple 6. Trace was allowed to stabilize  Peak Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW = 3MHz 4. Detector = peak 5. Sweep time = auto couple 6. Trace mode = max hold 7. Trace was allowed to stabilize  Average Measurements above 1GHz 1. Analyzer center frequency was set to the frequency of the radiated spurious emission of interest 2. RBW = 1MHz 3. VBW ≥ [3 × RBW] 4. Detector = Power averaging (rms) 5. Averaging type = power (i.e., rms) 6. Sweep time = auto 7. Perform a trace average of at least 100 traces. 8. The applicable correction factor is [10*…

Text truncated - open the document above for the full version.

Report No.: AGC17143250903AP01 Page 1 of 2 TEST SETUP PHOTOS RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz Report No.: AGC17143250903AP01 Page 2 of 2 AC POWER LINE CONDUCTED TEST SETUP RF CONDUCTED TEST SETUP ****************************************End of Report*************************************
