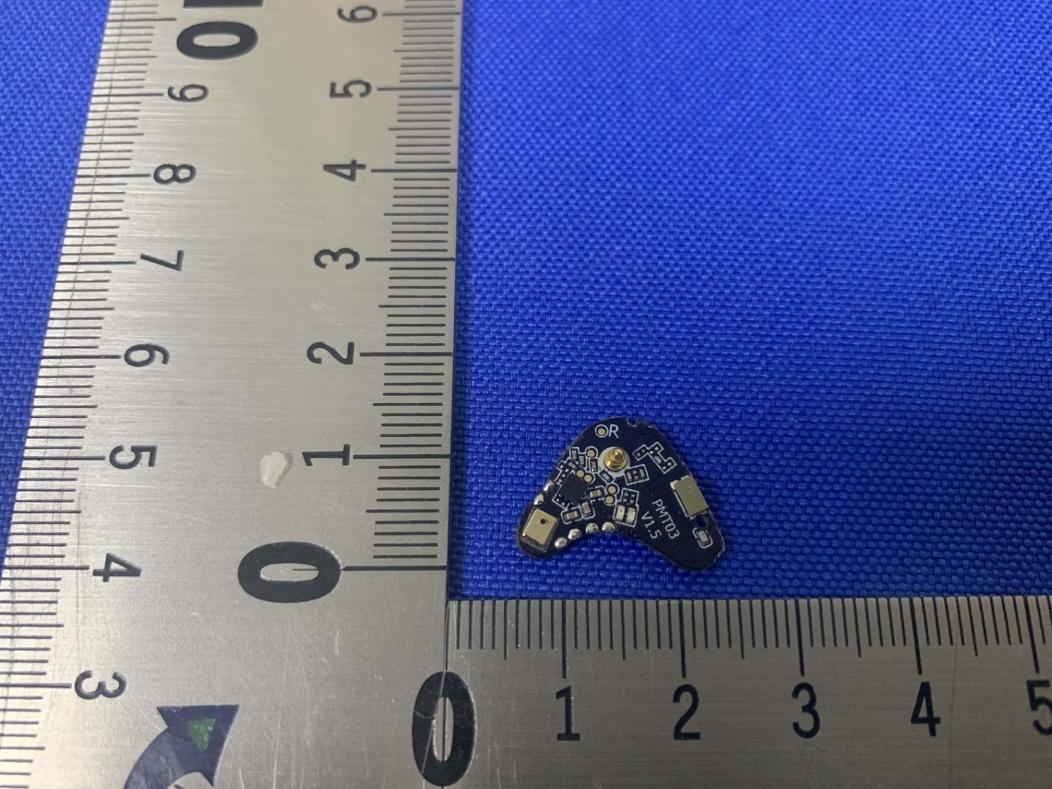

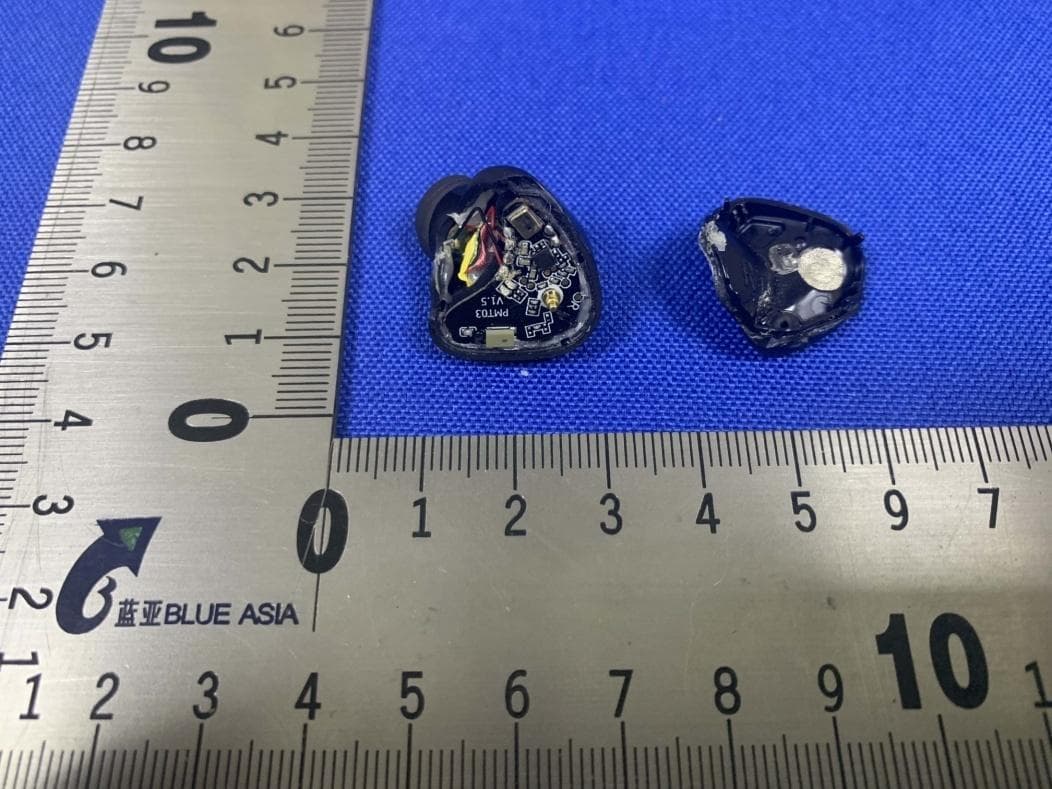

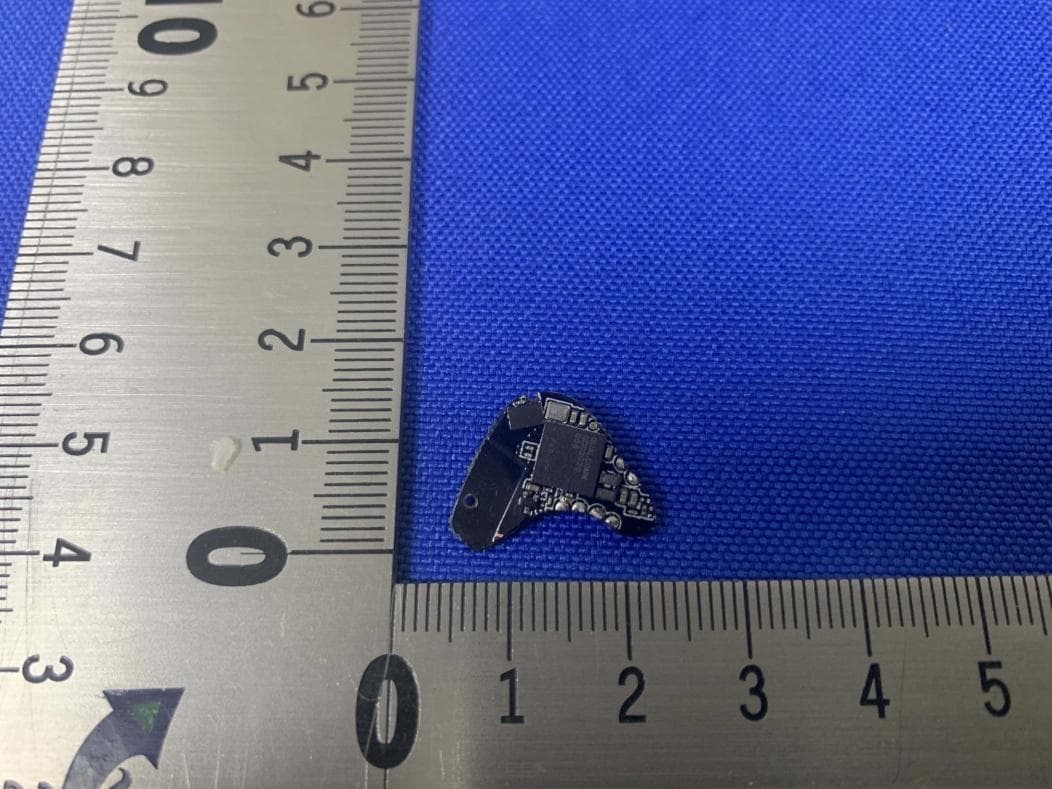

2AJEO-T7Earphones

Product Name : Earphones Model No.:T7,T7A,T7C,T7D,T7M FCC ID:2AJEO-T7 All models are electrically identical , only model no is different. The device have left and right earphones , the left and right earphones are electrically identical. <Signature> Name Xiaoming Wu Title Manager Applicant Company : Xiamen Padmate Technology Co.,LTD

Earphone charging box

Model No.: T7

RF Exposure Evaluation Statement Product Name: Earphones Model No.：T7,T7A,T7C,T7D,T7M FCC ID：2AJEO-T7 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: EDR （8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402MHZ -1.88 ±1 -0.88 0.82 0.25 3.0 2441MHz -2.33 ±1 -1.33 0.74 0.23 2480MHz -2.30 ±1 -1.30 0.74 0.23 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] TEST REPORT Product Name : Earphones Brand Mark : Padmate Model No. : T7,T7A,T7C,T7D,T7M FCC ID : 2AJEO-T7 Report Number : BLA-EMC-202008-A76-01 Date of Sample Receipt : 2020/8/18 Date of Test : 2020/8/18 to 2020/9/7 Date of Issue : 2020/9/8 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Xiamen Padmate Technology Co., LTD RM201,Huli Park No.37,Industrial Zone,Tong'anDistrict,Xiamen,China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2020/9/8 Report No.: BLA-EMC-202008-A76-01 Page 2 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] REPORT REVISE RECORD Version No. Date Description 00 2020/9/8 Original Report No.: BLA-EMC-202008-A76-01 Page 3 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 1 ANTENNA REQUIREMENT ..................................................................................................................... 14 1.1 CONCLUSION ............................................................................................................................................................ 14 2 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 15 2.1 LIMITS ................................................................................................................................................................... 15 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 TEST DATA .............................................................................................................................................................. 16 3 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 17 3.1 LIMITS ................................................................................................................................................................... 17 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 18 3.3 PROCEDURE .......................................................................................................................................................... 18 3.4 TEST DATA .............................................................................................................................................................. 20 4 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 25 4.1 LIMITS ................................................................................................................................................................... 25 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 25 4.3 TEST DATA .............................................................................................................................................................. 26 5 DWELL TIME ............................................................................................................................................ 27 5.1 LIMITS ................................................................................................................................................................... 27 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 27 5.3 TEST DATA .............................................................................................................................................................. 27 6 HOPPING CHANNEL NUMBER .............................................................................................................. 28 Report No.: BLA-EMC-202008-A76-01 Page 4 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 6.1 LIMITS .........................…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202008-A76-01 Page 48 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10 APPENDIX 10.1 APPENDIXA: 20DBEMISSION BANDWIDTH Test Result TestMode Antenna Channel 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH1 Ant1 2402 1.104 2401.439 2402.543 --- PASS 2441 1.110 2440.436 2441.546 --- PASS 2480 1.101 2479.439 2480.540 --- PASS 2DH1 Ant1 2402 1.416 2401.286 2402.702 --- PASS 2441 1.416 2440.280 2441.696 --- PASS 2480 1.425 2479.268 2480.693 --- PASS 3DH1 Ant1 2402 1.407 2401.283 2402.690 --- PASS 2441 1.404 2440.277 2441.681 --- PASS 2480 1.413 2479.262 2480.675 --- PASS Report No.: BLA-EMC-202008-A76-01 Page 49 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 50 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 51 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 52 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.2 APPENDIXC: MAXIMUM CONDUCTED OUTPUT POWER Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 -3.22 <=30 PASS 2441 -3.68 <=30 PASS 2480 -3.61 <=30 PASS 2DH1 Ant1 2402 -2.32 <=30 PASS 2441 -2.84 <=30 PASS 2480 -2.78 <=30 PASS 3DH1 Ant1 2402 -1.88 <=30 PASS 2441 -2.33 <=30 PASS 2480 -2.3 <=30 PASS Report No.: BLA-EMC-202008-A76-01 Page 53 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 54 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 55 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Report No.: BLA-EMC-202008-A76-01 Page 56 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.3 APPENDIXD: CARRIER FREQUENCY SEPARATION Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1.164 >=1.110 PASS 2DH1 Ant1 Hop 1.160 >=0.950 PASS 3DH1 Ant1 Hop 1.006 >=0.942 PASS Report No.: BLA-EMC-202008-A76-01 Page 57 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Report No.: BLA-EMC-202008-A76-01 Page 58 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.4 APPENDIXE: TIME OF OCCUPANCY Test Result Frequency Packet Dwell time(ms) Limit(ms) Result 2441MHz DH1/2-DH1/3-DH1 121.600 400 Pass 2441MHz DH3/2-DH3/3-DH3 262.400 400 Pass 2441MHz DH5/2-DH5/3-DH5 308.267 400 Pass The test period: T= 0.4 Second/Channel x 79 Channel = 31.6 s Test channel: 2441MHz as blow DH1/2-DH1/3-DH1 time slot=0.38(ms)*(1600/ (2*79))*31.6=121.600 ms DH3/2-DH3/3-DH3 time slot=1.64(ms)*(1600/ (4*79))*31.6=262.400 ms DH5/2-DH5/3-DH5 time slot=2.89(ms)*(1600/ (6*79))*31.6=308.267 ms Report No.: BLA-EMC-202008-A76-01 Page 59 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop DH5_Ant1_Hop Report No.: BLA-EMC-202008-A76-01 Page 60 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.5 APPENDIXF: NUMBER OF HOPPING CHANNELS Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Report No.: BLA-EMC-202008-A76-01 Page 61 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop

Report No.: BLA-EMC-202008-A76-01 Page 62 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.6 APPENDIXG:BAND EDGE MEASUREMENTS Test Result TestMode Antenna ChName Channel RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 Low 2402 -2.93 -56.12 <=-22.93 PASS High 2480 -3.40 -55.34 <=-23.4 PASS Low Hop_2402 -3.45 -56.39 -23.45 PASS High Hop_2480 -4.01 -55.36 -24.02 PASS 2DH1 Ant1 Low 2402 -3.03 -55.85 <=-23.03 PASS High 2480 -3.47 -55.55 <=-23.47 PASS Low Hop_2402 -3.63 -56.28 -23.63 PASS High Hop_2480 -3.24 -55.51 -23.24 PASS 3DH1 Ant1 Low 2402 -3.05 -53.94 <=-23.05 PASS High 2480 -3.52 -55.85 <=-23.52 PASS Low Hop_2402 -3.87 -55.61 -23.87 PASS High Hop_2480 -3.65 -55.68 -23.65 PASS Report No.: BLA-EMC-202008-A76-01 Page 63 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 Report No.: BLA-EMC-202008-A76-01 Page 64 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202008-A76-01 Page 65 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_Low_2402 2DH1_Ant1_High_2480 Report No.: BLA-EMC-202008-A76-01 Page 66 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202008-A76-01 Page 67 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202008-A76-01 Page 68 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202008-A76-01 Page 69 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 10.7 APPENDIXH:CONDUCTEDSPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference -2.95 -2.95 --- PASS 30~1000 30~1000 -53.629 <=-22.945 PASS 1000~26500 1000~26500 -35.809 <=-22.945 PASS 2441 Reference -3.76 -3.76 --- PASS 30~1000 30~1000 -53.577 <=-23.764 PASS 1000~26500 1000~26500 -33.366 <=-23.764 PASS 2480 Reference -4.21 -4.21 --- PASS 30~1000 30~1000 -54.136 <=-24.212 PASS 1000~26500 1000~26500 -49.29 <=-24.212 PASS 2DH1 Ant1 2402 Reference -3.70 -3.70 --- PASS 30~1000 30~1000 -53.812 <=-23.696 PASS 1000~26500 1000~26500 -34.46 <=-23.696 PASS 2441 Reference -4.32 -4.32 --- PASS 30~1000 30~1000 -53.486 <=-24.319 PASS 1000~26500 1000~26500 -33.316 <=-24.319 PASS 2480 Reference -3.47 -3.47 --- PASS 30~1000 30~1000 -53.85 <=-23.474 PASS 1000~26500 1000~26500 -32.986 <=-23.474 PASS 3DH1 Ant1 2402 Reference -3.03 -3.03 --- PASS 30~1000 30~1000 -53.52 <=-23.032 PASS 1000~26500 1000~26500 -36.897 <=-23.032 PASS 2441 Reference -4.49 -4.49 --- PASS 30~1000 30~1000 -54.149 <=-24.493 PASS 1000~26500 1000~26500 -36.649 <=-24.493 PASS 2480 Reference -3.50 -3.50 --- PASS 30~1000 30~1000 -54.562 <=-23.496 PASS 1000~26500 1000~26500 -35.074 <=-23.496 PASS Report No.: BLA-EMC-202008-A76-01 Page 70 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 71 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] DH1_Ant1_2441_0~Reference DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 72 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] DH1_Ant1_2480_0~Reference DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 73 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2402_0~Reference 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 74 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2441_0~Reference 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 75 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 2DH1_Ant1_2480_0~Reference 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 76 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2402_0~Reference 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 77 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2441_0~Reference 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 78 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] 3DH1_Ant1_2480_0~Reference 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202008-A76-01 Page 79 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] APPENDIX A: PHOTOGRAPHS OF TEST SETUP Radiated Spurious Emissions Report No.: BLA-EMC-202008-A76-01 Page 80 of85 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: marketing@cbl…

Text truncated - open the document above for the full version.

Model No.: T7
