2AJFX-DZ2501ADash Cam

封面 封底 User Guide 1 SPECIFICATIONS Product Name: Dash Cam Input: 5V 2A Resolu�on: 4K 3840*2160 Dimensions: 83mm x 64.7mm x 36.5mm Memory Card: Support Micro-SD card (Up to 512GB) Model Number:DZ2501A, DZ2501A-01, DZ2501A-02, DZ2501A-03, DZ2501A-04, DZ2501A-05, DZ2501A-06, DZ2501A-07, DZ2501B, DZ2501B-01, DZ2501B-02, DZ2501B-03, DZ2501B-04, DZ2501B-05, DZ2501C, DZ2501C-01, DZ2501C-02, DZ2501C-03, DZ2501C-04, DZ2501C-05 2 PACKAGE CONTENTS Dash Cam USB Charger Electrosta�c S�cker 3M AdhesiveCar Wire Trim ToolUser Guide Power CableRear Camera (Op�onal) Rear Camera Extension Cable (Op�onal) Note: Some models do not include the op�onal accessories shown above, please refer to the actual product received. 3 PRODUCT OVERVIEW4 BUTTON DESCRIPTION 5 INDICATOR GUIDE IndicatorSystem Status OffNormal Recording/Parking Monitoring (Sleep mode) Breathing RedParking Monitoring (Time-lapse video/normal video) DisplayFunc�on Bu�ons Indicator Lens Adhesive Base (removable) Rear Camera Port USB Type-C Port MIC Micro-SD Card Slot Return Right/Down Le�/Up Confirm Reset: Press and hold for 6 seconds 6 INSTALLATION Step 1: Clean your windshield and a�ach the electrosta�c s�cker to the recommended area. Step 2: Insert the Micro-SD card into the card slot. Step 3: Peel off the lens protec�ve film, tear off the 3M adhesive protec�ve film, and s�ck the dash cam to the front windshield. Step 4: Route the power cord to the cigare�e lighter and connect to the power. Step 5: Connect the rear camera to the dash cam. Please refer to the figure below for the specific wiring loca�on. Step 6: Start the vehicle, and adjust the camera angle based on the preview screen. For more installa�on details, please scan the QR code below. 7 APP INSTRUCTION Install DDPAI App Download DDPAI app from Google Play Store (Android) or App Store (IOS). Connect Z60 Pro to Your Smartphone Step 1: Power on the Dash Cam. Turn on the Bluetooth of your mobile phone. Step 2: Launch the DDPAI App, tap “Device”> “+ Add a device”. Step 3: Select the current device name (DDP19XXXX). Step 4: Press the confirm bu�on of the device to authorize. Please scan the QR code below for detailed app opera�ons. 8 πLink FUNCTION Z60 Pro supports πLink func�on, please scan the QR code below for details. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc�ons, may cause harmful interference to radio communica�ons. However, there is no guarantee that interference will not occur in a par�cular installa�on. If this equipment does cause harmful interference to radio or television recep�on, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separa�on between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired opera�on. Changes or modifica�ons not expressly Approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC ID: 2AJFX-DZ2501A CONTACT www.ddpai.com [email protected] DDPAI Technology Co., Ltd 1 ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ Наименование: Видеорегистратор Модель: DR2008 Вход: 5 В 2 А Разрешение: 4K 3840x2160 Размеры: 83 мм x 64,7 мм x 36,5 мм Карта памяти: Поддержка карт Micro-SD (до 512 ГБ) 2 СОДЕРЖИМОЕ УПАКОВКИ Видеорегистратор Зарядное устройство USB Электростатический стикер Клейкая основа 3М Приспособление для прокладки кабеля Руководство пользователя Кабель питания Задняя камера (HeoбЯзательHЫй) Удлинительный кабель для заднейкамеры (HeoбЯзательHЫй) ПримеЧание. в комплек т некот орых моделей н е вхо дЯт ук азанные вышeдопол нител ьныеак сес суары. Cм. фактиЧеское пол уЧе нноеизде лие. 3 ОБЗОР УСТРОЙСТВА4 ОПИСАНИЕ КНОПОК 5 ИНСТРУКЦИИ ПО ИНДИКАТОРАМ Индикатор Состояние системы Выключен Обычная запись/режим парковки (спящий режим) Мигает красным Режим парковки (ускоренное видео/обычное видео) Дисплей Функциональные кнопки Индикатор Объектив Клейкая основа (съемная) Разъем для задней камеры Разъем USB Type-C Микрофон Слот для карты Micro-SD Возврат Вправо/ вниз Влево/ вверх Подтверждение нажмите и удерживайте в течение 6 секунд 6 УСТАНОВКА Шаг 1. Очистите лобовое стекло и наклейте электростатический стикер в рекомендованном месте. Шаг 2. Вставьте карту Micro-SD в слот для карты. Шаг 3. Снимите защитную пленку с объектива, снимите защитную пленку с клейкой основы 3M и приклейте видеорегистратор к лобовому стеклу. Шаг 4. Проложите шнур питания к гнезду прикуривателя и подключите к нему видеорегистратор. Шаг 5. Подключите заднюю камеру к видеорегистратору. Схема подключения показана на рисунке ниже. Шаг 6. Заведите автомобиль и отрегулируйте угол наклона камеры, ориентируясь на изображение на дисплее. Для получения более подробной информации об установке, отсканируйте QR-код ниже. 7 ИНСТРУКЦИЯ ПО ПРИЛОЖЕНИЮ Установка приложения DDPAI Скачайте приложение DDPAI из магазина Google Play (Android) или App Store (iOS). Подключите Z60 Pro к смартфону Шаг 1. Включите видеорегистратор. Включите Bluetooth на мобильном те…

Text truncated - open the document above for the full version.

DDPAI Technology Co., Ltd. Covered Equipment Certification Attestation Letter 3/10/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2AJFX-DZ2501A DDPAI Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. DDPAI Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. DDPAI Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). <Signature>: Name: Sean Yu Title: Certification Engineer Company: DDPAI Technology Co., Ltd. Date: 3/10/2026

DDPAI Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/2/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AJFX-DZ2501A FRN of applicant: 0025803503 Per section 2.911(d)(7) of the FCC rules, [DDPAI Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Herland International Trading Inc FCC Registration Number (FRN): 0036324101 Physical U.S. Company Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Contact Person: Jianfeng Gao Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Sean Yu Title: Certification Engineer Company Name: DDPAI Technology Co., Ltd. Date: 3/2/2026 Agent Signed (if different from Applicant): Signed: Printed name: Jianfeng Gao Title: Manager Company Name: Herland International Trading Inc Date: 3/2/2026

DDPAI Technology Co., Ltd. 2026-02-25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen DL Testing Technology Co., Ltd.（101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China）to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with DDPAI Technology Co., Ltd.（28F, Building 8A, International Innovation Valley, Nanshan District, Shenzhen, Guangdong Province） <Signature>: Name: Sean Yu Title: Certification Engineer Company: DDPAI Technology Co., Ltd.

DDPAI Technology Co., Ltd. 2026-02-25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature>: Name: Sean Yu Title: Certification Engineer Company: DDPAI Technology Co., Ltd.

DDPAI Technology Co., Ltd. 2026-02-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AJFX-DZ2501A Product Name: Dash Cam Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  SOFTWARE SECURITY DESCRIPTION These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Sean Yu Title: Certification Engineer Company: DDPAI Technology Co., Ltd.

DDPAI Technology Co., Ltd. FCC ID: 2AJFX-DZ2501A Product Similarity Declaration Applicant: DDPAI Technology Co., Ltd. Address: 28F, Building 8A, International Innovation Valley, Nanshan District, Shenzhen, Guangdong Province Manufacturer: DDPAI Technology Co., Ltd. Address: 28F, Building 8A, International Innovation Valley, Nanshan District, Shenzhen, Guangdong Province Product Name: Dash Cam Trade Mark: DDPAI Model Number: DZ2501A, DZ2501A-01, DZ2501A-02, DZ2501A-03, DZ2501A-04, DZ2501A-05, DZ2501A-06, DZ2501A-07, DZ2501B, DZ2501B-01, DZ2501B-02, DZ2501B-03, DZ2501B-04, DZ2501B-05, DZ2501C, DZ2501C-01, DZ2501C-02, DZ2501C-03, DZ2501C-04, DZ2501C-05 We (DDPAI Technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), All models are the same as the samples except for the model name, appearance color. <Signature>: Name: Sean Yu Title: Certification Engineer Company: DDPAI Technology Co., Ltd.

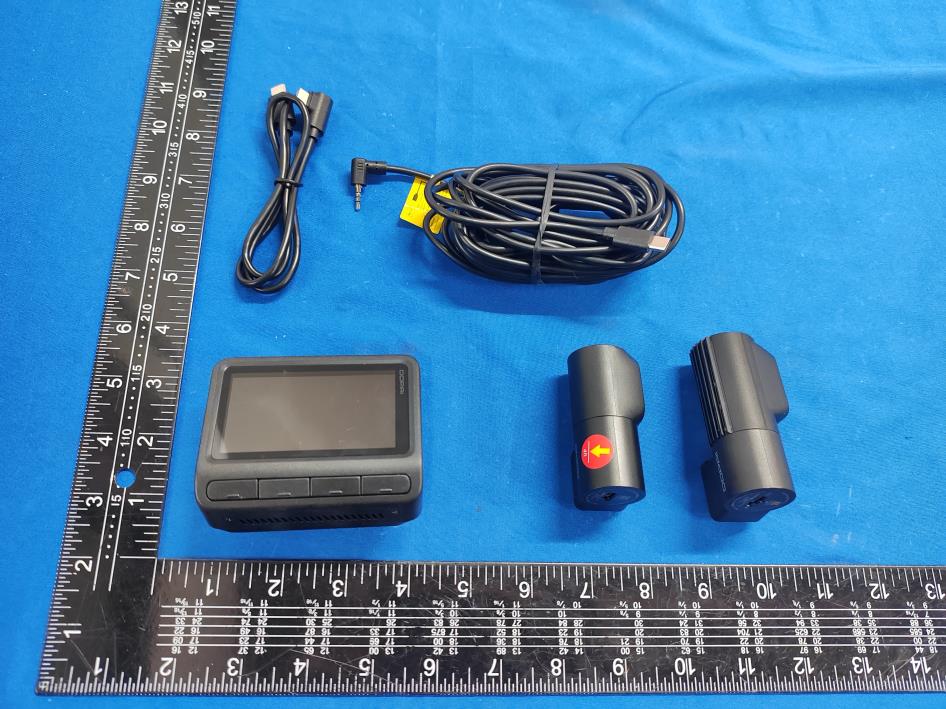

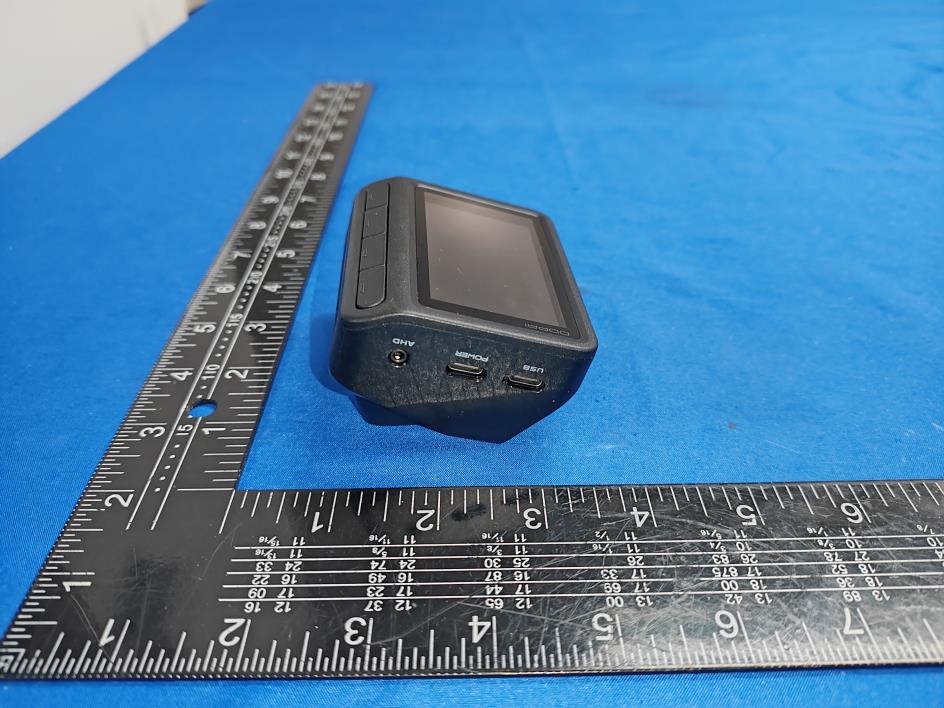

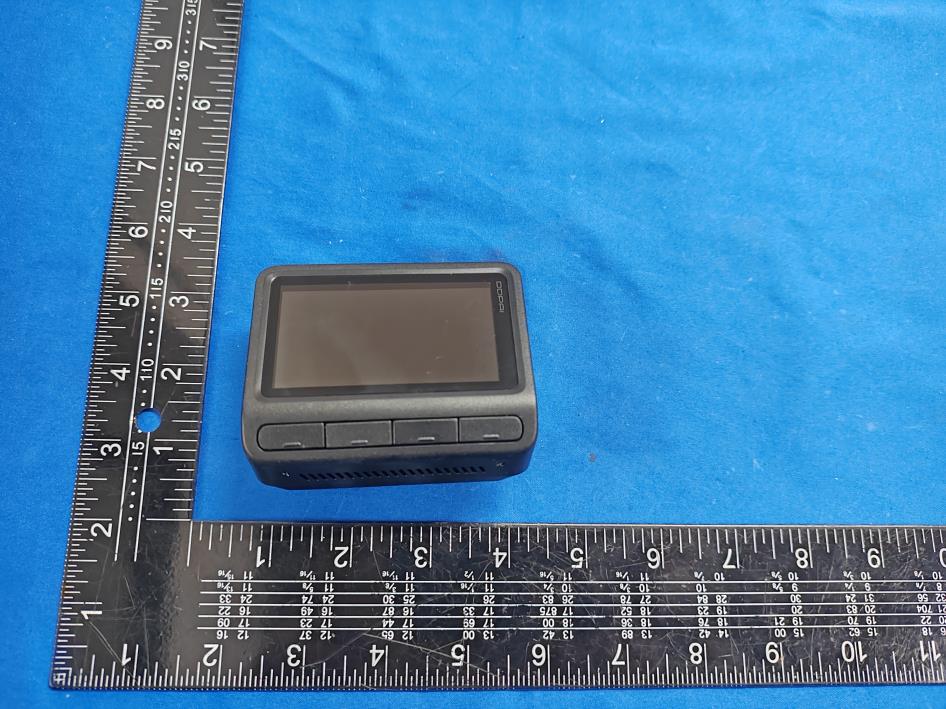

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

Size: 20*15mm Model.: DZ2501A FCC ID: 2AJFX-DZ2501A Label location

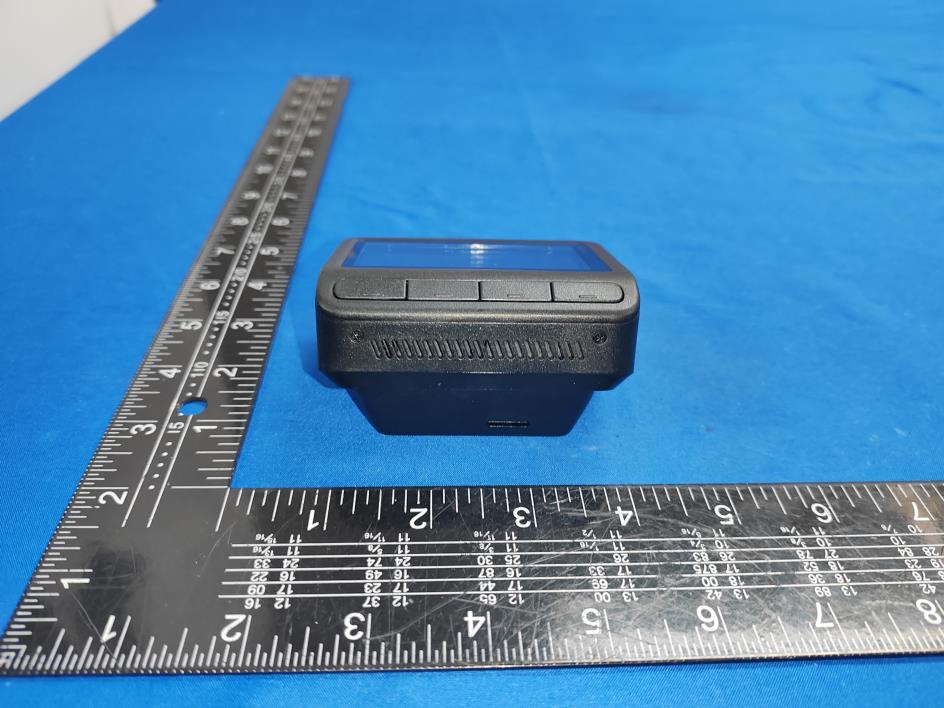

Shenzhen DL Testing Technology Co., Ltd. EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. ANT Shenzhen DL Testing Technology Co., Ltd. ※※※※※ END OF REPORT ※※※※※

FCC ID: 2AJFX-DZ2501A RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in KDB 447498 D01 V06 and 1.1307(b) and 2.1091 Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Test Result of RF Exposure Evaluation For BT Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 1.13 1.2972 0.0001 1.0 PASS Remark: antenna gain=-2.73dBi For WiFi 5G Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 12.824 19.1602 0.0063 1.0 PASS Remark: antenna gain=2.15dBi For Simultaneous transmitting, 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits =0.0001/1 + 0.0063/1 = 0.0064< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260127020R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 31 FCC Part 15C Test Report FCC ID: 2AJFX-DZ2501A Applicant: DDPAI Technology Co., Ltd. Address: 28F, Building 8A, International Innovation Valley, Nanshan District, Shenzhen, Guangdong Province Manufacturer: DDPAI Technology Co., Ltd. Address: 28F, Building 8A, International Innovation Valley, Nanshan District, Shenzhen, Guangdong Province Product Name: Dash Cam Trade Mark: DDPAI Model Number: DZ2501A, DZ2501A-01, DZ2501A-02, DZ2501A-03, DZ2501A-04, DZ2501A-05, DZ2501A-06, DZ2501A-07, DZ2501B, DZ2501B-01, DZ2501B-02, DZ2501B-03, DZ2501B-04, DZ2501B-05, DZ2501C, DZ2501C-01, DZ2501C-02, DZ2501C-03, DZ2501C-04, DZ2501C-05 Date of Receipt: Jan. 27, 2026 Test Date: Jan. 27, 2026 – Jan. 31, 2026 Date of Report: Jan. 31, 2026 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-260127020R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260127020R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 31 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 10 3.2. RADIATED EMISSION MEASUREMENT 11 3.2.1. RADIATED EMISSION LIMITS 11 3.2.2. TEST PROCEDURE 12 3.2.3. DEVIATION FROM TEST STANDARD 12 3.2.4. TEST SETUP 12 3.2.5. EUT OPERATING CONDITIONS 13 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 14 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 15 3.2.8. TEST RESULTS (1GHZ~25GHZ) 17 3.3 RADIATED BAND EMISSION MEASUREMENT 18 3.3.1 TEST REQUIREMENT: 18 3.3.2 TEST PROCEDURE 18 3.3.3 DEVIATION FROM TEST STANDARD 18 3.3.4 TEST SETUP 19 3.3.5 EUT OPERATING CONDITIONS 19 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 21 3.4.1 APPLICABLE STANDARD 21 3.4.2 TEST PROCEDURE 21 3.4.3 DEVIATION FROM STANDARD 21 3.4.4 TEST SETUP 21 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260127020R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 31 Table of Contents Page 3.4.5 EUT OPERATION CONDITIONS 21 3.4.6 TEST RESULTS 21 4. . PEAK OUTPUT POWER 24 4.1. APPLIED PROCEDURES / LIMIT 24 4.1.1. TEST PROCEDURE 24 4.1.2. DEVIATION FROM STANDARD 24 4.1.3. TEST SETUP 24 4.1.4. EUT OPERATION CONDITIONS 24 4.1.5. TEST RESULTS 25 5. . POWER SPECTRAL DENSITY TEST 27 5.1. APPLIED PROCEDURES / LIMIT 27 5.1.1. TEST PROCEDURE 27 5.1.2. DEVIATION FROM STANDARD 27 5.1.3. TEST SETUP 27 5.1.4. EUT OPERATION CONDITIONS 27 5.1.5. TEST RESULTS 27 6. . 6DB BANDWIDTH TEST 29 6.1. APPLIED PROCEDURES / LIMIT 29 6.1.1. TEST PROCEDURE 29 6.1.2. DEVIATION FROM STANDARD 29 6.1.3. TEST SETUP 29 6.1.4. EUT OPERATION CONDITIONS 29 6.1.5. TEST RESULTS 29 7. . ANTENNA REQUIREMENT 31 7.1. STANDARD REQUIREMENT 31 7.2. EUT ANTENNA 31 8. . TEST SEUUP PHOTO 31 9. . EUT PHOTO 31 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260127020R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 31 1.. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.209, 15.205 Band Edge Emission PASS 15.247(b) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1. MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-260127020R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 31 2.. GENERAL INFORMATION 2.1. GENERAL DESCRIPTION OF EUT Product Name: Dash Cam Trade Mark: DDPAI Model Number: DZ2501A, DZ2501A-01, DZ2501A-02, DZ2501A-03, DZ2501A-04, DZ2501A-05, DZ2501A-06, DZ2501A-07, DZ2501B, DZ2501B-01, DZ2501B-02, DZ2501B-03, DZ2501B-04, DZ2501B-05, DZ2501C, DZ2501C-01, DZ2501C-02, DZ2501C-03, DZ2501C-04, DZ2501C-05 Te…

Text truncated - open the document above for the full version.

PartsAcknowledgment NameofPart：antenna Specificationof Parts： Accessory,Antenna,DR2008,DualbandWIFI antenna2.4G&5G&BT,built-in,21.93* 21.3mm,linelength85mm,third-generation IPEX,,FPC;SF2489A-1L23B-085-A,built-in Stareatthe materialnumbe： 10883000165 Modelof application： DR2008-2.9-inchscreenrecorder NameofSupplier： ShenzhenSuoWardCommunication TechnologyCo.,Ltd. TypeofSupplier：Manufacturer、Agent、Trader; Manufacturer's materialnumber： SF2489A-1L23B-085-A Recognition number： CRS0004344 Keepaneyeonthe dateofissue： DDPaiTechnologyCO.,LTD.Tel:86-755-26401213 Address:Guangdong,China.12thFloor,YihuaFintechBuilding,SoftwareIndustryBase,NanshanDistrict,Shenzhen; Website:www.ddpai.com DDPaivisionequipmentCo.,LTD Address:Building6,No.139,XinhuangRoad,XindaiTown,PinghuCity,Jiaxing,Zhejiang SupplierAddress:6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135,QianjinSecondRoad,Bao'an District,Shenzhen Contactinformationofsupplier:ChenHeng/13717086260 Supplierapprovalcolumn Todevelop：LTTaudit：Approvedbythe： *Thefollowingisthecheckcolumnofthetagtag Materialtosendsamplecheckcolumn Materialconfirmationandapproval column ProcurementEngineerPurchasingSupervisor Researchand DevelopmentEngineer Researchand DevelopmentSupervisor SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Two Serial number CertificationnumberMaterialtypeDateofissueRemarks 1SHAEC24025471005 Tinnedcopper wire 2024-11-25 Oneyear 2SHAEC24027284565 halogen 2024-12-06 Oneyear 3SHAEC24027480902 Adhesive 2024-12-06 Oneyear 4SHAEC24029171725 FEPsheath 2024-12-26 Oneyear 5SHAEC24027284563 FEPinsulation 2024-12-05 Oneyear 6SZXEC24002306404 Tinwire 2024-07-24 Oneyear 7SZXEC24002306408 Tin 2024-07-24 Oneyear 8ETR24600712 Printingink 2024-06-14 Oneyear 9A2240123200102001E Substrate 2024-03-20 Oneyear 10CANEC24028865417 EVAfoam 2025-01-03 Oneyear 11A2240439752101001 Conductive cloth 2024-07-29 Oneyear 12SZXEC24002471802 Goldplating 2024-08-08 Oneyear SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Three contents 一:Devicesupport&testableantennatype ............................ 1 二:Overview ..................................................................................... 2 三:Matchcircuitdiagram&machineimage&antennaimage . 3 四:AntennaStandingWaveRatio&AntennaEfficiency(VSWR) ........................................................................................................... 4 五:Activedata ............................................................................... 5 六:3Dpattern ................................................................................. 6 七:structuraldrawings .............................................................. 7 SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Four 一:Devicesupport&testableantennatype SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Five 二:Overview (1)Antennaperformance 1.ThisapprovalsheetsupportsforMIDproject.FPCantennasincludeinthisproject.Thisreport isfortheperformanceofWIFI&BTantenna. 2.Antennashapesize：MeettherequirementofMID 3.Antennaband：2.4GHz~5GHz 4.Antennamaterial：AntennamaterialmeettherequirementofMID 5.Adhesiveperformance：AdhesiveperformancemeettherequirementofMID 6.Antennaperformancemeetthespecbelow： Description2.4GHz~5GHzUnits VSWR≤2.0 AverageAntennaGain≥-4.5dB FeedImpedance50ohms OperatingTemperature-40to+85degC Polarization/AzimuthLinear/Omni-directional (2)MechanicalInformation MechanicalDimension CableLength085mm/BLACK DescriptionWIFI&BTantenna MaterialFPC CoaxialCable50Ω/O.D.0.81mm Environmental OperationTemperature-40to+85degC StorageTemperature-40to+85degC SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6th Floor,BuildingB, HexiHangchengIndustrialZone,No. 135 Qianjin2nd Road,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Six 三:Matchcircuitdiagram&machineimage&antennaimage (1)matchingcircuit (2) Machineimages&antennaimages NA RF NA NA NA NA NA SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6th Floor,BuildingB, HexiHangchengIndustrialZone,No. 135 Qianjin2nd Road,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Seven 四 : Antenna St an dingWaveRatio&A ntennaEfficiency (VSWR) SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Eight SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Nine 五:Activedata SWARDShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 Ten 六:3Dpattern 七:structuraldrawings

Shenzhen DL Testing Technology Co., Ltd. EUT TEST PHOTO Radiated Measurement Photos ※※※※※ END OF REPORT ※※※※※
