Model No. / 型號 / 型号: EF0910 使用产品前请阅读使用说明 TRUE WIRELESS SWEATPROOF IN-EARS 真无线防水入耳耳机 真無線防水入耳耳機 QUICK START QUIDE 快速入门指南 快速入門指南 Creative True Wireless Stereo Earbuds: Common connectivity issues SUMMARY: This article highlights a phenomena and recommendation for music cuting out and ear buds that do not stay connected. When pairing a smart mobile device with TWS (True Wireless Stereo) ear buds, the signal is strongest when there is a line-of-sight between the pairing devices. If the signal passes through the body, which is mostly made up of water fluid, it may get absorbed, which may result in pairing difficulty. If the mobile device is already connected to the TWS ear buds, it may result in signal lost or the ear buds may get disconnected. Therefore, it is recommended to place the smart mobile device on the same side as the main connected ear bud; thereby bypassing the body barrier. For example, left ear bud is paired as the main connected ear bud, the smart mobile device should be placed in the left pocket of your pants and vice versa. 2. Controls v) Earbuds Off 3s3s Note: When a long press is initiated, earbud will first enter Bluetooth Pairing Mode before turning off. Each earbud will need to be turned off manually. iv) Earbuds On (Bluetooth Disconnected) 2s2s 5s5s SiriGoogle Assistant ii) Pause Mode x3 2s2s x3 5s5s Ambient Mode iii) Call Mode 2s2s i) Playback Mode x2x2 Ambient Mode x2x2 x3x3 Ambient Mode x2x2 PN: 03EF091000000 Rev A 3. Earbuds Fit Guide Gently push and wiggle the earbuds into the respective ear canals until a good seal is made to ensure proper fitting 1.3.2.4. 4. Master Reset 5s Earbuds will flash once in blue in charging case when Master Reset is complete. Master Reset is reserved for cases where users encounter issues while earbuds are in use or during situations such as: Bluetooth Pairing failure, random LED flashing, failure to pair secondary earbud with the main earbud, or to reset all data Technical Specifications Headphones drivers • 5.6 mm Graphene-enhanced Driver • Frequency Response: 20–20,000 Hz Microphones • Type: Omni-directional x4 • Frequency Response: 100–10,000 Hz • Sensitivity (1 kHz): -42 dBV / Pa Interface • USB Type-C (charging), Bluetooth 5.0 Bluetooth profiles • A2DP (Wireless stereo Bluetooth) • AVRCP (Bluetooth remote control) • HFP (Hands-free profile) Wireless operating range • Up to 100m • RF Output Power: < 20 dBm • Operating Frequency: 2402–2480 MHz Battery • Earpiece (Left and Right) Lithium-ion polymer battery: 3.7V 80 mAh 0.296 Wh • Battery charging case Lithium-ion polymer battery: 3.7V 900 mAh 3.33 Wh Input: 5V 1A Total play time • Up to xx hours Charging time • 1–2 hours Audio codec • SBC, aptX ™ , AAC Operating temperature • 0–45°C Note: Compliance markings are located at the bottom of the product Please visit creative.com/compliance/outliergoldv2 for the user guide, safety and regulatory information, ErP information where applicable and battery removal instruction which is meant strictly for independently qualified professional. Please visit creative.com/support/outliergoldv2 for all other support related to your product. © 2020 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, X-FI, the X-Fi logo, SXFI, the Super X-Fi logo, Super X-Fi ULTRADSP, 声晰飞, the 声晰飞 logo and Headphone Holography are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. The Bluetooth® word mark and logo are owned by the Bluetooth SIG, Inc. and any use of such marks by Creative Technology Ltd is under license. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Actual product may differ slightly from images shown. Use of this product is subject to a limited warranty. Serial Number / Numéro de série / Seriennummer / Número de Série / Sériové číslo / Numer seryjny / Серийный номер / número de série / Numero di serie / Serienummer / Número de série / Serienummer / Sarjanumero / Serienummer / Serienummer / Sériové číslo / σειριακός αριθμός / 시리얼 번호 / シリアル番号 / 序列号 / 序列號: LANGUAGE 1. Overview3. Earbuds Fit Guide 4. Master Reset Technical Specifications Headphones drivers • 5.6 mm Graphene-enhanced Driver • Frequency Response: 20–20,000 Hz Microphones • Type: Omni-directional x4 • Frequency Response: 100–10,000 Hz • Sensitivity (1 kHz): -42 dBV / Pa Interface • USB Type-C (charging), Bluetooth 5.0 a) Charging Case Battery Indicator i) Charging Indicator Charging – Glowing Red Fully charge – Solid Green ii) Battery Level Low – Red Medium –Yellow High – Green b) Left Earbud Charging Indicator c) Right Earbud Charging Indicator iii) Earbuds Charging Indicator Charging – Glowing Red Optimally Charged – Solid Green Fully Charge – LED Off d) USB-C Charging Port e) Earbud LED Indicator iv) Slow Blinking Blue – Disconnected v) Flashing Red / Blue – Bluetooth Pairing vi) Glowing Red (In Charging Case) – Charging Gently push and wiggle the earbuds into the respective ear canals until a good seal is made to ensure proper fitting Earbuds will flash once in blue in charging case when Master Reset is complete. Master Reset is reserved for cases where users encounter issues while earbuds are in use or during situations such as: Bluetooth Pairing failure, random LED flashing, failure to pair secondary earbud with the main earbud, or to reset all data 2. Controls i) Playback Mode ii) Pause Mode iii) Call Mode iv) Earbuds On (Bluetooth Disconnected) Note: When a long press is initiated, earbud will first enter Bluetooth Pairing Mode before turning off. Each earbud will need to be turned off manually. v) Earbuds Off Note: Compliance markings are located at the bottom of the product Blu…

Text truncated - open the document above for the full version.

Creative Labs Pte. Ltd. Agent Authorization Company: Creative Labs Pte. Ltd. Address: 31 INTERNATIONAL BUSINESS PARK, #03-01, SINGAPORE 609921 Product Name: Creative Outlier Gold V2; Creative Outlier Air V2 Model Number(s): EF0910 LR, EF0900 LR Product Description: Wireless Bluetooth Headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 07, 2020 Name: Toh Mary Title: Product Safety Manager Company: Creative Labs Pte. Ltd.

July 9, 2020 Declaration Of Identity To Whom It May Concern: With regards to the application for Model: EF0910 LR, According to the designer, Creative Labs Pte. Ltd., we hereby declare the difference between Model: EF0910 LR and Model: EF0900 LR as Basic Model Number: EF0910 LR Basic Brand Name: CREATIVE Basic Product Name: CREATIVE OUTLIER GOLD V2 Basic Certificate Number: ☐New/☒ Additional Model Number(s): EF0900 LR Additional Product Name: CREATIVE OUTLIER AIR V2 Declare the Circuit, PCB Layout, Electrical Parts, and appearance of the following product(s) are identical to the basic model: Yours Sincerely, Creative Labs Pte. Ltd. Charge Person Printed Name: Toh Mary Charge Person Title: Regulatory Manager Type text here

Creative Labs Pte. Ltd. Date: July. 7, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Creative Labs Pte. Ltd.,the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen BALUN Technology Co., Ltd., to act on the behalf of the Creative Labs Pte. Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID : 2AJIV-EF0910LR including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen BALUN Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Creative Labs Pte. Ltd. The Creative Labs Pte. Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Yours Sincerely, Print name: Toh Mary Title: Regulatory Manager Creative Labs Pte. Ltd.

Creative Labs Pte. Ltd. Date: July. 7, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Creative Labs Pte. Ltd. FCC ID: 2AJIV-EF0910LR FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Creative Labs Pte. Ltd. requests that the following documents regarding this submission for FCC ID : 2AJIV- EF0910LR be kept Long-Term confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operational Description Operational Description.pdf And below exhibit kept short-term confidential (180 days): Exhibit Type File Name External Photos External Photo.pdf Internal Photos Internal Photo.pdf Test Setup Photos Test Setup Photos.pdf Users Manuals Users Manual.pdf Those documents contain detailed system and equipment description and related information about the product which Creative Labs Pte. Ltd. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Creative Labs Pte. Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Print name: Toh Mary Title: Regulatory Manager Creative Labs Pte. Ltd.

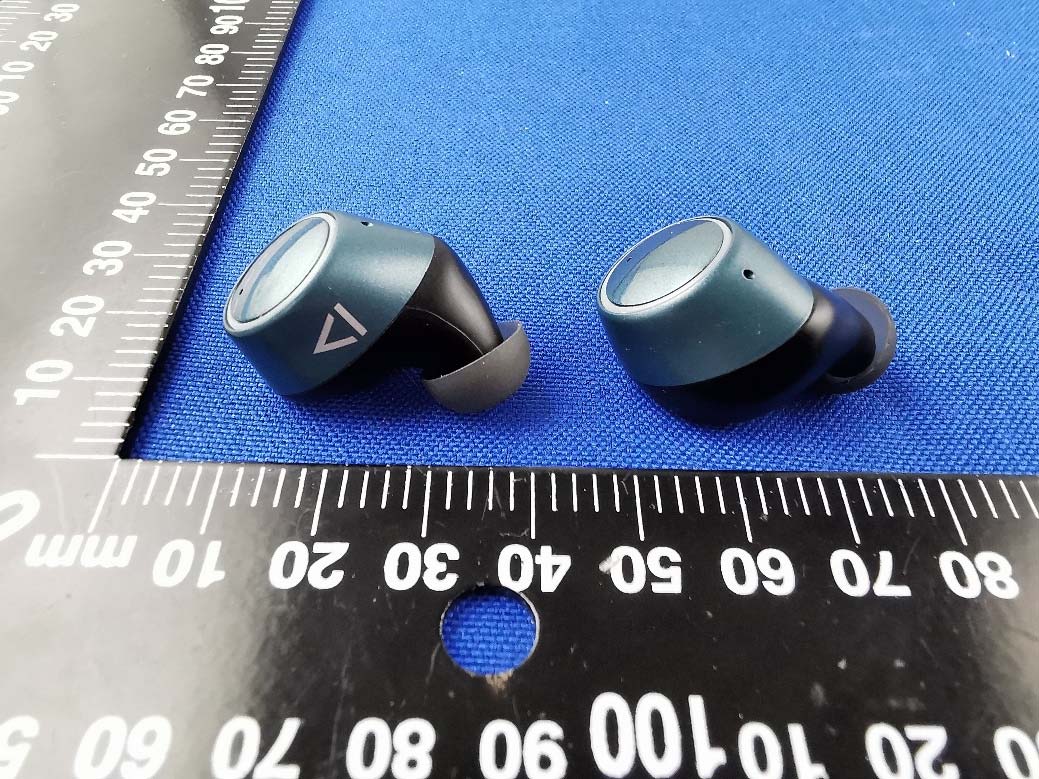

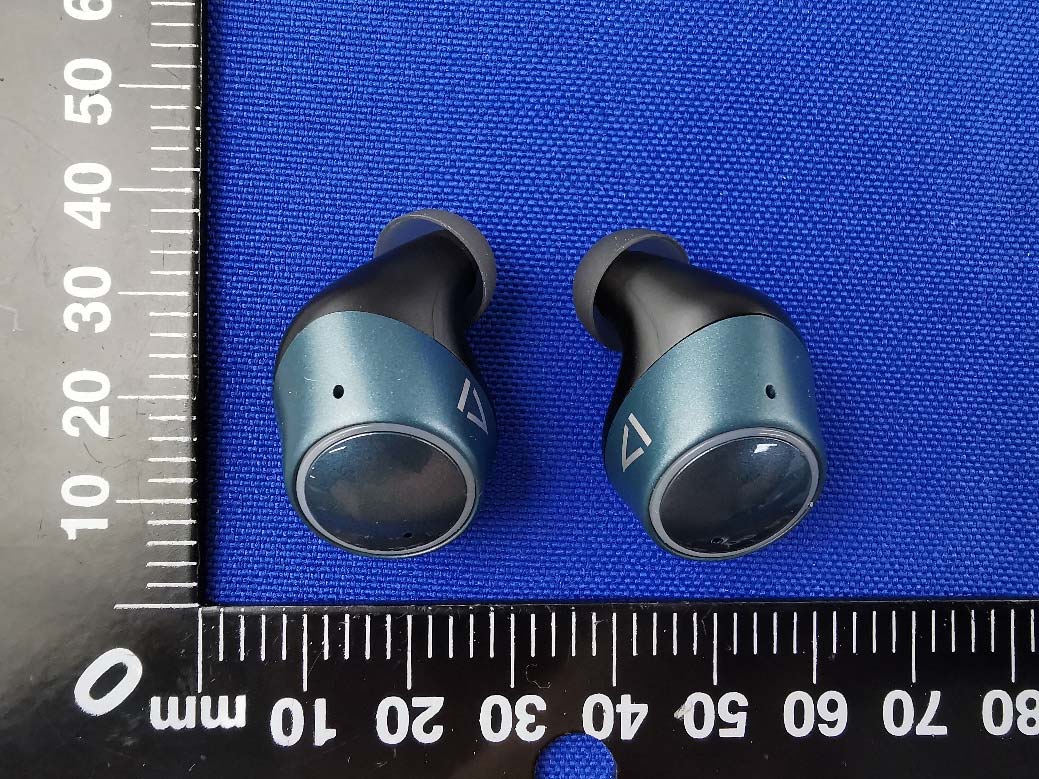

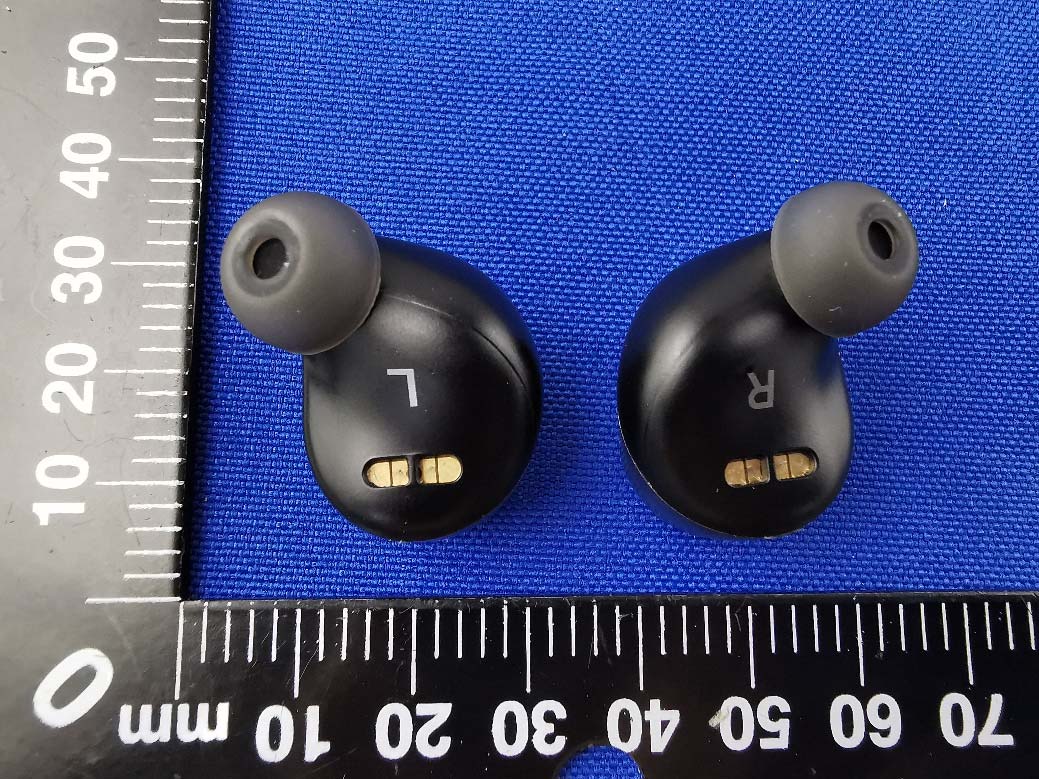

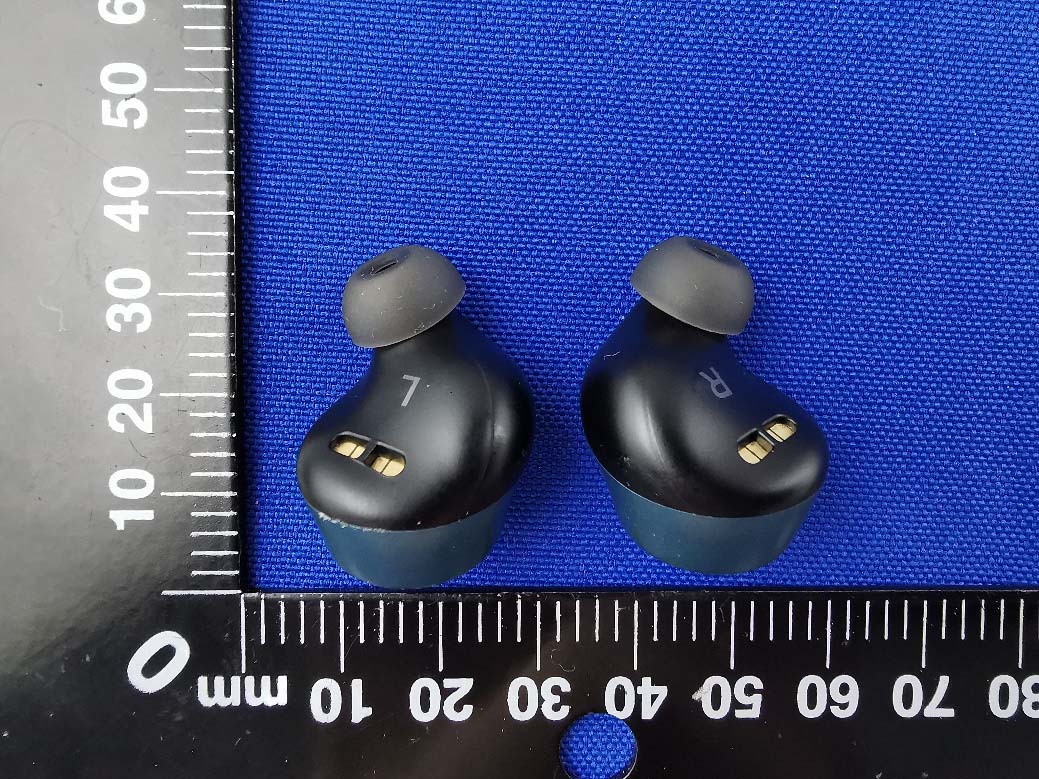

Annex No.: BL-SZ2040345-AW 1 / 8 EUT EXTERNAL PHOTOS Model Name: EF0900 FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2040345-AW 2 / 8 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2040345-AW 3 / 8 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ2040345-AW 4 / 8 Model Name: EF0910 FRONT VIEW OF EUT REAR VIEW OF EUT Annex No.: BL-SZ2040345-AW 5 / 8 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Annex No.: BL-SZ2040345-AW 6 / 8 TOP VIEW OF EUT BOTTOM VIEW OF EUT Annex No.: BL-SZ2040345-AW 7 / 8 Accessory-Charging Case 1 Accessory-Charging Case 2 Annex No.: BL-SZ2040345-AW 8 / 8 Accessory-TYPE-C Cable

FCC ID: 2AJIV-EF0910LR The device is too small to show FCC ID. FCC ID will display in user manual.

Annex No.: BL-SZ2040345-AI 1 / 7 EUT INTERNAL PHOTOS Model Name: EF0900 EUT UNCOVER VIEW EUT UNCOVER VIEW RF Chip Annex No.: BL-SZ2040345-AI 2 / 7 LDS Antenna MAIN BOARD TOP VIEW LDS Antenna Annex No.: BL-SZ2040345-AI 3 / 7 MAIN BOARD REAR VIEW Battery Photo (FRONT) Annex No.: BL-SZ2040345-AI 4 / 7 Battery Photo (REAR) Model Name: EF0910 EUT UNCOVER VIEW Annex No.: BL-SZ2040345-AI 5 / 7 LDS Antenna EUT UNCOVER VIEW LDS Antenna RF Chip Annex No.: BL-SZ2040345-AI 6 / 7 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Annex No.: BL-SZ2040345-AI 7 / 7 Battery Photo (FRONT) Battery Photo (REAR)

RF Exposure Evaluation for FCC ID: 2AJIV-EF0910LR Refer user manual this device is a CREATIVE OUTLIER GOLD V2, and this device was designed used in portable devices that the minimum distance between human’s body is 5mm. Based on the 47CFR 2.1093, this device belongs to portable device. The definition of the category as following: Portable Derives: CFR Title 47 §2.1093(b) (b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. FCC KDB 447498 D01 General RF Exposure Guidance v06 Limit Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source- based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Test data Bluetooth Mode BR+EDR BLE GFSK ∏/4-DQPSK 8-DPSK GFSK Low Middle High Low Middle High Low Middle High Low Middle High Average Power (dBm) 3.27 3.69 3.70 2.49 3.25 3.28 2.50 3.26 3.24 3.18 3.61 3.67 Note: This report listed the worst case peak power value, please refer to RF test report for more details. Turn-up power Mode Range (dBm) Bluetooth 2.00-4.00 FCC exclusion condition= [2.51 mW/5 mm] · [√2.48 GHz] = 0.79 ＜ 3.0 RF Exposure Evaluation Result: Pass Note: More power data, Please refer to the RF report.
