2AJJB-SP-70Karaoke Machine With Wireless Microphones

6. DC 5V Charging Port: Use the included USB-C charging cable to charging the device via USB port of phone charger. 7. Mic/Instrument Port: Supports cabled microphone and Instrument audio input. 8. Power/Volume Knob: Turn the knob clockwise to turn on device, keep turning to increase volume. Turn the knob anticlockwise to decrease volume, keep turning to turn off device. 9. Next Song: Press the button to play the next song, long hold for fast forward. In radio mode, short press the button for next channel. 10. [ ]Play/loop Button: Short press the button to play/stop playing. In MP3 mode, long hold the button to repeat playing a song or a playlist. In radio mode, long hold the button to search for radio channel. In Bluetooth mode, long hold the button to disconnect. While playing audio, long hold the button to delete recording. 11.Previous Song: Short press the button to play previous song, long hold the button for fast reverse. In radio mode, short press the button to play previous channel. 12. Number Button(1-0): Tapping two or more buttons to select songs. For instance, tapping button No.1 and No.2 to play the 12th song in USB flash drive or Micro SD card. 13.[M]Mode/LED: Short press to convert from radio mode, Bluetooth mode, audio input mode, MP3 mode. Long hold the button to switch light modes. 14. Recording/Playing Button: Long hold the button to record, while recording, short press the button to end recording. Short press the button to play USB disk/TF Card audio. Please be noted the recording function is only available when there is a USB disk, TF card, cabled microphone/wireless microphone connected to the device) 15. Music Only/Microphone Priority: Short press the button to turn on/off microphone priority function. Long press the button to turn on/off music only. Charging notes 1. Battery symbol status: fully charged symbol , low battery symbol . Indicator light on indicates charging, indicator light off indicates fully charged. 2. Plug charging cable of charger to the product’s DC 5V charging port to charge the device. Cautious Please charge the device via 10w or above charger, or you can use chargers with higher voltage than 5V/2A(10W). Since there is built-in high capacity battery, please keep the product away from high-temperature environment. Please fully charge the device for long-term storage. Warranty Policy Thanks for purchasing Sudotack products, please read user manual carefully before using products. If you have any suggestions for us, please contact us in Order page or SUDOTACK official website. We will serve you wholeheartedly! Official website: www.sudotack.com Email: [email protected] ֺ՚͹96 ۨսتؾ͹33 ߕૅ͹Mୢ࣍঻ܑͫ஼ ٗਫ͹֚਩ԭӳ ࣍ߎ՚͹ Ԕ ੇ ґ 㔴 ה ࡉ ґ 㔴 User Manual WIRELESS KARAOKE SYSTEM WIRELESS KARAOKE SYSTEM Product Description SUDOTACK SP-70 multi-functional Karaoke machine system includes handheld wireless microphones and a 6-inch HD speaker whose amplifying distance reaches 49ft/15m. The powerful TWS function allows you to pair two Maono SP-70 systems for stereo effect. There are independent control buttons for microphone volume, reverb, colorful RGB lights on/off, etc. Functions such as built-in 87.5-108MHz radio, Aux-in, TF slot, and USB Flash Drive port offer various playback options to play MP3, WAV or other audio formats. You can also know the working status via clear digital display. Maono SP-70 portable Karaoke system is medium-sized and has a fashionable looking. The high-voltage system ensures enough volume boost, and the internal large-capacity rechargeable lithium-ion battery guarantees long working hours. The system is ideal for family party, outdoor performance, teaching, etc. Features • TWS connection mode: To enjoy true wireless stereo audio, when the device Bluetooth mode is on, please click Pause button of any Maono SP-70 for auto-connection of the subsidiary and main Karaoke devices. And then connect Bluetooth device like phone to the the subsidiary and main Karaoke devices. Long hold the Pause button to stop Bluetooth connection. • The latest Bluetooth technology offers high-quality audio and easy connection with Bluetooth devices like smart phones. • Features 6.5mm mic input. Supports VHF band wireless microphone. • Multi-functional digital song ordering via one button or multiple buttons. Allow you to switch songs in USB flash drive or Micro SD card, or switch radio channels. • The fashionable device can be used in office, home, outdoor travelling, office, entertain- ment, studying, etc. • A standard 3.5mm audio input jack for connecting phones or computers. • Supports TF card or USB flash drive playback options to play MP3 or WAV. • Features a built-in highly sensitive 87.5-108MHz FM radio with a high capacity rechargeable lithium-ion battery. • Features digital display for easy operation and clear display. • Low power consumption, high-power Cat-F digital efficiency. ([ZZUT,[TIZOUTY Packing List ONOFF MIC INTF Side Chain/ Music Only REC/ PLAY Mode/ LED VOL DC 5V AUX MIC ECHO MIC VOL USB ஄ࠔ ৔஄ ஼ܑІ SP-70 SP-70 1.Mic volume knob: Turn the knob clockwise to increase mic volume, turn the knob anticlockwise to decrease or turn off mic volume. 2. Mic reverb knob: Turn the knob clockwise to increase mic reverb effect, turn the knob anticlockwise to decrease or turn off mic reverb effect. 3. Accompaniment/Audio port: Import accompaniment music and AUX. 4. TF Card slot: Insert TF card to playback MP3 files in it. 5. USB port: Insert USB flash drive to playback MP3 files in it. USB TF Charger DC 5V MIC IN Portable SpeakerWireless Microphone ONOFF MIC INTF Side Chain/ Music Only REC/ PLAY Mode/ LED VOL DC 5V AUX MIC ECHO MIC VOL USB ON Technical Support [email protected] www.sudotack.com LED Long press Mode Short press Radio ModeBluetooth ModeAudio Input ModeMP3 Mode 9 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause h…

Text truncated - open the document above for the full version.

Model difference letter 2022.12.29 Dear MET Reviewer, This is a new Application from Shenzhen Maono Technology Co., Ltd. Model No.: SP-70、SP-70A、SP-70B Use SP-70 for all tests. Only the number of microphone accessories is different, and everything else is the same. Thank you for your cooperation! Yours sincerely, Signatory: Name: Eric Wu Position: Manager Company Name: Shenzhen Maono Technology Co., Ltd. Address: 401,Building47, Software Town of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District,Shenzhen, China Tel / Fax 0755-82934327/0755-82934365 E-Mail: [email protected]

Shenzhen Maono Technology Co., Ltd. Agent Authorization Letter 2022-12-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Eric Wu Position: Manager Company Name: Shenzhen Maono Technology Co., Ltd. Address: 401,Building47, Software Town of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District,Shenzhen, China Tel / Fax 0755-82934327/0755-82934365 E-Mail: [email protected]

Shenzhen Maono Technology Co., Ltd. Long Term Confidentiality Request Letter 2022-12-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2AJJB-SP-70) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Eric Wu Position: Manager Company Name: Shenzhen Maono Technology Co., Ltd. Address: 401,Building47, Software Town of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District,Shenzhen, China Tel / Fax 0755-82934327/0755-82934365 E-Mail: [email protected]

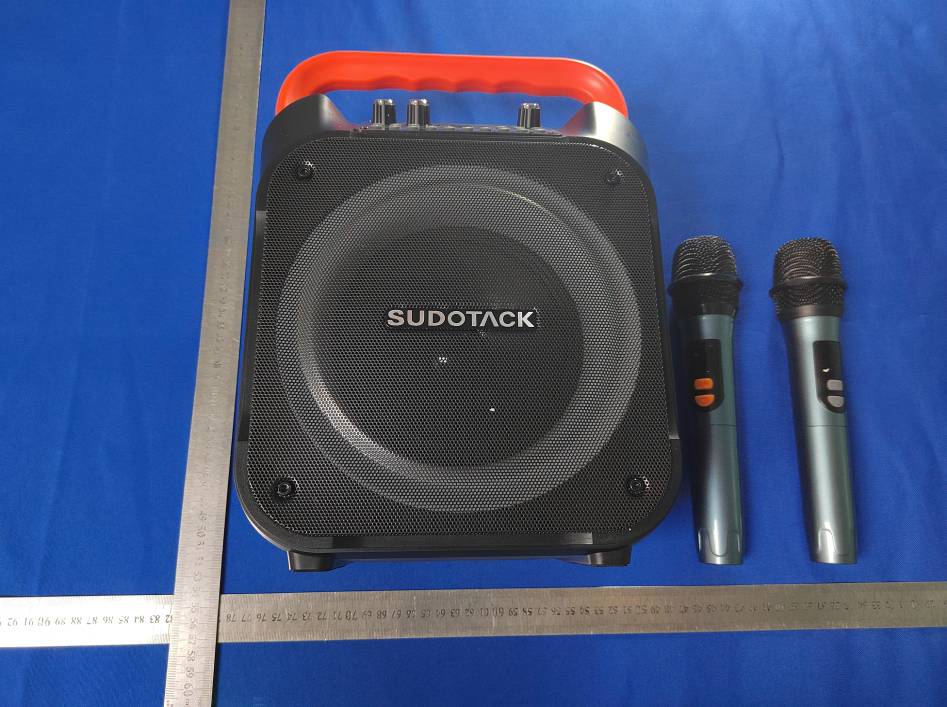

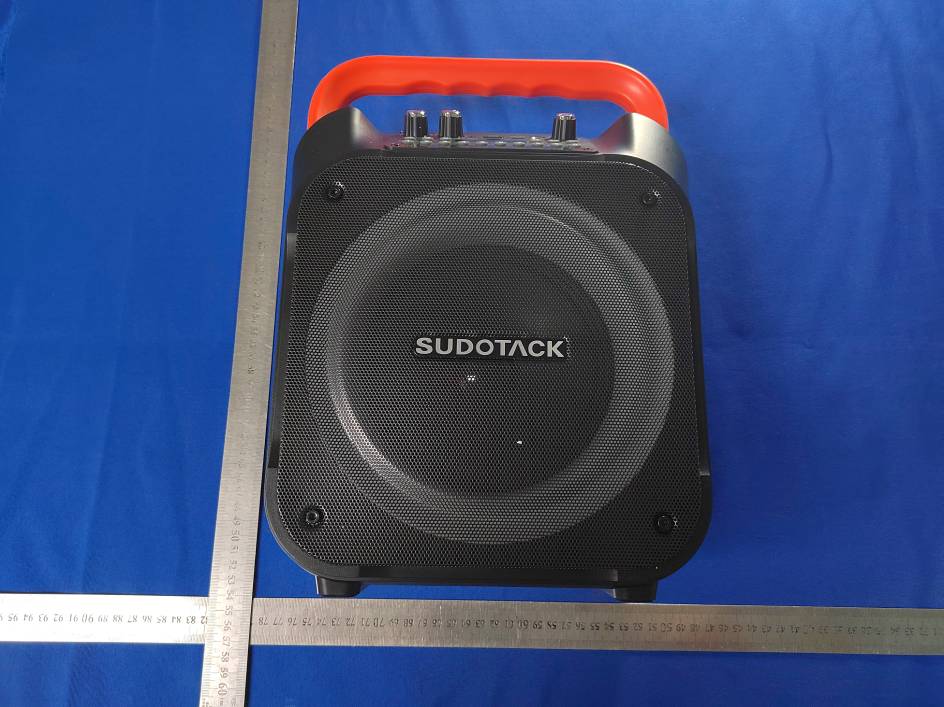

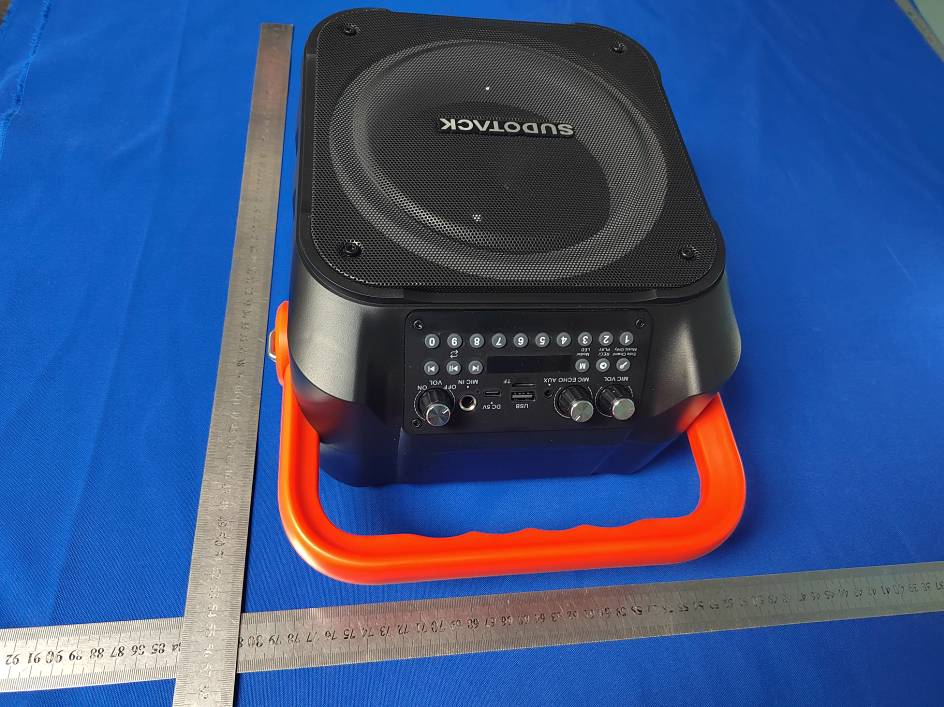

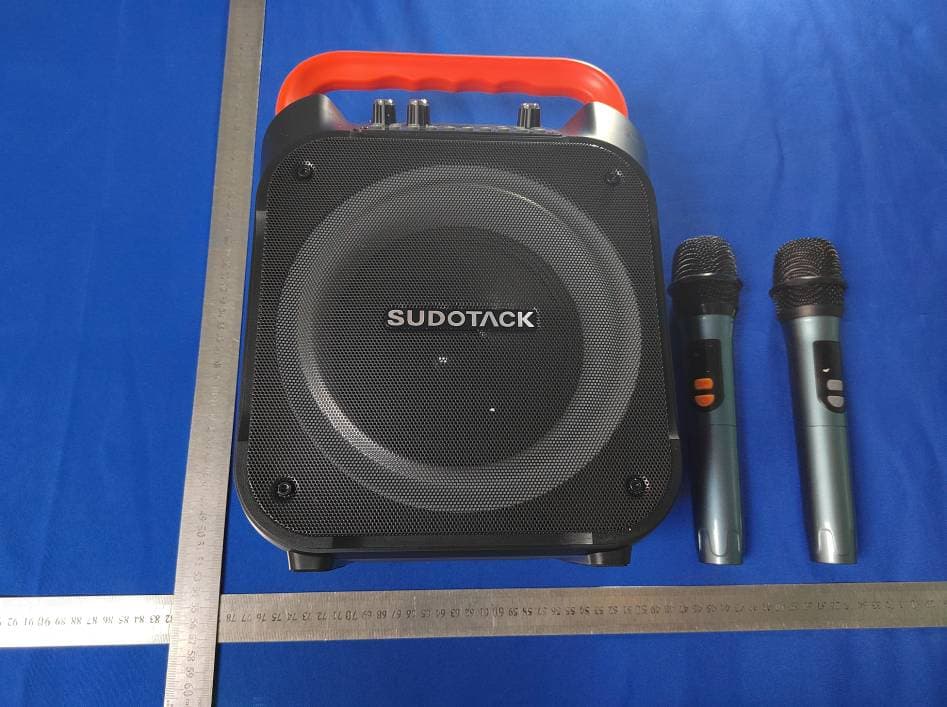

Model No.: SP-70 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: SP-70 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: SP-70 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: SP-70 Overall photos

Label： label size：50mm*50mm Product Name:Karaoke Machine With Wireless Microphones Input : 5V⎓lA Model : SP-70 FCCID:2AJJB-SP-70 Made in China Manufacturer : Guangdong Dingchuang Smart Manufacturing Company limited label location

Model No.: SP-70 Page 1 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Antenna Location Model No.: SP-70 Page 2 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: SP-70 Page 3 of 4 INTERNAL PHOTO OF SAMPLE PCB INTERNAL PHOTO OF SAMPLE PCB Model No.: SP-70 Page 4 of 4 Battery

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. RF Exposure Evaluation Report Report Reference No. ..................... : FCC ID.. .......................................... : MTEB22120196-H 2AJJB-SP-70 Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : December 23,2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : SHENZHEN MAONO TECHNOLOGY CO., LTD Address ............................................ : 401,Building47,SoftwareTown of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District, Shenzh en,China Test specification/ Standard ..........: 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Karaoke Machine With Wireless Microphones Trade Mark ....................................... : sudotack Manufacturer .................................... : Guangdong Dingchuang Smart Manufacturing Company Limited Model/Type reference....................... : SP-70 Listed Models .................................. : SP-70A、SP-70B Modulation Type ............................... : GFSK, π/4DQPSK, 8DPSK Operation Frequency ........................ : 2402MHz to 2480MHz Hardware Version .............................. V1.2 Software Version ............................... V 1.0 Rating ............................................... : DC 5V by USB Port DC 3.7V by Battery Result................................................ : PASS Report No.: MTEB22120196-H Page 2 of 6 T E S T R E P O R T Equipment under Test : Karaoke Machine With Wireless Microphones Model /Type : SP-70 Listed Models : SP-70A、SP-70B Remark Only the number of microphone accessories is different, and everything else is the same. Applicant : SHENZHEN MAONO TECHNOLOGY CO., LTD Address : 401,Building47,SoftwareTown of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District, Shenzh en,China Manufacturer : Guangdong Dingchuang Smart Manufacturing Company Limited Address : Room 401, Building 8, Fenggang Tianan Digital City, No.208, Fenggang Section, Dongshen Road, Fenggang Town, Dongguan City, Guangdong Province Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB22120196-H Page 3 of 6 1. Revision History Revision Issue Date Revisions Revised By 00 2022-12-23 Initial Issue Alisa Luo Report No.: MTEB22120196-H Page 4 of 6 2. SAR Evaluation 2.1 RF Exposure Compliance Requirement 2.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2.1.2 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: MTEB22120196-H Page 5 of 6 2.1.3 EUT RF Exposure Antenna Gain: 1.2dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.4 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: EDR GFSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2402 MHz) 1.20 1.20±1 2.20 Middle(2441MHz) 1.03 1.03±1 2.03 Highest(2480MHz) 1.06 1.06±1 2.06 π/4DQPSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2402 MHz) 0.99 0.99±1 1.99 Middle(2441MHz) 1.41 1.41±1 2.41 Highest(2480MHz) 1.00 1.00±1 2.00 8DPSK Test channel Peak Output Power (dBm) Tune up tolerance (dBm) Maximum tune-up Power (dBm) Lowest(2402 MHz) 1.07 1.07±1 2.07 Middle(2441MHz) 1.11 1.11±1 2.11 Highest(2480MHz) 1.12 1.12±1 2.12 EDR Worst case: π/4DQPSK Channel Maximum Peak Conducted Output Power (dBm) Maximum Peak Conducted Output Power (MW) Antenna Gain (dBi) Power Density at R = 20 cm (mW/cm2) Limit Result Highest(2441 MHz) 2.41 1.74 1.2 0.0004 1.0 Pass Note: 1) Refer to report MTEB22120196-R for EUT test Max Conducted average Output P…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Peak Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Manufacturer:Guangdong Dingchuang Smart Manufacturing Company Limited. Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Shenzhen Most Technology Service Co., Ltd. No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. TEST REPORT FCC Rules Part 15.247 Report Reference No. .....................: FCC ID.. .......................................... : MTEB22120196-R1 2AJJB-SP-70 Compiled by ( position+printed name+signature) .. : File administrators Alisa Luo Supervised by ( position+printed name+signature) .. : Test Engineer Sunny Deng Approved by ( position+printed name+signature) .. : Manager Yvette Zhou Date of issue ..................................... : December 23,2022 Representative Laboratory Name .: Shenzhen Most Technology Service Co., Ltd. Address ............................................ : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China. Applicant’s name ............................ : SHENZHEN MAONO TECHNOLOGY CO., LTD Address ............................................ : 401,Building47,SoftwareTown of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District, Shenzh en,China Test specification/ Standard ..........: FCC Rules Part 15.247 TRF Originator .................................. : Shenzhen Most Technology Service Co., Ltd. Shenzhen Most Technology Service Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Most Technology Service Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Most Technology Service Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Karaoke Machine With Wireless Microphones Trade Mark ....................................... : sudotack Manufacturer .................................... : Guangdong Dingchuang Smart Manufacturing Company Limited Model/Type reference....................... : SP-70 Listed Models .................................. : SP-70A、SP-70B Modulation Type ............................... : GFSK, π/4DQPSK, 8DPSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version .............................. V1.2 Software Version ............................... V 1.0 Rating ............................................... : DC 5V by USB Port DC 3.7V by Battery Result................................................ : PASS Report No.: MTEB22120196-R1 Page 2 of 42 T E S T R E P O R T Equipment under Test : Karaoke Machine With Wireless Microphones Model /Type : SP-70 Listed Models : SP-70A、SP-70B Remark Only the number of microphone accessories is different, and everything else is the same. Applicant : SHENZHEN MAONO TECHNOLOGY CO., LTD Address : 401,Building47,SoftwareTown of Universiade,No.8288 Longgang Rd.,He'ao Community,Yuanshan Street,Longgang District, Shenzh en,China Manufacturer : Guangdong Dingchuang Smart Manufacturing Company Limited Address : Room 401, Building 8, Fenggang Tianan Digital City, No.208, Fenggang Section, Dongshen Road, Fenggang Town, Dongguan City, Guangdong Province Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: MTEB22120196-R1 Page 3 of 42 Contents 1 REVISION HISTORY ................................................................ 4 2 TEST STANDARDS .................................................................. 5 3 SUMMARY ............................................................................. 6 3.1 General Remarks 6 3.2 Product Description 6 3.3 Equipment Under Test 6 3.4 Short description of the Equipment under Test (EUT) 6 3.5 EUT operation mode 7 3.6 Block Diagram of Test Setup 7 3.7 Test Item (Equipment Under Test) Description* 7 3.8 Auxiliary Equipment (AE) Description 7 3.9 Antenna Information* 7 3.10 Related Submittal(s) / Grant (s) 8 3.11 Modifications 8 4 TEST ENVIRONMENT ............................................................... 9 4.1 Address of the test laboratory 9 4.2 Environmental conditions 9 4.3 Summary of measurement results 10 4.4 Statement of the measurement uncertainty 10 4.5 Equipments Used during the Test 11 5 TEST CONDITIONS AND RESULTS ............................................ 12 5.1 AC Power Conducted Emission 12 5.2 Radiated Emission 15 5.3 Maximum Peak Output Power 21 5.4 20dB Bandwidth 22 5.5 Frequency Separation 25 5.6 Number of hopping frequency 28 5.7 Time of Occupancy (Dwell Time) 30 5.8 Spurious RF Conducted Emission 33 5.9 Pseudorandom Frequency Hopping Sequence 39 5.10 Antenna Requirement 40 6 TEST SETUP PHOTOS OF THE EUT .......................................... 41 7 PHOTOS OF THE EUT ............................................................. 41 Report No.: MTEB22120196-R1 Page 4 of 42 1 Revision History Revision Issue Date Revisions Revised By 00 2022-12-23 Initial Issue Alisa Luo Report No.: MTEB22120196-R1 Page 5 of 42 2 TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: MTEB22120196-R1 Page 6 of 42 3 SUMMARY 3.1 General Remarks Date of receipt of test sample : 2022.12.14 Testing commenced on : 2022.12.15 Testing concluded on : 2022.12.23 3.2 Product Description Product Name: Karaoke Machine With Wireless Microphones Model/Type reference: SP-70 Power Supply： DC 5V by USB Port DC 3.7V by Battery Testing sample ID： MT22120182 Bluetooth : Supported Type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenn…

Text truncated - open the document above for the full version.

Model No.: SP-70 RE TEST SETUP Model No.: SP-70 CE TEST SETUP
