2AJJCTNS-0163RJOY-PAD (L) / (R)

1 说明书 Instructions 产品名称：Switch蓝牙手柄 Product name: Switch Bluetooth Controller 产品编号：TNS-0163 版本：A1.1 Product No.: TNS-0163 Rev.: A1.1 1、产品简介: 1.Production Introduction: 支持蓝牙跟Switch主机连接；有功能键连发设定-Turbo功能键、截屏键、陀螺仪重力感应、振 动、NFC感应、手柄唤醒主机等功能； It supports the connection between the Bluetooth and Switch console, and it is designed with continuous firing settings in functions keys (Turbo function keys), screen shot key, gyroscope gravity induction, vibration, NFC induction and console wake-up with controller, etc. 2、产品图解: 2. Product Diagram: 3、产品特点: 3. Product Features: 3.1、支持蓝牙跟Switch主机平台无线连接。 3.1 Support Bluetooth wireless connection with Switch host platform. - key Left 3D joystick Bluetooth code key TURBO key Screens hot key Right SR key Left SL key + key Y key X key A key B key Right 3D joystick TURBO key Home TYPE-C charging interface TYPE-C charging interface Resetting key ZL key L key Lock catch key Left SR key Left SL key Lock catch key Resetting key Bluetooth code key ZR key R key Direction key 2 3.2、设计有Turbo设置功能、可改变Turbo速率，有截屏键、陀螺仪重力感应等功能。 3.2 It is designed with Turbo setting function, variable Turbo rate, screen shot key and gyroscope gravity induction and other functions. 3.3、具有双振子振动功能。 3.3 It is designed with vibration function of double vibrators. 3.4、支持NFC感应。 3.4 Support NFC sensing. 3.5、支持主机唤醒功能、对码键连接。 3.5 It supports console awakening function and connection of the code matching key. 3.6、充电指示灯。 3.6 Provide the charging lamp. 4、功能图表： 4 Function Chart: 功能名称 Function Name 是否有功能 Available or not 备注 Remarks USB有线连接 USB wired connection 无 No 蓝牙连接 Bluetooth connection 支持 Support 连接模式 Connection mode Switch模式 Switch mode 主机唤醒功能 Host wake-up function 支持 Support 六轴重力感应 Six-axis gravity sensing 有 Yes A、B、X、Y、-、+、L、R、ZL、ZR、 HOME、十字、TUBRO、SL、LR键 A key, B key, X key, Y key, - key, + key, L key, R key, ZL key, ZR key, HOME, cross key, TURBO key, SL key, LR key 有 Yes 截屏键 Screenshot key 有 Yes 3D摇杆（左3D摇杆功能） 3D joystick (left 3D joystick function) 有 Yes 3 L3键（左3D摇杆下压按键功能） L3 key (left 3D joystick press function) 有 Yes R3键（右3D摇杆下压按键功能） R3 key (right 3D joystick press function) 有 Yes 充电指示灯 Charging lamps 有 Yes 振动功能 Vibration function 有 Yes NFC读取功能 NFC reading function 支持 Support 手柄升级 Controller upgrade 支持 Support 5、模式与配对连接说明: 5 Mode and Pairing Connection Instructions: 5.1、Switch无线连接模式： 5.1 Switch Wireless Connection Mode: 在使用无线连接之前，请确认Switch主机的系统进入：‘手柄’->‘更改握法/顺序’处于配对状态; Before using the wireless connection, please make sure that the system of the Switch host enters: ‘Controller’ -> ‘Change Grip/Order’ and is in the pairing state. 长按手柄对码键约3秒进入蓝牙搜索模式, LED指示灯由“1-4-1”灯跑马式闪烁, 连接成功后相对应的通道指 示灯常亮。 Long press the controller code key for about 3 seconds to enter the bluetooth search mode, the LED lamp will flash from "1-4-1" in a marquee style, and the corresponding channel lamp will always be on after the connection is successful. 5.2开机说明、回连模式： 5.2 Boot Instructions and Back Connection Mode: 休眠状态下，短按1S唤醒手柄；短按蓝牙对码键手柄关机。 Short press for 1s to wake up the controller under the dormant state; short press the Bluetooth code matching key to shut down the controller. 按下任意按键（除Turbo外）唤醒手柄，被唤醒后会自动连接与之前配对的主机回连，如8秒回连不成功 则自动休眠。 Press any key (except for Turbo) to wake up the controller; the controller will automatically back connect to the 4 console paired previously; if the back connection is not successful within 8 seconds, it will enter into the auto sleep status. ③在主机和手柄休眠时，按HOME键可唤醒主机，如果没有唤醒成功，可再次按下HOME按键唤醒主机和 手柄。 ③Press the HOME key to wake up the console when the console and controller are in dormant state; if not successful, you can press the HOME key again to wake up the console and controller. 6、NFC功能： 6 NFC Function: 6.1、因NFC感应区在右手柄3D处，读卡时需将NFC卡贴在右手柄3D帽正上方，读取时间5-8 秒。 6.1 As the NFC induction zone is at the right controller 3D, you should make the NFC card cling right above to the right controller 3D cap, and the read time is 5-8s. 7、充电指示与充电特性： 7. Charging Indication and Charging Characteristics: 手柄充电时：充电LED指示灯亮起,充满电后LED灯灭灯。 When the controller is charging: the charging LED lamp lights up, and the LED light turns off when it is fully charged. 8、自动休眠： 8 Automatic Sleep: 8.1、连接Switch模式： 8.1 Connection Mode to Switch: Switch主机屏幕关闭或关机,手柄自动断开连接进入休眠。 Turn off or power off the screen of the Switch host to make the controller automatically disconnect and sleep. 8.2、蓝牙连接模式： 8.2 Bluetooth Connection Mode: 短按蓝牙对码键后蓝牙断开连接进入休眠。 The bluetooth is disconnected and enters sleep mode after the bluetooth code key is pressed shortly. 8.3、5分钟之内手柄没有任何按键按下则自动进入休眠(包括重力感应不动)。 8.3 If any key of the controller is not pressed within 5 minutes, it will automatically go to sleep (including the gravity sensor does not move). 9、电池低电量报警： 5 9 Low Battery Warming: 9.1、电池低电量报警：当前连接通道LED指示灯快速闪烁。 9.1 Low battery warming: The LED lamp of the current connection channel flashes quickly. 备注：当主机提示低电时手柄LED指示灯也会快速闪烁几下，不会一直持续闪烁 Remarks: When the host indicates low power, LED lamp of the controller will flash a few times quickly instead of continuous flashing. 10、Turbo功能（连发快打设置）： 10 Turbo Function (burst setting): 10.1、半自动TURBO 功能设置：按住TURBO键,再按需要设置为TURBO功能键的按键，就能轻松设置成 功。 10.1 Semi-automatic TURBO function setting: press TURBO key and then set it as the TURBO function key as required, then you can complete the settings successfully. 10.2、全自动TURBO 功能设置：按住TURBO键，再按已设置过半自动TURBO功能的按键即设置成功。 10.2 Full-automatic TURBO function setting: press TURBO key and then press the key which as been set up with the semi-automatic TURBO function. 10.3、可以设置TURBO功能的按键：A键、B键、X键、Y键、L键、R键、SL键、SR键、ZL键、ZR 键“十字”键（上下左右）、L3键（左3D摇杆下压按键）、R3键（右3D摇杆下压按键）。 10.3 Keys available for TURBO function settings: A key, B key, X key, Y key, L key, R key, SL key, SR key, ZL key, ZR key, “cross” key (up, down, left and right), L3 key (left 3D joystick press key) and R3 (right 3D joystick press key). 10.4、清除已设置TURBO功能按键： 10.4 Clear TURBO function keys that have been set: ○ 1 单个键的TURBO功能清除：按住TURBO键+已设置TURBO功能的按键就能快速清除。 ○ 1 Clear TURBO function of single key: press TURBO key + key set up with TURBO fu…

Text truncated - open the document above for the full version.

ShenZhen YuYuanXin Electronic Technology Co., LTD. 2021.06.03 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: JOY-PAD (L) / (R) Trademark: N/A MODEL : TNS-0163(R) FCC ID: 2AJJCTNS-0163R To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Guangrong Tu /General Manager Contact information / address: Building 11, Tianluohu Industry Park, Guihua Industry Area, Guanguang Road, Guanlan Town, Longhua District, Shenzhen, Guangdong, China, 518110

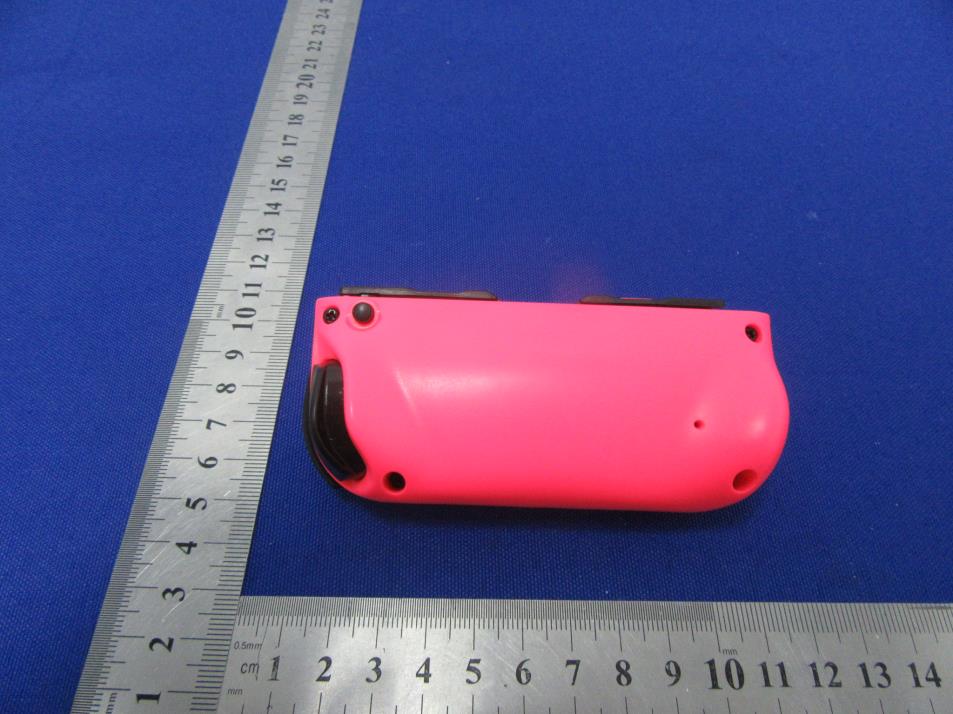

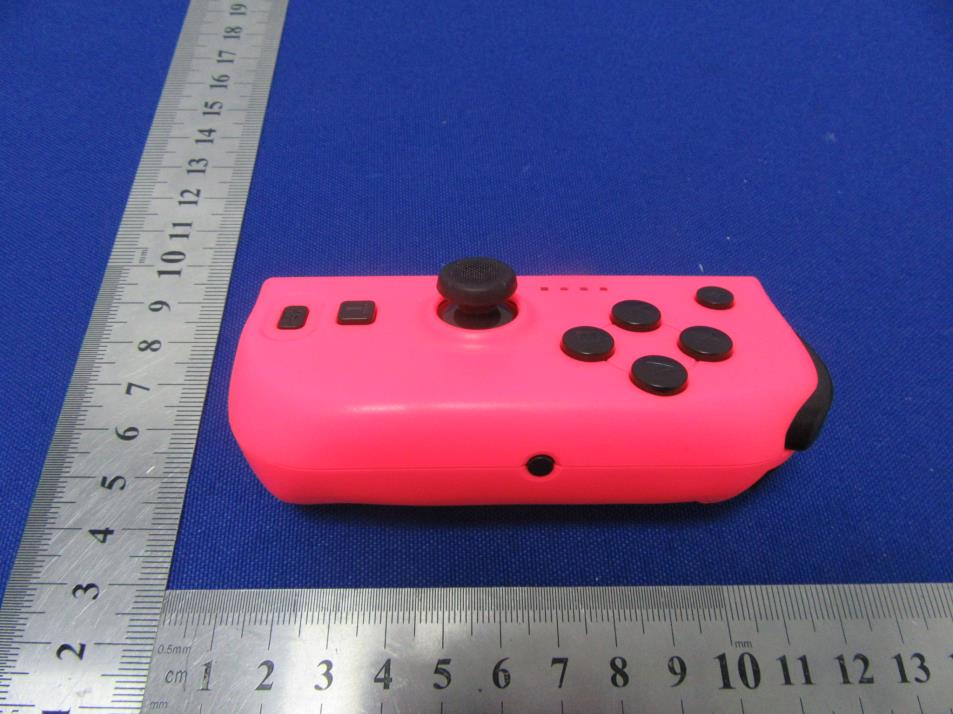

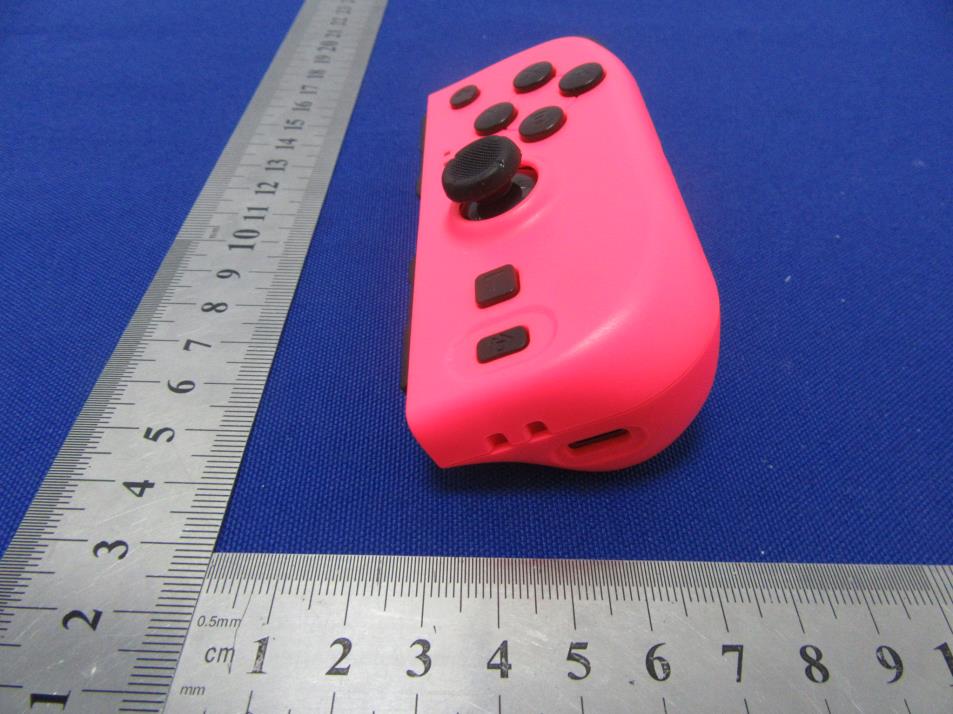

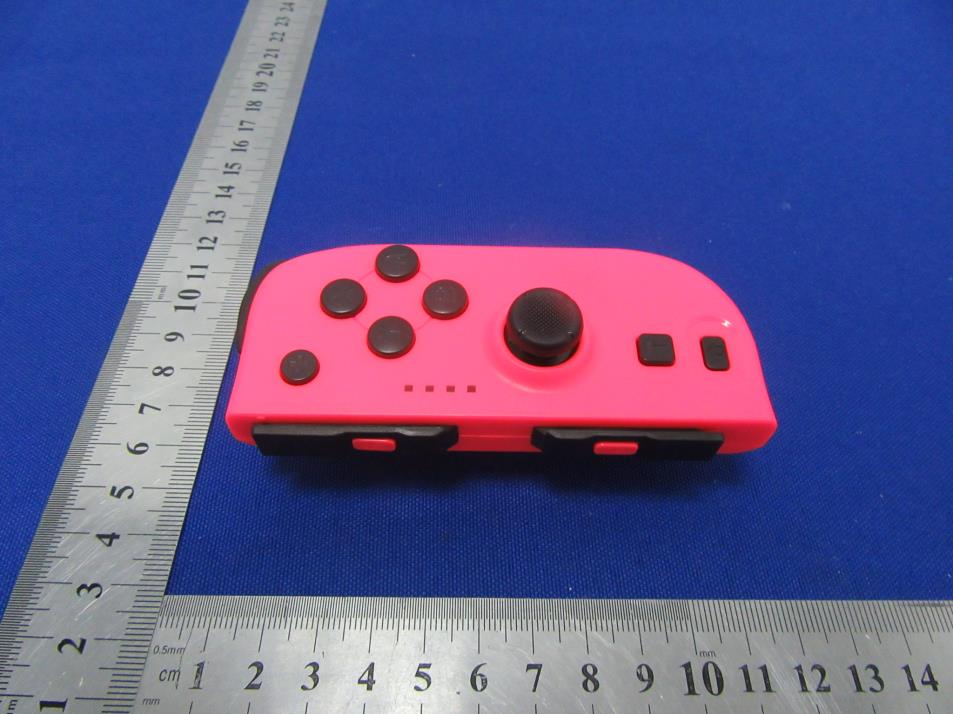

External Photos

Size:10*5mm Label Location FCC ID: 2AJJCTNS-0163R

Internal Photos BT Antenna NFC Antenna

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AJJCTNS-0163R Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion GFSK2.480-0.8990.810±11.001.26<50.396513.00YES Pi/4 DQPSK 2.480-0.1830.960±11.001.26<50.396513.00YES Conclusion: For the max result : 0.39651＜3.0, the SAR testing is not required.
