2AJOF-ATOM500SDI-RXwireless video system

1 VAXIS.ATOM 500 SDI Wireless Video System Instructions Dear users: Thank you very much for choosing ATOM 500 wireless video transmission equipment. This product adopts h.265 image coding and decoding technology and 5g wireless transmission technology. Realize low delay and high quality video transmission. We sincerely hope that you can enjoy the long-term convenience of using the product and wish you the best experience from the product. All the information contained in this manual has been strictly verified to be correct at the time of publication. However, due to the continuous upgrading and improvement of the product, we hope that your equipment and use may be different from the description in this manual. For this, we hope you will take the actual product as the standard, and welcome you to call our service phone for 2 consultation. ■Main features:  Stable transmission distance 100m  Highest resolution 1080p 60, 60-100ms delay  Built in antenna , easy to install and use  Support mobile APP monitoring and password protection  Support HDMI loop out  up to 9 free frequency switching options  OLED screen display the current channel,power status,signal stength  Support USB type C and Sony F97 battery power supply, meet the needs of various environments  Any input and output ports with ±4 kV ESD protection level (HBM, contact discharge) Application scenario Film shooting Educational recording and broadcasting Live broadcast wedding ceremony Sports events Enterprise activity 3 Packing list Transmitter *1 Receiver *1 user's manual*1 Expanding accessories *1 Cold boot platform*1 Type-C power cord*1 Hexagon wrench*1 Introduction  Thank you for choosing our long-range wireless HDMI products. Before you install the product, please read the user manual carefully and follow the manual of the user manual to avoid product damaged or other safety accidents.  Due to product version upgrade or other reasons, the contents of this manual will be updated from time to time. Unless otherwise agreed, this manual is used only as a guide, and all statements, information and recommendations in this manual do not constitute any guarantee either express or implied. 4 ■Name of the product parts Transmitter: ① Power switch ② Screen display ③ HDMI Output ④ HDMI Input ⑤ Type-C DC Input ⑥ Direction button1 ⑦ Direction button2 ⑧ Menu button ⑨ Installation of extension accessories 5 Receiver: ① Power switch ② Screen display ③ HDMI Output ④ HDMI Output ⑤ Type-C DC Input ⑥ Direction button1 ⑦ Direction button2 ⑧ Menu button ⑨ Installation of extension accessories 6 ■Parameters: Transmitter Receiver Interface HDMI/ input(Type A Female), /SDI input, Type-C interface HDMI Output 1(Type A Female), SDI Output, Type-C interface Supply Voltage Range 5V DC 5V DC Power consumption <6.5W <4.5W Size (LxWxH):105x64x28mm (LxWxH):105x64x28mm Mass 134g 130g Input Video Format HDMI/SDI 720p59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59 .94/60; / Output Video Format / HDMI/SDI 720p59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.9 4/60 Signal Indicator OLED Display OLED Display Frequency Band WIFI 5180MHz-5240MHz WIFI 5745MHz-5825MHz WIFI 5180MHz-5240MHz WIFI 5745MHz-5825MHz Occupied Bandwidth 20MHz 20MHz Compliance FCC;CE. FCC;CE. 7 Operation guide 1. Frequency switching Press the transmitter "direction key" to switch the frequency point, press the menu key to confirm the frequency point, and the receiver will automatically switch the connected frequency point synchronously. No frequency point switching function of receiver. 2. App password modification method Press "menu" key for menu interface, switch to "PWD < current >", click "menu" to confirm, switch to "new", click "menu" to confirm, wait for about 10s. (Note: password can be modified when TX and Rx are in normal connection state) 3. Fan regulation mode Press and hold the direction key for 3S to enter the fan adjustment selection menu, and select "FAN LOW","FAN HIGH" "FAN AUTO" "FAN OFF". (Note: Fan off can only be turned off for 5 minutes at a time)。 4. APP monitoring switch mode Press and hold the menu key on the menu interface of the 8 transmitter, and switch to app < on > L, which is on by default. Click to switch to < off > to close the app connection 5. App installation and use ① App name is "vaxis vision" ，Download in app storeg ② Usage method a． Open app "vaxis vision" to select the connection device b． Long press TX menu key for 3S, switch to SSID, and input WiFi name (VX a00001) to app c． The TX menu is switched to PWD<CURRENT>, and the 8-digit number displayed is WiFi password. Input it to app and click Connect. 6. This device is a non-handheld device, and the distance between the device and people is greater than 20cm during work. 9 Common troubleshooting 1. Connection exception a. Please check whether TX / RX power supply is normal b. When RX is always displayed as link, please restart TXRX / switch to a clean frequency point 2. Display abnormal problems a. Please check whether the video source is connected to HDMI in correctly b. Please check whether the signal format can be normally displayed on the OLED screen 3. Video picture jam a. Please check whether the signal quality displayed by the receiver is good. If the signal is weak, please switch the frequency point or shorten the wireless connection distance b. If it is impossible to determine which channel has low environmental interference, please restart TX and select a cleaner channel for automatic frequency sweep FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the pa rty responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been te…

Text truncated - open the document above for the full version.

Declaration on model difference Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences are the appearance( color and silk-screen only)、trade name and model no. for trading purpose. Product Name:Vaxis wireless video syste Model No.: Vaxis Atom 600 DS SDI RX, Vaxis Atom 500 SDI RX, Vaxis Atom 600 SDI RX Confirmed by Authorized Signature: Date : 2020-11-4 Vaxis Atom 600 KV RX, Vaxis Atom 600 ZVRX

Hunan GM innovation technology co.,Ltd Long Term Confidentiality Request Letter 2020-10-23 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 /2AJOF-ATOM500SDI-RX）To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the ( Block Diagram, Schematic diagram, Operational Description) required to be submitted with this application be permanently withheld from public review. These documents contain detailed system and equipment description and related information about the product which Hunan GM innovation technology co.,Ltd considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Hunan GM innovation technology co.,Ltd considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Miaoce Zhu Job Title: Manager Address: No.46 Jiefang East Road,Furong District,Changsha City,Hunan Province,China RE: Confidentiality request for（Vaxis wireless video system / Vaxis Atom 500 SDI RX

Hunan GM innovation technology co.,Ltd Agent Authorization Letter 2020-10-23 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize（ Global United Technology Services Co. Ltd.） to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Miaoce Zhu Job Title: Manager Address: No.46 Jiefang East Road, Furong District,Changsha City,Hunan Province,China

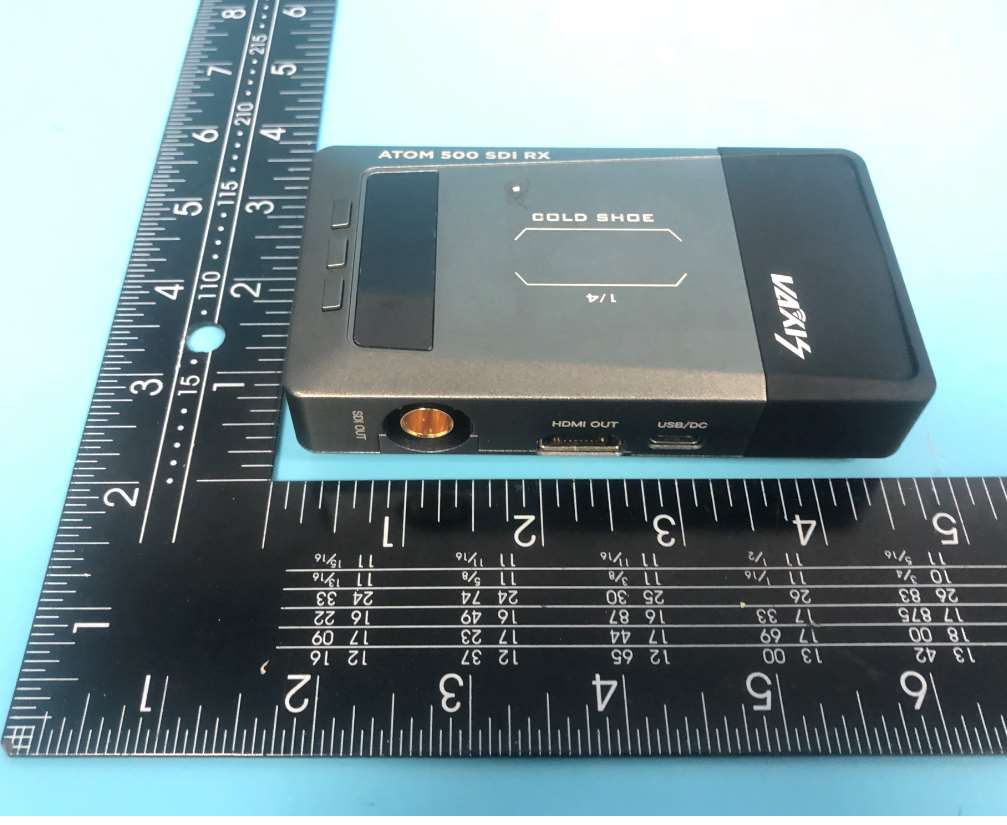

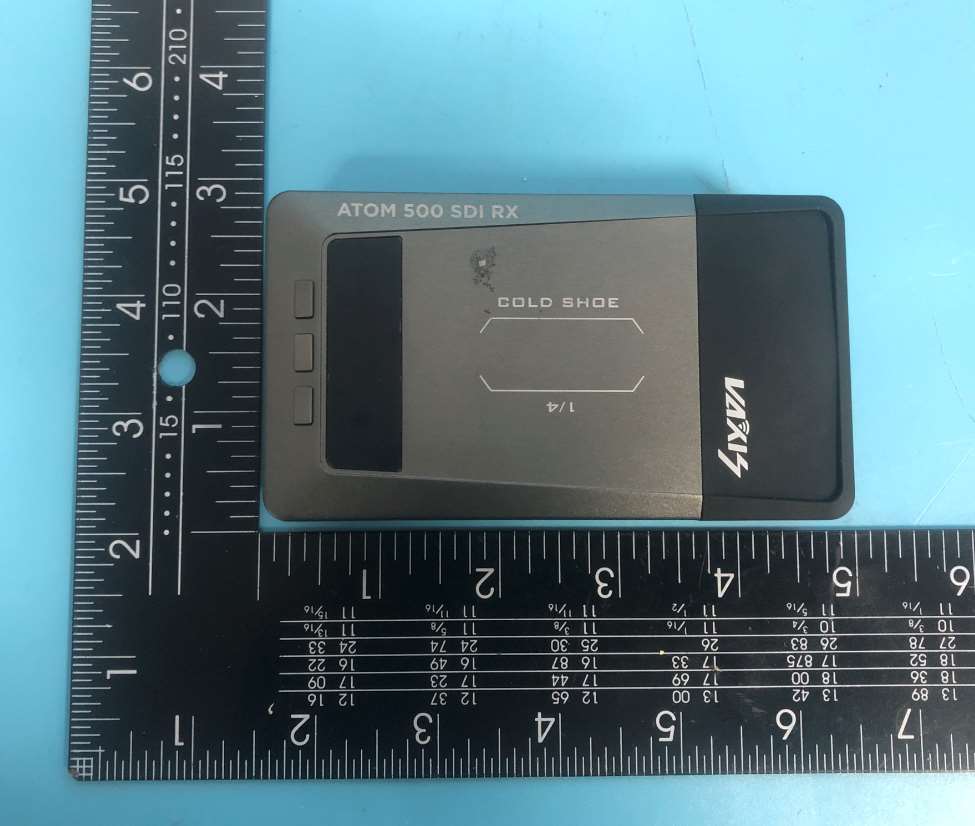

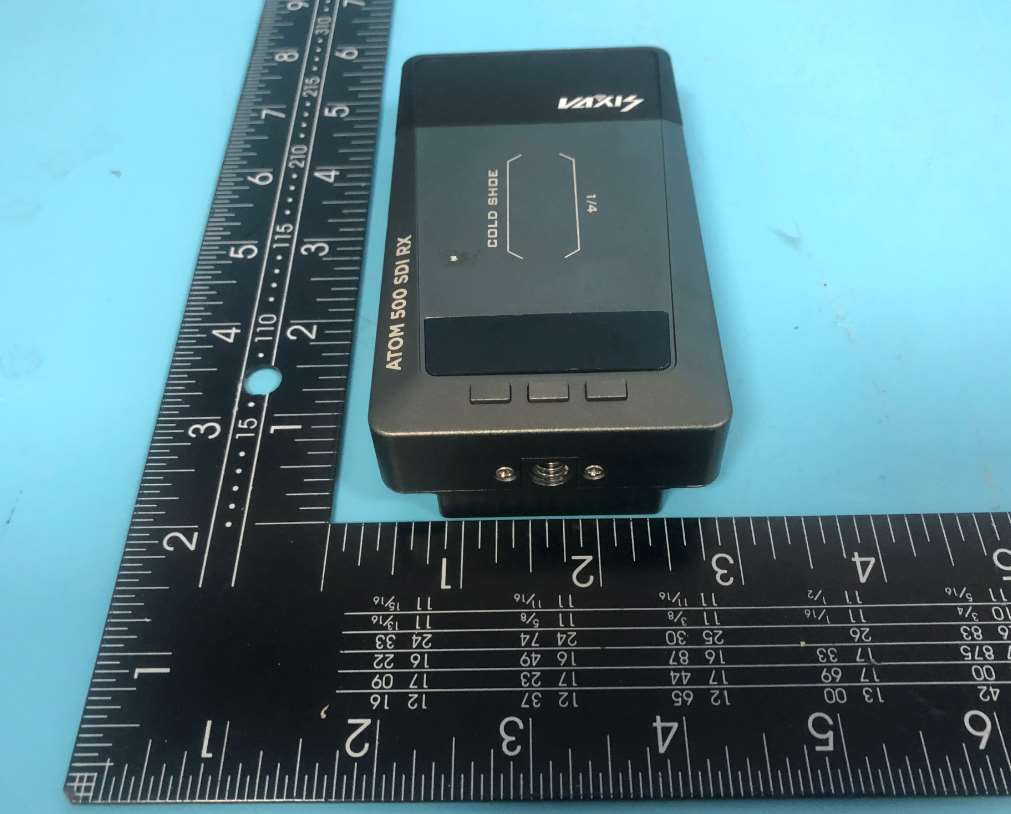

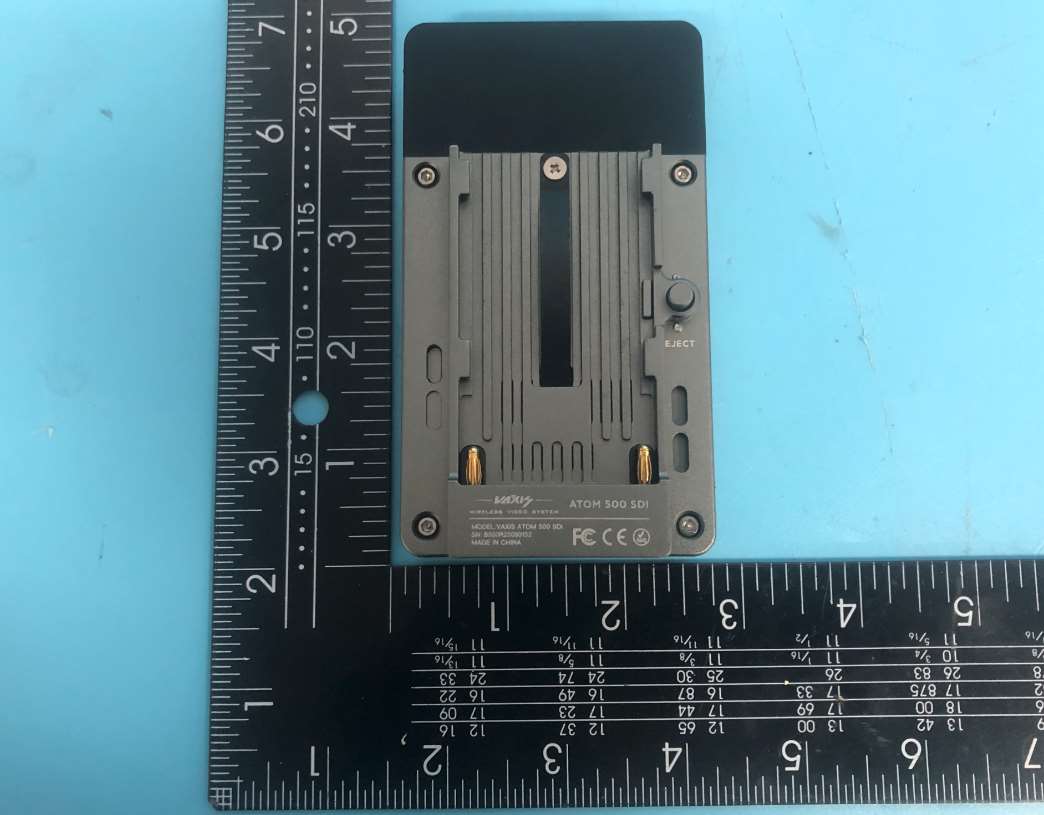

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Vaxis Atom 500 SDI RX Photo 1(Receiver) Photo 2(Receiver) Photo 3(Receiver) Photo 4(Receiver) Photo 5(Receiver) Photo 6(Receiver) Photo 7(Receiver) Photo 8(Receiver)

APPENDIX-II PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model:Vaxis Atom 500 SDI RX Photo 1(Receiver) Photo 2(Receiver) WIFI Antenna A WIFI Antenna B Photo 3(Receiver) Photo 4(Receiver) Photo 5(Receiver) Photo 6(Receiver) Photo 7(Receiver) Photo 8(Receiver) Photo 9(Receiver) Photo 10(Receiver) Photo 11(Receiver) Photo 12(Receiver) Photo 13(Receiver) Photo 14(Receiver) Photo 15(Receiver) Photo 16(Receiver) Photo 17(Receiver) Photo 18(Receiver)

FCC ID : 2AJOF-ATOM500SDI-RX 1. RF EXPOSURE 1.1. The Requirement System operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See Section 15.407 1.2. Limit For Maximum Permissible Exposure (MPE) Limits for General Population/ Uncontrolled Exposure F = frequency in MHz, * Plane-wave equivalent power density 1.3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the antenna is 2.5dBi, the RF power density can be obtained. Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) ( 2 mW/cm) Averaging Time 2 E, 2 H or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 1.4. TEST RESULTS Maximum measured transmitter power Channel Frequency (MHz) Final output power ANT1 (dBm) Final output power ANT2 (dBm) Antenna Gain (Numeric) Power Density At 20cm (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Test Results Ant 1 Ant 2 Sum 5180 13.11 13.91 1.778 0.007 0.009 0.016 1.000 Pass 5240 13.05 14.13 1.778 0.007 0.009 0.016 1.000 Pass 5745 12.54 12.29 1.778 0.006 0.006 0.012 1.000 Pass 5825 12.40 12.43 1.778 0.006 0.006 0.012 1.000 Pass The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure. 1.5. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation. Proposed RF exposure safety information to include in User’s Manual.
