2AJOO-M5TW01JAYS m-Five True Wireless

m-Five True Wir eless User Manual Important safety instructions Read, follow and keep these instructions. For the best possible experience, always use the product as described by the manufacturer . Always handle your earphones with care and protect them from external damage. Clean your earphones using a soft dry cloth. Never use water, cleaning detergent, leather polish or other substances as they may damage your earphones permanently. Avoid exposure to extreme conditions such as very cold or hot temperatures, magnetic fields or damp environments. Listening to music at high volume for prolonged periods of time can cause permanent damage to your hearing. Contains small parts and are not suitable for children age three (3) and below. The earphones contain magnetic material. The earphones contain a Lithium battery. If misused or damaged it can become a hazard and is at risk of explosion. Should a battery cell leak, do not allow the liquid to come in contact with skin or eyes. The earphones must not be disposed of with regular household waste. Please dispose of in accordance with local regulations. Do not use your earphones in the immediate proximity (10 cm) of a pacemaker. Do not subject the earphones and included accessories to abnormal wear and tear. Do not expose the earphones to temperatures below -20°C or above +45°C. Do not charge the earphones in temperatures below 0°C or above +45°C. Do not attempt to burn the earphones . The battery could explode causing injury and death. Do not attempt to open, modify, disassemble, repair or in other way access the internal structure of the earphones. They are notuser serviceable. Do not use or store the earphones near to a vehicle airbag due to risk of injury. Do not use earphones while driving, jogging or walking through traffic areas. Earphones effectively isolate external sound and noise which means that when in use, you might not be able to hear your surroundings. Do not drop, sit on or cause other unusual impact to the earphones. Do not expose to fire, water or high voltage equipment. Do not expose the earphones to rain or moisture. Do not use the earphones near water, bathtubs, sinks, saunas, pools, other liquids or moist areas. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. Statements EU Declaration of conformity Hereby Northbaze Group AB declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other EU directive requirements. The complete declaration of conformity can be found at www.jaysheadphones.com. Caution Risk of explosions if battery box is damaged or opened. Dispose of used battery according to your local waste disposal authority. US Compliance Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. US FCC radiation exposure statement FCC ID: 2AJOO-M5TW01. The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Complies with IMDA Standards DA106614 Canada Compliance Information This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. Model name: M5TW01 Getting started Power on/off and pairing To power on, place the earpieces in the charging case then take them out of the charging case, both earpieces at the same time. The LED on both earpieces will flash in white. Once the two earpieces have connected to each other, the LED on on…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-04-24> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AJOO-M5TW01 T00234, T00235 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Fredrik Sjolander / Manager Company: Northbaze Group AB Address: Nellickevägen 22, 412 63 Gothenburg, Sweden Phone: +46812201900 Fax: +46850909739 E-mail: [email protected]

Northbaze Group AB Nellickevägen 22, 412 63 Gothenburg, Sweden Date: April 24, 2020 FCC ID: 2AJOO-M5TW01 Model Number: T00234, T00235 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Northbaze Group AB hereby declare that our product (JAYS m-Five True Wireless) Model Number: T00234, T00235 will disable Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) and Bluetooth Classics function (8-DPSK) by software and only open Bluetooth Classics function (GFSK, π/4-DQPSK) although Bluetooth modular AC6936D support both Bluetooth Classics function (GFSK, π/4-DQPSK, 8-DPSK) and Bluetooth Lower Energy function (Bluetooth V5.0 LE&2LE) due to marketing purposes. End-user will only use Bluetooth Classics function (GFSK, π/4-DQPSK) in USA market. Please contact me if you have any question. Sincerely, (Signed) Name/Title: Fredrik Sjolander / Manager Company: Northbaze Group AB Address: Nellickevägen 22, 412 63 Gothenburg, Sweden Phone: +46812201900 Fax: +46850909739 E-Mail: [email protected]

Northbaze Group AB Nellickevägen 22, 412 63 Gothenburg, Sweden Labeling Declaration Letter Date: April 24, 2020 FCC ID: 2AJOO-M5TW01 Model Number: T00234, T00235 Following the KDB 784748 D01 General labeling and Notification, the information related to Labeling implementation for the JAYS m-Five True Wireless, FCC ID: 2AJOO-M5TW01 Information On Product On Product Packaging In Online User Guide In Printed User Guide FCC ID Number Yes Yes No No 15.19 Statement “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” No No No Yes Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment No No No Yes Product Packaging Label is shown below: FCC ID: 2AJOO-M5TW01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, The product is packaged individually. Northbaze Group AB Nellickevägen 22, 412 63 Gothenburg, Sweden Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Fredrik Sjolander / Manager Company: Northbaze Group AB Address: Nellickevägen 22, 412 63 Gothenburg, Sweden Phone: +46812201900 Fax: +46850909739 E-Mail: [email protected]

Northbaze Group AB Nellickevägen 22, 412 63 Gothenburg, Sweden Product Similarity Declaration FCC ID: 2AJOO-M5TW01 Model Number: T00234, T00235 DATE: 2020-04-24 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Northbaze Group AB hereby declare that our product (JAYS m-Five True Wireless) Model Number: T00234, T00235 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Fredrik Sjolander / Manager Company Name: Northbaze Group AB Address: Nellickevägen 22, 412 63 Gothenburg, Sweden Phone: +46812201900 Fax: +46850909739 E-Mail: [email protected]

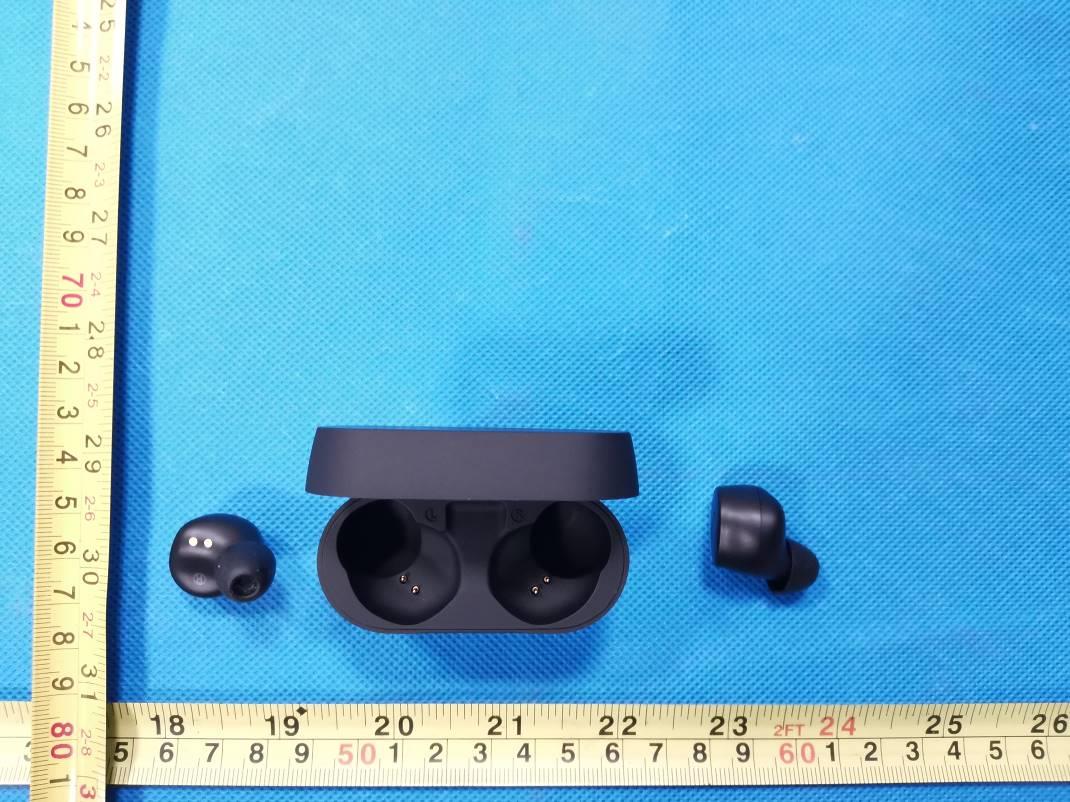

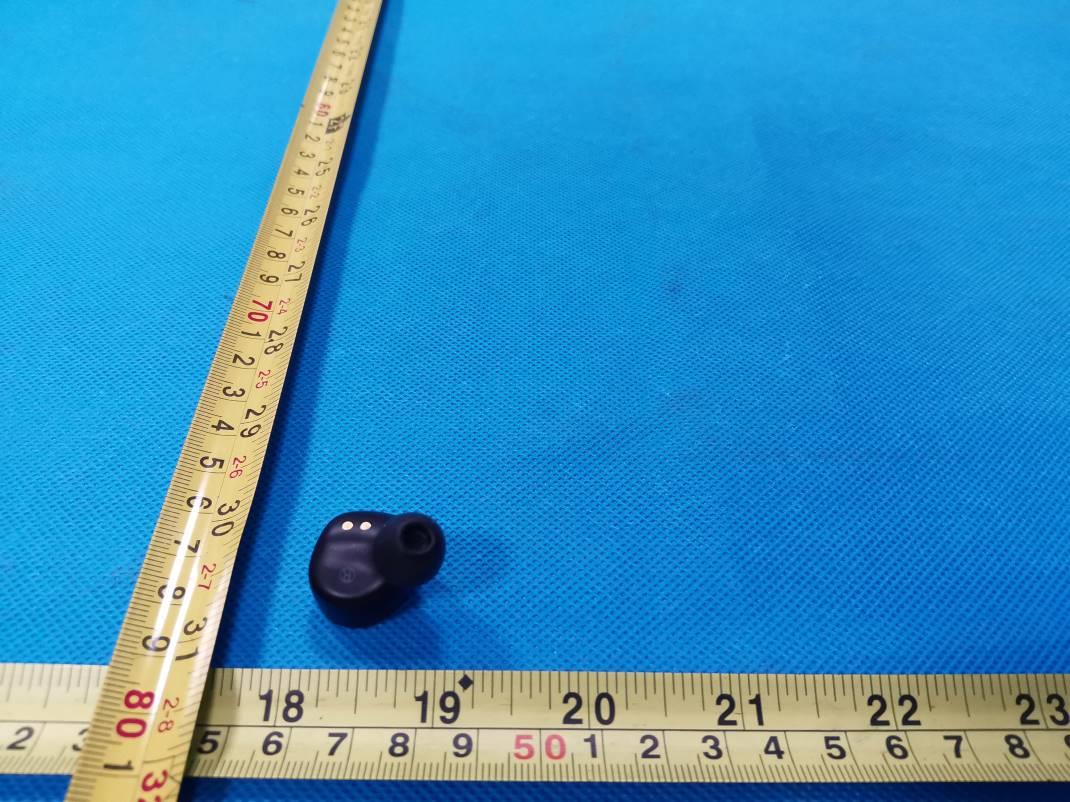

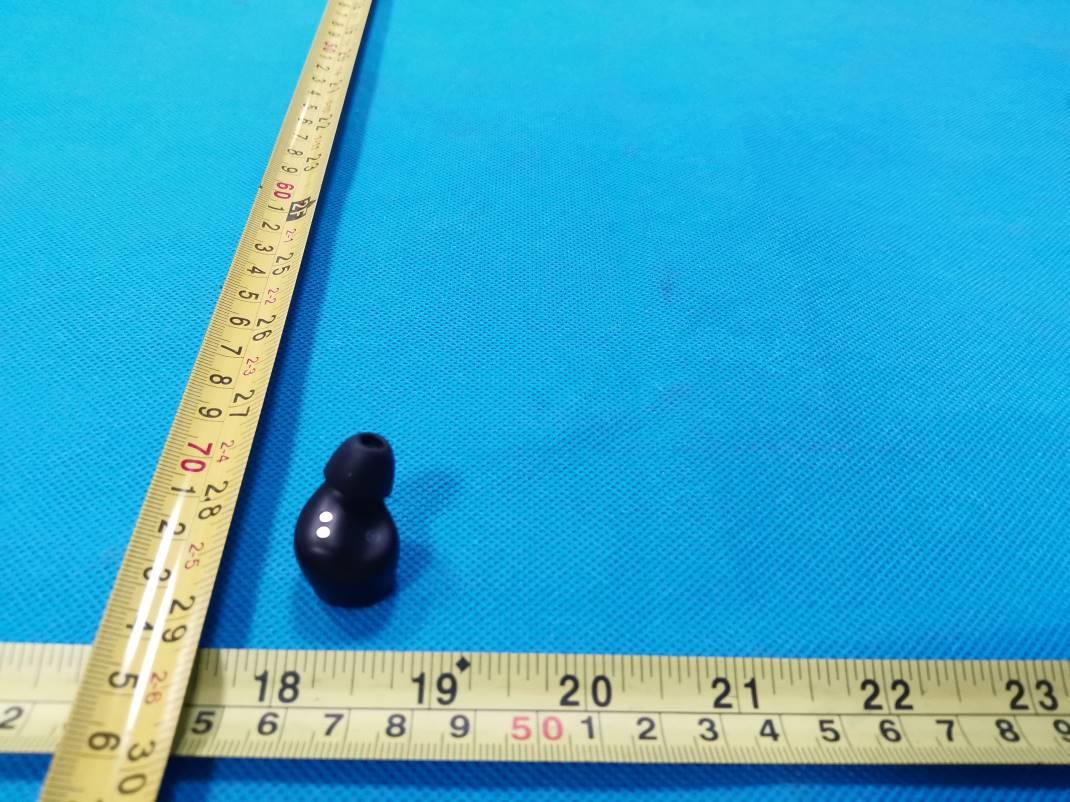

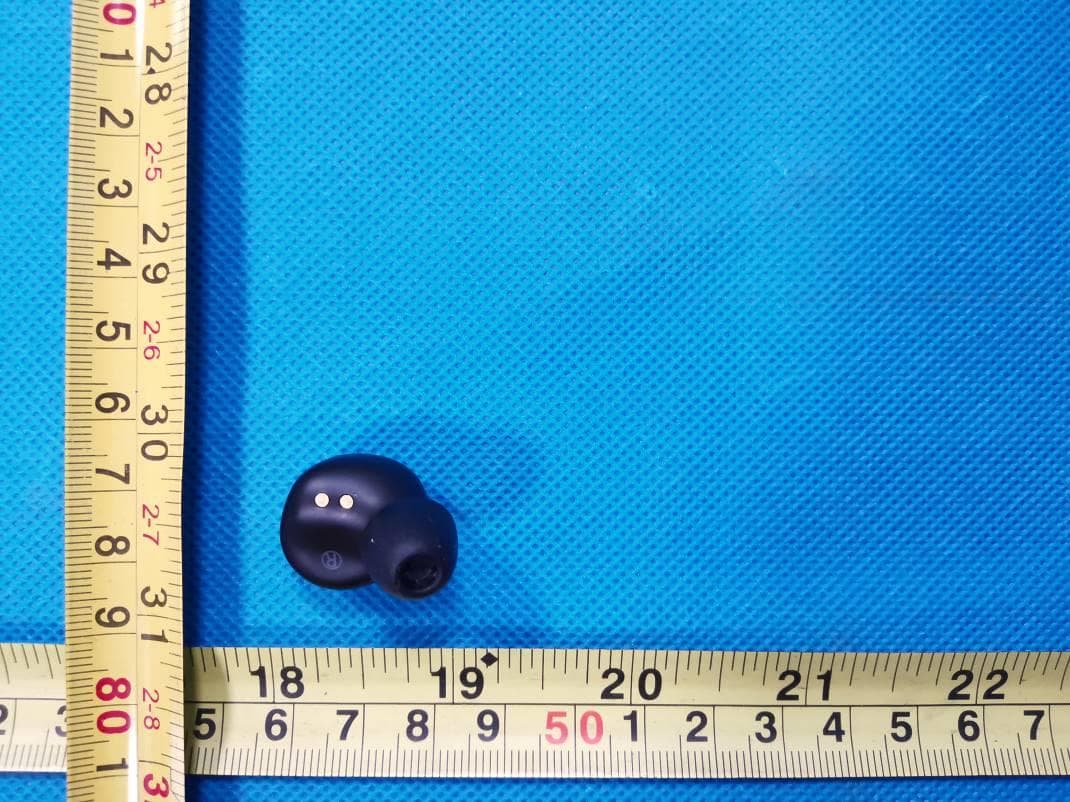

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERNAL PHOTOGRAPHS OF THE EUT Fig. 1 Fig. 2 Charge unit (Charge base station) The left and the right are the same. EUT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.0cm*W: 1.0cm Label Location JAYS m-Five True Wireless Model No.: T00234 FCC ID: 2AJOO-M5TW01 IC : 25589-M5TW01 JAYS m-Five True Wireless Model No.: T00235 FCC ID: 2AJOO-M5TW01 IC : 25589-M5TW01

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AJOO-M5TW01 Product name JAYS m-Five True Wireless Model number T00234, T00235 Power supply EARBUDS: DC 3.7V By Battery(50mAh) Recharged by DC 5V 50mA BOX: DC 3.7V By Battery(500mAh) Recharged By DC 5V 500mA Modulation Type GFSK, π/4-DQPSK for V5.0 (BT Classics) Antenna Type Internal Antenna Antenna Gain 2.21 dBi (maximum) Hardware version V1.2 Software version vAC693X_sdk_release_0.6.2 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -9.697 39 2441 -8.822 78 2480 -8.199 π/4-DQPSK 0 2402 -8.883 39 2441 -8.048 78 2480 -7.370 5. Manufacturing Tolerance GFSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -9.0 -9.0 -9.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK –BT Classics (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -8.0 -8.0 -8.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.450 5 -8.0 0.1585 0.1 < 3.0 Yes π/4-DQPSK 2.450 5 -7.0 0.1995 0.1 < 3.0 Yes Remark: (1). RF output power including tune up tolerance; (2). When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. SHENZHEN LCS COMPLIANCE TESTIN…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 1 of 35 Appendix A RF Test Data for BT V5.0 (BDR/EDR) (Conducted Measurement) Product Name: JAYS m-Five True Wireless Trade Mark: JAYS Test Model: T00234 Environmental Conditions Temperature: 23.3 C Relative Humidity: 54% ATM Pressure: 100.0 kPa Test Engineer: Chuang Wang Supervised by: Jayden Zhuo A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -9.697 21 PASS MCH -8.822 21 PASS HCH -8.199 21 PASS π/4DQPSK LCH -8.883 21 PASS MCH -8.048 21 PASS HCH -7.370 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 2 of 35 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 3 of 35 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 4 of 35 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 5 of 35 A.2 99% and 20dB Bandwidth Mode Channel. 99% Bandwidth [MHz] 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.78169 0.7770 Not Specified PASS MCH 0.78122 0.7774 Not Specified PASS HCH 0.78513 0.7783 Not Specified PASS π/4DQPSK LCH 1.1622 1.228 Not Specified PASS MCH 1.1614 1.210 Not Specified PASS HCH 1.1603 1.208 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 6 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 7 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 8 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 9 of 35 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.99975 0.518 PASS MCH 0.99850 0.518 PASS HCH 1.00025 0.519 PASS π/4DQPSK LCH 1.00125 0.819 PASS MCH 0.99675 0.807 PASS HCH 1.00025 0.805 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 10 of 35 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 11 of 35 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 12 of 35 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 13 of 35 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 14 of 35 π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 15 of 35 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.924 106.7 0.312 0.4 PASS DH5 MCH 2.925 106.7 0.312 0.4 PASS DH5 HCH 2.925 106.7 0.312 0.4 PASS π/4DQPSK 2DH5 LCH 2.921 106.7 0.312 0.4 PASS 2DH5 MCH 2.931 106.7 0.313 0.4 PASS 2DH5 HCH 2.929 106.7 0.313 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 16 of 35 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 17 of 35 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 18 of 35 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 19 of 35 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -10.742 -64.797 -30.74 PASS MCH -9.656 -64.504 -29.66 PASS HCH -8.873 -61.760 -28.87 PASS π/4DQPSK LCH -10.740 -66.042 -30.74 PASS MCH -9.665 -64.086 -29.67 PASS HCH -8.885 -61.664 -28.89 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 20 of 35 GFSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 21 of 35 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 22 of 35 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 23 of 35 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 24 of 35 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 25 of 35 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 26 of 35 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -10.507 Off -48.506 -30.51 PASS -10.501 On -48.741 -30.50 PASS HCH 2480 -8.714 Off -50.489 -28.71 PASS -8.734 On -51.940 -28.73 PASS π/4DQPSK LCH 2402 -10.697 Off -48.704 -30.70 PASS -10.666 On -48.684 -30.67 PASS HCH 2480 -8.869 Off -46.635 -28.87 PASS -13.621 On -54.787 -33.62 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 27 of 35 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 28 of 35 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 29 of 35 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 IC: 25589-M5TW01 Page 30 of 35 π/4DQPSK/HCH…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 Report No.: LCS200415024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR Northbaze Group AB JAYS m-Five True Wireless Test Model: T00234 Additional Model: T00235 Prepared for : Northbaze Group AB Address : Nellickevägen 22, 412 63 Gothenburg, Sweden Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 15, 2020 Number of tested samples : 2 Serial number : Prototype Date of Test : April 15, 2020 ~ April 24, 2020 Date of Report : April 24, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 Report No.: LCS200415024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................ : LCS200415024AEA Date of Issue .................................. : April 24, 2020 Testing Laboratory Name ........... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Northbaze Group AB Address .......................................... : Nellickevägen 22, 412 63 Gothenburg, Sweden Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................... : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................. : JAYS m-Five True Wireless Trade Mark ..................................... : JAYS Test Model ..................................... : T00234 Ratings ........................................... : EARBUDS: DC 3.7V By Battery(50mAh) Recharged by DC 5V 50mA BOX: DC 3.7V By Battery(500mAh) Recharged By DC 5V 500mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-M5TW01 Report No.: LCS200415024AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200415024AEA April 24, 2020 Date of issue Test Model........................... : T00234 EUT......................................... : JAYS m-Five True Wireless Applicant............................... : Northbaze Group AB Address.................................. : Nellickevägen 22, 412 63 Gothenburg, Sweden Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Excellent Electronic Technologies CO., LTD Address................................... : #46 Zhanqian RD., Hengli Town, Dongguan, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Excellent Electronic Technologies CO., LTD Address................................... : #46 Zhanqian RD., Hengli Town, Dongguan, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID…

Text truncated - open the document above for the full version.
