2AJOO-Q7W01Jays q-Seven Wireless

q-Seven Wir eless Getting started, safety and warranty x1 2 s x2 x1 2 s 2 x3 5 s 2 s 1 3 5 4 Product and controls overview 1. 2. 3. 4. 5. 6. 7. 8. NC LED indicator NC button Operation LED indicator Multi-function button Track / Volume button Audio jack USB jack Microphone Översikt produkt och kontroller Product and controls overview 1. 2. 3. 4. 5. 6. 7. 8. NC LED-lampa NC-knapp Funktions LED-lampa Multifunktionsknapp Låt- / Volymknapp Ljudingång USB-ingång Mikrofon Vue d'ensemble du produit et des commandes 1. 2. 3. 4. 5. 6. 7. 8. Voyant LED NC Bouton NC Voyant LED de fonctionnement Bouton multifonction Bouton de Volume / Piste Prise jack 3.5mm Micro USB Microphone Produkt- und Bedienelementübersicht 1. 2. 3. 4. 5. 6. 7. 8. NC-LED-Anzeige NC-Taste LED-Betriebsanzeige Multifunktionstaste Track-/Lautstärke-Taste Audio-Buchse USB-Buchse Mikrofon Información del producto y controles 1. 2. 3. 4. 5. 6. 7. 8. Indicador LED de Cancelación de ruido Botón de Cancelación de ruido Indicador LED de funcionamiento Botón multifunción Botón pista/volumen Toma de audio Toma USB Micrófono Panoramica di prodotto e comandi 1. 2. 3. 4. 5. 6. 7. 8. Indicatore LED NC Pulsante NC Indicatore LED di funzionamento Pulsante multifunzione Pulsante traccia/volume Ingresso audio 3.5 mm Ingresso micro USB Microfono 1. 2. 3. 4. 5. 6. 7. 8. NC LED NC LED / USB 1. 2. 3. 4. 5. 6. 7. 8. NC LED NC LED / USB 제품 및 제어 기능 개요 1. 2. 3. 4. 5. 6. 7. 8. NC LED 표시기 NC 버튼 LED 상태 표시기 다기능 버튼 추적/볼륨 버튼 오디오 잭 USB 잭 마이크 1. 2. 3. 4. 5. 6. 7. 8. Общий обзор продукта и элементов управления Светодиодный индикатор шумоподавления (NC) Кнопка шумоподавления (NC) Светодиодный индикатор режима работы Многофункциональная кнопка Кнопка переключения треков / регулировки громкости Аудиоразъем Разъем USB Микрофон Important safety instructions Read, follow and keep these instructions. For the best possible experience, always use the product as described by the manufacturer . Always handle your headphones with care and protect them from external damage. Clean your headphones using a soft dry cloth. Never use water, cleaning detergent, leather polish or other. substances as they may damage your headphones permanently. Avoid exposure to extreme conditions such as very cold or hot temperatures, magnetic fields or damp environments. Listening to music at high volume for prolonged periods of time can cause permanent damage to your hearing. Contains small parts and are not suitable for children age three (3) and below. The headphones contain magnetic material. The headphones contain a Lithium battery. If misused or damaged it can become a hazard and is at risk of explosion. Should a battery cell leak, do not allow the liquid to come in contact with skin or eyes. The headphones must not be disposed of with regular household waste. Please dispose of in accordance with local regulations. Do not use your headphones in the immediate proximity (10 cm) of a pacemaker. Do not subject the headphones and included accessories to abnormal wear and tear. Do not expose the headphones to temperatures below -20°C or above +45°C. Do not charge the headphones in temperatures below 0°C or above +45°C. Do not attempt to burn the headphones. The battery could explode causing injury and death. Do not attempt to open, modify, disassemble, repair or in other way access the internal structure of the headphones. They are notuser serviceable. Do not use or store the headphones near to a vehicle airbag due to risk of injury. Do not use headphones while driving, jogging or walking through traffic areas. Headphones effectively isolate external sound and noise which means that when in use, you might not be able to hear your surroundings. Do not drop, sit on or cause other unusual impact to the headphones. Do not expose to fire, water or high voltage equipment. Do not expose the headphones to rain or moisture. Do not use the headphones near water, bathtubs, sinks, saunas, pools, other liquids or moist areas. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. Statements EU Declaration of conformity Hereby Northbaze Group AB declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other EU directive requirements. The complete declaration of conformity can be found at www.jaysheadphones.com. Caution Risk of explosions if battery box is damaged or opened. Dispose of used battery according to your local waste disposal authority. US Compliance Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference…

Text truncated - open the document above for the full version.

Northbaze Group AB Agent Authorization Company: Northbaze Group AB Address: Nellickevägen 22, Vån 10 412 63 Göteborg Product Name: Jays q-Seven Wireless Trade Mark: JAYS Model Number(s): Q7W01 FCC ID: 2AJOO-Q7W01 To Whom It May Concern: We, the undersigned, hereby authorize Gavin Liang at Shenzhen LCS Compliance Testing Laboratory Ltd.on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Signature: Date: 2020-01-07 Name: Fredrik Sjolander Title: Head of Product Development Company: Northbaze Group AB

Northbaze Group AB Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-01-07 Subject; Request for Confidentiality FCC ID: 2AJOO-Q7W01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Fredrik Sjolander Title: Head of Product Development

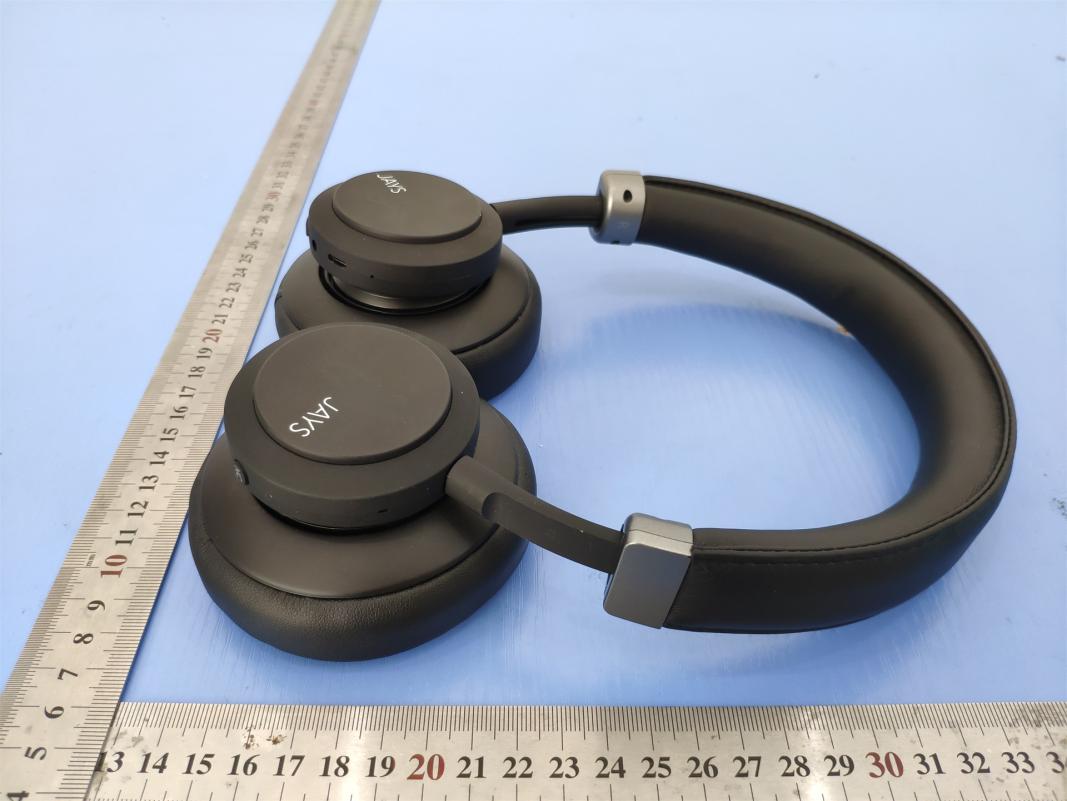

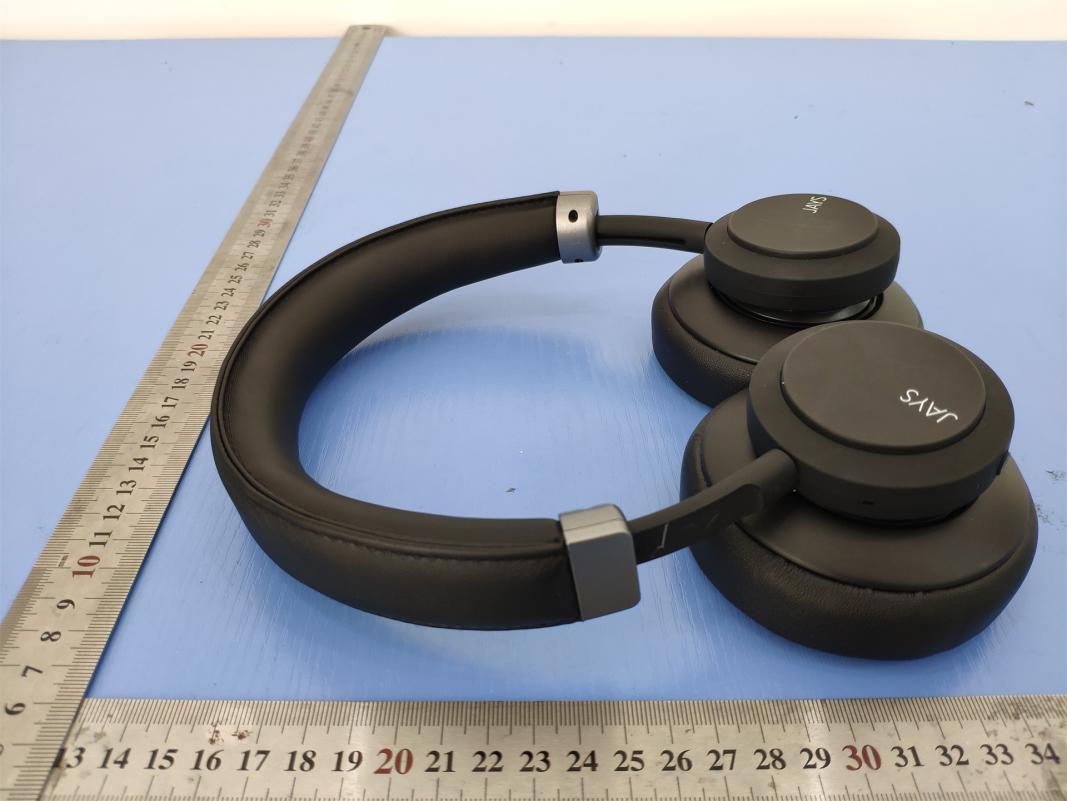

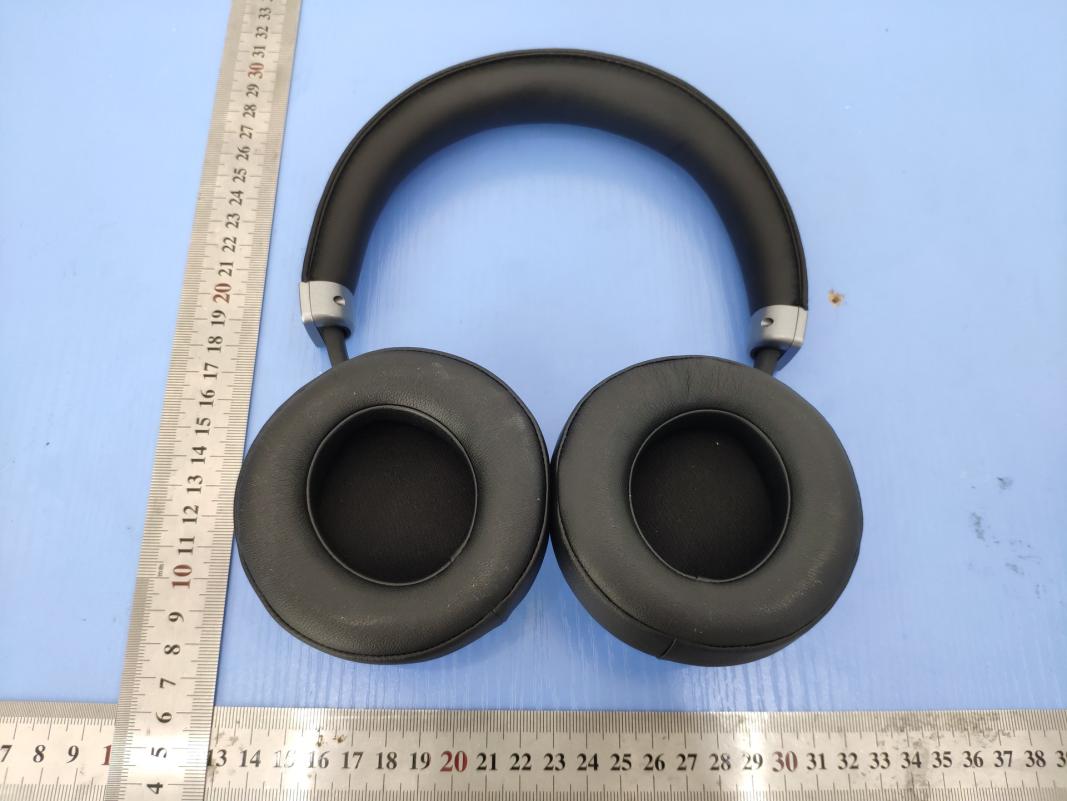

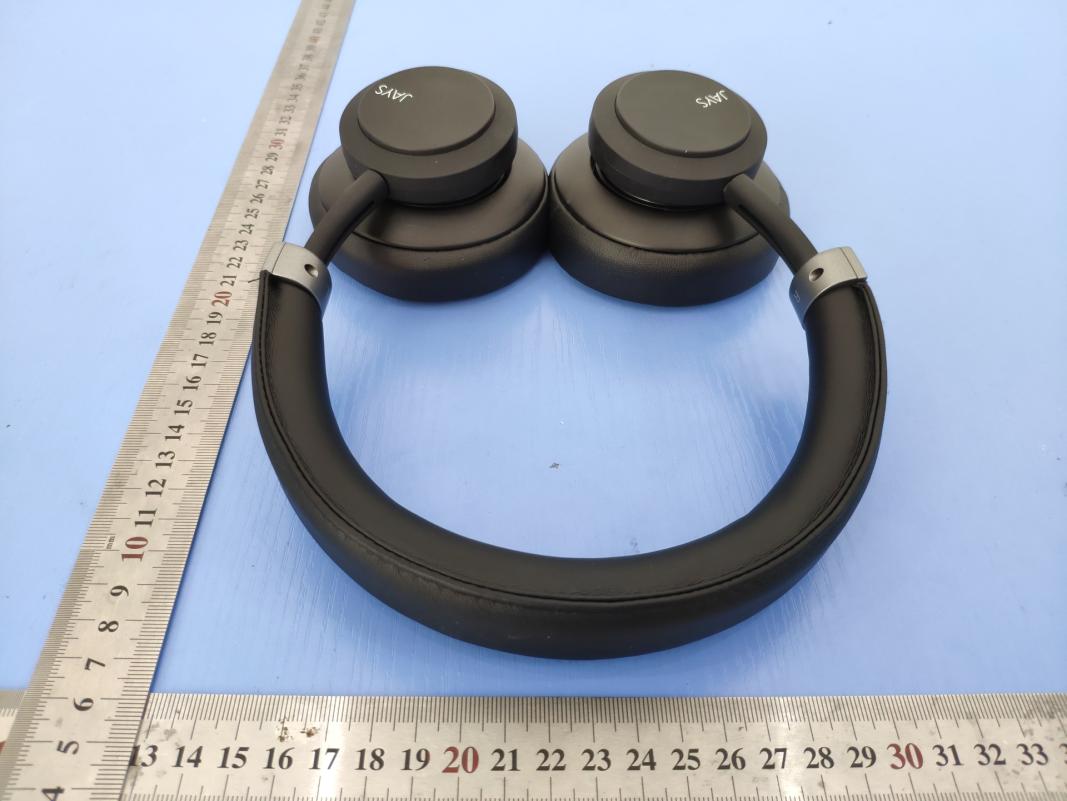

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Jays q-Seven Wireless Model No.: Q7W01 FCC ID: 2AJOO-Q7W01

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.5 Fig. 6 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Fig.11 Fig.12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJOO-Q7W01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AJOO-Q7W01 Product name Jays q-Seven Wireless Test Model Q7W01 Power supply Input: 5V 1A 5W Battery: 3.7V 500mAh Modulation Type GFSK, π/4-DQPSK, 8DPSK for Bluetooth V5.0 (BDR/EDR) Antenna Type PCB antenna Antenna Gain 0dBi (maximum) Hardware version / Software version / Bluetooth Operation frequency 2402MHz-2480MHz Bluetooth Version V5.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJOO-Q7W01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 standalone SAR to determine simultaneous transmission test exclusion. a) The *∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg+ + *∑ of MPE ratios+ is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the *∑ of MPE ratios+ is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [BT Classics] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.137 39 2441 2.180 78 2480 2.985 π/4DQPSK 0 2402 -0.157 39 2441 2.149 78 2480 2.952 8DPSK 0 2402 0.143 39 2440 2.339 78 2480 4.406 5. Manufacturing Tolerance [BT Classics] GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 3.0 3.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 3.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AJOO-Q7W01 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.480 5 3 1.9953 0.63 < 3.0 Yes π/4DQPSK 2.480 5 3 1.9953 0.63 < 3.0 Yes 8DPSK …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 1 of 52 Appendix A RF Test Data for BT V4.1(BDR/EDR) (Conducted Measurement) Product Name: Jays q-Seven Wireless Trade Mark: JAYS Test Model: Q7W01 Environmental Conditions Temperature: 22.8  C Relative Humidity: 53.4% ATM Pressure: 100.0 kPa Test Engineer: Jk Zhou Supervised by: Tom.Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -0.137 21 PASS MCH 2.180 21 PASS HCH 2.985 21 PASS π/4DQPSK LCH -0.157 21 PASS MCH 2.149 21 PASS HCH 2.952 21 PASS 8DPSK LCH 0.143 21 PASS MCH 2.339 21 PASS HCH 4.406 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 2 of 52 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 3 of 52 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 4 of 52 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 5 of 52 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 6 of 52 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 7 of 52 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9420 Not Specified PASS MCH 0.9438 Not Specified PASS HCH 0.9409 Not Specified PASS π/4DQPSK LCH 1.267 Not Specified PASS MCH 1.268 Not Specified PASS HCH 1.267 Not Specified PASS 8DPSK LCH 1.243 Not Specified PASS MCH 1.249 Not Specified PASS HCH 1.248 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 8 of 52 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 9 of 52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 10 of 52 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 11 of 52 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 12 of 52 A.3 Occupied Bandwidth Mode Channel. Occupied Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.85501 Not Specified PASS MCH 0.87764 Not Specified PASS HCH 0.86242 Not Specified PASS π/4DQPSK LCH 1.1614 Not Specified PASS MCH 1.1657 Not Specified PASS HCH 1.1650 Not Specified PASS 8DPSK LCH 1.1576 Not Specified PASS MCH 1.1518 Not Specified PASS HCH 1.1560 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 13 of 52 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 14 of 52 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 15 of 52 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 16 of 52 8DPSK/MCH 8DPSK/HCH A.4 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.031 0.629 PASS MCH 0.970 0.629 PASS HCH 0.992 0.629 PASS π/4DQPSK LCH 1.164 0.845 PASS MCH 1.158 0.845 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 17 of 52 HCH 1.072 0.845 PASS 8DPSK LCH 0.964 0.833 PASS MCH 0.960 0.833 PASS HCH 1.082 0.833 PASS Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 18 of 52 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 19 of 52 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 20 of 52 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 21 of 52 8DPSK/HCH A.5 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 22 of 52 GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 23 of 52 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 24 of 52 A.6 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.87 106.7 0.306 0.4 PASS DH5 MCH 2.87 106.7 0.306 0.4 PASS DH5 HCH 2.87 106.7 0.306 0.4 PASS π/4DQPSK 2DH5 LCH 2.87 106.7 0.307 0.4 PASS 2DH5 MCH 2.87 106.7 0.307 0.4 PASS 2DH5 HCH 2.87 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.87 106.7 0.307 0.4 PASS 3DH5 MCH 2.87 106.7 0.307 0.4 PASS 3DH5 HCH 2.87 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 25 of 52 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 26 of 52 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 27 of 52 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 28 of 52 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 Page 29 of 52 A.7 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.463 -37.321 -20.463 PASS MCH 1.91 -37.166 -18.090 PASS HCH 2.715 -36.814 -17.285 PASS π/4DQPSK LCH -0.526 -37.152 -20.526 PASS MCH 1.248 -37.097 -18.75…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 Report No.: LCS191028035AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Northbaze Group AB (JAYS) Jays q-Seven Wireless Test Model: Q7W01 Prepared for : Northbaze Group AB (JAYS) Address : Nellickevägen 22, Vån 10 412 63 Göteborg Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 30, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : October 30, 2019 ~ November 11, 2019 Date of Report : November 13, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 Report No.: LCS191028035AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191028035AEA Date of Issue ................................... : November 13, 2019 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Northbaze Group AB (JAYS) Address ........................................... : Nellickevägen 22, Vån 10 412 63 Göteborg Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Jays q-Seven Wireless Trade Mark ...................................... : JAYS Model/ Type reference .................... : Q7W01 Ratings ............................................ : Input: 5V 1A 5W Battery: 3.7V 500mAh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang / File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 Report No.: LCS191028035AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191028035AEA November 13, 2019 Date of issue Type / Model........................... : Q7W01 EUT......................................... : Jays q-Seven Wireless Applicant............................... : Northbaze Group AB (JAYS) Address.................................. : Nellickevägen 22, Vån 10 412 63 Göteborg Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan Laccess Electronic Technology Co., Ltd. Address................................... : No. 2 Xiangyang Road, Tian Xin Huaxing Industrial Area, Qiaotou town, Dongguan, China Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan Laccess Electronic Technology Co., Ltd. Address................................... : No. 2 Xiangyang Road, Tian Xin Huaxing Industrial Area, Qiaotou town, Dongguan, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 Report No.: LCS191028035AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 November 13, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 Report No.: LCS191028035AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................ 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ...................................................................................................................... 6 1.3 External I/O Cable ............................................................................................................................... 6 1.4 Description of Test Facility .........................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AJOO-Q7W01 IC ID:25589-Q7W01 _______________________________________________________________________________________________ 1.1. Photo of Conducted Emissions Measurement Fig. 3
