2AJQ6MCG-14080EDGE PRO

FCC Statements • This product has been thoroughly tested and inspected before shipment. It is guaranteed from defects in material and workmanship from the date of purchase for 2 years. • Under this limited guarantee, we agree to replace or repair free of charge any part or parts which have been found to be defective in original material or workmanship. • Physical damage, abuse, misuse, alterations, or tampering with the equipment is not covered and will void your warranty. • For more warranty information, visit: MoultrieMobile.com/2022_MM_Warranty_Info • Should you require warranty service, call our Customer Success Team: 1-844-908-1219 WARRANTY THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes and modifications not expressly approved by the party responsible could void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Clear vegetation and tree limbs in the field of view to reduce false triggers. Mount camera to a tree or pole approximately three to five (3-5) feet from ground. Visit MoultrieMobile.com for additional camera mounting options. 1 2 3 4 When scouting a game trail, angle the camera at a 45-degree angle to the trail for optimal triggering. CAMERA PLACEMENT TIPS Face the camera North or South to avoid over- exposure from the sun. 6 QUICK START GUIDE MoultrieMobile.com Go to MoultrieMobile.com/accessories to purchase solar power products, camera mounts and other accessories. ADJUST CAMERA SETTINGS ACCESSORIES You can view your camera's battery level and adjust settings remotely using the Moultrie Mobile app. •Go to DEVICES to adjust settings and save changes. •If you change settings from the app, the changes will be applied the next time the camera connects. •To sync new settings faster, press CONNECT button on the camera to initiate a connection after updating settings in the app. 7 CAMERA WON’T CONNECT If the red NOT CONNECTED light is on: •Make sure camera has an active subscription with Moultrie Mobile. •Move the camera to a location with a stronger signal. COMPARING TO CELL PHONE SIGNAL Your camera’s signal strength is not tied to your cell phone plan and may be higher or lower than your smartphone. Edge Pro will function with a weaker signal than your smartphone and will automatically try to connect to the strongest network in your area. MANAGING IMAGES / MEMORY •All pictures and downloads can be viewed and managed in the Moultrie Mobile app, even if they have been cleared from the camera's memory. •PRO TIP: Request hi-res images and full video clips soon after they appear in your gallery, to avoid those files being deleted during onboard memory clean-up. NEED HELP? TROUBLESHOOTING For resources, troubleshooting, and support, go to: Support.MoultrieMobile.com Customer Success: 1-844-908-1219 8 Download the Moultrie Mobile app to set up your camera, remotely control settings, view your pictures and videos, and more. BEFORE YOU BEGIN Note: This camera has built-in memory. You do not need to purchase or install an SD card. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc. TO GET STARTED, YOU’LL NEED: Edge Pro Camera 8 or 16 AA Batteries The Moultrie Mobile App FALSE TRIGGER ELIMINATION ADDITIONAL FEATURES • Auto Connect technology detects and connects to the strongest nationwide cellular network. • Built-in memory replaces the need for an SD card. • Cellboost ™ antenna comes preinstalled and folds for easy storage. • Multiple capture modes including scheduler and timelapse. SMART CAPTURE Identify and capture only the species that matter to you. SMART ZONES Selective triggering based on custom detection zones SMART TRIGGER Self learning A.I. technology reduces false triggers NYXEL ® NIR Near Infrared (NIR) technology uses less power and allows for clearer low light images LIVE AIM A live look at the camera’s field of view via Bluetooth connection on your smart phone 5 ADD CAMERA TO ACCOUNT •Download the Moultrie Mobile app, and log in or sign up for an account. •For existing accounts, go to DEVICES > ACTIVATE. •Scan the QR code on the camera (located inside control panel door). •Select a monthly or annual plan. 1 2 Scan the QR code to watch a video of the camera overview and step-by-step instructions for camera setup. CAMERA SETUP SEE HOW IT’S DONE Need help? Call Customer Success: 1-844-908-1219 INSTALL BATTERIES •Press EJECT to release battery tray. •Fill tray with either 8 or 16 AA batteries. (Minimum of…

Text truncated - open the document above for the full version.

Rev 1/26/2023 EBSCO Industries Inc., DBA PRADCO Outdoor Brands Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 18, 2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AJQ6MCG-14080 [EBSCO Industries Inc., DBA PRADCO Outdoor Brands] (Brandon Pelotto) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Date: 2023/4/18.. City:  Birmingham .. Name:  Brandon Pelotto .. (2) Email: [email protected]....... Signature:  . Rev 1/26/2023 EBSCO Industries Inc., DBA PRADCO Outdoor Brands Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 18, 2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AJQ6MCG-14080 [EBSCO Industries Inc., DBA PRADCO Outdoor Brands] ( Brandon Pelotto) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Date: 2023/4/18.. City:  Birmingham .. Name:  Brandon Pelotto .. (2) Email: [email protected]....... Signature:  .

Rev 1/26/2023 EBSCO Industries Inc., DBA PRADCO Outdoor Brands Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 5/5/2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2AJQ6 EBSCO Industries Inc., DBA PRADCO Outdoor Brands certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0025872243 Name: EBSCO Industries Inc., DBA PRADCO Outdoor Brands Address: 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 Contact Person: Birmingham Tel.: 205-437-4753 Email: [email protected] Sincerely, EBSCO Industries Inc., DBA PRADCO Outdoor Brands Birmingham

Rev 11/20/07 EBSCO Industries Inc., DBA PRADCO Outdoor Brands Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AJQ6MCG-14080. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (1. Block Diagram.pdf; 2. SCH.pdf; 3. Operation Description.pdf; 4. BOM.pdf; 5. Tune up.pdf;) (EDGE PRO-Block Diagram, EDGE PRO- SCH, EDGE PRO-Operation Description, EDGE PRO-BOM, Tune Up) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Exhibit Type File Name (External Photos.pdf, Internal Photos.pdf, Test Setup Photos.pdf, User Manual.pdf) (EDGE PRO-User Manual; EDGE PRO- Antenna Test Report Set up; External Photos; Internal Photos; Appendix A.2 - BLE Setup Photos; Appendix A.3 - WWAN Setup Photos) Sincerely, Date: 2023/4/18.. City:  Birmingham .. Name:  Brandon Pelotto .. (2) Email: [email protected]....... Signature:  .

RF_160, Issue 04 EBSCO Industries Inc., DBA PRADCO Outdoor Brands Declaration of Authorization We Name: EBSCO Industries Inc., DBA PRADCO Outdoor Brands Address: 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 City: Birmingham Country: United States Declare that: Name Representative of agent: Well Wei Agent Company name: SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd Address: South of No. 6 Plant, No. 1, Runsheng Road, Suzhou Industrial Park, Suzhou Area, China (Jiangsu) Pilot Free Trade Zone City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: EDGE PRO Type designation: MCG-14080 Trademark: MOULTRIE MOBILE FCC ID: 2AJQ6MCG-14080 on our behalf. Date: 2023/4/18.. City:  Birmingham .. Name:  Brandon Pelotto .. (2) Email: [email protected]....... Signature:   Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

EBSCO Industries Inc., DBA PRADCO Outdoor Brands 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 Statement and explanations EDGE PRO(FCC ID for this application is 2AJQ6MCG-14080) is an outdoor camera device with certified modules (module EG91-NAXD (Module FCC ID:XMR202008EG91NAXD,Date of Grant:09/16/2020)) . The LTE module is installed in the host and has no impact on RF performance. Considering that the antenna was designed for the host, when the module was integrated into the host, we conducted EMC testing on the host and retested RSE in RF. Due to the presence of uncertified BLE modules in the entire machine, we conducted a brand new test on BLE. Please refer to the corresponding laboratory test results. Standard Test Plan Module Reference Report Part 15B/15C Full test NA Part 22/24/27/90 Only retest RSE and check power R2006A0379-R1 R2006A0379-R2 R2006A0379-R3 R2006A0379-R4 R2006A0379-R5 R2006A0379-R6 Part 2.1901 Reassessment NA The specific specifications supported by the entire machine are as follows WCDMA:B2/B4/B5 LTE:B2/B4/B5/B12/B13/B25/B26 BT:BLE Should you have any question or comment regarding this matter , Please have my best attention. Sincerely yours Date: 2023/4/18.. City:  Birmingham .. Name:  Brandon Pelotto .. (2) Email: [email protected]....... Signature:  

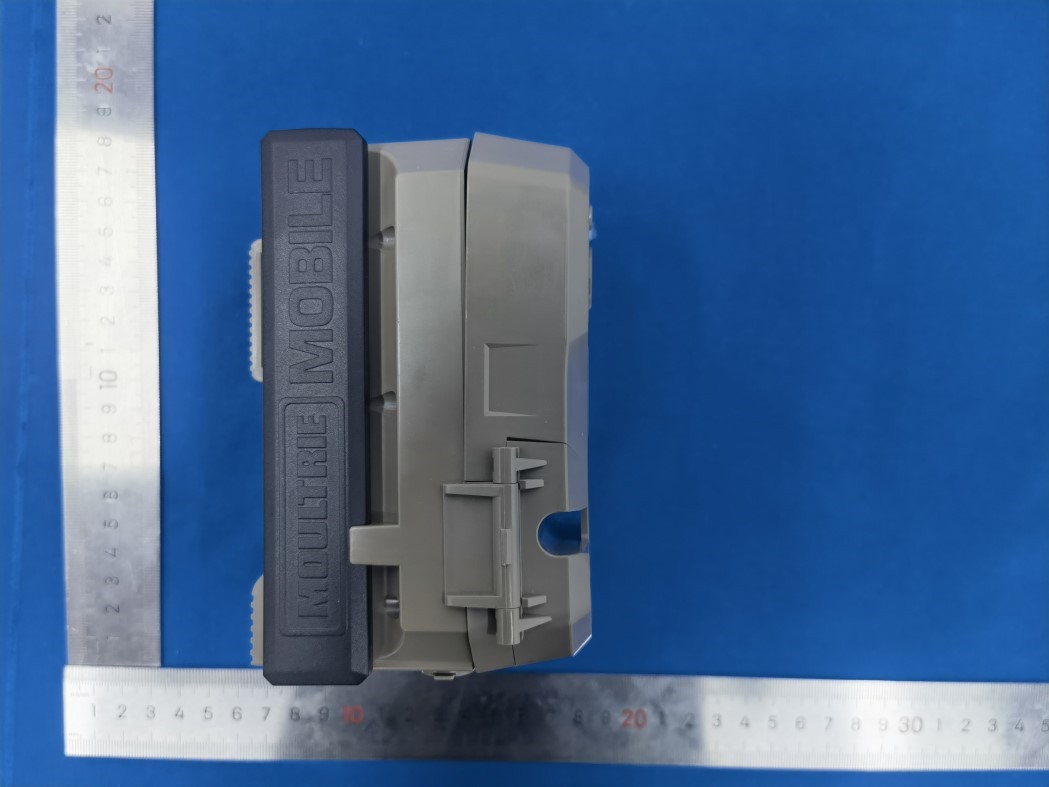

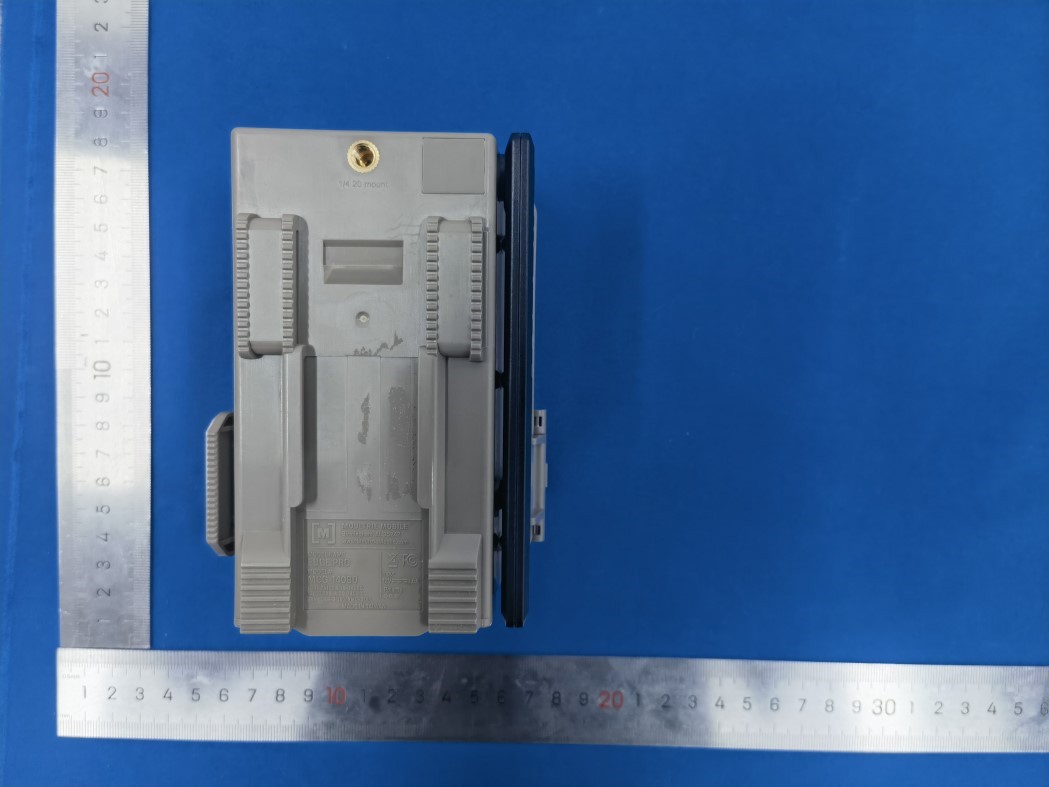

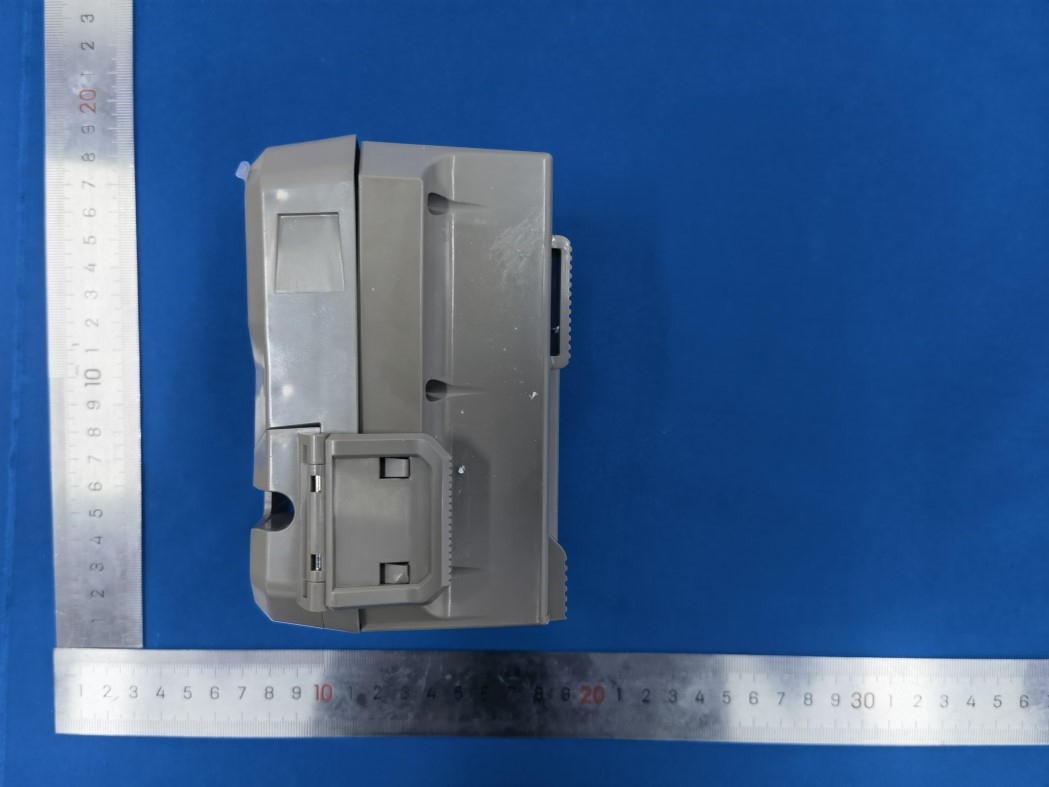

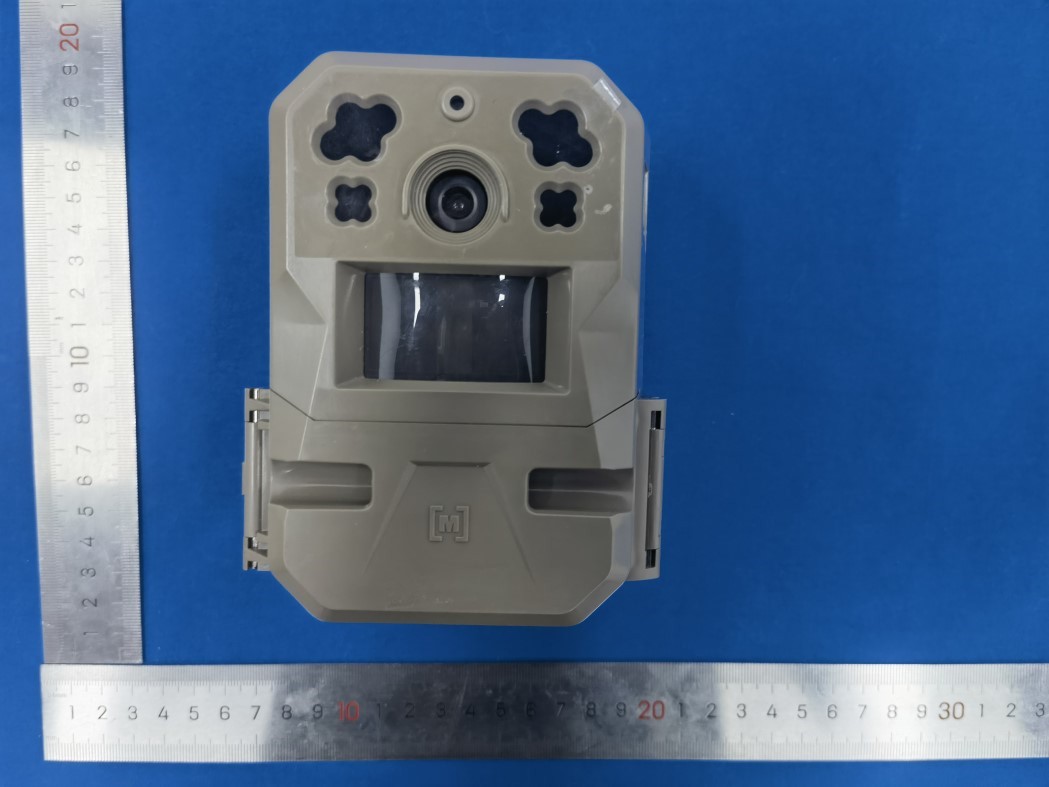

Page 1 of 4 1 Photographs - EUT Constructional Details Model No.: MCG-14080 Page 2 of 4 WWAN ANT Page 3 of 4

Label Label location

Page 1 of 6 2 Photographs - EUT Constructional Details Model No.: MCG-14080 Page 2 of 6 Page 3 of 6 BT ANT Page 4 of 6 Page 5 of 6 Page 6 of 6

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 1 of 37 Authorized Signature： Panta Sun Wireless Laboratory Manager TEST REPORT Application No.: SEWM2303000098RG Applicant: EBSCO Industries Inc., DBA PRADCO Outdoor Brands Address of Applicant: 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 Manufacturer: SERCOMM CORPORATION Address of Manufacturer: 8F, 3-1, YuanQu St., NanKang, Taipei 115, Taiwan EUT Description: EDGE PRO Model No.: MCG-14080 Trade Mark: MOULTRIE MOBILE FCC ID: 2AJQ6MCG-14080 Standards: 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 47 CFR Part 27 Date of Receipt: 2023/03/30 Date of Test: 2023/04/17 to 2023/04/20 Date of Issue: 2023/04/21 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 2 of 37 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/04/21 Original Prepared By (King-p Li) / Test Engineer Checked By (Well Wei) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 3 of 37 Contents 1 Version .......................................................................................................................... 2 2 Test Summary ............................................................................................................... 5 2.1 UMTS Band 5/LTE Band 5 ................................................................................ 5 2.2 LTE Band 26(824~849 MHz) ............................................................................ 6 2.3 UMTS Band 2 /LTE Band 2 ............................................................................... 7 2.4 LTE Band 25 ..................................................................................................... 8 2.5 UMTS Band 4 /LTE Band 4 ............................................................................... 9 2.6 LTE Band 12 ................................................................................................... 10 2.7 LTE Band 13 ................................................................................................... 11 2.8 LTE Band 26(814~824 MHz) .......................................................................... 12 3 General Information ..................................................................................................... 13 3.1 Details of Client ............................................................................................... 13 3.2 Test Location .................................................................................................. 13 3.3 Test Facility ..................................................................................................... 13 3.4 General Description of EUT ............................................................................ 14 3.5 Test Mode ....................................................................................................... 15 3.6 Test Environment ............................................................................................ 15 3.7 Description of Support Units ........................................................................... 15 3.8 Technical Specification ................................................................................... 16 3.9 Test Frequencies ............................................................................................ 17 4 Description of Tests ..................................................................................................... 23 4.1 Conducted Output Power ................................................................................ 23 4.2 Effective (Isotropic) Radiated Power of Transmitter ........................................ 24 4.3 Occupied Bandwidth ....................................................................................... 25 4.4 Band Edge at Antenna Terminals ................................................................... 26 4.5 Spurious And Harmonic Emissions at Antenna Terminal ................................ 27 4.6 Peak-Average Ratio ........................................................................................ 28 4.7 Field Strength of Spurious Radiation............................................................... 29 4.8 Frequency Stability / Temperature Variation ................................................... 30 4.9 Test Setups ..................................................................................................... 31 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 4 of 37 4.9.1 Test Setup 1 ............................................................................................. 31 4.9.2 Test Setup 2 ............................................................................................. 31 4.9.3 Test Setup 3 ............................................................................................. 32 4.10 Test Conditions ............................................................................................... 33 5 Main Test Instruments ................................................................................................. 34 6 Measurement Uncertainty............................................................................................ 36 7 Appendixes .................................................................................................................. 37 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 5 of 37 2 Test Summary 2.1 UMTS Band 5/LTE Band 5 Test Item FCC Rule No. Requirements Test Result Verdict Effective (Isotropic) Radiated Power Output Data §2.1046, §22.913(a)(5) ERP ≤ 7 W Section 1 of Appendix B.1&B.4 Pass Peak-Average Ratio §…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 1 of 7 Authorized Signature: Panta Sun Wireless Laboratory Manager TEST REPORT Application No.: SEWM2303000098RG Applicant: EBSCO Industries Inc., DBA PRADCO Outdoor Brands Address of Applicant: 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 Manufacturer: SERCOMM CORPORATION Address of Manufacturer: 8F, 3-1, YuanQu St., NanKang, Taipei 115, Taiwan EUT Description: EDGE PRO Model No.: MCG-14080 Trade Mark: MOULTRIE MOBILE FCC ID: 2AJQ6MCG-14080 Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2023/03/30 Date of Issue: 2023/04/21 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 2 of 7 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/04/21 Original Prepared By (Nick Hu) / Test Engineer Checked By (Well Wei) / Reviewer ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 3 of 7 Contents 1 Version ......................................................................................................................... 2 2 General Information ...................................................................................................... 4 2.1 Client Information .................................................................................................. 4 2.2 Test Facility ........................................................................................................... 4 2.3 General Description of EUT ................................................................................... 5 3 RF Exposure Evaluation ............................................................................................... 6 3.1 RF Exposure Compliance Requirement ................................................................ 6 3.1.1 Limits ................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ............................................................................ 7 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 4 of 7 2 General Information 2.1 Client Information Applicant: EBSCO Industries Inc., DBA PRADCO Outdoor Brands Address of Applicant: 2600 Corporate Drive., Suite 250 Birmingham,AL.35242 Manufacturer: SERCOMM CORPORATION Address of Manufacturer: 8F, 3-1, YuanQu St., NanKang, Taipei 115, Taiwan 2.2 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 6336.01) SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 6336.01. • Innovation, Science and Economic Development Canada SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0120. IC#: 27594. • FCC –Designation Number: CN1312 SGS-CSTC STANDARDS TECHNICAL SERVICES (SUZHOU) CO., LTD. has been recognized as an accredited testing laboratory. Designation Number: CN1312. Test Firm Registration Number: 717327 ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 5 of 7 2.3 General Description of EUT EUT Description: EDGE PRO Model No.: MCG-14080 Trade Mark: MOULTRIE MOBILE Hardware Version: V1.0 Software Version: V1.2.01 Antenna Type: Fixed External Antenna Antenna Gain: WCDMA Band II: 3.57dBi (Ant0) WCDMA Band IV: 3.57dBi (Ant0) WCDMA Band V: -0.38dBi (Ant0) LTE Band 2: 3.57dBi (Ant0) LTE Band 4: 3.57dBi (Ant0) LTE Band 5: -0.38dBi (Ant0) LTE Band 12: -1.43dBi (Ant0) LTE Band 13: -0.38dBi (Ant0) LTE Band 25: 3.57dBi (Ant0) LTE Band 26: -0.38dBi (Ant0) BLE: 4.89dBi (Ant0) Note: The antenna gain are derived from the gain information report provided by the manufacturer. Remark: As above information is provided and confirmed by the applicant. SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 6 of 7 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310(use the 300kHz limits for 150kHz:614V/m,1.63A/m). Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG04 Rev.: 01 Page: 7 of 7 Operating Band Frequency (MHz) Antenna Gain (dBi) Max C…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 1 of 11 Appendix B.1 WCDMA Band II&IV&V ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 2 of 11 Effective (Isotropic) Radiated Power Output Data Test Result Band Channel Power(dBm) EIRP Limit(dBm) Verdict Band2 9262 22.87 26.44 33 PASS Band2 9400 23.13 26.70 33 PASS Band2 9538 23.16 26.73 33 PASS Band Channel Power(dBm) EIRP Limit(dBm) Verdict Band4 1312 23.78 27.35 30 PASS Band4 1413 23.69 27.26 30 PASS Band4 1513 23.83 27.40 30 PASS Band Channel Power(dBm) ERP Limit(dBm) Verdict Band5 4132 23.87 21.34 38.5 PASS Band5 4182 23.92 21.39 38.5 PASS Band5 4233 24.12 21.59 38.5 PASS ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 3 of 11 Field Strength of Spurious Radiation Test Band = WCDMA Band II_ TM1 Test Channel = Low Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3704.8 46.79 -45.69 29.89 -64.26 -13.00 51.26 196 360 Horizontal 2 5557.2 44.21 -43.87 32.78 -62.14 -13.00 49.14 265 246 Horizontal 3 7409.6 38.78 -41.94 36.45 -61.98 -13.00 48.98 254 3 Horizontal 4 9262 34.21 -38.39 38.57 -60.87 -13.00 47.87 142 180 Horizontal 5 11114.4 31.96 -35.32 39.49 -59.13 -13.00 46.13 263 3 Horizontal 6 12966.8 33.46 -34.90 39.57 -57.13 -13.00 44.13 228 296 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3704.8 42.26 -45.69 29.89 -68.79 -13.00 55.79 296 314 Vertical 2 5557.2 41.40 -43.87 32.78 -64.95 -13.00 51.95 265 148 Vertical 3 7409.6 38.62 -41.94 36.45 -62.14 -13.00 49.14 241 4 Vertical 4 9262 33.65 -38.39 38.57 -61.43 -13.00 48.43 142 49 Vertical 5 11114.4 32.76 -35.32 39.49 -58.33 -13.00 45.33 263 49 Vertical 6 12966.8 33.13 -34.90 39.57 -57.46 -13.00 44.46 228 345 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 4 of 11 Test Band = WCDMA Band II_ TM1 Test Channel = Mid Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3760 49.41 -45.54 30.03 -61.36 -13.00 48.36 296 360 Horizontal 2 5640 46.31 -43.81 33.05 -59.71 -13.00 46.71 265 33 Horizontal 3 7520 38.66 -41.53 36.54 -61.59 -13.00 48.59 241 50 Horizontal 4 9400 34.60 -38.16 38.56 -60.26 -13.00 47.26 142 267 Horizontal 5 11280 31.61 -35.28 39.32 -59.61 -13.00 46.61 263 267 Horizontal 6 13160 31.65 -34.68 39.70 -58.59 -13.00 45.59 228 335 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3758.25 53.48 -45.54 30.02 -57.30 -13.00 44.30 296 129 Vertical 2 5640 47.64 -43.81 33.05 -58.38 -13.00 45.38 265 328 Vertical 3 7520 39.24 -41.53 36.54 -61.01 -13.00 48.01 241 360 Vertical 4 9400 34.62 -38.16 38.56 -60.24 -13.00 47.24 142 261 Vertical 5 11280 30.73 -35.28 39.32 -60.49 -13.00 47.49 263 112 Vertical 6 13160 31.25 -34.68 39.70 -58.99 -13.00 45.99 228 314 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 5 of 11 Test Band = WCDMA Band II_ TM1 Test Channel = High Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3815.2 47.64 -45.44 30.16 -62.90 -13.00 49.90 296 353 Horizontal 2 5722.8 47.03 -43.67 33.31 -58.59 -13.00 45.59 254 360 Horizontal 3 7630 39.65 -41.28 36.76 -60.13 -13.00 47.13 142 313 Horizontal 4 9538 36.26 -38.13 38.55 -58.58 -13.00 45.58 263 313 Horizontal 5 11445.6 32.09 -35.32 39.15 -59.34 -13.00 46.34 142 49 Horizontal 6 13353.2 32.37 -35.15 39.81 -58.23 -13.00 45.23 263 298 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3815.2 48.93 -45.44 30.16 -61.61 -13.00 48.61 296 16 Vertical 2 5722.8 46.63 -43.67 33.31 -58.99 -13.00 45.99 265 81 Vertical 3 7630 42.54 -41.28 36.76 -57.24 -13.00 44.24 284 48 Vertical 4 9538 36.98 -38.13 38.55 -57.86 -13.00 44.86 142 181 Vertical 5 11445.6 31.86 -35.32 39.15 -59.57 -13.00 46.57 255 360 Vertical 6 13353.2 32.66 -35.15 39.81 -57.94 -13.00 44.94 286 114 Vertical ` SGS-CSTC Standards Technical Services (Suzhou) Co., Ltd. Report No.: SEWM2303000098RG01 Rev.: 01 Page: 6 of 11 Test Band = WCDMA Band IV_ TM1 Test Channel = Low Channel Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3424.8 51.65 -45.87 29.43 -60.05 -13.00 47.05 196 355 Horizontal 2 5137.2 42.09 -44.24 32.60 -64.81 -13.00 51.81 265 148 Horizontal 3 6849.6 40.21 -42.50 35.90 -61.65 -13.00 48.65 241 48 Horizontal 4 8562 36.41 -39.70 38.12 -60.43 -13.00 47.43 118 331 Horizontal 5 10274.4 33.30 -36.76 38.80 -59.92 -13.00 46.92 265 249 Horizontal 6 11986.8 32.67 -35.35 38.61 -59.32 -13.00 46.32 244 82 Horizontal Final Data List NO. Frequency [MHz] Reading [dBμV] Factor [dB] AF[dB/m] Level [dBm] Limit [dBm] Margin [dB] Height [cm] Angle [°] Polarity 1 3424.8 55.48 -45.87 29.43 -56.22 -13.00 43.22 296 66 Vertical 2 5137.2 44.89 -44.24 32.60 -62.01 -13.00 49.01 265 99 Vertical 3 6849.6 40.27 -42.50 35.90 -61.59 -13.00 48.…

Text truncated - open the document above for the full version.
