Qingdao Intelligent & Precise Electronics Co., Ltd ZDRK8812CU User Manual Product Name：IEEE 802.11 a/b/g/n/ac 2.4GHz+5GHz 2T2R USB Module Model ：ZDRK8812CU 1 1. Introduction Thank you for using the Wi-Fi module product provided by Qingdao Intelligent &Precise Electronics Co., Ltd. Before use, please read this user manual carefully. Please follow the technical specifications when using the module in your design and develop activities. Qingdao Intelligent &Precise Electronics Co., Ltd has the right to change the contents of this manual in accordance with the needs of the technical development. FCC & IC application: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. Les dispositifs fonctionnant dans la bande de 5150 à 5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. MPE Requirements To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. 2 To ensure compliance, operations at closer than this distance is not recommended. Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement. Region Selection Limited by local law regulations, version for North America does not have region selection option. Label Host labeling requirement: Contains transmitter module FCC ID： 2AJVQ-RK8812CU”. Host labeling requirement: Contains transmitter module IC： 22470-RK8812CU”. 2．Product Information 2.1 Product Information ZDRK8812CU Wi-Fi USB module is a wireless signal module device work at 2.4GHz(2412-2462MHz)/5GHz (5150- 5350MHz and 5470-5850MHz) .ZDRK8812CU complies with IEEE 802.11a、802.11b、802.11 g、802.11 n and 802.11 ac standards. It supports up to 867Mbps physical layer transmitting rate. ZDRK8812CU support USB 2.0, which has up to 480Mbps data rate. ZDRK8812CU has 2T2R structure，has one onboard Antenna. It could provide stable wireless link with high throughput. ZDRK8812CU is a wireless signal module. It could transmit and receive Wi-Fi wireless signal device without radar detection. It is widely used to multi-media device, such as smart TV. Equipped with ZDRK8812CU, a smart TV could access to Wireless Local Network, which is also called WLAN or WIFI network. ZDRK8812CU helps multi-media device achieve to send & receive data package in a wireless way. 2.2 Feature ●IEEE standard：IEEE 802.11a/b/g/n/ac ●operating Frequency 2.4GHz/5 GHz ●support up to 867Mbps ● 2T2R mode ●Support 20MHz, 40MHz, 80MHz in 5GHz band, and 20MHz, 40MHz band width in 2.4GHz band. ●support USB 2.0 high data rate mode,10-pin interface ●support WFA/ WPA/WPA2 /WPS2.0/WAPI security ●RoH ●MAC /baseband/RF： RTL8812CU 3 3. Product Specification 3.1 Parameter WLAN Standard IEEE802.11a/b/g/n/ac Data Interface USB2.0 WLAN Modulation Mode WIFI: 802.11b: CCK, DQPSK, DBPSK 802.11a, 802.11g:64QAM, 16QAM, QPSK, BPSK 802.11n:64QAM, 16QAM, QPSK, BPSK 802.11ac:256QAM, 64QAM, 16QAM, QPSK, BPSK WLAN Working Frequency 2.4G: 2412-2462MHz; 5G: 5150-5350 MHz, 5470-5850 MHz . WLAN Receiver Sensitivity 11b @ 11Mbps: (Max.) : -84dBm , (Typical) : -87dBm (PER<8%) 11g @ 54Mbps: (Max.) : -69dBm , (Typical) : -77dBm (PER<10%) 11n @ MCS7 (2.4g HT20): (Max.) : -67dBm , (Typical) : -73dBm (PER<10%) 11n @ MCS7 (2.4g HT40): (Max.) : -64dBm , (Typical) : -68dBm (PER<10%) 11a @ 54Mbps: (5g) : -69dBm , (Typical) : -77dBm (PER<10%) 11n @ MCS7 (5g HT20): (Max.) : -67dBm , (Typical) : -73dBm (PER<10%) 11n @ MCS7 (5g HT40): (Max.) : -64dBm , (Typical) : --69dBm (PER<10%) 11ac @ MCS9 (5g HT…

Text truncated - open the document above for the full version.

Qingdao Intelligent&Precise Electronics Co.,Ltd Authority to Act as Agent Date: _October 20, 2020__ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Services Shanghai______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____ October 20, 2021____ By: ________________________ Caifeng Li (Signature 1 ) (Print name) Title: _______ Quality engineer____________________ On behalf of: __ Qingdao Intelligent&Precise Electronics Co.,Ltd ________________________ (Company Name) Telephone: ______86 532 80879444____________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Qingdao Intelligent&Precise Electronics Co.,Ltd Request for Confidentiality Date: __October 20, 2020_______ Subject: Confidentiality Request for: FCC ID: 2AJVQ- RK8812CU Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual ____ Qingdao Intelligent&Precise Electronics Co.,Ltd ____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _______ Caifeng Li__________________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Qingdao Intelligent&Precise Electronics Co.,Ltd Declaration Letter We Qingdao Intelligent&Precise Electronics Co.,Ltd hereby declare that the product Wireless Module ZDRK8812CU is not capable of operating with channel 12 and 13 in regions of US and Canada. Versions of the product available for import and sale in the US and Canada will not operate on channels 12 and 13. It will not be possible for users and configure these channels in the US and Canada version. By: ______________________ Caifeng Li (Signature 1 ) (Print name) Title: Quality Engineer________ On behalf of: Qingdao Intelligent&Precise Electronics Co.,Ltd _________ (Company Name) Telephone: ______86 532 80879444____________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

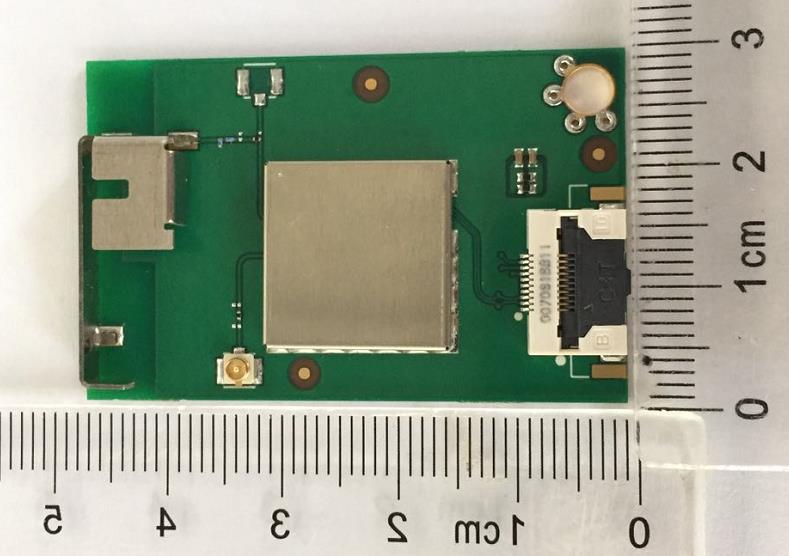

FCC ID: 2AJVQ-RK8812CU IC: 22470- RK8812CU External Photos FCC ID: 2AJVQ-RK8812CU IC: 22470- RK8812CU FCC ID: 2AJVQ-RK8812CU IC: 22470- RK8812CU

FCC ID: 2AJVQ-RK8812CU The “FCC ID: 2AJVQ- RK8812CU” is about to print on the bottom layer of the module. IC: 22470-RK8812CU. The “IC: 22470- RK8812CU” is about to print on the bottom layer of the module.

FCC ID: 2AJVQ-RK8812CU IC: 22470-RK8812CU Internal Photos FCC ID: 2AJVQ-RK8812CU IC: 22470-RK8812CU WiFi Antenna 1 WiFi Antenna 0 FCC ID: 2AJVQ-RK8812CU IC: 22470-RK8812CU

Qingdao Intelligent&Precise Electronics Co., Ltd MPE ASSESSMENT REPORT Report Type: FCC Part §2.1091, §2.1093 and §1.1307(b) assessment report Model: ZDRK8812CU REPORT NUMBER: 201001369SHA-003 ISSUE DATE: November 2, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-01_V1© 2018 Intertek Page 2 of 8 Report no.: 201001369SHA-003 Applicant: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. Manufacturer: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. Manufacturing site: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. FCC ID: 2AJVQ-RK8812CU SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 201001369SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 201001369SHA-003 Rev. 01 Initial issue of report November 2, 2020 Report No.: 201001369SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Wireless Module Type/Model: ZDRK8812CU Description of EUT: EUT is a Wireless Module with WiFi function, there is only one model. Rating: DC 3.3V EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: October 22, 2020 Date of test: October 22, 2020~ November 2, 2020 1.2 Technical Specification Frequency Band: 2400MHz ~ 2483.5MHz Support Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n(HT20), IEEE 802.11n(HT40) Operating Frequency: 2412MHz to 2462MHz for IEEE 802.11b/g/n(HT20) 2422MHz to 2452MHz for IEEE 802.11n(HT40) Type of Modulation: IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT20): OFDM (64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n(HT40): OFDM (64-QAM, 16-QAM, QPSK, BPSK) Channel Number: 11 Channels for 802.11b, 802.11g and 802.11n(HT20) 7 Channels for 802.11n(HT40) Channel Separation: 5 MHz Antenna Information: PIFA Antenna Antenna 0: 1.06dBi, Antenna 1: 2.72dBi Frequency Range: 5150 ~ 5250MHz 5250 ~ 5350MHz 5470 ~ 5725MHz 5725 ~ 5850MHz Support Standards: 802.11a, 802.11n(HT20), 802.11n(HT40), 802.11ac(VHT20), 802.11ac(VHT40), 802.11ac(VHT80) Type of Modulation: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) Channel Number: For 5150 ~ 5250MHz band: Channel 36 - 48 For 5250 ~ 5350MHz Band: Channel 52 - 64 For 5470 ~ 5725MHz Band: Channel 100 - 140 For 5725 ~ 5850MHz band: Channel 149 - 165 Antenna Information: PIFA Antenna Antenna 0: 1.81dBi, Antenna 1: 3.07dBi Report No.: 201001369SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab CAB identifier.: CN0051 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 201001369SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 8 2 MPE Assessment Test result: Pass 2.1 MPE Assessment Limit Mobile device exposure for standalone operations: Frequency range E-field strength (V/m) H-field strength (A/m) B-field (uT) Equivalent plane wave power density S eq (W/m 2 ) 0-1 Hz - 3,2 × 10 4 4 × 10 4 - 1-8 Hz 10 000 3,2 × 10 4 /f 2 4 × 10 4 /f 2 - 8-25 Hz 10 000 4 000/f 5 000/f - 0,025-0,8 kHz 250/f 4/f 5/f - 0,8-3 kHz 250/f 5 6,25 - 3-150 kHz 87 5 6,25 - 0,15-1 MHz 87 0,73/f 0,92/f - 1-10 MHz 87/f 1/2 0,73/f 0,92/f - 10-400 MHz 28 0,073 0,092 2 400-2 000 MHz 1,375 f 1/2 0,0037 f 1/2 0,0046 f 1/2 f/200 2-300 GHz 61 0,16 0,20 10 Mobile device exposure for simultaneous transmission operations: the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 201001369SHA-003 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 8 2.2 Assessment Results Power density (S) is calculated according to the formula: S = PG / (4πR²) Where S = power density in mW/cm² P = Radiated transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report 201001369SHA-001: The calculations in the table below use the highest gain of antenna for cl…

Text truncated - open the document above for the full version.

Qingdao Intelligent&Precise Electronics Co., Ltd RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: ZDRK8812CU REPORT NUMBER: 201001369SHA-001 ISSUE DATE: November 2, 2020 DOCUMENT CONTROL NUMBER: TTRF15.247-03_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-03_V1 © 2018 Intertek Page 2 of 89 Report no.: 201001369SHA-001 Applicant: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. Manufacturer: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. Factory: Qingdao Intelligent&Precise Electronics Co., Ltd No.218, Qianwangang Road, Qingdao Economic&Technological Development Zone, Shandong, China. FCC ID: 2AJVQ-RK8812CU IC: 22470-RK8812CU SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2019): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 2 (February 2017): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (March 2019) Amendment 1: General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 3 of 89 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 ANTENNA INFORMATION....................................................................................................................................... 8 1.4 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 9 2 TEST SPECIFICATIONS ................................................................................................................................. 10 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................. 10 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................. 10 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 11 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 11 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 11 2.6 INSTRUMENT LIST .............................................................................................................................................. 12 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 14 3 MINIMUM 6DB BANDWIDTH ..................................................................................................................... 15 3.1 LIMIT .............................................................................................................................................................. 15 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 15 3.3 TEST CONFIGURATION ........................................................................................................................................ 15 3.4 TEST RESULTS OF MINIMUM 6DB BANDWIDTH ....................................................................................................... 15 4 MAXIMUM CONDUCTED OUTPUT POWER AND E.I.R.P. ............................................................................. 16 4.1 LIMIT .........................................................................…

Text truncated - open the document above for the full version.

Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 46 of 89 3.2 Test Plots 802.11b,2412MHz,Ant0 802.11b,2412MHz,Ant1 802.11b,2437MHz,Ant0 802.11b,2437MHz,Ant1 802.11b,2462MHz,Ant0 802.11b,2462MHz,Ant1 802.11g,2412MHz,Ant0 802.11g,2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 47 of 89 802.11g,2437MHz,Ant0 802.11g,2437MHz,Ant1 802.11g,2462MHz,Ant0 802.11g,2462MHz,Ant1 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 48 of 89 802.11n(HT20),2437MHz,Ant0 802.11n(HT20),2437MHz,Ant1 802.11n(HT20),2462MHz,Ant0 802.11n(HT20),2462MHz,Ant1 802.11n(HT40),2422MHz,Ant0 802.11n(HT40),2422MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 49 of 89 802.11n(HT40),2437MHz,Ant0 802.11n(HT40),2437MHz,Ant1 802.11n(HT40),2452MHz,Ant0 802.11n(HT40),2452MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 50 of 89 4. Maximum conducted output power and e.i.r.p 4.1 Test Data WLAN AVGSA Output Power Mode Test Frequen cy (MHz) Ant Duty Cycle Factor (dB) Max Power (dBm) Total or max Power (dBm) Limit (dBm) EIRP (dBm) Result 802.11b 2412 Ant0 1.88 16.31 16.31 30 17.37 Pass 802.11b 2412 Ant1 1.87 16.12 16.12 30 18.84 Pass 802.11b 2437 Ant0 1.88 16.15 16.15 30 17.21 Pass 802.11b 2437 Ant1 1.87 16.01 16.01 30 18.73 Pass 802.11b 2462 Ant0 1.92 16.05 16.05 30 17.11 Pass 802.11b 2462 Ant1 1.88 16.22 16.22 30 18.94 Pass 802.11g 2412 Ant0 6.02 15.26 15.26 30 16.32 Pass 802.11g 2412 Ant1 5.60 14.23 14.23 30 16.95 Pass 802.11g 2437 Ant0 6.02 14.05 14.05 30 15.11 Pass 802.11g 2437 Ant1 5.60 14.33 14.33 30 17.05 Pass 802.11g 2462 Ant0 6.02 14.31 14.31 30 15.37 Pass 802.11g 2462 Ant1 5.84 14.44 14.44 30 17.16 Pass 802.11n (HT20) 2412 Ant0 7.44 12.21 15.41 30 17.38 Pass 802.11n (HT20) 2412 Ant1 7.85 12.59 30 Pass 802.11n (HT20) 2437 Ant0 7.85 12.64 15.40 30 17.37 Pass 802.11n (HT20) 2437 Ant1 7.44 12.13 30 Pass 802.11n (HT20) 2462 Ant0 7.78 12.25 14.99 30 16.96 Pass 802.11n (HT20) 2462 Ant1 7.44 11.69 30 Pass 802.11n (HT40) 2422 Ant0 8.60 12.09 15.37 30 17.34 Pass 802.11n (HT40) 2422 Ant1 9.11 12.61 30 Pass 802.11n (HT40) 2437 Ant0 8.60 11.92 15.34 30 17.31 Pass 802.11n (HT40) 2437 Ant1 9.11 12.70 30 Pass 802.11n (HT40) 2452 Ant0 9.11 12.35 15.38 30 17.35 Pass 802.11n (HT40) 2452 Ant1 9.11 12.39 30 Pass Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 51 of 89 4.2 Test Plots 802.11b,2412MHz,Ant0 802.11b,2412MHz,Ant1 802.11b,2437MHz,Ant0 802.11b,2437MHz,Ant1 802.11b,2462MHz,Ant0 802.11b,2462MHz,Ant1 802.11g,2412MHz,Ant0 802.11g,2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 52 of 89 802.11g,2437MHz,Ant0 802.11g,2437MHz,Ant1 802.11g,2462MHz,Ant0 802.11g,2462MHz,Ant1 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 53 of 89 802.11n(HT20),2437MHz,Ant0 802.11n(HT20),2437MHz,Ant1 802.11n(HT20),2462MHz,Ant0 802.11n(HT20),2462MHz,Ant1 802.11n(HT40),2422MHz,Ant0 802.11n(HT40),2422MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 54 of 89 802.11n(HT40),2437MHz,Ant0 802.11n(HT40),2437MHz,Ant1 802.11n(HT40),2452MHz,Ant0 802.11n(HT40),2452MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 55 of 89 5. Power spectrum density 5.1 Test Data WLAN AVGSA Power Spectral Density Mode Test Frequency (MHz) Ant Duty Cycle Factor (dB) PSD (dBm) Max or total PSD (dBm) RBW (kHz) Limit (dBm) Result 802.11b 2412 Ant0 1.88 -15.952 -15.952 3 8 Pass 802.11b 2412 Ant1 1.87 -16.213 -16.213 3 8 Pass 802.11b 2437 Ant0 1.88 -16.228 -16.228 3 8 Pass 802.11b 2437 Ant1 1.87 -16.315 -16.315 3 8 Pass 802.11b 2462 Ant0 1.92 -15.754 -15.754 3 8 Pass 802.11b 2462 Ant1 1.88 -15.915 -15.915 3 8 Pass 802.11g 2412 Ant0 6.02 -16.216 -16.216 3 8 Pass 802.11g 2412 Ant1 5.60 -16.433 -16.433 3 8 Pass 802.11g 2437 Ant0 6.02 -16.977 -16.977 3 8 Pass 802.11g 2437 Ant1 5.60 -15.530 -15.530 3 8 Pass 802.11g 2462 Ant0 6.02 -16.369 -16.369 3 8 Pass 802.11g 2462 Ant1 5.84 -17.181 -17.181 3 8 Pass 802.11n (HT20) 2412 Ant0 7.44 -18.945 -15.060 3 8 Pass 802.11n (HT20) 2412 Ant1 7.85 -17.342 802.11n (HT20) 2437 Ant0 7.85 -18.287 -15.656 3 8 Pass 802.11n (HT20) 2437 Ant1 7.44 -19.082 802.11n (HT20) 2462 Ant0 7.78 -18.652 -15.501 3 8 Pass 802.11n (HT20) 2462 Ant1 7.44 -18.375 802.11n (HT40) 2422 Ant0 8.60 -21.629 -17.783 3 8 Pass 802.11n (HT40) 2422 Ant1 9.11 -20.092 802.11n (HT40) 2437 Ant0 8.60 -22.125 -17.890 3 8 Pass 802.11n (HT40) 2437 Ant1 9.11 -19.946 802.11n (HT40) 2452 Ant0 9.11 -20.251 -17.036 3 8 Pass 802.11n (HT40) 2452 Ant1 9.11 -19.850 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 56 of 89 5.2 Test Plots 802.11b,2412MHz,Ant0 802.11b,2412MHz,Ant1 802.11b,2437MHz,Ant0 802.11b,2437MHz,Ant1 802.11b,2462MHz,Ant0 802.11b,2462MHz,Ant1 802.11g,2412MHz,Ant0 802.11g,2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 57 of 89 802.11g,2437MHz,Ant0 802.11g,2437MHz,Ant1 802.11g,2462MHz,Ant0 802.11g,2462MHz,Ant1 802.11n(HT20),2412MHz,Ant0 802.11n(HT20),2412MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 58 of 89 802.11n(HT20),2437MHz,Ant0 802.11n(HT20),2437MHz,Ant1 802.11n(HT20),2462MHz,Ant0 802.11n(HT20),2462MHz,Ant1 802.11n(HT40),2422MHz,Ant0 802.11n(HT40),2422MHz,Ant1

Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 59 of 89 802.11n(HT40),2437MHz,Ant0 802.11n(HT40),2437MHz,Ant1 802.11n(HT40),2452MHz,Ant0 802.11n(HT40),2452MHz,Ant1 Report No.: 201001369SHA-001 TEST REPORT TTRF15.247-03_V1 © 2018 Intertek Page 60 of 89 6. Emission outside the frequency band 6.1 Test Data WLAN Transmitter Spurious Emission Mode Test Frequency (MHz) Ant Plot No. Frequency Range Emission (dBm) Result 802.11b 2412 Ant0 1 Reference Level 6.59 Pass 802.11b 2412 Ant0 2 Band Edge -41.32 Pass 802.11b 2412 Ant0 3 30MHz~2310MHz -54.41 Pass 802.11b 2412 Ant0 4 2500MH…
