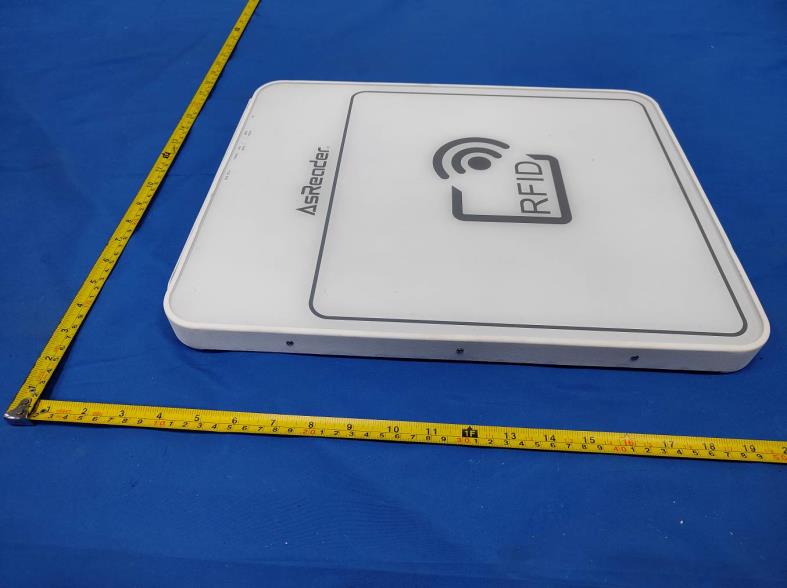

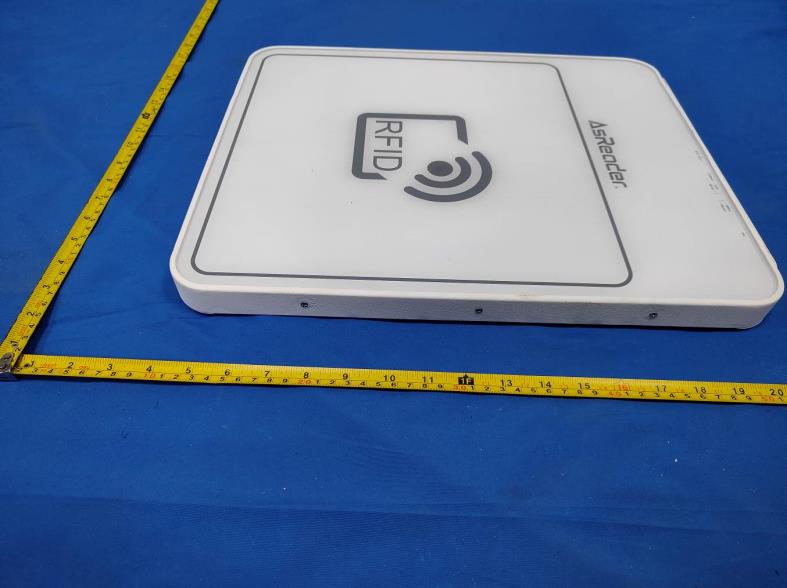

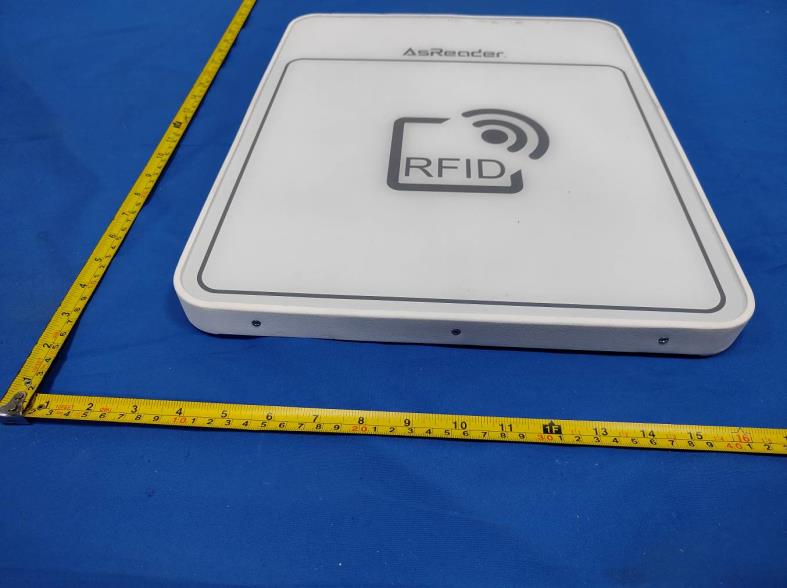

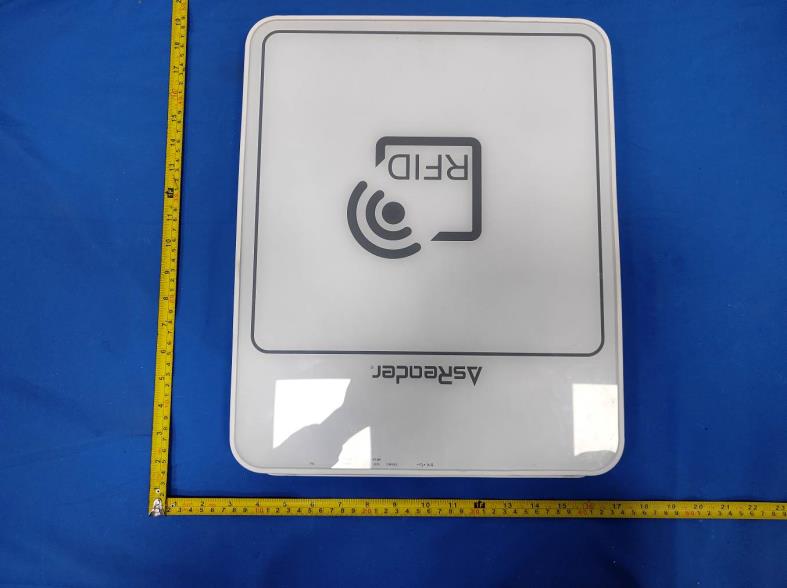

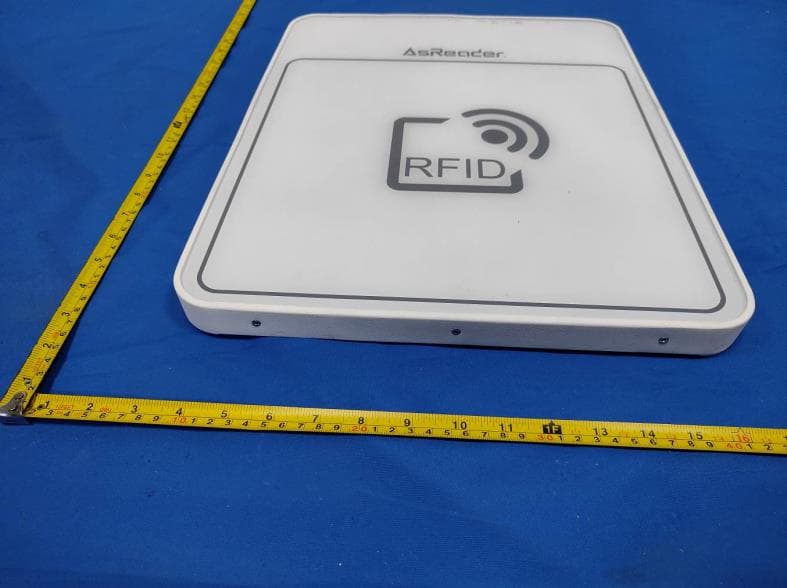

2AJXE-ASR-P351NAsReader DESKTOP Pro

ASR-P351N User’s Manual Product Type: DESKTOP-Type Pro RFID reader Compatible with iOS, Android, Windows and Linux devices 1 st Edition January 11, 2026 ASR-P351N User's Manual 1 Table of Contents About ASR-P351N .......................................................................................................................................2 Safety Instructions ......................................................................................................................................4 １Preparation Before Use ..........................................................................................................................5 2 Name of Each Part ....................................................................................................................................6 3 Operation Guide .......................................................................................................................................7 Appendix: Product Specifications ............................................................................................................9 ASR-P351N User's Manual 2 About ASR-P351N Thank you very much for purchasing the ASR-P351N (hereinafter referred to as "this product"). This manual contains important precautions for the correct handling of this product. Please be sure to read it before use. After reading, please store this manual carefully for future reference. This product is an integrated antenna RFID reader/writer. It enables simple and reliable reading of RFID tags placed on it. For example, it is suitable for reading shopping baskets containing clothing with attached RFID tags or batch reading large quantities of ID cards. Additionally, it supports the PoE port, allowing both power supply and communication through a single cable. It can be used in various system environments, such as iOS, Android, Windows, and Linux. ASR-P351N User's Manual 3 ■Revision history Version Changes Date 1 Initial version January 11, 2025 Note: The contents of this document are subject to change without notice. ASR-P351N User's Manual 4 Safety Instructions ⚠ Warnings Please do NOT disassemble, modify, or repair the ASR-P351N yourself. Please stop using the ASR-P351N if you notice anything unusual during operation such as smoke, noise, or an abnormal odor. Please do NOT subject the ASR-P351N to strong impacts by dropping or throwing it. If the body of the ASR-P351N is damaged, please do NOT touch the damaged part or the parts inside. The ASR-P351N is a RFID interrogator with 1W output power, which may affect medical devices in certain circumstances. When operating the ASR-P351N, please make sure to keep it more than 22cm away from implantable medical devices and users of implantable medical devices. ⚠ Cautions Since each country or region has different regulations regarding radio waves, it is necessary to comply with the respective regulations. Modification of the AsReader is prohibited, and violations may result in penalties according to the regulations of each country or region. Use the PoE hub/injector specified in this manual when connecting the AsReader. Use of non- standard PoE hub/injector may cause the AsReader failure or malfunction. Please refer to local regulations when you recycle this device. If you notice any abnormalities, please discontinue use and contact your distributor immediately. Do not use, store, or leave the AsReader in hot places (eg. by the fire, near a heater, in direct sunlight, in a car in hot weather). It may cause rupture, malfunction, fire or injury. Do not place the AsReader on an unstable surface such as a wobbly table or a tilted place. It may fall and cause damage to the crisis or injury. ASR-P351N User's Manual 5 １Preparation Before Use To build a system using the ASR-P351N, the following hardware is required in addition to the ASR-P351N itself. PoE hub/injector （sold separately) Ethernet cable （sold separately) Printer （sold separately) Barcode reader （sold separately) Cash drawer （sold separately) ASR-P351N User's Manual 6 2 Name of Each Part ASR-P351N User's Manual 7 3 Operation Guide 1 PoE Port Power supply and network connection can be achieved by connecting to a PoE-compatible port. Connection method: 1) Connect the PoE power supply device and this product using an Ethernet cable. 2) Connect the PoE power supply device and the router. * Please use a PoE power supply device that complies with the IEEE 802.3at standard. * Please use a Category 5e or higher UTP cable as the Ethernet cable for connection. Power On: After connecting the devices as described above, once PoE power supply begins, the product will automatically start up. After startup is complete, all four LEDs will either light up or blink. Power Off: Turn off the power of the PoE power supply device, or disconnect the product from the PoE power supply device. 2 LED Indicator LED Color Description POWER Red Lights up when power is supplied. SYSTEM Orange Blinks when the product is operating. UPLINK Green Blinks when Ethernet is connected. DATA Green Blinks during communication. 3 Console Interface Maintenance port (not available for customer use). 4 External Device Connection Interface The interface supports connecting HID devices such as barcode scanners, as well as ESC/POS-compatible printers for use. ⚫ Connecting HID Devices ASR-P351N User's Manual 8 Connect HID devices such as barcode scanners to the USB port of this product. The total power output from the USB ports of this product is 2500mW (5V/500mA) across all four ports combined. If connecting a device that requires power consumption exceeding this limit, please connect the device to this product via a self-powered USB hub. ⚫ Connecting Printers Connect the printer to the USB port of this product and connect the printer’s power supply. Ensure the printer used is compatible with ESC/POS. ⚫ Connecting Cash Drawers After connecting the printer to this product, connect the cash drawer to the printe…
