2AJXE-ASR-X23XXAsReader DOCK-Type Combo

User Manual: AsReader DOCK-Type Combo Model Name: ASR-X23XX Project Name: DOCK-Type Combo Reader Document Number: SQP-0621-ASR-X23XX Revision: 0 Supplier Approval Made by Checked by Approved by ybkim Customer Approval Checked by Checked by Approved by Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 2/10 page Revision Date SQP-0621(Rev.0) 2 Smart Power Solutions Revision History Rev ECN Description Approved by Date 0 Initial draft 2022.10.18 Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 3/10 page Revision Date SQP-0621(Rev.0) 3 Smart Power Solutions 1. Overview 1.1. Introduction Mobile AsReader Dock-Type Combo reader allow you to read RFID tags and scan 2D/1D Barcode. It can be used as a host device that supports BLE (Bluetooth Low Energy). It complies RFID standard (Air Protocol: EPC Gen2 V2 / ISO 18000-6C), Operation Frequency is 840MHz~960MHz. It uses Li-ion battery (1100mAh) as internal power. Also, it can charge reader's battery by using Magconn cable or USB micro 5-pin cable. 1.2. Product Appearance Case Materials PC (Poly Carbonate) Charging Magconn or micro 5-pin USB Trigger TAGGING button 2 EA Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 4/10 page Revision Date SQP-0621(Rev.0) 4 Smart Power Solutions 2. Hardware Specifications 2.1. Main Feature Item Description Processor MCU GigaDevice GD32F103RBT6, ARM Cortex-M3 External Crytal 8 MHz Connectivity BLE BLE supported host devices USB-micro B For charging Magconn Magconn magic cable for charging Battery Capacity Li-ion Battery 1100mAh Others Physical buttons 2 buttons LED 1 red LED, 4 white LEDs 2.2. Barcode Module Specification Item Description Engine Honeywell N6603 Decoder Honeywell Mini-DB Sensor Proprietary CMOS sensor with global shutter and 844 x 640 pixel resolution Illumination White LED Aming 650 nm high-visibility red laser (class 2 laser safety) Motion Tolerance Up to 584 cm ( 230 ̋ ) per second in total darkness with 100% UPC at 10 cm ( 4 ̋ ) distance Field of View Horizontal Field Angle: 42.4° Vertical Field Angle: 33° Scan Angles Tilt: 360°, Pitch: ± 45, Skew: ± 60° Symbol Contrast 20% minimum reflectance Symbologies Linear: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post 2D Stacked: PDF417, MicroPDF417, GS1 Composite Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 5/10 page Revision Date SQP-0621(Rev.0) 5 Smart Power Solutions 2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code OCR Option: OCR-A, OCR-B, E13B (MICR) 2.3. RFID Module Specification Item Description RFID Reader Chip PHYCHIPS PR9200 Air Protocol ISO 18000-6C / EPC Class1 Gen 2 Part No. & Operating Frequency 840 MHz ~ 960 MHz RFID Read Distance Up to 0.5m (depend on tags) Antenna Ceramics patch antenna Tag Read, Write, Lock, Kill 2.4. Battery Pack Item Description Description Rechargeable Lithium ion battery pack Battery cell configuration 1S1P (3.7V 1100mAh) Model name MBP-CY110S (MBP1S1P1100) Charging Voltage 4.2V Discharging cut-off voltage 2.75V Charging Current Standard 550mA Maximum 1.2A (25°C) Cut-off <55mA Discharging Current Standard 550mA Maximum 1.2 A (25°C) 2.5. Charging Device can be charged with Magconn cable or USB micro 5-pin. Charging time: 2 hours Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 6/10 page Revision Date SQP-0621(Rev.0) 6 Smart Power Solutions 2.6. LED description RED: Charging: Red LED On Fully charged: Red LED off While: 4 LEDs for battery gauging 90%-100%: 4 LEDs on 70%-89%: 3 LEDs on, 1 LEDs toggle 50%-69%: 2 LEDs on, 1 LEDs toggle 30%-59%: 1 LEDs on, 1 LEDs toggle 10%-29%: 1 LEDs toggle 0%-10%: All LEDs off Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 7/10 page Revision Date SQP-0621(Rev.0) 7 Smart Power Solutions 3. Environmental Requirements 3.1. Temperature Operation -Discharge: -10 to 45°C -Charge: 0 to 40C Storage (for shipping) -20 to 60°C: 1 month -20 to 45°C: 3 month -20 to 20°C: 1 year 3.2. IP ratings TBD Smart Power Solutions, Inc. Products AsReader Dock-Type Combo Reversion Rev.0 Document No SQP-0621-ASR-0230D-V4 Released 2022-10-18 Created By Youngbeom Kim Revised By Page 8/10 page Revision Date SQP-0621(Rev.0) 8 Smart Power Solutions 4. Mechanical Specifications 4.1. Dimensions 117.6 x 64.1 x 24.8 mm 4.2. Weight Under 109.8g Certification and Safety Approvals FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference Smart Po…

Text truncated - open the document above for the full version.

Asterisk Inc. 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan Dec 19, 2022 Federal Communications Commission Authorization and Evaluation Division Applicant: Asterisk Inc. FCC ID: 2AJXE-ASR-X23XX / IC: 22976-ASRX23XX Attestation for FCC Part 15B Declaration of Conformity. This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test was performed by EMC Labs Co., Ltd. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. Sincerely, Naoki Kumamoto / CTO

Asterisk Inc. 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan Nov 28, 2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Yong-Min, Won of EMC Labs Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AJXE-ASR-X23XX / IC: 22976-ASRX23XX including signing of all documents relating to these matters. Any and all acts carried out by Yong-Min, Won of EMC Labs Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Asterisk, Inc. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Naoki Kumamoto / CTO

Asterisk Inc. 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AJXE-ASR-X23XX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Part List [ASR-X23XX] BLK [ASR-X23XX] SCH [ASR-X23XX] OpDes [ASR-X23XX] Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Exhibit Type File Name External Photos Internal Photos Test Setup Photos Manual [ASR-X23XX] EXT Photo [ASR-X23XX] INT Photo [ASR-X23XX] Test Setup Photo [ASR-X23XX] Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Sincerely, Naoki Kumamoto / CTO

Asterisk Inc. 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan Nov 28, 2022 Asterisk Inc. We confirm that there are no changes in the circuital and electronic feature, and in the technical data provided in the submitted document. Basic ASR-X23XX Variant ASR-0230D-V4 ASR-0231D-V4 ASR-A230D-V4 ASR-A231D-V4 ASR-0230DB-V4 ASR-0231DB-V4 ASR-A230DB-V4 ASR-A231DB-V4 Sincerely, Naoki Kumamoto / CTO

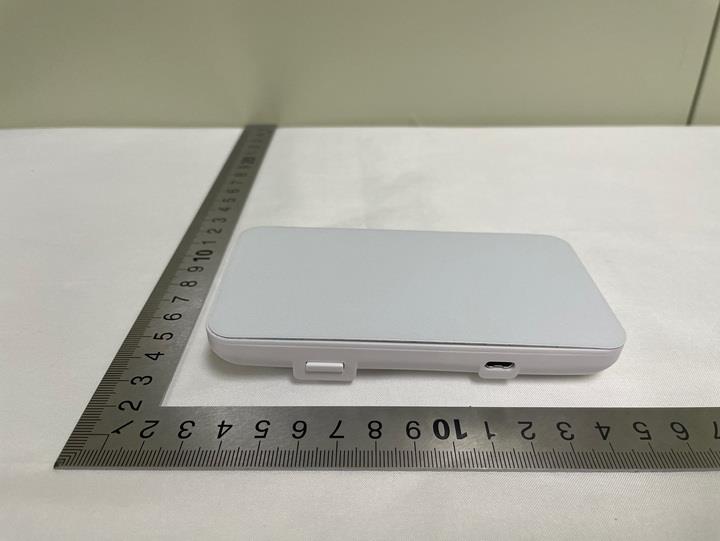

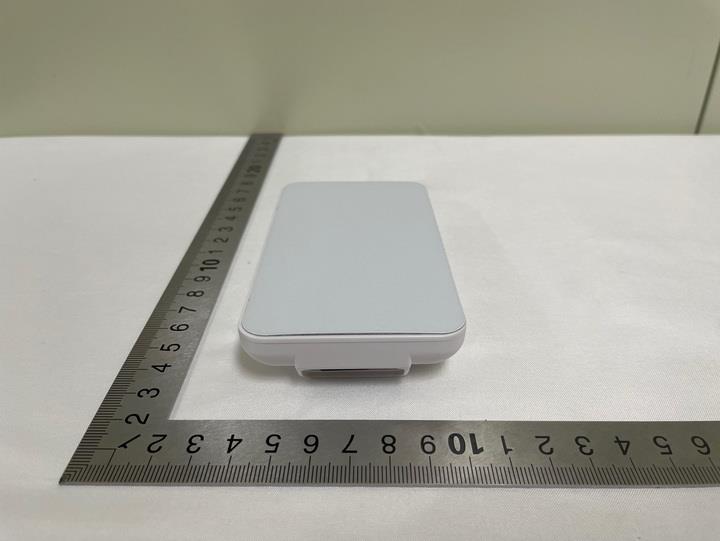

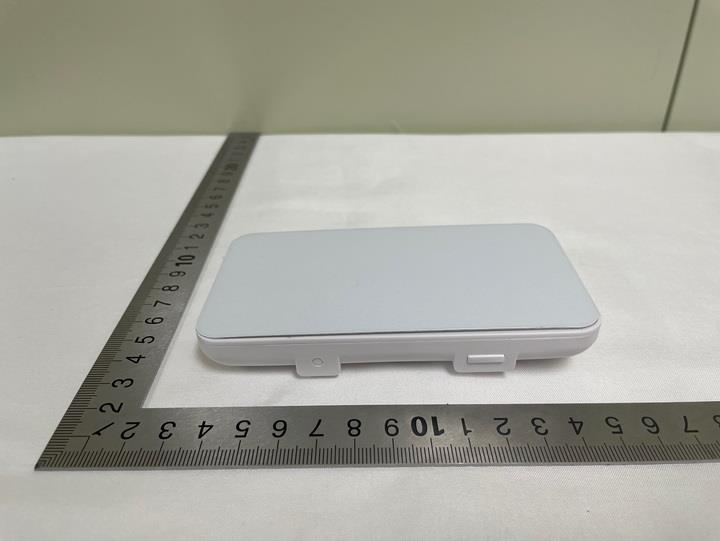

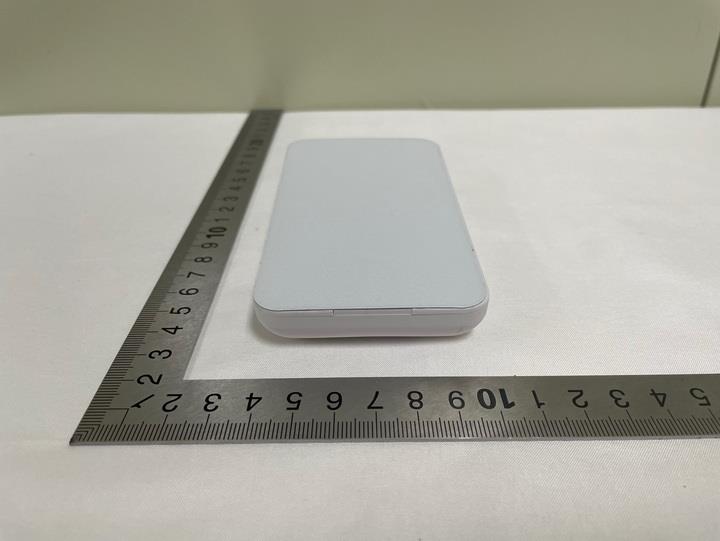

USB Port (5pin)

Asterisk_ASR-X23XX_Label & Location

Internal RFID Module BLE Module Battery RFID Antenna BLE Antenna

Report No.: DRRFCC2212-0184 FCC ID: 2AJXE-ASR-X23XX Date of issue: Dec. 08, 2022 Copyright Ⓒ 2022, Dt&C Co., Ltd. SAR Plots  Verification Plots  SAR Test Plots Dt&C Co., Ltd. DUT: Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN:1d175 Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 900 MHz; σ = 0.964 S/m; ε r = 41.423; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3866; ConvF(9.2, 9.2, 9.2); Calibrated: 4/29/2022 Electronics: DAE4 Sn1453 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2022-11-29; Ambient Temp: 20.8; Tissue Temp: 20.7 900 MHz System Verification (250 mW) Area Scan (5x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.00 dB Peak SAR (extrapolated) = 4.04 W/kg SAR(1 g) = 2.74 W/kg; SAR(10 g) = 1.8 W/kg 0 dB = 3.46 W/kg Dt&C Co., Ltd. DUT: ASR-X23XX; Type: Bar Communication System: UID 0, RFID FCC (0); Frequency: 921.9 MHz;Duty Cycle: 1:2.849 Medium parameters used: f = 921.9 MHz; σ = 0.991 S/m; ε r = 41.072; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: Probe: EX3DV4 - SN3866; ConvF(9.2, 9.2, 9.2); Calibrated: 4/29/2022 Electronics: DAE4 Sn1453 Sensor-Surface: 2mm (Mechanical Surface Detection) Phantom: SAM with CRP_2013_10_08_right; Type: QD000P40CD; Serial: TP:1785 Measurement SW: DASY52, Version 52.10 (3); SEMCAD X Version 14.6.13 (7474) Test Date: 2022-11-29; Ambient Temp: 20.8; Tissue Temp: 20.7 Touch from Body, Rear, RFID Ch. 25, Ant Internal Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.06 dB Peak SAR (extrapolated) = 6.06 W/kg SAR(1 g) = 2.96 W/kg; SAR(10 g) = 1.49 W/kg 0 dB = 4.06 W/kg A1

Report No.: DRRFCC2212-0184 FCC ID: 2AJXE-ASR-X23XX This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-601(03)161101 Pages: 2 /55 Test Report Version Test Report No. Date Description Tested by Reviewed by DRRFCC2212-0184 Dec. 08, 2022 Initial issue WonJu Ji HakMin Kim Report No.: DRRFCC2212-0184 FCC ID: 2AJXE-ASR-X23XX This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-601(03)161101 Pages: 3 /55 Table of Contents 1. DESCRIPTION OF DEVICE ............................................................................................................................................. 4 1.1 General Information ................................................................................................................................................. 4 1.2 SAR Test Configurations and Exclusions ................................................................................................................. 4 1.3 Miscellaneous SAR Test Considerations .................................................................................................................. 5 1.4 Power Reduction for SAR ........................................................................................................................................ 6 1.5 Nominal and Maximum Output Power Specifications ............................................................................................... 6 1.6 Simultaneous Transmission Capabilities .................................................................................................................. 6 1.7 Guidance Applied .................................................................................................................................................... 6 1.8 Device Serial Numbers ............................................................................................................................................ 6 1.9 FCC & ISED MRA test lab designation no. : KR0034 ............................................................................................... 6 2. INTROCUCTION .............................................................................................................................................................. 7 3. DOSIMETRIC ASSESSMENT ......................................................................................................................................... 8 3.1 Measurement Procedure ......................................................................................................................................... 8 4. RF EXPOSURE LIMITS ................................................................................................................................................. 10 5. SAR MEASUREMENT PROCEDURES ......................................................................................................................... 11 5.1 Measured and Reported SAR ................................................................................................................................ 11 5.2 Procedures Used to Establish RF Signal for SAR .................................................................................................. 11 5.3 Generic device....................................................................................................................................................... 12 5.4 Extremity Exposure Configurations ........................................................................................................................ 12 6. RF CONDUCTED POWERS .......................................................................................................................................... 13 6.1 RFID Nominal and Maximum Output Power Spec and Conducted Powers ............................................................ 13 6.2 Bluetooth LE Conducted Powers ........................................................................................................................... 14 7. SYSTEM VERIFICATION ............................................................................................................................................... 15 7.1 Tissue Verification .................................................................................................................................................. 15 7.2 Test System Verification ......................................................................................................................................... 15 8. SAR TEST RESULTS .................................................................................................................................................... 16 8.1 Extremity SAR Results .......................................................................................................................................... 16 8.2 SAR Test Notes ..................................................................................................................................................... 16 9. FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ........................................................................................... 17 9.1 Introduction ............................................................................................................................................................ 17 9.2 Simultaneous Transmission Procedures ................................................................................................................ 17 9.3 Simultaneous Transmission Capabilities ................................................................................................................ 17 9.4 Head SAR Simultaneous Transmission Analysis .................................................................................................... 17 9.5 Simultaneous Transmission Conclusion .............................…

Text truncated - open the document above for the full version.

R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 1 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Test Report 1. Client ᆞName : Asterisk, Inc. ᆞAddress : 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan 2. Use of Report : FCC & IC Approval 3. Sample Description ᆞProduct Name : AsReader DOCK-Type Combo ᆞModel Name : ASR-X23XX 4. Date of Receipt : 2022-10-06 5. Date of Test : 2022-10-19 ~ 2022-11-01 6. Test Method : FCC Part 15 Subpart C 15.247 RSS-247 Issue 2(2017-02), RSS-GEN Issue 5(2019-03) 7. Test Results : Refer to the test results This test report must not be reproduced or reproduced in any way. The results shown in this test report are the results of testing the samples provided. This test report is prepared according to the requirements of ISO / IEC 17025. Affirmation Tested by Dae-Seong, Choi (signature) Technical Manager Yong-Min, Won (signature) Nov 28, 2022 EMC Labs Co., Ltd. (seal) R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 2 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Contents 1. Applicant & Manufacturer & Test Laboratory Information··································· 4 2. Equipment under Test(EUT) Information······················································· 4 3. Test Summary······················································································· 5 4. Used equipment on test··········································································· 7 5. Antenna Requirement·············································································· 8 6. 20 dB Bandwidth & Occupied Bandwidth (99%)·············································· 9 7. Number of Hopping Frequencies······························································· 12 8. Time of Occupancy (Dwell Time)································································ 14 9. Carrier Frequencies Separation·································································· 16 10. Peak Output Power················································································ 18 11. TX Radiated Spurious Emission and Conducted Spurious Emission······················ 22 12. Conducted Emission·············································································· 39 APPENDIX APPENDIX I TEST SETUP············································································· 42 APPENDIX II UNCERTAINTY··········································································· 44 R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 3 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. Version TEST REPORT NO. DATE DESCRIPTION KR0140-RF2211-004 Nov 28, 2022 Initial Issue R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 4 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 1. Applicant & Manufacturer & Test Laboratory Information 1.1 Applicant Information Applicant Asterisk, Inc. Applicant Address 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan Contact Person Naoki Kumamoto Telephone No. +81-50-5536-1185 Fax No. +81-6-6886-1114 E-mail [email protected] 1.2. Manufacturer Information Manufacturer Asterisk Inc. Manufacturer Address 5-6-16 Nishinakajima, Yodogawa-ku, Shin-Osaka Dainichi Bldg 201, Osaka, Japan 1.3 Test Laboratory Information Laboratory EMC Labs Co., Ltd. Laboratory Address 100, Jangjateo-ro, Hobeop-myeon, Icheon-si, Gyeonggi-do, Republic of Korea Contact Person Yongmin Won Telephone No. +82-31-637-8895 Fax No. +82-505-116-8895 FCC Designation No. KR0140 FCC Registration No. 58000 IC Site Registration No. 28751 R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 5 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 2. Equipment under Test(EUT) Information 2.1 General Information Product Name AsReader DOCK-Type Combo Model Name ASR-X23XX FCC ID 2AJXE-ASR-X23XX IC 22976-ASRX23XX Power Supply DC 3.7 V 2.2 Additional Information Operating Frequency 917.1 MHz ~ 926.9 MHz Number of channel 50 Modulation Type A1D Antenna Type Patch Antenna Antenna Gain 1.05 dBic (≒-1.95 dBi) Firmware Version 1.0 Hardware Version 1.0 Test software RED Utility_v4.0.1 2.3 Test Frequency Test mode Test Frequency (MHz) Low Frequency Middle Frequency High Frequency RFID (900 MHz FHSS) 917.1 922.1 926.9 2.4 Used Test Software Setting Value Test Mode Setting Item Power RFID (900 MHz FHSS) 24 2.7 Mode of operation during the test - The EUT continuous transmission mode during the test with set at Low Channel, Middle Channel, and High Channel. To get a maximum radiated emission levels from the EUT, the EUT was moved throughout the XY, YZ, XZ planes. 2.8 Modifications of EUT - None R Report No.: KR0140-RF2211-004 EMCLabs-QPF-26-25 [Enactment_00 / 2022. 09. 07] Page 6 / 45 This test report shall not be reproduced except in full, Without the written approval. 본 시험성적서는 (주)ABCD의 서면 동의 없이 무단 전제 및 복사를 할 수 없습니다. 3. Test Summary Applied FCC Rule IC Rule Test Items Test Condition Result 15.203 - Antenna Requirement Conducted C 15.247(a) - 20 dB Bandwidth C - RSS GEN (6.7) Occupied Bandwidth (99%) C 15.247(a) RSS-247 (5.1) Number of Hopping Frequencies C 15.247(a) RSS-247 (5.1) Time of Occupancy (Dwell Time) C 15.247(a) RSS-247 (5.1) Carrier Frequencies Separation C 15.247(b) RSS-247 (5.4) Peak Output Power C 15.247(d) RSS-247 (5.5) Conducted Spurious Emission C 15.247(d) 15.205 & 15.209 RSS-247 (5.5) RSS-GEN (8.9 & 8.10) Radiated Spuriou…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Vo: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: HSW2832 IC: 4492A-2832 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Report Number: AT72126480-1C1 Manufacturer: Murata Electronics North America Model: MBN52832 Test Begin Date: April 11, 2017 Test End Date: April 19, 2017 Report Issue Date: August 25, 2017 FOR THE SCOPE OF ACCREDITATION UNDER Certificate Number: AT-2021 This report must not be used by the client to claim product certification, approval, or endorsement by ANAB, NIST, or any agency of the Federal Government. Prepared by: Reviewed by: Ryan McGann Thierry Jean-Charles Senior Engineer EMC Engineer TÜV SÜD America Inc. TÜV SÜD America Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of TÜV SÜD America Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 25 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 P URPOSE .......................................................................................................................................... 3 1.2 P RODUCT D ESCRIPTION ................................................................................................................... 3 1.3 T EST M ETHODOLOGY AND C ONSIDERATIONS ................................................................................. 4 2 TEST FACILITIES .............................................................................................................................. 5 2.1 L OCATION ....................................................................................................................................... 5 2.2 L ABORATORY A CCREDITATIONS /R ECOGNITIONS /C ERTIFICATIONS ................................................ 5 2.3 R ADIATED E MISSIONS T EST S ITE D ESCRIPTION .............................................................................. 6 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 6 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 7 2.4 C ONDUCTED E MISSIONS T EST S ITE D ESCRIPTION ........................................................................... 8 3 APPLICABLE STANDARD REFERENCES .................................................................................... 8 4 LIST OF TEST EQUIPMENT ............................................................................................................ 9 5 SUPPORT EQUIPMENT ...................................................................................................................10 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ..........................................................11 7 SUMMARY OF TESTS ......................................................................................................................12 7.1 A NTENNA R EQUIREMENT – FCC: S ECTION 15.203 ........................................................................12 7.2 P OWER L INE C ONDUCTED E MISSIONS – FCC: S ECTION 15.207; ISED C ANADA : RSS-G EN 8.8 .....12 7.2.1 Measurement Procedure ........................................................................................................12 7.2.2 Measurement Results .............................................................................................................12 7.3 6 D B / 99 % B ANDWIDTH – FCC: S ECTION 15.247( A )(2); ISED C ANADA : RSS-247 5.2( A ) ...........16 7.3.1 Measurement Procedure ........................................................................................................16 7.3.2 Measurement Results .............................................................................................................16 7.4 F UNDAMENTAL E MISSION O UTPUT P OWER – FCC: S ECTION 15.247( B )(3); ISED C ANADA : RSS- 247 5.4( D ) ..................................................................................................................................................18 7.4.1 Measurement Procedure ........................................................................................................18 7.4.2 Measurement Results .............................................................................................................18 7.5 E MISSION L EVELS ..........................................................................................................................19 7.5.1 Emissions into Non-restricted Frequency Bands – FCC: Section 15.247(d); ISED Canada: RSS-247 5.5 ...........................................................................................................................................19 7.5.1.1 Measurement Procedure ................................................................................................................... 19 7.5.1.2 Measurement Results ....................................................................................................................... 19 7.5.2 Emissions into Restricted Frequency Bands – FCC: Section 15.205, 15.209; ISED Canada: RSS-Gen 8.9 / 8.10.................................................................................................................................21 7.5.2.1 Measurement Procedure ................................................................................................................... 21 7.5.2.2 Duty Cycle Correction ..................................................................................................................... 21 7.5.2.3 Measurement Results ......................................................…

Text truncated - open the document above for the full version.

Customer 파이칩스 WrittenCheckedApproved Part No. KSA-SP925MS25P20GP6550 Date 23-Feb-22 1. Electrical Specifications. Cen…

Text truncated - open the document above for the full version.
