NovaFace User Guide Version 0.1, May 2020 About This Manual NovaFace (Model: ) is an advanced face recognition terminal that provides highly accurate face recognition in an embedded system. This manual contains the descriptions and operational instructions for NovaFace device. It is intended and written for system administrators who are in charge of overall operation including installation and management. We recommend you familiarize yourself with this manual in order to make use of the product correctly and effectively. •The figures and screenshots in this guide are given for illustration purposes only and may differ from the actual product. •Due to continuous technological improvements, the guide may not contain the most updated information. For further information not covered in this guide, please contact us at [email protected]. Revision History VersionDateDescriptionNote 0.12020-04-291st draft Conventions in This Manual The following symbols are used throughout this manual. Make sure that you fully understand the meaning of each symbol and follow the instructions accompanied. SymbolNameDescription WARNING Indicates information that should be followed with the utmost care. Failure to comply with a warning could cause severe damage to the equipment or injury to personnel. CAUTION Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. IMPORTANT Emphasizes essential information required for user success. NOTE Provides important supplemental information that might enhance users' understanding or alternative steps to accomplish their goals. www.cmi-tech.com (c) 2020, all rights reserved Page ii of 28 NovaFace User Guide, 0.1 May 2020 SymbolNameDescription TIP Provides optional information to help users be more successful in their tasks. NovaFace User Guide, 0.1 May 2020 Page iii of 28 www.cmi-tech.com (c) 2020, all rights reserved Safety Instructions Follow the safety instructions to use the product safely and prevent any risk of personal injury or damage to the product. WARNING Choosing Location •DO NOT expose the product to direct sunlight, excess heat, open flames, corrosive gasses, moisture, or dust. Doing so may cause electrical shock, electrical short, or fire. •DO NOT install the product near heaters, air conditioners, electrical fans, refrigerators, or water. Doing so may create the risk of a short circuit or fire caused by water or condensation that may come into contact with the product. •DO NOT install the product in an environment that is susceptible to explosion. Operation •DO NOT let any type of liquid, mists, or sprays get into the product. Doing so may cause electrical shock, electrical short, or product damage. •If smoke, odors or noise rise from the device, stop using the device immediately, disconnect the power cable, and contact our customer support. Maintenance •DO NOT attempt to dissemble, repair, or modify the device yourself. Opening or removing covers may expose you to electrical shock or other risks and may void your warranty. If the product does not work correctly, contact your dealer or our customer support. CAUTION Choosing Location •Keep the front side of the device away from strong ambient light, direct sunlight, or both. Sunlight, halogen lamps or other strong illumination may degrade the performance of the device, that is, increase in failure-to-capture rates or occasional authentication problem. •DO NOT install the product outdoors unless environmental factors such as water, temperature, or sunlight in the location are controlled by means of proper protection. •DO NOT expose the product to high electro-magnetic radiation. Device failure or performance degradation may occur caused by electro-magnetic interference. •DO NOT install the product next to devices that contain magnets or generate magnetic www.cmi-tech.com (c) 2020, all rights reserved Page iv of 28 NovaFace User Guide, 0.1 May 2020 fields such as speakers. Device malfunction or performance degradation may occur caused by magnetic interference. Installation •DO NOT install the product on a surface subject to vibration or physical shock. Doing so can cause damage to the product. •When you install the product on a wall, make sure that you secure the product with the provided fasteners. Dropping from the wall may cause damage to device casing, internal parts, or both. •DO NOT install the power supply cable in a high-traffic area where people pass by. Doing so may create a trip hazard and cause the cable to become worn or frayed. •Use only the power adapter which is either provided or approved by CMITECH for the product to operate properly and safely. •DO NOT connect multiple devices to one power adapter. Overload on power adapter may cause over-heat or fire hazard. •DO NOT use any type of extension cord to connect the product to a power supply. Operation •DO NOT use any sharp tools when pressing the buttons to prevent damage to the touch screen from scratches or cuts. Maintenance •When cleaning the product, wipe the product with a soft and dry cloth. Do not apply water, benzene, alcohol, or spray cleaner. These may cause product failure or fire. NovaFace User Guide, 0.1 May 2020 Page v of 28 www.cmi-tech.com (c) 2020, all rights reserved Contents About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Conventions in This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv 1. Introduction to NovaFace. . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

CMITECH Co.,Ltd. 5th Floor, 38, Burim-ro, 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea Date: July 21, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Athena Kim/Assistant manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Athena Kim/Assistant manager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, jung-hee kim / Manager CMITECH Co.,Ltd.

CMITECH Co.,Ltd. 5th Floor, 38, Burim-ro, 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 July 21, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, CMITECH Co., Ltd requests confidentiality for the following products: FCC ID Number Product Title/Model 2AJY5FMX Nova face / FMX The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description We hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, jung-hee kim / Manager CMITECH Co.,Ltd.

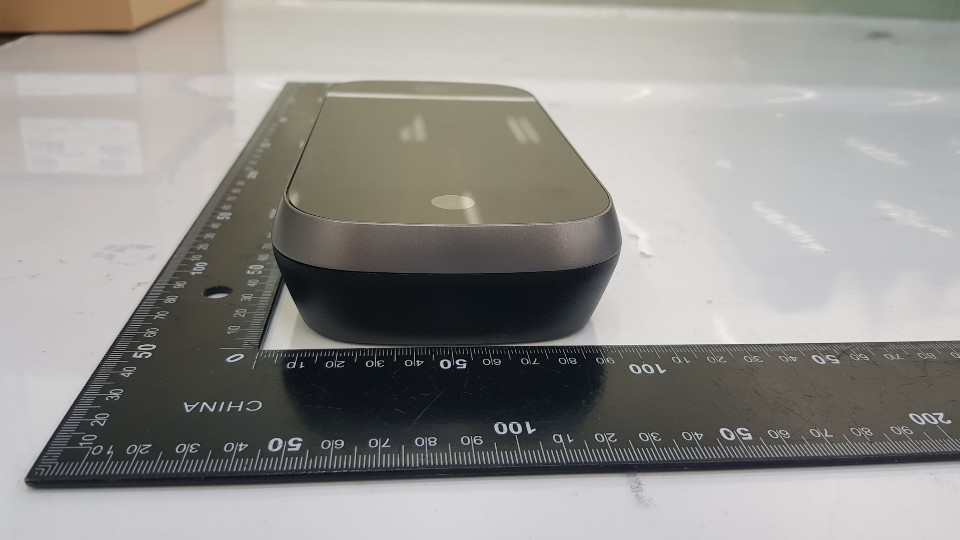

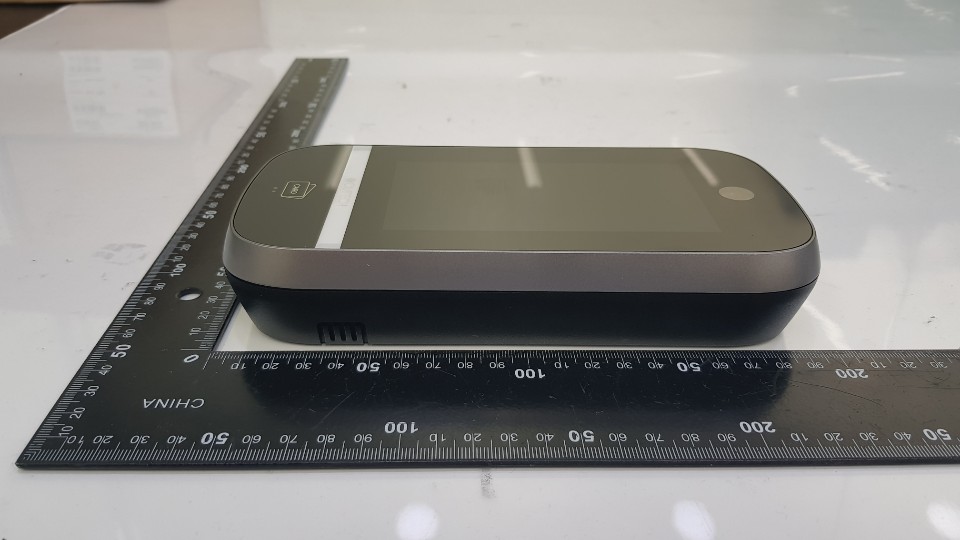

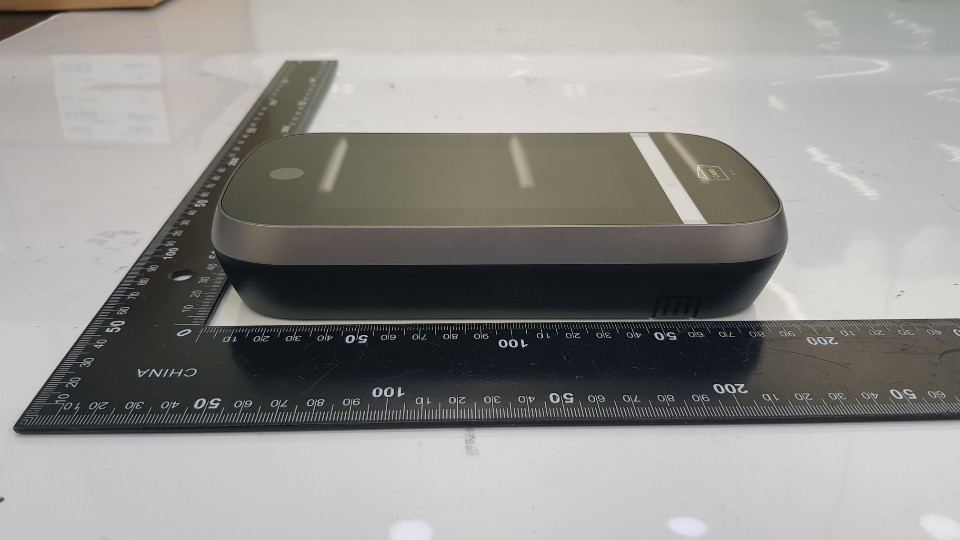

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

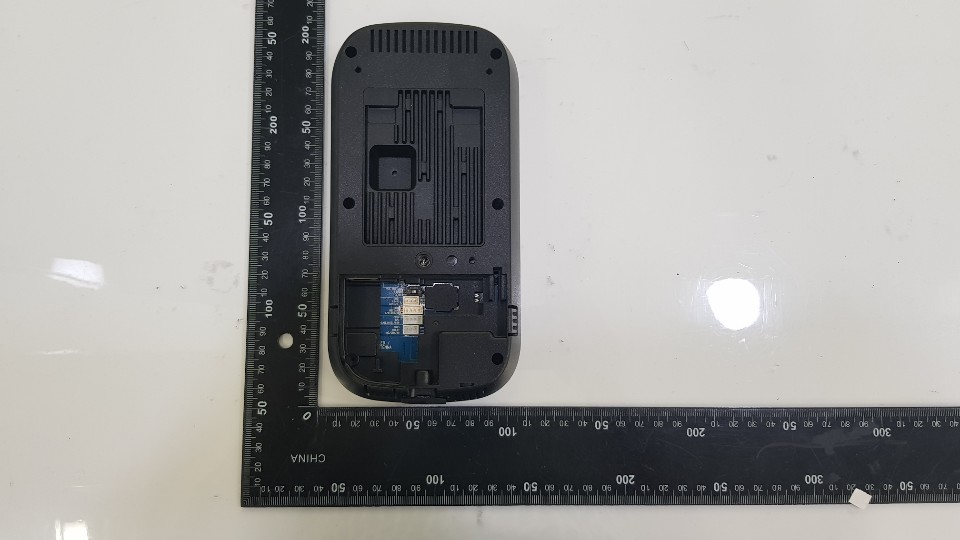

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT NFC (PCB Loop Antenna) http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

verify No.140122674913 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0173 Page (2) of (21) KCTL-TIR001-003/3 KP20-02271 REPORT REVISION HISTORY Date Revision Page No 2020-07-21 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0173 Page (3) of (21) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-03040 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Accessory information ............................................................................................ 4 2.2. Frequency/channel operations ................................................................................ 5 3. Antenna requirement .................................................................................................... 5 4. Summary of tests .......................................................................................................... 6 5. Measurement uncertainty ............................................................................................. 7 6. Test results ................................................................................................................... 8 6.1. 20 ㏈ Bandwidth & 99% Bandwidth ....................................................................... 8 6.2. Frequency tolerance ............................................................................................. 11 6.3. Radiated spurious emissions ................................................................................ 13 6.4. AC Conducted emission ....................................................................................... 19 7. Measurement equipment ............................................................................................ 21 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0173 Page (4) of (21) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-03040 1. General information Client : CMITECH Co., Ltd Address : 5th Floor, 38, Burim-ro, 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea Manufacturer : CMITECH Co., Ltd Address : 5th Floor, 38, Burim-ro, 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Nova face Model : FMX Frequency range : 13.56 ㎒ Modulation technique : ASK Power source : DC 15 V Antenna specification : PCB Loop Antenna (NFC) Software version : Rev1.0 Hardware version : Rev1.0 Test device serial No. : N/A Operation temperature : -20 °C ~ 50 °C 2.1. Accessory information Equipment Manufacturer Model Serial No. Power source AC/DC Adapter Foshan Shunde Guanyuda Power Supply Co., Ltd. GM60-150300-F - DC 15 V KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0173 Page (5) of (21) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-03040 2.2. Frequency/channel operations This device contains the following capabilities: NFC Frequency (㎒) 13.56 Table 2.2.1. NFC mode 3. Antenna requirement Requirement of FCC part section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The transmitter has permanently attached PCB Loop Antenna (internal antenna) on board. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0173 Page (6) of (21) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-03040 4. Summary of tests FCC Part section(s) Parameter Test results 15.225(a) In-band Fundamental Emission Pass 15.225(b) In-band Spurious Emission Pass 15.225(c) In-band Spurious Emission Pass 15.225(d) 15.209 Out-of–band Spurious Emission Pass 15.225(e) Frequency Stability Tolerance Pass 15.215(c) 20 ㏈ Bandwidth Pass - Occupied Bandwidth Pass 15.207(a) AC Conducted emissions Pass Notes: 1. These tests were performed other than open field site, adequate comparison measurements were confirmed against 30 m open field site. Therefore sufficient tests were made to demonstrate that the alternative site produces results that correlate with the ones of tests made in an open field based on KDB 414…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Test setup photos - Below 30 ㎒ - Above 30 ㎒ (30 ㎒ ~ 1 ㎓) http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval - Conducted Emission
