2AJYB-S1832AENetwork Audio Streaming Module

20504_2AJYB-S1832AE FCC IC Instruction For Use-1.3.docx 04/07/2024 Page 1 of 11 StreamUnlimited Engineering GmbH Gutheil-Schoder-G. 10, 1100 Vienna, Austria T +43-1-667 2002, F +43-1-667 2002 4401 Stream1832AE Network Audio Streaming Module Version: 1.3 Authors: C. Arnardi Reviewer: C. Apel Date: 04/07/2024 Instruction for FCC/IC/MIC/EU compliant use 20504_2AJYB-S1832AE FCC IC Instruction For Use-1.3.docx 04/07/2024 Page 2 of 11 StreamUnlimited Engineering GmbH Gutheil-Schoder-G. 10, 1100 Vienna, Austria T +43-1-667 2002, F +43-1-667 2002 4401 1. Table of Content Contents 1. Table of Content ............................................................................................... 2 2. Document History ............................................................................................. 2 Confidentiality Notice ....................................................................................................... 2 Document Version Management Notice ........................................................................... 3 3. Conditions for re-use of modular certification ............................................... 4 4. Product labelling requirements ....................................................................... 5 4.1 Compliance Logos................................................................................................... 5 4.2 EU Packaging requirements ................................................................................... 5 5. Instruction for use requirements..................................................................... 6 FCC Statement ................................................................................................................ 6 6. OEM Integrators - end product labelling considerations .............................. 7 7. OEM Integrators – operation manual for the end user .................................. 7 8. OEM Integrators, host system manufacturer responsibilities ...................... 7 9. EMC Compliance Statement ............................................................................ 8 Canada:........................................................................................................................... 8 EU Declaration of Conformity ........................................................................................... 9 10. Certified Antennas .......................................................................................... 10 11. EMC application notes ................................................................................... 10 2. Document History No. Primary Author(s) Description of Version Date Completed 1.0 C. Arnardi Initial version 23/4/2024 1.1 C. Arnardi Typo , 1832AE replaced. 11/6/2024 1.2 C.Arnardi Removed typo 6 GHz band 21/6/2024 1.3 C.Apel Modified co-location statement 04/7/2024 Confidentiality Notice The information contained in this document is confidential information property of StreamUnlimited Engineering GmbH. No part of this document may be used or reproduced without written permission. 20504_2AJYB-S1832AE FCC IC Instruction For Use-1.3.docx 04/07/2024 Page 3 of 11 StreamUnlimited Engineering GmbH Gutheil-Schoder-G. 10, 1100 Vienna, Austria T +43-1-667 2002, F +43-1-667 2002 4401 Document Version Management Notice Updates of this document will be done without notice. The latest document version is available on request. 20504_2AJYB-S1832AE FCC IC Instruction For Use-1.3.docx 04/07/2024 Page 4 of 11 StreamUnlimited Engineering GmbH Gutheil-Schoder-G. 10, 1100 Vienna, Austria T +43-1-667 2002, F +43-1-667 2002 4401 3. Conditions for re-use of modular certification Any modifications made to the module will void the Grant of Certification, this module is limited to OEM installation only and must not be sold to end-users, end-user has no manual instructions to remove or install the device, only software or operating procedure shall be placed in the end-user operating manual of final products. Additional testing and certification may be necessary when multiple modules are used. To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Supplier’s Declaration of Conformity procedure without a transmitter-certified module and a module is added, the host manufacturer is responsible for ensuring that after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Since this may depend on the details of how the module is integrated with the host, (StreamUnlimited Engineering GmbH) will provide guidance to the host manufacturer for compliance with the Part 15B requirements. If any doubt about product compliance due to integration, StreamUnlimited provide via its customer portal software a documentation to re-check compliance.(see Stream1832AE Certification Guidelines.pdf) The modular certifications may be re-used on product level under following conditions: 1. Recommended antennas specifications are followed (see Stream1832AE_Generic_Antenna_Specification.pdf ) 2. The WiFi output power configurations which are stored in “rgpower_XX.bin” remain unchanged 3. The Bluetooth output power which is hard-coded in firmware to 6dB remains unchanged 4. Product labelling requirements are met 5. Instructions for use requirements are met For FCC Compliance, please refer to KDB Publication 996369 D04 for up-to-date information about module integration. Additional notes: Ad 1): StreamUnlimited provide specific PowerTable binaries for “CE” “FCC” and “MIC” configurations. Region is selected during end-product configuration prior to product encasing. In the same step, also the country which the product is intended for should be configured. In the case that no region is configured, the binary for “CE” will be…

Text truncated - open the document above for the full version.

Hualing Dong, President

Project No.: 2404C068 Page 2 of 8 BT/LE 2.4G/5G ANT1 2.4G/5G ANT2

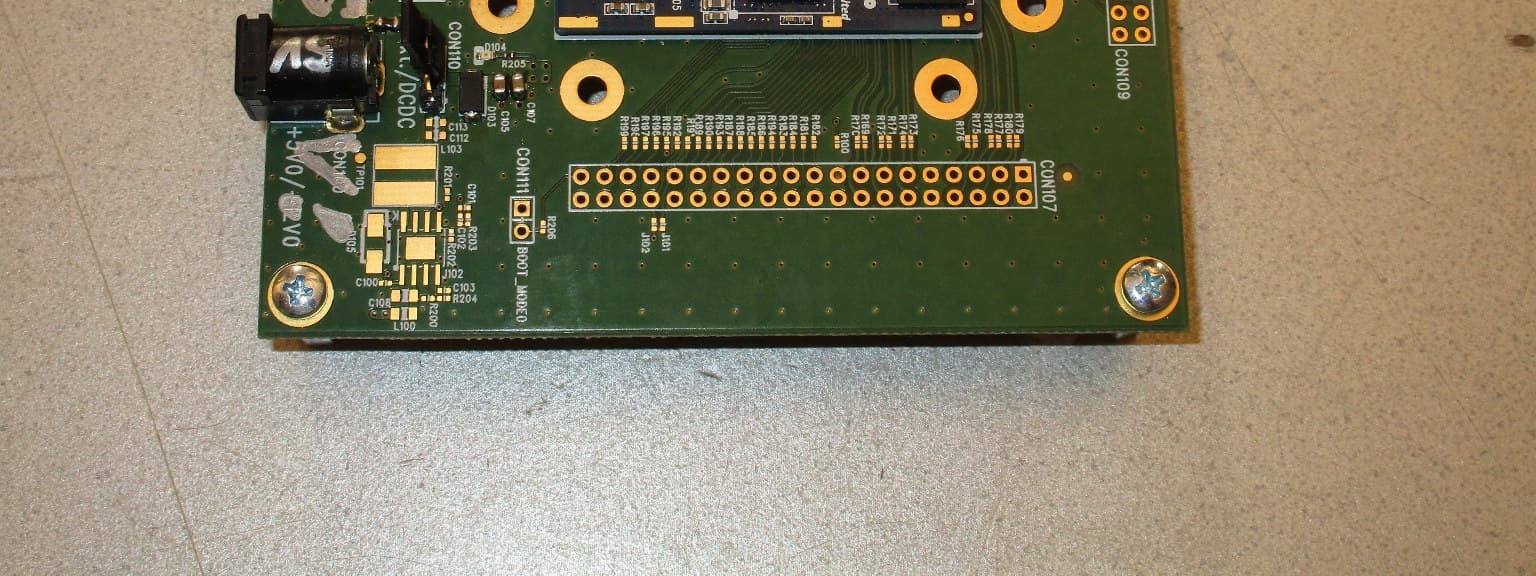

Project No.: 2404C068 Page 1 of 8 ATTACHMENT PHOTOGRAPHS OF EUT Project No.: 2404C068 Page 3 of 8 Network Audio Streaming Module Project No.: 2404C068 Page 4 of 8 Project No.: 2404C068 Page 5 of 8 Project No.: 2404C068 Page 6 of 8 Project No.: 2404C068 Page 7 of 8 Project No.: 2404C068 Page 8 of 8

Report No.: BTL-FCCP-6-2404C068 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: 2AJYB-S1832AE Project No. : 2404C068 Equipment : Network Audio Streaming Module Brand Name : StreamUnlimited Test Model : Stream1832AE Series Model : N/A Applicant : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Manufacturer : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Factory : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Date of Receipt : Apr. 09, 2024 Date of Test : Apr. 10, 2024 ~ May 30, 2024 Issued Date : Jun. 25, 2024 Report Version : R01 Test Sample : Engineering Sample No.: DG20240409194 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091 & KDB 447498 D01 v06 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Antony Liang Approved by : Chay Cai Room 108, Building 2, No.1, Yile Road, Songshan Lake Zone, Dongguan City, Guangdong, People’s Republic of China. Tel: +86-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-6-2404C068 Page 2 of 5 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-6-2404C068 R00 Original Report. Jun. 17, 2024 Invalid BTL-FCCP-6-2404C068 R01 Updated the antenna information. Jun. 25, 2024 Valid Report No.: BTL-FCCP-6-2404C068 Page 3 of 5 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2. ANTENNA SPECIFICATION Group 1: For BT/LE: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A FPC MHF4 3 Note: The antenna gain is provided by the manufacturer. For 2.4G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A FPC MHF4 3 2 N/A FPC MHF4 3 Note: (1) There are two antennas but only one antenna works at a time. (2) The antenna gain is provided by the manufacturer. For 5G: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A FPC MHF4 4 2 N/A FPC MHF4 4 Note: (1) There are two antennas but only one antenna works at a time. (2) The antenna gain is provided by the manufacturer. Report No.: BTL-FCCP-6-2404C068 Page 4 of 5 Group 2: For BT/LE: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 2JF0102 FPC Most RF Connectors 2.2 Note: The antenna gain is provided by the manufacturer. For 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 2JF0102 FPC Most RF Connectors 2.2 2 2JF0102 FPC Most RF Connectors 2.2 Note: (1) There are two antennas but only one antenna works at a time. (2) The antenna gain is provided by the manufacturer. For 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 2JF0102 FPC Most RF Connectors 3.8 2 2JF0102 FPC Most RF Connectors 3.8 Note: (1) There are two antennas but only one antenna works at a time. (2) The antenna gain is provided by the manufacturer. Report No.: BTL-FCCP-6-2404C068 Page 5 of 5 3. CALCULATED RESULT For BT: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 6.26 4.2267 0.00168 1 Complies For LE: Antenna Gain (dBi) Antenna Gain (numeric) Max. Peak Output Power (dBm) Max. Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 6.11 4.0832 0.00162 1 Complies For 2.4GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 3 1.9953 15.44 34.9945 0.01390 1 Complies For 5GHz: Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4 2.5119 15.93 39.1742 0.01959 1 Complies For the max simultaneous transmission MPE: Ratio Total Limit of Ratio Test Result BT 5GHz 0.00168 0.01959 0.02127 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-4-2404C068 Page 1 of 232 FCC Radio Test Report FCC ID: 2AJYB-S1832AE T his report concerns: Original Grant Project No. : 2404C068 Equipment : Network Audio Streaming Module Brand Name : StreamUnlimited Test Model : Stream1832AE Series Model : N/A Applicant : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Manufacturer : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Factory : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Date of Receipt : Apr. 09, 2024 Date of Test : Apr. 10, 2024 ~ May 30, 2024 Issued Date : Jun. 25, 2024 Report Version : R01 Test Sample : Engineering Sample No.: DG20240409195 for radiated emissions 30 MHz to 1000 MHz and 18GHz to 26.5GHz, DG20240409194 for others. Standard(s) : FCC CFR Title 47, Part 15, Subpart E T he above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Antony Liang Approved by : Chay Cai Room 108, Building 2, No.1, Yile Road, Songshan Lake Zone, Dongguan City, Guangdong, People’s Republic of China. Tel: +86-769-8318-3000 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-4-2404C068 Page 2 of 232 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025: 2017 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-4-2404C068 Page 3 of 232 Table of Contents Page REPORT ISSUED HISTORY 6 1 . APPLICABLE STANDARDS 7 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 2.3 TEST ENVIRONMENT CONDITIONS 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 TEST MODES 13 3.3 PARAMETERS OF TEST SOFTWARE 17 3.4 DUTY CYCLE 20 3.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 23 3.6 SUPPORT UNITS 23 3.7 CUSTOMER INFORMATION DESCRIPTION 23 4 . AC POWER LINE CONDUCTED EMISSIONS 24 4.1 LIMIT 24 4.2 TEST PROCEDURE 24 4.3 DEVIATION FROM TEST STANDARD 24 4.4 TEST SETUP 25 4.5 EUT OPERATION CONDITIONS 25 4.6 TEST RESULTS 25 5 . R AD I AT E D EMISSIONS 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 27 5.3 DEVIATION FROM TEST STANDARD 28 5.4 TEST SETUP 28 5.5 EUT OPERATION CONDITIONS 30 5.6 TEST RESULTS - 9 KHZ TO 30 MHZ 30 5.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 30 5.8 TEST RESULTS - ABOVE 1000 MHZ 30 6 . BANDWIDTH 31 6.1 LIMIT 31 6.2 TEST PROCEDURE 31 Report No.: BTL-FCCP-4-2404C068 Page 4 of 232 Table of Contents Page 6.3 DEVIATION FROM STANDARD 31 6.4 TEST SETUP 32 6.5 EUT OPERATION CONDITIONS 32 6.6 TEST RESULTS 32 7 . MAXIMUM OUTPUT POWER 33 7.1 LIMIT 33 7.2 TEST PROCEDURE 33 7.3 DEVIATION FROM STANDARD 33 7.4 TEST SETUP 33 7.5 EUT OPERATION CONDITIONS 33 7.6 TEST RESULTS 33 8 . POWER SPECTRAL DENSITY 34 8.1 LIMIT 34 8.2 TEST PROCEDURE 34 8.3 DEVIATION FROM STANDARD 34 8.4 TEST SETUP 35 8.5 EUT OPERATION CONDITIONS 35 8.6 TEST RESULTS 35 9 . FREQUENCY STABILITY 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 DEVIATION FROM STANDARD 36 9.4 TEST SETUP 36 9.5 EUT OPERATION CONDITIONS 36 9.6 TEST RESULTS 36 10 . MEASUREMENT INSTRUMENTS LIST 37 11 . EUT TEST PHOTOS 40 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 46 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 49 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 54 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 57 APPENDIX E - BANDWIDTH 173 APPENDIX F - MAXIMUM OUTPUT POWER 202 Report No.: BTL-FCCP-4-2404C068 Page 5 of 232 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 211 APPENDIX H - FREQUENCY STABILITY 228 Report No.: BTL-FCCP-4-2404C068 Page 6 of 232 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note BTL-FCCP-4-2404C068 R00 Original Report. Jun. 17, 2024 Invalid BTL-FCCP-4-2404C068 R01 Updated the antenna information. Jun. 25, 2024 Val id Report No.: BTL-FCCP-4-2404C068 Page 7 of 232 1. APPLICABLE STANDARDS According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ANSI C63.10-2013 The following reference t…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-4-2404C068 Page 107 of 232 Test Mode UNII-2A_TX AX(HE40) Mode 5270 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 108 of 232 Test Mode UNII-2A_TX AX(HE40) Mode 5310 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 109 of 232 Test Mode UNII-2A_TX AX(HE40) Mode 5310 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 0 of 232 Test Mode UNII-2A_TX AX(HE80) Mode 5290 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 111 of 232 Te s t Mode UNII-2A_TX AX(HE80) Mode 5290 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 2 of 232 Test Mode UNII-2C_TX A Mode 5500 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 3 of 232 Test Mode UNII-2C_TX A Mode 5500 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 4 of 232 Test Mode UNII-2C_TX A Mode 5580 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 5 of 232 Test Mode UNII-2C_TX A Mode 5700 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 6 of 232 Test Mode UNII-2C_TX A Mode 5700 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 7 of 232 Test Mode UNII-2C_TX N(HT20) Mode 5500 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 8 of 232 Test Mode UNII-2C_TX N(HT20) Mode 5500 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 11 9 of 232 Test Mode UNII-2C_TX N(HT20) Mode 5580 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 120 of 232 Test Mode UNII-2C_TX N(HT20) Mode 5700 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 121 of 232 Test Mode UNII-2C_TX N(HT20) Mode 5700 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 122 of 232 Test Mode UNII-2C_TX N(HT40) Mode 5510 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 123 of 232 Test Mode UNII-2C_TX N(HT40) Mode 5510 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 124 of 232 Te s t Mode UNII-2C_TX N(HT40) Mode 5670 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 125 of 232 Test Mode UNII-2C_TX N(HT40) Mode 5670 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 126 of 232 Test Mode UNII-2C_TX AC(VHT80) Mode 5530 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 127 of 232 Test Mode UNII-2C_TX AC(VHT80) Mode 5530 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 128 of 232 Test Mode UNII-2C_TX AC(VHT80) Mode 5610 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 129 of 232 Te s t Mode UNII-2C_TX AC(VHT80) Mode 5610 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 130 of 232 Test Mode UNII-2C_TX AX(HE20) Mode 5500 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 131 of 232 Test Mode UNII-2C_TX AX(HE20) Mode 5500 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-4-2404C068 Page 132 of 232 Test Mode UNII-2C_TX AX(HE20) Mode 5580 MHz Polarization Vertical REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Va…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-4-2404C068 Page 192 of 232 Test Mode UNII-2C_TX AX(HE20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 100 5500 20.690 18.800 116 5580 20.600 18.900 140 5700 20.750 18.800 CH100 CH116 CH140 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 193 of 232 Test Mode UNII-2C_TX AX(HE40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 102 5510 40.500 37.800 110 5550 40.300 38.000 134 5670 40.599 38.000 CH102 CH110 CH134 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 194 of 232 Test Mode UNII-2C_TX AX(HE80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 106 5530 81.400 78.000 122 5610 81.400 77.600 CH106 CH122 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 195 of 232 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.450 16.800 0.5 Complies 157 5785 16.500 17.000 0.5 Complies 165 5825 16.450 17.000 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 196 of 232 Test Mode UNII-3_TX N(HT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 17.650 17.900 0.5 Complies 157 5785 17.549 17.900 0.5 Complies 165 5825 17.650 17.800 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 197 of 232 Test Mode UNII-3_TX N(HT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 35.800 37.600 0.5 Complies 159 5795 35.600 37.400 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 198 of 232 Test Mode UNII-3_TX AC(VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 76.000 76.400 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 199 of 232 Test Mode UNII-3_TX AX(HE20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 18.500 18.800 0.5 Complies 157 5785 18.450 18.800 0.5 Complies 165 5825 18.550 18.800 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 200 of 232 Test Mode UNII-3_TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 37.190 38.000 0.5 Complies 159 5795 36.188 38.000 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 201 of 232 Test Mode UNII-3_TX AX(HE80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 78.200 77.600 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-4-2404C068 Page 202 of 232 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-4-2404C068 Page 203 of 232 Test Mode UNII-1_TX A Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 10.78 0.00 10.78 23.98 0.2500 Complies 40 5200 10.85 0.00 10.85 23.98 0.2500 Complies 48 5240 14.13 0.00 14.13 23.98 0.2500 Complies Test Mode UNII-1_TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 12.07 0.00 12.07 23.98 0.2500 Complies 40 5200 11.96 0.00 11.96 23.98 0.2500 Complies 48 5240 12.12 0.00 12.12 23.98 0.2500 Complies Test Mode UNII-1_TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 12.49 0.10 12.59 23.98 0.2500 Complies 46 5230 12.50 0.10 12.60 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 11.81 0.00 11.81 23.98 0.2500 Complies 40 5200 11.89 0.00 11.89 23.98 0.2500 Complies 48 5240 11.97 0.00 11.97 23.98 0.2500 Complies Test Mode UNII-1_TX AC(VHT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 12.34 0.10 12.44 23.98 0.2500 Complies 46 5230 12.38 0.10 12.48 23.98 0.2500 Complies Report No.: BTL-FCCP-4-2404C068 Page 204 of 232 Test Mode UNII-1_TX AC(VHT80) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 11.52 0.09 11.61 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 10.98 0.00 10.98 23.98 0.2500 Complies 40 5200 11.12 0.00 11.12 23.98 0.2500 Complies 48 5240 11.27 0.00 11.27 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 9.48 0.11 9.59 23.98 0.2500 Complies 46 5230 10.61 0.11 10.72 23.98 0.2500 Complies Test Mode UNII-1_TX AX(HE80) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 42 5210 8.67 0.12 8.79 23.98 0.2500 Complies Report No.: BTL-FCCP-4-2404C068 Page 205 of 232 Te s t Mode UNII-2A_TX A Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 52 5260 15.46 0.00 15.46 23.98 0.2500 Complies 60 5300 10.83 0.00 10.83 …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-5-2404C068 Page 1 of 21 FCC Radio Test Report FCC ID: 2AJYB-S1832AE This report concerns: Original Grant Project No. : 2404C068 Equipment : Network Audio Streaming Module Brand Name : StreamUnlimited Test Model : Stream1832AE Series Model : N/A Applicant : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Manufacturer : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Factory : StreamUnlimited Engineering GmbH Address : StreamUnlimited Engineering GmbH, Gutheil Schoder Gasse 10, Vienna 1100, Austria Date of Receipt : Apr. 09, 2024 Date of Test : Apr. 10, 2024 ~ May 30, 2024 Issued Date : Jun. 25, 2024 Report Version : R01 Test Sample : Engineering Sample No.: DG20240409193 Standard(s) : FCC CFR Title 47, Part 15, Subpart E The above e quipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Antony Liang Approved by : Chay Cai Room 108, Building 2, No.1, Yile Road, Songshan Lake Zone, Dongguan City, Guangdong, People’s Republic of China. Tel: +86-769-8318-3000 Web: www.newbtl.com Service mail: btl…

Text truncated - open the document above for the full version.
