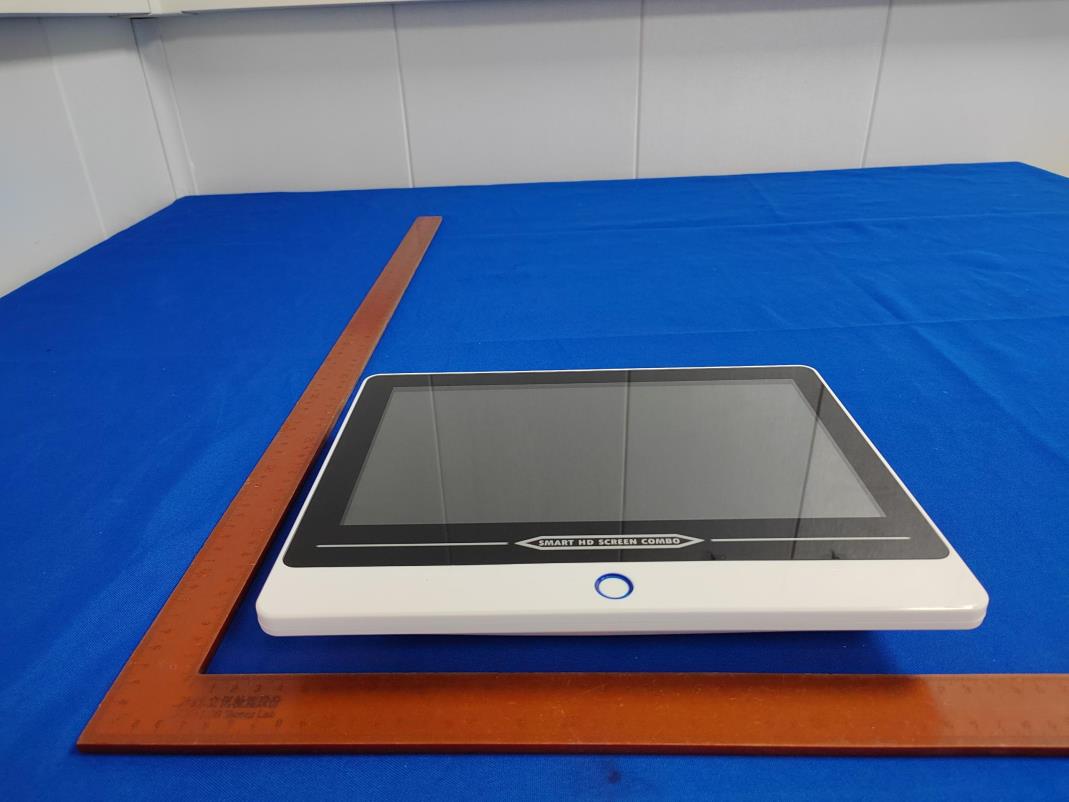

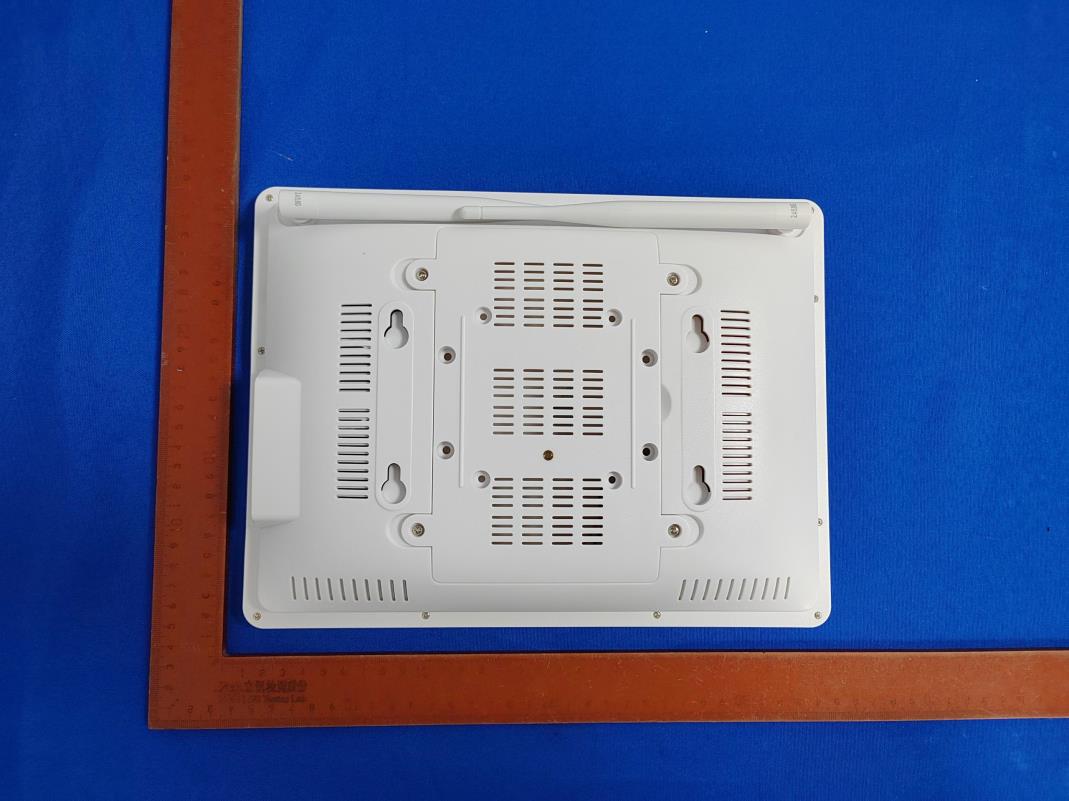

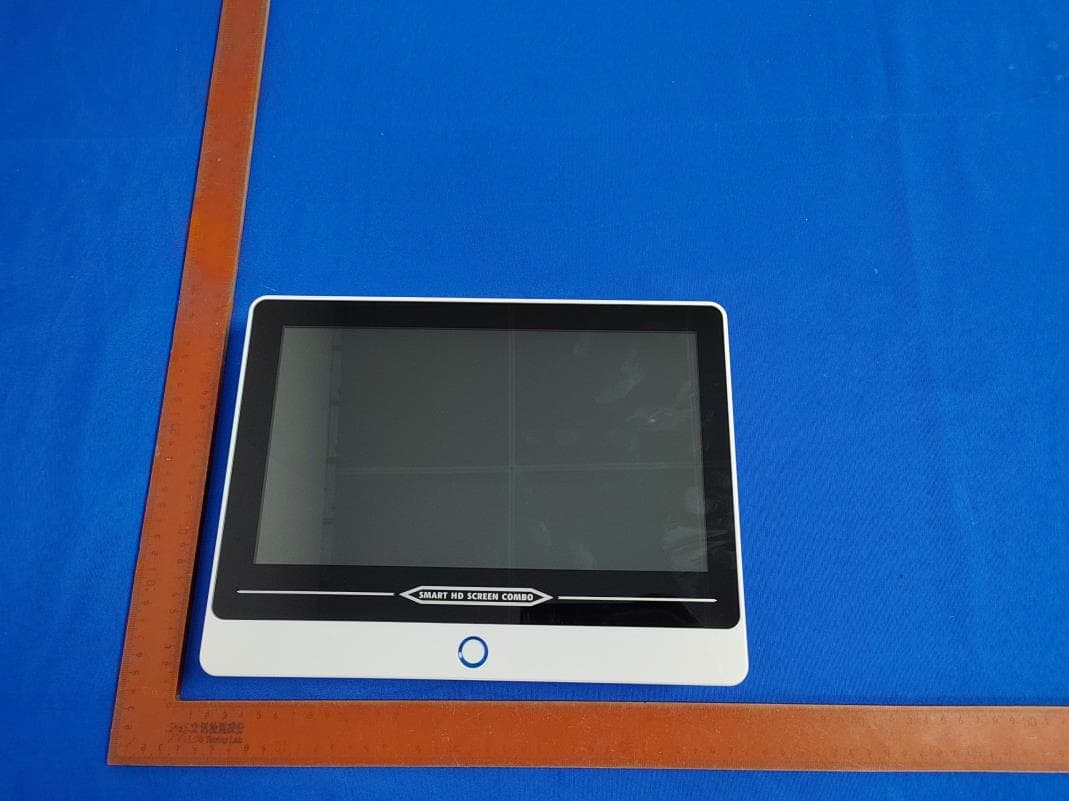

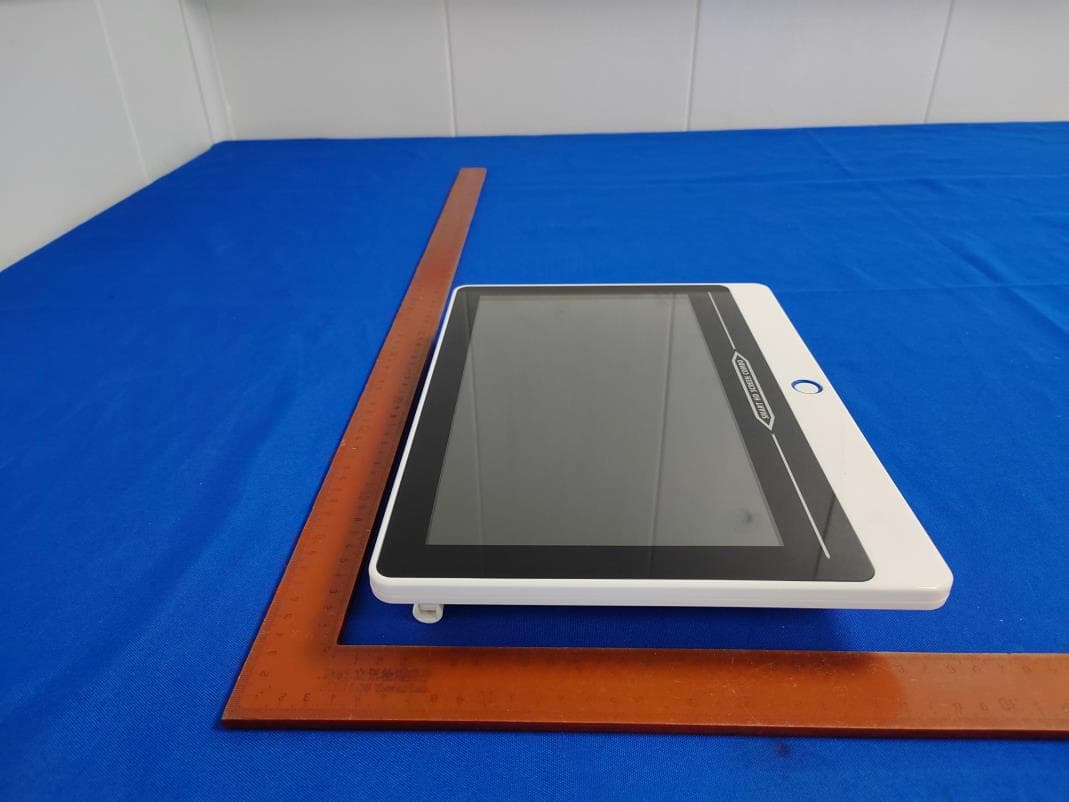

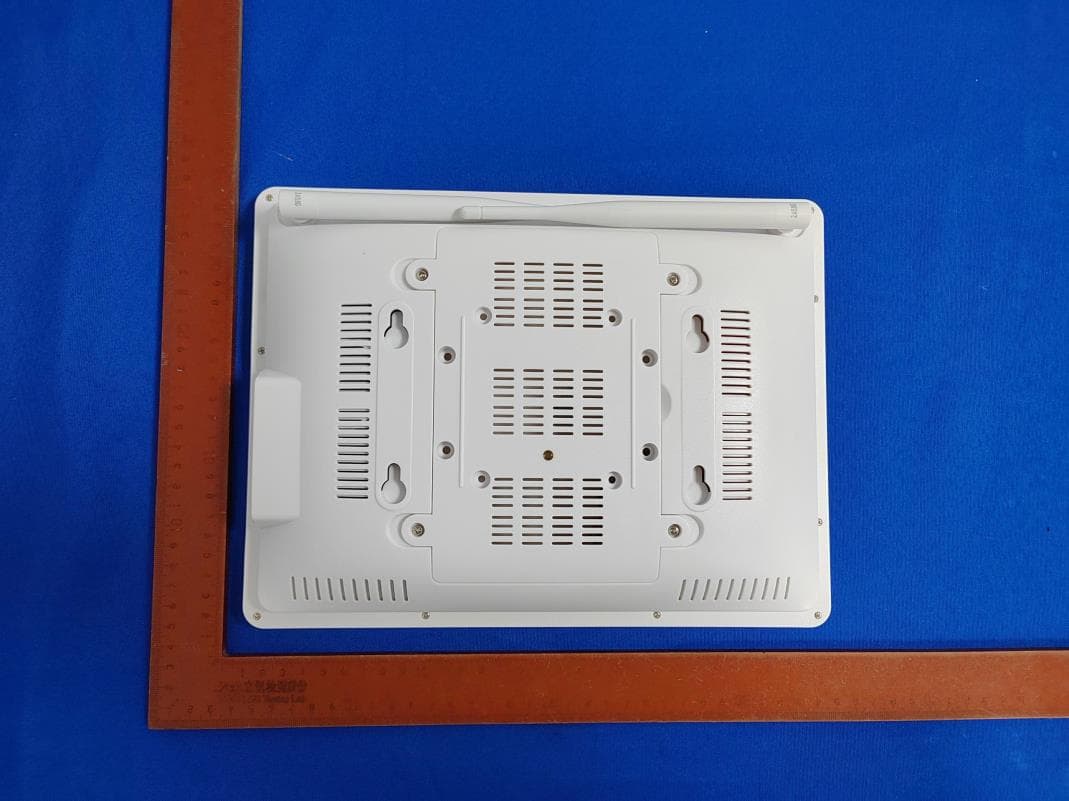

2AK6P-NVR-81216NVR

Page 1 of 40 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT For Shenzhen DC Times Technology Co., Ltd NVR Test Model: NVR-81216 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen DC Times Technology Co., Ltd Address : Floor3, Building J, Jinchangda Industrial Zone, Shangwei Village, Zhangkengjing, Guanlan Town, Longhua New District, Shenzhen China Prepared by : Guangzhou LCS Compliance Testing Laboratory Ltd. Address : No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel : (+86) 020-39166689 Fax : (+86) 020-39166619 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 08, 2025 Number of tested samples : 2 Sample number : C250904006-1, C250904006-2 Serial number : Prototype Date of Test : September 08, 2025 ~ September 22, 2025 Date of Report : September 23, 2025 Page 2 of 40 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCSC09045012EA Date of Issue .................................. : September 23, 2025 Testing Laboratory Name ............ : Guangzhou LCS Compliance Testing Laboratory Ltd. Address .......................................... : No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen DC Times Technology Co., Ltd Address .......................................... : Floor3, Building J, Jinchangda Industrial Zone, Shangwei Village, Zhangkengjing, Guanlan Town, Longhua New District, Shenzhen China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : TRF-4-E-147 A/0 TRF Originator ................................ : Guangzhou LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Guangzhou LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Guangzhou LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Guangzhou LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : NVR Trade Mark ..................................... : N/A Test Model ...................................... : NVR-81216 Ratings ........................................... : Input: DC 12V, 3A Result ........................................... : PASS Compiled by: Supervised by: Approved by: Lifeng Le / File administrators Justin Zhu / Technique Director Gavin Liang/ Manager Page 3 of 40 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com FCC -- TEST REPORT EUT......................................... : NVR Test Model............................... : NVR-81216 Applicant............................... : Shenzhen DC Times Technology Co., Ltd Address.................................. : Floor3, Building J, Jinchangda Industrial Zone, Shangwei Village, Zhangkengjing, Guanlan Town, Longhua New District, Shenzhen China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen DC Times Technology Co., Ltd Address................................... : Floor3, Building J, Jinchangda Industrial Zone, Shangwei Village, Zhangkengjing, Guanlan Town, Longhua New District, Shenzhen China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSC09045012EA September 23, 2025 Date of issue Page 4 of 40 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Revision History Report Version Issue Date Revision Content Revised By 000 September 23, 2025 Initial Issue --- Page 5 of 40 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 6 1.1. DESCRIPTION OF DEVICE (EUT) ............................................................................................................. 6 1.2. SUP…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID:2AK6P-NVR-81216 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID:2AK6P-NVR-81216 Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3

Page 174 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Restrict Band NVNT b 2462MHz Ant0 Peak Restrict Band NVNT b 2462MHz Ant0 Average Page 175 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Restrict Band NVNT g 2412MHz Ant0 Peak Restrict Band NVNT g 2412MHz Ant0 Average Page 176 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Restrict Band NVNT g 2462MHz Ant0 Peak Restrict Band NVNT g 2462MHz Ant0 Average Page 177 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Restrict Band NVNT n20 2412MHz Ant0 Peak Restrict Band NVNT n20 2412MHz Ant0 Average Page 178 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Restrict Band NVNT ax20 2412MHz Ant0 Peak Restrict Band NVNT ax20 2412MHz Ant0 Average Page 179 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) Duty Factor (dB) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT b 2412 Ant1 2310 -49.89 3.91 - 49.28 Peak 74 Pass NVNT b 2412 Ant1 2310 -58.4 3.91 0 40.77 Average 54 Pass NVNT b 2412 Ant1 2388.741 -45.26 3.91 - 53.91 Peak 74 Pass NVNT b 2412 Ant1 2389.092 -55.58 3.91 0 43.59 Average 54 Pass NVNT b 2412 Ant1 2390 -50.07 3.91 - 49.10 Peak 74 Pass NVNT b 2412 Ant1 2390 -56.26 3.91 0 42.91 Average 54 Pass NVNT b 2462 Ant1 2483.5 -46.92 3.91 - 52.25 Peak 74 Pass NVNT b 2462 Ant1 2483.5 -54.6 3.91 0 44.57 Average 54 Pass NVNT b 2462 Ant1 2486.856 -43.32 3.91 - 55.85 Peak 74 Pass NVNT b 2462 Ant1 2483.835 -54.49 3.91 0 44.68 Average 54 Pass NVNT b 2462 Ant1 2500 -50.13 3.91 - 49.04 Peak 74 Pass NVNT b 2462 Ant1 2500 -58.17 3.91 0 41.00 Average 54 Pass NVNT g 2412 Ant1 2310 -50.16 3.91 - 49.01 Peak 74 Pass NVNT g 2412 Ant1 2310 -58.1 3.91 0.1 41.17 Average 54 Pass NVNT g 2412 Ant1 2388.741 -44.06 3.91 - 55.11 Peak 74 Pass NVNT g 2412 Ant1 2389.911 -57.15 3.91 0.1 42.12 Average 54 Pass NVNT g 2412 Ant1 2390 -48.98 3.91 - 50.19 Peak 74 Pass NVNT g 2412 Ant1 2390 -57.32 3.91 0.1 41.95 Average 54 Pass NVNT g 2462 Ant1 2483.5 -43.52 3.91 - 55.65 Peak 74 Pass NVNT g 2462 Ant1 2483.5 -56.28 3.91 0.1 42.99 Average 54 Pass NVNT g 2462 Ant1 2483.57 -39.98 3.91 - 59.19 Peak 74 Pass NVNT g 2462 Ant1 2483.623 -55.59 3.91 0.1 43.68 Average 54 Pass NVNT g 2462 Ant1 2500 -47.8 3.91 - 51.37 Peak 74 Pass NVNT g 2462 Ant1 2500 -58.1 3.91 0.1 41.17 Average 54 Pass NVNT n20 2412 Ant1 2310 -50.93 3.91 - 48.24 Peak 74 Pass NVNT n20 2412 Ant1 2310 -58.5 3.91 0.12 40.79 Average 54 Pass NVNT n20 2412 Ant1 2389.443 -45.02 3.91 - 54.15 Peak 74 Pass NVNT n20 2412 Ant1 2389.911 -56.42 3.91 0.12 42.87 Average 54 Pass NVNT n20 2412 Ant1 2390 -46.4 3.91 - 52.77 Peak 74 Pass NVNT n20 2412 Ant1 2390 -56.34 3.91 0.12 42.95 Average 54 Pass NVNT n20 2462 Ant1 2483.5 -41.62 3.91 - 57.55 Peak 74 Pass NVNT n20 2462 Ant1 2483.5 -55.59 3.91 0.12 43.70 Average 54 Pass NVNT n20 2462 Ant1 2484.047 -39.99 3.91 - 59.18 Peak 74 Pass NVNT n20 2462 Ant1 2483.623 -54.53 3.91 0.12 44.76 Average 54 Pass NVNT n20 2462 Ant1 2500 -49.29 3.91 - 49.88 Peak 74 Pass NVNT n20 2462 Ant1 2500 -57.75 3.91 0.12 41.54 Average 54 Pass NVNT n40 2422 Ant1 2310 -51.58 3.91 - 47.59 Peak 74 Pass NVNT n40 2422 Ant1 2310 -58.19 3.91 0.24 41.22 Average 54 Pass NVNT n40 2422 Ant1 2389.946 -43.32 3.91 - 55.85 Peak 74 Pass NVNT n40 2422 Ant1 2389.236 -55.11 3.91 0.24 44.30 Average 54 Pass Page 180 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com NVNT n40 2422 Ant1 2390 -43.32 3.91 - 55.85 Peak 74 Pass NVNT n40 2422 Ant1 2390 -55.87 3.91 0.24 43.54 Average 54 Pass NVNT n40 2452 Ant1 2483.5 -41.64 3.91 - 57.53 Peak 74 Pass NVNT n40 2452 Ant1 2483.5 -53.79 3.91 0.24 45.62 Average 54 Pass NVNT n40 2452 Ant1 2484.712 -37.97 3.91 - 61.20 Peak 74 Pass NVNT n40 2452 Ant1 2483.698 -54.17 3.91 0.24 45.24 Average 54 Pass NVNT n40 2452 Ant1 2500 -49.11 3.91 - 50.06 Peak 74 Pass NVNT n40 2452 Ant1 2500 -57.63 3.91 0.24 41.78 Average 54 Pass NVNT ax20 2412 Ant1 2310 -51.02 3.91 - 48.15 Peak 74 Pass NVNT ax20 2412 Ant1 2310 -58.18 3.91 0.12 41.11 Average 54 Pass NVNT ax20 2412 Ant1 2389.911 -43.66 3.91 - 55.51 Peak 74 Pass NVNT ax20 2412 Ant1 2389.911 -56.18 3.91 0.12 43.11 Average 54 Pass NVNT ax20 2412 Ant1 2390 -45.24 3.91 - 53.93 Peak 74 Pass NVNT ax20 2412 Ant1 2390 -56.17 3.91 0.12 43.12 Average 54 Pass NVNT ax20 2462 Ant1 2483.5 -43.93 3.91 - 55.24 Peak 74 Pass NVNT ax20 2462 Ant1 2483.5 -54.96 3.91 0.12 44.33 Average 54 Pass NVNT ax20 2462 Ant1 2483.941 -39.06 3.91 - 60.11 Peak 74 Pass NVN…

Text truncated - open the document above for the full version.

Page 91 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Band Edge NVNT ax40 2422MHz Ant2 Ref Band Edge NVNT ax40 2422MHz Ant2 Emission Page 92 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Band Edge NVNT ax40 2452MHz Ant2 Ref Band Edge NVNT ax40 2452MHz Ant2 Emission Page 93 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.5 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant0 -49.05 -20 Pass NVNT b 2437 Ant0 -49.1 -20 Pass NVNT b 2462 Ant0 -49.1 -20 Pass NVNT g 2412 Ant0 -45.83 -20 Pass NVNT g 2437 Ant0 -45.69 -20 Pass NVNT g 2462 Ant0 -45.16 -20 Pass NVNT n20 2412 Ant0 -43.93 -20 Pass NVNT n20 2437 Ant0 -46.24 -20 Pass NVNT n20 2462 Ant0 -43.3 -20 Pass NVNT ax20 2412 Ant0 -41.83 -20 Pass NVNT ax20 2437 Ant0 -41.61 -20 Pass NVNT ax20 2462 Ant0 -41.9 -20 Pass Page 94 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs Tx. Spurious NVNT b 2412MHz Ant0 Ref Tx. Spurious NVNT b 2412MHz Ant0 Emission Page 95 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT b 2437MHz Ant0 Ref Tx. Spurious NVNT b 2437MHz Ant0 Emission Page 96 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT b 2462MHz Ant0 Ref Tx. Spurious NVNT b 2462MHz Ant0 Emission Page 97 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT g 2412MHz Ant0 Ref Tx. Spurious NVNT g 2412MHz Ant0 Emission Page 98 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT g 2437MHz Ant0 Ref Tx. Spurious NVNT g 2437MHz Ant0 Emission Page 99 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT g 2462MHz Ant0 Ref Tx. Spurious NVNT g 2462MHz Ant0 Emission Page 100 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT n20 2412MHz Ant0 Ref Tx. Spurious NVNT n20 2412MHz Ant0 Emission Page 101 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT n20 2437MHz Ant0 Ref Tx. Spurious NVNT n20 2437MHz Ant0 Emission Page 102 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT n20 2462MHz Ant0 Ref Tx. Spurious NVNT n20 2462MHz Ant0 Emission Page 103 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT ax20 2412MHz Ant0 Ref Tx. Spurious NVNT ax20 2412MHz Ant0 Emission Page 104 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT ax20 2437MHz Ant0 Ref Tx. Spurious NVNT ax20 2437MHz Ant0 Emission Page 105 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Tx. Spurious NVNT ax20 2462MHz Ant0 Ref Tx. Spurious NVNT ax20 2462MHz Ant0 Emission Page 106 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCS…

Text truncated - open the document above for the full version.

Page 1 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for 2.4GWIFI (Conducted Measurement) Product Name: NVR Test Model: NVR-81216 Environmental Conditions Temperature: 25.2 C Relative Humidity: 53.9% ATM Pressure: 100.0 kPa Test Engineer: Suichao Lai Supervised by: Yan Chen Page 2 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant0 9.066 >=0.5 Pass NVNT b 2437 Ant0 8.506 >=0.5 Pass NVNT b 2462 Ant0 9.062 >=0.5 Pass NVNT g 2412 Ant0 16.451 >=0.5 Pass NVNT g 2437 Ant0 16.366 >=0.5 Pass NVNT g 2462 Ant0 16.507 >=0.5 Pass NVNT n20 2412 Ant0 17.092 >=0.5 Pass NVNT n20 2437 Ant0 17.445 >=0.5 Pass NVNT n20 2462 Ant0 17.535 >=0.5 Pass NVNT ax20 2412 Ant0 16.743 >=0.5 Pass NVNT ax20 2437 Ant0 17.081 >=0.5 Pass NVNT ax20 2462 Ant0 17.131 >=0.5 Pass Page 3 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant0 -6dB Bandwidth NVNT b 2437MHz Ant0 Page 4 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT b 2462MHz Ant0 -6dB Bandwidth NVNT g 2412MHz Ant0 Page 5 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT g 2437MHz Ant0 -6dB Bandwidth NVNT g 2462MHz Ant0 Page 6 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n20 2412MHz Ant0 -6dB Bandwidth NVNT n20 2437MHz Ant0 Page 7 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n20 2462MHz Ant0 -6dB Bandwidth NVNT ax20 2412MHz Ant0 Page 8 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT ax20 2437MHz Ant0 -6dB Bandwidth NVNT ax20 2462MHz Ant0 Page 9 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 8.115 >=0.5 Pass NVNT b 2437 Ant1 9.05 >=0.5 Pass NVNT b 2462 Ant1 9.541 >=0.5 Pass NVNT g 2412 Ant1 16.459 >=0.5 Pass NVNT g 2437 Ant1 16.547 >=0.5 Pass NVNT g 2462 Ant1 16.431 >=0.5 Pass NVNT n20 2412 Ant1 15.566 >=0.5 Pass NVNT n20 2437 Ant1 17.522 >=0.5 Pass NVNT n20 2462 Ant1 16.128 >=0.5 Pass NVNT n40 2422 Ant1 35.189 >=0.5 Pass NVNT n40 2437 Ant1 34.885 >=0.5 Pass NVNT n40 2452 Ant1 35.407 >=0.5 Pass NVNT ax20 2412 Ant1 16.75 >=0.5 Pass NVNT ax20 2437 Ant1 17.546 >=0.5 Pass NVNT ax20 2462 Ant1 17.12 >=0.5 Pass NVNT ax40 2422 Ant1 35.616 >=0.5 Pass NVNT ax40 2437 Ant1 35.526 >=0.5 Pass NVNT ax40 2452 Ant1 35.222 >=0.5 Pass Page 10 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Page 11 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Page 12 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Page 13 of 206 FCC ID:2AK6P-NVR-81216 Report No.: LCSC09045012EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1,Qianfeng North Road, Shiqi, Panyu District, Guangzhou, City, Guangdong China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Page 14 of 206 …

Text truncated - open the document above for the full version.

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page1 SpecificationForApproval Date:2023.11.23 Version:1.0 客户名称 Customer：赛腾 客户料号 CustomerP/N： 腾祥料号 TXP/N：AN2450-12F07BX-W 规格描述 Description:2.4G/5G白色天线1.13mm黑色线L=350mm+IPEX TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 梁凤珍 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page2 Index: 1.Specification(规格) 2.CharacteristicsandReliabilityTest(产品特性和可靠性测试标准) 3.Antenna-SParameterTestData(样品测试数据) 4.Antenna-RadiationPatternTestData(辐射模式测试数据) 5.MechanicalandPackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02023.11.23 初版 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page3 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz S.W.R.驻波比<=2.0 AntennaGain增益3.46dBi/3.50dBi Polarization 极化方式Linear Impedance 阻抗50Ohm B.Material&MechanicalCharacteristics MaterialofPlastic塑胶材质TPE/ABS CableType线材规格OD1.13mm，BIack ConnectorType连接器规格I-PEX C.Environmental StorageTemperature 存储温度 -30 ̊C~+65 ̊C OperationTemperature 工作温度 -30 ̊C~+65 ̊C AntennaColorStoragelife 天线颜色存储寿命 <2year TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page4 2.CharacteristicsandReliabilityTest TestItems 测试 项目 TestConditionandProcedure 测试方法 Requirements 要求Result 结果 1V.S.W.R. 电压驻波比 SetDUTonNetworkAnalyzer;makeindividual calibrationtotest设置网络分析仪参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 2Antenna Gain 天线增益 SetDUTonAntennaChamber;makeindividual calibrationtotest设置天线暗室参数进行测试 DirectiveDUTspecification 符合待测物规范 PASS 3PullTest 拉力 Holdingwithindividualspecification;force appliedtoaxisofterminal.单独定义产品端子拉力 1.DirectiveDUTspecification 2.FrequencyTol.≤5% 符合待测物规范;频率偏移≤5% PASS 4Dimension 尺寸 Inspectionofdimension,color,material,package, surfaceprocess.检查尺寸,颜色,材料,包装,表面处理 DirectiveDUTspecification 符合待测物规范 PASS 5 SaltSpray盐 雾 GB/T2423.17-2008 Temp:35°C;RH:≥95%;NaClsolution:≥ 5%;Time:24H 温度35°C；湿度≥95%;盐水浓度≥5%；测试24H 1.NoVisualDamage 2.FrequencyTol.≤5% 无明显外观不良;频率偏移≤5% PASS 6Temperature and Humidity Chamber 恒温恒湿 GB/T2423.3-2006 Temp:65°C/12H;-30°C/12HRH:≥90%;Time: 24H 温度65°C测试12H转-30°C测试12H；湿度≥90%； 时间24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 恢复2H后，无明显外观不良;频 率偏移≤5% PASS 7Agingtest 老化 GB/T2423.2-2008 Temp:65°C;Time:24hours 温度65°C，测试24H After2HoursRecovery 1.NoVisualDamage 2.FrequencyTol.≤5% 无明显外观不良;频率偏移≤5% PASS 8RoHSWithReferencetoIEC62321:2008withflowchart 参考IEC62321测试流程 DirectiveRoHS2011/65/EU 符合RoHS2015/863/EU标准 PASS TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page5 3.Antenna-SParameterTestData 4.Antenna-RadiationPatternTestData TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page6 2400MHz 2450MHz 2500MHz 5150MHz TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F07BX-W ProductName:Antenna Page7 5550MHz 5850MHz 5.MechanicalDrawingSeeattachedfiles DWF 2023.11.23 ±0.5±0.2 ±1 1/1 B SCALE: APP BY Tolerance X.XX X.X X° TITLE: PART NO.: Customer P/N: CHK BY DES BY RF BY UNITS: mm REVISION: Tengxiang Technology Inc. B C D APPROVER DATE SIGN DESCRIPTION TPE Part Number Name Body 1 1 No. Q'ty 1 Material Finish 111 23 ABS Cable Body 2Body 3 5 AN2450-12F07BX-W 2.4/5.8GHz Antenna Note: 1. Dimension: Take * is the important dimension 2. Tolerance: Unmarked toleranc e refer to the standa rd tolerance please 1 IPEX Au Plated Cu Black ABS OD1.13 Black Black Black CB-113BS CR-113-ZP-A 4 AN9201-04B AN9201-06B AN9201-09B WJ 2023.11.23 HC 2023.11.23 YCX 2023.11.23 20pcs/ PE bag Revision : A Customer : ALL APPROVED BY ： CHECKED BY： DESIGNED BY： Name: Page: 1 of 1 Date:2023.11.23 Part Number : PACKING CRITERION 1000pcs/Carton 3. SEALING 。 MEAS G W: KGS N W: KGS QTY: PCS ITEM NO: C/NO MADE IN CHINA SIDE FRONT 2.PACKING。 1 . Enter PE bag。 DWF HC YCX AN2450-12F07BX-W Antenna

TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F06BX-B ProductName:Antenna Page1 SpecificationForApproval Date:2023.11.23 Version:1.0 客户名称 Customer：赛腾 客户料号 CustomerP/N： 腾祥料号 TXP/N：AN2450-12F06BX-B 规格描述 Description:2.4G/5G白色天线1.13mm黑色线L=220mm+IPEX TengxiangCheckedBy: 腾祥审核 CustomerApprovedBy: 客户审核 DRAWN 制作 路婷 TESTEDBY 检测 CHECKEDBY 审核 胡超 CHECKEDBY 审核 Q.C.DEPT. 品管 梁凤珍 Q.C.DEPT. 品管 APPROVEDBY 核准 韦佳 APPROVEDBY 核准 NO.53ShatouShaChongRoad,ChangAnTown,Guangdongprovince,China 中国广东省东莞市长安镇沙头区沙涌路53号 TEL:86-769-81873082FAX:86-769-82663788 http://www.tenxiang.cn TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F06BX-B ProductName:Antenna Page2 Index: 1.Specification(规格) 2.CharacteristicsandReliabilityTest(产品特性和可靠性测试标准) 3.Antenna-SParameterTestData(样品测试数据) 4.Antenna-RadiationPatternTestData(辐射模式测试数据) 5.MechanicalandPackingDrawing(图纸包装规范) RevisionHistory（变更履历） RevisionDateChangeNotificationDescription 1.02023.11.23 初版 TengxiangTechnology.Inc 东莞市腾祥电子有限公司 ProductNumber:AN2450-12F06BX-B ProductName:Antenna Page3 1.Specification SamplePhoto A.ElectricalCharacteristics Frequency频率2400-2500MHz/5150-5850MHz S.W.R.驻波比<=2.0 AntennaGai…
