2AKDT-DECOMINI7WV2Drawing Tablet

Quick Guide Deco mini7W V2 Drawing Tablet 1. Product Overview 1.Power Button 2. USB-C Port 3.Indicator Light 1 a. Flashing: the stylus is in the active area but not touching the tablet. b. Steady On:the stylus is in contact with the active area. c. Off:the stylus is beyond the active area. 4.Shortcut keys 5.Indicator Light2 Blue Light: a. Slow flash: Bluetooth is not connected b. Fast flash: Bluetooth is waiting for pairing (press and hold the first shortcut key in the upper left corner for 3 seconds). c. Steady On:Bluetooth connected and paired successfully Red Light: a. Flashing: Low battery power (≤20%) b. Steady on: Charging status c. Off: Charging complete or automatic shutdown due to extremely low battery Purple Light: The red light and the blue light are on simultaneously. 6.Active area 2.Accessories  Drawing Tablet× 1  Stylus× 1  Pen Nibs× 10  Pen Clip× 1  USB-A to USB-CCable× 1  OTGAdapter× 1  Quick Guide× 1  Warranty Card× 1  Trendy Sticker Sheet× 1 *Pictures and lists are for reference only. Please refer to the actual product. 3. Connection 3.1. Wired Connection 1）Computer Connection Connect the USB-A to USB-C cable to a USB port on your computer and to the USB-C port on the drawing tablet. 2）Android Phone or Tablet Connection First, connect the drawing tablet to the USB OTG adapter using the USB-A to USB-C cable. Then, connect the adapter to your Android phone or tablet. 3.2. Bluetooth Wireless Connection 1）Computer Connection Turn on the drawing tablet by holding the power button for 3 seconds. Then hold the first shortcut key in the upper-left cornerfor 3 seconds to enter pairing mode (Indicator 2 blinks blue rapidly). Turn on your computer's Bluetooth, search for "Deco mini7W V2", and select it to pair. When successfully connected, Indicator 2 will glow solid blue. 2）Phone or Tablet Connection With the drawing tablet in pairing mode, enable Bluetooth on your mobile device, search for the device named "Deco mini7W V2", and select it to complete pairing. 4. Driver Installation 1. Ensure your drawing tablet is connected to the computer. 2. Visit the official website：https://www.xp-pen.com 3. Navigate to the "Driver" section, search for“Deco mini7W V2”, then click to enter the download page, download and install the driver that matches your operating system. 4. Open the driver, configure parameters, and test the product functionality. Pre-Installation Notes: • Disable antivirus and graphic software. • Uninstall drivers from other drawing display/tablet brands. • Restart the computer after installation. *It is recommended to use the latest driver version for optimal performance. FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement English: This device complies with Innovation, Science and Economic Development Canada’s license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, a nd (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). ‐ French: Le présentappareilestconforme aux CNR d' Innovation, sciences et développement économique Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradi oélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

XPPEN Technology CO. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: XPPEN Technology CO. Address: 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States FCC ID: 2AKDT-DECOMINI7WV2 Model(s): Deco mini7W V2 2.911(d)(5)(i) Equipment Type We, [XPPEN Technology CO.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Tiger Li Date:2025.12.03 Title and Company name: general manager / XPPEN Technology CO. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

XPPEN Technology CO. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: XPPEN Technology CO. Address: 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States FCC ID: 2AKDT-DECOMINI7WV2 Model(s): Deco mini7W V2 2.911(d)(5)(ii) Applicant filing We, [XPPEN Technology CO.] certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Tiger Li Date: 2025.12.03 Title and Company name: general manager / XPPEN Technology CO. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2AKDT-DECOMINI7WV2Decomini7WV2 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementwithoutexpirationdate US-AmericanPointofContactApplicant/ApprovalHolder SignatureSignature CompanyName:XPPENTechnologyCo.XPPENTechnologyCo. FRN:00260404360026040436 ContactName:TigerLiTigerLi Address:15350FairfieldRanchRoad,Chino Hills,California91709,UnitedStates 15350FairfieldRanch Road,ChinoHills,California 91709,UnitedStates Phone:+1-562-325-5204+1-562-325-5204 Email:[email protected]@ugee.com.cn

XPPEN Technology CO. Agent Authorization Company: XPPEN Technology CO. Address: 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Product Name: Drawing Tablet Trade Mark: Model Number(s): Deco mini7W V2 FCC ID: 2AKDT-DECOMINI7WV2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2025-12-03 Name: Tiger Li Title: general manager Company: general manager

XPPEN Technology CO. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2025-12-03 Subject; Request for Confidentiality FCC ID: 2AKDT-DECOMINI7WV2 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Tiger Li / general manager Company: XPPEN Technology CO. Address: 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Phone: +1-562-325-5204 Fax: +1-562-325-5204 E-Mail: [email protected]

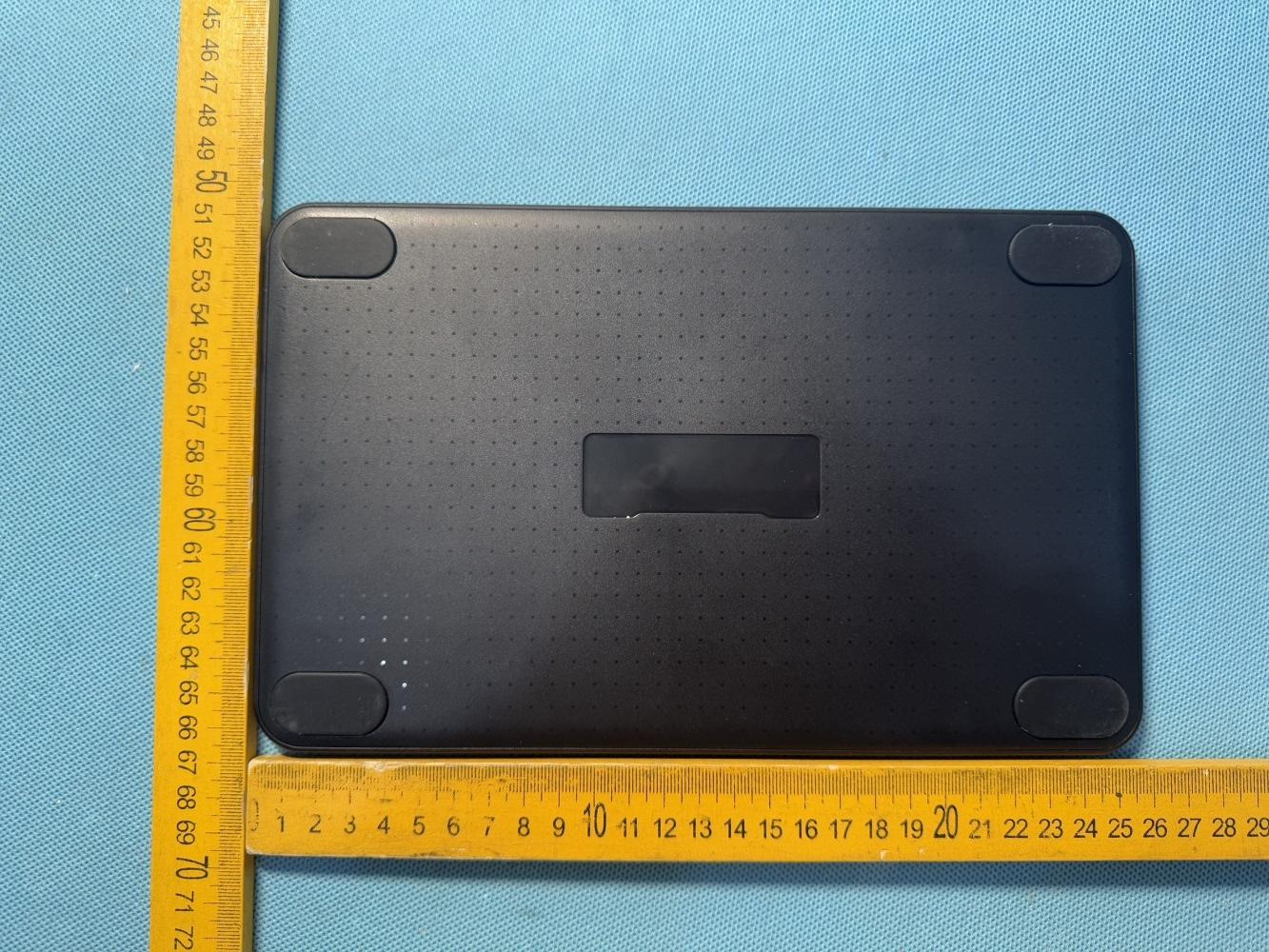

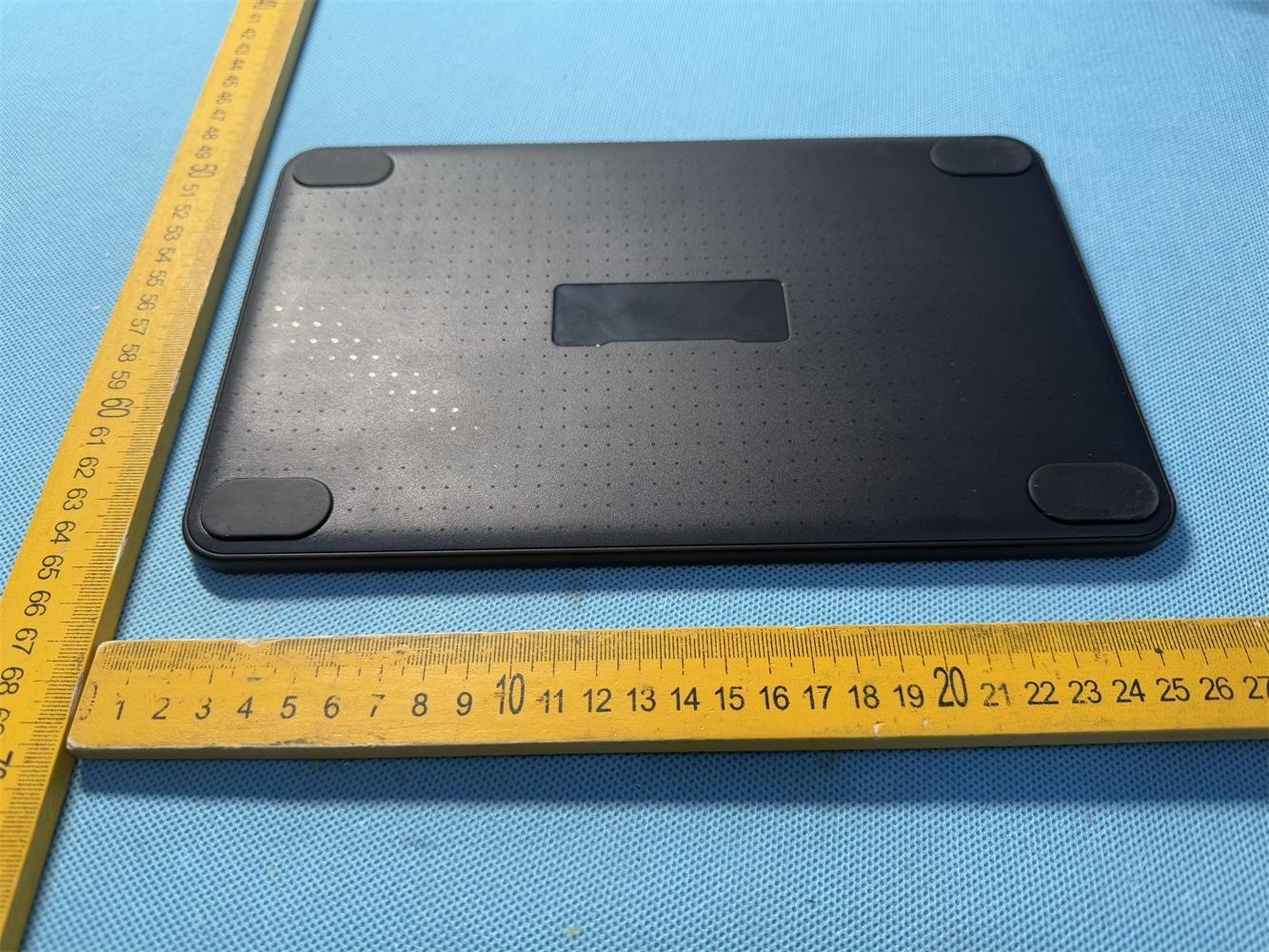

FCC ID: 2AKDT-DECOMINI7WV2 Fig. 1 Fig. 2 FCC ID: 2AKDT-DECOMINI7WV2 Fig. 3 Fig. 4 FCC ID: 2AKDT-DECOMINI7WV2 Fig. 5 Fig. 6

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L6.94cm x 2.44cm) Label Location

FCC ID: 2AKDT-DECOMINI7WV2 Fig. 1 Fig. 2 FCC ID: 2AKDT-DECOMINI7WV2 Fig. 3 Fig. 4 FCC ID: 2AKDT-DECOMINI7WV2 Fig. 5 Fig. 6 Antenna FCC ID: 2AKDT-DECOMINI7WV2 Fig. 7 Fig. 8

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No. .................... : FCC ID. ............................................ : GTS20251024014-1-05 2AKDT-DECOMINI7WV2 Compiled by ( position+printed name+signature) .. : File administrators Peter Xiao Supervised by ( position+printed name+signature) .. : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : Nov.20, 2025 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................. : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : XPPEN Technology CO. Address ............................................. : 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Test specification .......................... : Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Drawing Tablet Trade Mark ....................................... : Manufacturer ..................................... : Hanvon Ugee Technology Co., Ltd. Model/Type reference ....................... : Deco mini7W V2 Listed Models ................................... : N/A Exposure category ............................ : General population/uncontrolled environment EUT Type .......................................... : Portable Hardware Version ............................ : R0A Software Version .............................. : V01 Rating ............................................... : Input: 5V1A with built-in 3.7Vd.c. rechargeable battery inside Result ................................................ : PASS Report No.: GTS20251024014-1-05 Page 2 of 8 T E S T R E P O R T Test Report No. : GTS20251024014-1-05 Nov.20, 2025 ______________________________________________________________________________________________ Date of issue Equipment under Test : Drawing Tablet Model /Type : Deco mini7W V2 Listed model : N/A Applicant : XPPEN Technology CO. Address : 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Manufacturer : Hanvon Ugee Technology Co., Ltd. Address : 2/F, West of 3/F, 4/F, No.4 Building, Fulongte Industrial Park, Huaxing Road, Langkou Community, Dalang Street, Longhua District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20251024014-1-05 Page 3 of 8 Contents 1. S U M M A R Y .................................................................................. 4 1.1. Product Description .................................................................................................................................... 4 2. T E S T E N V I R O N M E N T ................................................................... 5 2.1. Address of the test laboratory ................................................................................................................... 5 2.2. Test Facility .................................................................................................................................................. 5 2.3. Environmental conditions .......................................................................................................................... 5 2.4. Statement of the measurement uncertainty ............................................................................................. 5 3 . M E T H O D O F M E A S U R EM E N T ......................................................... 6 3.1. Applicable Standard .................................................................................................................................... 6 3.2. Evaluation Method and Limit...................................................................................................................... 6 4. C O N D U C T E D P O W E R R E S U L T S ...................................................... 7 5. M A N U F A C T U R I N G T O L E R ANCE ...................................................... 7 6 . E V A L U A T I O N R E S U L TS ................................................................ 7 6.1. Standalone Evaluation ................................................................................................................................ 7 7. C O N C L U S I O N ............................................................................. 8 Report No.: GTS20251024014-1-05 Page 4 of 8 1. S U M M A R Y 1.1. Product Description Product Name: Drawing Tablet Trade Mark: Model/Type reference: Deco mini7W V2 List Model: N/A Model Declaration N/A Power supply: Input: 5V1A with built-in 3.7Vd.c. rechargeable battery inside Hardware Version R0A Software Version V01 Sample ID GTS20251024014-1-S001-1# & GTS20251024014-1-S001-2# Bluetooth Frequency Range 2402MHz ~ 2480MHz…

Text truncated - open the document above for the full version.

地 址：深圳市宝安区石岩坑尾大道39号弘昌工业园A栋2楼 邮 编：518108 电 话：0755-29683233 传 真：0755-29683337 E-mail：[email protected] [email protected] 深圳市飞路通科技有限公司 SHENZHEN FREERULE COMMUNICATION TECHNOLOGY CO.,LTD The BPN0605B-C adopts an on-board PCB antenna. The board material is a FR-4 2-layer board with a thickness of 1.0mm 1. Antenna size diagram: 2. Antenna efficiency, gain Test Point ID Freq(Mhz) Efficiency(%) Gain(dBi) https://fanyi.youdao.com/download 地 址：深圳市宝安区石岩坑尾大道39号弘昌工业园A栋2楼 邮 编：518108 电 话：0755-29683233 传 真：0755-29683337 E-mail：[email protected] [email protected] 深圳市飞路通科技有限公司 SHENZHEN FREERULE COMMUNICATION TECHNOLOGY CO.,LTD 1 2400 45.3% 2.35 2 2410 45.6% 2.68 3 2420 46.6% 2.69 4 2430 48.3% 2.73 5 2440 48.9% 2.84 6 2450 48.1% 2.92 7 2460 49.6% 2.95 8 2470 49.8% 2.97 9 2480 49.0% 2.85 10 2490 47.8% 2.77 11 2500 46.2% 2.44 3. Antenna pattern BT antenna standing wave ratio curve 地 址：深圳市宝安区石岩坑尾大道39号弘昌工业园A栋2楼 邮 编：518108 电 话：0755-29683233 传 真：0755-29683337 E-mail：[email protected] [email protected] 深圳市飞路通科技有限公司 SHENZHEN FREERULE COMMUNICATION TECHNOLOGY CO.,LTD

FCC ID:2AKDT-DECOMINI7WV2 1 Case No. :GTS20251024014-1-04 Ambient Condition: 23 °C, 47 %RH According Standard: ■Part15C Test Date: 2025.11.3-2025.11.19Test Engineer: Evan ouyang AppendixA.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.712 2401.640 2402.352 0.5 PASS 2440 0.704 2439.648 2440.352 0.5 PASS 2480 0.700 2479.644 2480.344 0.5 PASS FCC ID:2AKDT-DECOMINI7WV2 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID:2AKDT-DECOMINI7WV2 3 FCC ID:2AKDT-DECOMINI7WV2 4 AppendixA.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0301 2401.4901 2402.5202 --- --- 2440 1.0391 2439.4883 2440.5274 --- --- 2480 1.0271 2479.4918 2480.5189 --- --- FCC ID:2AKDT-DECOMINI7WV2 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID:2AKDT-DECOMINI7WV2 6 FCC ID:2AKDT-DECOMINI7WV2 7 AppendixA.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 -0.43 ≤30 PASS 2440 -0.18 ≤30 PASS 2480 -0.41 ≤30 PASS FCC ID:2AKDT-DECOMINI7WV2 8 AppendixA.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -18.68 ≤8.00 PASS 2440 -16.94 ≤8.00 PASS 2480 -18.27 ≤8.00 PASS FCC ID:2AKDT-DECOMINI7WV2 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID:2AKDT-DECOMINI7WV2 10 FCC ID:2AKDT-DECOMINI7WV2 11 AppendixA.5:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 -2.81 -50.05 ≤-22.81 PASS High 2480 -2.42 -49.92 ≤-22.42 PASS FCC ID:2AKDT-DECOMINI7WV2 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCC ID:2AKDT-DECOMINI7WV2 13 AppendixA.6:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference -2.69 -2.69 --- PASS 30~1000 -2.69 -60.32 ≤-22.69 PASS 1000~26500 -2.69 -48.13 ≤-22.69 PASS 2440 Reference -1.10 -1.10 --- PASS 30~1000 -1.10 -60.36 ≤-21.1 PASS 1000~26500 -1.10 -47.49 ≤-21.1 PASS 2480 Reference -2.44 -2.44 --- PASS 30~1000 -2.44 -60.35 ≤-22.44 PASS 1000~26500 -2.44 -46.89 ≤-22.44 PASS FCC ID:2AKDT-DECOMINI7WV2 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCC ID:2AKDT-DECOMINI7WV2 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCC ID:2AKDT-DECOMINI7WV2 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCC ID:2AKDT-DECOMINI7WV2 17 BLE_Ant1_2480_1000~26500 FCC ID:2AKDT-DECOMINI7WV2 18 AppendixA.7: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] Duty Cycle Factor[dB] 1/T Factor[KHz] BLE Ant1 2402 2.12 2.50 0.8480 84.80 0.72 0.47 2440 2.13 2.50 0.8520 85.20 0.70 0.47 2480 2.12 2.50 0.8480 84.80 0.72 0.47 FCC ID:2AKDT-DECOMINI7WV2 19 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID:2AKDT-DECOMINI7WV2 20 FCC ID:2AKDT-DECOMINI7WV2 21 AppendixA.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.24 ≤-41.20 45.96 ≤54 PASS AV 2383.475 -48.79 ≤-41.20 46.41 ≤54 PASS AV 2390.000 -48.91 ≤-41.20 46.29 ≤54 PASS Peak 2310.000 -41.42 ≤-21.20 53.78 ≤74 PASS Peak 2326.355 -39.18 ≤-21.20 56.02 ≤74 PASS Peak 2390.000 -39.69 ≤-21.20 55.51 ≤74 PASS High 2480 AV 2483.500 -48.47 ≤-41.20 46.73 ≤54 PASS AV 2483.520 -48.47 ≤-41.20 46.73 ≤54 PASS AV 2500.000 -48.65 ≤-41.20 46.55 ≤54 PASS Peak 2483.500 -41 ≤-21.20 54.20 ≤74 PASS Peak 2483.920 -38.86 ≤-21.20 56.34 ≤74 PASS Peak 2500.000 -42.79 ≤-21.20 52.41 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCC ID:2AKDT-DECOMINI7WV2 22 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCC ID:2AKDT-DECOMINI7WV2 23 BLE_Ant1_High_2480_Peak

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : GTS20251024014-1-04 2AKDT-DECOMINI7WV2 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Nov.20, 2025 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : XPPEN Technology CO. Address ............................................ : 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Drawing Tablet Trade Mark ....................................... : Manufacturer .................................... : Hanvon Ugee Technology Co., Ltd. Model/Type reference ...................... : Deco mini7W V2 Listed Models .................................. : N/A Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Hardware Version ............................ : R0A Software Version .............................. : V01 Rating ............................................... : Input: 5V1A with built-in 3.7Vd.c. rechargeable battery inside Result ............................................... : PASS Report No.:GTS20251024014-1-04 Page 2 of 33 T E S T R E P O R T Test Report No. : GTS20251024014-1-04 Nov.20, 2025 ____________________________________________________________________________________________ Date of issue Equipment under Test : Drawing Tablet Model /Type : Deco mini7W V2 Listed model : N/A Applicant : XPPEN Technology CO. Address : 15350 Fairfield Ranch Road, Chino Hills, California 91709, United States Manufacturer : Hanvon Ugee Technology Co., Ltd. Address : 2/F, West of 3/F, 4/F, No.4 Building, Fulongte Industrial Park, Huaxing Road, Langkou Community, Dalang Street, Longhua District, Shenzhen Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.:GTS20251024014-1-04 Page 3 of 33 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 6 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 6 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accessories ............................................................................................................................... 7 2.9. External I/O Cable .................................................................................................................................. 7 2.10. Related Submittal(s) / Grant (s) ........................................................................................................... 7 2.11. Modifications ........................................................................................................................................ 7 3. TEST ENVIRONMENT ..................................................................................................................................... 8 3.1. Address of the test laboratory ................................................................................................................ 8 3.2. Test Facility ............................................................................................................................................ 8…

Text truncated - open the document above for the full version.

FCC ID: 2AKDT-DECOMINI7WV2 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2AKDT-DECOMINI7WV2 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4
